K5739 - Watch Calypso - Free user manual and instructions

Technical Specifications	Analog watch with stainless steel case, mineral glass, water resistance up to 50 meters.
Features	Time display, date, stopwatch, alarm.
Usage	Suitable for daily use, sports activities, and formal occasions.
Maintenance	Battery replacement every 2-3 years, regular cleaning with a soft cloth.
Safety	Avoid strong shocks, do not expose to extreme temperatures.
General Information	2-year warranty, available in multiple colors.

Frequently Asked Questions - K5739 Calypso

How do I set the time on my Calypso K5739 watch?

To set the time, pull the crown out to the first position. Then turn the crown to adjust the time. Push the crown back in to lock it in place.

My Calypso K5739 watch is not working, what should I do?

First, check that the watch is charged. If it is battery-powered, replace the battery. If the problem persists, please contact customer service.

How do I clean my Calypso K5739 watch?

Use a soft, damp cloth to clean the case and strap. Avoid using chemical or abrasive products.

Is my watch waterproof?

The Calypso K5739 is generally water resistant up to 30 meters. Avoid deep water activities and do not press buttons underwater.

How do I change the strap on my Calypso K5739 watch?

Use a spring bar tool to remove the spring bars from the current strap. Then insert the new strap in place and ensure it is securely attached.

What should I do if the glass on my watch is scratched?

For light scratches, you can use a plastic polish. For deeper scratches, it is recommended to contact a professional for replacement.

Where can I find the user manual for the Calypso K5739?

The user manual can be downloaded from the official Calypso website in the support or contact section.

How do I know if my watch needs a new battery?

If the display blinks or the watch stops working, this may indicate it is time to replace the battery.

USER MANUAL K5739 Calypso

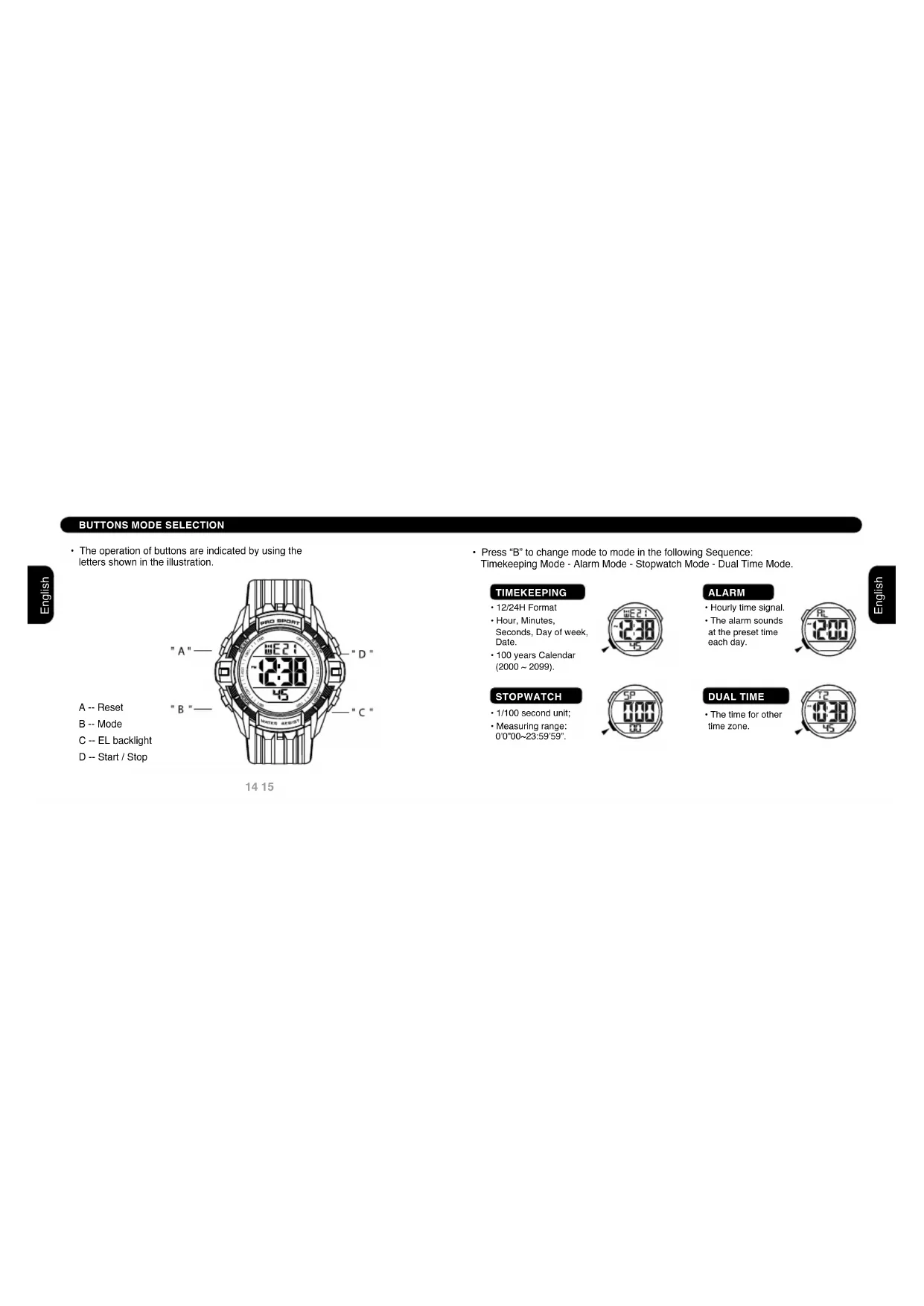

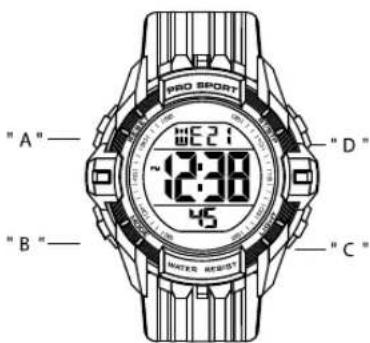

The operation of buttons are indicated by using the letters shown in the illustration.

A--Reset

B--Mode

C--EL backlight

D--Start/Stop

• Press "B" to change mode to mode in the following Sequence: Timekeeping Mode - Alarm Mode - Stopwatch Mode - Dual Time Mode.

TIMEKEEPING

12/24H Format
- Hour, Minutes, Seconds, Day of Date.
100 years Calendar (2000 ~ 2099).

STOPWATCH

• 1/100 second unit;
  Measuring range: 0°-00-23.59'59".

ALARM

• Hourly time signal.
  The alarm sounds at the preset time each day.

DUAL TIME

The time for other time zone.

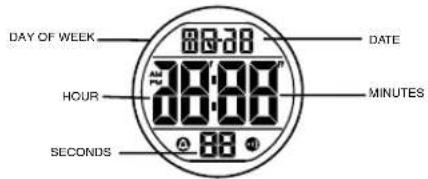

DISPLAY TIMEKEEPING

The screen shown in below:

BACKLIGHT

• The backlight that uses an EL (electro-luminescent) cause the display to glow for easy reading in the dark.

Use EL Backlight

• In any mode, press "C" to illuminate the display about 3 seconds.

12/24H Format

• In the timekeeping mode, press "A" to switch between 12/24H formats.

Time Setting

1. In the timekeeping mode, press and hold "A" until the seconds to flash (flashing indicated in set mode).

2. Press "D" to reset the seconds.

Calendar

• In the timekeeping mode, press and hold "D" to display: Year, Month, Date

1. Press "D" to increase the number, press and hold to increase at high speed.

1. Repeat step 3 and 4, the selection in the following sequence: Seconds - Hour - Minutes - Year Month - Date.

2. Press "A" to exit the set state, after you set(The day of week is automatically displayed in accordance with year, month and date setting).

Alarm and Chime

• In the alarm mode, press "D" to on/off the alarm and chime in the following sequences: Alarm & Chime off - Alarm on Chime on - Alarm & Chime on.

Alarm Time Setting

1. In the alarm mode, press "A" the hour to flash/flashing indicated in set mode.
2. Press "D" to Increase the hour, press and hold to increase at high speed.
3. Press "B" to select the minutes.
4. Press "D" to increase the minutes, press and hold to increase at high speed.
5. Press "A" to exit the set state, after you set.
   The alarm sounds at the preset time each day for about 60 seconds, press any button to break it.

A Lap Time Split Time

1. In the stopwatch mode, press "D" to start the stopwatch.
2. To stop the stopwatch by pressing "D" again.
3. Press "A" to reset the stopwatch.

1. In the stopwatch mode, press "D" to start the stopwatch.
2. Press "A" to display the split time, stopwatch timing continues internally.
3. Press "A" to clear the split time and to continue time measurement.
4. Repeat step 2 and 3, you can measure themulti split time.
5. Press "D" to stop the stopwatch.

DUAL TIME

CARE OF YOUR WATCH

Dual Time Setting

1. In the dual time mode, press "A" the hour to flash (flashing indicated in set mode).
2. 1. Press "D" to increase the hour, press and hold to increase at high speed.
3. Press "B" to select the minutes.
4. Press "D" to change the minutes (press once change 30 minutes).
5. Press "A" to exit the set state, after you set.

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and static electricity.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.
