USER MANUAL GK415RVSA Pelgrim

Before use, read the separate safety instructions first!

Suitable for G+ gas

Where the GAD type examination certificates of KIWA refer to the appliance category "I2EK" this is understood as: This appliance was configured for the appliance category K (I2K) and is suitable for the use of G and G + distribution gases according to the specifications as included in the NTA 8837:2012 Annex D with a Wobbe index of 43.46 - 45.3MJ / m3 (dry, 0^ , upper value) or 41.23 - 42.98 (dry, 15^ , upper value). This appliance can moreover be converted and/or again be calibrated for the appliance category E (I2E) This therefore implies that the appliance: "is suitable for G + gas and H gas or is demonstrably suitable for G + gas and can demonstrably be made suitable for H gas" within the meaning of the "Dutch Decree of 10 May 2016 regarding amendment of the Dutch Gas Appliances Decree....".

COMMANDDE

Allumage et réglage

boutonde réglage

1. indicateur spatial / position 0
2. position maximum
3. position minimum

Suitable for G+ gas

Where the GAD type examination certificates of KIWA refer to the appliance category "I2EK" this is understood as: This appliance was configured for the appliance category K (I2K) and is suitable for the use of G and G + distribution gases according to the specifications as included in the NTA 8837:2012 Annex D with a Wobbe index of 43.46 - 45.3MJ / m3 (dry, 0^ , upper value) or 41.23 - 42.98 (dry, 15^ , upper value). This appliance can moreover be converted and/or again be calibrated for the appliance category E (I2E) This therefore implies that the appliance: "is suitable for G + gas and H gas or is demonstrably suitable for G + gas and can demonstrably be made suitable for H gas" within the meaning of the "Dutch Decree of 10 May 2016 regarding amendment of the Dutch Gas Appliances Decree....".

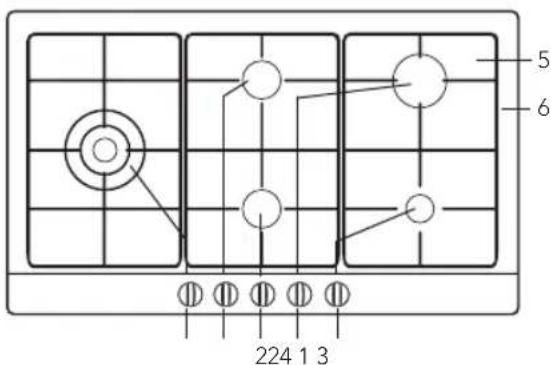

1. rapid burner
2. semi-rapid burner
3. simmer burner
4. wok burner
5. spillage well
6. pan supports

Energy efficiency per gas burner
Burner EEgas burner
1 59.1
2 59.5
Energy efficiency per gas hob
Type of hob EEgas hob
GK415RVSA 59.4
GK417RVSA 59.4

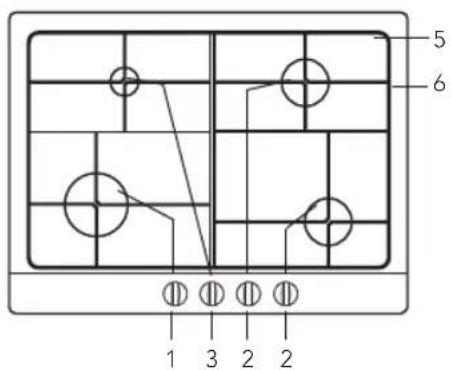

GK425/GK427

Energy efficiency per gas burner
Burner EEgas burner
1 59.1
2 59.5
Energy efficiency per gas hob
Type of hob EEgas hob
GK425RVSA 59.4
GK427RVSA 59.4

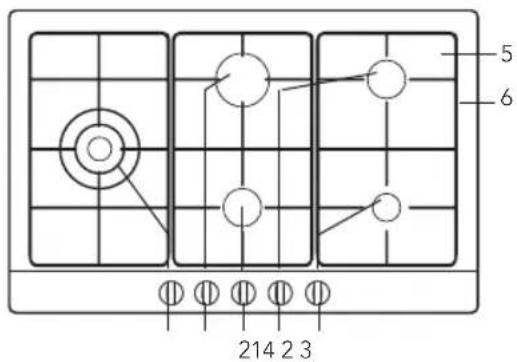

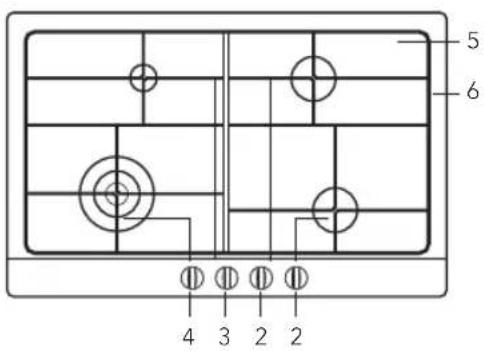

GK472W

Energy efficiency per gas burner
Burner EEgas burner
2 59.5
4 52.1
Energy efficiency per gas hob
Type of hob EEgas hob
GK472WRVSA 57.0

GK465

Energy efficiency per gas burner
Burner EE gas burner
1 59.1
2 59.5
4 52.1

Energy efficiency per gas hob
Type of hob EEgashob
GK465RVSA 57.6

GK495

Energy efficiency per gas burner
Burner EE gas burner
1 59.1
2 59.5
4 52.2

Energy efficiency per gas hob
Type of hob EEgashob
GK495RVSA 57.6

Suitable for G+ gas

Where the GAD type examination certificates of KIWA refer to the appliance category "I2EK" this is understood as: This appliance was configured for the appliance category K (I2K) and is suitable for the use of G and G + distribution gases according to the specifications as included in the NTA 8837:2012 Annex D with a Wobbe index of 43.46 - 45.3MJ / m3 (dry, 0^ , upper value) or 41.23 - 42.98 (dry, 15^ , upper value). This appliance can moreover be converted and/or again be calibrated for the appliance category E (I2E) This therefore implies that the appliance: "is suitable for G + gas and H gas or is demonstrably suitable for G + gas and can demonstrably be made suitable for H gas" within the meaning of the "Dutch Decree of 10 May 2016 regarding amendment of the Dutch Gas Appliances Decree....".

OPERATINGINSTRUCTIONS

Ignition and adjustment

control knob

1. zone indication / 0 position
2. high setting
3. low setting

Each burner is fully adjustable between high and low settings.

• Press the control knob and turn it anticlockwise. The burner will ignite.
• Press the control knob fully for at least 3 seconds between high (2) and low (3) settings. The thermocouple safety pilot has been activated.

Use

error

Pans

Always ensure that the flames remain under the pan. A lot of energy is lost if flames burn around the pan. The handles may also become too hot.
- Do not use pans with a base diameter smaller than 12cm . Smaller pans are not as stable.

good

Pan support

Place the pan supports vertically, without sliding over the drip tray. Position the pan supports on the drip tray in the correct way.

Maintenance

Regular maintenance after use prevents food residue from encrusting and creating stubborn stains. Use a mild cleaning detergent to remove stains.

Clean the control knobs, burners and pan supports first and then the drip tray or glass cover. This will prevent the drip tray or glass cover from becoming dirty again during cleaning.

Attention! Burner parts should not be cleaned in the dishwasher.

Dishwasher detergents can corrode burner parts!

Persistent stains on enamel (pan supports, burner caps)

Persistent stains can best be removed with a fluid detergent or a plastic scouring sponge. Never use scouring powder, scouring pads, sharp objects or aggressive cleaning products.

Persistent stains on stainless steel

Persistent stains on stainless steel are best removed with a special stainless steel cleaning product. Always wipe in the direction of the grain to prevent damage to the protective layer (damage caused in this way does not fall under the guarantee!) The surface of stainless steel drip trays can discolour slightly over time.

Consult the www.pelgrimservice.nl website for additional maintenance and cleaning instructions!

FAULTS

Fault table

If your gas hob does not work properly it does not always mean that it is defect. Try to solve the problem yourself first by checking the points in the table below or check the 'www.pelgrimservice.nl' website for more information.

SYMPTOM POSSIBLE CAUSE SOLUTION
There is a smell of gas near the appliance.	The appliance connection is leaking.	Turn off the main gas supply valve. Contact your installer.
A burner does not ignite.	Plug not in socket.Fuse defective/fuse switched off in fuse box.Spark plug dirty/damp.Burner parts not placed correctly.Burner parts dirty/damp.Main gas supply valve closed.Fault in gas mains.Gas bottle or tank is empty.Wrong type of gas used.	Put the plug into the socket.Replace the fuse or switch on the fuse in the fuse box.Clean/dry the spark plug.Use the centring leads to put the burner parts togetherCLEAN/dry the burner parts. Make sure that the outflow holes are open.Open the main gas valve.Consult you gas supplier Connect a new gas bottle or have the tank refilled Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.
The burner does not burn evenly.	Burner parts not placed correctly.Burner parts dirty/damp.Wrong type of gas used.	Use the centring leads to put the burner parts togetherCLEAN/dry the burner parts. Make sure that the outflow holes are open.Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.
Burner extinguishes after igniting.	The control knob has not been pressed long and/or deep enough (at least 3 seconds).Thermocouple is dirty.	Keep the control knob fully pressed for at least 3 seconds between high and low settings. This can take longer the first time because of the gas supplyCLEAN/dry thermocouple.

Disposal of the appliance and packaging

Sustainable materials have been used during manufacture of this appliance.

The appliance packaging is recyclable. The following materials may have been used:

cardboard;
paper;
polyethylene film (PE);
CFC-free polystyrene (PS-rigid foam);
polypropylene tape (PP).

Dispose of these materials in a responsible way and in accordance with government regulations.

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately.

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance such as this hob separately avoids possible negative consequences for the environment and health and enables the constituent materials to be recovered, resulting in significant savings in energy and resources.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

---

Het toestel-identifi catieplaatje bevindt zich aan de onderkant van het toestel. La plaque d'identifi cation de l'appareil se touve sur le dessus de l'appareil. Das Gerätotypenschild bef indet sich an der Unterseite des Gerätes. The appliance identifi cation card is located on the bottom of the appliance.

Plak hier het toestel-identifi catieplaatje.
Placez ici la plaque d'identifi cation de l'appareil.
Kleben Sie hier das Gerätotypenschild ein.
Stick the appliance identifi cation card here.

Houd, wanneer u contact opneem met de serviceafdeling, het complete typenummer bij de hand.
En cas de contact avec le service après-vente,ayez aupres de vous le numero de type complet Halten Sie die vollstandige Typennummer bereit, wenn Sie mit der Kundendienstabteilung Kontakt aufnehmen. When contacting the service department, have the complete type number to hand.

Adressen en telefonnummers van de serviceorganisatie vindt u op de garantiekaart. Les adresses et les numeros de téléphone du service après-vente se trouvent sur la carte de garantie. Adressen und Telefonnummern der Kundendienstorganisation fi nden Sie auf der Garantiekarte. You will find the addresses and phone numbers of the service organisation on the guarantee card.
