USER MANUAL IK4084M Pelgrim

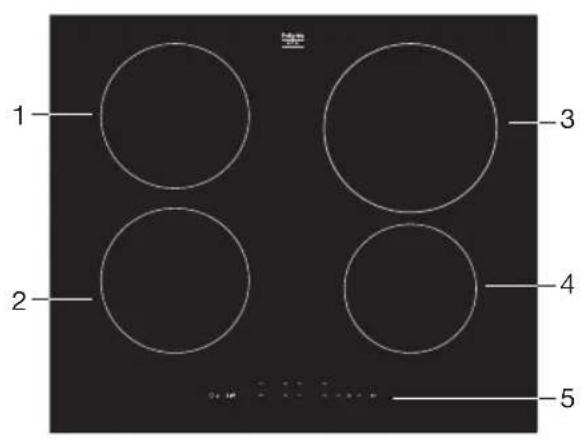

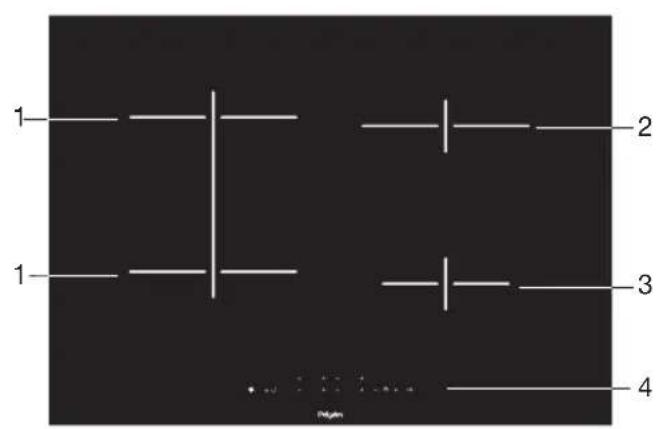

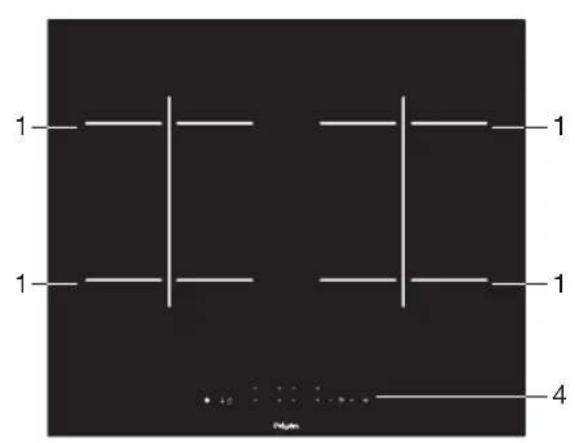

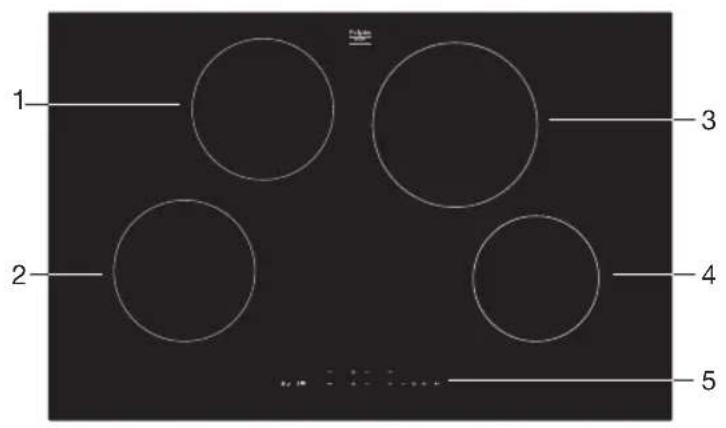

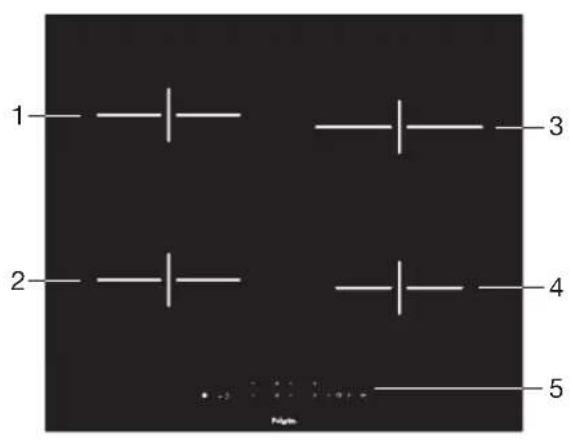

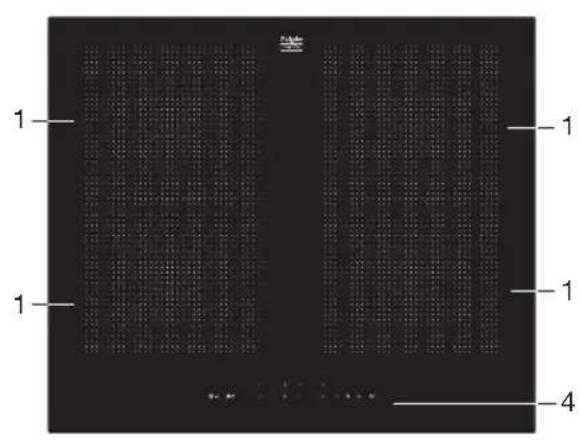

1. Bridge induction cooking zone 19 x 21 cm / 2.1 kW - 3.0 kW (boost)

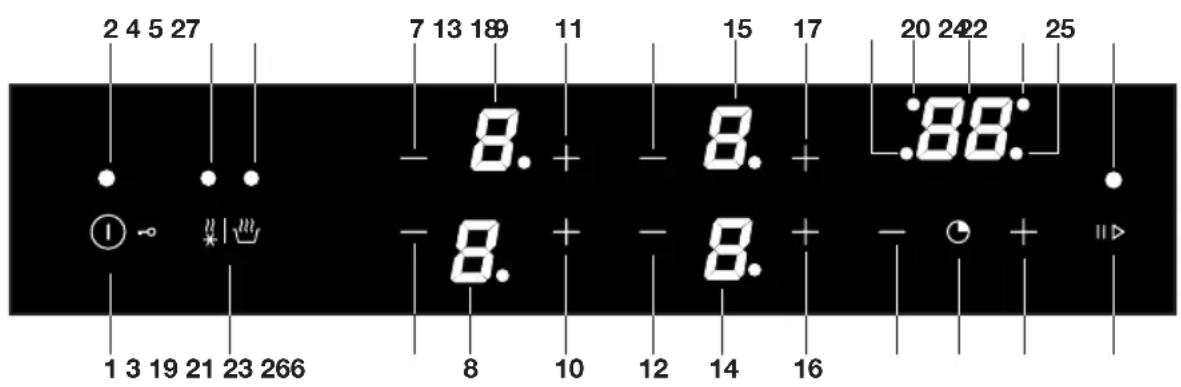

4EN 7 YOUR HOB Control panel

10. Power increase key left front cooking zone

16. Power increase key right front cooking zone

Some operating functions are available depending on the model.

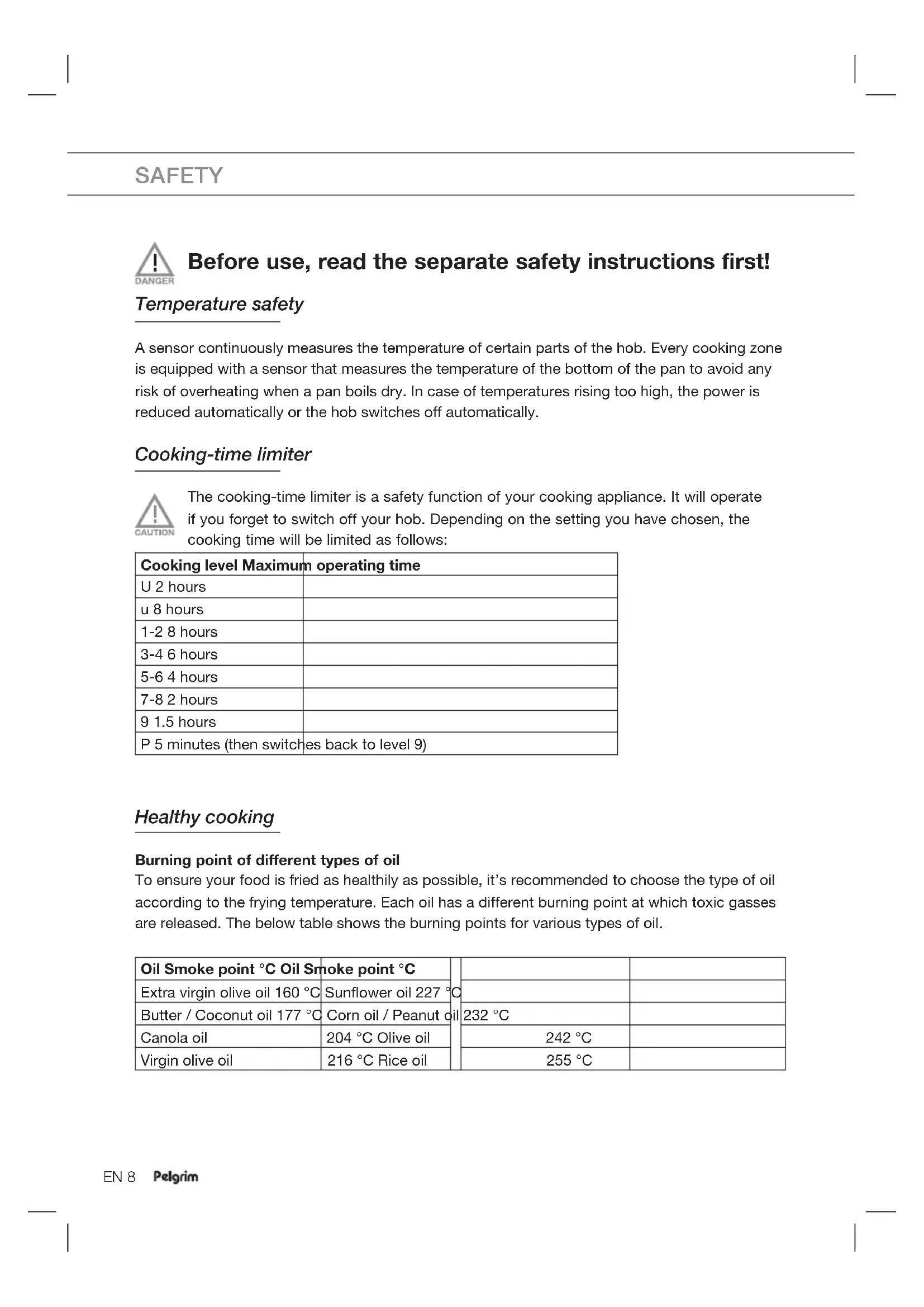

22EN 8 SAFETY Before use, read the separate safety instructions first! Temperature safety A sensor continuously measures the temperature of certain parts of the hob. Every cooking zone is equipped with a sensor that measures the temperature of the bottom of the pan to avoid any risk of overheating when a pan boils dry. In case of temperatures rising too high, the power is reduced automatically or the hob switches off automatically. Cooking-time limiter The cooking-time limiter is a safety function of your cooking appliance. It will operate if you forget to switch off your hob. Depending on the setting you have chosen, the cooking time will be limited as follows: Cooking level Maximum operating time U 2 hours u 8 hours 1-2 8 hours 3-4 6 hours 5-6 4 hours 7-8 2 hours 9 1.5 hours P 5 minutes (then switches back to level 9) Healthy cooking Burning point of different types of oil To ensure your food is fried as healthily as possible, it’s recommended to choose the type of oil according to the frying temperature. Each oil has a different burning point at which toxic gasses are released. The below table shows the burning points for various types of oil. Oil Smoke point °C Oil Smoke point °C Extra virgin olive oil 160 °C Sunflower oil 227 °C Butter / Coconut oil 177 °C Corn oil / Peanut oil 232 °C Canola oil 204 °C Olive oil 242 °C Virgin olive oil 216 °C Rice oil 255 °CEN 9 USE Induction noises A ticking sound

• This is caused by the capacity limiter on the left and right zones. Ticking can also occur at lower settings. Pans are making noise

• Pans can make some noise during cooking. This is caused by the energy flowing from the hob to the saucepan. At high settings this is perfectly normal for some pans. It will not damage either the pans or the hob. The fan is making noise

• To enlarge the lifespan of the electronics, the appliance is equipped with a fan. If you use the appliance intense, the fan is activated to cool down the appliance and you will hear a buzzing sound. The fan runs on for several minutes after the hob has been switched off. Pans

• Always place a pan in the middle (cross section) of a cooking zone.

• Induction cooking requires a particular quality of pan.

• Only use pans that are suitable for electric and induction cooking with: ▷ a thick base (minimum 2.25 mm); ▷ a clean and flat base.

• The best are pans with the ‘Class Induction’ quality mark. Pans that have already been used for cooking on a gas hob are no longer suitable for use on an induction hob. You can check for yourself whether your pans are suitable using a magnet. A pan is suitable if the base of the pan is attracted by the magnet. Suitable Unsuitable Special stainless steel pans Earthenware Class Induction Stainless steel Hard-wearing enamelled pans Porcelain Enamelled cast-iron pans Copper / Aluminium / Plastic Be careful with enamelled sheet-steel pans! The enamel may chip (the enamel comes loose from the steel), if you switch the hob on at a high setting when the pan is (too) dry. The base of the pan may warp - due, for example, to overheating or to the use of too high a power level.EN 10 USE

• Never use pans with a misshapen base. A hollow or rounded base can interfere with the operation of the overheating protection, so that the appliance becomes too hot. This may lead to the glass top cracking and the pan base melting.

• Damage arising from the use of unsuitable pans or from boiling dry is excluded from the guarantee. Minimum pan diameter

• The diameter of the bottom of the pan must be at least: ▷ 9 cm for zone ø 16 - 18 cm ▷ 11 cm for zone ø 21 cm and for zone 19 x 21 cm ▷ 23 cm for linked Bridge zones

• You will achieve the best results by using a pan with the same diameter as the zone. If a pan is too small the cooking zone will not work. Pressure cookers

• Induction cooking is very suitable for cooking in pressure cookers. The cooking zone reacts very quickly, and so the pressure cooker is quickly up to pressure. As soon as you switch a cooking zone off, the cooking process stops immediately. Power level setting The cooking zones have 9 levels and a boost level.

• Touch the ‘+’ or ‘-’ key of the desired cooking zone. ▷ Touching the ‘+’ key for the first time displays setting ‘9’. ▷ Touching the ‘-’ key for the first time displays setting ‘4’.

• Use the ‘+’ or the ‘-’ key of the desired cooking zone to choose the desired power setting. Set the power level to 9 and then touch the ‘+’ key to select the Boost level. ▷ The cooking zone starts at the selected power level. Power distribution cooking zones

• Maximum power available is depending on the power connection of the hob. Consult chapter Settings ‘Total maximum power‘.

• When Po is set at <7.4 then the cooking zones on the right influence each other. Also the cooking zones on the left influence each other. The power is automatically distributed when these cooking zones are used at the same time. This does not have any consequences up to setting 9. ▷ If the maximum power has reached a audio signal will sound.

• If one of the cooking zones is set to boost and you want to set the other zone to setting 9 or Boost, then first set the cooking zone that is set to boost to a lower setting.EN 11

• The right and left cooking zones do not influence each other. You can set one cooking zone from the left side to Boost or one from the right side to Boost. If the ‘Total maximum power’ P0 is set at 3.7 or lower, then the cooking zones on the left and right influence each other. If the maximum power has been reached a audio signal will sound. Melting/keep warm functions The melting and keep warm functions are intended for heating up food and keeping it at a certain temperature.

• Melting ▷ A temperature of 42 ºC (+/- 5 ºC) is maintained for melting food (depending on quality of used cookware).

• Keep warm ▷ A temperature of 70 °C (+/- 5 ºC) is maintained for keep warm food (depending on quality of used cookware). Automatic heat up This function preheats the cooking zone at level 9 in order to bring it rapidly up to the required temperature. After a given time interval, the power level returns to the established setting. It may be switched on in any of the zones for all power settings except for setting “9” and Boost. Cooking level Time interval (seconds), cooking zone switches to the choosen setting

Pause function The pause function can only be used when at least one zone is switched on. The maximum break duration is 10 minutes. After 10 minutes at pause, the hob switches off. Cooking can be resumed within 10 minutes by touching the pause key. While the Pause function is active:

• Any Timer (also Alarm timer) set before the pause will be stopped during the pause and continue when pause mode is stopped. USEEN 12 USE Indications in the display In display Status Power setting cooking zone; 1 = low setting / 9 = high setting No (suitable) pan on cooking zone (pan detection symbol) Bridge function selected (depending on model) Automatic heat-up function selected Melting function selected Keep warm function selected Child lock function selected Residual heat indicator; The hob has a residual heat indicator for each cooking zone to show those which are still hot. Although the hob is switched off, the indicator ‘H’ will remain on for as long as the cooking zone is hot! Avoid touching them when this indicator is lit. Danger! Risk of burns. Fault code; See ‘Troubleshooting table’ Fault code; See ‘Troubleshooting table’ Cooking-timer/minute minder

• A cooking-timer can be set for each active cooking zone.

• The hob also has a minute minder. Both the cooking-timer as well as the minute minder can be set for a maximum of 99 minutes.

• The minute minder works in the same way as the cooking-timer, but is not linked to a cooking zone. When the hob is switched off the minute minder continues.

• The minute minder can only be switched off or adjusted when the hob is switched on. Select the desired function:

• Cooking-timer — the timer is linked to a active cooking zone. After the set time has elapsed, the cooking zone will switch off automatically.

• Minute minder — no cooking zone will be switch Off after the set time has elapsed. Only an alarm will sound. ▷ Press any key to stop the alarm.EN 13 Hob functions table Function Key(s) to use Description On/Off and Child safety lock On/Off function; to turn the induction hob on or off. Child safety lock function; by activating the child safety lock mode protection you can prevent the operation of the appliance, protecting the children from accidental start and eventual injury. Can only be activated when no cooking zone is selected or active. Timer The timer can be set separately for each active cooking zone. Cooking times of up to 99 minutes can be programmed. The timer alarm beeps after the set time has passed. The timer alarm stops automatically after 2 minutes or by touching any key. The cooking zone automatically switches off when the set time has elapsed. When no cooking zone is selected the timer works as a minute minder (no automatic switch off). Pause When Pause is activated it reduces the power level to ‘0’ of all cooking zones that are in use. If you deactivate the pause function the cooking zones will return to there previous power level. The hob will switch off if de pause function is not deactivated within 10 minutes. Melting/ Keep warm Melting and keep warm function; to maintain a fixed temperature to defrost or keep warm food. Touch once to select the melting function. Touch twice to select the keep warm function. USEEN 14 Cooking settings Because the settings depend on the quantity and composition of the contents of the pan, the table below is intended as a guideline only. Use setting ‘boost’ to:

• bring the food or liquid to the boil quickly;

• wok. Use setting 9 to:

• fry boiled potatoes;

• deep fry foods. Use setting 7 and 8 to:

• fry thick slices of breaded meat;

• fry thin slices of (breaded) meat. Use setting 4-6 to:

• complete the cooking of large quantities;

• defrost hard vegetables;

• fry thick slices of breaded meat. Use settings 1-3 to:

• melt cheese. USEEN 15 Start cooking Use of the touch keys Put the tip of your finger flat on the touch key. Do not apply pressure. The touch keys react to a light fingertip touch. Only operate the touch keys with your finger. The touch key gives a short audio signal when it engages.

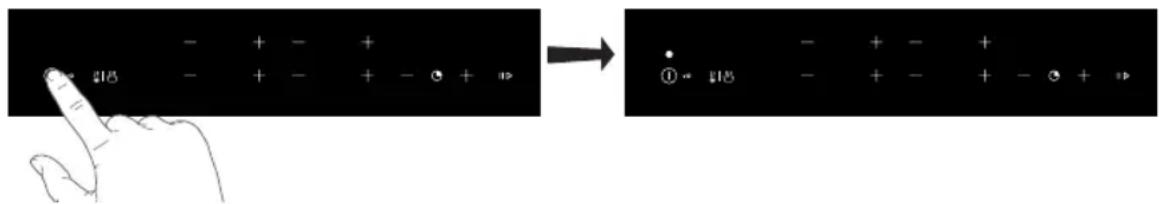

1. Touch and hold the On/Off key until you hear an audio signal.

▷ The On/Off Indicator light appears. ▷ All displays show ‘0’ indicating that the induction hob has entered the state of standby mode.

2. Place a suitable pan on the cooking zone.

▷ Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

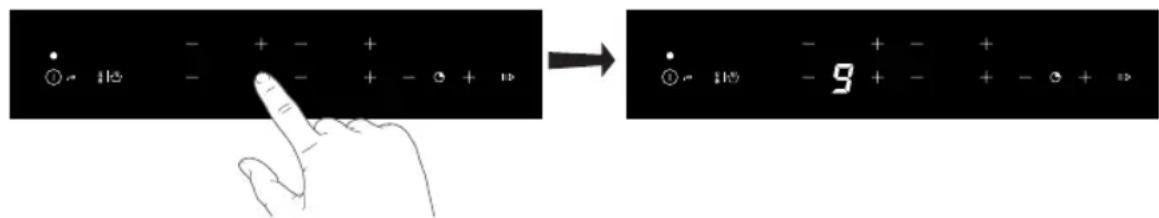

• Touch the ‘+’ or ‘-’ key of the desired cooking zone. ▷ Touching the ‘+’ key for the first time displays setting ‘9’. ▷ Touching the ‘-’ key for the first time displays setting ‘4’. ▷ A short audio signal will sound. ▷ The power level indicator is flashing. When the pan detection symbol flashes:

• you have not placed a pan on the correct cooking zone;

• the pan you’re using is not suitable for induction cooking;

• the pan is too small or not properly centered on the cooking zone. ▷ No heating takes place unless there is a suitable pan on the cooking zone. ▷ The display will automatically turn Off after 2 minutes if no suitable pan is placed on it. If the hob is not used for 10 seconds, it will shut off automatically. OPERATIONEN 16 Finish cooking

• Set the cooking power level to zero (0) to turn Off the cooking zone. You can also press the’-’ key and the ‘+’ key simultaneously to turn Off the cooking zone.

• Turn the induction hob Off by touching the On/Off key.

Symbol H will appear in the display of the cooking zone which is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat other pans, use the cooking zone that is still hot. Bridge cooking zones (depending on model) The Bridge induction zones can be linked to each other. This creates one large zone that can be used, for example, a grill plate or a large fish pan on the same power. If the Bridge induction zones are linked, they cannot be set to boost. The pan has to be large enough to cover the centres of the front and rear cooking zone. Link the bridge cooking zones

1. Press the On/Off key.

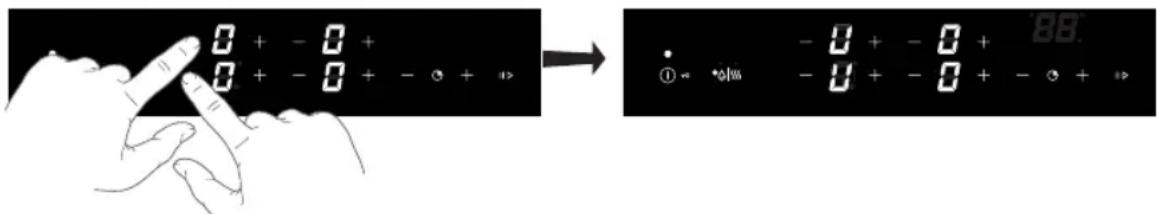

2. Simultaneously touch and hold (for 4 seconds) the ‘-’ keys from both the left-hand side or

right-hand side cooking zones. ▷ The ‘bridge cooking zone indicator’ will appear on the rear zone display to indicate that the two cooking zones are linked.

3. Set the desired cooking power for both the linked cooking zones with the ‘-’ and ‘+’ keys of

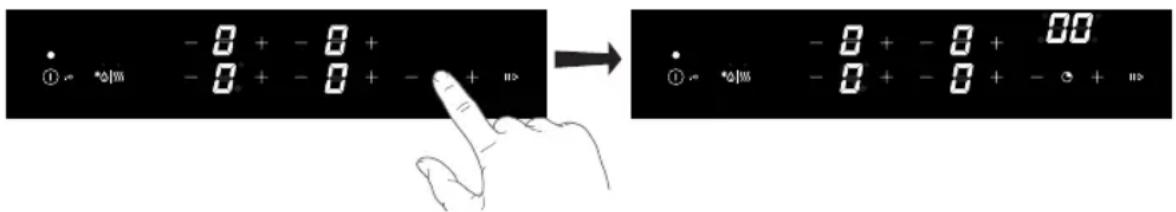

2. Touch the timer key to switch on the timer.

▷ In the timer’s display flashes “00”.

3. Within 10 seconds select a cooking time with the ‘-’ or ‘+’ timer key.

4. The minute minder has been set.

▷ When the time is set, it will begin to countdown immediately. ▷ The timer alarm beeps after the set time has passed. ▷ Touch any key to stop the alarm; alternatively it will switch off automatically after 2 minutes (switch Off time can be adjusted; see ‘Settings’). ▷ The display will show the remaining time. ▷ The minute minder function will remain activated even when the cooking hob is switched Off. ▷ During the last minute of countdown, remaining time will be displayed in seconds. Using the cooking timer

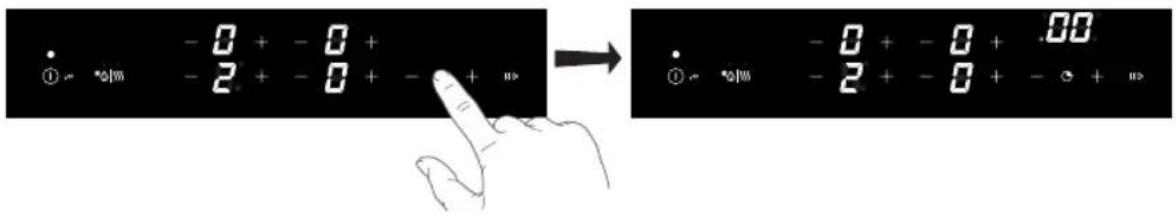

1. Switch on the hob and select a cooking zone and power level.

2. Touch the timer key to switch on the timer.

▷ In the timer’s display flashes “00”.

3. Touch the timer key again.

▷ The point from the relevant cooking zone next to the timer display and the time are flashing. ▷ Touch the timer key as many times as necessary, to select the cooking zone of which you want to set the timer. OPERATIONEN 18

4. Within 10 seconds select a cooking time with the ‘-’ or ‘+’ timer key.

▷ The point from the relevant cooking zone next to the timer display is flashing.

5. The timer has been set.

▷ The cooking zone will switch off after the set time has passed. ▷ The timer alarm beeps after the set time has passed. ▷ Touch any key to stop the alarm; alternatively the alarm will switch off automatically after 2 minutes (the duration time of the alarm can be adjusted; see ‘Settings’). Changing preset cooking time Cooking time can be changed anytime during the operation.

1. Touch the timer key as many times as necessary, to select the zone of which you want to

adjust the timer. ▷ The zone is identified by a flashing point next to the timer display.

2. Touch the ‘-’ or ‘+’ timer key to change the time.

Checking remaining cooking time The timer display shows all timer settings. The different timer settings are shown clockwise in the display in turn.

1. Touch the timer key as many times as necessary, to select the zone of which you want to

see the remaining time. ▷ The zone is identified by a flashing point next to the timer display. ▷ The timer will display the remaining time of the selected cooking zone. Turning the timer off If you want to switch off the timer prior the end of preset time:

1. Touch the timer key as many times as necessary, to select the zone of which you want to

disable the timer. OPERATIONEN 19

2. Simultaneously touch the ‘-’ and ‘+’ timer keys.

▷ The illuminated point next to the display is turned off. Switch on the Automatic heat-up function

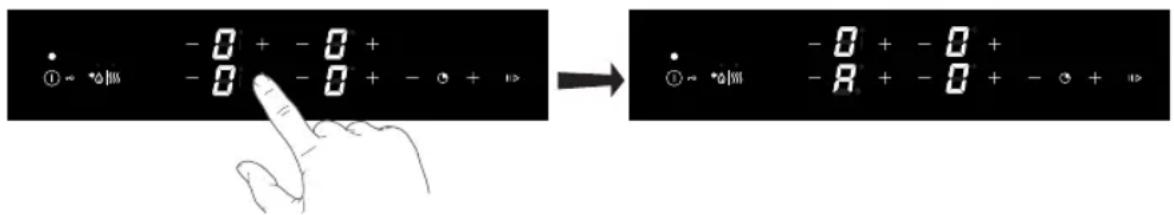

1. Switch on the hob and place a suitable pan on one of the cookings zones.

▷ The cooking zone should be off. ▷ A zero (0) should appears in the display.

2. Set power level ‘9’. Touch and hold the ‘+’ key for approximately 3 seconds until you hear a

short acoustic signal. ▷ ‘A’ and level ‘9’ flash alternately in the display.

3. Touch the ‘-’ key to set the power level you wish to cook with after the power setting with

automatic heat-up time is finished. ▷ After 3 seconds releasing the key the automatic heat-up functions is activated. ▷ ‘A’ and the selected power flash alternately in the display.

4. When the automatic heat-up time expires, the cooking zone automatically switches to the

selected power. ▷ The selected power will appear continuously in the display.

5. Touch the ‘-’ key to switch off the active automatic heat-up function or simultaneously touch

the ‘-’ and ‘+’ keys to switch off the cooking zone. ▷ Touch the ‘+’ key to increase the automatic heat-up function. Pause cooking

1. Touch the pause key.

▷ The light above the pause key is flashing (together with the power settings).

2. Touch the pause key again to turn off the pause function.

▷ The hob will automatically switch off after 10 minutes if the pause function is not switched off in the meantime. Using the (child) lock function

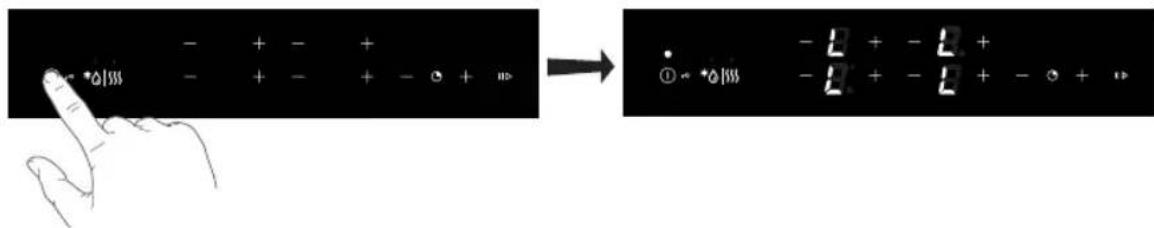

1. Switch off the hob.

2. Touch and hold the On/Off key for approximately 3 seconds.

▷ All displays show ‘L’. OPERATIONEN 20

• The hob is now locked. After 5 seconds, the hob will switch off automatically.

• To unlock touch and hold the On/Off key again for approx. 3 second. ▷ Child lock is now de-activated. If the child lock function is activated in the settings menu (see chapter ‘settings’) then the hob will be automatically locked every time it is switched off. Recall function If the control was accidentally switched off through the On/Off key all settings can be restored using the recall function.

1. Touch within 5 seconds the On/Off key.

2. Confirm to continue by touching within 5 seconds the pause key.

Switch on the melting function

1. Switch on the hob and place a suitable pan on one of the cookings zones.

2. Touch the melting/keep warm key once.

▷ The melting light above the key lights up.

3. Touch the ‘-’ or ‘+’ key of the desired cooking zone.

▷ Melting function is selected. The symbol ‘u’ appears in the display.

4. Touch the ‘-’ or ‘+’ key to switch off the melting function.

▷ Zero (0) appears in the display. Switch on the keep warm function

1. Switch on the hob and place a suitable pan on one of the cookings zones.

2. Touch the melting/keep warm key twice.

▷ The keep warm light above the key lights up.

3. Touch the ‘-’ or ‘+’ key of the desired cooking zone.

▷ Keep warm function is selected. The symbol ‘U’ appears in the display.

4. Touch the ‘-’ or ‘+’ key to switch off the keep warm function.

▷ Zero (0) appears in the display. OPERATIONEN 21 SETTINGS Setting the acoustic signal and lock parameters You can adjust the volume of the acoustic signal, duration of acoustic alarm, and automatic lock settings. Activate the setting menu:

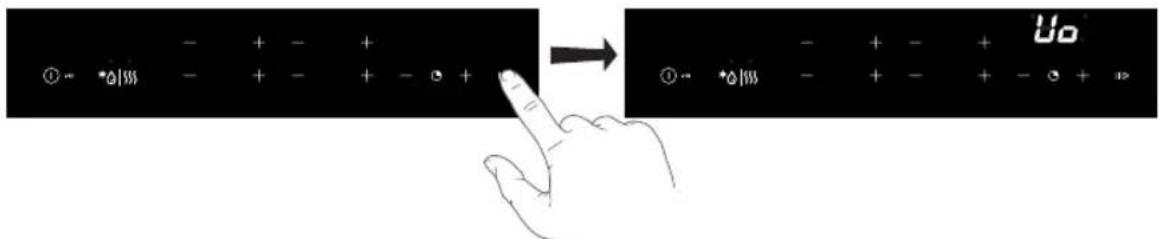

1. Switch off the appliance.

2. Touch and hold the pause key for approx. 3 seconds.

▷ The first parameter “Uo” will appear on the timer display, indicating the volume (loudness) of acoustic signals.

3. Touch the ‘+’ or ‘-’ timer key to select the type of parameter:

• Uo - acoustic signal and alarm volume (loudness)

• Po - Total maximum power ▷ The currently set value will appear on the right cooking zone power level displays.

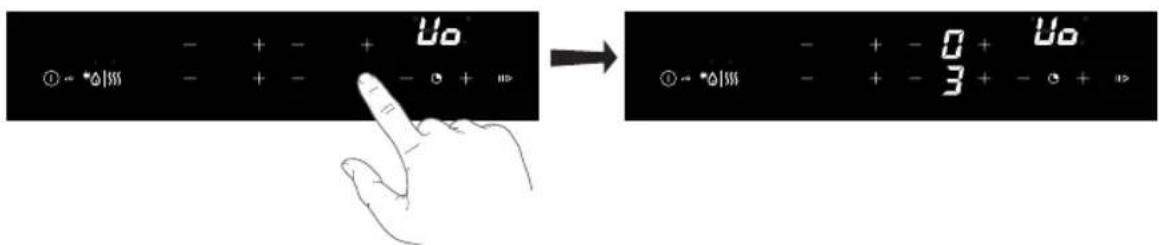

4. Touch the ‘-’ or ‘+’ keys from the front right cooking zone to adjust the value.

5. Touch and hold the pause key for 2 seconds to confirm and store all parameters.

▷ A short acoustic signal will sound.

6. Touch the On/Off key to close the settings mode (if you do not wish to store the new

parameter settings).EN 22 SETTINGS Acoustic signal and alarm volume (loudness) ‘Uo’ The following values can be set: ▷ 00 on the display = off (does not apply to alarm and error acoustic signal) ▷ 01 on the display = minimum volume ▷ 02 on the display = medium volume ▷ 03 on the display = maximum volume (default)

• The first digit appears on the right rear display and the second digit on the right front display.

• A short acoustic signal will be sounded upon every change, with the newly set volume. Acoustic alarm duration ‘So’ The following values can be set: ▷ 05 on the display = 5 seconds ▷ 1.0 on the display = 1 minute ▷ 2.0 on the display = 2 minutes (default) Child safety lock ‘Lo’ If the automatic lock function is activated in the user settings mode, the cooking hob will be automatically locked every time it is switched off. ▷ 00 on the display = off (default) ▷ 01 on the display = on Total maximum power ‘Po” If the electric installation in your home has different current limits, maximum power consumption of the cooking hob can be reduced: ▷ 2.3 on the display = 2.3 kW (10 A) ▷ 2.8 on the display = 2.8 kW (12 A) ▷ 3.0 on the display = 3.0 kW (13 A) ▷ 3.7 on the display = 3.7 kW (16 A) only for models: IK4064M / IK4064R / IK4064SR / IK4084M / IK4084R ▷ 7.4 on the display = 7.4 kW (2x16 A) / preset for all appliances except IK4064SR If the power level is limited, the settings and the resulting cooking power can be limited as well. The appliance is fitted with a power management system that makes sure the effect of power limiting is minimal.EN 23 Cleaning Set the child lock before you start cleaning the hob. We recommend that you clean the appliance after each use. This prevents that over cooked food can damage the glass surface. Daily cleaning

1. Use a damp cloth and a mild cleaning agent (washing-up liquid) to clean the appliance.

2. Dry the appliance with a paper towel or a cloth.

Heavily polluted glass

1. Immediately remove any food remains, burned grease, sugar or stubborn stains from the

glass ceramic hob using a scraper, even if the hob is still hot! Sugar and/or other food related remains may permanently damage the glass ceramic surface. ▷ Hold the scraper at the correct angle (45° to 60°) in relative to the glass. Gently press the scraper against the glass and slide it over the surface to remove the dirt. Make sure the plastic handle of the scraper (in some models) does not come into contact with a hot cooking zone. ▷ Do not press the scraper perpendicularly against the glass. ▷ Do not scratch the hob surface with the tips of the scraper blade. This can cause permant scratches in the glass.

2. After you have removed the stubborn stains from the glass, use the steps of the daily

cleaning to clean the hob.

3. If the cleaning result is not at your satisfaction you can repeat the above cleaning steps as

often as needed. Do not use abrasive cleaning agents, because they can cause scratches. Do not use steelwool, scourers or any type of sharp objects to clean the appliance. The hob can be still very hot due to the cooking process! Do not touch the surface directly. If desired use gloves to prevent burning while cleaning directly after cooking. MAINTENANCEEN 24 TECHNICAL SPECIFICATIONS Information according regulation (EU) 66/2014 Measurements according EN60350-2 Model identification IK4064M / IK4064R IK4064SR / IK4084M IK4084R Type of hob Induction hob Number of electric cooking zones and/or areas 4 Heating technology Induction cooking zones For circular electric cooking zones: diameter of useful surface area per electric heated cooking zone in cm

Energy consumption per cooking zone or area calculated per kg (EC electric hob ) in Wh/kg

Energy consumption for the hob calculated per kg (EC electric hob ) in Wh/kg

Model identification IK4062M / IK4062R Type of hob Induction hob Number of electric cooking zones and/or areas 4 Heating technology Induction cooking zones For non-circular cooking zones or areas: lenght and width of useful surface area per electric heated cooking zone or area L/W in cm 19x21/19x21 19x21/19x21 Energy consumption per cooking zone or area calculated per kg (EC electric hob ) in Wh/kg 172.3/173.0 171.1/182.1 Energy consumption for the hob calculated per kg (EC electric hob ) in Wh/kg 174.6EN 25 Model identification IK4073M / IK4083M Type of hob Induction hob Number of electric cooking zones and/or areas 4 Heating technology Induction cooking zones For circular electric cooking zones: diameter of useful surface area per electric heated cooking zone in cm

Energy consumption per cooking zone or area calculated per kg (EC electric hob ) in Wh/kg

For non-circular cooking zones or areas: lenght and width of useful surface area per electric heated cooking zone or area L/W in cm

19x21 Energy consumption per cooking zone or area calculated per kg (EC electric hob ) in Wh/kg

Energy consumption for the hob calculated per kg (EC electric hob ) in Wh/kg

TECHNICAL SPECIFICATIONSEN 26 General If you notice a crack in the glass top (however small), switch the hob off immediately, unplug the hob, turn off the (automatic) fuse switch(es) in the meter cupboard or, in the event of a permanent connection, set the switch in the power supply lead to zero.) Contact the service department. Troubleshooting table If the appliance does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first by checking the points mentioned below or check for more information the website ‘www.pelgrim.nl/www.pelgrim.be’. Symptom Possible cause Solution The display lights up when the hob is activated for the first time. This is the standard set-up routine. Normal operation. A slight smell is noticeable the first few times the hob is used. The new appliance is heating up. This is normal and will disappear once it has been used a few times. Ventilate the kitchen. The pans make a noise while cooking. This is caused by the energy flowing from the hob to the saucepan. At high settings this is perfectly normal for some pans. It will not damage either the pans or the hob. Circle of pan bottom remains visible after cleaning. Contaminated pan bottom used on the cooking zone. Clean the induction hob with a ceramic hob cleaner and remove the dirt / grease from the pan bottom. A cooking zone suddenly stops working and you hear a signal. The preset time has ended. Switch off the bleep by touching the timer key. The hob is not working and nothing appears in the display. There is no power supply due to a defective cable or a faulty connection. Check the fuses or the electric switch (if there is no plug). A fuse blows as soon as the hob is switched on. The hob has been wrongly connected. Check the electrical connections. Error code The control panel is dirty or has water lying on it. Clean the control panel. You have touched two or more keys at the same time. Do not operate more than one key at the same time. Error code F Other defect Contact the service department. TROUBLESHOOTINGEN 27 ENVIRONMENTAL ASPECTS Disposal of packaging and appliance In the manufacturing of this appliance durable materials were used. Make sure to dispose of this equipment responsibly at the end of its lifecycle. Ask the authorities for more information regarding this. The appliance packaging is recyclable. The following may have been used:
