Technical Features	Details
Type of stove	Gas
Number of burners	4 burners
Type of oven	Electric
Oven capacity	65 liters
Energy class	A
Dimensions (W x D x H)	60 x 60 x 85 cm
Weight	40 kg
Oven features	Convection, grill
Safety system	Automatic shut-off, burner safety
Materials	Stainless steel
Maintenance	Easy cleaning thanks to smooth surface
Included accessories	Grate, baking tray
Warranty	2 years

Frequently Asked Questions - GK864RVSA Pelgrim

How do I light the burners on the Pelgrim GK864RVSA stove?

To light the burners, turn the gas control knob to the ignition position and simultaneously press the electric ignition button until the flame lights.

What should I do if the flame does not light?

First, check that the gas bottle or gas connection is open. Also ensure the control knob is correctly in the ignition position. If the problem persists, contact a professional.

How do I clean the surface of the stove?

Use a soft cloth and a non-abrasive cleaning product. Avoid using rough sponges that could scratch the surface.

The stove is not heating properly, what should I do?

Check that the burners are properly in place and that the openings are not blocked. If the problem persists, there may be an issue with the thermostat or gas supply.

How do I adjust the flame of the burners?

To adjust the flame, turn the control knob clockwise to decrease the flame and counterclockwise to increase it.

Is it normal to hear a clicking sound when I turn on the stove?

Yes, a clicking sound is normal as it indicates the electric ignition system is working to create a spark.

Where can I find the user manual for the Pelgrim GK864RVSA?

The user manual is usually included in the packaging. You can also download it from the official Pelgrim website.

How can I contact Pelgrim customer service?

You can contact Pelgrim customer service via their website, where you will find a contact form or a phone number.

The stove smells of gas, what should I do?

If you detect a gas smell, immediately turn off the stove, open windows to ventilate, and leave the premises. Contact emergency services or your gas supplier.

How can I tell if the burners are properly installed?

The burners must be firmly seated on their base. Test them by turning on the stove and checking that the flames are even and regular.

USER MANUAL GK864RVSA Pelgrim

Six circular kitchen lamps arranged in a 2x2 grid on a black background, with no visible text or symbols.

GK864RVS

GK864ONY

GK875RVS

GK875ONY

GK895RVS

GK895ONY

Handleiding

Gaskookplaat

Manual

Gas hob

Illustration of a cooking pot on a stove burner (no text or symbols)

fout

Pannen

Illustration of a stainless steel cooking pot on a gas stove (no text or symbols)

goed

Pandrager

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

brander

Brander

Technical diagram of a mechanical assembly with labeled parts, showing a cross-section of a gear or cam mechanism.

wokbrander

Wokbrander

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

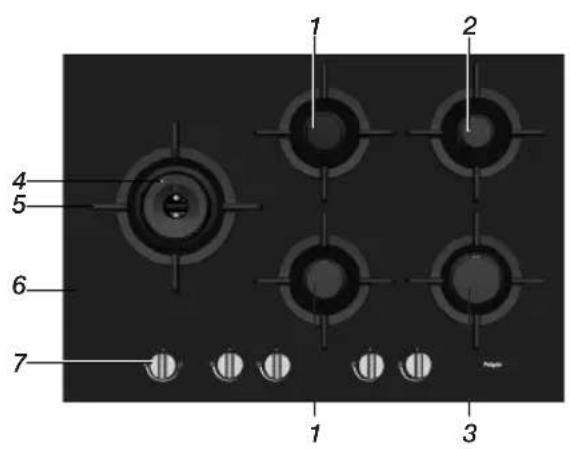

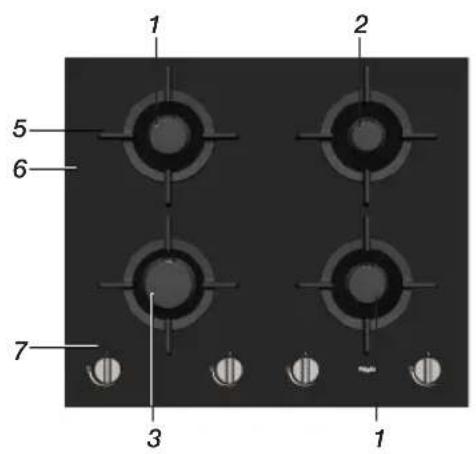

1. standard burner
2. simmer burner
3. rapid burner
4. wok burner
5. pan support
6. stainless steel drip tray or glass panel (depending on model)
7. control knob

1 2 5 6 7 3 1

1 2 4 5 6 7 1 3

Register your appliance for warranty purposes

We are convinced of the quality of our products. This is why we offer a warranty period of up to 8 years*. All you need to do is register your appliance on pelgrim.nl (when purchased in the Netherlands) and pelgrim.be (when purchased in Belgium).

*Visit www.pelgrim.nl or www.pelgrim.be for full warranty terms and conditions.

Ignition and adjustment

1 2 3 4

control knob

Standard burner and wok burner with single regulator

1. zone indication
   2.0 position
2. high setting
3. low setting

1 2 3 4

control knob
wok with double regulator

Each burner is fully adjustable between high and low settings.

• Press the control knob and turn it anticlockwise. The burner will ignite.
• Press the control knob fully for at least 3 seconds between high (3) and low (4) settings. The thermocouple safety pilot has been activated.

Use

Illustration of a cooking pot on a gas stove (no text or symbols)

error

Pans

• Always ensure that the flames remain under the pan.
A lot of energy is lost if flames burn around the pan. The handles may also become too hot.
- Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not as stable.

Illustration of a stainless steel cooking pot on a gas stove (no text or symbols)

good

Pan support

Place the pan supports vertically, without sliding over the drip tray.

Position the pan supports on the drip tray in the correct way.

MAINTENANCE

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

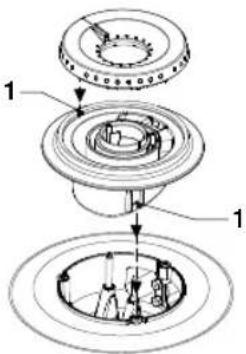

burner

Burner

Use the leads (1) to put the burner parts together.

Technical diagram of a mechanical assembly with labeled parts, showing exploded and assembled views.

wok burner

Wok burner

Place the wok burner in the correct way. Placing the wok burner parts incorrectly can result in a non-functioning or poorly functioning burner.

MAINTENANCE

Maintenance

Regular maintenance after use prevents food residue from encrusting and creating stubborn stains. Use a mild cleaning detergent to remove stains.

Clean the control knobs, burners and pan supports first and then the drip tray or glass cover. This will prevent the drip tray or glass cover from becoming dirty again during cleaning.

Attention! Burner parts should not be cleaned in the dishwasher.

Dishwasher detergents can corrode burner parts!

Persistent stains on enamel (pan supports, burner caps)

Persistent stains can best be removed with a fluid detergent or a plastic scouring sponge. Never use scouring powder, scouring pads, sharp objects or aggressive cleaning products.

Consult the www.pelgrimservice.nl website for additional maintenance and cleaning instructions!

Fault table

If your gas hob does not work properly it does not always mean that it is defect. Try to solve the problem yourself first by checking the points in the table below or check the ‘www.pelgrimservice.nl’ website for more information.

SYMPTOM POSSIBLE CAUSE SOLUTION
There is a smell of gas near the appliance.	The appliance connection is leaking.	Turn off the main gas supply valve. Contact your installer.
A burner does not ignite.12	Plug not in socket.Fuse defective/fuse switched off in fuse box.Spark plug (1) dirty/damp.Burner parts not placed correctly.Burner parts dirty/damp.Main gas supply valve closed.Fault in gas mains.Gas bottle or tank is empty.Wrong type of gas used.	Put the plug into the socket.Replace the fuse or switch on the fuse in the fuse box.Clean/dry the spark plug.Use the centring leads to put the burner parts together.Clean/dry the burner parts. Make sure that the outflow holes are open.Open the main gas valve.Consult you gas supplier.Connect a new gas bottle or have the tank refilled.Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.
The burner does not burn evenly.	Burner parts not placed correctly.Burner parts dirty/damp.Wrong type of gas used.	Use the centring leads to put the burner parts together.Clean/dry the burner parts. Make sure that the outflow holes are open.Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.

FAULTS

SYMPTOM POSSIBLE CAUSE SOLUTION
Burner extinguishes after igniting.	The control knob has not been pressed long and/or deep enough (at least 3 seconds).Thermocouple (2) is dirty.	Keep the control knob fully pressed for at least 3 seconds between high and low settings. This can take longer the first time because of the gas supply.Clean/dry thermocouple.
Ceramic glass plate broken.	Object fallen onto it. Close the gas main switch and pull the plug out of the socket. Contact the your installer.Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take this to the Municipality's waste recycling centre.

Information according regulation (EU) 66/2014

Measurements according EN60350-2

Model identification GK864ONYA		GK864RVSA	GK875ONYA GK875RVSA	GK895ONYA GK895RVSA
Type of hob Gas hob Gas hob Gas hob
Number of gas burners 4 5 5
Heating technology Gas burner Gas burner Gas burner
Energy efficiency per gas burner (EEgas burner) in %	standard burner: rapid burner: wok burner:	61.3 61.3	61.3 61.3 55.4	61.3 61.3 55.4
Energy efficiency for the gas hob (EEgas hob) in %		61.3 60 60

Tips for energy-efficient cooking with hobs

• Always use the right size of pan for the amount of food you are cooking.
• Put just enough water in the pan to cover vegetables.
• Choose the right size of burner or ring for the pan.
  • Always put lids on pans to keep the heat in.
• Turn down or turn off the cooking zone/area or burner once the cooking temperature or state is reached.
• Use a steamer to cook vegetables, that way you can layer a number of vegetables on top of each other and still use one ring, or use a pan with a divider.
• Use a pressure cooker for cooking pulses, and even joints of meat, whole meals, or stews. It speeds up the cooking process.
• If you're using an electric hob, choose flat-bottomed pans so the pan is in full contact with the ring.

Disposal of the appliance and packaging

Sustainable materials have been used during manufacture of this appliance.

The appliance packaging is recyclable. The following materials may have been used:

• cardboard;
• paper;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS-rigid foam);
  • polypropylene tape (PP).

Dispose of these materials in a responsible way and in accordance with government regulations.

Symbol of a trash bin with crossed lines indicating no waste or restriction, no text present

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately.

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance such as this hob separately avoids possible negative consequences for the environment and health and enables the constituent materials to be recovered, resulting in significant savings in energy and resources.

Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take this to the Municipality's waste recycling centre.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

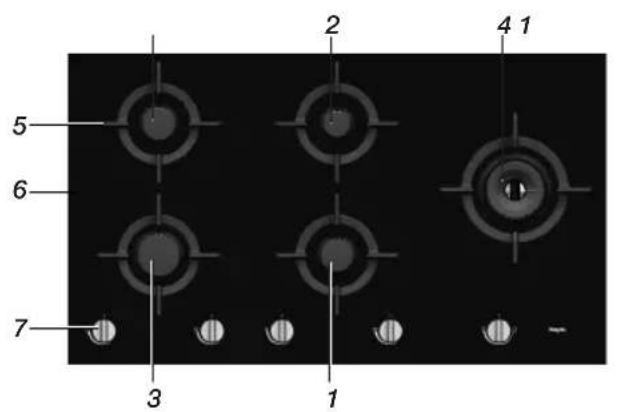

Description

2 4 1 5 6 7 3 1

Illustration of a cooking pot on a gas stove (no text or symbols)

incorrect

Illustration of a cooking pot on a stove (no text or symbols)

correct

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

brûleur

Brûleur

Technical diagram of a mechanical assembly with labeled parts, showing exploded and assembled views.

brûleur pour wok

Brûleur pour wok

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below (no text or labels)

Illustration of a cooking pot on a stove burner (no text or symbols)

falsch

Pfannen und Töpfe

Illustration of a stainless steel cooking pot on a stove (no text or symbols)

richtig

Topfträger

Exploded view diagram of a mechanical assembly showing a top, middle, and bottom views with no text or symbols

Brenner

Brenner

Technical diagram of a mechanical assembly with labeled parts, showing a multi-layered assembly from top to bottom.

Wokbrenner

Wokbrenner

Symbol of a trash bin with crossed x-marks and a blank base (no text or numbers)

Warning symbol with exclamation mark inside a triangle

Het toestel-identificatieplaatje bevindt zich aan de onderkant van het toestel. The appliance identification card is located on the bottom of the appliance. La plaque d'identification de l'appareil se trouve sur le dessus de l'appareil. Das Gerätetypenschild befindet sich an der Unterseite des Gerätes.

Plak hier het toestel-identificatieplaatje. Stick the appliance identification card here. Placez ici la plaque d'identification de l'appareil. Kleben Sie hier das Gerätetypenschild ein.

Houd, wanneer u contact opneemt met de serviceafdeling, het complete typenummer bij de hand. When contacting the service department, have the complete type number to hand. En cas de contact avec le service après-vente, ayez auprès de vous le numéro de type complet. Halten Sie die vollständige Typennummer bereit, wenn Sie mit der Kundendienstabteilung Kontakt aufnehmen.
