Technical specifications	Kitchen extractor hood, model JUNO JDWS905E9
Installation type	Wall-mounted
Dimensions (W x D x H)	90 cm width
Airflow	Up to 700 m³/h
Power levels	3 power levels
Lighting	Integrated LED lighting
Filter	Machine-washable grease filter
Usage	Electronic controls with LED display
Maintenance	Filters to be cleaned regularly, surface maintenance
Safety	Automatic shut-off, overheating protection
General information	2-year warranty, energy consumption rated A

Frequently Asked Questions - JDWS905E9 JUNO

How do I install the JUNO JDWS905E9 hood?

To install the JUNO JDWS905E9 hood, please follow the provided installation manual. Make sure to turn off the power supply before starting the installation. Attach the hood to the wall using the supplied brackets and connect the exhaust duct.

What is the noise level of the JUNO JDWS905E9 hood?

The JUNO JDWS905E9 hood has a maximum noise level of 65 dB, which is relatively quiet for a kitchen hood.

How do I clean the filters of the JUNO JDWS905E9 hood?

The aluminum filters of the hood can be cleaned in the dishwasher or by hand with warm water and mild detergent. It is recommended to clean them every 2 to 3 months.

Can the JUNO JDWS905E9 hood be used in recirculation mode?

Yes, the JUNO JDWS905E9 hood can be used in recirculation mode. Make sure to change the charcoal filter regularly for optimal performance.

What is the airflow of the JUNO JDWS905E9 hood?

The airflow of the JUNO JDWS905E9 hood is 650 m³/h, allowing effective extraction of odors and smoke.

Is the JUNO JDWS905E9 hood compatible with vertical exhaust?

Yes, the JUNO JDWS905E9 hood can be installed with vertical exhaust. Please follow the installation instructions for proper connection.

How do I fix the problem if the hood does not turn on?

If the hood does not turn on, first check if it is properly plugged in and if the power supply is activated. If the problem persists, consult a professional.

What type of bulb is used in the JUNO JDWS905E9 hood?

The JUNO JDWS905E9 hood uses E14 type LED bulbs. Check the maximum recommended wattage in the user manual.

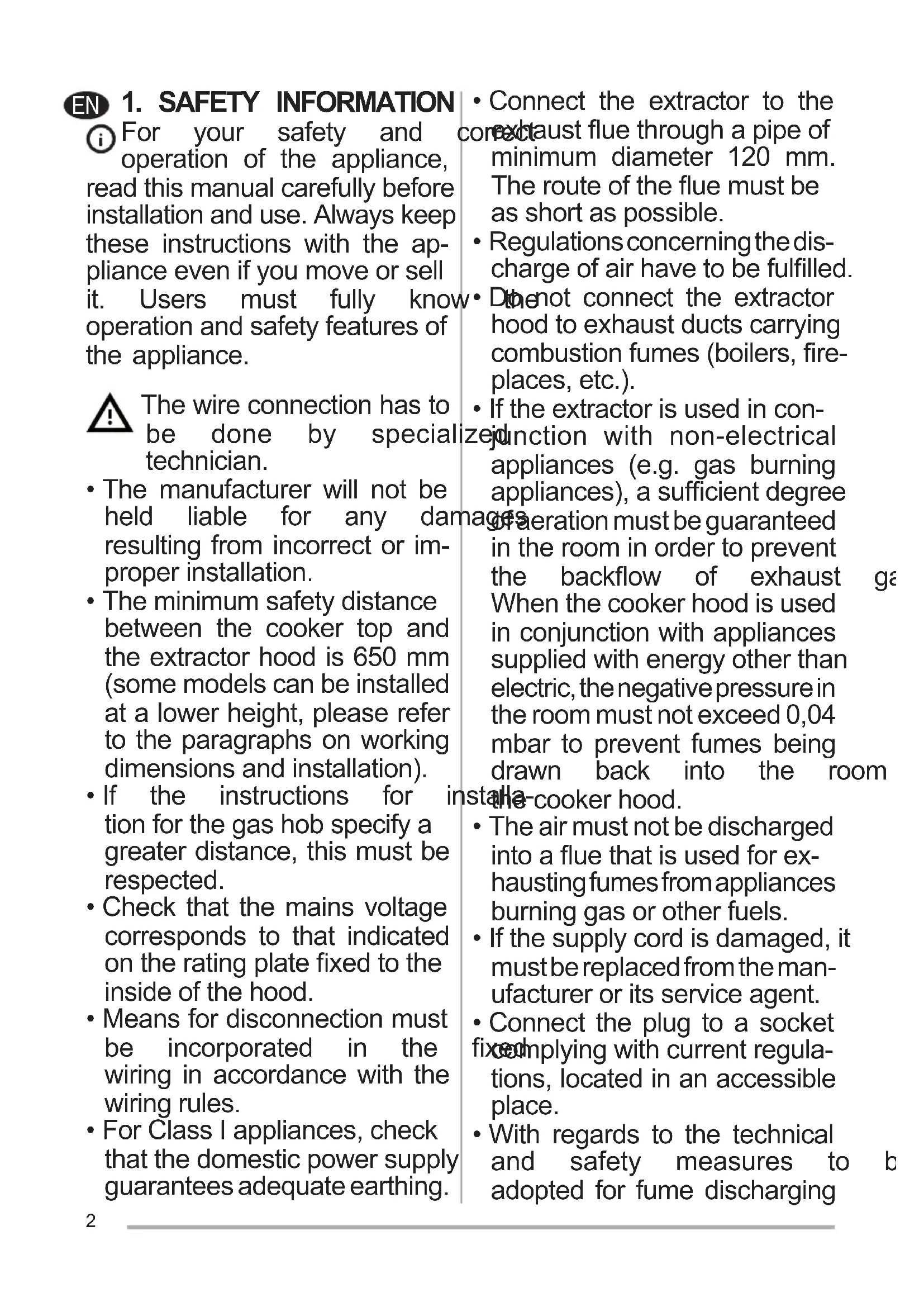

USER MANUAL JDWS905E9 JUNO

For your safety and operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know operation and safety features of the appliance.

The wire connection has to be done by specia technician.

• The manufacturer will not be held liable for any data resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

- If the instructions for it tion for the gas hob specify a greater distance, this must be respected.

- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

- Means for disconnection must be incorporated in the wiring in accordance with the wiring rules.

- For Class I appliances, check that the domestic power supply guarantees adequate earthing.

- Connect the extractor to the correct exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Regulations concerning the discharge of air have to be fulfilled.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree

nages of eeration must be guaranteed in the room in order to prevent the backflow of exhaust ga When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room install a-cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

- Connect the plug to a socket fix complying with current regulations, located in an accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been supervision or instruction.

Accessible parts may come hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ✉ on the product or on its packaging indicates that this product may not treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be conti monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

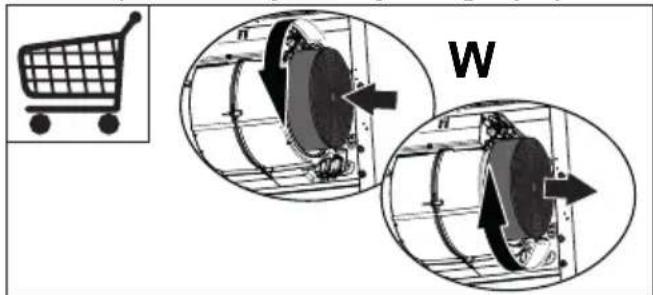

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W

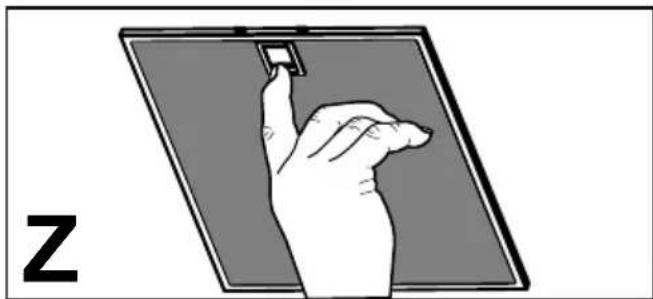

- The Grease filters must be every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

the CONTROLS

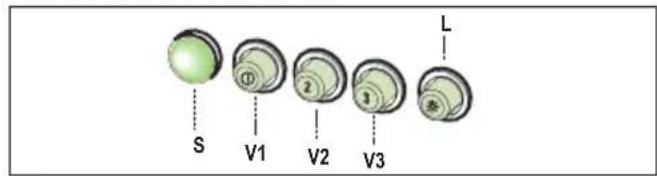

S V1 V2 V3 L

L	Light	Switches the lighting system on and off.
S	Led	Motor running led.
V1 under	Motor	Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2 uously	Speed	Medium speed, suitable for most operating conditions given the optimum treated air flow/n level ratio.
V3	Speed	Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

cleaned

5. LIGHTING
