RI.162 - Heating Beper - Free user manual and instructions

Product type	Carbon radiator
Brand	Beper
Model	RI.162
Color	Black (typical)
Dimensions (W x D x H)	~25 x 20 x 35 cm
Weight	~1.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	450 W / 900 W (2 levels)
Oscillation function	Yes, can be activated via button
Heating type	Carbon infrared radiation
Recommended heating area	~15 m²
Adjustable thermostat	No, power setting only
Timer	No
Anti-tip safety	Yes, automatic shut-off
Overheat protection	Yes, automatic cut-off
Protection rating	IP20 (indoor use)
Control type	Rotary knob
Power cord	~1.5 m, non-removable
Assembly required	Yes, base attachment
Cleaning	Damp cloth, unplug before
Warranty	2 years

Frequently Asked Questions - RI.162 Beper

How to assemble the base of the Beper RI.162 radiator?

Attach the support base to the radiator body using the screws provided, as shown in Fig.B of the manual.

What are the available power levels?

Two levels: 450 W (minimum heat) and 900 W (maximum heat). The knob allows you to choose between these two positions.

How to activate the oscillation function?

Turn the operating knob to the right to one of the 450W or 900W positions to activate oscillation.

The radiator turns off by itself, is that normal?

Yes, the radiator is equipped with an anti-tip device and overheat protection that automatically cut off the power.

Can I use the radiator in a bathroom?

No, the device is designed for dry indoor use. It should not be exposed to moisture or water.

How to clean the radiator?

Unplug the device, wait for it to cool down, then clean the body with a slightly damp soft cloth. Do not use chemicals.

The cord is damaged, what to do?

Do not use the device. Have the cord replaced by the manufacturer, its after-sales service, or a qualified person.

Does the radiator run continuously?

There is no timer; the radiator operates as long as it is plugged in and the knob is not set to OFF. Make sure to unplug it when not in use.

Can I cover the radiator?

No, never cover the radiator while it is operating to avoid any risk of overheating or fire.

What to do in case of a malfunction during the warranty period?

Contact your retailer or Beper after-sales service at [e-mail] to find the nearest authorized service center. The warranty is 24 months.

USER MANUAL RI.162 Beper

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig.A Fig.B

REFERENCES TO THE MODEL :CODE: RI.162 DESCRIPTION:				Carbon Tower Heater Gold
ITEM	SYMBOL	VALUE	UNIT	Item	Unit
Heat Output				Type of heat input, for electric storage local space heaters only
Nominal heat output	P nom	0.860	KW	Manual heat charge control, with integrated thermostat	N/A
Minimum heat output	P min	0	KW	Manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P Max,c	0.860	KW	Electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption				Fan assisted heat output	N/A
At nominal heat output	el max	N/A	KW	Type of heat output/room temperature control
At minimum heat output	el min	N/A	KW	Single stage heat output and no room temperature control	(no)
In standby mode	el SB	N/A	KW	Two or more manual stages, no room temperature control	(yes)
				With mechanic thermostat room temperature control	(no)
				With electronic room temperature control	(no)
				Electronic room temperature control plus day timer	(no)
				Electronic room temperature control plus week timer	(no)
				Other control options
				Room temperature control, with presence detection	(no)
				Room temperature control, with open window detection	(no)
				With distance control option	(no)
				With adaptive start control	(no)
				With working time limitation	(no)
				With black bulb sensor	(no)
Contact: [e-mail] - Phone: [phone]Name and address of the factory and/or legal representative: BEPER SRL - Via A.Salieri, 30 -37050 Vallese di Oppeano (Verona) Italy

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

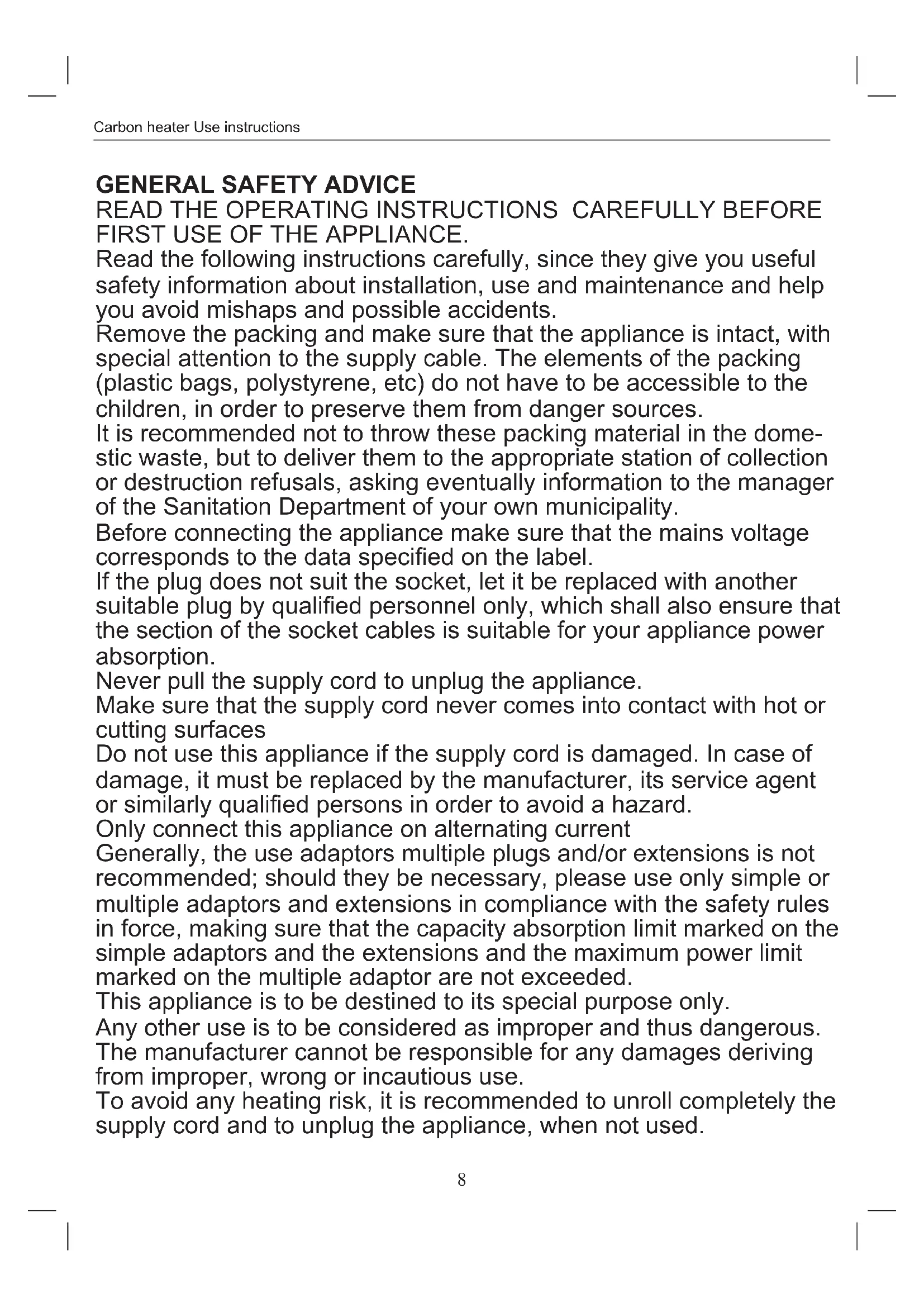

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous.

The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

DO NOT ALLOW CHILDREN, DISABLED PEOPLE OR EVERY PEOPLE WITHOUT EXPERIENCE OR TECHNICAL ABILITIES TO USE THE APPLIANCE IF THEY ARE NOT PROPERLY WATCHED OVER. CLOSE SUPERVISION IS NECESSARY WHEN ANY APPLIANCE USED BY OR NEAR CHILDREN.

MAKE SURE THAT CHILDREN DO NOT PLAY WITH THIS APPLIANCE.

IF YOU DECIDE NOT TO USE THE APPLIANCE ANY LONGER, MAKE IT UNSERVICEABLE BY SIMPLY CUTTING THE SUPPLY CABLE AFTER DISCONNECTING THE PLUG FROM THE SOCKET.

ALSO MAKE ANY DANGEROUS PARTS UNSERVICEABLE, ESPECIALLY FOR CHILDREN WHO COULD PLAY WITH THE APPLIANCE.

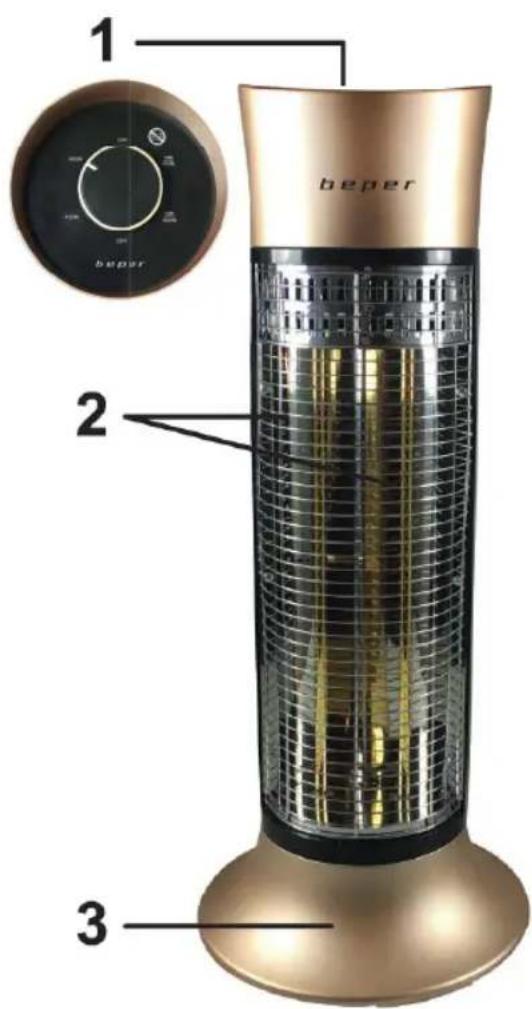

PRODUCT DESCRIPTION Fig.A

1. Operation knob
2. Carbon heating elements
3. Base

INSTRUCTIONS FOR USE

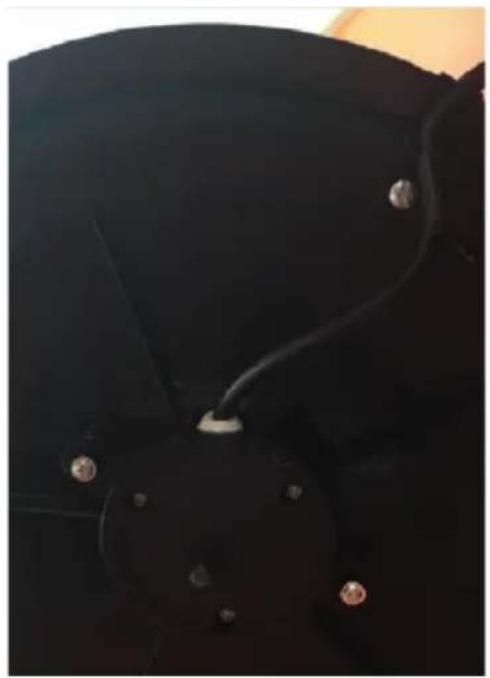

Base assembly

Assemble the carbon heater body and the base, using the specific fixing screws (Fig.B).

OPERATION

WARNING! DO NOT COVER THE HEATER DURING OPERATION

Place the heater on a horizontal surface.

Turn the knob to the left in order to pick the desired power: 450W (MINIMUM HEAT), 900W (MAXIMUM HEAT)

Turn the knob to the right in order to turn on the swing function, setting the knob on the related powers (450W - 900W)

Turn the knob to OFF in order to turn off the heater

SECURITY DEVICES

1. The heater is provided with an automatic tip-over off switch, capable of turning off the heater in case of accidental overturning.
2. Protection from the overheating, capable of suspending the electricity supply of the product in case of excessive heating.

CLEANING AND MAINTENANCE

Before every cleaning operation, unplug the power adaptor of the electrical outlet.

Clean the carbon heater body with a barely damp soft fabric.

Do not use chemical products for cleaning (thinners, scraping products etc.).

Do not place the heater, if it's still hot, in its original box.

Contact the technical assistance in case of doubt and/or for any question about cleaning and maintenance.

TECHNICAL DATA

Power: 450-900W

Power supply: 220-240V - 50/60 Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

GUARANTEE CONDITIONS

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR ATER SALES DEPARTMENT BEPER. E-MAIL [e-mail] WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIÈRE UTILISATION DE L'APPAREIL.

CONDITIONS DE GARANTIE

Euvaipouloynon ts Baonc

Sigma Apooyote Tn Baoon m To oomega, XpnoiopoioiwTc Tc EIDike iEe

AEITOYPTIA

IPOSOXH! MHN KAAYITETE TH ΣYΣKEYH KATA TH ΛEITOYPΓIA

ToTOnTeTnOte To EePmuVTIO Oe opizovTi Ea TIIpAveia

FupiTe Tov TepoiTpoqiko diakottn apioTepa yia tvv eTIuunnt ioxu: 450W (EAXIeTH

OEPMANSH), 900W (MEIHT OEPMANSH).

TupioTe to biakottnn deiia tna 1a n aeitoupyia Tepiotpoqns, eIIeoyovtac tic oxetikc puOmuic iOxuoc (450W - 900W).

BáLTEO BIAKOTTN OTO OFF yia va θeTe T N OUKEUN EKTOS AEITOUpyiac
