Product type	Astronomical watch
Brand	Christiaan van der Klaauw
Model	Planetarium CKPT7804
Movement	Automatic with perpetual winding, also manual winding
Display	Hours, minutes, day, month, position of planets (Mercury, Venus, Earth, Mars, Jupiter, Saturn)
Day and month adjustment	Via pusher at 9 o'clock (tool provided)
Time adjustment	Via crown in pulled position
Strap	Alligator leather, interchangeable
Water resistance	Not suitable for water: avoid any contact with water, bath or shower
Watch winder recommendation	Place on a mechanical watch winder when not worn (clockwise direction)
Manufacturing	Handmade by passionate watchmakers

Frequently Asked Questions - Planetarium CKPT7804 Christiaan van der Klaauw

How to set the Planetarium CKPT7804 watch?

Before setting, make sure the displayed time is between 04:00 and 08:00 or between 16:00 and 20:00. Use the provided tool to press the pusher at 9 o'clock to scroll through the day and month. Then pull the crown to the time setting position (position ①) to adjust the hands. Push the crown back once the desired time is set.

How to wind the watch manually?

To wind the watch manually, turn the crown clockwise when it is in the winding position (position ⑨). The automatic movement also charges through the movements of your wrist.

Can I wear the watch in the shower or while swimming?

No, the watch is not suitable for water. Avoid any contact with water, including shower, bath or swimming, as this could damage it.

What to do if I do not wear the watch for several days?

It is recommended to place the watch on a mechanical watch winder rotating clockwise to keep the movement running and avoid having to reprogram everything.

How to care for the alligator leather strap?

Avoid prolonged exposure to moisture and chemicals. Clean with a soft, dry cloth. For replacement, contact an authorized dealer Christiaan van der Klaauw.

Which planets are displayed by the watch?

The watch shows the relative position of the planets Mercury, Venus, Earth, Mars, Jupiter and Saturn in relation to the Sun.

Is the planet adjustment manual?

No, the planet adjustment is automatic and linked to the day and month setting. As you scroll the day and month, the planets advance automatically.

How to clean the watch case?

Use a soft, non-abrasive cloth slightly dampened (clean water) to gently wipe the case. Dry immediately with a dry cloth. Avoid any chemicals.

What is the movement type of the Planetarium CKPT7804?

The watch is equipped with an automatic perpetual winding movement. It can also be wound manually via the crown.

Can I replace the strap myself?

The alligator leather strap is interchangeable, but it is recommended to have the replacement done by a professional or an authorized dealer to avoid damaging the case.

USER MANUAL Planetarium CKPT7804 Christiaan van der Klaauw

ASTRONOMICAL WATCHES

PLANETARIUM
INSTRUCTION MANUAL PLANETARIUM

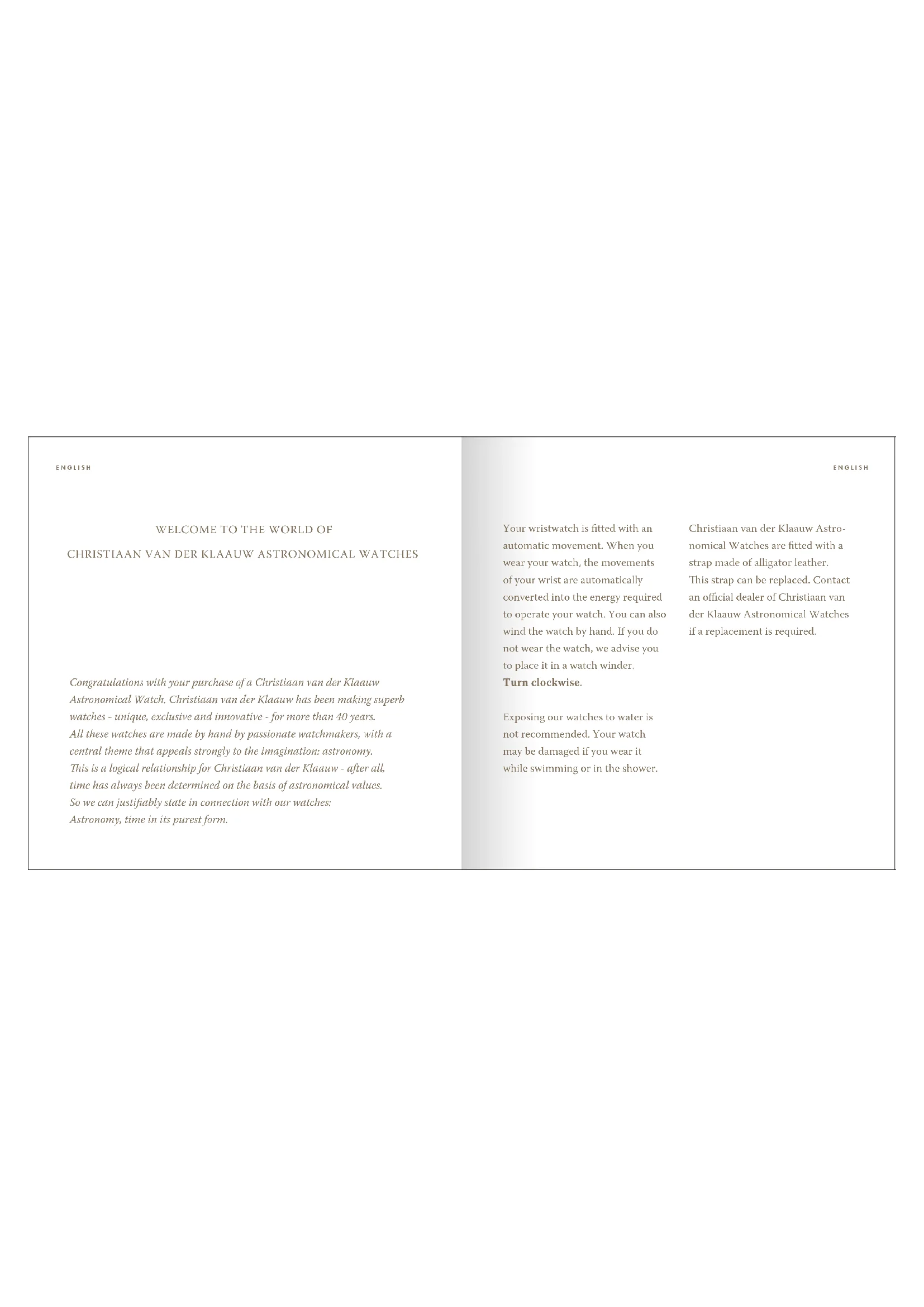

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

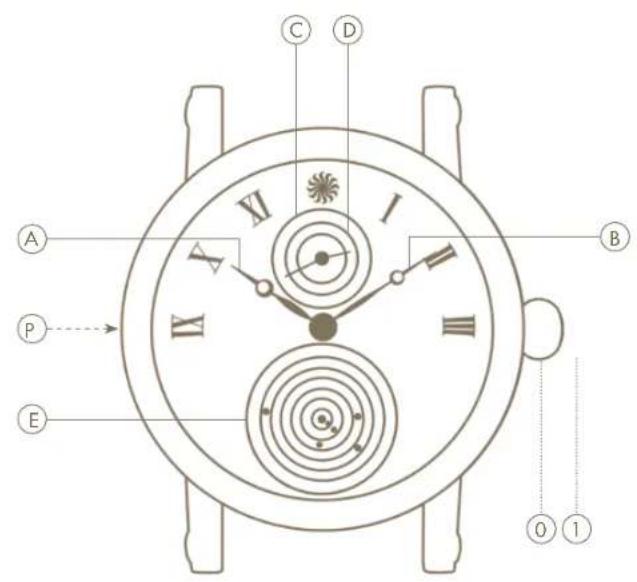

The following information is displayed on the Planetarium:
hours;
⑥ minutes;
calendar day;
month;
position in relation to the Sun of: Mercury, Venus, Earth, Mars, Jupiter and Saturn.

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button

The crown has two positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the time.

Before adjusting the settings of the Planetarium, the time displayed on the watch must be between 04:00 and 08:00 or 16:00 and 20:00.

Once this is the case, use the enclosed accessory to push in the

push button located at the 9 o'clock position on the left-hand side of the watchcase. Repeat this until the correct day and month are shown. The planets are moved automatically as you do this. Then pull out the crown as far as possible (position ①). Now move the hands forward until the correct time is reached. When the hands show the right time, then push the crown in again completely.

Important

If you do not wear the watch, we advise you to place it in a watch.
winder. Turn clockwise.

ENGLISH ENGLISH

Functionalities

The day of the month is shown at the 12 o'clock position.
The month is shown at the 12 o'clock position.

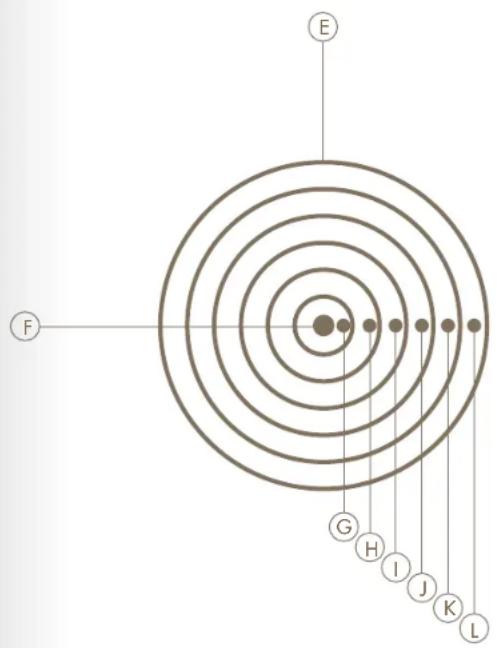

The smallest planetarium in the world is located at the 6 o'clock position. The Sun is positioned exactly in the middle of the planetarium. The planet closest to the Sun is Mercury. Mercury is followed by Venus, Earth, Mars, Jupiter and Saturn. The planets rotate around the Sun as follows:

Mercury 87.97 days
Venus 224.70 days
① Earth 365.24 days
① Mars 686.98 days
Jupiter 11.86 years
① Saturn 29.46 years
