USER MANUAL AC117 ANGELCARE

Baby Breathing Monitor with Sound

WARNING

KEEP USER'S GUIDE FOR FUTURE REFERENCE. PLEASE READ THE WARNINGS AND SAFETY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING & USING THE PRODUCT. FAILURE TO FOLLOW THE WARNINGS AND THE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH OR DAMAGE TO THE PRODUCT.

TABLE OF CONTENTS

WARNING

SETUP REQUIREMENTS 4

Charging the Parent Unit (10 hours) 5

Positioning the movement Sensor Pad 5

Setting up the Nursery Unit 6

Turning on your monitor 8

Testing and getting to know your monitor 9

Activating and deactivating additional functions 15

Troubleshooting 16

Limited warranty. 20

Technical specifications 20

FRENCH 22

SPANISH 43

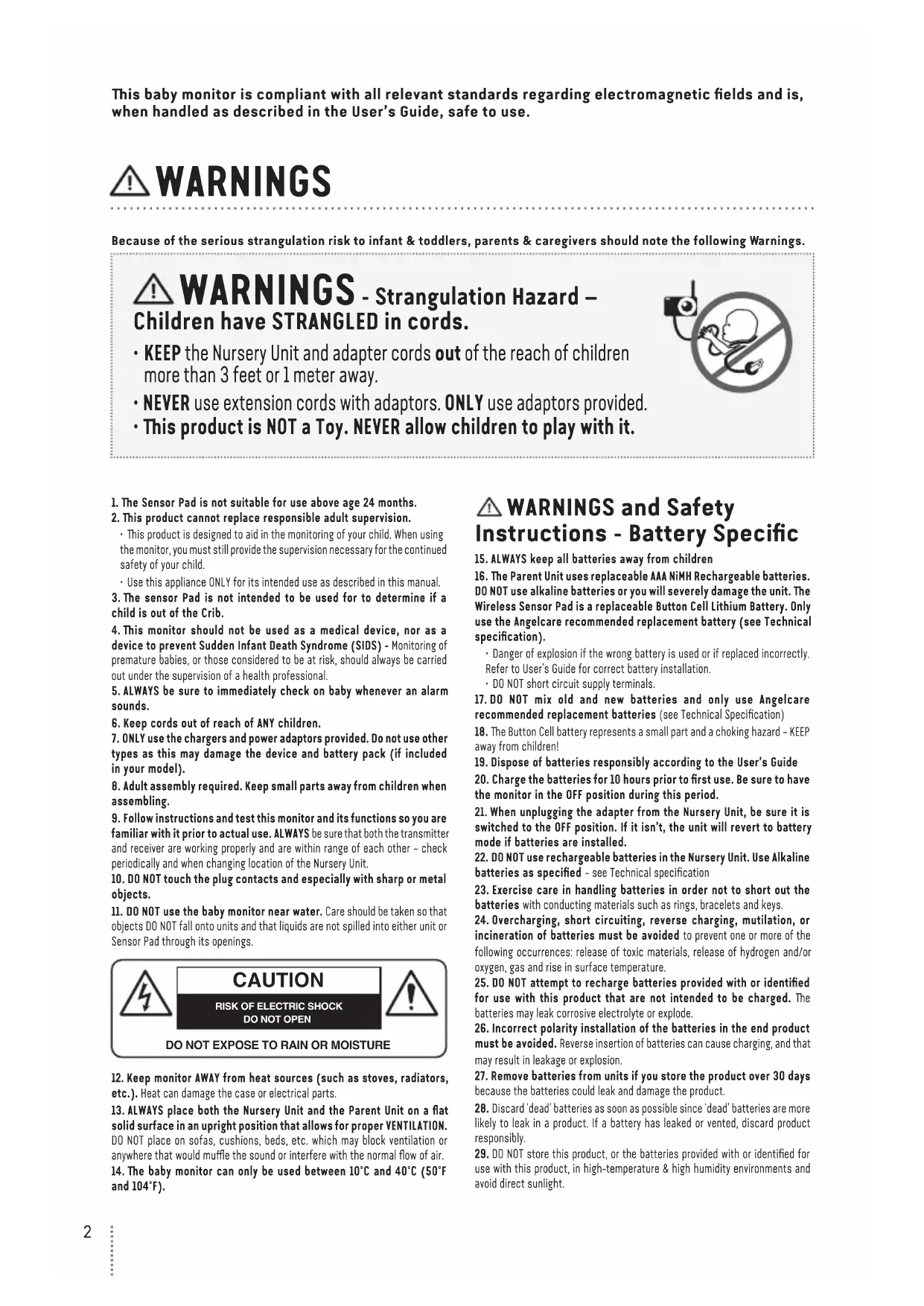

WARNING

Because of the serious strangulation risk to infant & toddlers, parents & caregivers should note the following Warnings.

WARNING - Strangulation Hazard - dren have STRANGLED in cords.

• KEEP the Nursery Unit and adapter cords out of the reach of children more than 3 feet or 1 meter away.
• NEVER use extension cords with adaptors. ONLY use adaptors provided.
• This product is NOT a Toy. NEVER allow children to play with it.

1. The Sensor Pad is not suitable for use above age 24 months.

2. This product cannot replace responsible adult supervision.

3. This product is designed to aid in the monitoring of your child. When using the monitor, you must still provide the supervision necessary for the continued safety of your child.

4. Use this appliance ONLY for its intended use as described in this manual.

5. The sensor Pad is not intended to be used for to determine if a child is out of the Crib.

6. This monitor should not be used as a medical device, nor as a device to prevent Sudden Infant Death Syndrome (SIDS) - Monitoring of premature babies, or those considered to be at risk, should always be carried out under the supervision of a health professional.

7. ALWAYS be sure to immediately check on baby whenever an alarm sounds.

8. Keep cords out of reach of ANY children.

9. ONLY use the chargers and power adaptors provided. Do not use other types as this may damage the device and battery pack (if included in your model).

10. Adult assembly required. Keep small parts away from children when assembling.
11. Follow instructions and test this monitor and its functions so you are familiar with it prior to actual use. ALWAYS be sure that both the transmitter and receiver are working properly and are within range of each other - check periodically and when changing location of the Nursery Unit.
12. DO NOT touch the plug contacts and especially with sharp or metal objects.
13. DO NOT use the baby monitor near water. Care should be taken so that objects DO NOT fall onto units and that liquids are not spilled into either unit or Sensor Pad through its openings.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

DO NOT EXPOSE TO RAIN OR MOISTURE

1. Keep monitor AWAY from heat sources (such as stoves, radiators, etc.). Heat can damage the case or electrical parts.
2. ALWAYS place both the Nursery Unit and the Parent Unit on a flat solid surface in an upright position that allows for proper VENTILATION. DO NOT place on sofas, cushions, beds, etc. which may block ventilation or anywhere that would muffle the sound or interfere with the normal flow of air.
3. The baby monitor can only be used between 10^ and 40^ (50°F and 104°F).

WARNINGs and SafetyInstructions - Battery Specific

1. ALWAYS keep all batteries away from children

2. The Parent Unit uses replaceable AAA NiMH Rechargeable batteries. DO NOT use alkaline batteries or you will severely damage the unit. The Wireless Sensor Pad is a replaceable Button Cell Lithium Battery. Only use the Angelcare recommended replacement battery (see Technical specification).

3. Danger of explosion if the wrong battery is used or if replaced incorrectly.
   Refer to User's Guide for correct battery installation.

4. DO NOT short circuit supply terminals.

5. DO NOT mix old and new batteries and only use Angelcare recommended replacement batteries (see Technical Specification)

6. The Button Cell battery represents a small part and a choking hazard - KEEP away from children!
7. Dispos of batteries responsibly according to the User's Guide
8. Charge the batteries for 10 hours prior to first use. Be sure to have the monitor in the OFF position during this period.
9. When unplugging the adapter from the Nursery Unit, be sure it is switched to the OFF position. If it isn't, the unit will revert to battery mode if batteries are installed.
10. DO NOT use rechargeable batteries in the Nursery Unit. Use Alkaline batteries as specified - see Technical specification
11. Exercise care in handling batteries in order not to short out the batteries with conducting materials such as rings, bracelets and keys.
12. Overcharging, short circuiting, reverse charging, mutilation, or incineration of batteries must be avoided to prevent one or more of the following occurrences: release of toxic materials, release of hydrogen and/or oxygen, gas and rise in surface temperature.
13. DO NOT attempt to recharge batteries provided with or identified for use with this product that are not intended to be charged. The batteries may leak corrosive electrolyte or explode.
14. Incorrect polarity installation of the batteries in the end product must be avoided. Reverse insertion of batteries can cause charging, and that may result in leakage or explosion.
15. Remove batteries from units if you store the product over 30 days because the batteries could leak and damage the product.
16. Discard 'dead' batteries as soon as possible since 'dead' batteries are more likely to leak in a product. If a battery has leaked or vented, discard product responsibly.
17. DO NOT store this product, or the batteries provided with or identified for use with this product, in high-temperature & high humidity environments and avoid direct sunlight.

IMPORTANT SAFETY INSTRUCTIONS

1. This monitor uses public airwaves to transmit signals. The Parent Unit may pick up signals or interference from other nursery monitors in your area. Your monitor may even be picked up by other households. To protect your privacy, make sure both units are turned OFF when not in use. If you experience interference, change the channel on both units
2. Power cord protection - Protect the Adapter's power cord from being walked on or pinched by furniture or other items - Power supply cords should be routed so that they are not likely to be walked on or pinched by items upon or against them, paying particular attention to cords and plugs, convenience receptacle, and the point where they exit from the product. The socket outlet shall be installed near the equipment and shall be easily accessible. Make sure to plug the adapter to the socket outlet nearest to the equipment and that is easily accessible. To disconnect from mains, unplug the adapter.

3. Only use attachments/accessories and replacement parts specified by the manufacturer. Any mounting of the product should follow the manufacturer's instructions.

4. DO NOT position this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult and serious damage to the product.

5. Use ONLY with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product.

6. Be sure replacement parts are supplied by Angelcare and have the same characteristics as original part. Unauthorized substitution may result in fire, electric shock or fire.

7. Unplug this appliance during lightning storms or when not used for long periods of time

8. Servicing - DO NOT attempt to service this product yourself as opening or removing covers (except battery door) may expose you to dangerous voltage or other hazards.
9. Power Supply - see Technical Specification within this guide.
10. Overloading - DO NOT overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock.
11. Nursery Unit Antenna - The antenna used for this transmitter must be installed to provide a separation distance of at least 8^ (20 cm) from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
12. Cleaning - Disconnect all units before cleaning. DO NOT immerse in water any part of the monitor. Clean only with dry cloth.

39. Sensor Pad -

• Vibration Source/interference - When the Sensor Pad is in use, DO NOT use a crib mobile, other crib accessories that may produce vibrations. Other sources of vibrations may include fans, washing machines, loud music, etc. These sources of vibration may interfere with the performance of your Angelcare® monitor and the alarm will not sound if it continues to detect any movement other than your baby's. Be sure all vibration sources are eliminated before using the monitor.
• Sensor Pad can only be used in any crib that is stationary on a completely flat, firm surface. If the crib has a spring or slat base, place a hard board between the crib base and the Sensor Pad measuring at least 33 × 33 ~cm ( 13^ × 13^ ) and 6 ~mm ( 1/4^ ) thick. Box this safety instruction or move to instruction section for setting up sensor pad or repeat
• The sensor pad is made of plastic and does not permit the air to circulate. Therefore, mildew build up could develop underneath the mattress in the sensor pad area. We suggest rotating the mattress regularly to prevent any mildew.

40. False alarms may happen for several reasons:

• Nursery Unit has not been turned OFF after you have removed your baby from the crib.
• Sensor Pad has not been placed under the mattress properly. Be sure the Sensor Pad is on a flat, firm surface with the printed side facing up.
• The sensitivity level may also need to be adjusted. Refer to User's Guide. Always be sure to immediately check on baby whenever an alarm sounds.

FC

WARNING

1. Modifications not authorized by the manufacturer may void users authority to operate this device.

41.1 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
41.2 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

41.3 This device complies with the part 15 of the FCC Rules and the Industry Canada license - exempt RSS standards(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

IC Warning :

1. This device complies with industry Canada RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including inferences that may cause undesired operation of the device.
42.1 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC AND IC REGULATIONS

RF radiation exposure statement

The Nursery Unit complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

Caution: To maintain the compliance with the FCC's and Industry Canada's RF exposure guideline, install the Nursery Unit at least 7.9^ (20cm) from ALL persons. The transmitter of this device must not be co-located or operating in conjunction with any other antenna or transmitter.

Industry Canada

This product meets the applicable Industry Canada technical specifications.

CANICES-3(B)/NMB-3(B)

SETUP REQUIREMENTS

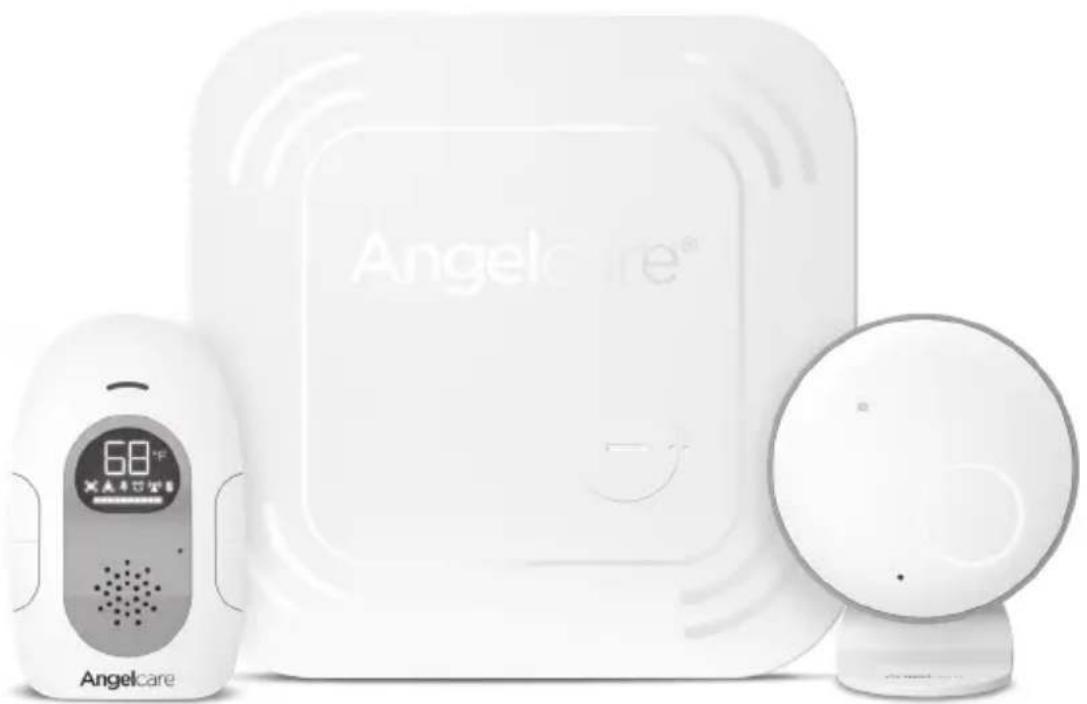

INCLUDED:

Parent Unit Nursery Unit Tabletop stand

(for Nursery Unit)

Model AC115

Baby Breathing Monitor with Sound

Wireless Movement Sensor Pad * Always place Angelcare® logo side up*

2 Rechargeable AAA Batteries
(for Parent Unit)

CR3032 battery (for Sensor Pad)

AC adapter (for Parent Unit)

AC adapter (for Nursery Unit)

Flat micro USB cable (for Nursery Unit adapter)

YOU MUST PREPARE:

One hardboard (not included)

Thickness: 6 mm (1/4")

Minimum dimensions:

33 x 33 cm (13" x 13")

Maximum dimensions:

equal to the mattress size

Hardboard

IMPORTANT

The hardboard must be larger than the Sensor Pad surface.

WHAT YOU WILL NEED (NOT INCLUDED):

2 AAA Alkaline Batteries (for Nursery Unit)

Miniature Philips Screwdriver

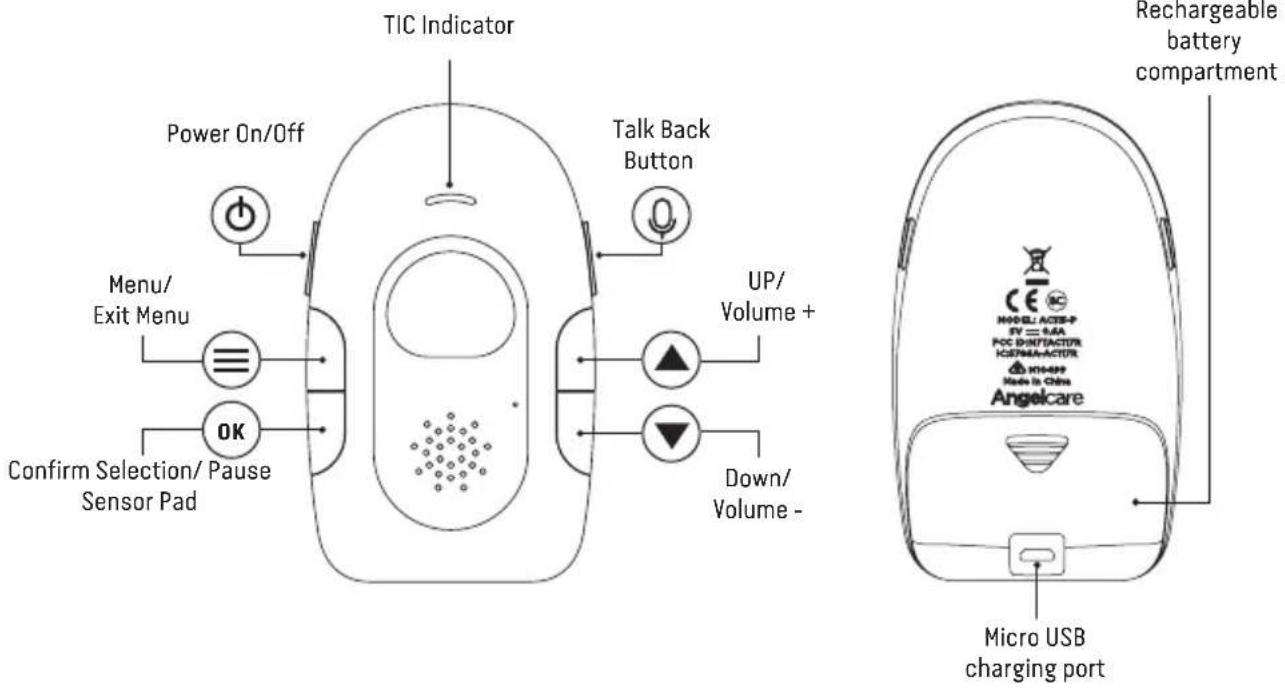

STEP1-CHARGING THE PARENT UNIT (10 HOURS)

1) Remove the battery compartment on the rear. Insert the provided rechargeable batteries into the compartment.
2) Connect the USB plug to the Parent Unit and connect the power adapter with an electrical outlet.
3) Charge the unit for 10 continuous hours prior to first use.

WARNING - Strangulation Hazard - Children have STRANGLED in cords.

• KEEP the Nursery Unit and adapter cords out of the reach of children more than 3 feet or 1 meter away.
• NEVER use extension cords with adaptors. ONLY use adaptors provided.
• This product is NOT a Toy. NEVER allow children to play with it.

STEP 2 - POSITIONING THE MOVEMENT SENSOR PAD

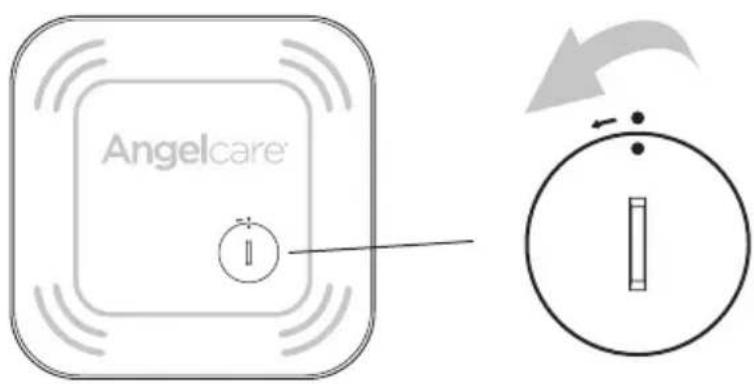

2.1 - POWERING THE MOVEMENT SENSOR PAD

When using the Sensor Pad for the first time, you will need to insert the provided CR3032 battery.

1) Remove the battery cover using a coin.
Turn in the direction of the arrow.
2) Place the included battery (CR3032) in the compartment. Note: The + symbol should be facing up.
3) Replace the battery cover (the two dots will line up). The Sensor Pad is now ON.

IMPORTANT

• If your crib does not have a solid, stationary, completely flat, firm surface including a spring or slat base, place a hard board between the crib base and the Sensor Pad, to ensure correct operation. The hardboard support must measure at least 33 × 33 cm ( 13'' × 13'' ) and 6 ~mm (1/4'') thick. This hardboard support must be larger than the Sensor Pad surface area.
• The Sensor Pad functions with any size and type of mattress except memory-foam mattresses, hollow frame mattresses and water beds. The hardboard maintains a constant pressure on the Sensor Pad, enabling it to detect the baby's movements even when the baby is at the edges of the crib.

Hardboard

Sensor Pad

1) Remove the mattress from the crib.

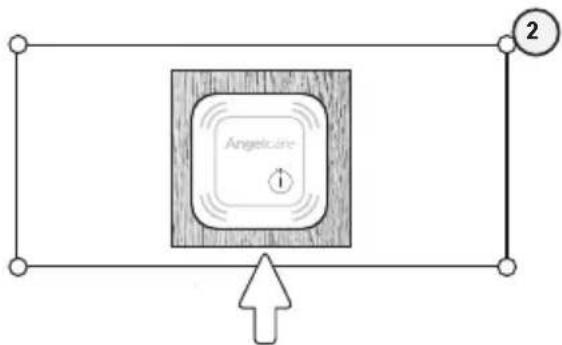

2) Place the Sensor Pad - Angelcare ^ logo side up - in the center of the mattress. It should be centered on the hardboard if your crib requires a hardboard support.
3) Replace the mattress.

IMPORTANT!

• Ensure the Sensor Pad is in the center of the Crib - printed or Logo side up - on top of the hardboard. Check the position is central before each use.
• BEFORE FIRST TIME USE: Test that the unit is ready for use - refer to to the Full User Manual to check installation is correct.

STEP 3 - SETTING UP THE NURSERY UNIT

3.1 - SELECT A LOCATION FOR THE NURSERY UNIT

IMPORTANT

Place the crib near a supporting wall and far from air currents. Install the Nursery Unit on a flat, stable surface facing the crib at a distance of at least 3 feet (1 meter). Make sure to plug the adapter to the socket outlet nearest to the equipment and that is easily accessible.

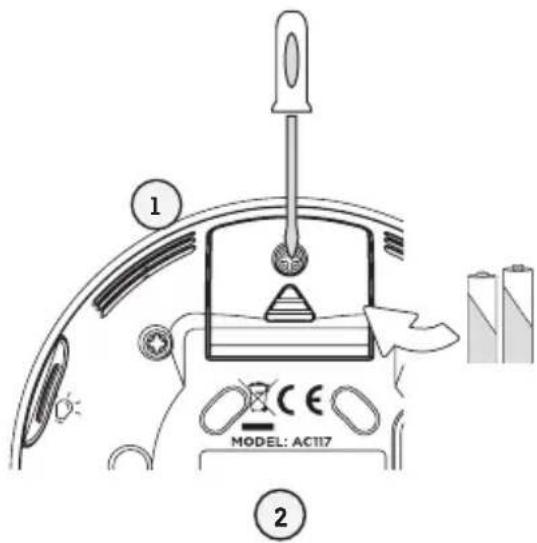

1) Remove the batteries cover and insert 2 AAA Alkaline Batteries (not included)

Note:

• The batteries are a back up power supply in case of power outage.
• When unplugging the adapter from the Nursery Unit, be sure it is switched to the OFF position. If it isn't, the unit will revert to battery mode if batteries are installed.

2) Install the Nursery Unit on a flat, stable surface facing the crib at a distance of at least 3 feet (1 meter).
3) Check to make sure the Sensor Pad has not moved from position.
4) Place the mattress back inside the crib.
5) Connect the USB plug to the Nursery Unit and then connect the USB plug with the power adapter and the electrical outlet.

Note: Each time you power ON your Nursery Unit, the internal thermometer will need to calibrate to ensure accuracy. This automatic process will take approximately 30 minutes. The colour changing temperature display, by default, will be turned "OFF". You may turn this feature "ON" in the settings mode on your Parent Unit.

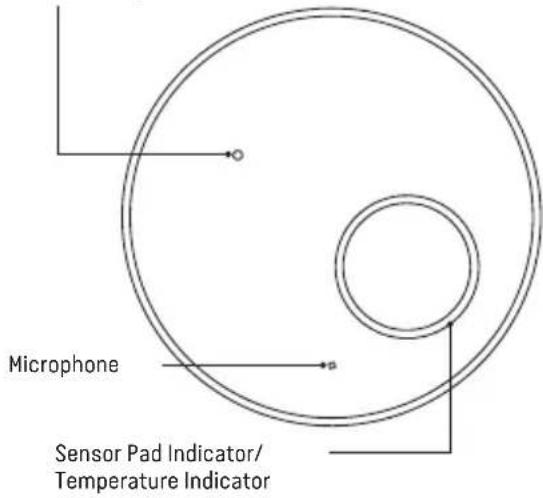

NURSERY UNIT:

Power ON/OFF Light Indicator Low Batteries Light Indicator

YOU ARE NOW READY TO USE YOUR MONITOR

The Angelcare monitor can be used with the pre-program factory settings or you can also customize your settings to your preference.

DEFAULT SETTINGS

Detection Mode:

Movement:

Sound:

ON

ON

Sound transmission (VOX): OFF

TIC Function: OFF

V0X Sensitivity: Level 2 (of 4)

Temperature Unit: Fahrenheit (United States)
Celsius (Canada)

Temperature Alarm: OFF

Temperature Alarm Setting: High: 86.2°F (30°C)

Low: 66.2^ (19°C)

TURN ON YOUR MONITOR

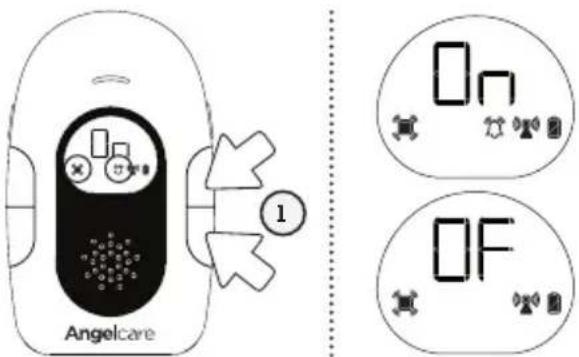

Press ON/OFF

on the Parent Unit for 2 seconds.

Press ON/OFF

on the Nursery Unit for 2 seconds.

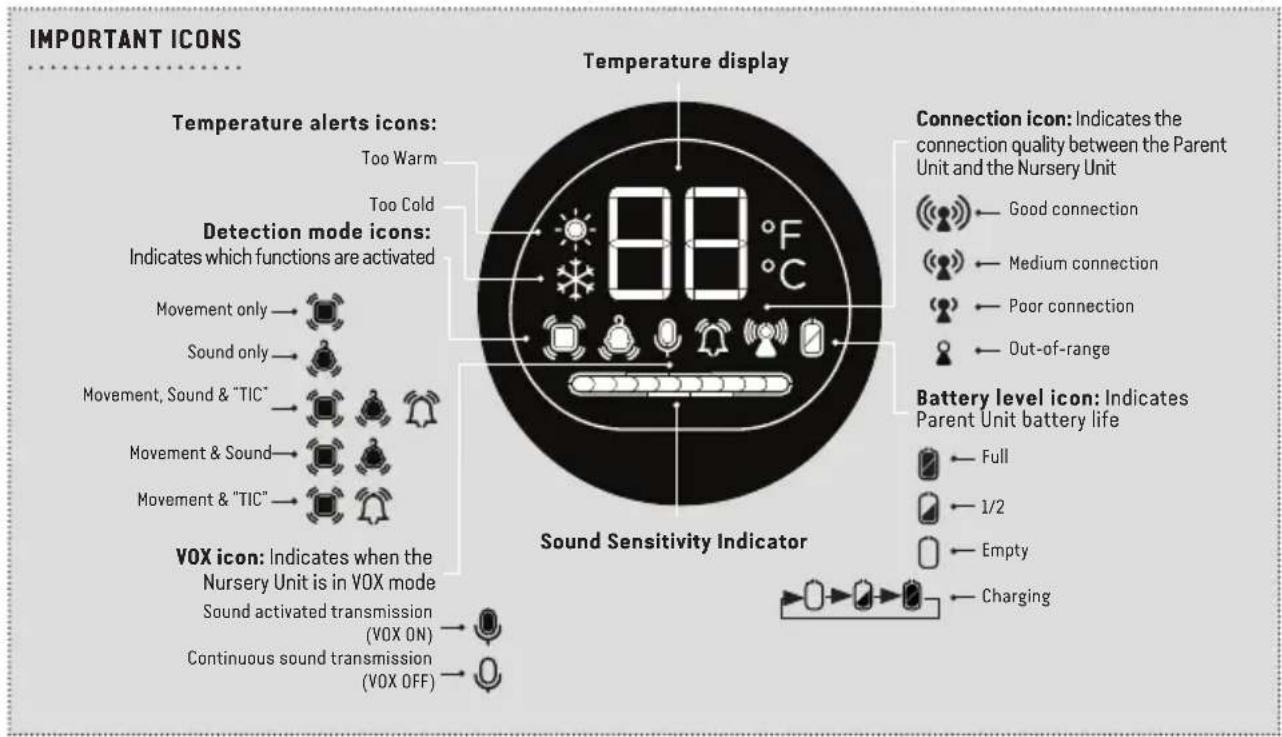

NOTE:

The screen of the Parent Unit flashes the out-of-range icon until it displays the room temperature and function icons. The connection process should be complete within 30 seconds. If this sequence is not completed within 30 seconds you will need to switch the units off and repeat.

When Parent Unit is turned ON and Nursery Unit is OFF or if there is a lost connection between the 2 units:

• The Out-of-Range icon on the Parent Unit will blink
• The Parent Unit will beep 3 times every 15 seconds

STEP 5 - TESTING AND GETTING TO KNOW YOUR MONITOR

The Angelcare monitor can be used with the pre-programmed factory settings or you can customize your settings to your preference.

All changes and adjustments made in the main menu will not be saved unless you confirm them by pressing the EXIT button.

IMPORTANT

When in MENU mode, sound transmission between Parent and Nursery Units will be temporarily deactivated.

5.1 - MENU ACCESS AND CHANGING THE SETTINGS

The MENU settings are accessed by pressing and HOLD the MENU button on the Parent Unit. The MENU functions are in a loop. Each time you press the OK button briefly you move on to the next MENU function. Once you have selected your preferred settings you must press EXIT MENU or your changes will not be saved. The MENU functions are in the following order

PRESS & HOLD MENU: Movement STEP 5.2

PRESS 1 TIME: MOVEMENT & TIC. STEP 5.2

PRESS 2 TIMES: SOUND. STEP 5.5

PRESS 3 TIMES: VOX STEP 5.6

PRESS 4 TIMES: TEMPERATURE . STEP 5.7

5.2 - ACTIVATING/DEACTIVATING THE SENSOR PAD

SET THE MOVEMENT DETECTION

Allows you to detect the baby's movements.

1) Press and HOLD the MENU button until the Movement monitoring icon blinks.
2) Use the UP and DOWN arrows to activate or deactivate movement detection.
3) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

SET THE TIC FUNCTION

Allows you to detect baby's movements as well as hear a TIC sound.

IMPORTANT

To activate the "TIC" Function, the movement detection needs to be ON.

TO TEST THE SENSOR PAD

MOVEMENT FUNCTION NEED TO BE ACTIVATED:

1) Press and HOLD the MENU Button then press the OK button until the "TIC" icons blink. Use the UP and DOWN arrows activate or deactivate the TIC function.
2) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

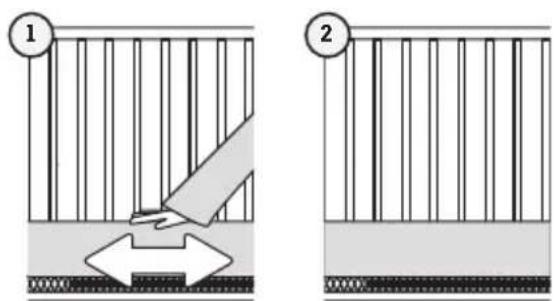

1) Move your hand lightly on the mattress. NOTE:

The Parent Unit will emit a "TIC" sound (when activated) and will flash every 5 seconds.

2) Remove your hand from the mattress. After 15 seconds you will hear a 'TIC' pre-alarm sound, and 5 seconds later the Movement Alarm will trigger.
3) Repeat by moving your hand lightly in all four corners of the mattress.

MOVEMENT ALARM

• If NO movement is detected after 15 seconds you will hear a single 'TIC' pre-alarm sound from the Nursery Unit.
• If after a further 5 seconds there is still NO movement detected both the Parent Unit and Nursery Unit speakers will emit loud continuous beeps - this is the Movement Alarm.
• Nursery Unit will flash red light.
• Sensor Pad Icon and sound level bar on Parent Unit will flash.

IF THE ALARM DOES NOT SOUND

• Avoid contact with crib while Sensor Pad is in operation.
• Place crib near a supporting wall.
• Adjust Sensor Pad sensitivity level.
• Turn OFF crib mobile, fans, loud music or anything else that may cause vibration.

TO STOP THE ALARM

5.3 - PAUSING AND RESTARTING THE SENSOR PAD

Allows you to pause the Sensor Pad if you remove baby from the crib, e.g. for feeding or comforting.

1) From the Parent Unit, press and hold Pause Sensor Pad (OK button) for at least 2 seconds.

OR

From the Nursery Unit, press the Pause button

2) To unpause the Sensor Pad, from the Parent Unit, press the Pause Sensor Pad button (OK button)

OR

From the Nursery Unit, press the Pause button.

IMPORTANT

If you do not pause the Sensor Pad, the alarm will sound if there is no movement after 20 seconds.
- Ensure to unpause the Sensor Pad before putting baby in the crib.

5.4 ADJUST THE SENSOR PAD SENSITIVITY LEVEL:

To ensure adequate monitoring of your baby's movements, you can adjust the sensitivity of the Sensor Pad. Set a high sensitivity for a newborn and a lower sensitivity as baby grows and gains weight. A thicker mattress will also need a higher sensitivity. Slide the Nursery Unit sensitivity level button to select between low, medium or high level.

For optimal results begin with medium sensitivity level, adjusting the sensitivity by increasing or decreasing as required.

NOTE:

If you are experiencing false alarms, adjust the sensitivity level.

IMPORTANT

The Sensor Pad is not designed for use with adults, children or infants older than 24 months.
Once you are finished using the Sensor Pad, please deactivate the movement function, remove it from the baby's crib and store it away.

5.5 - SOUND

TO ACTIVATE SOUND:

TO TEST SOUND:

Ask someone to speak into the Nursery Unit or place the unit near a radio to ensure that sound is being picked up.

IMPORTANT

To avoid feedback (whistling), keep both units at least 10 feet (3 meters) apart.

1) Press and hold the MENU Button then press the OK button until the Sound Monitoring icon blinks.
2) Using the UP and DOWN arrows to turn the function ON or OFF.
3) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

• Check that both units are powered ON.
• Check that both units are plugged into functioning electrical outlets.
• Check the batteries in both units (replace or recharge them if necessary).
• Bring the Parent Unit closer to the Nursery Unit.

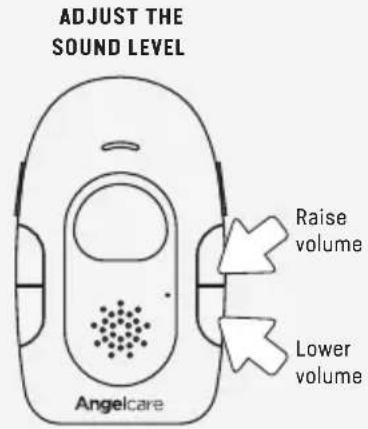

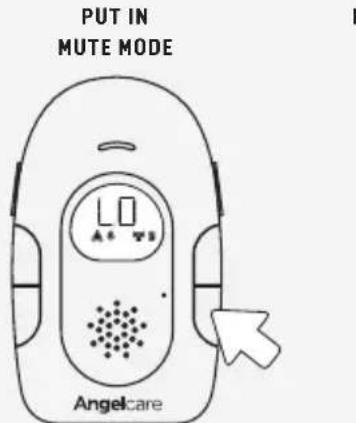

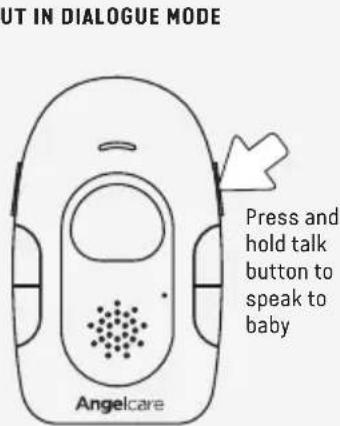

Press the VOLUME - until LO is displayed. When in MUTE the sound icon will flash to indicate this.

5.6 - VOICE ACTIVATION (VOX ON) OR CONTINUOUS SOUND (VOX OFF) MODE

Allows you to select your option on how you monitor sound: VOX (voice activation picks up sound based on the setting of the sensitivity level) or Continuous (sound monitoring is continuously on, picking up all sounds).

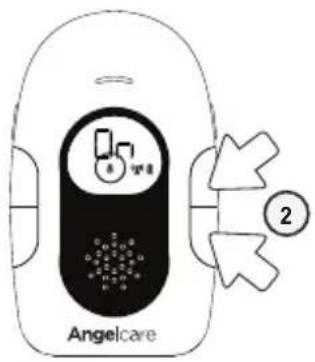

1) Press and hold the MENU button then press the OK button until the VOX icon blinks.
2) Use the UP and DOWN arrows to activate or deactivate the VOX function.
3) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

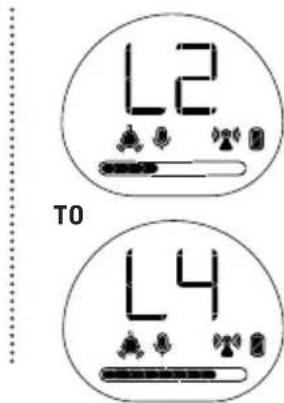

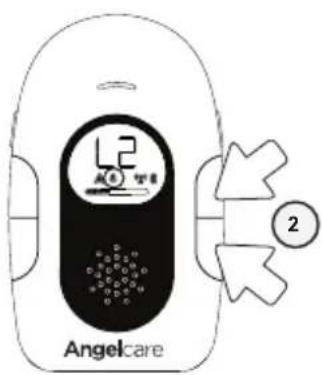

TO ADJUST SOUND SENSITIVITY (VOX)

The sensitivity of the microphone is adjustable. This means that sound will only transmit based on the level that you set.

1) When the Sound Transmission is ON (VOX ON) press and hold the MENU button then press OK button until VOX ON icon blinks.
2) Use the UP and DOWN arrows to select desired microphone sensitivity level.
3) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

5.7 - TEMPERATURE

TO SELECT TEMPERATURE IN FAHRENHEIT OR CELSIUS

TO ACTIVATE OR DEACTIVATE THE TEMPERATURE ALARM

TO SET TEMPERATURE RANGE

NOTE:

Make sure to turn ON Temperature alarm to be able to set Temperature range.

1) Press and hold the MENU button then press OK button until the ^ / icon blinks.
2) Use the UP and DOWN arrows to select temperature in Celsius or Fahrenheit.
3) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

1) Press and hold the MENU button then press OK button until the Temperature Indicator icon blinks.
2) Use the UP and DOWN arrows to activate or deactivate the temperature alarm.
3) Press OK button to confirm your choice and set the Temperature range.

1) The Low Temperature will blink. Use the UP and DOWN arrows to set the LOW temperature alarm (41 to 62^ Fahrenheit [5 to 19^ Celsius]).
2) Press the OK button to confirm your choice and set the High temperature.
3) The High Temperature icon will blink. Use the UP and DOWN arrows to set the HIGH temperature alarm (71 to 98^ Fahrenheit [22 to 37^ Celsius]).
4) Press the OK button to go to the next setting or press the EXIT button to confirm your choice.

The low temperature range is 41 to 62^ (5 to 19^ ) and high temperature range is 71 to 98^ (22 to 37^ ).

TEMPERATURE ALARM

• Alarm activates when the temperature reaches the maximum or minimum set temperature.
• Parent Unit will emit 3 consecutive beeps, every 5 seconds if the temperature reaches levels out of your chosen range. The relevant icon will flash on the Parent Unit screen to alert you.

STEP 6 - ACTIVATING AND DEACTIVATING ADDITIONAL FUNCTIONS

6.1 - ACTIVATE OR DEACTIVATE TEMPERATURE INDICATOR ON NURSERY UNIT

With this option the Nursery Unit Temperature Indicator will light up in colour when the temperature goes above or below your preferences. If the temperature goes above your set preferences and this option is activated, the light on the Nursery Unit's will turn to red instead of the default white. If the temperature goes below the set preferences, then the light will turn blue.

Red - Room temperature is too hot

Blue - Room temperature is too cold

White - Room temperature is good

6.2 - OUT OF RANGE SETTINGS

Your monitor has an Out-of-Range alarm that advises you when your two units are not communicating. Out-of-Rangesituations can be caused by distance or by physical interferences.

RANGE:

Open field (Open area without obstructions): up to 820 feet (250 meters).

OUT-OF-RANGE ALARM

• Alarm activates when your two units are not communicating.
  The Parent Unit will emit a triple beep every 16 seconds.
• Out-of-Range Icon will flash on the screen.

IMPORTANT

If you turn the Nursery Unit OFF the Out-of-Range Alarm will sound. Turn the Nursery Unit ON again to reactivate the link.

TO STOP THE OUT-OF-RANGE ALARM:

6.3-PAGER

Allows you to locate the Parent Unit.

TO LOCATE THE PARENT UNIT

Press and hold the Temperature Light button on the side of the Nursery Unit. The Parent Unit will emit a paging sound.

TO STOP THE PAGING SOUND

Press any button on the Parent Unit or the Pager button on the Nursery Unit.

TROUBLESHOOTING

• Ensure that you fully charge your batteries for 10 hours before their first use.
  To maintain maximum battery life it is recommended that you fully discharge your batteries periodically. Battery performance can be diminished by leaving the batteries constantly charging. If your Parent Unit is not in use, please turn it off.
• Inadequate battery power can impair the performance of your monitor. If you are not happy with the performance of your Parent Unit please replace the rechargeable batteries (2 x NiMH Rechargeable Batteries).
• It is advisable to change the batteries every 6 months.

EN

LOSS OF CONNECTIVITY BETWEEN THE PARENT UNIT AND THE NURSERY UNIT

• In the case of loss of connectivity, the first step is to bring the Parent Unit and Nursery Unit closer together and make sure that both units are ON to restore the connection. If there is still no connection and no out-of-range warning after the above has been done, then and only then should the re-connection procedure below be done.

1) Turn both Units OFF.
2) Turn the Nursery Unit ON.
3) Press 4 consecutive times the Power ON/OFF button on the Nursery Unit.

The Sensor Pad Indicator Light on the Nursery Unit will flash quickly in green (indicates Nursery Unit is in linking mode).

4) Turn the Parent Unit ON. The Out-of-range icon will blink (indicates Nursery Unit is in linking mode).

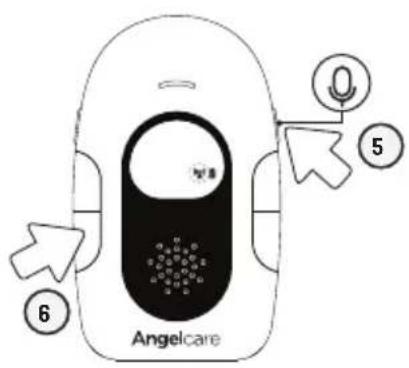

5) Press and hold the Talk Back button on the Parent Unit until a beep tone is heard.
6) Press OK button on the Parent Unit. The Out-of-Range icon should blink faster to indicate that the Parent Unit is in linking mode.

The Parent Unit will display H1-H2 icon during the reconnection procedure. The reconnection is successful if the Parent unit shows the regular screen view.

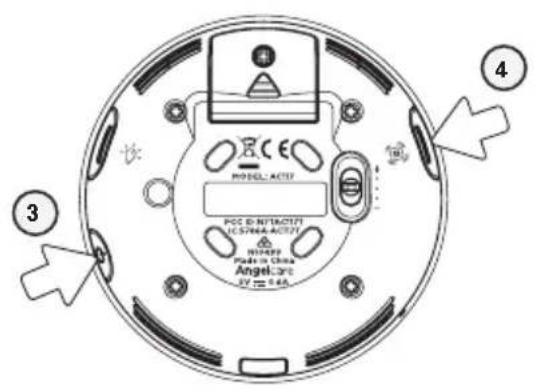

LOSS OF CONNECTIVITY BETWEEN THE NURSERY UNIT AND THE WIRELESS SENSOR PAD

• In the case of loss of connectivity, the first step is to bring the Sensor Pad and Nursery Unit closer together and make sure that both units are ON to restore the connection. If there is still no connection after the above has been done, then and only then should the re-connection procedure below be done. Make sure that no other wireless Sensor Pad is in the same room during the reconnection procedure.

1) Turn both Units OFF.
2) Remove and replace the battery from the Sensor Pad.
3) Turn the Nursery Unit ON by pressing 2 seconds on the Power ON/OFF button.

Power Indication of the Nursery Unit will turn green.

4) Press and hold the Pause button on the Nursery Unit for 3 seconds.

The Sensor Pad indicator Light of the Nursery Unit will blink blue.

BLUE

The reconnection should be completed within 30 seconds.
- The reconnection is successful when Nursery Unit sounds a confirmation tone.

NOTE:

During the reconnection procedure make sure that no other wireless Sensor Pad is in the same room.

FALSEARMS

• Turn OFF the Nursery Unit.
• Make sure there is no bedding between the mattress and the Sensor Pad.
• The Sensor Pad must rest on a completely flat and firm surface. If the crib has a spring or slat base, place a hardboard between the crib base and the Sensor Pad measuring at least 1/4 (6 mm) thick and should have minimum dimensions of 13'' × 13'' (33 x 33 cm).
• Make sure Sensor Pad is positioned as described under the setup requirements. Sensitivity may need to be adjusted, refer to Step 5.4.

ALARM WILL NOT SOUND

• Avoid contact with the crib when the monitor is ON.
• Place crib near a solid supporting wall to avoid Sensor Pad from detecting movement from outside the crib.
• Turn OFF crib mobile, fans, loud music or anything else that may cause vibration.
• You may need to decrease the sensitivity, refer to Step 5.4.

NURSERY UNIT POWER ON INDICATOR (GREEN LIGHT) DOES NOT LIGHT UP

• Check connections or change to another electrical outlet.
• Press the Nursery Unit ON/OFF button for 2 seconds to turn the Nursery Unit ON.

WEAK RECEPTION

• Bring units closer together.
• Change the position of one or both units.
• Place units on a flat surface away from baby's reach.
• Replace the batteries or recharge the Parent Unit.

STATIC, DISTORTION, INTERFERENCES (FROM OTHER MONITORS, WIRELESS PHONES, WALKIE-TALKIES, ETC...)

• Rotate the Parent Unit or move it away from source of interference.

FEEDBACK (LOUD NOISES EMITTED FROM THE PARENT UNIT)

• Move units further apart (at least 10 foot [3 meters] apart).
• Decrease volume on the Parent Unit.

THE PARENT UNIT SCREEN IS BLACK (PARENT UNIT IS OFF)

• Turn the Parent Unit back ON by pushing and holding the power button.
• Replace the batteries or recharge the Parent Unit.

SENSOR PAD LIGHT INDICATOR FLASHING RED (MONITOR IS NOT DETECTING MOVEMENT)

• Make sure there is no bedding between the mattress and the Sensor Pad.
• The Sensor Pad must rest on a completely flat and firm surface. If the crib has a spring or slat base, place a hardboard between the crib base and the Sensor Pad measuring at least 1/4'' (6 mm) thick and should have minimum dimensions of 13'' × 13'' (33 x 33 cm).
• Make sure Sensor Pad is positioned as described under the setup requirements. Sensitivity may need to be adjusted, refer to Step 5.4.

NO POWER

• Check or replace batteries.
  Make sure Monitor is ON.

NURSERY UNIT POWER ON INDICATOR (GREEN LIGHT) DOES NOT LIGHT UP

• Check connections or change to another electrical outlet.
• Press the Nursery Unit ON/OFF button for 2 seconds to turn the Nursery Unit ON.

LIMITED WARRANTY

Angelcare warrants to the original owner of this product that Angelcare monitor is free from any material and workmanship defects for the term of the warranty period (see warranty table below to determine the warranty for your country). If this monitoring system fails to function properly when used as directed under normal conditions and during the warranty period. Angelcare will either repair or replace the product, at our discretion, free of charge. Please contact your local distributor to validate warranty and warranty period.

The product must be accompanied by a proof of purchase, either a bill of sale or other proof that the monitoring system is within the warranty period. Angelcare will bear the cost of repairing or replacing the product and shipping it back to you.

This warranty does not apply to a product which has been damaged as a result of improper maintenance, an accident, improper voltage supply or any other form of misuse. The warranty is also void if the owner repairs or modifies the product in any way. Angelcare® is not liable for any incidental or consequential damages with regard to this product. The warranty also excludes any liability other than what is stated above. No other warranty is given.

This warranty does not cover products and accessories which are not Angelcare-branded, or any problems that result from usage that is not in accordance with product instructions, failure to follow the product instructions, or problems caused by using accessories, parts or components not supplied by Angelcare.

LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. WE ARE NOT IN ANY WAY RESPONSIBLE FOR ANY OUTCOME RESULTING FROM THE USE OF THIS PRODUCT.

WARRANTY TERM PER COUNTRY

North America 1 year

IMPORTANT! This Angelcare monitor monitor is a personal care product. Please do not return this product to the store. If you have questions or need help, please call your distributor before returning this product.

We, at Angelcare, stand behind all of our products. If you are not completely satisfied or have any questions, please contact your distributor before returning this product:

United States and Canada:

Please contact us at: [e-mail]

Other countries:

Find your local distributor by visiting our website: international.angelcarebaby.com.

TECHNICAL SPECIFICATIONS

Range:

Open field (Open area without obstructions):

Between the Nursery Unit and the Parent Unit:

up to 820 feet (250 meters).
'Between the Nursery Unit and the Sensor Pad: up to 20 foot (6 meters).

Power Supply:

2 AAA alkaline batteries (not included) or

100/240V AC/5V DC adapter for Nursery Unit.

2 AAA rechargeable batteries and 100/240V AC/5V DC adapter for the Parent Unit.

included CR3032 3V (wireless Sensor Pad)

Caution: To reduce the risk of electric shock, do not expose this product to rain or moisture.

Danger of explosion if batteries are incorrectly replaced. The battery included for the Parent Unit is 2 AAA NIMH rechargeable batteries, manufactured by GPI INTERNATIONAL LIMITED (GN60AAHC, 1.2V 600mAh). Only use the Angelcare recommended replacement battery. To

obtain information on replacement batteries please contact Angelcare customer service: www.angelcarebaby.com or contact your local distributor. Instructions will be included with the replacement battery. Keep all batteries away from children.

Batteries:

DO NOT mix old and new batteries.
- DD NOT mix alkaline standard (carbon-zinc), or rechargeable (NI-CD, NIMH, etc.) batteries
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

Transmission:

Transmission between the Parent Unit and the Nursery Unit is made on 1.92 to 1.93GHz frequency for North America.

Transmission between the Nursery Unit and the Sensor Pad is made on 2.4 GHz frequency for North America.

Maximum RF Power Transmitted:

24dBm (250mW) between Nursery Unit and Parent Unit

• 20dBm (100mW) between Nursery Unit and Sensor Pad

RF Channel no. between Nursery Unit and Parent Unit: 10 RF Channel no. between Nursery Unit and Sensor Pad: 7

PROTECT THE ENVIRONMENT

The wheeile bin symbols mean that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When the product/battery reaches its end of life take it to a collection point designated by local authorities. The separate disposal and recycling will help conserve natural resources and protect human health and the environment. Refer to User's Guide for removal of batteries.)

SAR Information Statement

Your baby monitor Parent Unit is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific studies. The standards include a substantial safety margin designed to assure all persons, regardless of age and health. The exposure standard for the Parent Unit employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Test for SAR are conducted with the Parent Unit transmitting at its highest certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified power level, the actual SAR level of the Parent Unit while operating can be well below the maximum value. This is because the Parent Unit is designed to operate at multiple power levels so as to use only the power required to reach the Nursery Unit. In general, the closer you are to Nursery Unit, the lower the power output. Before a baby monitor model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., in front of face and worn on the body) as required by the FCC for each model. The highest SAR value for the Parent Unit when tested for use in front of face is 0.043W / Kg and when worn on the body is 0.125W / Kg (Body-worn measurements differ among various models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various Parent Units and various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model Parent Unit with all reported SAR levels evaluated in compliacne with the FCC RFexposure guidelines. SAR information on this model Parent Unit is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:N7TAC117R

In the United States and Canada, the SAR limit for the Parent Unit is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

IC STATEMENT

This device complies with Industry Canada licence-exempt RSS standard(s)

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for satisfying RF exposure compliance. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.

These requirements set a SAR limit of 1.6W / kg averaged over one gram of tissue.

The highest SAR value for this Parnet Unit when tested for use in front of face is 0.043W / Kg and when worn on the body is 0.125W / Kg . This device was tested for typical body-worn operations. To comply with RF exposure requirements, 0mm testing separation distance was done between testing BODY and the Parent Unit, including antenna. Third-party belt-clips, holsters, and simialr accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied antenna.

MANUEL DE L'UTILISATEUR

Modèle AC117

DO NOT EXPOSE TO RAIN OR MOISTURE

DO NOT EXPOSE TO RAIN OR MOISTURE
