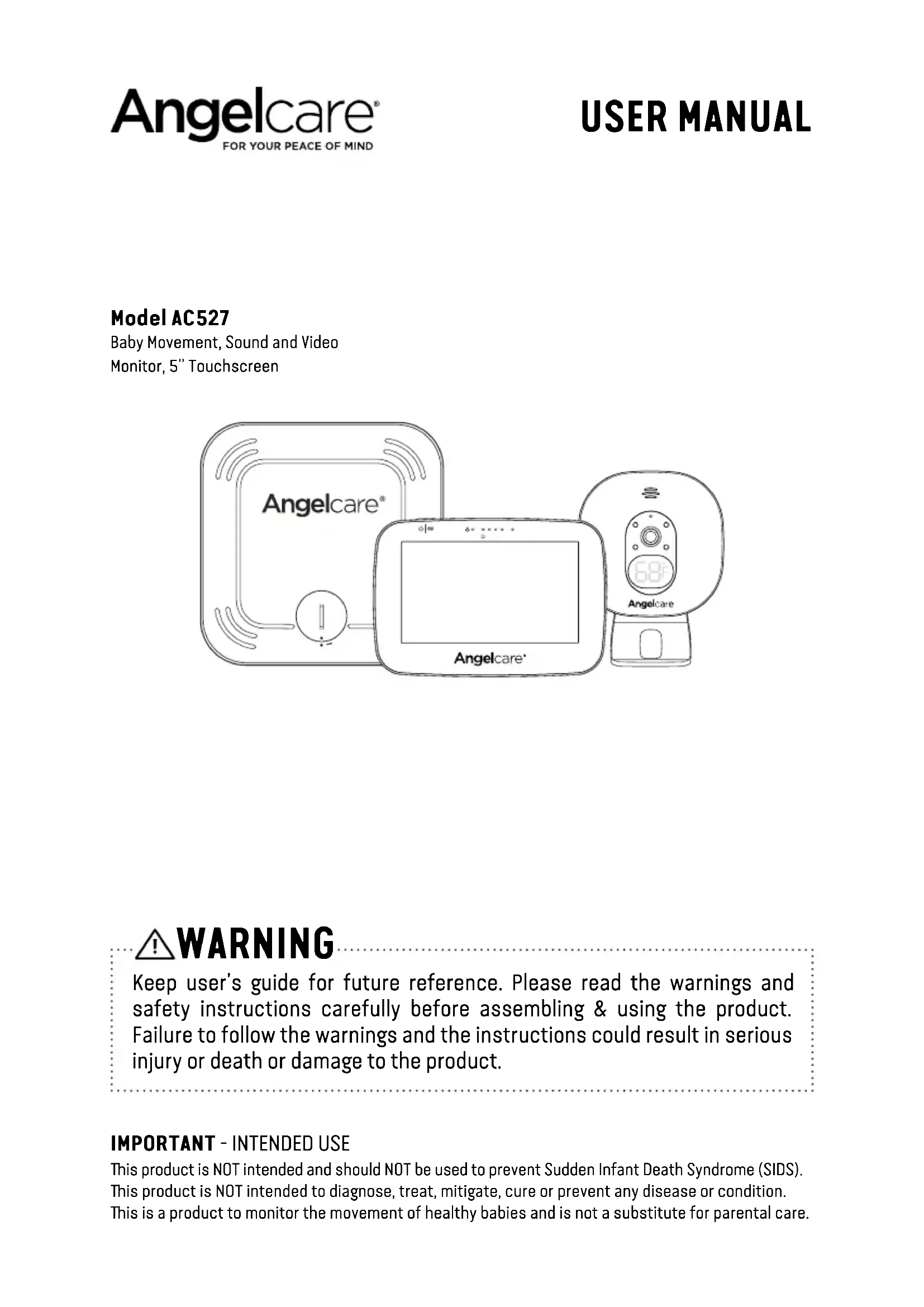

USER MANUAL AC527 ANGELCARE

Keep user’s guide for future reference. Please read the warnings and safety instructions carefully before assembling & using the product. Failure to follow the warnings and the instructions could result in serious injury or death or damage to the product. WARNING Model AC527 Baby Movement, Sound and Video Monitor, 5’’ Touchscreen USER MANUAL

IMPORTANT - INTENDED USE

is product is NOT intended and should NOT be used to prevent Sudden Infant Death Syndrome (SIDS). is product is NOT intended to diagnose, treat, mitigate, cure or prevent any disease or condition. is is a product to monitor the movement of healthy babies and is not a substitute for parental care.2

3. DO NOT use a crib mobile and other crib accessories

that may produce movements or vibrations.

4. Fans (including ceiling), washing machines, floor

boards, central heating or loud music are all forms of movement and vibration and may interfere and be detected by the Sensor Pad.

5. If an additional Nursery Unit is added then it must

be positioned at least 6.5 feet (2 metres) minimum from Nursery Unit 1 and Sensor Pad as this could interfere with performance.

6. DO NOT use with bedside crib touching parent’s/

carer’s bed as the Sensor Pad will detect your movements.

7. DO NOT place the crib against a wall or skirting

board as vibrations may be detected.

8. Following removal of baby from the crib, some

mattresses may still detect mattress movement due to it forming back into shape and alarm may not sound.

9. Ensure crib is stable to eliminate any movement.

10. Crib should not be placed in reaching distance of

another crib or bed.

11. DO NOT use other wireless devices in the same

room as the monitor (including mobile phones, microwaves...). ey may interfere with signal and performance.

12. e Sensor Pad is made of plastic and does

not permit air to circulate. erefore, mildew build up could develop underneath the mattress in the Sensor Pad area. We suggest rotating & airing /drying the mattress regularly to prevent any mildew. AVOID CONTACT WITH MOISTURE. Clean - wipe with a dry lint free cloth.

13. e Sensor Pad is not suitable for use above

14. is product cannot replace responsible

• is product is designed to aid in the monitoring of your child. When using the monitor, you must still provide the supervision necessary for the continued safety of your child.

is baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User’s Guide, safe to use. WARNINGS

1. Because of the serious strangulation risk to infant & toddlers, parents & caregivers should note

the following Warnings.

WARNING - Strangulation Hazard – Children have STRANGLED in cords

• KEEP the Nursery Unit and adapter cords OUT of the reach of children more than 3 feet or 1 meter away.

• NEVER use extension cords with adapters. ONLY use adapters provided.

• is product is NOT a Toy. NEVER allow children to play with it. WARNING

- MOVEMENT SENSOR PAD - NO ALARM

• Sources of vibration & movement, other than your baby’s, can be detected by the Sensor Pad and interfere with the performance of your Angelcare monitor.

• e alarm will not sound if it detects movement other than your baby’s.

• High sensitivity settings can pick up other sources of vibration & movement - please read instructions on sensitivity setting to adjust accordingly.

• Other active and older babies (toddlers) in the same room can be detected and the alarm will not sound.

• Ensure the baby’s environment is FREE from any movements or vibrations when using the Sensor Pad - see below warnings 3 to 11.E

• Use this appliance ONLY for its intended use as described in this manual.

15. e Sensor Pad is not intended to be used to

determine if a child is out of the crib.

16. ALWAYS be sure to immediately check on

baby whenever an alarm sounds.

17. Keep cords out of the reach of ANY children.

18. ONLY use the chargers and power adapters

provided. Do not use other types as this may damage the device and battery pack (if included in your model).

19. Adult assembly required. Keep small parts

away from children when assembling.

20. Follow instructions and test this monitor

and its functions so you are familiar with it prior to actual use. ALWAYS be sure that both the transmitter and receiver are working properly and are within range of each other – check periodically and when changing location of the Nursery Unit.

21. DO NOT touch the plug contacts especially

with sharp or metal objects.

22. DO NOT use the baby monitor near water.

Care should be taken so that objects DO NOT fall onto units and that liquids are not spilled into either unit or Sensor Pad through its openings. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPENDO NOT EXPOSE TO RAIN OR MOISTURE

23. Keep monitor AWAY from heat sources (such

as stoves, radiators, etc.). Heat can damage the case or electrical parts.

24. ALWAYS place both the Nursery Unit and the

Parent Unit on a flat solid surface in an upright position that allows for proper VENTILATION. DO NOT place on sofas, cushions, beds, etc. which may block ventilation or anywhere that would muffle the sound or interfere with the normal flow of air.

25. e baby monitor can only be used between

10°C and 40°C (50°F and 104°F).

WARNING Do not ingest the battery, Chemical Burn Hazard. is product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

26. e Parent Unit battery is a replaceable Li-

Ion battery. e Wireless Sensor Pad uses a replaceable Button Cell Lithium Battery. Only use the Angelcare recommended replacement battery (see Technical Specification).

• Danger of explosion if the wrong battery is used or if replaced incorrectly. Refer to User’s Guide for correct battery installation.

• DO NOT short circuit supply terminals.

27. DO NOT mix old and new batteries and only

use Angelcare recommended replacement batteries (see Technical Specification).

28. e Button Cell Battery represents a small

part and a choking hazard – KEEP away from children!

29. Exercise care in handling batteries in order

not to short out the batteries with conducting materials such as rings, bracelets and keys.

30. Overcharging, short circuiting, reverse

charging, mutilation, or incineration of batteries must be avoided to prevent one or more of the following occurrences: release of toxic materials, release of hydrogen and/or oxygen, gas and rise in surface temperature.

31. DO NOT attempt to recharge batteries

provided with or identified for use with this product that are not intended to be charged. e batteries may leak corrosive electrolyte or explode.

32. Incorrect polarity installation of the

batteries in the end product must be avoided. Reverse insertion of batteries can cause charging, and that may result in leakage or explosion.

33. Remove batteries from units if you store

the product over 30 days because the batteries could leak and damage the product.

34. Discard ‘dead’ batteries as soon as possible

since ‘dead’ batteries are more likely to leak in a product. If a battery has leaked or vented, discard product responsibly.

35. DO NOT store this product, or the batteries

provided with or identified for use with this product, in high-temperature & high humidity environments and avoid direct sunlight.

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

• Replacement of a battery with an incorrect typcan result in an explosion or the leakage of flammable liquid or gas.

• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.

• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

• e mounting height of the Nursery Unit should be less than 2 meter.

• e applied nameplate is located at the product rear enclosure.

• If your crib does not have a solid, stationary, completely flat, firm surface including a spring or slat base, place a hard board between the crib base and the Sensor Pad, to ensure correct operation (see specification on STEP 2).

• e Sensor Pad functions with standard crib sprung and foam mattresses and not memory foam (partial or full), hollow frame construction mattresses and water beds. Please consult Angelcare if unsure of mattress compatibility.

38. is monitor uses public airwaves to transmit

signals. e Parent Unit may pick up signals or interference from other nursery monitors in your area. Your monitor may even be picked up by other households. To protect your privacy, make sure both units are turned OFF when not in use.

39. Power cord protection - Protect the

Adapter’s power cord from being walked on or pinched by furniture or other items – Power supply cords should be routed so that they are not likely to be walked on or pinched by items upon or against them, paying particular attention to cords and plugs, convenience receptacle, and the point where they exit from the product. e socket outlet should be installed near the equipment and should be easily accessible. Make sure to plug the adapter to the socket outlet nearest to the equipment and that is easily accessible. To disconnect from mains, unplug the adapter.

40. Only use attachments/accessories

and replacement parts specified by the manufacturer. Any mounting of the product should follow the manufacturer’s instructions.

• DO NOT position this product on an unstable cart, stand, tripod, bracket or table. e product may fall, causing serious injury to a child or adult and serious damage to the product.

• Use ONLY the stand sold with the product.

• Be sure replacement parts are supplied by Angelcare and have the same characteristics as original part. Unauthourised substitution may result in fire, electric shock or fire.

41. Unplug this appliance during lightning storms

or when not used for long periods of time.

42. Servicing - DO NOT attempt to service

this product yourself as opening or removing covers (except battery door) may expose you to dangerous voltage or other hazards.

• Power Supply – see Technical Specification within this guide.

43. Overloading - DO NOT overload wall outlets,

extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock.

44. Nursery Unit Antenna - e antenna used

for this transmitter must be installed to provide a separation distance of at least 8’’ (20 cm) from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

45. Cleaning - Disconnect all units before cleaning.

DO NOT immerse any part of the monitor in water. Clean only with a dry cloth.

Tabletop stand/Wall Mount (for Nursery Unit)

Lithium Ion Battery Pack (for Parent Unit)

Hardware (for wall mounting)

Hardboard, if the crib does not have a firm surface (see specification on STEP 2). Drill or screwdriver (for wall mounting).

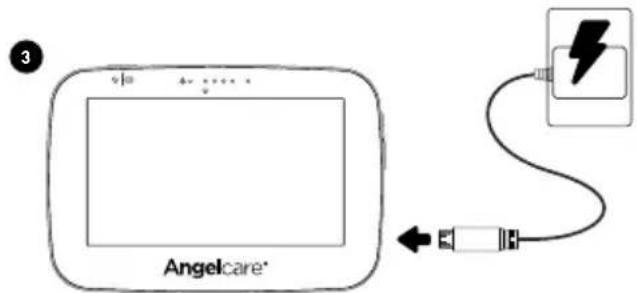

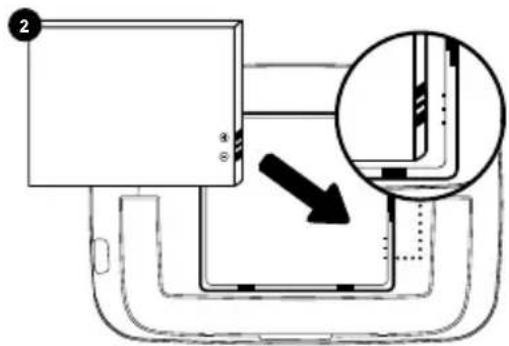

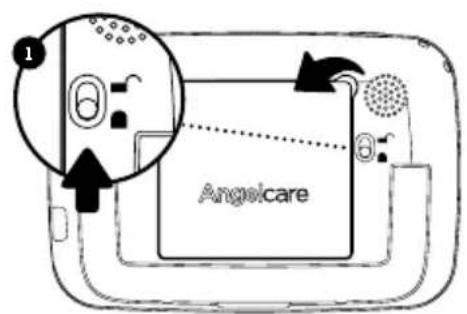

1 SETTING UP THE PARENT UNIT

Charge the Parent Unit 8 hours prior to first use. Regular charging time is 6 hours.

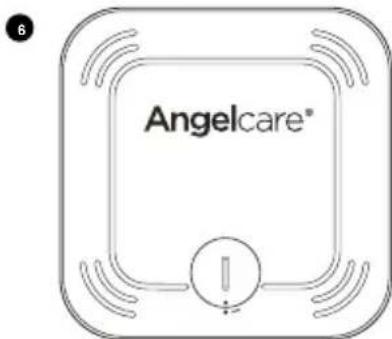

e Sensor Pad is designed to detect subtle baby movements on the surface of the mattress.e alarm will only sound if NO movement is detected for 20 seconds.

the battery cover and insert the battery face with + face up.

2. Replace the battery cover, align

2 dots and click to secure. Correct positioning for slatted base

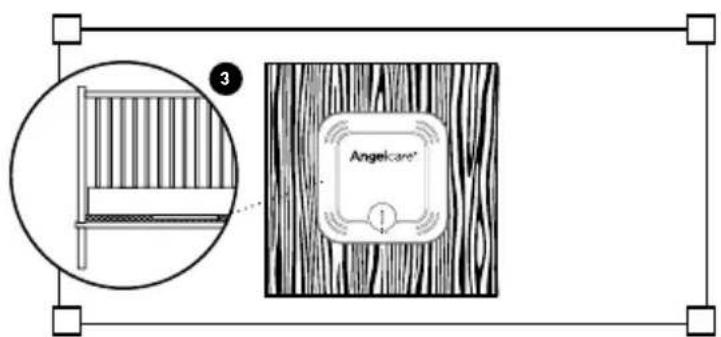

3. Remove the mattress from

the crib, place Sensor Pad - Angelcare® logo side up - on base in approximate centre of mattress, along the length. It should be centred on the hardboard if your crib requires a hardboard support (see ‘IMPORTANT’ note below).

4. Replace the mattress.6

• If your crib does not have a solid, stationary, completely flat, firm surface including a spring or slat base, place a hardboard between the crib base and the Sensor Pad, to ensure correct operation. e hardboard support must measure at least 30 x 30 cm (12” x 12”) and 6 mm (1/4”) thick. is hardboard support must be larger than the Sensor Pad surface area.

• e Sensor Pad functions with standard crib sprung and foam mattresses and not memory foam (partial or full), hollow frame construction mattresses and water beds. Please consult Angelcare if unsure of mattress compatibility. e hardboard maintains a constant pressure on the Sensor Pad, enabling it to detect the baby’s movements even when the baby is at the edges of the crib. IMPORTANT

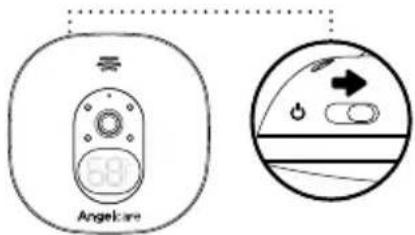

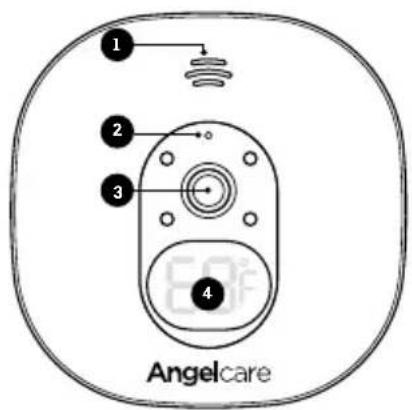

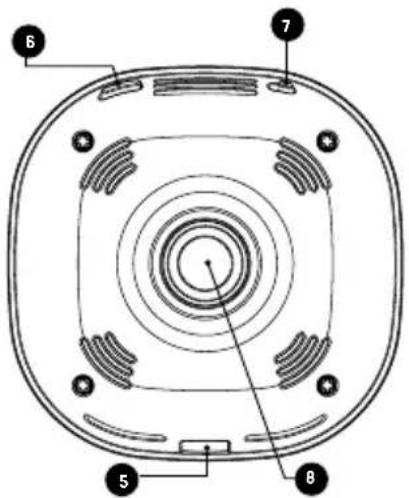

3- SETTING UP THE NURSERY UNIT

Tabletop Sensor Pad Wall-Mounted (e mounting height of the Nursery Unit should be less than 2 meters.) Place the Nursery Unit and Adaptor cord at least 3 feet (1 metre) from the crib.

WALL-MOUNTED NOTE: Before fixing to the wall, review both wall mounted options to achieve best view for you.Option 1 - Close viewing range (Guide 1.0 to 1.5 meters - wall to crib)1 2 3Option 2 - Furher viewing range (Guide 1.5 meters or more - wall to crib) TABLETOP

Do not thread the cord through the bracket hole.E

e Movement Sensor Pad alarm will sound after a few seconds if the child is not in the crib.

• Your Nursery Unit and Parent Unit come pre-paired.

• Each time you power ON your Nursery Unit, the internal thermometer will need to calibrate to ensure accuracy. is automatic process will take approximately 30 minutes.

• Allows you to pause the Sensor Pad if you remove baby from the crib, e.g. for feeding or comforting. Ensure to un-pause the Sensor Pad before putting baby in the crib.

1. Sources of vibration & movement other than your baby’s can be detected by the Sensor Pad and

interfere with the performance of your Angelcare monitor. e alarm will not sound if it detects movement other than your baby’s.

2. ere are 4 sensitivity settings. e unit is set at level 3 (default) and can be adjusted accordingly.

3. e Sensor Pad will detect false movements if you are touching the crib.

4. e monitor will produce a Rouse alarm single beep tone designed to stir baby if no movement has

been detected for 15 seconds. If no further movement is detected, the main alarm will sound at 20 seconds – a series of continuous beeps.

SENSOR PAD FOUR CORNER TEST

1. Place the Sensor Pad at the approximate centre of baby’s sleeping area and put the mattress

2. Switch ON both Nursery & Parent Units – check both units are paired (connected).

3. Immediately pat your hand lightly and continuously on a corner of the mattress

twice for Sensor to detect movement. If movement is detected you will hear a TIC sound every 5 seconds and PU will flash green for a single sensor pad

4. Step away from the crib.

5. e alarm will sound from the Nursery and Parent Unit after 20 seconds.

If the Alarm does not sound, ensure everything is setup correctly and try again; check battery levels on all units, follow the manual for ‘NO ALARMS’ – the sensitivity setting may require lowering by a single level due to other vibrations/movements.

6. If the alarm sounds, pat your hand lightly on a corner of mattress twice for

Sensor to detect movement. It may take up to 8 seconds to recognise movement and for alarm to stop.

7. If the alarm continues, even after lightly patting the corner of your mattress twice, adjust the

sensitivity higher and repeat this test.8

• Test your monitor before first use.

• Prior to use and on a regular basis (before placing your child in the crib) always check the Sensor Pad is detecting no movements or vibrations in its environment.

• Test your monitor every time you move the Sensor Pad to a different place. IMPORTANT

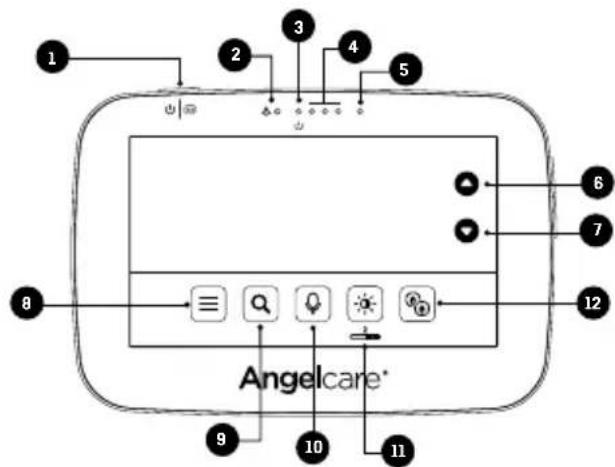

Movement indicator (TIC function)

Navigation up (appear only for certain functions)

Navigation down (appear only for certain functions)

View mode (only if there are 2 Nursery Units connected)

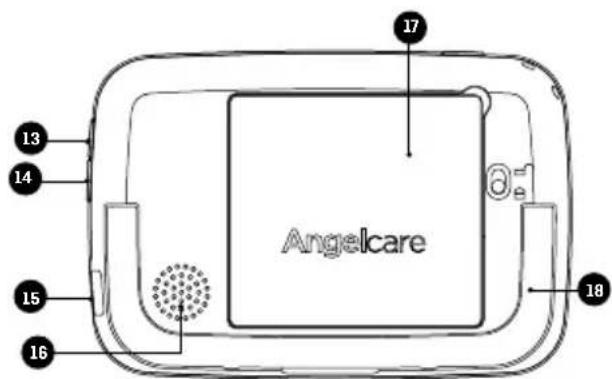

Micro USB charging port

Rechargeable battery compartment

Sensor Pad movement detection is activated

Sensor Pad is connecting

Sensor Pad movement detection is OFF

Sensor Pad is paused

Sensor Pad is low battery

Sensor Pad has never been paired

Nursery Unit selected and broadcasting sound

“TIC” function is activated

“VOX” Sound is activated

“VOX” Video is activated

Temperature alert is activated

Temperature alert: too hot

Temperature alert: too cold

Night vision is activated

Second Sensor Pad is low battery (only shown if you have 2 Sensor Pads paired)

Volume level indicators

Reception quality indicators

Parent Unit battery level indicators MAIN MENU ON ON 42

Confirm settings and go back to previous menu.

Movement Sensor Pad Activation: ON: e Parent & Nursery Units will alarm if there is no movement after 20 seconds. PAUSE: Allows you to pause the Sensor Pad if you remove baby from the crib, e.g. for feeding or comforting. e Pause icon in the status bar will flash and the Nursery Unit temperature indicator will show a pause “P” symbol. Ensure to un-pause the Sensor Pad before putting baby in the crib (Turn movement detection ON). OFF: When your baby gets older, allows you to turn movement detection OFF and use your monitor for video only.

Tic Activation: If movement detection is activated, allows you to hear a Tic sound every 5 seconds. In the event you have two Sensor Pads connected, the Tic indication will flash green for Sensor Pad 1 and blue for Sensor Pad 2.

VOX Sound Set-Up: VOX Sound means that it will transmit sounds only when it detects them, based on the setting of the sensitivity level (level 4 being the most sensitive). To save power, after 10 seconds, the sound transmission will stop if no sound is detected. ‘Continuous Sound’ VOX Sound OFF means the sound monitoring is continuously transmitting, picking up all sounds.

VOX Video Set-Up: VOX Video means that when Parent Unit is in sleep mode (black screen) the screen will turn ON only when it detects sounds, based on the setting of the sensitivity level (level 4 being the most sensitive). To save power, after the set time, the sleep mode will be activated. Video VOX OFF means the Parent Unit screen will not turn ON if the Nursery Unit is picking up sounds.

Temperature Settings

• To confirm your settings, you’ll always need to press the icon. A confirmation icon will then appear on the screen: Settings have been saved Settings have not been saved.

• If you have 2 Nursery Units & 2 Sensor Pads paired with your monitor, you can only change the settings of the viewing Nursery Unit. IMPORTANT

Set warmer temperature alarm.

Set colder temperature alarm. Note: e range between the minimum and maximum temperature can not be less than 4°C / 7°F.

Activate the temperature alarm.

Activate the Nursery temperature color code display. White: Temperature is normal. Red: Temperature is too hot. Blue: Temperature is too cold.

Set Sensor Pad sensitivity: To ensure adequate monitoring of your child’s movements, you can adjust the sensitivity of the Sensor Pad.

Set Nursery Unit speaker volume

Nursery Unit 1 Status

Nursery Unit 2 Status

Sensor Pad 1 Status Nursery Unit and Sensor Pad Status Icons: Green: Connected/Paired Blue: Add a Nursery Unit or Sensor Pad Red: Remove Nursery Unit or Sensor Pad Confirmation process ON THE SCREEN: Blue: ‘’Link’’ icon animation when pairing (Linking timeout: 60s) Green: Successful pairing Red: Failed pairing, please try againE

Sensor Pad alert: If after 20 seconds there is NO movement detected both the Parent Unit and Nursery Unit speakers will emit loud consecutive beeps - this is the movement alarm. Sensor Pad is paused Sensor Pad lost link: Parent Unit and Nursery Unit speakers will emit loud consecutive beeps. Sensor Pad battery is low: Parent Unit will emit 3 consecutive beeps, every 5 seconds. Parent Unit is out-of-range: Parent Unit will emit 2 consecutive beeps, every 10 seconds. Temperature is too cold: Parent Unit will emit 3 consecutive beeps, every 5 seconds. Temperature is too hot: Parent Unit will emit 3 consecutive beeps, every 5 seconds. Note: Press any key to stop alarm and make the alert icon disappear. In the case of a Sensor Pad alarm, the monitor will Pause the Sensor Pad. In Pause mode, the movement detection feature is disabled. To reactivate the Sensor Pad, simply un-pause the Sensor Pad into the first menu. 6 ADDING ACCESSORIES Your Angelcare monitor allows you to add an additional Nursery Unit and Sensor Pad. Please contact your local distributor to see what is available in your country.IMPORTANT: • When using two Nursery Units you will only be able to hear audio from one Nursery Unit at a time (Nursery Unit sound transmitted is highlighted in the info bar). In split screen, the sound transmitted from the Nursery Unit will be indicated on the screen by a speaker icon shown to the right of the CAM icons.• When using two Sensor Pads with one Monitor, it is recommended that each Sensor Pad is located in separate rooms. 7 TROUBLESHOOTING

TAKING CARE OF YOUR RECHARGEABLE BATTERY

• Ensure that you fully charge your battery for 8 hours before its first use.
• To maintain maximum battery life, it is recommended that you fully discharge your battery periodically. If your Parent Unit is not in use, please turn it OFF.

NO SOUND IS BEING TRANSMITTED

• Check the volume level on the Parent Unit and the Nursery Unit to ensure they are set to an appropriate level.
• Try bringing the Parent Unit closer to the Nursery Unit to see if you get sound.• Charge the Parent Unit.12 WEAK RECEPTION

• Bring units closer together.

• Change the position of one or both units.

• Place units on a flat surface away from baby’s reach.

• Recharge the Parent Unit. STATIC, DISTORTION, INTERFERENCES (FROM OTHER MONITORS, WIRELESS PHONES, WALKIE-TALKIES, ETC.)

• Rotate Parent Unit or move it away from source of interference. FEEDBACK (LOUD NOISES EMITTED FROM THE PARENT UNIT)

• Move units further apart (at least 10 feet (3 meters)).

• Decrease volume on Parent Unit. THE PARENT UNIT SCREEN IS BLACK (PARENT UNIT IS OFF)

• Turn the Parent Unit back ON by pushing and holding the POWER ON/OFF button for 2 seconds.

• Sources of vibration & movement other than your baby’s can be detected by the Sensor Pad and the alarm will not sound.

• Refer to Warnings 3 to 11 and see STEP 4, TEST THE SENSOR PAD.

• Sensor Pad False alarms may happen for several reasons, always be sure to immediately check on baby whenever an alarm sounds: - Nursery Unit has not been turned OFF after you have removed your baby from the crib. - Make sure there is no bedding between the mattress and the Sensor Pad. - Sensor Pad has not been placed under the mattress properly. Be sure the Sensor Pad is on a flat, firm surface with the printed side facing up. - e sensitivity level may also need to be adjusted.

• Refer to Warnings 3 to 11 and see STEP 4, TEST THE SENSOR PAD.

NO SOUND IS BEING TRANSMITTED

• Check that both units are powered ON.

• Check that Parent Unit is not on MUTE. HOW TO CHECK THE PARENT UNIT BATTERY

• Unplug the adapter from the Parent Unit and check the battery level indicator.E

LOSS OF CONNECTIVITY BETWEEN THE NURSERY UNIT AND PARENT UNIT If your Nursery Unit becomes un-paired from your Parent Unit, please follow the steps below to re-pair them.

1. Turn ON the Parent Unit and keep the Nursery Unit OFF.

• If Nursery Unit 1 is marked as connected press it to go the Nursery Unit 1 Pairing option. You will now need to remove it by pressing the red icon.

e linking icon will appear on the screen until Successful Pairing Icon appears on the screen. You’ll now be able to proceed with step 4.

will appear on the screen.

6. Turn ON the Nursery Unit and press and hold its

“pause/pairing” button until the temperature indicator starts blinking while pairing.

7. If the connection has been made, the Green

Successful Pairing Icon will appear on the screen and the menu will show the OK Paired Icon.

8. Otherwise, the Red Failed Pairing Icon will appear

on the screen. You will need to try again.

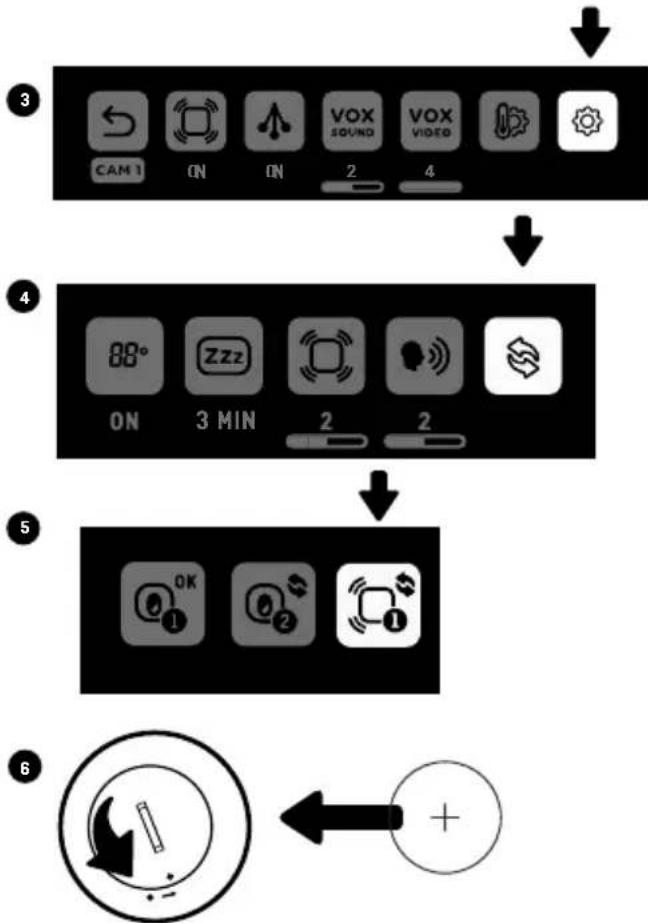

3 MIN LOSS OF CONNECTIVITY BETWEEN THE SENSOR PAD AND THE NURSERY UNIT If your Sensor Pad becomes un-paired from your Parent Unit, please follow the steps below to re-pair them. In order to reconnect your Sensor Pad to your Nursery Unit, you need to make sure the Nursery Unit is paired with the Parent Unit first.

1. Remove the battery of the Sensor Pad.

Note: If you have two Sensor Pads, you will need to remove the battery from both of them first and then follow the steps below.

• If Sensor Pad is marked as connected press it to go the the Sensor Pad Pairing option. You will now need to remove it by pressing the red icon . e linking icon will appear on the screen until Successful Pairing Icon appears on the screen. You’ll now be able to proceed with step 5.

6. Insert the battery into the Sensor Pad. It will

automatically activate it.

7. If the connection has been made, the Green

Successful Pairing Icon will appear on the screen and the menu will show the OK Paired Icon.

8. Otherwise, the Red Failed Pairing Icon

will appear on the screen. You will need to try again.

Angelcare® warrants to the original owner of this product that Angelcare® monitor is free from any material and workmanship defects for the term of the warranty period (see warranty table below to determine the warranty for your country). If this monitoring system fails to function properly when used as directed under normal conditions and during the warranty period, Angelcare® will either repair or replace the product, at our discretion, free of charge. Please contact your local distributor to validate warranty and warranty period. e product must be accompanied by a proof of purchase, either a bill of sale or other proof that the monitoring system is within the warranty period. Angelcare® will bear the cost of repairing or replacing the product and shipping it back to you. is warranty does not apply to a product which has been damaged as a result of improper maintenance, an accident, improper voltage supply or any other form of misuse. e warranty is also void if the owner repairs or modifies the product in any way. Angelcare® is not liable for any incidental or consequential damages with regard to this product. e warranty also excludes any liability other than what is stated above. No other warranty is given. is warranty does not cover products and accessories which are not Angelcare®-branded, or any problems that result from usage that is not in accordance with product instructions, failure to follow the product instructions, or problems caused by using accessories, parts or components not supplied by Angelcare. LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. WE ARE NOT IN ANY WAY RESPONSIBLE FOR ANY OUTCOME RESULTING FROM THE USE OF THIS PRODUCT.

CUSTOMER CARE - LIMITED WARRANTY

Warranty term per country North America 1 year

Range: Open field (Open area without obstructions):

• Between the Nursery Unit and the Parent Unit: up to 820 feet (250 meters)

• Between the Nursery Unit and the Sensor Pad: up to 65 feet (20 meters) Number of Channels: 19 channels ermometer Guidelines: High Temperature Alarm: 72°F (22°C) Low Temperature Alarm: 60°F (16°C) Power Supply: 1 included Li-Ion battery (IS275) 1300 mAh 3.7V (manufactured by Icon Energy System (Shenzhen) Co Ltd) for the Parent Unit 2 x 100-240 V AC / 5V DC 0.6A Dongguan Guanjin Electronics Technology Co., Ltd (US: K05V05006U, EU: K05S050060G, UK: K05S050060B, AU: S05S050060A) Adaptors for the Parent Unit and the Nursery Unit. 1 included CR2450 3V battery (Changzhou Jin Tan Chao Chuang Battery Co., Ltd. model number: CR2450H) (wireless Sensor Pad). Caution: To reduce the risk of electric shock, do not expose this product to rain or moisture. Danger of explosion if batteries are incorrectly replaced. e battery included for the Parent Unit is a user replaceable Li-ion rechargeable battery. Only use the Angelcare recommended replacement battery. e battery for the Sensor Pad is a user replaceable Lithium (not Li-Ion) battery and is NOT rechargeable. To obtain information on replacement batteries please contact Angelcare customer service: www.angelcarebaby.com or contact your local distributor. Instructions will be included with the replacement battery. Keep all batteries away from children. Batteries: CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS

Transmission: Transmission between the Parent Unit and the Nursery Unit is made on 2.4 GHz frequency. Transmission between the Nursery Unit and the Sensor Pad is made on 2.4 GHz frequency. Federal Communications Commission (FCC) – is device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Industry Canada (IC) – is device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. RF Exposure - is device is designed and manufactured to comply with Radio Frequency (RF) radiation exposure limits for EU, FCC and IC for an uncontrolled environment. To maintain the compliance, human exposure to the nursery unit shall not be less than 20 cm (8 inches) during normal operation. is product meets the applicable Industry Canada technical specifications CAN ICES-3 (B)/NMB-3 (B) Go to: www.angelcarebaby.com/declaration-of- conformity for full compliance statements. TECHNICAL SPECIFICATIONS

According to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When the product/battery reaches its end of life take it to a collection point designated by local authorities. e seperate disposal and recycling will help conserve natural resources and protect human health and the environment. Refer to User’s Guide for removal of batteries. See product for compliance marks specific to this device.

N16 www.angelcarebaby.com Contact information IMPORTANT! is Angelcare® monitor is a personal care product. Please do not return this product to the store. If you have questions or need help, please call your distributor before returning this product. We, at Angelcare®, stand behind all of our products. If you are not completely satisfied or have any questions, please contact your distributor before returning this product: United States and Canada: Please contact us at: info@angelcarebaby.com Other countries: Find your local distributor by visiting our website: angelcarebaby.com/distributors To register your product, visit our online registration at: www.angelcarebaby.com. We will use the information provided to contact you if there is a Safety alert or Recall for this product.

To learn more, watch the set-up videos and other functionalities on our website. https://angelcarebaby.zendesk.com/ Angelcare Canada Inc. 2000 McGill College Avenue, Suite 250 Montreal, Quebec, Canada, H3A 3H3F
