USER MANUAL 10032914 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 28

Safety Instructions 29

Quick Operation Guide 30

Product Description and Control Panel 31

Installation 33

Before First Use 36

Loading the Dishwasher 41

Washing Programmes 44

Use and Operation 45

Cleaning and Care 47

Troubleshooting 49

Disposal Considerations 51

Declaration of Conformity 51

TECHNICAL DATA

Item number 10032914
Power supply 220-240 V ~ 50 Hz

Read all the safety and operating instructions carefully and retain them for future reference.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap and then use a dry cloth to wipe it again.
• This appliance must be earthed. In the event of a malfunction or breakdown, Earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a earthing plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
• Do not modify the plug provided with the appliance; If it does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

1	Switch on the appliance	Press the Power switch button to switch on the appliance. Open the door.
2	Fill the detergent dispenser	Big Compartment (A): with each wash cycle. Small Compartment (B): for programmes with prewash only.
3	Check the rinse aid level	Check the rinse aid level panel (C) if provided.
4	Check the regeneration salt level	If there is no salt warning light in the control panel (for some models), you can esti-mate when to fill the salt into the softener by the number of cycles the dishwasher has run.
5	Load the baskets	Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.
6	Select a programme	Close the door. Press the programme button until the selected programme lights up. (See the section entitled Operation instruction)
7	Running the dishwasher	Turn on the water tap and press the Start/Pause button. The machine will start working after about 10 seconds.
		Changing the programme: A running cycle can only be modified if it has been running for a short time. Oth-erwise the detergent may have already been released. In this case, the detergent dispenser must be refilled. dispenser must be refilled. Open the door slightly ,then press the program button more than 3 seconds to cancel the running programme. Select a new programme. Close the door, restart the dishwasher.
		Add forgotten dishes: Open the door slightly, You can open the door completely until the spray arms stop. Add the forgotten dishes. Close the door, the dishwasher will start running again after 10 seconds.
		If the appliance is switched off during a wash cycle: If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).
8	Switch off the appliance	dishwasher will sound 8 times, then stop. Turn off the appliance using the Power but-ton. Since the appliance is standing by, it will power off automatically after 30 minutes without any operation.
9	Turn off the water tap, unload the baskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better.Unload the appliance, starting from the lower basket.

PRODUCT DESCRIPTION AND CONTROL PANEL

Front view

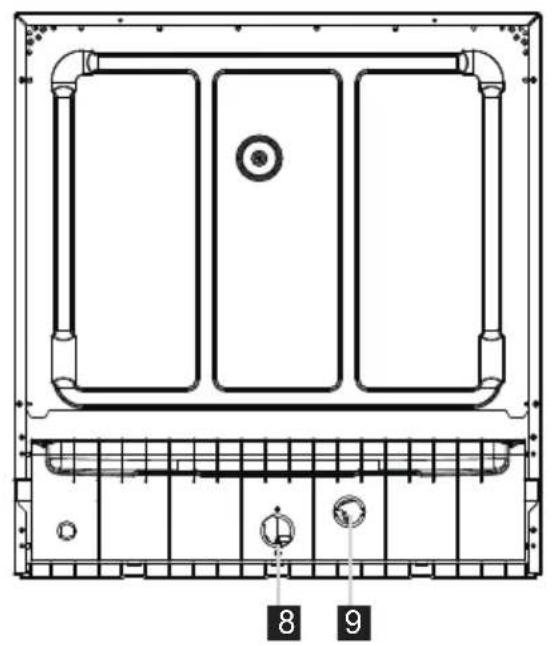

Back View

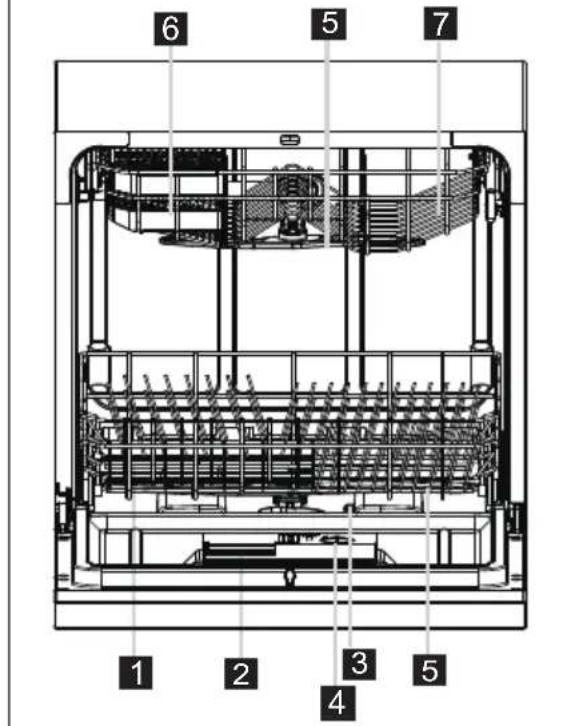

1 Salt Container

Detergent Dispenser

3 Filter assembly

4 Rinse Aid Dispenser

5 Spray Arms

6 Cup Shelf

7 Basket

Inlet pipe connector

9 Drain pipe connector

1 Salt container 5 Spray arms
2 Detergent dispenser 6 Cup shelf
	7 Basket
3 Filter assembly 8 Inlet pipe connector
4 Rinse aid dispenser 9 Drain pipe connector

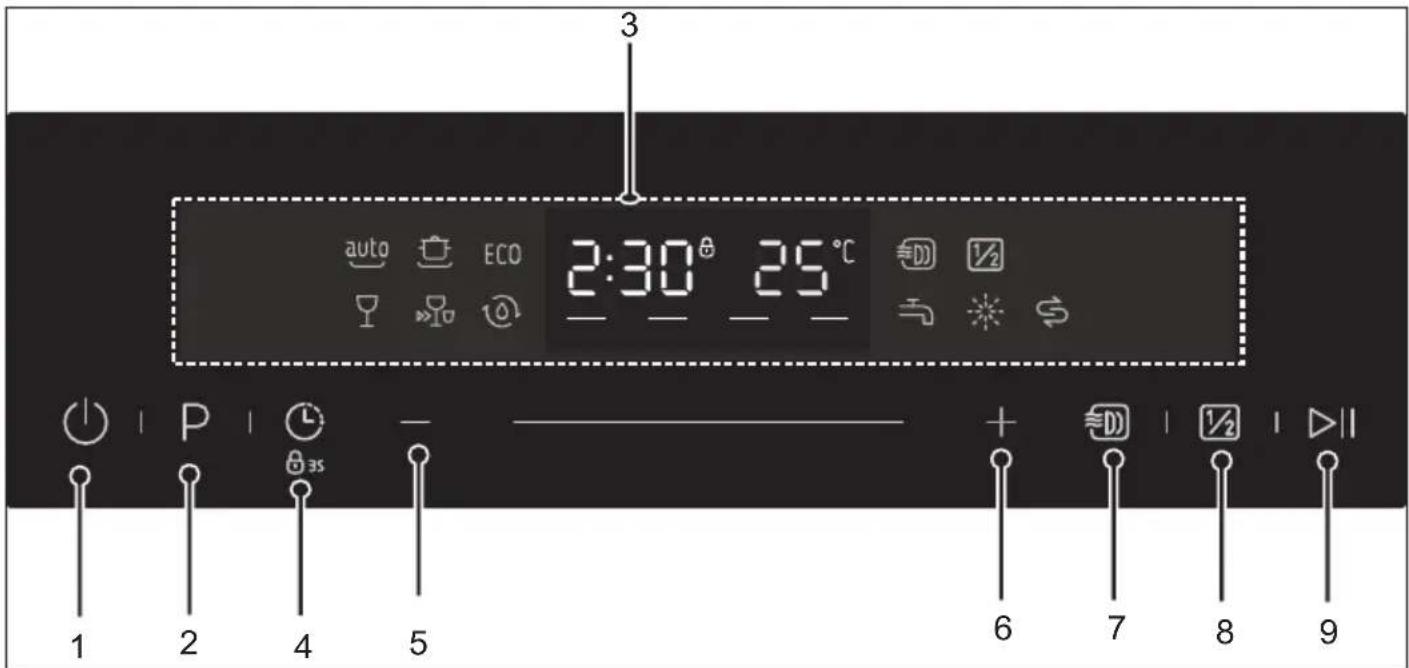

1 Power Button: To turn on/off the power supply
2 Program Button: Press the button to select program,
3 Display screen :To show program ,function ,errorcode salt warning rinse aid ,reminding time.
4	Delay Button Press the button to clean the delay time; Child lock button: Press the buttons for 3 seconds simultaneously to lock the button,except the power button.
5 Delay Button:Press the button to decrease the delay time.
6 Delay Button:Press the button to increase the delay time.
7	Fresh function button : TO selcat fresh function ,Effectively remove the dishwasher odor,mildew anti-back tide and improve drying, it can continue 72 hours.
8	Half load functions Button : To select half load function.With this Half load function you can only use it when you have only about or less than 5 place setting dish wave, and you will see less water and energy consumption can only be used with Intensive, ECO and Glass
9 Start/Pause Button: Press this button to start or pause the dishwasher.

INSTALLATION

• The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.
• One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

Power connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

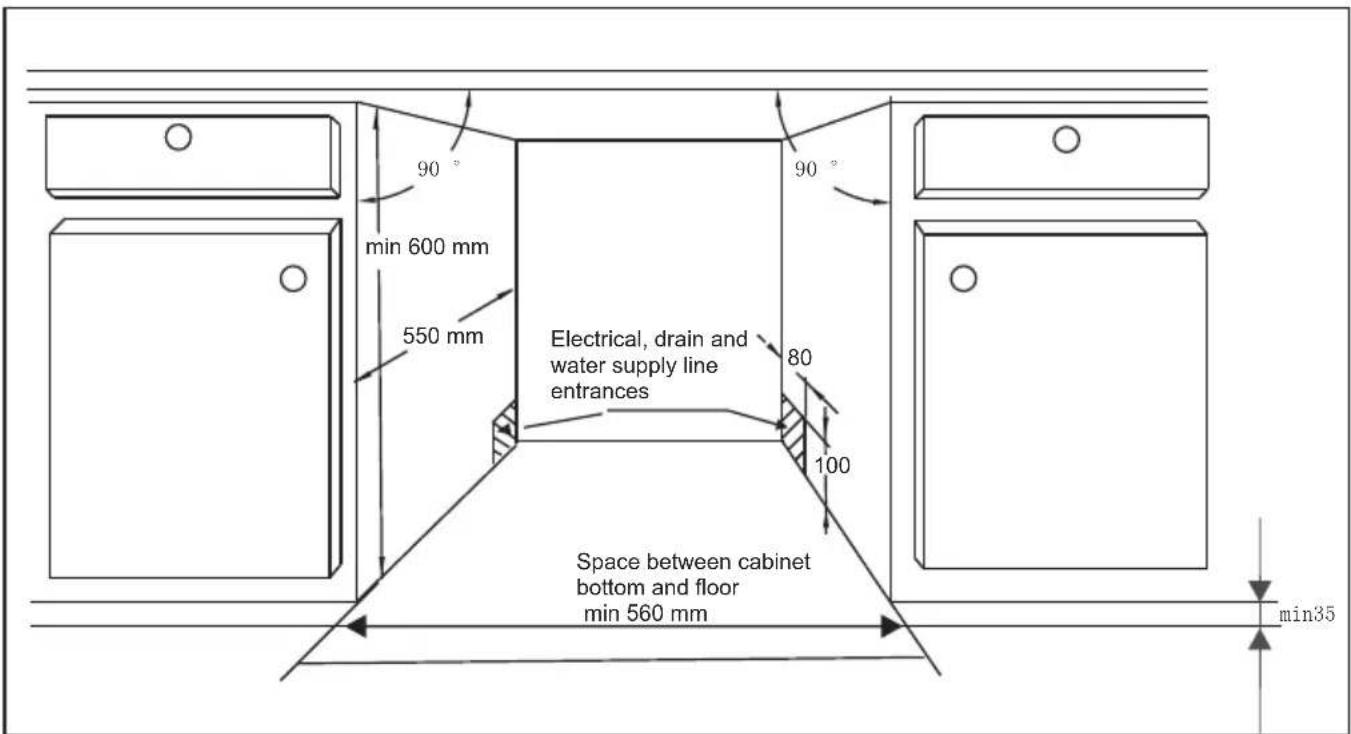

Installation measurements

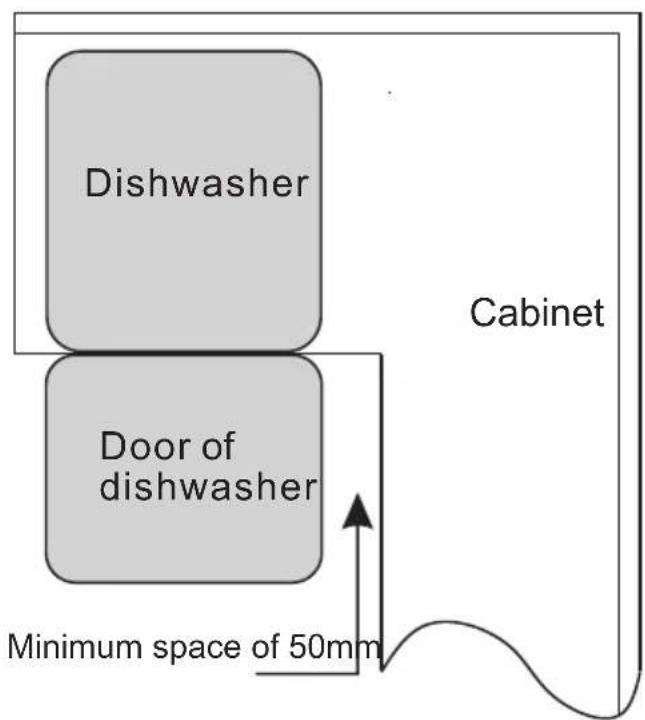

Minimum space when the door is open

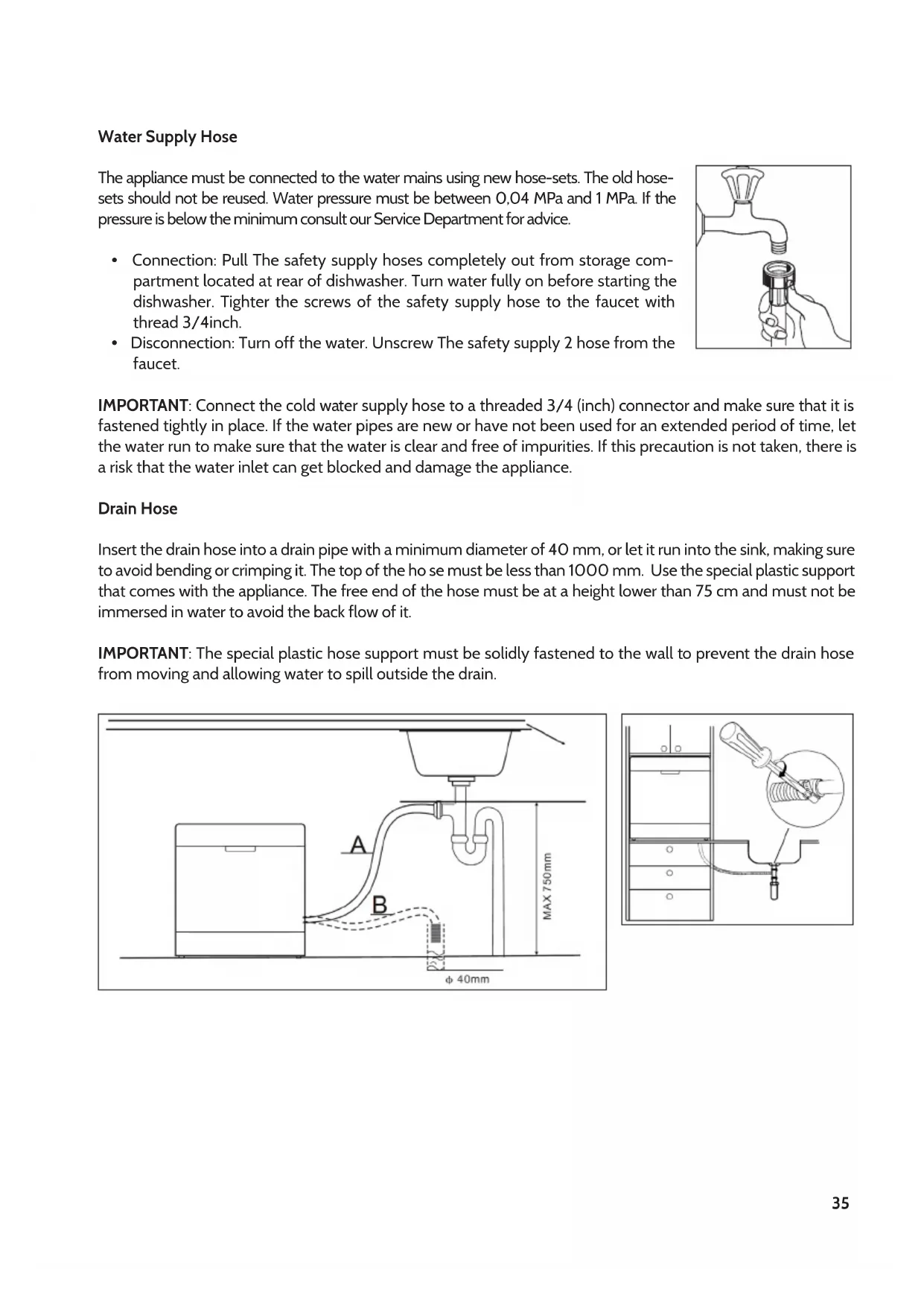

The appliance must be connected to the water mains using new hose-sets. The old hoses should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

• Connection: Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher. Turn water fully on before starting the dishwasher. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
• Disconnection: Turn off the water. Unscrew The safety supply 2 hose from the faucet.

IMPORTANT: Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

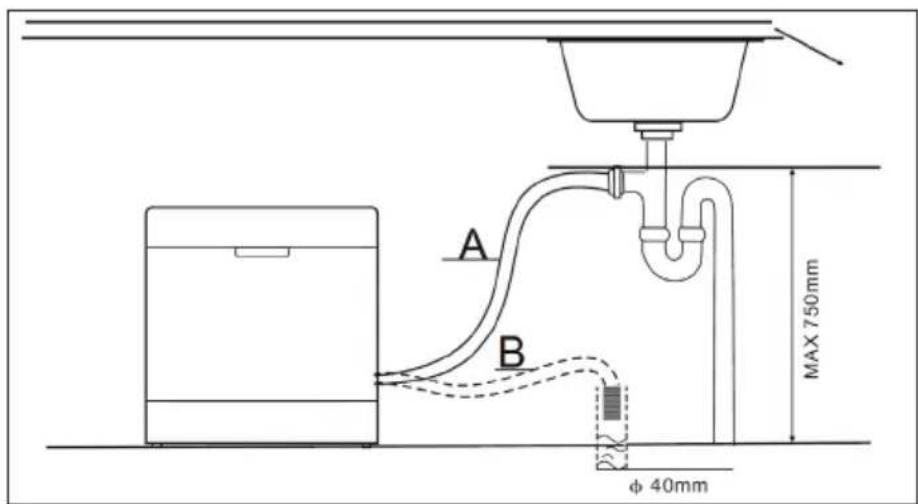

Drain Hose

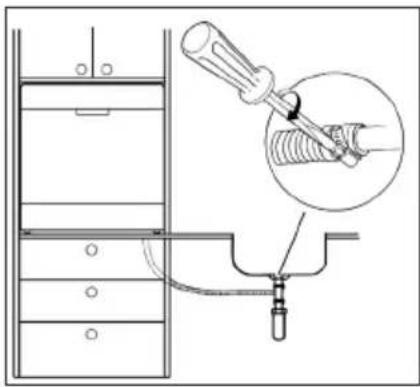

Insert the drain hose into a drain pipe with a minimum diameter of 40mm , or let it run into the sink, making sure to avoid bending or crimping it. The top of the ho se must be less than 1000mm . Use the special plastic support that comes with the appliance. The free end of the hose must be at a height lower than 75cm and must not be immersed in water to avoid the back flow of it.

IMPORTANT: The special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Drain Excess Water

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Extension Hose

If you need a drain hose extension, observe to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Start of dishwasher

The following things should be checked before starting the dishwasher:

• The dishwasher is level and fixed properly.
• The inlet valve is open.
  The wires are tightly connected.
  The power is switched on.
• The inlet and drain hoses are knotted.
• All packing materials and printings should be taken out from the dishwasher.

BEFORE FIRST USE

Loading the Salt into the Softener

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
• Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.

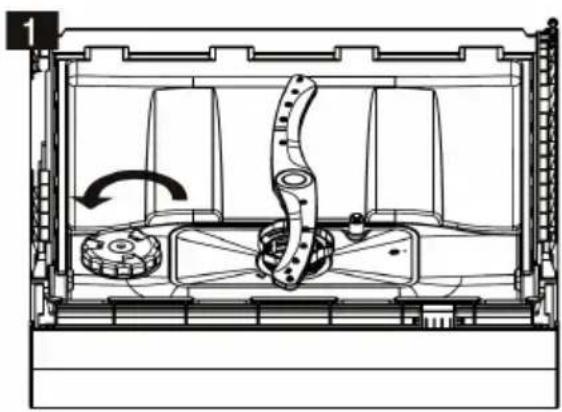

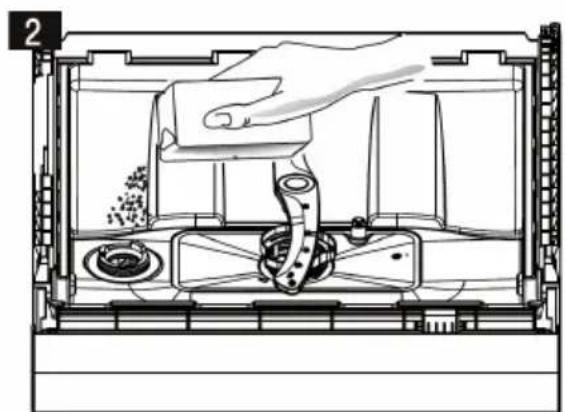

• Remove the basket and then unscrew and remove the cap from the salt container.
• Before first wash, add 1 lt. of water in the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
  After filling the container, screw the cap tightly back clockwise.
• Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt. Immediately after filling the salt into the salt container, a washing programme should be started. Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. It is out of warranty.

NOTE: The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.

Adjusting Salt Consumption

Step 1: Enter the status of salt adjustment

Close the door, within 60 seconds after power on, press Start/Pause button and hold for 5 seconds, the machine will enter setting mode.

Step 2: select a certain level of salt consumption

Contact your local water board for information on the hardness of your water supply. Press the Start/pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1 > H2 > H3 > H4 > H5 > H6.

Step 3: Exit the status of salt adjustment

Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status.

Waterhardness Levels

Water Hardness level		Setting on the water softener	Digital display stalls Notes
\( ^o \)dH1	mmol/l2
0-5 0-0.91 H1				(1) German degree of measurement for the water hardness(2) millimol, internati-onel unit for water hardness(*) factory setting
6-11 1.0-2.0 2 H2
12-17 2.1-3.0 3 H3
18-22 3.1-4.0 4* H4
23-34 4.1-6.1 5 H5
35-55	6.2-8.0	6	H6

Fill the Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Refill Rinse Aid Dispenser

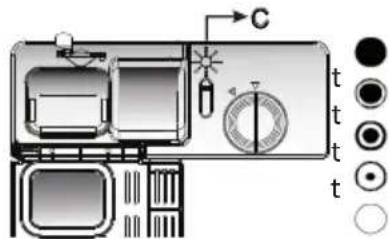

If there is no rinse-aid warning light in the control panel, you can judge amount of rinse-aid by the color of the optical level indicator located next to cap. When the rinse-aid container is full, the whole indicator will be dark. As rinse-aid diminishes, the size of the dark dot decreases. You should never let rinse aid get below 1/4 full.

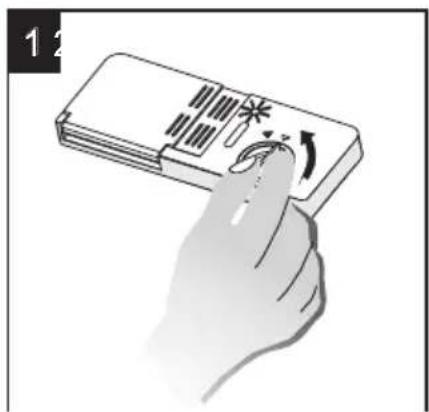

1. To open the dispenser, turn the cap to the „open“ (left) arrow and lift it out.

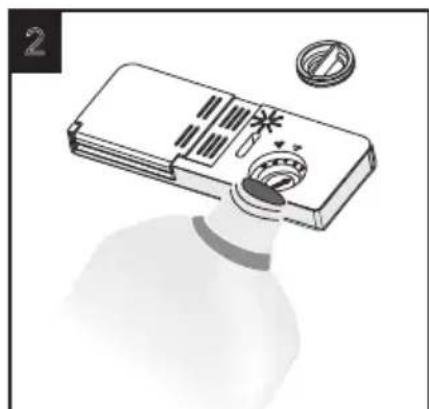

2. Pour the rinse aid into the dispenser, being careful not to overfill.

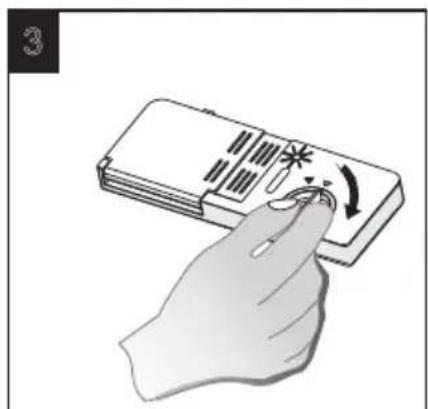

3. Replace the cap by inserting it aligned with „open“ arrow and turning it to the closed (right) arrow

Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Power on the dishwasher by plugging in;
2. Within 60 seconds after step 1, press the Start/Pause button more than 5 seconds, and then press the Delay Button to enter the set model, the rinse aid indication blinks as 1Hz frequency.
3. Press the Start/Pause button to select the proper set according to your using habits, the sets will change in the following sequence: D1->D2->D3->D4->D5->D1. Dispenser drops more rinse aid in D5 level than in another, the manufactory setting is D3.
4. Without operation in 5 seconds or press the on/off button to exit the set model, the set success.

Function of Detergents

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose.

Normally new pulverised detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not removed completely. In this case please choose a programme with higher Temperature.

Concentrated Detergents

Based on their chemical composition, dishwasher can be split in two basic types:

• conventional, alkaline detergents with caustic components
• low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

NOTE: Detergent tablets are only for the models with 3 in 1 function or 3 in 1 program.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Refilling the Detergent Dispenser:

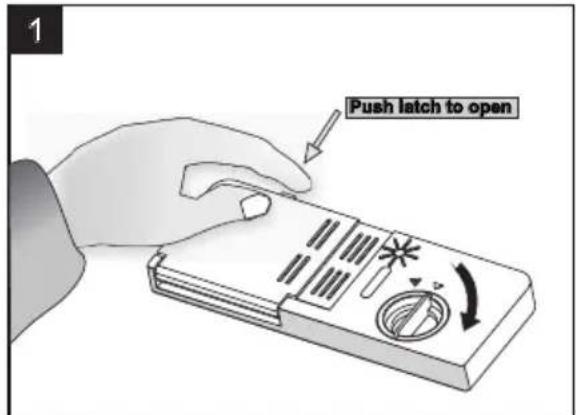

If the lid is closed: press release button. The lid springs open.

Always add the detergent just before starting each wash cycle.

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Fill in Detergent

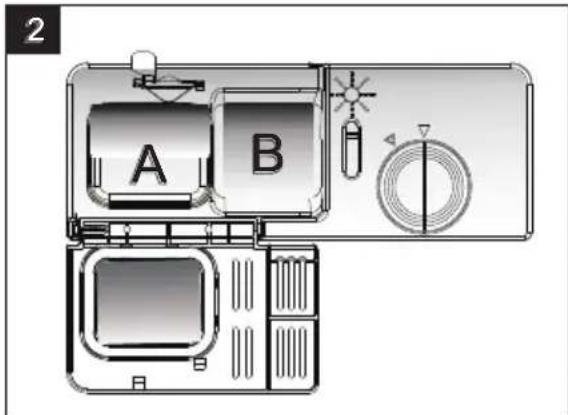

• A = The place of main wash cycle detergent placed.
• B = The place of pre-wash cycle detergent placed.
• Please observe the manufacturers dosing and storage. Recommendations as stated on the detergent packaging.
• Close the lid and press until it locks in place.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

You find information about the amount of detergent for the single programme on the last page. Please aware, that according to the level soiling and the specific hardness of water differences are possible. Please observe the manufacturer's recommendations on the detergent packaging.

• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as, kind of dishes. If necessary, seek further information from detergent manufacturers.
• For particular items, select a programme with as low a temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

Unsuitable Cutlery and Dished

Are not suitable Are of limited suitability
• Cutlery with wooden, horn china or mother-of-pearl handles • Plastic items that are not heat resistant • Older cutlery with glued parts that is not tempera-ture resistant • Bonded cutlery items or dishes • Pewter or copper items • crystal glass • Steel items subject to rusting • Wooden platters • Items made from synthetic fibres	• Some types of glasses can become dull after a large number of washes • Silver and aluminium parts have a tendency to dis-colour during washing • Glazed patterns may fade if machine washed

Hints on Loading the Dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are face down.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotated freely during washing.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the basket.
• Long and/or sharp items of cutlery such as carving knives must be positioned
• horizontally in the basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable energy consume.

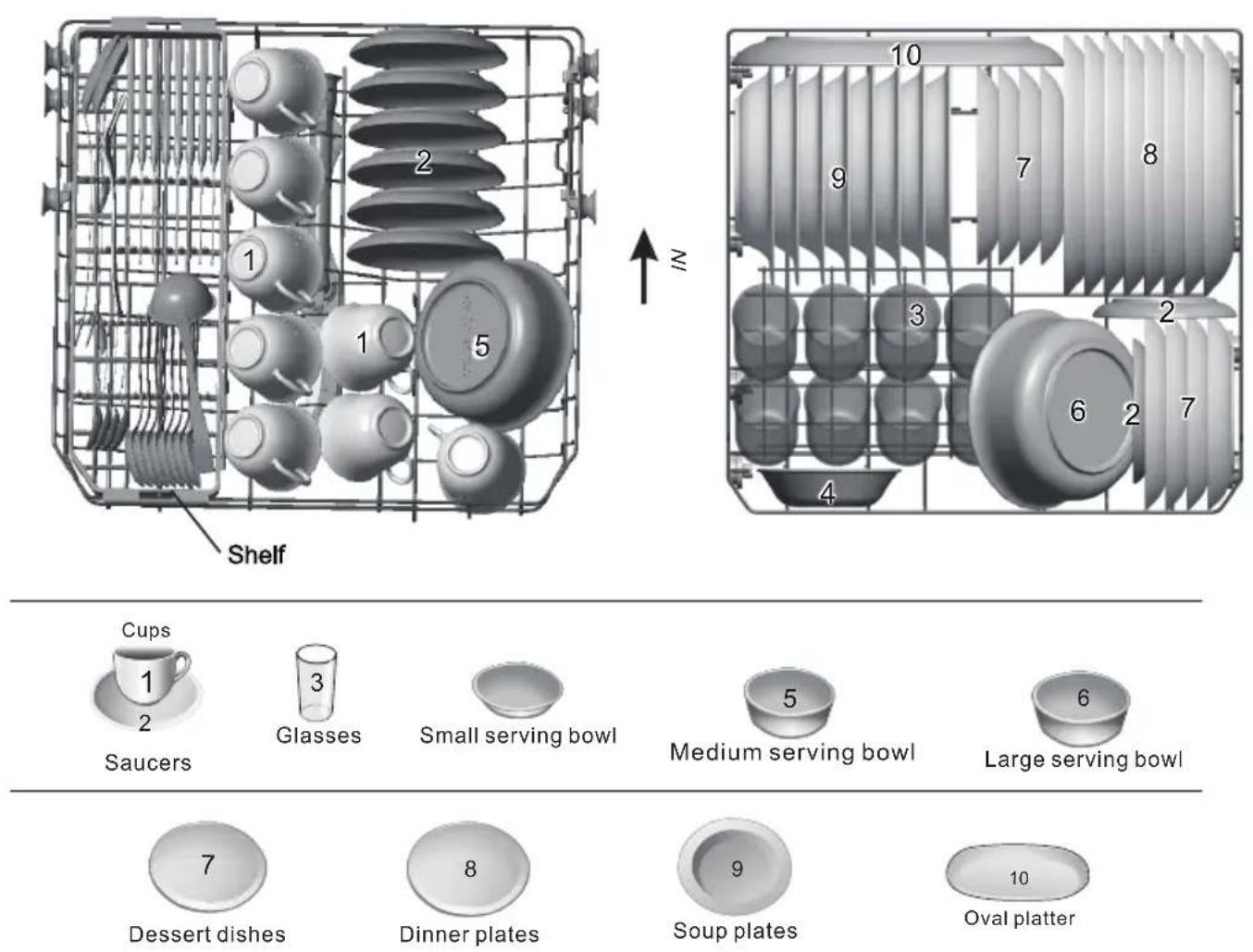

Dishes

Cutlery

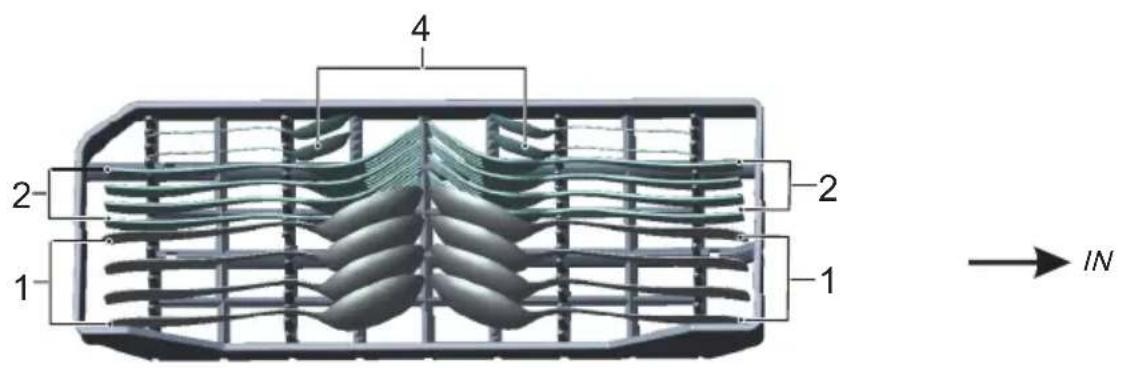

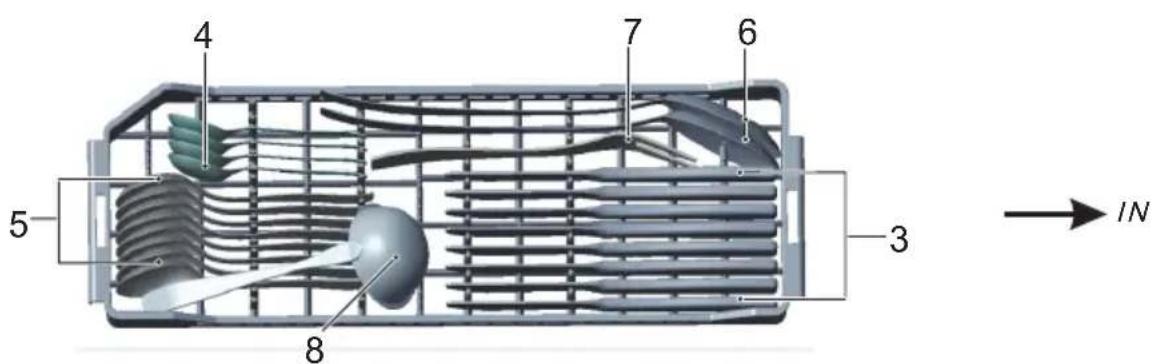

1 Soup spoons

2 Forks

3 Knives

4 Teaspoons

5	Dessert spoons
6	Serving spoons
7	Serving forks
8	Gravy ladles

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

IMPORTANT: Do not let any item extend through bottom. Always load sharp utensils with the sharp point down! Place knives and other potentially dtangerous utensils handles up or lay them down in the front of the basket.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Time min	Energy kWh	Water liter
auto Auto	For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling.	Pre-wash (50 °C) Wash (65 °C) Rinse Rinse (70 °C) Drying	4/20 g or 3-in-1 150	0,85-1,05 7,5	-10
Intensive	For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling.	Pre-wash (50 °C) Wash (65 °C) Rinse Rinse Rinse (70 °C) Drying	4/20 g or 3-in-1	160 1,25	12,5
eco (*EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme interms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash (45 °C) Rinse (65 °C) Drying 4/20 g or	3-in-1	185 0.72	8
Glass	For lightly soiled loads, such as glasses, crystal and fine china.	Pre-Wash Wash (45 °C) Rinse Rinse (60 °C) Drying	24 g or 3-in-1	95 0.71	0.5
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (45 °C) Rinse Rinse (55 °C)	15 g 35 0.52 7
Self-Cleaning	This program provides an effective cleaning of the dishwasher itself	Wash (70 °C) Rinse Rinse (65 °C) Drying	18 g 50 0.8 7

EN50242: This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

Capacity: 8 setting Rinse aid setting: 6

The power consumption of off-mode is 0.45W

Left-on mode is 0.49W

Starting a Wash Cycle

1. Draw out the basket. Pour in the detergent.
2. Insert the plug into the socket.. Make sure that the water supply is turned on to full pressure.
3. Press the program button, the wash program will be changed as follows direction:

Intensive > Normal > ECO > Glass > 90 min > Rapid.

1. If a program is selected, the response light will light. Then press the Start/Reset button, the dishwasher begins to start.

Change the Programme

Premise: You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled „Loading the Detergent „).

Press Start/Reset Button more than three seconds the machine will be in stand by state, then you can change the program to the desired cycle setting (see the section entitled „ Starting a wash cycle...”).

If you open the door during washing, the machine will pause. When you close the door and press the start/ reset Button, the machine will keep on working after 10 seconds.

The program lights show the state of the dishwasher:

One of the program lights on: stand by or pause.
One of the program lights blinking: run.

NOTE: If you open the door when washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

Add forgotten dish

A forgotten dish can be added any time before the detergent cup opens.

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely..
   3.Add forgotten dishes.
3. Close the door
4. Press the button, the dishwasher will run after 10 seconds.

At the end of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are

still hot and more susceptible to breakage. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

Filtering System

The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

Coarse filter (C)

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter (B):

This filter holds soil and food residue in the sump area and prevents it from being deposited on the dishes during wash cycle.

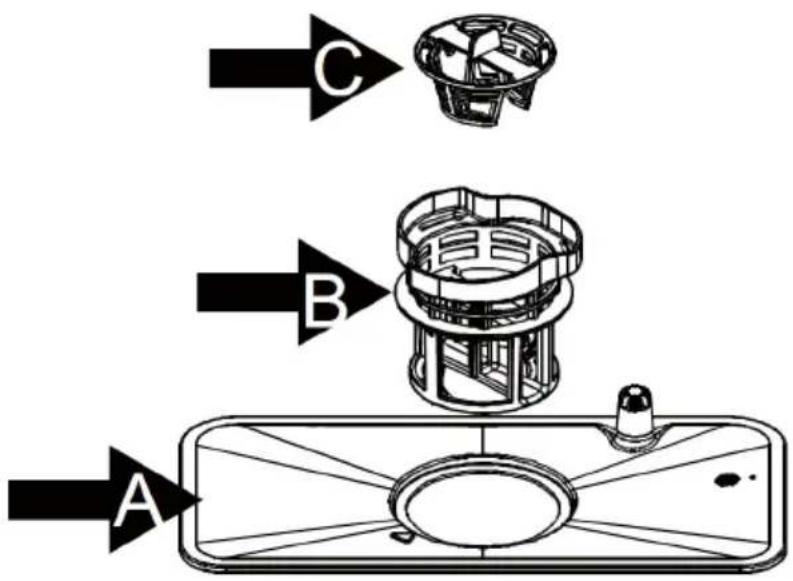

Main filter (A):

Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be re-cyclated during the cycle. For best performance and results, the filter assembly must be regularly cleaned. For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction.

WARNING: The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1. Turn the coarse filter (C) counterclockwise and remove it.
2. Disassemble the filter system.
3. After cleaning put the filters back in the shown order.

Important Hints on Cleaning the Filter System

To clean the coarse filter and the fine filter, use a cleaning brush.
- When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be debased.

Caring for the Dishwasher

• The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.
• The exterior use a good appliance polish wax.
• Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
  To clean the edge around the door, you should use only a soft warm.
• damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Protect against Freezing

please take frost protection measures on dishwasher in winter. Each time after washing cycles, please operate as follows:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to use up water in sump.

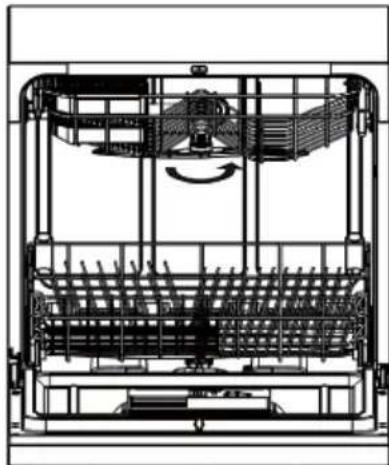

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to keep your Dishwasher in Shape

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.
- Before cleaning or performing maintenance, always remove the plug from the socket.
- To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water with a little vinegar, or a cleaning product made specifically for dishwashers.
It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the
- socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door
seals to ast longer and prevent odours from forming within the appliance.
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be
- positioned on its back.
One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals.
- Periodic cleaning with a damp sponge will prevent this from occurring.

Problem Possible Causes	What to do
Dishwasher doesn't start.	Fuse blown, or the circuit breaker tripped.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
	Door of dishwasher not properly closed.	Closed dishwasher making sure that door latches.
Water not pumped from dishwasher.	Kink in drain hose. Check drain hose.
	Filter clogged. Check coarse filter.
	Kitchen sink clogged. Check kitchen sink	en sink to make sure it is draining well. If problem is kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwasher.
Suds in the tub. Improper detergent Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then Start any wash cycle to drain out the water. Repeat if necessary.
			Spilled rinse-aid Always wipe up	rinse-aid spills immediately.
Stained tub interior. Detergent with colourant was used.		Make sure that the detergent is the one without colourant.
White film on inside surface.	Hard water minerals.	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery.	The affected items are not corrosion resistant.	Don't wash corrosive items in the dishwasher.
	A programme was not run after dishwasher salt was added.	Always run the Quick wash programme, without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
	Traces of salt have got into the wash cycle.
	The lid of softer is loose. Check the lip .Ensure the fix is fine.
knocking noise in the wash cabinet.	The sp ay arm is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet.	Item of crockery are insecure in the wash cabinet.	Interrupt the programme, and rearrange the items of crockery.
knocking noise in the water pipe.	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on dishwasher function. If in doubt, contact a suitably qualified plumber.
The dishes are not clean.	Dishes were'nt loaded correctly. See notes in „Loading the Dishwasher Baskets“.
	The programme was not pow-erful enough.	Select a more intensive programme. See "Wash Cycle Table".
	Not enough detergent dispensed. Use more detergent, or change your detergent.
	Item are blocking spray arms. Rearrange items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted or spay arm jets are blocked.	Clean and/or fit the filter combination correctly. Clean the sp ay arm jets. See „Cleaning the Spray Arms“.
Cloudiness on glass-ware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Black or gray marks on dishes.	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups.	Dishes block detergent cups. Re-loading the dishes properly.
The dishes are not drying.	Improper loading Load the dishwasher as suggested in the directions.
	Too little rinse-aid Increase the amount of rinse-aid/Refill the rinse-aid Increase the amount of rinse-aid/Refill the rinse-aid dispenser.
	Dishes are removed too soon. Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
	Wrong programme selection In short programmes the washing temperature is lower. This also lowers cleaning performance. Choose a programme with a long washing time.
	Using cutlery with a low-quality coating Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Code Meanings Possible Cause
E1 Longer inlet time. Faucets is not opened. or water intake is restricted,or water pressure is too low.
E3 Not reaching required temperature.	Malfunction of heating element.
E4 Overflow. Some element of dishwasher leaks
Ed Failure of communication between main PCB with TFT PCB	Open circuit or break of wiring for the communication

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

Chere cliente, cher client,

Charge standard: 8 couverts,
