Technical Features	Details
Product Type	Food Processor
Power	800 W
Bowl Capacity	5 liters
Bowl Material	Stainless Steel
Included Accessories	Whisk, dough hook, blender
Adjustable Speed	6 speed levels
Pulse Function	Yes
Dimensions	38 x 24 x 30 cm
Weight	5.5 kg
Usage	Preparation of doughs, creams, sauces, etc.
Maintenance	Bowl and accessories dishwasher safe
Safety	Overheat protection system
Warranty	2 years
Additional Information	Modern design, easy to use

Frequently Asked Questions - 10032111 Klarstein

How do I assemble the Klarstein 10032111 food processor?

To assemble the processor, start by attaching the bowl to the motor by turning it clockwise until it is securely in place. Then add the desired accessories, such as the whisk or dough hook, by inserting them into the designated slot.

How do I clean the food processor after use?

To clean the processor, unplug it and remove all accessories. Wash the bowl and accessories with warm soapy water or place them in the dishwasher if indicated. Wipe the base with a damp cloth.

What should I do if the food processor does not turn on?

First, check that the processor is properly plugged in. Make sure the bowl is securely attached and the lid is in place. If the problem persists, try resetting the device by unplugging and plugging it back in.

The food processor makes noise during use. Is this normal?

A certain level of noise is normal, especially when operating at full power. However, if the noise seems excessive or is accompanied by vibrations, check that the processor is on a stable surface and that the accessories are properly installed.

What types of accessories are compatible with the Klarstein 10032111?

The Klarstein 10032111 is compatible with various accessories such as whisks, dough hooks, and kneading hooks. Be sure to consult the user manual for the full list of recommended accessories.

How do I adjust the speed of the food processor?

Use the speed control knob located on the control panel. Turn it to select the desired speed. Always start at a low speed to avoid splashing.

The food processor emits a burnt smell. What should I do?

If a burnt smell occurs, immediately stop the device and unplug it. Check if the accessories are properly installed and if the motor is not overloaded. Allow the device to cool before using it again.

Where can I find replacement parts for the Klarstein 10032111?

Replacement parts can be ordered directly from Klarstein customer service or on their website. Make sure to have your model number handy when making your request.

What are the dimensions of the Klarstein 10032111 food processor?

The dimensions of the Klarstein 10032111 are 38 cm height, 24 cm width, and 24 cm depth. Check the available space in your kitchen before purchasing.

How do I adjust the angle of the food processor arm?

To adjust the arm angle, use the lever located on the side of the motor. Lift the arm to access the accessories and lower it to start mixing.

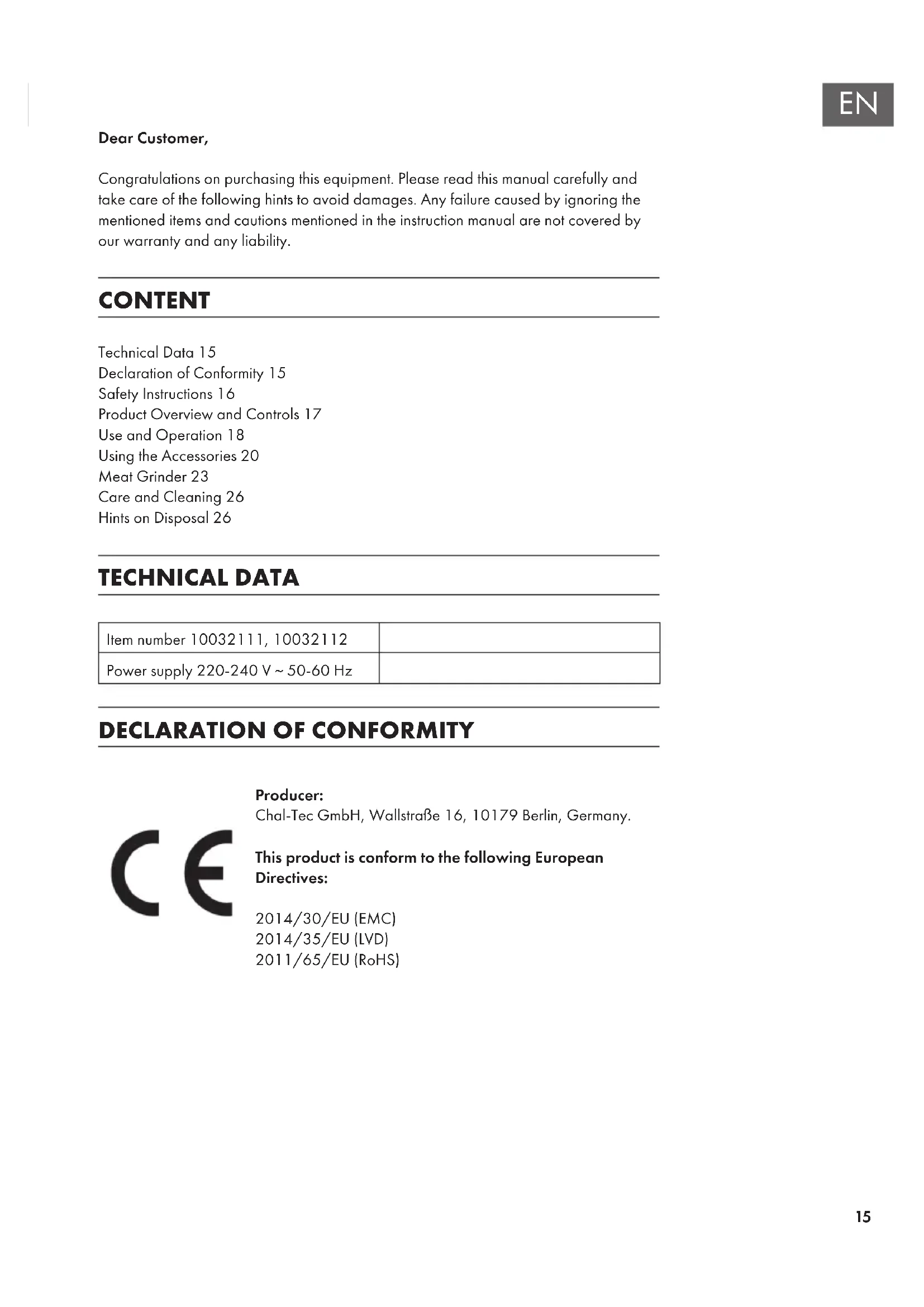

USER MANUAL 10032111 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 15

Declaration of Conformity 15

Safety Instructions 16

Product Overview and Controls 17

Use and Operation 18

Using the Accessories 20

MeatGrinder23

Care and Cleaning 26

Hints on Disposal 26

TECHNICAL DATA

Item number 10032111, 10032112
Power supply 220-240 V ~ 50-60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

Note: Before use, please read the instructions carefully, and operate the machine strictly according to the instruction of the manual. Duty will be on user's side if the machine is damaged or anyone is hurt by the machine if operated not according to the instruction of the manual.

When using electrical appliance, basic precaution should always be followed including the following:

• Read all instructions.
• To protect against risk of electrical shock, do not put the appliance unit cord or plug into water or other liquid.
• Close supervision is necessary when an appliance is used by or near children.
• Unplug the appliance when not using it, changing accessory or before cleaning.
• Avoid contacting moving parts.
• If the original cord is damaged, it must be replaced by manufacturer or its service agent or similar qualified in order to avoid a hazard.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electrical shock or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Keep hands and utensils away from moving blades or discs while processing food to reduce risk of severe injury to person or damage to the food mixer.
  Blades are sharp, take care of your hands.
• To reduce the risk of injury, never place cutting blades or discs on base.
• Never feed food by hand, always use food pusher.
• Turn off the machine before replace attachment.
• Use the product and assemble the accessory as mentioned on user manual only.
• Switch Off the appliance before changing accessories or approaching parts which move in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

PRODUCT OVERVIEW AND CONTROLS

8888+ P 1 2 3 4 5	On/Off
	Setting 1-5 Operation speed
	Setting 1 Minimum speed (slow)
	Setting 5 Maximum speed (fast)

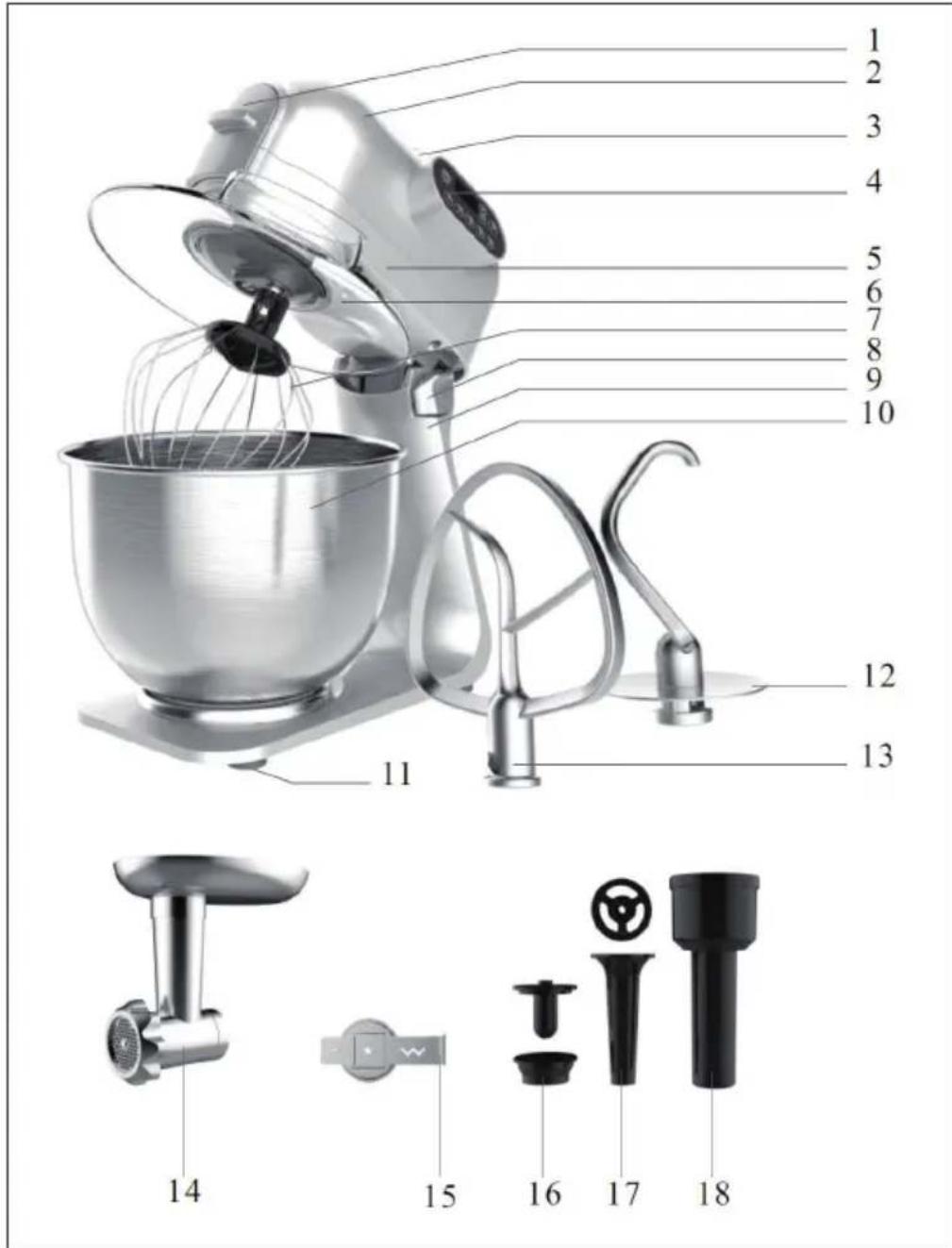

1 Front cover
2 Upper body
3 Top cover
4 Speed control panel
5 Lower body
6 Transparent bowl cover
7 Balloon whisk
8 Tilt-head button
9 Pedestal
10 Stainless steel bowl
11 Rubber feet
12 kneading hook
13 Beater
14 Meat grinder
15 Cookies maker
16 Kebbe attachment
17 Sausage maker
18 pusher

USE AND OPERATION

Digital display with timing function

1. Turn on, when press speed button, it will start timing automatically.

The appliance will stop automatically according to below table:

Speed Setting Default Timer Timing Function
1	60secs (switches to speed 2 automatically)	1-20 mins
2 10 mins	-20 mins
3 10 mins	-20 mins
4 10 mins	-10 mins
5 10 mins	-10 mins
P 5 secs /

NOTE: In timing mode, You can switch speed 1, speed 2, speed 3 freely. But for speed 4, speed 5, It can only downshift, can not upshift.

Recommend Speed setting

Accessories	Picture	Speed	Capacity	Recommend Time	Remark
Kneading Hook		1-2	200 g-1000 g	5 Min.	Dense food like the dough
Beater		3-4	200 g-1000 g	5 Min.	Medium-density food like salad, mashed potato
Balloon Whisk		5	200 ml-800 ml	6 Min.	Light-density food like egg, butter, cream etc.
Meat grinder		4	< 1000 g	6 Min.

Important Notes on Use

• Do not operate the machine continuously more than 10 minutes.
  After one time use, the machine should be cooled down for 30minutes.
• Do not add mixture more than 1.0kg .
• Operate the appliance only when the accessory / tool is attached according to this table and is in the operating position.
• Risk of injury from the rotating tools! While the appliance is operating, keep
• fingers far away from the mixing bowl.
• Do not change tools until the appliance is at a standstill and have been unplugged.
• When switch off, the drive continues running.

USING THE ACCESSORIES

Note: The accessories must NOT be cleaned in the dishwasher!

How to attach the accessories:

How to use Beater, Balloon Whisk and Kneading Hook:

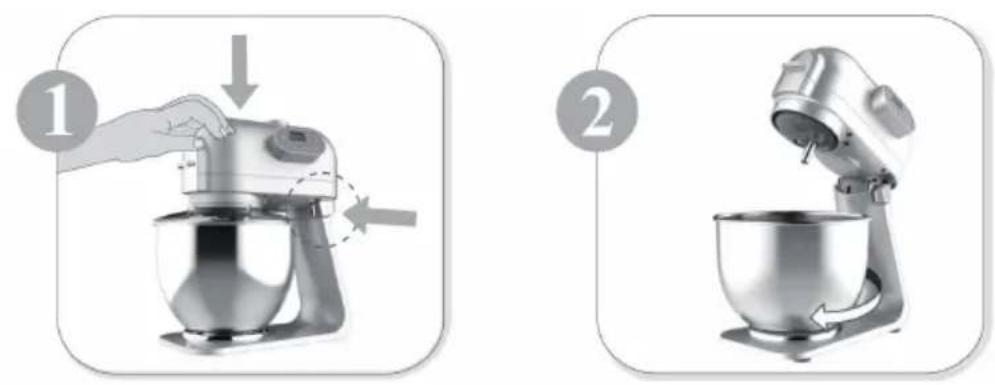

1 One hand press the head down, then, the other hand press the tilt-head button, (as picture shown). lift the head up. until you hear the "click" sound.
2 Assemble the bowl filled with powder into base flute clockwise.

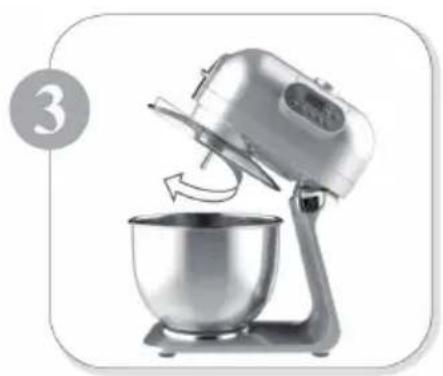

3 Assemble bowl cover clockwise, as picture shows.

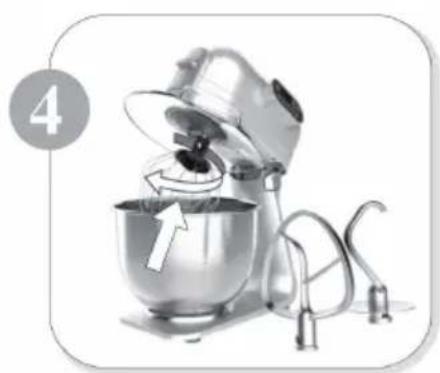

4 According to your needs, assemble beater, balloon whisk, kneading hook into rotating axis then revolve them, clockwise (see picture).

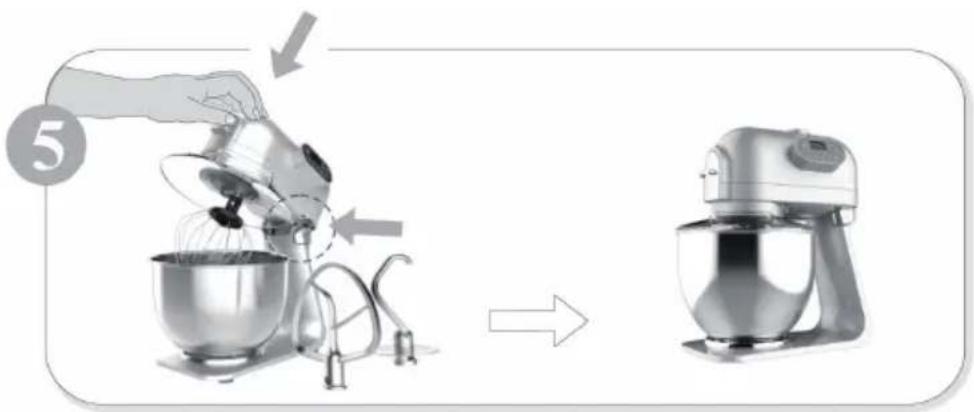

5 One hand press the head down, then, the other hand press the tilt-head button, until you hear the "click" sound, set the head to the position as picture shown. Power on, set appropriate speed.

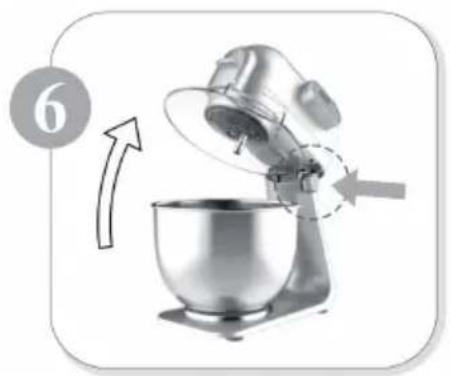

6 After food is ready, Press button "OFF", unplug. one hand press the head down, then, the other hand press the tilt-head button, lift the head up, until you hear the "click" sound. set the head to the position as picture shown.

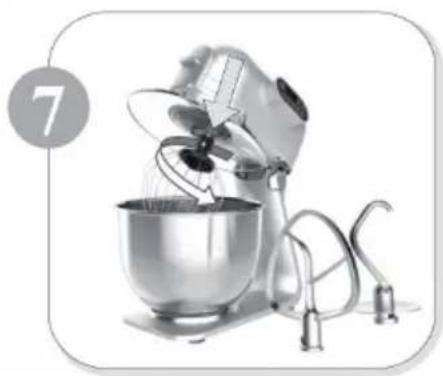

7 Remove beater, balloon whisk, kneading hook counter-clockwise.

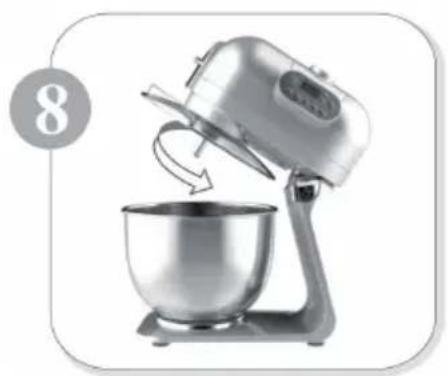

8 Remove bowl cover counter-wise.

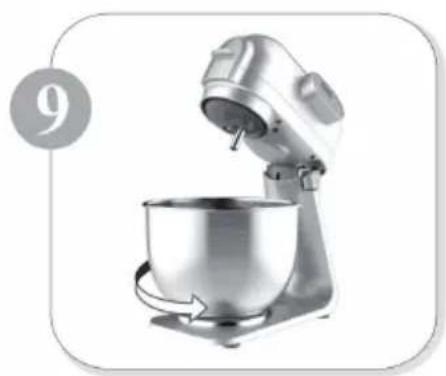

9 Remove bowl with prepared food counter-clockwise.

Fields of Application and Recipe Examples

Balloon Whisk	At least 4 egg whites
	Speed 5 For 5 minutes
Kneading Hook	• 500 g flour • 100 g sugar • 25 g milk powder • 10 g yeast • 75 g butter • 3 egg yolks • 8 g salt • 225 ml water
	Speed 1-2 For 10 minutes
Beater	Cream or salad dressing
	Speed 3-4 For 5 minutes

MEAT GRINDER

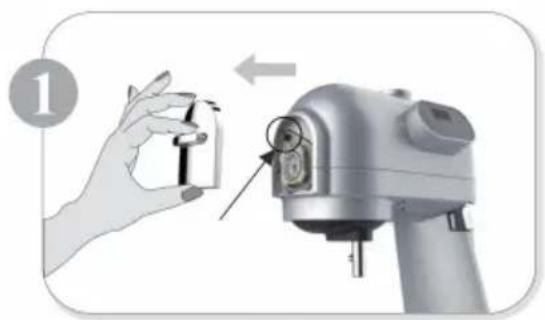

Take off the front cover as picture shown.

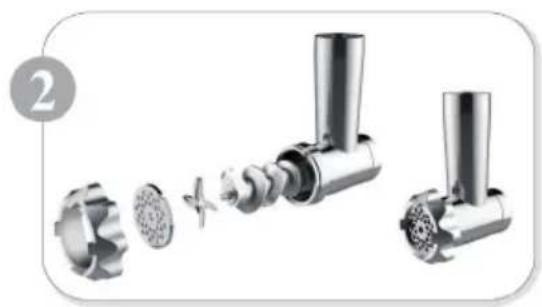

Following their sequence shown as picture, assemble worm shaft blade and cutting disc into cutting meat canister, then assemble cutting screw bar into cutting meat canister clockwise.

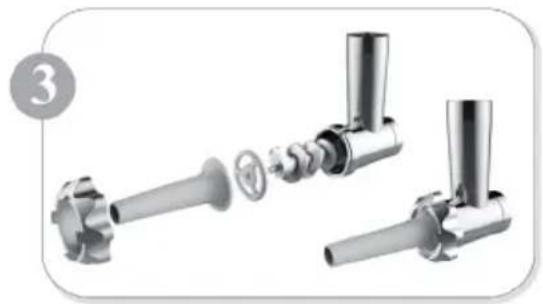

Following their sequence shown as picture assemble worm shaft, lead cover, sausage canister into cutting meat canister then assemble cutting screw bar into cutting meat canister clockwise.

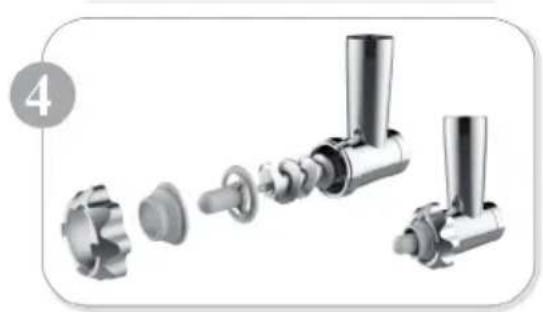

Following their sequence shown as picture, assemble worm shaft, conductor, meatball canister into cutting meat canister then assemble cutting screw bar into cutting meat canister clockwise. Note: Please remember to disassemble cutting cylinder from the machine, when changing these accessories.

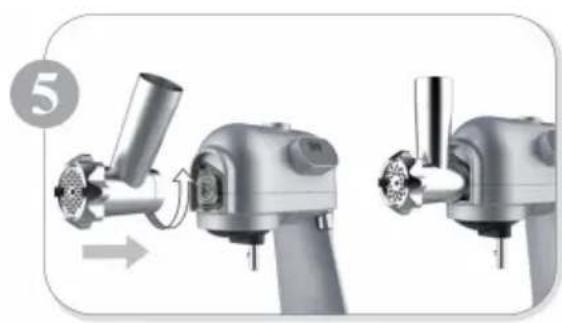

Align arrow on cutting cylinder to the other one on arm then assemble prepared cutting meat canister into arm counter-clockwise shown as picture. Fasten cutting screw bar after cutting meat canister fixed correctly.

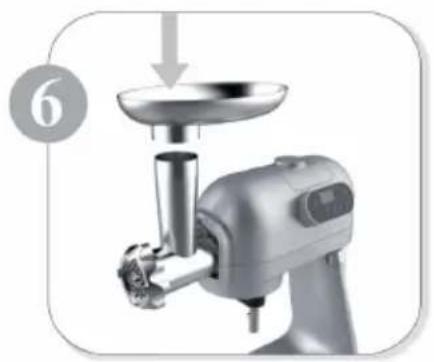

6 Assemble loading tray into cutting meat canister then place bowl to outlet of cutting meat canister.

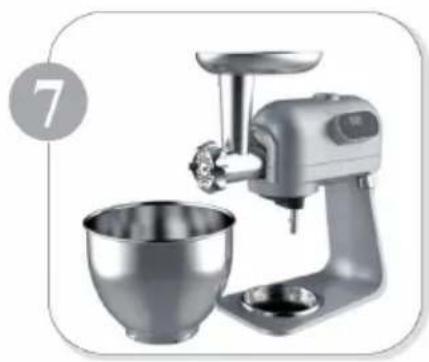

7 Powder on for running. Turn switch to appropriate speed then put food into feeding inlet with pusher to push down food.

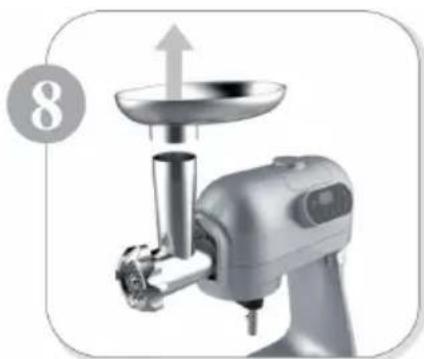

8 Turn switch to "OFF" when food is ready then unplug and cut off power. Remove pusher and loading tray.

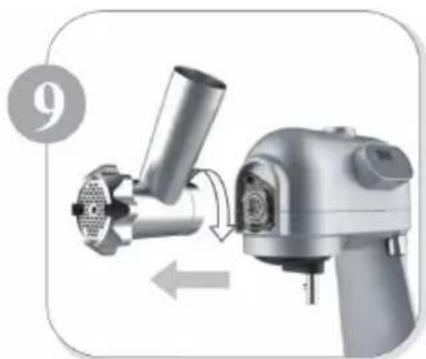

9 Press release button, remove cutting meat canister from arm clockwise.

CARE AND CLEANING

Note: The accessories must NOT be cleaned in the dishwasher!

• Never immerse the base unit in water or hold under running water.
• Do not use abrasive to clean.
• Wipe unit with a damp cloth, if required; use a litter washing up liquid. Then wipe unit dry.
• Do not wedge plastic parts in the dishwasher as they could be warped.
  Rinse and dry thoroughly.
• After washing and drying, immediately place attachment into the protective sleeve for storage.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
