Technical Features	Vacuum packaging device with automatic pressure and temperature control.
Dimensions	Compact, ideal for home use.
Weight	Lightweight, easy to handle and store.
Usage	Easy to use with an intuitive control panel.
Included Accessories	Vacuum film rolls and compatible bags.
Maintenance	Easy to clean with a damp cloth, removable parts for simplified maintenance.
Safety	Integrated safety system to prevent overheating.
Warranty	2-year manufacturer warranty.
General Information	Ideal for preserving food, reducing waste, and extending product shelf life.

Frequently Asked Questions - Vince Springlane

How do I use the Springlane Vince to vacuum pack my food?

To use the Springlane Vince, place the food in a compatible vacuum bag, make sure to leave enough space at the top of the bag, then insert the open end into the machine. Press the "vacuum" button and wait for the process to complete.

Why won\'t my device start?

Check that the device is properly plugged in and that the outlet is working. Also ensure the lid is securely closed and the bag is correctly positioned in the machine.

What should I do if the bag doesn\'t seal properly?

Make sure the bag is clean and dry in the sealing area. Also check that the machine\'s seal is clean and free of debris. If the problem persists, try another compatible bag.

Can I use regular plastic bags with the Springlane Vince?

No, it is recommended to use only vacuum bags specially designed for vacuum devices to ensure proper operation and optimal food preservation.

How do I clean my Springlane Vince device?

Unplug the device and use a damp cloth to clean the exterior. For the interior, remove the seal and wash it with soapy water. Avoid submerging the device in water.

Can the Springlane Vince vacuum pack liquids?

Yes, but it is recommended to use the "vacuum for liquids" function if available. Otherwise, you can pre-freeze liquids in a container before vacuum packing.

How long do vacuum packed foods last?

Vacuum packed foods can last several times longer than unpackaged foods, ranging from a few months to several years depending on the type of food and storage conditions.

My device makes strange noises during operation. What should I do?

If you hear unusual noises, check that nothing is blocking the mechanism and that parts are properly assembled. If the problem persists, contact customer service for assistance.

Where can I buy compatible vacuum bags?

You can buy compatible vacuum bags at appliance stores, supermarkets, or online on specialized websites.

USER MANUAL Vince Springlane

Safety instructions 17

Operation of the vaccum

sealer Vince 18

Operation of the roll holder

and cutter 21

Cleaning and maintenance 22

Customer service 23

Disposal/Recycling 23

Declaration of conformity 24

FR

Dimensions (W/D/H): 38 × 21 × 9.5 cm, including roll holder with cutter

Weight: approx. 1,5 kg without accessories

Material: plastic (case)

Scope of delivery: device with roll holder and cutter, 5 vacuum bags

Changes and Errors concerning equipment features, specifications, colours and design are reserved.

SYMBOL DESCRIPTION

This symbol issues a warning concerning dangers which could damage the device or cause injuries.

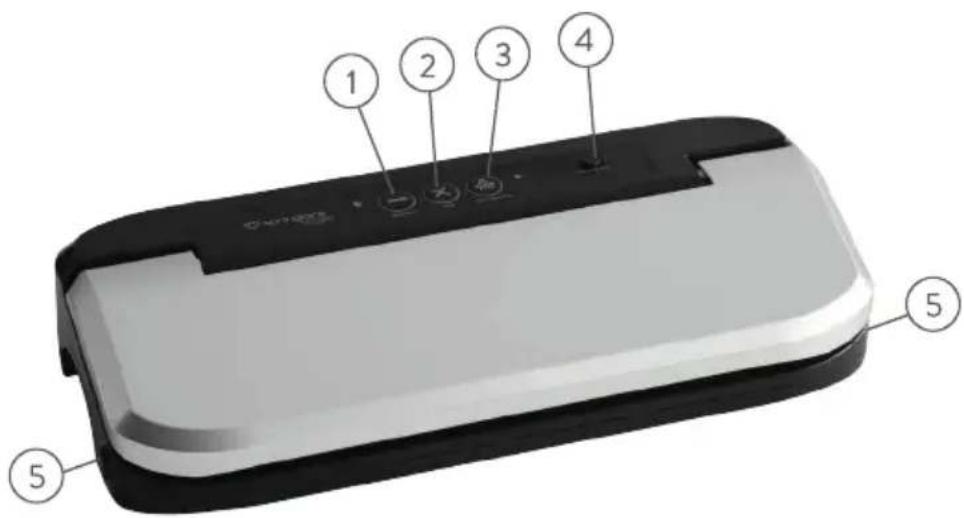

1. Button for sealing (Seal only')
2. Stop-Button
3. Button for vacuuming and sealing
4. Vacuuming for vacuum boxes
5. Button for unlocking

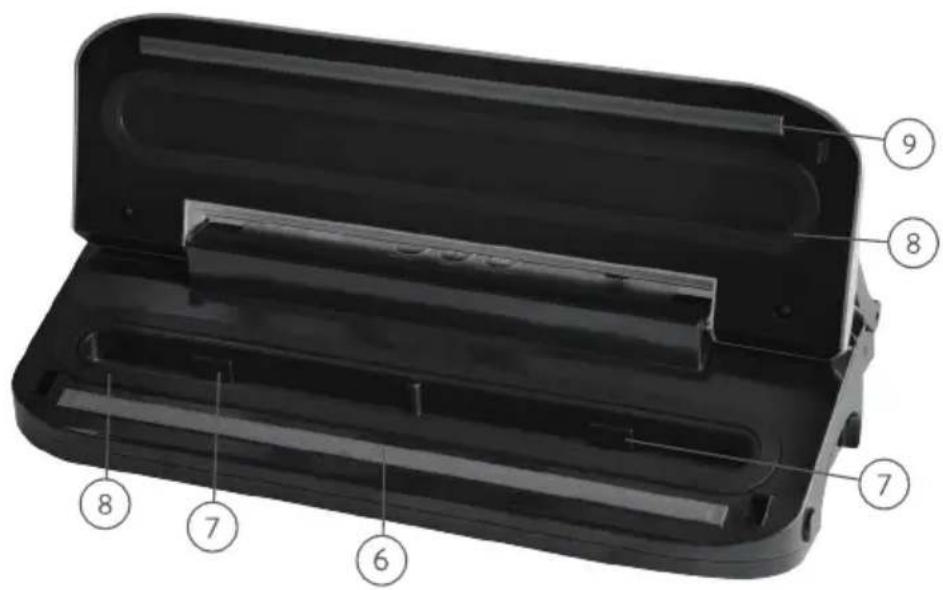

6. Welding wire
7. Anchor point
8. Seal
9. Silicon lip

Please read this manual carefully before the device's initial operation and keep it for further reference. Only people familiar with the security advice may operate the device.

The main voltage must be identical with the voltage indicated on the device's label. This device is in accordance with the directive being mandatory for CE-labelling.

In order to avoid danger and act in accordance with the security directives, the device and the connection cable may solely be repaired by professional personal. In case repair is necessary, please contact our customer-service via mail or phone.
- Before cleaning, please unplug the connection cable and let the device cool off.
- For security reasons, the device may not be cleaned using liquid substances, or even submerged in it.
- The device may be operated by children from 8 years onward and by people with diminished physical, mental or sensory, or people with lack of experience and/

or knowledge, if they are being supervised or have been instructed concerning the device's save operation and have understood the resulting risks.

Children may not play with the device.
- Maintenance and cleaning may not be done by unsupervised children.
- Children under age of 8 years are to be kept away from the device and connection cable.
- Keep children away from the packaging material. There is risk of suffocation.
- Before the device's first operation, please check the complete device as well as its connection cable and components for defects

and damage, which could impair the device's security. Should the device have been dropped on the floor or the connection cable having been pulled at, damages not visible from the outside may have incurred. In this case, please do not start up the device.

Attention: Do not touch the welding wire or sili-

cone lips. Danger of burns!

• Unplug the power plug:

• During disturbances while using the device

• After each use

• Before cleaning

• Do not unplug the main plug by pulling at the connection cable,

but by pulling the plug directly.

• Neither the main plug nor the connection cable may come too close to a hot cooking plate or open fire.

• If the device is operated incorrectly or is alienated, no liability can be assumed.
  The device was conceived to be used at home or for similar tasks like

• In kitchens, for staff in stores, offices and similar branches
  In agricultural business

• By guests in hotels, motels and other accommodations
  -In bed and breakfast accommodations

The device was constructed for intermittent service, which means it has to cool down for approximately 20 seconds after each use, before welding can begin again. After an operating period of 10 minutes it has to cool down for 2 minutes in order to prevent overheating.

PREPARATION OF SACHET

1. Put the prepared food in the sachet. Please take care to keep the opening of the sachet completely clean and dry.
2. The sachets may be filled up to 6 cm beneath the sachet's opening.
3. If necessary, dry off the food with a towel in order to remove remaining liquids.

PREPARATION FOR WELDING

1. Plug in the main plug.
2. Open the vacuum sealer's lid.
3. Place the open side of the filled sachet on the anchor points. The sachet's opening must be clean and placed crease-free on the

silicon lip.

1. Fold the lid down.
2. Push the lid down tight on the outer edges until it audibly snaps shut on both edges.

VACUUMING AND WELDING

1. Press the button on the right hand side ("Vacuum & Seal").
2. The right indicator light will light up while the sachet is being vacuumed.

3. When vacuuming is complete, the sachet's opening will be sealed automatically. The left indicator light lights up.

4. When the process is complete both indicator lights will go out and the sachet can be removed.

5. For removing the sachet, please press the release buttons and open the lid.
6. For cancelling the process press the stop-button.

ONLY WELDING

1. Press the left button ("Seal only").
2. The left indicator light will light up while the sachet's opening is being sealed.
3. When the process is complete the indicator light goes out and the

sachet can be removed. For removing the sachet, please press the release buttons and open the lid.

1. For cancelling the process press the stop-button.

Tip: If the welding seam is contaminated by liquid, pull out the sachet a bit, if required clean the sachet's opening and seal the sachet again. The sachet's opening may not be wet. This grants a save sealing of the sachet.

• Before repeated sealing, the device has to cool off for approx. 20 seconds, to avoid overheating.
  After operation, turn of the device and unplug it.

A Integrated Cutter
B Roll Holder

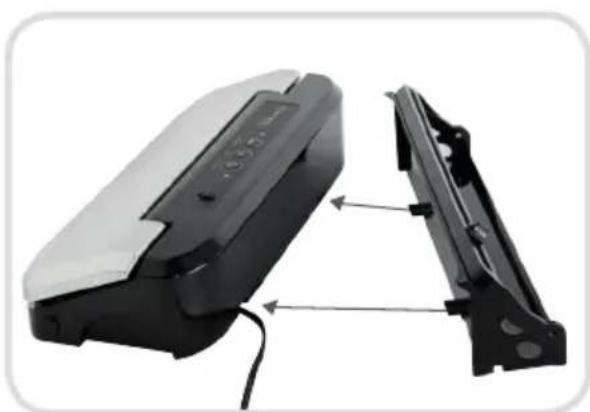

INSTALLATION OF THE ROLL HOLDER ON THE VACUUM SEALER

Place the roll holder in the intended openings on the back of the vacuum sealer and clasp it on to the device.

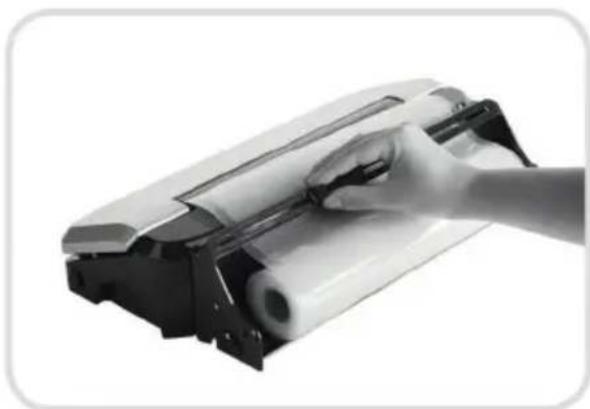

CUTTING A VACUUM BAG FROM A FOIL ROLL

1. Place a foil roll in the roll holder.
2. Unroll as much foil as you require for packaging of the desired ingredients, plus about 5 cm.
3. Use the integrated cutter to cut the foil sachet from the roll. Take care to cut in a straight line.
4. Open the vacuum sealer's lid.
5. Place the open side of the piece of foil on the anchor points.
6. Shut the lid.
7. Close the lid and clasp it on the outer edges until it audibly snaps shut on both edges.
8. Press the left button ("Seal only").

9. The left indicator light will light up while the sachet's opening is being sealed.

10. When the process is complete the indicator light goes out and the sachet can be removed. For

removing the sachet, press therelease buttons and open the lid.

The individually cut vacuum foil sachet can now be used to vacuum ingredients.

CABLE SPOOL

Beneath the device a cable spool is placed for storing of the connection cable.

REPLACEMENTSACHETS

Vacuum foil sachets with a one-sided nobs structure can be used. This nobs structure enables an optimal vacuuming process. The width may not be over 30 cm.

CLEANING AND MAINTENANCE

The vacuum sealer should be cleaned after each use and dried as described. Insufficient and improper maintenance of the device may diminish the device's functionality.

• Unplug the device before each cleaning.
• Because of electrical security reasons the device may not be cleaned with liquids or even immersed in those.
• If required, wipe the casing with a slightly moistened towel.
• If residues have formed on the welding wire or the silicon lip, let the device cool down and carefully remove the residues.

CUSTOMER SERVICE

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer-service:

Telephone number: [phone]

Our products are manufactured with the highest degree of care and are designed for a long durability. Regular maintenance and cleaning help to prolong durability. If the device is defective and cannot be repaired,

it must not be disposed at home.

You must dispose the device at a respective place for recycling of electronic devices. With correct disposal and recycling you contribute to preserving the environment.

This appliance complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE).

DECLARATION OF CONFORMITY

This appliance complies with:

• European Directives for electromagnetic compatibility (EMC) 2004/108/EC
  Low Voltage Directive (LVD) 2006/95/EC
  RoHS 2011/65/EU

This appliance complies with: LFGB 2005, §30+31

DATI TECNICI

• Directive CEM 2004/108/CE
• Directive de Basse Tension 2006/95/EC
  RoHS 2011/65/EU
