Product Type	Air Dehumidifier
Brand	Klarstein
Model	10032663
Power Supply	220-240 V ~ 50 Hz
Power	420 W
Dehumidification Capacity	20 L/day (at 30 °C, 80% RH)
Water Tank Capacity	5 L
Refrigerant	R290 (flammable)
Timer	24 hours (delayed start/stop)
Operating Modes	Automatic dehumidification, continuous drying
Fan Speed	2 speeds (fast/slow)
Internal Drying Function	Yes (duration ~1 hour)
Oscillation Function	Yes (activate by pressing simultaneous keys)
Display	Ambient humidity or programmed time
Adjustable Humidity Range	30% to 80% (in increments of 5%)
Operating Temperature	5 °C to 32 °C
Continuous Water Drainage	Yes (hose not included, inner diameter 9 mm)
Minimum Distance Around Unit	20 cm on sides, 50 cm above
Filter Maintenance	Clean every 2 weeks
Repairs	Reserved for qualified professional (R290 refrigerant)
Recycling	Do not dispose with household waste, take to collection point

Frequently Asked Questions - 10032663 Klarstein

How to set the desired humidity?

In automatic mode, press the HUMIDITY button to select a level between 30% and 80% in 5% intervals. The unit maintains this humidity.

How to use the timer for automatic shutoff?

With the unit running, press TIMER, then set the hours using the HUMIDITY button (1 to 24h). No action for 5 seconds confirms the setting.

What to do when the water tank is full?

The indicator lights up and the unit stops. Remove the tank by the handle, open the cover and empty the water. Replace the tank ensuring the float moves freely.

How to clean the filter?

Turn off and unplug the unit. Remove the filter and clean it with a damp cloth or clean water. Let it dry before reinserting. Perform this operation every two weeks.

Can I use a hose for continuous water drainage?

Yes, attach a drainage hose (inner diameter 9 mm, not included) to the outlet at the back. Ensure the hose does not rise above the outlet to prevent water from flowing back into the unit.

Why does the unit not start?

First check that the plug is properly inserted and that the tank is not full. Make sure the ambient temperature is between 5 °C and 32 °C. If the problem persists, contact a professional.

What does continuous drying mode mean?

In CONTINUOUS mode, the unit operates continuously without regard to ambient humidity. You can adjust the fan speed. Useful for rapid drying.

How to activate the oscillation function?

Press the INTERNAL DRYING and TIMER buttons simultaneously to activate or deactivate the oscillation of the air vents.

Does the unit contain a dangerous refrigerant?

The unit uses R290, a flammable refrigerant. In case of leakage, ventilate the room and avoid any ignition source. Repairs must be carried out by a qualified professional.

What to do if the unit leaks or does not dehumidify enough?

Check that the drainage hose is properly attached and not blocked. Clean the filter. Ensure that the air intakes/outlets are not obstructed. If the ambient humidity is too low, the dehumidification capacity is reduced.

USER MANUAL 10032663 Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 16

Notes on Refrigerant R290 17

Installation 18

Product Description 18

Control Panel and Keys 19

Operation and Functions 20

Care and Cleaning 23

Troubleshooting 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10032042, 1	0032663 10032043
Power supply 220-240 V ~	50 Hz 220-240 V ~ 50 Hz
Power consumption 420 W	530 W
Dehumidifying capacity	20 L/day (30 °C, RH 80 %)	30 L/day (30 °C, RH 80 %)
Water tank 5 L 5 L

SAFETY INSTRUCTIONS

• Please read the operating instructions carefully before using your dehumidifier for the first time and keep it on a safe floor.
• Never immerse the appliance in water or other liquids.
• Place the unit on a stable flat surface to avoid loud noises and vibrations.
• Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or otherwise damaged.
• The appliance may only be repaired by qualified personal, improper repair work can be a source of considerable danger for the users.
• Pull out the power plug before transporting it and / or before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• The device may not be connected to a power strip with other household appliances.
• Use the appliance only in the household, and only for the purpose it was developed for.
• Do not operate this unit near heating appliances and flammable or dangerous objects.
• If the dehumidifier is operated in a room with gas driven devices, so the room must be aired regularly and often.
• Please use the function of the internal drying, if the device is not used for a long time. This will prevent formation of mildew and unpleasant smell inside the unit.
• Do not place heavy objects on the appliance.
• Do not hang curtains or wet clothes in front of the air outlet, this will overload the device.
• The drainage hose may not be installed outdoors at low temperatures.
• To prevent spillage, empty the water tank before relocating the appliance.
• Do not tip the appliance to any side as escaping water could damage the appliance.
• If the supply cord is damaged, it must be replaced by a qualified person to avoid a hazard.
• If you smell the smoke during start-up or if you can see the smoke, immediately disconnect the power plug out and contact your dealer.
• The unit should be installed with a minimum distance of 20cm from the wall or other obstacles.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Warnings

• The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation.
• Switch off the device and disconnect it from the power supply before cleaning.
• Make sure that the product creates a steady stream of air. Ensure the air inlets and outlets are not blocked.
• To prevent leaks, operate this unit on a horizontal surface.
• Any person performing work on a refrigerant circuit should have a current certifi cate from an industry-accredited assessment body. This ensures competence for the safe handling of refrigerants according to an industry-recognised assessment specifi cation.
• If the device stops working, dispose of it properly.
• Store the device in a well-ventilated place when not in use.
• Store the device so that it is not damaged.
• Repairs may only be carried out by the manufacturer or an authorised specialist company.
• The cables connected to the device may contain potential ignition sources.
• Do not damage any components of the refrigerant circuit. Escaping refrigerant may not be noticed because it is odourless.
• Maintenance and repairs must be carried out under the supervision of specialists in the use of flammable refrigerants.

Information for rooms with refrigerant pipes

• Limit the piping to a minimum.
• Be careful not to damage the piping.
• Appliances with flammable refrigerants may only be installed in a well-ventilated room.
• Comply with national gas regulations.
• All mechanical connections must be freely accessible for maintenance purposes.

CAUTION

Risk of fire! This device contains the flammable refrigerant R290. If the refrigerant escapes and is exposed to an external ignition source, there is a risk of fire.

INSTALLATION

• Empty the water tank before turn on the unit.
• During the operation, keep unit closed to the door and windows closed to save energy.
  Make sure no block at air inlet and outlet
• Place the appliance on a stable surface and allow at least 20~cm of space around the appliance and at least 50~cm in the area to allow air to circulate sufficiently.

PRODUCT DESCRIPTION

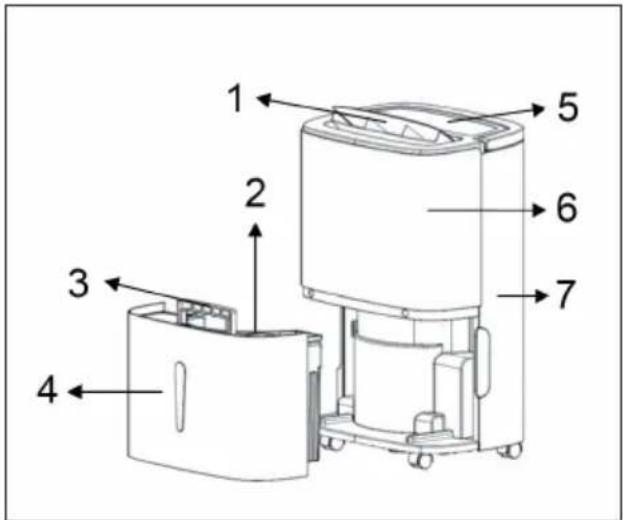

Front

1 Wind blade
2 Water tank cover
3 Tank Handle
4 Watertank
5 Control Panel
6 Front cover
7 Back cover

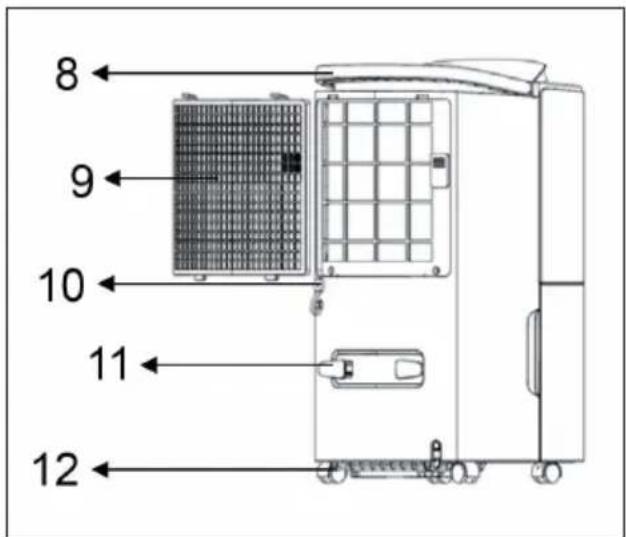

Back

8 Handle
9 Filter frame
10 Drain
11 Wrapping post
12 Wheels

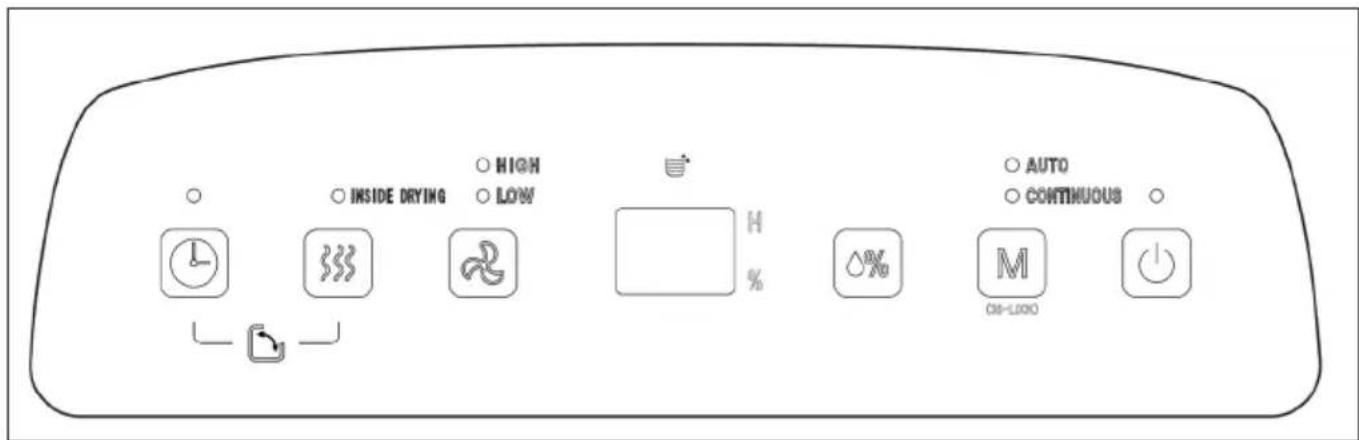

CONTROL PANEL AND KEYS

	Timer: 24 hours timing, press the key, to set the timing off or timing on, timing range is from 1 to 24hours, it will increase 1hour by each press. Press the key again, timing can be canceled.
	Internal drying function: press the key to start the inside drying function. The drying function prevents molding from forming inside the dehumidifier.
	Fan: In Auto dehumidifying and cloth dry mode, press this button to change fan speed, high-low-high.
	Display screen: In Auto dehumidifying or cloth dry mode, it will indicate the actual room humidity. In timing mode, it indicates the setting time.
	Humidity setting: In Auto dehumidifying mode, press the key to set humidity, humidity range is from 30% to 80%, it increases 5% by every press.
M	Mode: When power on or timing power on, press this button to choose auto dehumidifying or continuous dehumidifying (dry cloth function). The lights will flash when choose the modes. Press MODE key for 3 seconds to lock/unlock the control panel.
	On/Off: Press the key to turn on/turn off the unit.

OPERATION AND FUNCTIONS

Timing off

When the dehumidifier is running, press "Timer" to start the function, then press "Humidity setting" button to set hours, timing range is from 1 to 24 hours, it will increase 1 hour by each press. When time is up to your setting, unit will turn off. After the setting is completed, if the Timer key does not act at all within 5s, the set time is confirmed.

Timing on

When the dehumidifier is in standby state, press "Timer" to start the function, then press "Humidity setting" button to set hours. When time is up to your setting, unit will turn on. After the setting is completed, if the Timer key does not act at all within 5s, the set time is confirmed.

Auto dehumidifying mode

If the humidity in the room is above 5% of the set humidity, the compressor and fan start. If the humidity in the room is less than 5% of the set humidity, the compressor stops and the fan runs again at the preset speed. When the humidity decreases or increases, the compressor and fan start and stop alternately. The preset humidity is 50% .

Cloth dry mode

Under this mode, the unit will work regardless of the room humidity, compressor works, and fan will work from high speed, fan speed is adjustable.

Start Internal Drying Function

Press the [Drying key in dehumidifier] for over 2s to start drying in the dehumidifier, and the whole drying procedure needs approximate 1h. The dehumidifier starts at HIGH air speed and releases air continuously for 30min . The dehumidifier turns to run at LOW air speed and lasts for 15min .

Stop Internal Drying Function

To stop drying press the Drying button again to cancel and return to running state before the drying.

Air-swing function

Press the Timer button and the Drying button at the same time for more than 2 seconds to start or end the Air-swing function.

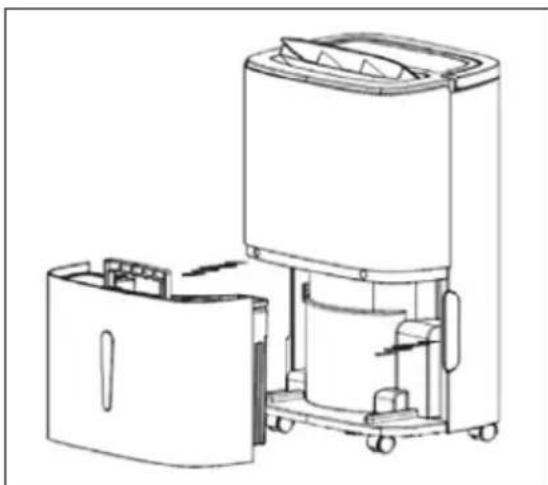

Drainage manually

When water tank is full, water-full indicator is on, the unit will stop working, and buzzer will sound 10 times till water is pour off.

• Place both hands respectively at the side of the back cover side of the depression, gently remove the water tank and open the tank cover on the right side of the body, then pour the water from the gap between water tank and the cover.
• Close the tank cover, and rotating water tank handle down, then put the water tank gently and put it back in the right place to restart dehumidifier.

Note: Before putting in the water tank, please ensure the float is flexible.

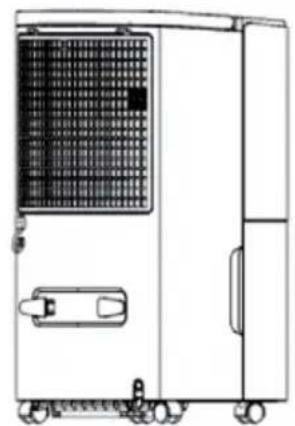

Continuous Drainage

If you do not want to drain water in the water tank frequently, you can connect a drainage pipe (with inner diameter 9mm ) on the back of this dehumidifier to drain water, and this pipe shall be bought by the user.

Note: The drain hose is not included in the scope of supply!

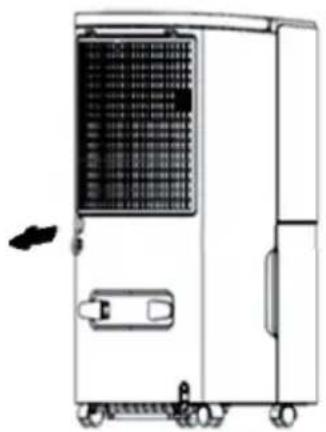

Find the position where the water outlet is blocked on the back, as shown in figure below:

Pull down the water plug.

Connect a drainage pipe at proper length onto the water outlet.

Before using please check whether the drainage pipe is connected firmly or not in case that water leaks.

Note: The level height of externally connected water pipe shall not be higher than the water outlet, and the water pipe at rear-end shall transit smoothly, otherwise, the leakage risk exists since drainage is not smooth.

CARE AND CLEANING

• Turn off this appliance and pull out plug before maintaining or repairing.
  Pull out plug if dehumidifier is not used for long time
• Please do not use benzene, alcohol, gasoline or other chemical reagent to clean unit.

Clean the water tank with soft cloth.	Use wet cloth to clean appliance surface, do not use detergent or grinding sponge to damage surface.	Clean filter at least one time every two weeks.

TROUBLESHOOTING

Problem Possible	Cause Suggested Solution
Unit doesn't work.	Is the power plug connected? Put the plug in the socket.
	Water tank is full or water tank is not assembled well.	Pour away the water in water-tank, and put water tank into the unit.
	Operation temperature is too low or too high	Use this dehumidifier under the environment 5-32 °C.
No outlet air. Operation temperature orhumidity is too low.		Under dry environment, dehumidifying effect will be not so obvious.
Is air outlet or air inlet blocked?		Clean the air outlet or air inlet.
No outlet air. Is filter blocked? Clean the filters.
Water leakage. Drainage pipe is not tightly connected.	Check the drainage pipe.
Pipe is blocked. Clean the debris in pipe.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
