Technical Specifications	Klarstein Coffee Machine 10032866
Machine Type	Filter Coffee Machine
Reservoir Capacity	1.2 liters
Power	900 W
Body Material	Plastic
Keep Warm Function	Yes
Filter	Permanent filter included
Dimensions (L x W x H)	24 x 19 x 30 cm
Weight	1.5 kg
Usage	Easy to use with a simple control panel
Maintenance	Easy to clean thanks to removable parts
Safety Instructions	Avoid contact with water when handling the device while plugged in
General Information	Ideal for coffee lovers seeking quick and efficient preparation

Frequently Asked Questions - 10032866 Klarstein

How do I clean my Klarstein Coffee Machine 10032866?

To clean your coffee machine, unplug it and let it cool down. Remove the filter and water reservoir, then rinse them with warm water. Use a soft cloth to wipe the outside of the machine. For deep cleaning, use a compatible descaler.

Why won\u0027t my coffee machine turn on?

Check that the machine is properly plugged in and that the outlet is working. Also ensure the water reservoir is in place. If the problem persists, there may be an issue with the internal fuse.

How do I adjust the coffee strength on my Klarstein machine?

The coffee strength can be adjusted by changing the amount of ground coffee used. For stronger coffee, add more ground coffee to the filter. Consult the user manual for specific recommendations.

What should I do if the coffee drips too slowly?

If the coffee drips slowly, it may be due to a clogged filter or coffee ground that is too fine. Check the filter and replace it if necessary. Also try using a coarser grind of coffee.

How do I descale my Klarstein coffee machine?

Mix a solution of white vinegar and water (1:1) and fill the reservoir. Run the machine as if brewing coffee. Then rinse several times with clean water to remove any residue.

The coffee machine is leaking, what should I do?

Check that the water reservoir is properly installed and has no cracks. Also ensure the filter is correctly in place. If the problem persists, there may be an internal leak requiring technical assistance.

Can the Klarstein coffee machine use pods?

The Klarstein Coffee Machine 10032866 is designed to use ground coffee. If you want to use pods, check if compatible accessories are available.

How do I store my coffee machine if I won\u0027t be using it for a while?

To store your coffee machine, make sure it is clean and completely dry. Store it in a cool, dry place away from dust.

USER MANUAL 10032866 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

CONTENT

Technical data 21

Declaration of conformity 21

Safety instructions 22

Product description 24

Control panel, buttons and indicators 26

Start and operation 27

Cleaning and maintenance 35

Troubleshooting 38

Hints on disposal 38

TECHNICAL DATA

Item number 10032865 10032866 10032874

Power supply 220-240 V ~ 50 Hz

Power consumption 1000 W

Max. capacity (water tank) 1,25 L

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

General safety

• Read the manual carefully before use and keep the manual for future reference.
• Only use the appliance and the accessories for their intended purposes and do not use the appliance and the accessories for other purposes than described in the manual.
• Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
  Children should be supervised to ensure that they do not play with the appliance.
• The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.
• Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
• Do not immerse the appliance in water or other liquids.
• If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.
• This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.

Electrical safety

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 ~mm^2 ).
• Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.
  Always fully unwind the mains cable and the extension cable.
• Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.
• Keep the mains cable away from heat, oil and sharp edges.
• Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer, an authorised repair agent or by a qualified person.
• Do not pull the mains cable to disconnect the mains plug from the mains.
• Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for coffee makers

• Do not use the appliance outdoors.
• Do not use the appliance in damp environments.
• Only use the appliance in frost-free environments if the appliance is filled with water.
• Place the appliance on a stable and flat surface.
• Place the appliance on a heat-resistant and splash-proof surface.
• Do not place the appliance on a hob.
• Do not place the appliance on hot surfaces or near open fl ames.
• Make sure that the appliance does not come into contact with fl ammable material.
• Keep the appliance away from heat sources.
• Be careful with hot water and steam to avoid burns.
• Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.
• The coffee maker has been designed for making coffee with coffee beans or ground coffee. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

Disposal of packaging

WARNING:

Danger of suffocation! Dispose of plastic packaging immediately so that children do not injure themselves.

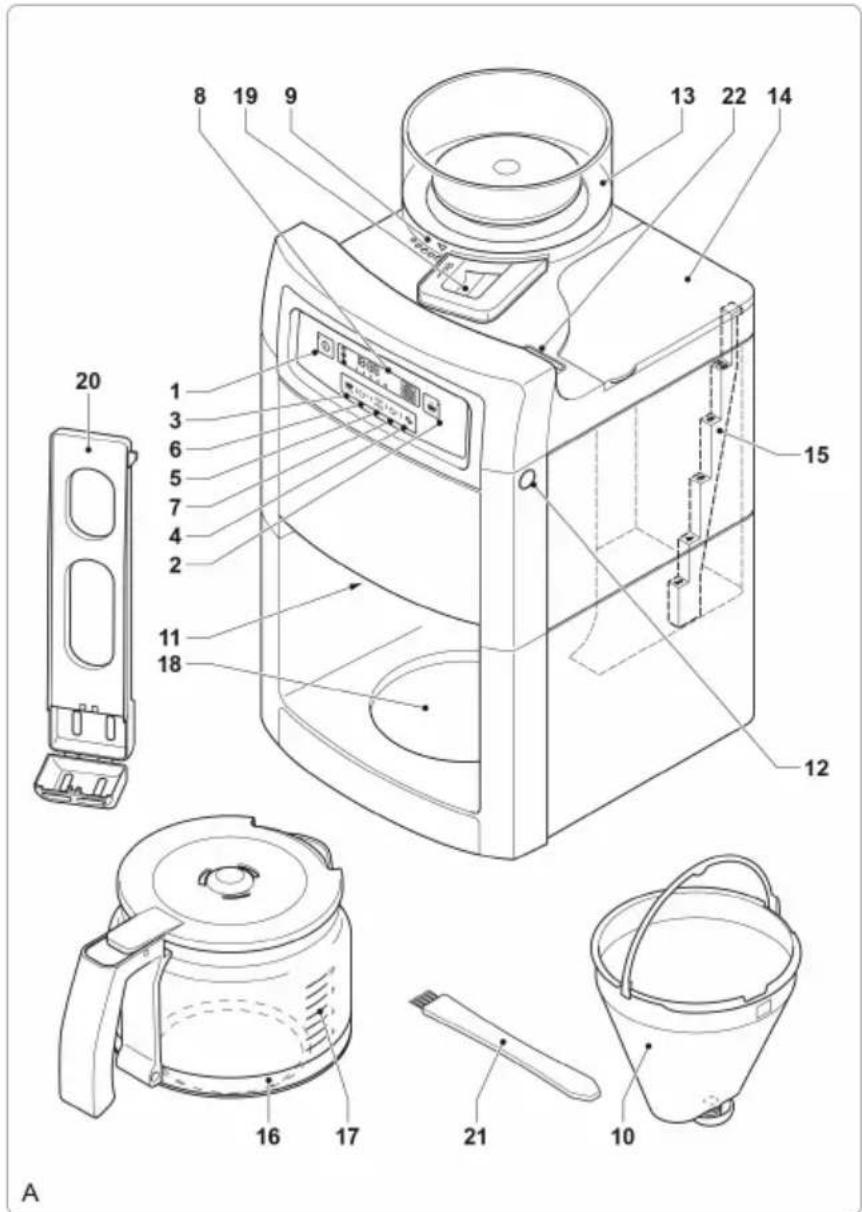

1 On/off button A Coffee quantity indicator
2 Grinding button B Coffee strength indicator
3 Coffee quantity selector C Time indicator 2-10cup
4 Coffee strength selector D Descalib indicator
5 Timer button E Keep-warm indicator PROG
6 Hour button
7 Minute button
8 Display
9 Ground coffee fineness selector
10 Permanent filter
11 Filter holder assembly
12 Release button (fi iter holder assembly)
13 Coffee bean compartment
14 Water reservoir
15 Water level indicator
16 Coffee pot
17 Coffee level indicator
18 Heating plate
19 Grinding compartment
20 Carbon filter holder
21 Brush/screwdriver
22 Steam hole
23 Descale button (button 3+4)
24 Water tank cover
25 Carbon filter mounting
26 Carbon filter
27 Coffee bean compartment cover
28 Cleaning opening cover

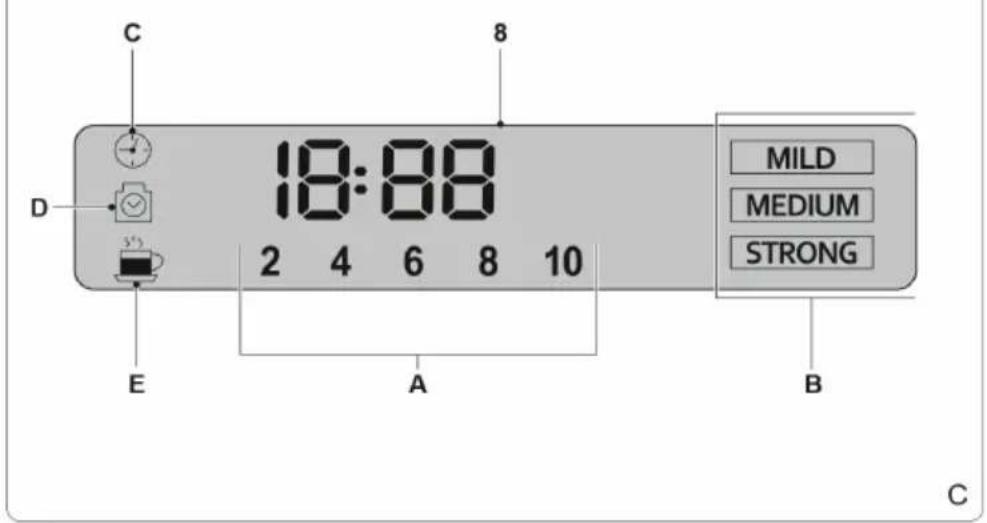

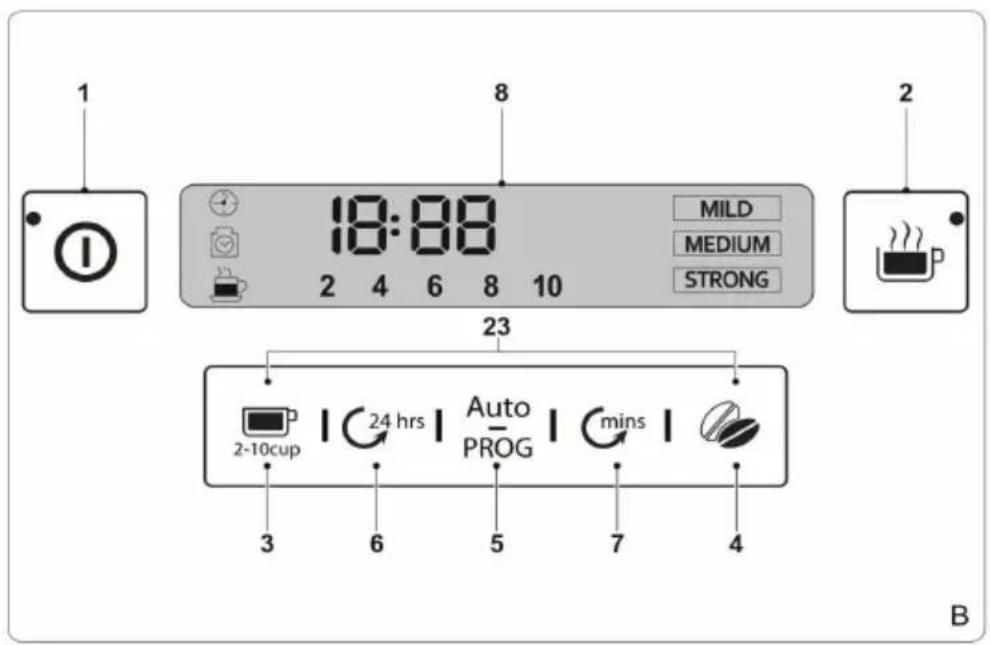

CONTROL PANEL, BUTTONS AND INDICATORS

START AND OPERATION

Before Initial Use

• Clean the appliance. Refer to the section "Cleaning and maintenance".
• Clean the accessories. Refer to the section "Cleaning and maintenance".

Setting the clock (f g. B & C)

If the mains plug is inserted into the wall socket, the display (8) will light to indicate that the clock can be set. The clock can be adjusted at any time later on.

1 Repeatedly press the hour button (6) to set the hours.
2 Repeatedly press the minute button (7) to set the minutes.
3 The time is shown on the display (8).

Use

CAUTION:

Risk of scalding! Keep your hands, face and other body parts away from the steam hole. The steam from the appliance becomes very hot during use. Do not cover the steam hole.

• The appliance can be used for making coffee with coffee beans or ground coffee.
• Before first use, the appliance is set to make coffee with coffee beans.
• After each use, the appliance will memorise the last used setting for the next use: making coffee with coffee beans or making coffee with ground coffee.

Note: The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use.

Setting the coffee quantity (fig. B & C)

• The coffee quantity selector (3) is used for setting the required coffee quantity. It can be set to 2, 4, 6, 8 or 10 cups.
• Repeatedly press the coffee quantity selector (3) to set the coffee quantity. The number of cups (A) is shown on the display (8).
• Aroma function: Long press the coffee quantity selector (3) to enter the "AROMA" stage, the icon lights up and the heating tube is heated up at intervals.

Setting the coffee strength (fig. B & C)

• The coffee strength selector (4) is used for setting the required coffee strength. It can be set to mild coffee (MILD), medium coffee (MEDIUM) and strong coffee (STRONG).
• Repeatedly press the coffee strength selector (4) to set the coffee strength. The coffee strength (B) is shown on the display (8).

Delay start function (fig. B & C)

The appliance has a delay start function which makes it possible to program the time for starting the coffee-making process. The delay start can be selected via the timer button (5).

1. Set the clock. Check whether the clock has already been set. If the clock has not been set, refer to the section "Setting the clock".
2. Keep the timer button (5) pressed until the clock on the display flashes.
   3 Repeatedly press the hour button (6) to set the hours.
3. Repeatedly press the minute button (7) to set the minutes.
   5 Set the coffee quantity. Refer to the section "Setting the coffee quantity".
   6 Set the coffee strength. Refer to the section "Setting the coffee strength".
   7 If you want to make coffee with ground coffee, switch off the grinding function before using the delay start function.
   8 Press the timer button (5) to save the settings. The timer indicator (C) lights continuously.
   9 To interrupt the process, press the timer button (5) again. The timer indicator (C) goes off.

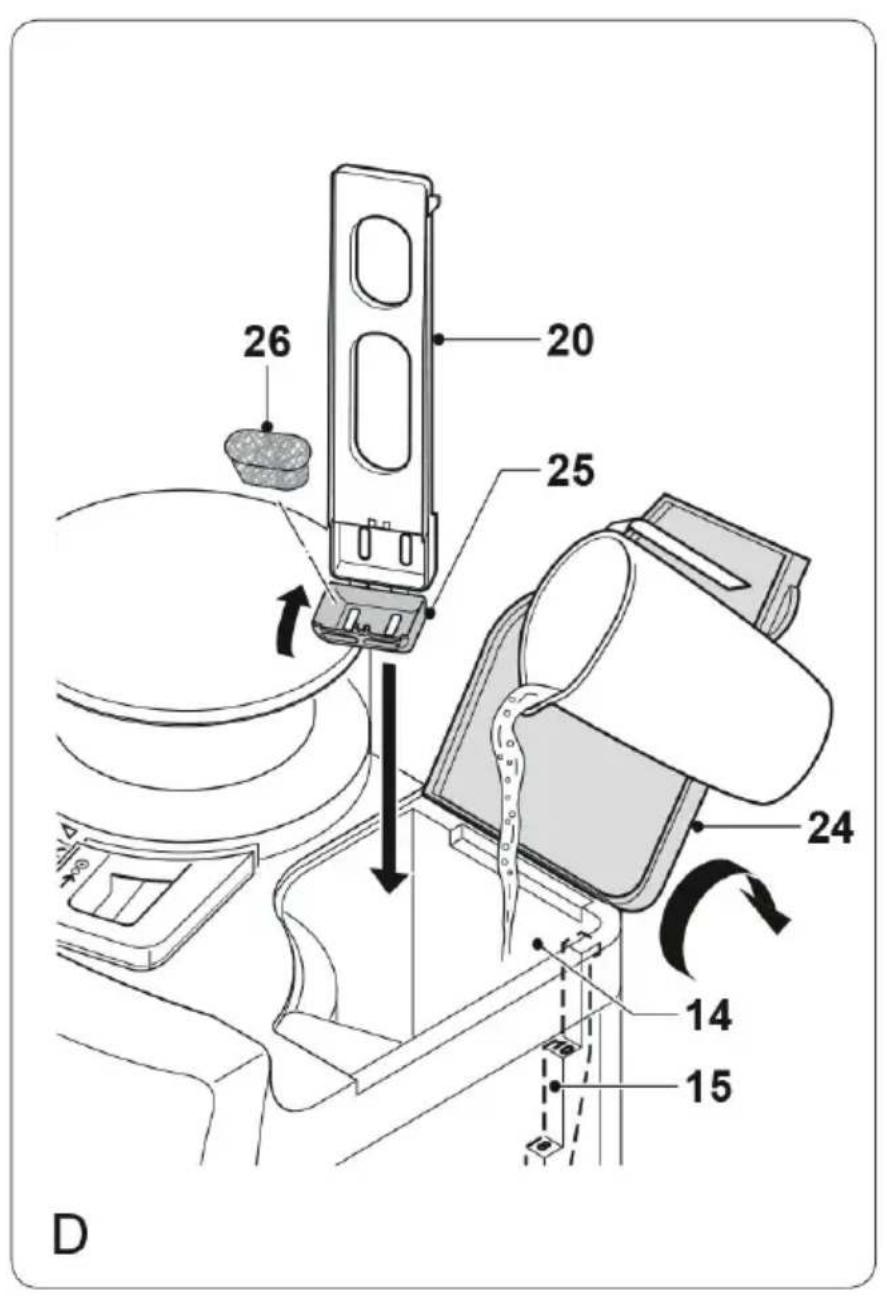

Filling the water reservoir (fig. D)

• Before filling the water reservoir, switch off the appliance and remove the mains plug from the wall socket.
• Do not fill the water reservoir with more water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty.
• Do not use the appliance without water in the water reservoir.
• Do not exceed the maximum mark (10 cups) when you fill the water reservoir.
  Make sure that the water level is always above the minimum mark (2 cups) during use.
• Only use cold water to fill the water reservoir.
• Do not use carbonated water or other liquids to fill the water reservoir.
• Do not pour water in the coffee bean compartment.

To fill the water reservoir:

1 Open the cover (24).
2 Fill the water reservoir (14) with water up to the required mark on the water level indicator (15).
3 Do not fill the water reservoir with more water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty.
4 Close the cover (24).

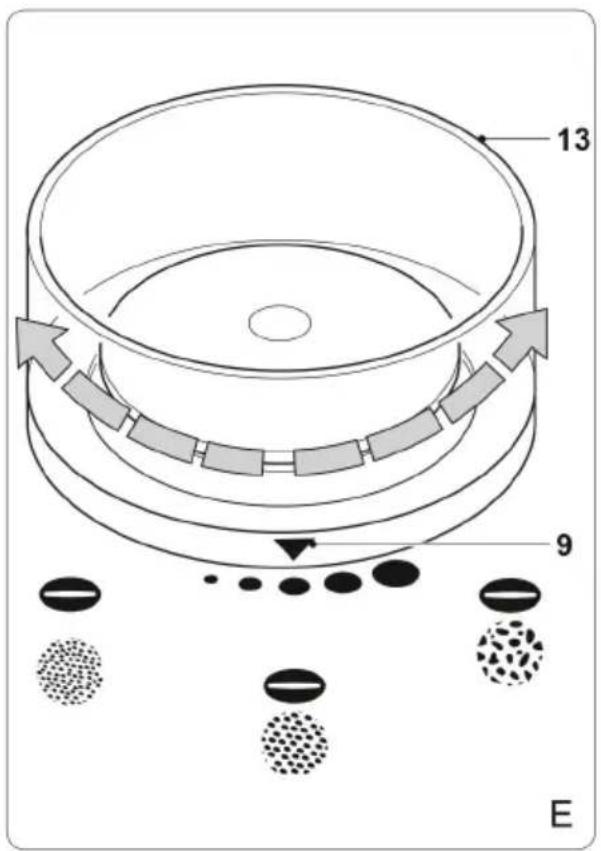

Setting the ground coffee fineness (fig. E)

• The ground coffee fineness selector (9) is used for setting the required fineness of the ground coffee when using coffee beans. It can be set to different positions from fine coffee grounds to coarse coffee grounds.
• Turn the ground coffee fineness selector (9) to the required position to set the fineness of the ground coffee.

Change from glass jug to thermo jug

• Press and hold the grinding button (2) to switch the glass jug/thermo jug function.
• When the keep-warm indicator (E) lights up, the glass jug can be used.

Note: Never use the hot plate when using the thermo jug, as heat may accumulate.

Removing and fitting the lid of the glass jug

Some appliances are equipped with a glass jug. To remove the lid, proceed as follows:

123
Open the lid in direction of the arrow.

Turn the lid in the direction of the arrow to release the left-hand pin of the lid from the holder. The lid can now be removed.

First insert the right-hand pin into the holder, then turn the lid in the direction of the arrow so that the left-hand pin engages. Close the lid.

Removing/replacing the lid of the thermo jug

• Remove the lid: Turn the lid anticlockwise. The lid can now be removed.
• Fit the lid: Place the lid onto the jug so that the release lever is pointing to the right.
  Turn the lid clockwise until it stops. The lid is now closed.
• Pour coffee: Press and hold down the release lever in order to pour out the contents of the thermo jug.

Note: We recommend preheating the thermo jug with hot water before use.

Making coffee with coffee beans (fig. A - H)

Note: Only use coffee beans and paper coffee filters that are suitable for the appliance.

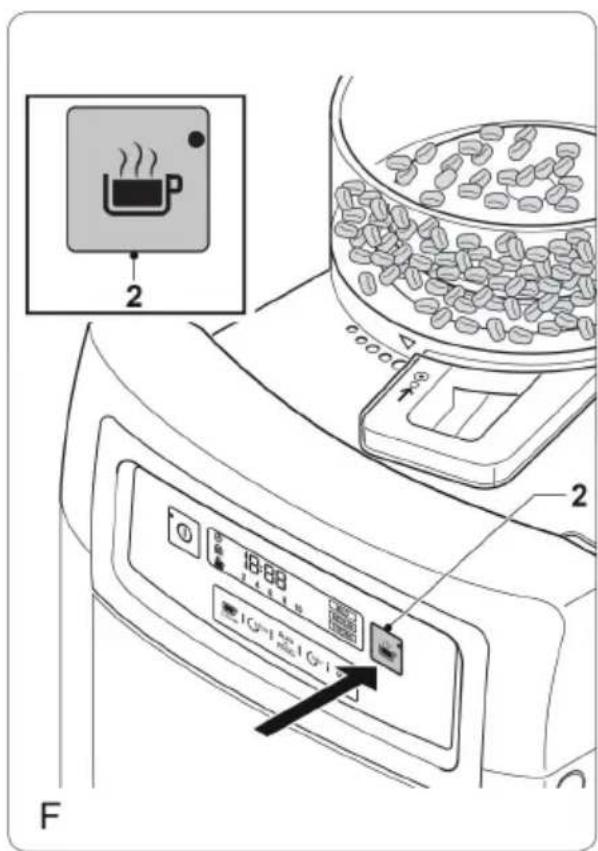

1 If the grinding function is not activated, press the grinding button (2) to activate the grinding function. The coffee quantity and the coffee strength are shown on the display.
2 Fill the water reservoir (14) with the required amount of water. Do not fill the water reservoir with more water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty.
3 Open the cover of the coffee bean compartment (27).
4 Fill the coffee bean compartment (13) completely with coffee beans.
5 Close the cover (27).
6 Set the ground coffee fineness. Refer to the section "Setting the ground coffee fineness".

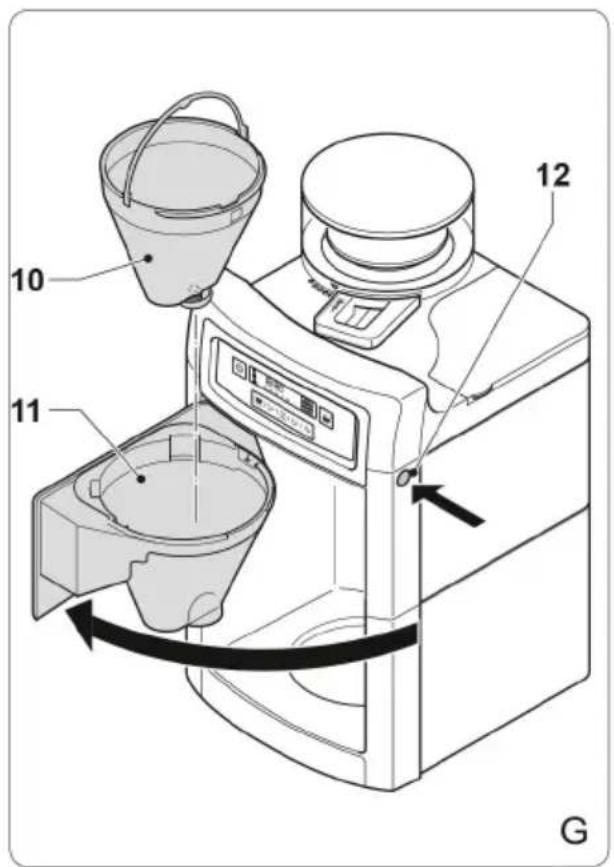

7 Press the release button (12) to open the filter holder assembly (11).
8 Place a suitable coffee filter in the coffee filter holder (10).
9 Close the filter holder assembly (11) until the release button (12) clicks into place.
10 Set the coffee quantity. Refer to the section "Setting the coffee quantity".
11 Set the coffee strength. Refer to the section "Setting the coffee strength".
12 Place the coffee pot (16) on the heating plate (18).
13 Switch on the appliance by pressing the on/off button (1). The cup-of-coffee symbol (E) appears. After a few seconds, the appliance starts grinding the coffee beans and making the coffee.
14 To interrupt the process, press the on/off button (1).
15 If the process is completed, the appliance will beep and switch to keep-warm mode. The cup-of-coffee symbol (E) starts flashing. The appliance can be switched off by pressing the on/off button (1) or the appliance switches off automatically after 2 hours.
16 Allow the appliance to cool down completely.

Making coffee with ground coffee (fig. A, B, C, D, F & G)

Note: Only use use ground coffee and paper coffee filters that are suitable for the appliance.

1 If the grinding function is activated, press the grinding button (2) to deactivate the grinding function. The coffee quantity and the coffee strength are not shown on the display.
2 Fill the water reservoir (14) with the required amount of water. Do not fill the water reservoir with more water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty.
3 Press the release button (12) to open the filter holder assembly (11).
4 Place a suitable coffee filter in the coffee filter holder (10).
5 Put the required amount of coffee in the coffee filter.
6 Close the filter holder assembly (11) until the release button (12) clicks into place.
7 Place the coffee pot (16) on the heating plate (18).
8 Switch on the appliance by pressing the on/off button (1). The cup-of-coffee symbol (E) appears. The appliance starts making the coffee.
9 To interrupt the process, press the on/off button (1).
10 If the process is completed, the appliance will beep and switch to keep-warm mode. The cup-of-coffee symbol (E) starts flashing. The appliance can be switched off by pressing the on/off button (1) or the appliance switches off automatically after 2 hours.
11 Allow the appliance to cool down completely.

CLEANING AND MAINTENANCE

• Before cleaning or maintenance, always switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.
• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.

• Regularly check the appliance for possible damage.
  Clean the accessories:

• Clean the coffee pot in soapy water.

• Clean the coffee filter holder in soapy water.
• Clean the lid of the coffee bean compartment in soapy water.
• Thoroughly dry the accessories.
• Clean the outside of the appliance with a damp cloth. Dry the outside of the appliance with a clean, dry cloth.
• Put the appliance and the accessories in the original packaging
• Store the appliance in a dry and frost-free place, out of the reach of children.

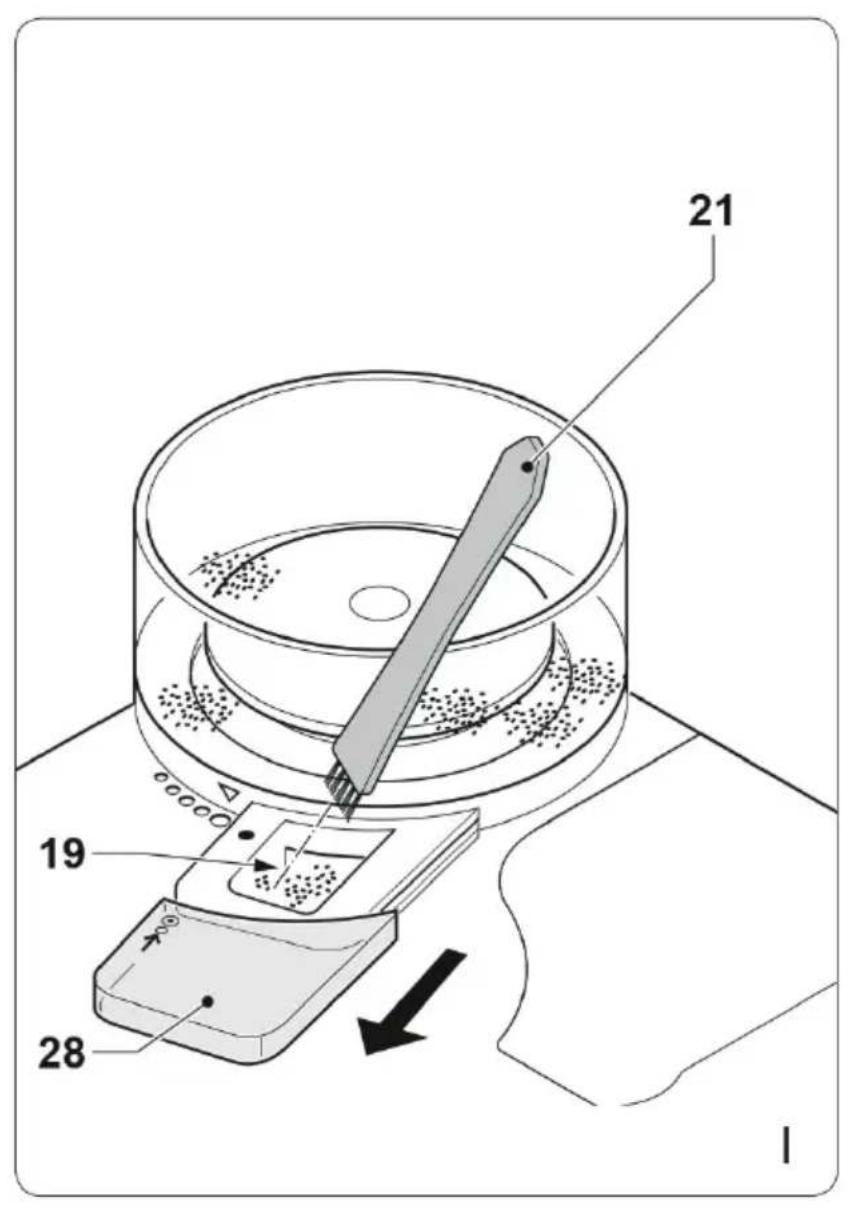

Cleaning the grinding compartment (fig. C & I)

Note: When grinding coffee beans, coffee powder can clog the grinding mechanism. The grinding compartment (19) can be cleaned every 2 weeks to prevent the grinding mechanism from being clogged.

Before cleaning the grinding compartment the following steps are required:

1 Switch off the appliance.
2 Remove the mains plug from the wall socket.
3 Remove the coffee pot from the heating plate.
4 Empty the coffee filter holder. Place a suitable coffee filter. Close the filter holder assembly.
5 Release the lock on the cover (28) by pressing the small button.
6 Remove the cover (28).
7 Clean the grinding compartment (19) using the brush (21).
8 Mount the cover (28).

Descaling the appliance (fig. A - D)

• The appliance must be descaled after each 70 brewing cycles. If you leave the mains plug in the wall socket, the appliance will keep track of the number of brewing cycles.
• The indicator (D) will flash on the display to indicate that the appliance must be descaled.
• If the appliance must be descaled, use a suitable descending agent. Special descending agents are available from local specialist shops.
• Before descending the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.
• Make sure that the grinding function is not activated when descending the appliance.

To start the descending process:

1 Open the cover (24).
2 If necessary, empty the water reservoir (14).
3 Remove the carbon filter holder (20) from the water reservoir (14).
4 Fill the water reservoir (14) with a suitable descending agent.
5 Place the coffee pot (16) on the heating plate (18).
6 Insert the mains plug into the wall socket.
7 Switch on the appliance by pressing the on/off button (1).
8 Let the appliance run until 1/3 of the descending agent is in the coffee pot (16).
9 Switch off the appliance by pressing the on/off button (1).
10 Let the descending agent work for approximately 30 minutes.
11 Switch on the appliance by pressing the on/off button (1).
12 Let the appliance run until the remaining descending agent is in the coffee pot (16). The appliance stops automatically when the water reservoir (14) is empty.

Rinse the appliance twice according to the below procedure:

1 Fill the water reservoir (14) with clean water up to the maximum mark on the water level indicator (15).
2 Place the empty coffee pot (16) on the heating plate (18).
3 Switch on the appliance by pressing the on/off button (1).
4 Let all water run through the appliance. The appliance stops automatically when the water reservoir (14) is empty.

After descending:

1 Place the carbon filter holder (20) in the water reservoir (14).
2 Close the cover (24).
3 Switch off the appliance by pressing the on/off button (1).
4. Keep the coffee quantity selector (3) and the coffee strength selector (4) pressed until the indicator (D) disappears from the display (8) (fig. C).
5 Clean the outside of the appliance with a damp cloth. Dry the outside of the appliance with a clean, dry cloth.
6 The appliance is ready for use.

Replacing carbon filter

1 Open the cover (24).
2 If necessary, empty the water reservoir (14).
3 Remove the carbon filter holder (20) from the water reservoir (14).
4 Open the cover (25).
5 Remove the old carbon filter (26).
6 Place the new carbon filter (26).
7 Close the cover (25).

Note: The carbon filter holder must not be placed in the water reservoir before the appliance has been descaled. This does not apply the first time you put the appliance into operation.

TROUBLESHOOTING

Problem Possible Cause	Use Suggested Solution
No symbol in the display.	Not plugged in. Insert the plug.
	No mains power. Check the fuse/socket.
	Display is defective. Contact	customer service.
The automatic circuit breaker in the fuse box trips	Too many appliances connected to the same power circuit.	Plug the device into its own power socket.
	Appliance defective. Contact	customer service.
Water runs out of the appliance	Too much water in the water tank.	Do not overfill the water tank

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Chere cliente, cher client,

INSTRUCTIES VOOR AFVOER
