Masterchef - Oven Klarstein - Free user manual and instructions

Product type	Countertop oven
Brand	Klarstein
Model	Masterchef
Article numbers	10034496, 10034497, 10034498, 10034499
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Capacity (estimated)	Approximately 30 L
Maximum temperature	230 °C
Functions	Convection, top heat, bottom heat, top+bottom heat, rotisserie, rotisserie + convection
Timer	Yes, automatic shut-off with audible alarm
Interior lighting	Yes, turns on with timer
Included accessories	Cooking grid, baking tray, rotisserie set (spit, rod, forks, butterfly screws), handle
Door	Tempered safety glass window
Dimensions (estimated)	Approximately 40 x 35 x 30 cm (W x D x H)
Weight (estimated)	Approximately 8 kg
Cleaning	Exterior and interior with damp cloth and mild soap
Safety	Automatic shut-off, hot surfaces indicated, insulated door
Warranty	2 years
Compliance	CE, RoHS, EMC, LVD (directives 2011/65/EU, 2014/30/EU, 2014/35/EU)
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

Frequently Asked Questions - Masterchef Klarstein

How to use the rotisserie?

Place the spit through the center of the food, attach the forks with the butterfly screws, insert the pointed end into the motor and the square end into the support. Set the temperature to 230 °C and select the Rotisserie or Rotisserie + Convection function. Use the handle to remove the food after cooking.

Why does smoke come out of the oven during first use?

This is normal. The smoke comes from burning off manufacturing residues. It usually disappears after 5 to 10 minutes of operation. Make sure the room is well ventilated.

Can I use aluminum foil in the oven?

No, do not cover any part of the oven with aluminum foil as it may cause overheating and a fire hazard.

How to clean the inside of the oven?

Unplug the appliance and let it cool completely. Clean the interior with a clean, damp cloth. For stubborn dirt, use a mild soap solution. Do not use metal scouring pads or abrasive detergents.

What accessories are included with the oven?

The oven comes with a cooking grid, a baking tray, a rotisserie set (rod, spit, forks, butterfly screws), and a handle to remove the rotisserie.

What is the maximum temperature of the oven?

The maximum temperature is 230 °C. Use the temperature control to select the desired temperature.

Does the oven turn off automatically?

Yes, when the timer reaches zero, the oven automatically shuts off and an audible alarm sounds. You can also turn it off manually by turning the timer to the 'Off' position.

Can I place the oven on a wooden surface?

No, never place the oven on an untreated wooden surface. Use a heat-resistant surface. Leave at least 20 cm of space around the appliance for good air circulation.

How to use the convection function?

Set the selector to the Convection or Rotisserie and Convection position. The convection function allows for even cooking. You can also use it for grilling by activating the top heat.

What to do if the glass door gets scratched?

Tempered glass is resistant but may shatter at the edges if scratched. Avoid scratching the surface or edges of the door. Do not use sharp objects to clean.

USER MANUAL Masterchef Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 11

Safety Instructions 12

Getting Started and Operation 15

Cleaning and Care 17

Disposal Considerations 17

TECHNICAL DATA

Item number 10034496, 10034497, 10034498, 10034499
Power supply 220-240	V~ 50/60 Hz
Power rating 2000 W

SAFETY INSTRUCTIONS

• Read all instructions carefully and keep the instructions for reference in a safe place.
• Do not touch hot surfaces, just touch the knobs and handles.
• Only use the device under supervision when children are present.
• Do not let the power cord hang over the work surface or run over hot surfaces.
• Do not use the appliance if it has been damaged, the power cord is damaged or the appliance does not function properly. Do not attempt to repair it yourself, but contact a specialist company.
• Only use accessories recommended by the manufacturer.
• Do not place the appliance next to a gas heater or electric heater.
• Allow 20cm of space around the appliance to allow sufficient air circulation.
• Unplug the appliance when not in use or when cleaning. Allow it to cool down before removing or cleaning any parts.
• Do not cover any part of the oven with aluminum foil as it may overheat.
• Be very careful when moving trays, containers, or hot liquids.
• Do not clean the inside of the furnace with metal sponges, as small parts may break off and damage the electronic components.
• Do not place oversized pieces in the furnace as they could ignite.
• Do not cover the furnace with flammable materials such as curtains. Do not place anything on top of the stove during operation.
• Be careful when using cooking or baking containers that are not made of metal or ovenproof glass.
• Make sure that nothing touches the surface of the oven during operation.
• Do not use any containers: Cardboard, plastic, paper or similar in the oven.
• Do not stow in the oven other than accessories.
  Always use oven gloves when removing or pushing food into the oven.
• This appliance has a hardened safety glass door. The glass is stronger than ordinary glass and more shatterproof. Hardened glass can still break around edges. Avoid scratches on the door surface or in the edges.
• Do not use the device outdoors. Only use the appliance for its intended purpose.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

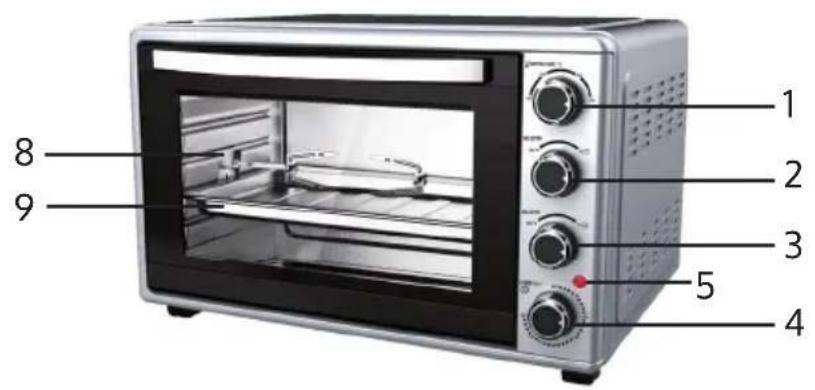

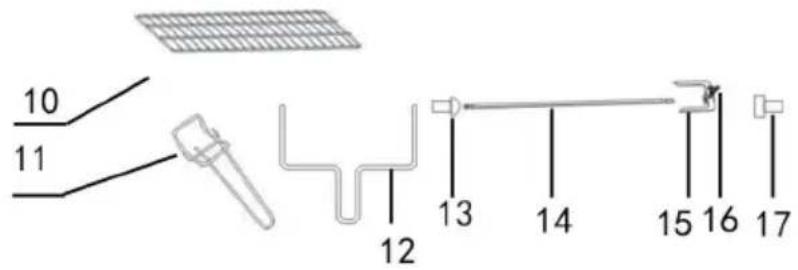

DESCRIPTION AND ACCESSORIES

1	Thermostat dial	10	Bake rack
2	Rotisserie & Convection selector dial	11	Pan handle
3	Heating selector dial	12	Rotisserie handle
4	Timer	13	Spit support
5	Power light	14	Spit
6	Convection	15	Skewer
7	Lamp	16	Thumbscrew
8	Glass door	17	Drive socket
9	Bake pan

CAUTION

Fire hazard! If you use baking paper, make sure that it does not touch the unprotected heating elements. Otherwise, the baking paper may ignite.

CONTROLS

Rotisserie & convection dial

1 OFF
2 Rotisserie
3 Convection
4 Rotisserie & Convection

Heating selector dial

1 OFF
2 Top heating
3 Bottom heating
4 Top & Bottom heating

Timer dial (inside lamp)

When timer is turned on, the inside lamp is ON.

When timer is turned off, the inside lamp is OFF.

GETTING STARTED AND OPERATION

Before use

• Ensure that there is enough ventilation around the oven.
• Ensure that the oven is completely dry before use.
• The oven should not be placed on untreated wooden surface. Place the oven on a heat resistant surface.
• The feet of the oven can leave some marks on the table, if this happens, remove the marks with a damp cloth.

Oven use

• Turn the thermostat dial clockwise to the desired temperature.
• Turn the Rotisserie/convection selector dial to the desired position.
• Turn the Heating selector dial to the desired position.
• Turn the timer dial clockwise to the desired cooking time.
• The power light will light up after timer is turned on, and will go out when the timer is turned to OFF.
• When the cooking time is over, the timer will auto shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven.
• In the first use of this oven, there might be some light smoke coming out from the oven, this is normal. After 5-10 minutes the smoke will disappear.
  In order to get better cooking performance, it is recommended to pre-heat the oven about 10-15 minutes.

Rotisserie use

1. Put one skewer through the pointed end of the spit, making sure the points of skewer face towards the spit's pointed end. Slide the skewer towards the square end of the spit.
2. Insert the spit directly through the center of the food which you want to roast.
3. Put the other skewer through the pointed end of the spit, making sure the points of skewer face the spit's square end.
4. Put the two skewers into the food, then secure both skewers with the thumbscrews.
5. Make sure the food is centered on the spit.
6. Insert the pointed end of the spit into the drive socket, make sure the square end of the spit rests on the spit support.
7. Plug the oven.
8. Set the thermostat to 230.
9. Turn the timer to the time which you require, the power indicator will light up. Normally it takes 30 minutes to roast a 2.5Kg(5.5Pd) weight chicken.
10. Set the selector to Rotisserie or Rotisserie & Convection setting, the rotisserie starts rotating.

11. When roasting is completed, turn back the timer to OFF.

12. After the oven is cooled, place the hooks of the rotisserie handle under the grooves on both sides of the spit. Lift the right side of the spit first, move towards right side a little bit, so that the left side of the spit goes out of the drive socket. Then carefully move out the roasted food from the oven.

13. Take the food off the spit.

Grill cooking

• Leave the door at the close point.
• Turn the selector to GRILL setting (top heating), and Convection is recommended.
• Turn the temperature dial to 230^ .
• Turn the timer to the desired grill time.
• When the grill cooking is done, turn back the timer to OFF to turn off the oven.

After use

• Turn back the Timer to OFF.
• Turn the Heating Selector Dial to OFF.
• Turn the Rotisserie & Convection Dial to OFF.
• Unplug the appliance from the outlet.
• Wait until the oven is completely cool before any cleaning or maintenance.

Maintenance and cleaning

• Unplug the appliance and allow it to cool before cleaning.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
• If stains still appear, it is recommended to use soap.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.

CLEANING AND CARE

• Unplug the appliance and allow it to cool before cleaning.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
• If stains still appear, it is recommended to use soap.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)
