Ariadne CKAR3376 - Watch Christiaan van der Klaauw - Free user manual and instructions

Technical Features	Automatic movement, caliber CKAR3376, analog display
Materials	Stainless steel case, sapphire glass, leather strap
Dimensions	Case diameter: 38 mm, thickness: 10 mm
Water Resistance	Water resistant up to 30 meters
Usage	Suitable for daily use, formal events, and special occasions
Maintenance	Recommended servicing every 3 to 5 years, regular strap cleaning
Safety	Avoid strong shocks, do not expose to extreme temperatures
General Information	2-year warranty, after-sales service available

Frequently Asked Questions - Ariadne CKAR3376 Christiaan van der Klaauw

How do I set the time on the Christiaan van der Klaauw Ariadne CKAR3376 watch?

To set the time, gently pull the crown out to the first position. Turn the crown clockwise or counterclockwise to adjust the time. Once the correct time is set, push the crown back in place.

Is the watch water resistant, and to what depth?

The Christiaan van der Klaauw Ariadne CKAR3376 is water resistant up to 30 meters, meaning it can withstand splashes and temporary immersion in water but is not designed for swimming or diving.

How do I change the watch battery?

It is recommended to have the battery changed by a professional to avoid damage. If you wish to do it yourself, use an appropriate tool to open the case, remove the old battery, and replace it with a new CR2032 type battery.

How do I maintain my Christiaan van der Klaauw Ariadne CKAR3376 watch?

To maintain your watch, clean it regularly with a soft, dry cloth. Avoid harsh chemicals and store it in a dry place. Professional servicing every 3 to 5 years is recommended.

What should I do if my watch stops?

If your watch stops, it may be due to a dead battery or lack of activity. Try winding the watch by turning the crown clockwise. If it does not restart, replace the battery or consult a watchmaker.

The watch is broken, where can I have it repaired?

For repairs, contact an authorized Christiaan van der Klaauw service center or a qualified watchmaker. Be sure to keep the warranty and proof of purchase when submitting for repair.

What type of strap is compatible with the watch?

The Christiaan van der Klaauw Ariadne CKAR3376 typically comes with a leather or stainless steel strap. For replacement, look for a 20 mm wide strap compatible with the model.

How can I tell if my watch is authentic?

To verify authenticity, examine the watch details including the logo, serial number, and compare them with the information provided on the official Christiaan van der Klaauw website. Purchasing from authorized dealers also guarantees authenticity.

USER MANUAL Ariadne CKAR3376 Christiaan van der Klaauw

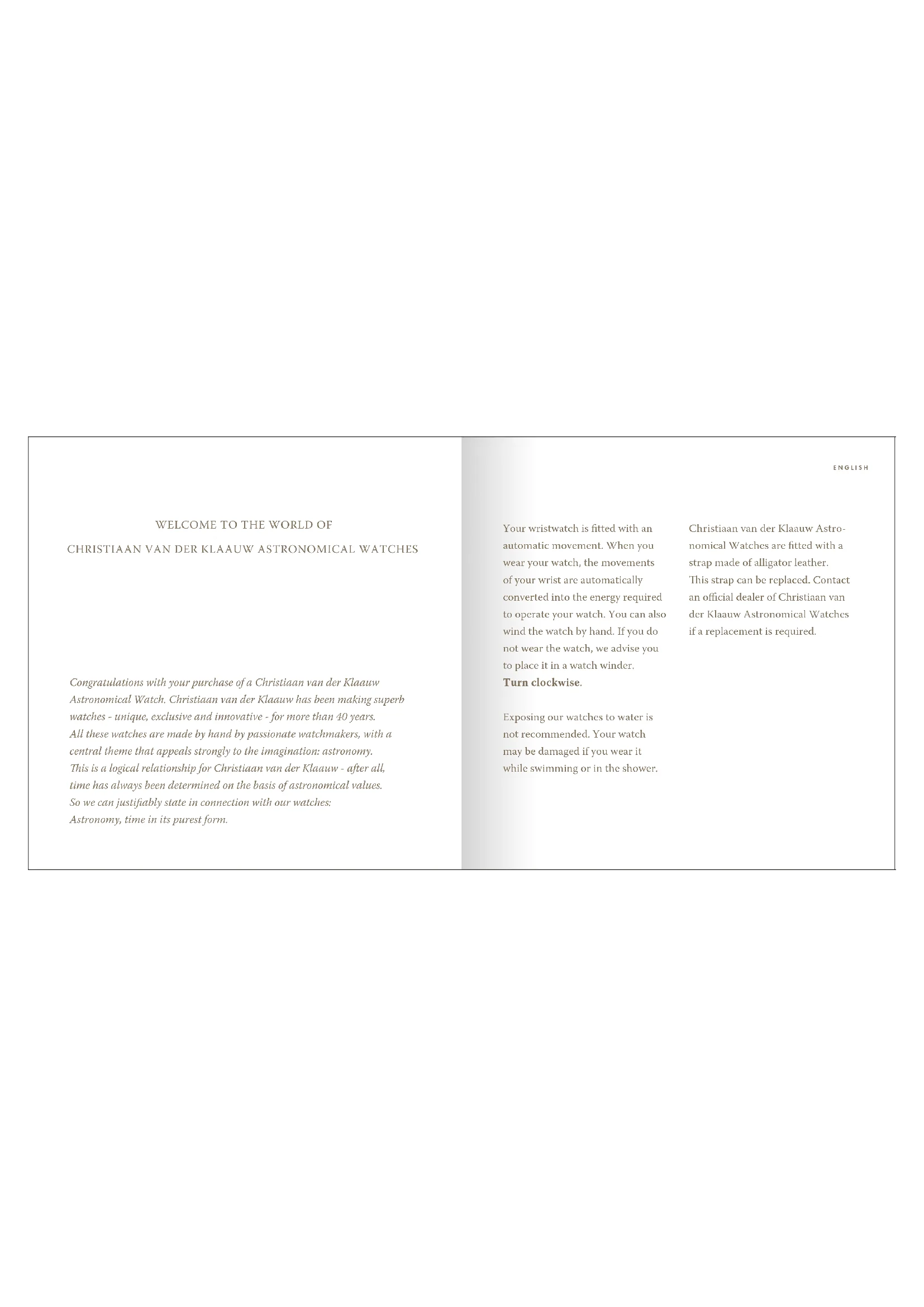

0 1 2Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. is is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justiably state in connection with our watches: Astronomy, time in its purest form. Your wristwatch is tted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder. Turn clockwise. Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower. Christiaan van der Klaauw Astro- nomical Watches are tted with a strap made of alligator leather. is strap can be replaced. Contact an ocial dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required. ENGLISH

WELCOME TO THE WORLD OF

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHESSpecications e following information is displayed on the Ariadne:

seconds and 24-hour dial;

date (day of the week + month);

recorder, 30 minutes;

start and stop pusher;

reset pusher. Adjustment e settings of your watch can be adjusted by using the dierent positions of the crown and the push button

e crown has three positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.

setting the date and the moon phase.

setting the time. To adjust the settings of the Ariadne, pull out the crown to position

. You can now set the time to 12:00. Caution: do not do this at 24:00. en push the crown in by one position (

) to set the date and month by turning the crown counterclockwise. Set the moon phase by turning the crown clockwise. Important Always set the moon phase to the previous day. Once this is the case, use the enclosed accessory to push in the push button

located at the 10 o’clock position on the left-hand side of the watchcase to set the day. Set this to the previous day as well. When the correct month is shown in the window and the day, date and moon phase are set to the previous day, then pull out the crown to position

, and then turn the hands clockwise until everything is set to today. When the hands also show the right time, then push the crown in again completely. ENGLISHENGLISHFunctionalities

A second hand and a 24-hour indicator are located at the 9 o’clock position.

e day and month are displayed at the 12 o’clock position.

e hand with the crescent at the end points to the calendar- day of the month.

e moon phases are shown at the 6 o’clock position. When the moon picture is shown left of the centre, the Moon is in the rst quarter. When the image is in the middle, it is full moon, and when it is on the right, the Moon is in the last quarter. If the image is not visible, then it is new moon. Chronograph e chronograph function is located at the 6 o’clock position (hours)

and the 12 o’clock position (minutes)

. e red hand shows the number of seconds

e chronograph start and stop pusher

is above the crown at the 2 o’clock position. e reset button
