Technical Specifications	Mechanical watch with automatic movement, analog display, stainless steel case, scratch-resistant sapphire crystal.
Features	Built-in planetarium displaying the positions of the planets, moon phase, perpetual calendar.
Usage	Setting the time and complications via the crown, daily use recommended for better accuracy.
Maintenance	Recommended servicing every 3 to 5 years, regular cleaning of the case and bracelet.
Repair	Authorized after-sales service recommended for any repairs, spare parts available.
Safety	Water resistance up to 30 meters, avoid strong shocks and extreme temperatures.
General Information	2-year warranty, certificate of authenticity included, limited edition.

Frequently Asked Questions - Planetarium CKPT7705 Christiaan van der Klaauw

How do I set the time on the Christiaan van der Klaauw Planetarium CKPT7705 watch?

To set the time, pull the crown to position 2 and turn it clockwise or counterclockwise as needed. Once the correct time is set, push the crown back to position 1.

The watch is not working, what should I do?

Make sure the watch is sufficiently wound. If it is automatic, wear it for a few hours to give it energy. If it remains inoperative, contact a jeweler or an authorized repair service.

How do I adjust the watch bracelet?

To adjust the bracelet, use a link removal tool to remove or add links. If you are not comfortable with this procedure, it is recommended to consult a professional.

Is the watch waterproof?

The Christiaan van der Klaauw Planetarium CKPT7705 has a water resistance of 30 meters, making it splash resistant, but it is best not to intentionally expose it to water.

How do I clean my watch?

To clean your watch, use a soft, dry cloth. Avoid chemical products and do not immerse the watch in water. For a thorough cleaning, consult a professional.

What should I do if the watch movement is out of adjustment?

If the movement is out of adjustment, it is advisable to have the watch serviced by a qualified watchmaker who can recalibrate the mechanism.

How does the planetarium mechanism work on this watch?

The planetarium mechanism simulates the movements of the planets and stars. It can be set to display the position of the planets relative to the Earth. Consult the manual for specific setting instructions.

What warranty comes with the watch?

The watch generally comes with a 2-year warranty covering manufacturing defects. Keep your receipt for any claims.

Where can I find spare parts for my watch?

Spare parts can be obtained from authorized Christiaan van der Klaauw dealers or by contacting the brand's customer service directly.

USER MANUAL Planetarium CKPT7705 Christiaan van der Klaauw

ASTRONOMICAL WATCHES

PLANETARIUM
INSTRUCTION MANUAL PLANETARIUM

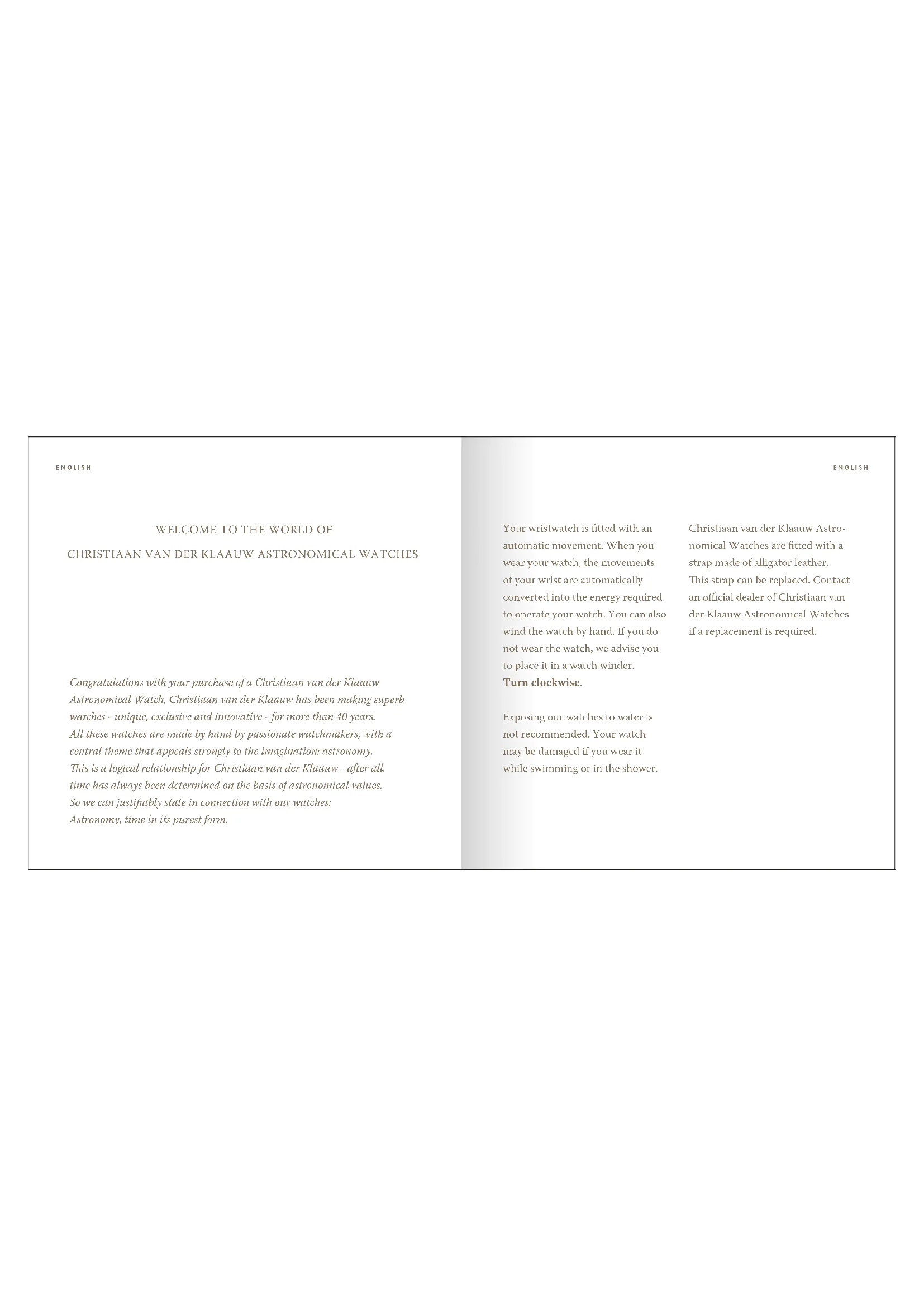

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

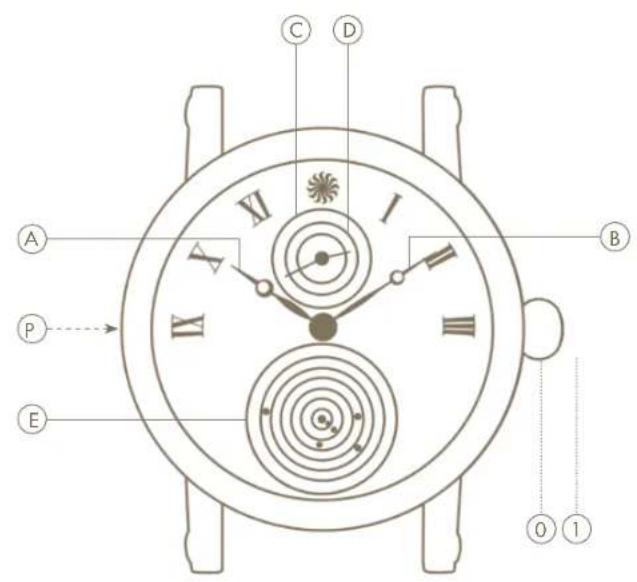

The following information is displayed on the Planetarium:
A hours;
⑥ minutes;
calendar day;
month;
position in relation to the Sun of: Mercury, Venus, Earth, Mars, Jupiter and Saturn.

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button

The crown has two positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the time.

Before adjusting the settings of the Planetarium, the time displayed on the watch must be between 04:00 and 08:00 or 16:00 and 20:00.

Once this is the case, use the enclosed accessory to push in the

push button located at the 9 o'clock position on the left-hand side of the watchcase. Repeat this until the correct day and month are shown. The planets are moved automatically as you do this. Then pull out the crown as far as possible (position ①). Now move the hands forward until the correct time is reached. When the hands show the right time, then push the crown in again completely.

Important

If you do not wear the watch, we advise you to place it in a watch.
winder. Turn clockwise.

ENGLISH ENGLISH

Functionalities

The day of the month is shown at the 12 o'clock position.
The month is shown at the 12 o'clock position.

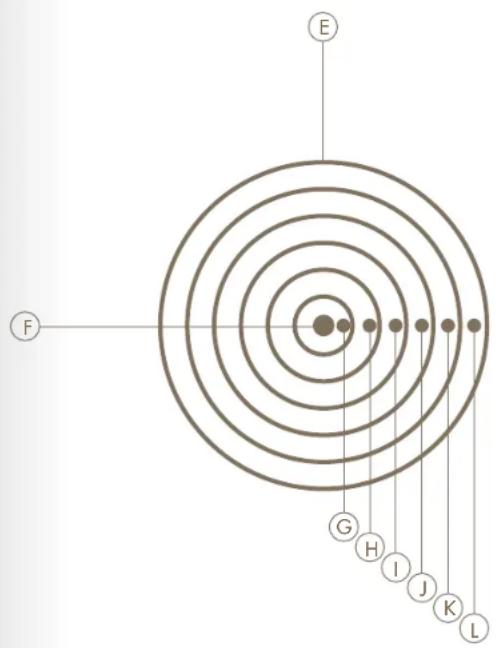

The smallest planetarium in the world is located at the 6 o'clock position. The Sun is positioned exactly in the middle of the planetarium. The planet closest to the Sun is Mercury. Mercury is followed by Venus, Earth, Mars, Jupiter and Saturn. The planets rotate around the Sun as follows:

Mercury 87.97 days
Venus 224.70 days
① Earth 365.24 days
① Mars 686.98 days
Jupiter 11.86 years
① Saturn 29.46 years

ENGLISHENGLI
