Technical Features	Mechanical watch with astronomical display, automatic movement, and calendar function.
Dimensions	Stainless steel case, 39 mm diameter, 11 mm thickness.
Materials	Scratch-resistant sapphire glass, genuine leather strap.
Usage	Designed for astronomy enthusiasts, displaying constellations and planetary movements.
Maintenance	Recommended every 3 to 5 years by a professional watchmaker to ensure proper functioning.
Safety	Water resistance up to 30 meters, do not expose to extreme temperatures.
General Information	Made in the Netherlands, 2-year warranty, delivered with certificate of authenticity.

Frequently Asked Questions - Planetarium CKPT7724 Christiaan van der Klaauw

How do I set the time on the Christiaan van der Klaauw Planetarium CKPT7724 watch?

To set the time, pull the crown to the first position and turn it clockwise to advance the time. Make sure the watch is stopped before adjusting.

How does the planetarium mechanism on my watch work?

The planetarium mechanism simulates the movement of the planets. You can observe it through the dial. It is powered by the watch movement and does not require manual adjustment.

What should I do if my watch stops working?

First, check if the watch is fully wound. If it still does not work, it is recommended to have it examined by a professional watchmaker.

How do I maintain my Christiaan van der Klaauw watch?

To maintain your watch, regularly clean the case and strap with a soft cloth. Avoid exposure to extreme temperatures and humidity.

Is the watch waterproof?

The Christiaan van der Klaauw Planetarium CKPT7724 has a water resistance of 30 meters. This means it is splash resistant, but it is not recommended for swimming or diving.

What should I do if my watch strap is too large?

You can adjust the strap by removing links. It is recommended to have this done by a watchmaker to avoid damaging the strap.

Where can I find spare parts for my watch?

Spare parts can be ordered from authorized Christiaan van der Klaauw dealers or directly through their customer service.

What is the battery life of my watch?

Battery life depends on usage but generally lasts between 2 and 5 years. It is recommended to have the battery checked during each maintenance.

How can I contact Christiaan van der Klaauw customer service?

You can contact customer service via their official website or by phone. Contact details are usually available in the user manual.

USER MANUAL Planetarium CKPT7724 Christiaan van der Klaauw

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

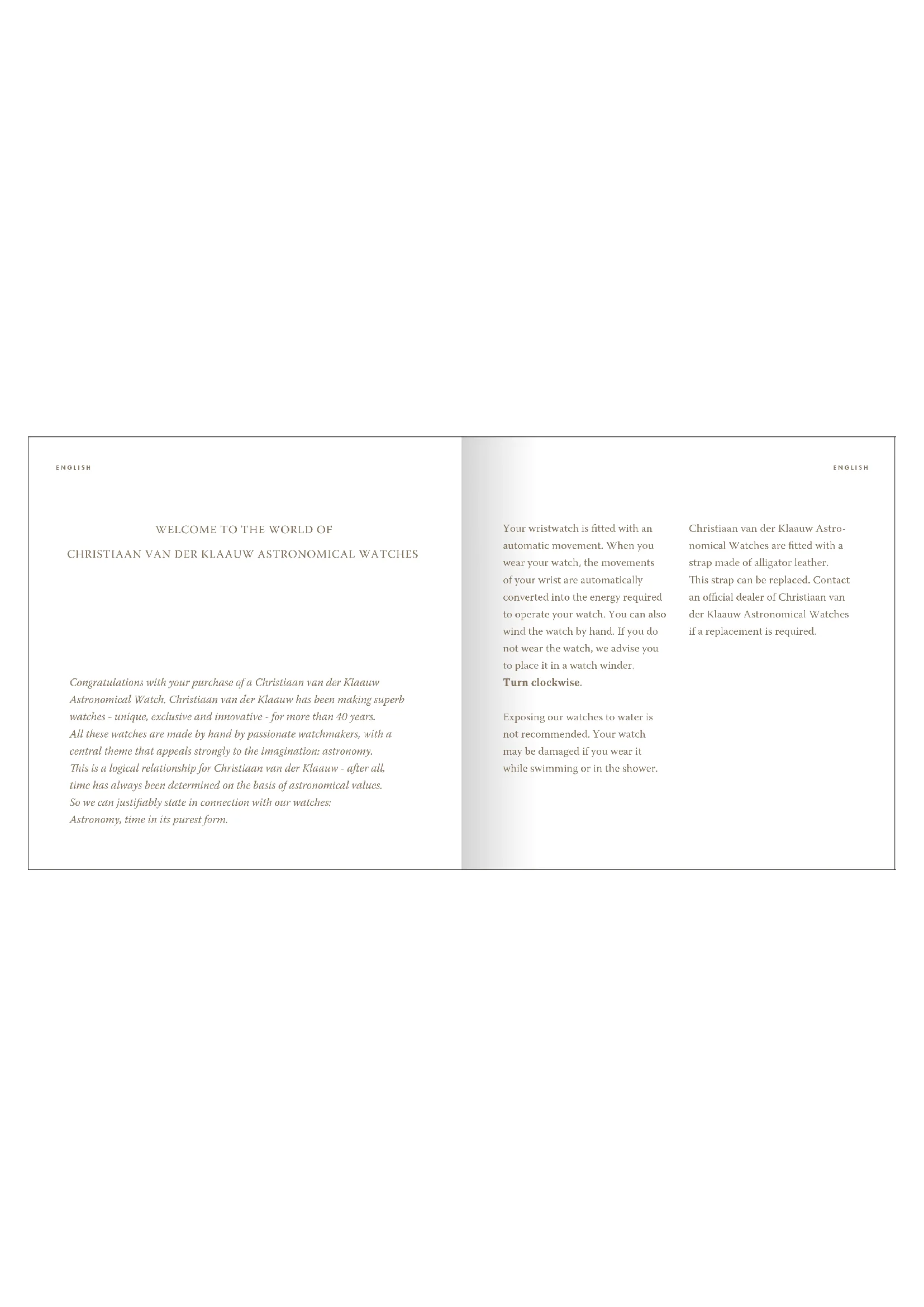

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. is is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justiably state in connection with our watches: Astronomy, time in its purest form. Your wristwatch is tted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder. Turn clockwise. Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower. Christiaan van der Klaauw Astro- nomical Watches are tted with a strap made of alligator leather. is strap can be replaced. Contact an ocial dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required. ENGLISHSpecications e following information is displayed on the Planetarium:

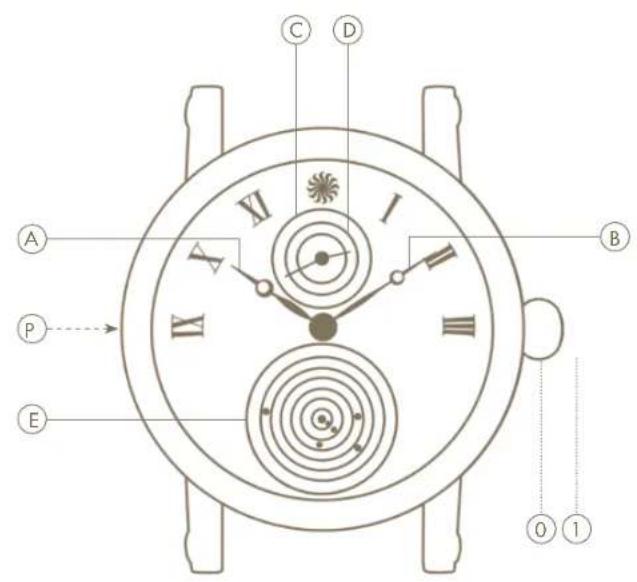

position in relation to the Sun of: Mercury, Venus, Earth, Mars, Jupiter and Saturn. Adjustment e settings of your watch can be adjusted by using the dierent positions of the crown and the push button

e crown has two positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.

setting the time. Before adjusting the settings of the Planetarium, the time displayed on the watch must be between 04:00 and 08:00 or 16:00 and 20:00. Once this is the case, use the enclosed accessory to push in the push button

located at the 9 o’clock position on the left-hand side of the watchcase. Repeat this until the correct day and month are shown. e planets are moved automatically as you do this. en pull out the crown as far as possible (position

). Now move the hands forward until the correct time is reached. When the hands show the right time, then push the crown in again completely. Important If you do not wear the watch, we advise you to place it in a watch winder. Turn clockwise. ENGLISHENGLISHFunctionalities

e day of the month is shown at the 12 o’clock position.

e month is shown at the 12 o’clock position.

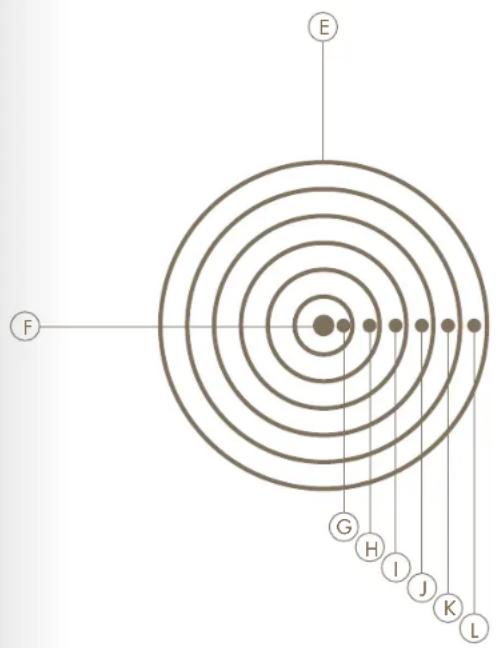

e smallest planetarium in the world is located at the 6 o’clock position. e Sun

is positioned exactly in the middle of the planetarium. e planet closest to the Sun is Mercury. Mercury is followed by Venus, Earth, Mars, Jupiter and Saturn. e planets rotate around the Sun as follows:
