Product Type	Quartz wristwatch
Brand	Candino
Model	C4472
Movement	Quartz, battery 395 (SR927SW, Ø9.5 mm x 2.6 mm)
Display	Analog hands and date
Main functions	Chronograph with totalizing and split time, quick date correction, time and date setting
Chronograph counters	Minutes (6 o'clock), seconds at center, 1/10 seconds (10 o'clock), hours (after 30 minutes)
Running accuracy	+20 / -10 seconds per month
Water resistance	Not specified, avoid any contact with water
Care and cleaning	Clean with a soft dry cloth. Avoid chemicals
Safety	Avoid violent shocks, do not expose to extreme temperatures
Battery replacement	Have it done by an authorized watchmaker. Use a 395 battery (SR927SW)
Disposal	Selective collection of electronic devices. Deposit at an approved collection point
Approximate dimensions	Case ~40 mm, thickness ~10 mm (estimated)
Approximate weight	~80 g (estimated)
Instruction manual pages	32 pages, available in multiple languages

Frequently Asked Questions - C4472 Candino

How to set the time on the Candino C4472 watch?

Pull the crown to position III (the seconds hand stops). Turn the crown to display the desired time, then push it back to position I. For precise second setting, pull the crown when the seconds hand is at 60.

How to use the chronograph?

To start, press push button A. To stop, press A again. To reset, press push button B. The minutes, seconds, and 1/10 seconds counters are displayed.

How to do chronograph timing with totalizing?

Press A to start, then A to stop a first time. Press A again to restart, then A to stop. The total adds up. To reset, press B.

How to measure split times?

Start with A. Press B to display the split time (timing continues in the background). Press B again to catch up to the real time. Finish with A.

How to quickly correct the date?

Pull the crown to position II (the watch continues running). Turn the crown until the desired date, then push back to position I. Caution between 9 PM and midnight: set to the next day if necessary.

How to set the date and time together?

Pull the crown to position II to set the date to the previous day. Then pull to position III, turn to reach the current date and correct time (respect the 24-hour cycle). Push back to position I.

How to adjust the chronograph hands if they are not at zero?

Pull the crown to position III. Press A and B simultaneously for 2 seconds to activate correction mode. Use A to adjust step by step or continuously, and B to switch to the next hand (seconds, hours, minutes). Push the crown back to position I.

What type of battery does the Candino C4472 watch use?

The battery is a 395 (equivalent to SR927SW, diameter 9.5 mm, thickness 2.6 mm). Replacement must be done by a watchmaker.

Is the watch water-resistant?

The manual does not specify a water resistance rating. It is advisable to avoid any contact with water and moisture.

How to maintain my Candino C4472 watch?

Clean it with a soft dry cloth. Avoid shocks, extreme temperatures, and chemicals. For the battery, entrust it to a professional.

USER MANUAL C4472 Candino

FESTINA-CANDINO WATCH LTD 2501 Bienne Switzerland

a company of the Festina Group www.candino.com

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DELL'ISTRUZIONE D'USO

12:30 10 45 15 30 4 I II I I I 6

• Description of the display and control buttons 14
• Chronograph 15
• Setting the time....20
• Quickly changing the date 21
• Setting the date and time 22

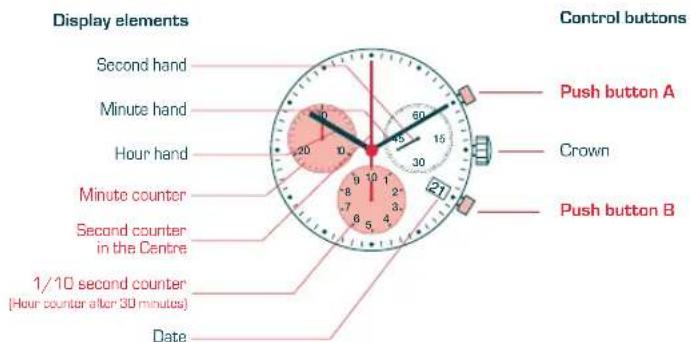

DESCRIPTION OF THE DISPLAY AND CONTROL BUTTONS

Display elements Second hand Minute hand Hour hand Minute counter Second counter in the Centre 1/10 second counter (Hour counter after 30 minutes) Date Control buttons Push button A Crown Push button B

14

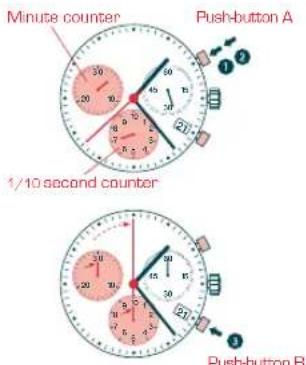

CHRONOGRAFH: BASIC FUNCTION
START/STOP/RESET

Minute counter Push-button A 1/10 second counter Push-button B

Example:

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A again hand read the three chronograph counters: 4 min/38 s/7/10 s
③ Zero positioning:

Press push-button B.

(The three hands of the chronograph go back to zero).

15

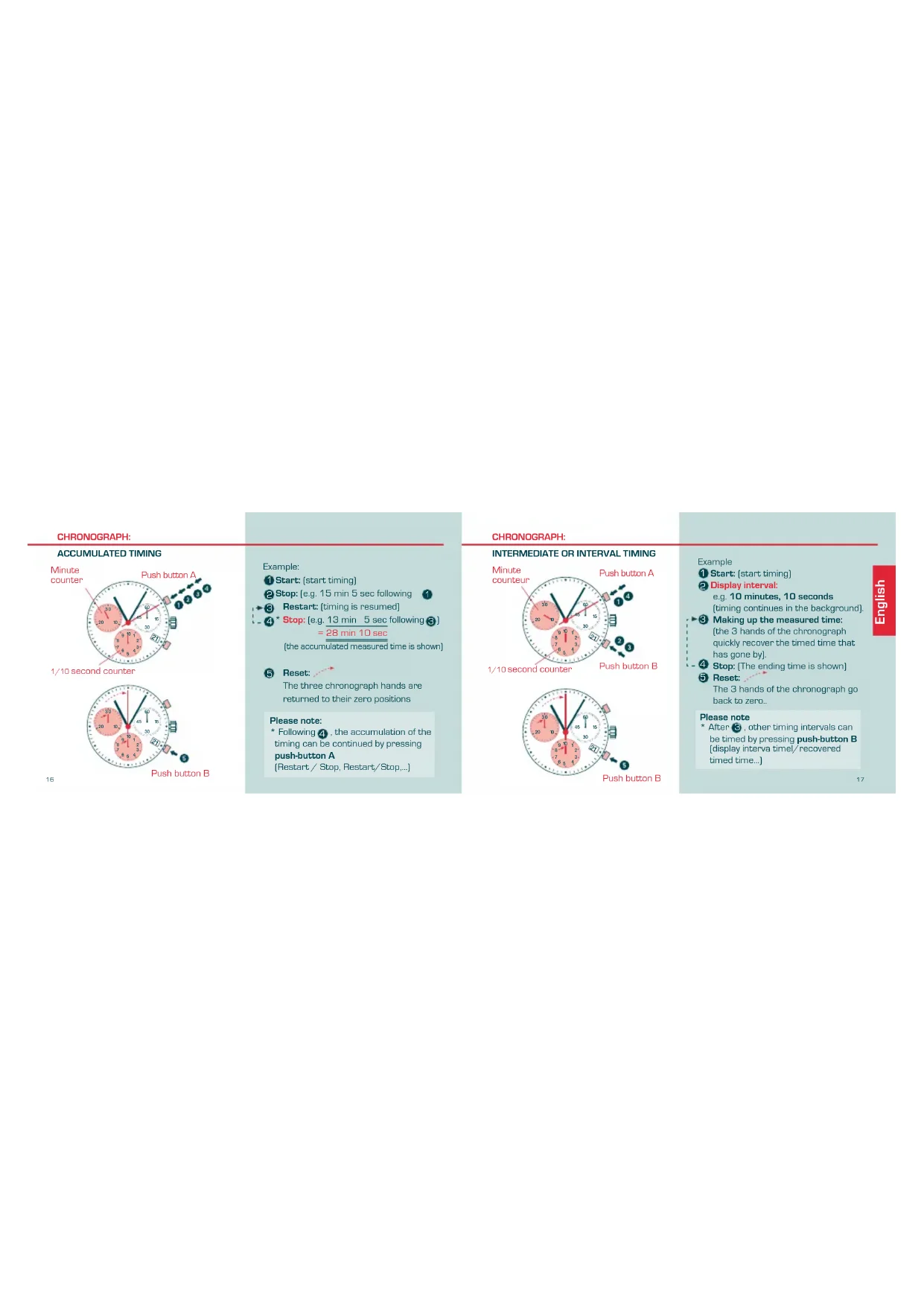

CHRONOGRAPH:

ACCUMULATED TIMING

Minute counter Push button A

1/10 second counter

13

Example:

1 Start: (start timing)

② Stop: [e.g. 15 min 5 sec following ①

3 Restart: (timing is resumed)

- 4* Stop: [e.g. 13 min 5 sec following ③]

28 min 10 sec

[the accumulated measured time is shown]

5 Reset:

The three chronograph hands are

returned to their zero positions

Please note:

* Following 4, the accumulation of the

timing can be continued by pressing

push-button A

[Restart / Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Minute counteur 50 20 /10 second counter Push button A Push button B

Push button B

Example

1 Start: (start timing)

2 Display interval:

e.g. 10 minutes, 10 seconds

(timing continues in the background).

▶3 Making up the measured time: (the 3 hands of the chronograph quickly recover the timed time that has gone by).

- 4 Stop: [The ending time is shown]

5 Reset:

The 3 hands of the chronograph go

back to zero.

Please note

* After B, other timing intervals can be timed by pressing push-button B (display interval time/ recovered timed time...)

17

ADJUSTING THE HANDS OF THE

CRONOGRAPH TO THE ZERO POSITION

Minute counter Second counter in the centre

1/10 second counter

19 19

Example:

One or more of the hand of the chronograph are not in their correct zero position and must be adjusted (ex. after changing the battery)

1 Pull out the crown to position III (all 3 hand of the chronograph go back to their correct or incorrect zero position).
② Push press button A and B at the same time for at least 2 sec (the second counter hand in the centre turns 360° à the corrective mode is activated)

Adjusting the centre stop second Singel step A 1 x short Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second hand counter (position 6h) Single step A=1 x short Continuous A=long
Adjusting the next hand B
Adjusting the minute counter hand (position 9h) Single step A-1 x short
3 Return the crown to position I Finished adjusting the hands of the chronograph (can be done at any time).

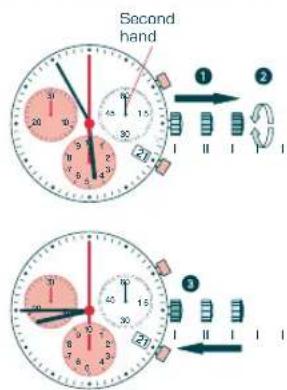

SETTING THE TIME

Second hand 1 2 3

20

1* Pull out the crown to position III [the second hand stops].
② Turn the crown until you reach the correct time 8:45.
3* Return the crown to position 1.

Please Note:

* In order to set the time to the "approximate second", ① must be pulled out when the second hand is in the "60" position (I). After setting hour and minute hands, ③ should be put back in position I at the "approximate second".

QUICKLY CHANGING THE TIME

1 20 10 9 5 30 1 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1 Pull out the crown to position II (the watch continues to work).
2 Turn the crown until the correct date 1.
3 Push the crown back into position 1.

Please Note:

The date can be changed during the date rollover phase between 9:00 pm and midnight by setting the date of the following day so that the automatic date change does not move ahead automatically from 1 day to midnight.

21

SETTING THE DATE AND TIME

Crown 1 II Date 2

22 23

Example:

- Date/time on the watch: 17 /1:25 AM

- Current date/time: 4 /8:30 PM

1 Pull the crown out to position II (the watch continues to work).
Turn the crown until you reach yesterday's date 3.

Second hand 35 20 12 9 8 7 6 5 45 30 20 15 10 5 4 3 2 1 Second hand

③ * Pull out the crown to position III (the second hand stops).
4 Turn the crown until you reach the current date 4.
5**Keep turning the crown until you reach the current time 8:30pm.
Return the crown to position I.

Please note:

* In order to set the time to the "approximate second", see the note in the "Setting the time" section.
**Please observe the AM/PM clock rhythm.

Type of battery: 395 [Ø 9.5 mm x 2.6 mm / SR 927 SW] Accuracy of functioning: +20/-10 seconds per month

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
