C4377 - Watch Candino - Free user manual and instructions

Product type	Quartz wristwatch
Brand	Candino
Model	C4377
Movement	Quartz
Display	Analog (hands)
Main functions	Time, minutes, seconds, date, chronograph (60 seconds, 1/10 second, 30 minutes), time setting, time zone adjustment
Power supply	Button cell battery (standard type, to be replaced by a watchmaker)
Water resistance	30 meters (approx, splash resistant)
Case diameter	40 mm (approx)
Case material	Stainless steel (approx)
Strap	Leather or metal depending on version (not specified)
Weight	About 80 g (approx)
Case dimensions	About 40 x 10 mm (approx)
Care and cleaning	Avoid shocks, water, chemicals. Clean with a soft, dry cloth.
Safety	Keep away from magnetic fields and extreme temperatures.
Spare parts and repairability	Battery, strap, crystal available at watchmaker. Professional repair recommended.
General information	Instruction manual available in French, German, English, Spanish, Italian.

Frequently Asked Questions - C4377 Candino

How to set the time on my Candino C4377 watch?

Pull the crown to position III. Turn it to set the hour and minute hands. The date adjusts automatically when passing midnight. The second hand stops in position III (stop second).

How to use the chronograph?

Make sure the chronograph hands are at zero. In position I, press the START/STOP button (push button A) to start and stop. Press push button B to reset to zero. For ADD mode, repeat start/stop without resetting. For split time, press push button B during timing.

How to reset the chronograph counters?

If the counter hands (60 seconds, 1/10 second, 30 minutes) are not at zero, pull the crown to position II or III. Use the push buttons to correct each counter: push button A for the 60-second hand, push button B for the 1/10 second hand, and push button C (if present) for the 30-minute hand.

How to adjust the date?

Pull the crown to position II to correct the date. Turn it in one direction until the desired day is displayed. Caution, avoid setting the date between 9 PM and 3 AM to prevent damage to the mechanism.

What to do if the watch stops?

The battery is likely low. Visit a watchmaker to replace the battery. Avoid opening the case yourself.

Is my watch waterproof?

Water resistance is not explicitly indicated. As a precaution, avoid any contact with water. Do not wear the watch in the shower or while swimming.

How to clean my Candino watch?

Use a soft, dry cloth to wipe the case and strap. Avoid chemicals, alcohol, or solvents. For a leather strap, use a specific product.

How to adjust time zones?

Pull the crown to position II to adjust the time independently of the date (time zone correction). Turn it to advance or reverse the time without affecting the date.

Where to find the full manual for the C4377?

The manual is available for free download on notice-facile.com. You can also request a translated version by specifying your language and email.

What to do if the crystal breaks?

Take the watch to an authorized watchmaker to replace the crystal. Do not attempt to do it yourself, as the mechanism could be damaged.

USER MANUAL C4377 Candino

2501 Bienne Switzerland

a company of the Festina Group

www.candino.com

CANDINO

SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

-Display 12
- Setting the timers to zero. 13
- Setting the time. 14
-Timing Mode. 15-18
- Correction Mode. 19

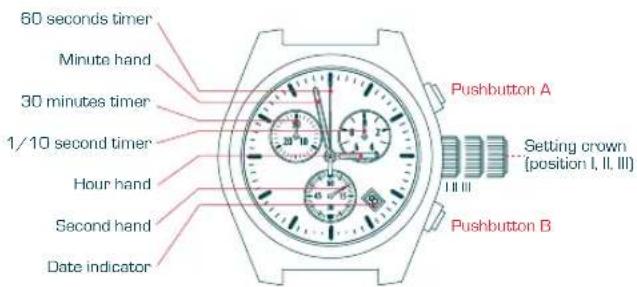

DISPLAY

WATCH HANDS

A Set the hand of the 60 seconds timer to zero.
B Setting crown
C Set the hand of the 1/10 second timer to zero
D Set the hand of the 30 minutes timer to zero

SETTING THE TIME

SETTING CROWN IN POSITION III

Correction of hour and minute hand and date every passing to midnight.

Note

Setting crown in position III: STOP-SECOND

TIMING MODE

SIMPLE TIMING FUNCTION
Setting crown in position I

① START/STOP
Read time: -5 minutes -57 seconds -7/10 sec
3 Reset to zero
1 to 3 order of functions

WARNING

Before starting the time, put back the chronograph hands to their original position If necessary, see paragraph SETTING THE TIMERS TO ZERO.

TIMING MODE

ADD FUNCTION
Setting crown in position I

1E

1 to X order of functions

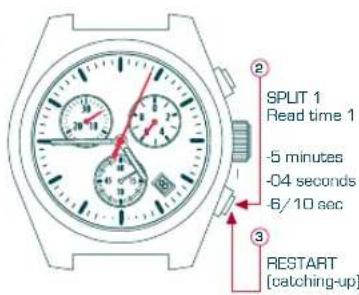

TIMING MODE

SPLIT-TIME OR INTERMEDIATE TIMES FUNCTION
Setting crown in position I

① to ③ order of functions

17

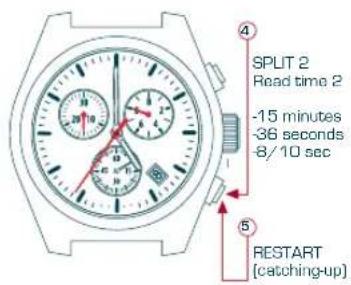

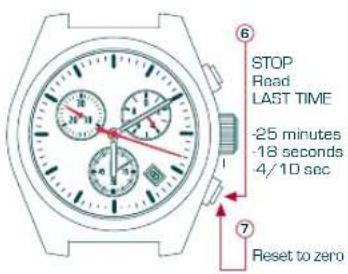

TIMING MODE

SPLIT-TIME OR INTERMEDIATE TIMES FUNCTION

4 to 7 order of functions

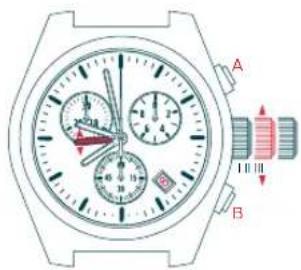

CORRECTION MODE

TIME ZONE CORRECTION CORRECTION OF DATE

Setting crown in position II

Note: Date correction every passing to midnight

MODE D'EMPLOI

Stellkrone in Position III:

SEKUNDEN-STOPP

ZEITMESSAGENS-MODUS

Stellkrone in Position I

1 START/ STOPP

1. Abiesen der Zeit

-5 Minutes

-57 Sekunden

-7/10 Sekunden

3 Nullstellung

FUNCTION ADD
Stellkrone in Position I

36
