C4445 - Watch Candino - Free user manual and instructions

Brand	Candino
Model	C4445
Product Type	Quartz watch
Main Functions	Analog display of hours, minutes, seconds, date, chronograph (1/10s, 60s, 30min counters), quick date correction, time setting, chronograph hands adjustment
Movement Type	Quartz
Power	Button cell battery type 395 (SR927SW)
Battery Dimensions	9.5 mm × 2.6 mm
Accuracy	+20 / -10 seconds per month
Quick date correction	Yes, via crown in position II
Time setting	Via crown in position III
Chronograph	Start/Stop/Reset, totalizing, split times
Chronograph hand zero position adjustment	Yes, via pushers A and B (correction mode)
Crown positions	I (normal operation), II (date correction), III (time setting)
Pushers	Two pushers (A and B) for the chronograph
Display	Analog (hands)
Maintenance	Selective collection of WEEE; avoid any contact with water and shocks
Safety	Battery to be replaced by a professional; keep out of reach of children
Spare parts	Replacement battery type 395 (SR927SW)
Reparability	Battery replacement by a recommended watchmaker

Frequently Asked Questions - C4445 Candino

How to set the time on my Candino C4445 watch?

To set the time, pull the crown to position III (the seconds hand stops). Turn the crown until the correct time is displayed (e.g., 08:45). Push the crown back to position I. For precise second setting, pull the crown when the seconds hand is at 60, then push it back at the desired moment.

How to perform a quick date correction?

To quickly correct the date, pull the crown to position II (the watch continues to run). Turn the crown until the correct date appears. Push the crown back to position I. Warning: between 9 PM and midnight, the calendar is engaging; it is advisable to set the date back one day then forward if necessary.

How to use the chronograph for simple timing?

For simple timing (start/stop/reset), press pusher A to start. Press A again to stop. The counter hands indicate the elapsed time (1/10s, 60s, 30min). To reset, press pusher B.

How to use the chronograph totalizing function?

To totalize multiple times, start with pusher A (start). To stop, press A (stop). To restart, press A (restart). Repeat. After the last stop, the total time is displayed. Press B to reset.

How to time split times?

To time a split time, start with A. To record a split, press B (the hand stops but timing continues in the background). To catch up to real time, press B again. To stop definitively, press A. Reset with B.

What to do if the chronograph hands are not at zero?

If one or more chronograph hands do not return correctly to zero (e.g., after a battery change), they need to be adjusted. Pull the crown to position III, then press both pushers A and B simultaneously for at least 2 seconds. The center seconds counter hand makes a full turn, activating correction mode. Use A to adjust the selected hand step by step or continuously, and B to move to the next hand (hours counter, then minutes). Push the crown back to position I to finish.

How to adjust the chronograph hands to zero position?

See the previous question.

Which battery to use for the Candino C4445 watch?

The watch uses a button cell battery type 395 (also referenced SR927SW). Its dimensions are 9.5 mm x 2.6 mm. It is recommended to have the battery replaced by a professional watchmaker.

How to set the date and time simultaneously?

To set the date and time, proceed as follows: 1) Pull the crown to position II (the watch continues). 2) Turn to display the day before the correct date (e.g., 3 for the 4th). 3) Pull the crown to position III (seconds stop). 4) Turn to display the correct date (4). 5) Continue turning to set the current time (e.g., 20:30). 6) Push the crown back to position I. Observe the 24-hour cycle for AM/PM alternation.

What to do in case of battery change?

The battery change must be performed by a professional to avoid damaging the movement. Use a battery type 395 (SR927SW). After replacement, it may be necessary to readjust the chronograph hands (see question 6).

USER MANUAL C4445 Candino

2501 Bienne Switzerland

a company of the Festina Group

www.candino.com

CANDINO

SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

Description of the display and control buttons 14
-Chronograph. 15
- Setting the time. 20
-Quickly changing the date 21
- Setting the date and time 22

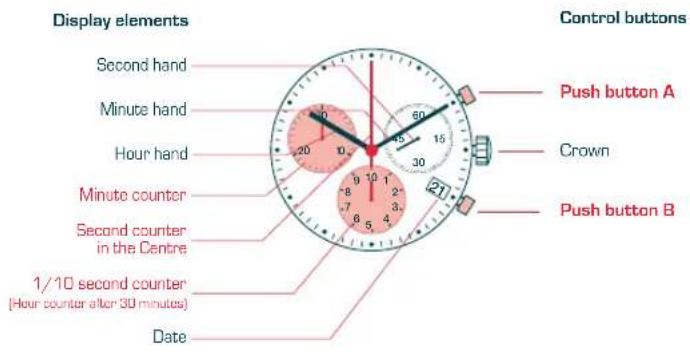

DESCRIPTION OF THE DISLAY AND CONTROL BUTTONS

14

CHRONOGRAFH: BASIC FUNCTION

START/STOP/RESET
1/10 second counter

Push-button B

Example:

1 Start: Press push-button A.
Stop: to stop the timing, press push button A again hand read the three chronograph counters: 4 min/38 s/7/10s

Zero positioning:

Press push按钮B

The three bands of the

chronograph go back to zero].

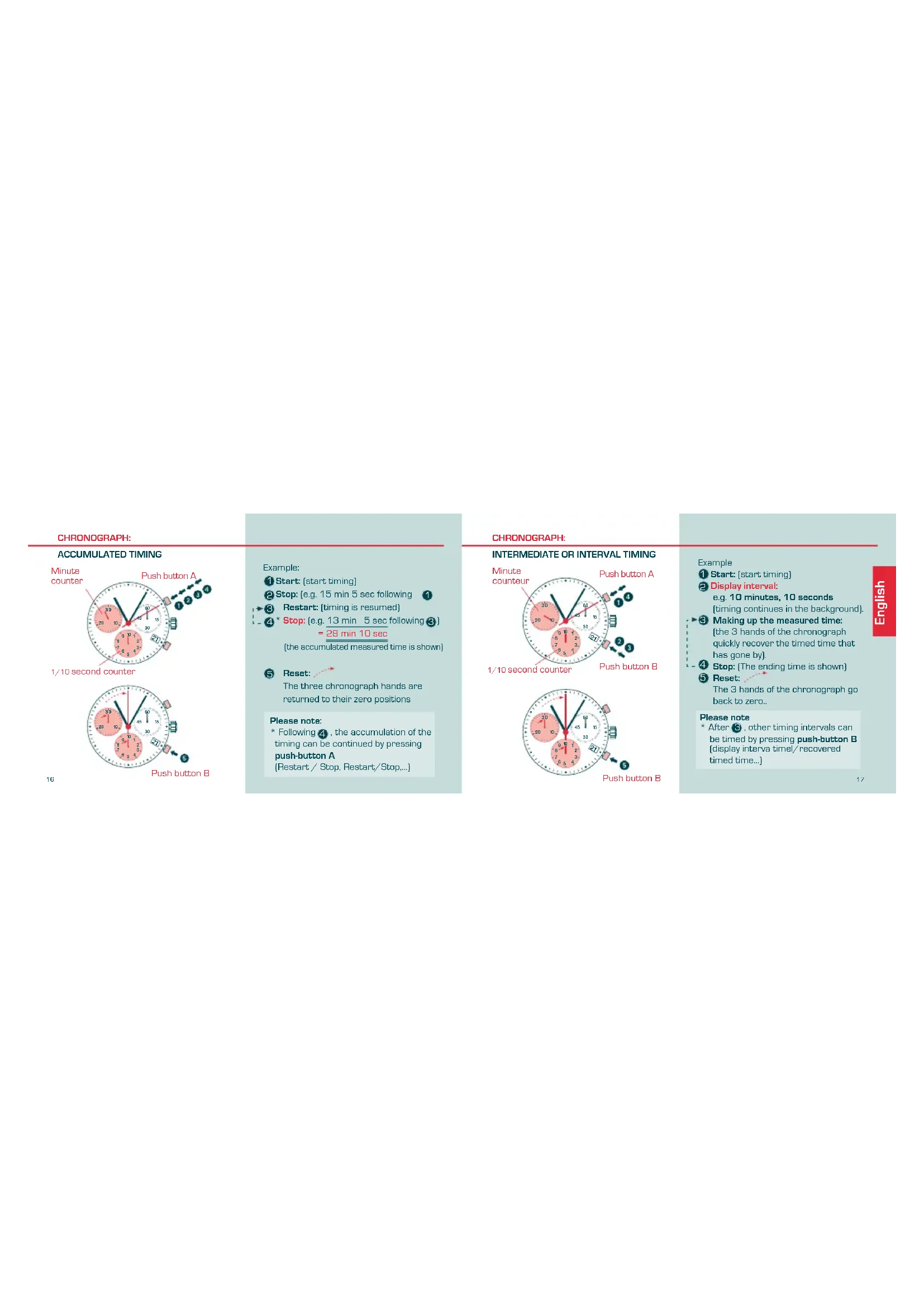

CHRONOGRAPH:

ACCUMULATED TIMING
1/10 second counter

Push button B

Example

1 Start: (start timing)

Stop: [e.g. 15 min 5 sec following]

3 Restart: (timing is resumed)

4*Stop: [e.g. 13 min 5 sec following] =28min1Dsec

[the accumulated measured time is shown]

Reset:

The three chronograph hands are

returned to their zero positions.

Please note:

• Following 4 , the accumulation of the timing can be continued by pressing push-button A

[Restart/Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Example

1 Start: [start timing]
Display interval:

e.g. 10 minutes, 10 seconds

[timing continues in the background].

Making up the measured time

(Th3 hods of the shampers)

The 3 hands of the chronograph

quickly recover the timed time that has gone by).

Stop: [The ending time is shown]

Reset:

The 3 hands of the chronograph go

back to zero.

Please note

• After 8, other timing intervals can be timed by pressing push-button B (display interval time)/recovered timed time...)

17

ADJUSTING THE HANDS OF THE

CRONOGRAPH TO THE ZERO POSITION

Minute Second counter counter in the centre

1/10 second counter

19 19

Example:

One or more of the hand of the chronograph are not in their correct zero position and must be adjusted (ex. after changing the battery)

1 Pull out the crown to position III [all 3 hand of the chronograph go back to their correct or incorrect zero position].
Push press button A and B at the same time for at least 2 sec (the second counter hand in the centre turns 360^ a the corrective mode is activated)

Adjusting the centre stop second Singel step A 1 x short Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second hand counter (position 6h)
Single step A1 x short. Continuous Among
Adjusting the next hand B
Adjusting the minute counter hand (position Sh)
Single step A x short Continuous A wing

Return the crown to position! Finished adjusting the hands of the chronograph (can be done at any time).

SETTING THE TIME

Pull out the crown to position III [the second hand stops].
Turn the crown until you reach the correct time 8:45.
* Return the crown to position 1.

Please Note:

• In order to set the time to the "approximate second", 1 must be pulled out when the second hand is in the "SD" position (I). After setting hour and minute hands, 3 should be put back in position at the "approximate second".

QUICKLY CHANGING THE TIME

Pull out the crown to position II (the watch continues to work).
Turn the crown until the correct data 1.
Push the crown back into position I.

Please Note:

The date can be changed during the date rollover phase between 9:00 pm and midnight by setting the date of the following day so that the automatic date change does not move ahead automatically from 1 day to midnight.

SETTING THE DATE AND TIME

2223

Example:
-Date/time on the watch:17/1:25AM
Current date/time: 4/8:30 PM
Pull the crown out to position II (the watch continues to work).
Turn the crown until you reach yesterday's date 3

*Pull out the crown to position III (the second hand stops).
Turn the crown until you reach the current date 4
Keep turning the crown until you reach the current time 8:30pm.
6 Return the crown to position I.

Please note:

• In order to set the time to the "approximate second", see the note in the "Setting the time" section.
  *Please observe the AM/PM clock rhythm.

Type of battery: 395 [29.5 mm x 2.5 mm / SR 927 SW] Accuracy of functioning: +20/-10 seconds per month

MODE D'EMPLOI

CHRONOGRAFEN AUF NULL

Drucknopf B

Beispiel

Stop: [ad.ies 15 min e 5 sec undo 1]
