Brand	Candino
Model	C4583
Product type	Quartz wristwatch with chronograph and date
Movement	Quartz
Display	Analog: hour, minute, second hands; chronograph counters
Chronograph functions	Simple timing, totalizer, intermediate times; reset
Date	Window at 3 o'clock, quick correction
Power source	Button cell (typically SR920SW or equivalent)
Battery life	Approximately 2 to 3 years depending on use
Case diameter	Approximately 40 mm
Case thickness	Approximately 10 mm
Weight	Approximately 80 g
Case material	Stainless steel (estimated)
Crystal material	Mineral crystal (estimated)
Care	Clean with a soft, dry cloth; avoid chemicals
Battery replacement	Have it replaced by a professional watchmaker
Safety	Keep out of reach of children; do not expose to magnetic fields
Repairability	Spare parts available from the manufacturer

Frequently Asked Questions - C4583 Candino

How to set the time on my Candino C4583 watch?

To set the time, pull the crown to position III (the seconds hand stops). Turn the crown to display the desired time. Then push the crown back to position I. For a precise setting to the second, pull the crown when the seconds hand is at 12 o'clock and push back at the exact moment.

How to quickly correct the date?

Pull the crown to position II (the watch continues to run). Turn the crown until the current date appears. Push back to position I. Caution: between 9 PM and midnight, do not correct the date directly; advance to the next day.

How to use the chronograph?

The chronograph is operated by two pushers. Press A to start, stop, or restart timing. Press B to display an intermediate time or reset. The counters show hours (at 6 o'clock), minutes (at 9 o'clock), and seconds (center). See the manual for exact combinations.

How to reset the chronograph hands to zero?

If the chronograph hands are not in zero position after a battery change, pull the crown to position III, press A and B simultaneously for 2 seconds. Then adjust each hand with brief or sustained presses: first the central seconds hand, then the hour hand, then the minute hand. Push the crown back.

What battery does the Candino C4583 watch use?

The watch uses a button cell, typically SR920SW or equivalent. For replacement, consult a professional watchmaker.

Is the watch waterproof?

Water resistance information is not specified in the manual. It is recommended to avoid any contact with water and protect it from moisture.

How to clean my watch?

Clean the case and bracelet with a soft, dry cloth. Avoid chemicals, water, and solvents. For leather straps, use a specific product.

What to do if the watch stops?

The battery is probably depleted. Have the battery replaced by a watchmaker. If the problem persists, consult an authorized after-sales service.

Can I repair my watch myself?

Quartz watches are delicate. It is not recommended to open the case yourself. For any repair or battery replacement, entrust it to a professional.

Where to find spare parts for my Candino C4583?

Contact Candino customer service or an authorized dealer. Parts like pushers or crowns can be ordered.

USER MANUAL C4583 Candino

2501 Bienne Switzerland

a company of the Festina Group

www.candino.com

CANDINO

SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

Description of the display and control buttons 14
-Chronograph. 15
- Setting the time. 20
- Setting the date (quick mode) 21
- Setting the date time following a battery change. 22

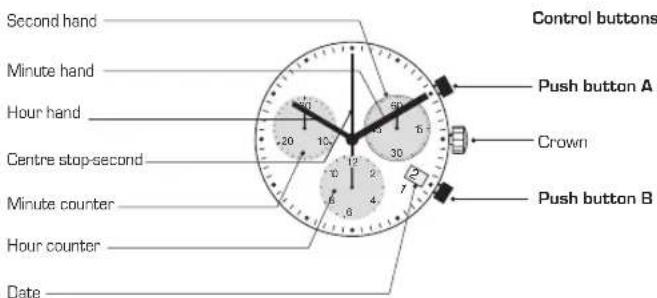

Display elements

14

CHRONOGRAFH: BASIC FUNCTION

START/STOP/RESET
Hour counter

Example:

1 Start: Press push-button A
Stop to stop the timing, press push button A once more and read the UU three chronograph hand: T 1h/20min/10sec
Zero positioning. Press push-button B!

(The three chiorograph hands will be reset to their zero positions).

15

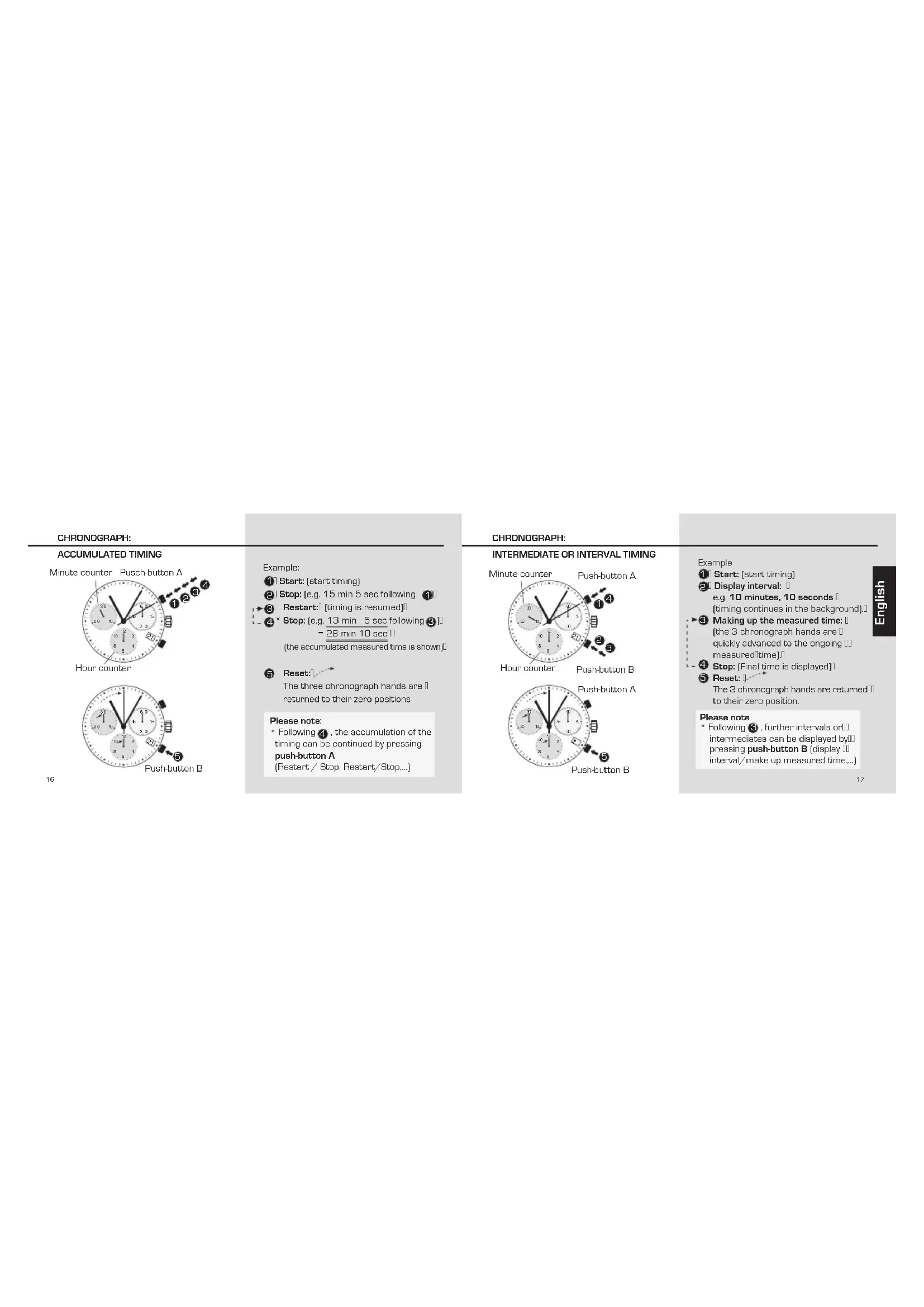

CHRONOGRAPH:

ACCUMULATED TIMING

Minute counter Pusch-button A

Hour counter

13

Example:

1 Start: [start timing]

21 Stop: [e.g. 15 min 5 sec following]

6 Restart[timing is resumed]

4 Stop: [e.g. 13 min 5 sec following 3] U =28 min 10 sec [] [the accumulated measured time is shown]

Reset:

The three chronograph hands are returned to their zero positions

Please note:

• Following 4 , the accumulation of the timing can be continued by pressing push-button A [Restart/Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Example
Start: [start timing]
Display interval:
e.g.10 minutes, 10 seconds [timing continues in the background]. Making up the measured time: [the 3 chronograph hands are] quickly advanced to the ongoing [measured time].
4 Stop: [Final time is displayed]U
Reset:

The 3 chronograph hands are returned to their zero position.

Please note

• Following B, further intervals on intermediates can be displayed by UJ pressing push-button B [display interval/make up measured time,...]

17

ADJUSTING THE CHRONOGRAPH

HANDS TO ZERO POSITION

19 19

One or several chronograph hand are not in their correct zero positions and have to be adjusted [e.g. following a battery change].
Pull out the crown to position III [all 3]
chronograph hands are in their correct or incorrect zero position].
Keep push buttons A and B depressed simultaneously for at least 2 seconds [the centre stop-second rotates by] 360^ corrective mode I is activated

Adjusting the centre stop second Singel step A 1 x short Continuous A long
Adjusting the next hand B Adjusting the hour counter hand position 6h]
Single step:1x short Continuous1long
Adjusting the next hand B Adjusting the minute counte position Sh
Single stepill 1x short I Continuoull A long

3 Returning the crown to position I Termination of the chronograph hands adjustment [can be carried out at any time]

SETTING THE TIME

20

1+ [Pull out the crown to position IIII [the watch stops].]

Turn the crown until you reach the correct time 8:45.

Push the crown back into position 1.

Please note:

*In order to set the time to the exact [1] second, must be pulled out when the 1 second hand is in position "60" [1]. Once the hour and minute hands have been set, must be pushed back into position at the exact second.

SETTING THE DATE (quick mode)

Pull out the crown to position III [the watch continues to run].
Turn the crown until the correct date. 1 appears
Push the crown back into position I.

Please note:

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

21

SETTING THE DATE/TIME

FOLLOWING A BATTERY CHANGE

Example:
-Date/time on the watch:17/1:25AM
Present date/time: 4/8:30 PM
Pull out the crown to position [the watch continues to run].
Turn the crown until yesterday's date appears 3

Second hand

Pull out the crown to position (the watch stops)
Turn the crown until the correct data appears.
5 "Continue to turn the crown until the] correct time 8:30 PM appears.
Push the crown back into posotion!

Please note:

• To set your watch to the exact second please refer to the chapter entitled "setting the time".
  **Please observe the AM/PM clock rhythm.

MODE D'EMPLOI

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
