USER MANUAL WX800UI SONY

• To cancel the demonstration (DEMO) display, see page 9. For the connection/installation, see page 17. Zum Deaktivieren der Demo-Anzeige (DEMO) schlagen Sie bitte auf Seite 9 nach. Informationen zum Anschluss und zur Installation finden Sie auf Seite 19. Pour annuler la démonstration (DEMO), reportez-vous à la page 9. Pour le raccordement/l’installation, reportez-vous à la page 19. Per annullare la dimostrazione (DEMO), vedere pagina 9. Per l’installazione e i collegamenti, consultare pagina 19. Om de demonstratie (DEMO) te annuleren, zie pagina 9. Raadpleeg pagina 18 voor meer informatie over de aansluiting/ installatie.2GB Made in Thailand Laser Diode Properties Emission Duration: Continuous Laser Output: Less than 53.3 μW (This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.) The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/ This equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity. The software loaded on this equipment is verified to comply with the essential requirements of the Directive 2014/53/EU. Software version: 1_ The software version can be checked in the firmware setup item of the general setup menu. Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery. Disclaimer regarding services offered by third parties Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations. For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see “Connection/Installation” (page 17). Warning if your car’s ignition has no ACC position Be sure to set the AUTO OFF function (page 9). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.3GB Table of Contents Guide to Parts and Controls p. 4
• Getting Started Resetting the unit p. 5
• Setting the Clock p. 5
• Connecting a USB Device p. 5
• Connecting Other Portable Audio Device p. 6
• Listening to the Radio Listening to the Radio p. 6
• Using Radio Data System (RDS) p. 7

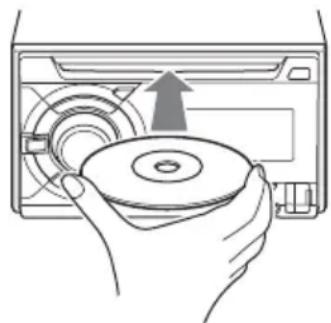

• Playback Playing a Disc p. 8
• Playing a USB Device p. 8
• Searching and Playing Tracks p. 8
• Settings Canceling the DEMO Mode p. 9
• Basic Setting Operation p. 9
• General Setup (GENERAL) p. 9
• Sound Setup (SOUND) p. 10
• Display Setup (DISPLAY) p. 12
• Additional Information Updating the Firmware p. 12
• Precautions p. 12
• Specifications p. 13
• Troubleshooting p. 15
• Connection/Installation Cautions p. 17
• Parts List for Installation p. 17
• Connection p. 18

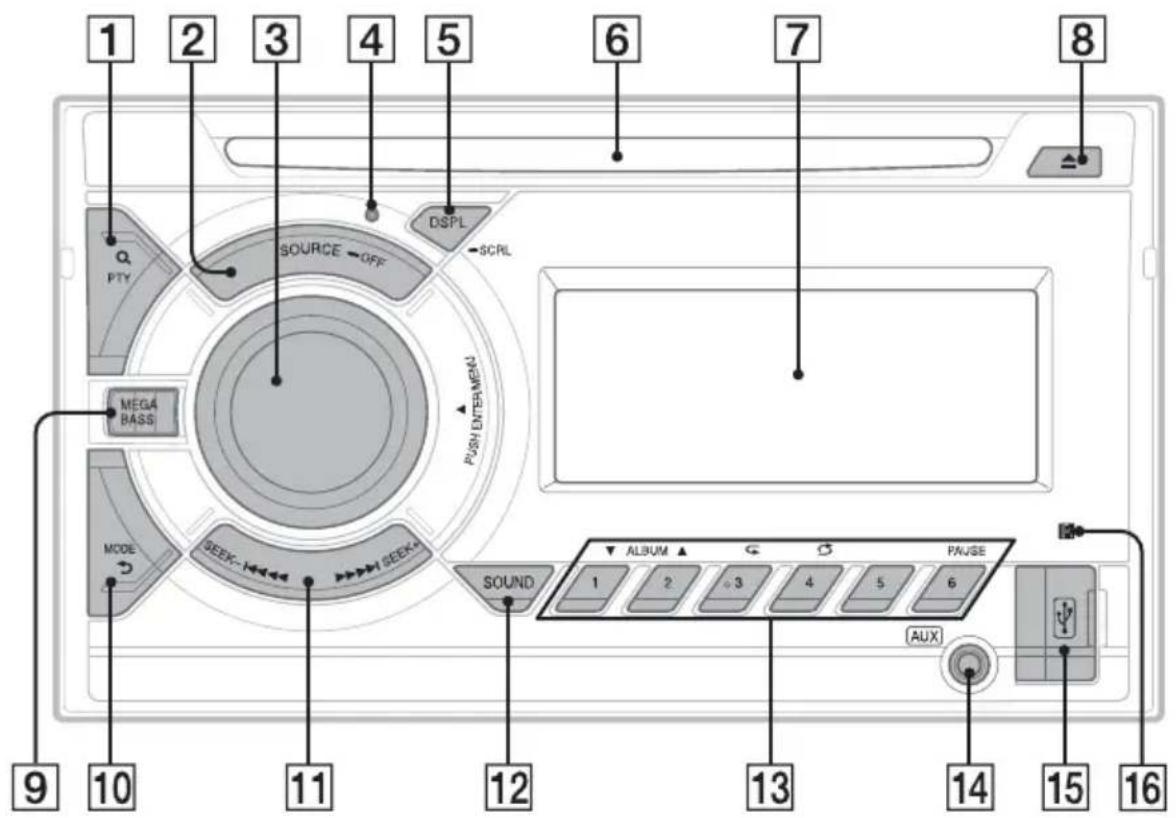

• Installation GB Guide to Parts and Controls (browse) (page 8, 9) Enter the browse mode during playback. PTY (program type) Select PTY in RDS. SOURCE Turn on the power. Change the source. OFF Press and hold for 1 second to turn the source off and display the clock. Press and hold for more than 2 seconds to turn off the power and the display. Control dial Rotate to adjust the volume. PUSH ENTER Enter the selected item. Press SOURCE, rotate then press to change the source. MENU Open the setup menu. Reset button (page 5) DSPL (display) Press to change display items. SCRL (scroll) Press and hold to scroll a display item. Disc slot Display window (disc eject) MEGA BASS Reinforces bass sound in synchronization with the volume level. Press to change the MEGA BASS setting: [1], [2], [OFF]. Automatically sets to [OFF] when [C.AUDIO+] is set to [ON]. MODE (page 6, 8) (back) Return to the previous display. SEEK +/– Tune in radio stations automatically. Press and hold to tune manually. / (prev/next) / (fast-reverse/fast-forward) SOUND Open the SOUND menu directly. Main unit5GB Number buttons (1 to 6)Receive stored radio stations. Press and hold to store stations.ALBUM /Skip an album for audio device. Press and hold to skip albums continuously. (repeat) (shuffle)PAUSE AUX input jack USB port Receptor for the remote commander Resetting the unit Before operating the unit for the first time, after replacing the car battery, or changing the connections, you must reset the unit. Press the reset button with a ball-point pen, etc. Note Pressing the reset button will erase the clock setting and some stored contents. Setting the Clock 1 Press MENU, rotate the control dial to select [SET GENERAL], then press it. 2 Rotate the control dial to select [SET CLOCK-ADJ], then press it. The hour indication flashes. 3 Rotate the control dial to set the hour and minute. To move the digital indication, press SEEK +/–. 4 After setting the minute, press MENU. The setup is complete and the clock starts.To display the clockPress DSPL. Connecting a USB Device 1 Turn down the volume on the unit. 2 Connect the USB device to the unit. To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied). Getting Started6GB Connecting Other Portable Audio Device 1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*. p. 204

• Be sure to use a straight type plug. 4 Press SOURCE to select [AUX]. To match the volume level of the connected device to other sourcesStart playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit.Press MENU, then select [SET SOUND] [SET AUX VOL] (page 11). Listening to the Radio To listen to the radio, press SOURCE to select [TUNER]. 1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Press MENU, rotate the control dial to select [SET GENERAL], then press it. 3 Rotate the control dial to select [SET BTM], then press it. The unit stores stations in order of frequency on the number buttons. 1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Perform tuning. To tune manuallyPress and hold SEEK +/– to locate the approximate frequency, then press SEEK +/– repeatedly to fine adjust to the desired frequency.To tune automaticallyPress SEEK +/–.Scanning stops when the unit receives a station. 1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears. 1 Select the band, then press a number button (1 to 6). Listening to the Radio Storing automatically (BTM) Tuning Storing manually Receiving the stored stations7GB Using Radio Data System (RDS) AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received. 1 Press MENU, rotate the control dial to select [SET GENERAL], then press it. 2 Rotate the control dial to select [SET AF/ TA], then press it. 3 Rotate the control dial to select [SET AF- ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press it. To store RDS stations with the AF and TA settingYou can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.To receive emergency announcementsWith AF or TA on, emergency announcements will automatically interrupt the currently selected source.To adjust the volume level during a traffic announcementLevel will be stored into memory for subsequent traffic announcements, independently from the regular volume level.To stay with one regional program (REGIONAL)When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program’s reception area, set [SET REG-OFF] in [SET GENERAL] during FM reception (page 10).This function does not work in the UK and some other areas.Local Link function (UK only)This function enables you to select other local stations in the area, even if they are not stored on your number buttons.During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received. 1 Press PTY during FM reception. 2 Rotate the control dial until the desired program type appears, then press it. The unit starts to search for a station broadcasting the selected program type.Type of programsThe CT data from the RDS transmission sets the clock. 1 Set [SET CT-ON] in [SET GENERAL] (page 10). Setting alternative frequencies (AF) and traffic announcement (TA) Selecting program types (PTY) NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary) Setting clock time (CT)8GB Playing a Disc 1 Insert the disc (label side up). Playback starts automatically. Playing a USB Device In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.For details on the compatibility of your iPod, see “About iPod” (page 13) or visit the support site on the back cover.MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices (such as a USB flash drive, digital media player, Android™ phone) compliant with the USB standard can be used.Depending on the digital media player or Android phone, setting the USB connection mode to MTP is required.Notes For details on the compatibility of your USB device, visit the support site on the back cover. Playback of the following files is not supported.MP3/WMA/AAC/FLAC: copyright-protected files DRM (Digital Rights Management) files Multi-channel audio filesMP3/WMA/AAC: lossless compression files WAV: Multi-channel audio files 1 Connect a USB device to the USB port (page 5). Playback starts.If a device is already connected, to start playback, press SOURCE to select [USB] ([IPD] appears in the display when the iPod is recognized). 2 Adjust the volume on this unit. To stop playbackPress and hold OFF for 1 second.To remove the deviceStop playback, then remove the device.Caution for iPhoneWhen you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as a sudden loud sound may result when the call ends. 1 During playback, press and hold MODE until [MODE IPOD] appears. Operations of the iPod become available.Note that the volume can be adjusted only by the unit.To exit passenger controlPress and hold MODE until [MODE AUDIO] appears. Searching and Playing Tracks 1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode. Playback in the selected play mode may take time to start.Available play modes differ depending on the selected sound source. 1 During CD or USB playback, press (browse)* to display the list of search categories. When the track list appears, press (back) repeatedly to display the desired search category.* During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list. 2 Rotate the control dial to select the desired search category, then press it to confirm. Playback Operating an iPod directly (Passenger control) Repeat play and shuffle play Searching a track by name (Quick- BrowZer™)9GB 3 Repeat step 2 to search the desired track. Playback starts.To exit the Quick-BrowZer modePress (browse). 1 Press (browse). 2 Press SEEK +. 3 Rotate the control dial to select the item. The list is jumped in steps of 10% of the total number of items. 4 Press ENTER to return to the Quick- BrowZer mode. The selected item appears. 5 Rotate the control dial to select the desired item, then press it. Playback starts. Canceling the DEMO Mode You can cancel the demonstration display which appears when the source is off and the clock is displayed. 1 Press MENU, rotate the control dial to select [SET GENERAL], then press it. 2 Rotate the control dial to select [SET DEMO], then press it. 3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete. 4 Press (back) twice. The display returns to normal reception/play mode. Basic Setting Operation You can set items in the following setup categories:General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY) 1 Press MENU. 2 Rotate the control dial to select the setup category, then press it. The items that can be set differ depending on the source and settings. 3 Rotate the control dial to select the options, then press it. To return to the previous displayPress (back). General Setup (GENERAL) DEMO (demonstration)Activates the demonstration: [ON], [OFF].CLOCK-ADJ (clock adjust) (page 5) BEEP Activates the beep sound: [ON], [OFF].AUTO OFFShuts off automatically after a desired time when the unit is turned off: [ON] (30 minutes), [OFF]. Searching by skipping items (Jump mode) Settings10GB STEERING Registers/resets the setting of the steering wheel remote control. (Available when connected with the connection cable (not supplied).) (Available only while the source is off and the clock is displayed.) STR CONTROL (steering control) Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use. CUSTOM Input mode for the steering wheel remote control (automatically selected when [EDIT CUSTOM] is complete or [RESET CUSTOM] is performed) PRESET Input mode for the wired remote control excluding the steering wheel remote control EDIT CUSTOM Registers the functions (SOURCE, ATT, VOL +/–, SEEK +/–) to the steering wheel remote control: Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it. While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed. To register other functions, repeat steps and . (Available only when [STR CONTROL] is set to [CUSTOM].) RESET CUSTOM Resets the setting of the steering wheel remote control: [YES], [NO]. (Available only when [STR CONTROL] is set to [CUSTOM].) Notes While making settings, only button operation on the unit is available. For safety, park your car before making this setting. If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred. This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover. REAR/SUB Switches the audio output: [SUB-OUT] (subwoofer), [REAR-OUT] (power amplifier). (Available only while the source is off and the clock is displayed.) CT (clock time) Activates the CT function: [ON], [OFF]. AF/TA (alternative frequencies/traffic announcement) Selects the alternative frequencies (AF) and traffic announcement (TA) setting: [AF-ON], [TA- ON], [AF/TA-ON], [AF/TA-OFF]. REGIONAL Restricts reception to a specific region: [ON], [OFF]. (Available only when FM is received.) BTM (best tuning memory) (page 6) (Available only when the tuner is selected.) FIRMWARE Checks/updates the firmware version. For details, visit the following support site: http://www.sony.eu/support FW VERSION (firmware version) Displays current firmware version. FW UPDATE (firmware update) Enters firmware update process: [YES], [NO]. (Available only while the source is off and the clock is displayed.) Sound Setup (SOUND) This setup menu can also be opened by pressing SOUND, and is available when any source is selected. C.AUDIO+ (ClearAudio+) Reproduces sound by optimizing the digital signal with the Sony recommended sound settings: [ON], [OFF]. (Automatically sets to [OFF] when [EQ10 PRESET] is changed and/or [MEGABASS] is set to [1] or [2] and/or [DSO] is set to [LOW], [MID] or [HIGH].) EQ10 PRESET Selects an equalizer curve from 10 equalizer curves or off: [OFF], [R&B], [ROCK], [POP], [DANCE], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL], [COUNTRY], [CUSTOM]. The equalizer curve setting can be memorized for each source. EQ10 CUSTOM Sets [CUSTOM] of EQ10. Setting the equalizer curve: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz, [BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz. The volume level is adjustable in 1 dB steps, from -6 dB to +6 dB.11GB POSITION (listening position) F/R POS (front/rear position) Simulates a natural sound field by delaying the sound output from speakers to suit your position: [FRONT L] (front left), [FRONT R] (front right), [FRONT] (center front), [ALL] (center of your car), [OFF] (no position set) ADJ POSITION* (adjust position) Fine-tunes the listening position setting: [+3] – [CENTER] – [-3]. SW POS* (subwoofer position) [NEAR] (near), [NORMAL] (normal), [FAR] (far) DSO (dynamic soundstage organizer) Creates a more ambient sound as if there were speakers in the dashboard: [OFF], [LOW], [MID], [HIGH]. BALANCE Adjusts the sound balance: [RIGHT-15] – [CENTER] – [LEFT-15]. FADER Adjusts the relative level: [FRONT-15] – [CENTER] – [REAR-15]. DSEE (digital sound enhancement engine) Improves digitally compressed sound by restoring high frequencies lost in the compression process. This setting can be memorized for each source other than the tuner. Selects the DSEE mode: [ON], [OFF]. AAV (advanced auto volume) Adjusts the playback volume level of all playback sources to the optimum level: [ON], [OFF]. RB ENH (rear bass enhancer) Rear Bass Enhancer enhances the bass sound by applying a low pass filter setting to the rear speakers. This function allows the rear speakers to work as a subwoofer if one is not connected. (Available only when [SW DIREC] is set to [OFF] and/or [REAR-OUT] is selected in [REAR/SUB].) RBE MODE (rear bass enhancer mode) Selects the rear bass enhancer mode: [1], [2], [3], [OFF]. LPF FREQ (low pass filter frequency) Selects the subwoofer cut-off frequency: [50Hz], [60Hz], [80Hz], [100Hz], [120Hz]. LPF SLOP (low pass filter slope) Selects the LPF slope: [1], [2], [3]. SW DIREC (subwoofer direct connection) You can use the subwoofer without a power amplifier when it is connected to the rear speaker lead. (Available only when [RBE MODE] is set to [OFF] and/or [REAR-OUT] is selected in [REAR/SUB].) Be sure to connect a 4 – 8 ohm subwoofer to either of the rear speaker leads. Do not connect a speaker to the other rear speaker lead. SW MODE (subwoofer mode) Selects the subwoofer mode: [1], [2], [3], [OFF]. SW PHASE (subwoofer phase) Selects the subwoofer phase: [NORM], [REV]. SW POS* (subwoofer position) Selects the subwoofer position: [NEAR], [NORMAL], [FAR]. LPF FREQ (low pass filter frequency) Selects the subwoofer cut-off frequency: [50Hz], [60Hz], [80Hz], [100Hz], [120Hz]. LPF SLOP (low pass filter slope) Selects the LPF slope: [1], [2], [3]. S.WOOFER (subwoofer) SW LEVEL (subwoofer level) Adjusts the subwoofer volume level: [+10 dB] – [0 dB] – [-10 dB]. ([ATT] is displayed at the lowest setting.) SW PHASE (subwoofer phase) Selects the subwoofer phase: [NORM], [REV]. SW POS* (subwoofer position) Selects the subwoofer position: [NEAR], [NORMAL], [FAR]. LPF FREQ (low pass filter frequency) Selects the subwoofer cut-off frequency: [50Hz], [60Hz], [80Hz], [100Hz], [120Hz]. LPF SLOP (low pass filter slope) Selects the LPF slope: [1], [2], [3]. HPF (high pass filter) HPF FREQ (high pass filter frequency) Selects the front/rear speaker cut-off frequency: [OFF], [50Hz], [60Hz], [80Hz], [100Hz], [120Hz]. HPF SLOP (high pass filter slope) Selects the HPF slope (effective only when [HPF FREQ] is set to other than [OFF]): [1], [2], [3]. AUX VOL (AUX volume level) Adjusts the volume level for each connected auxiliary device: [+18 dB] – [0 dB] – [-8 dB]. This setting negates the need to adjust the volume level between sources.

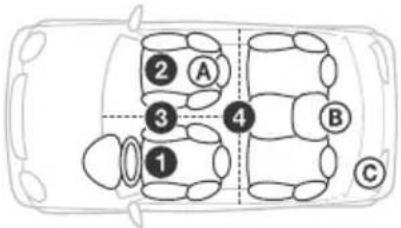

• Does not appear when [F/R POS] is set to [OFF].12GB Display Setup (DISPLAY) DIMMER Changes the display brightness: [ON], [OFF]. BUTTON-C (button color) Sets a preset color or customized color for the buttons. COLOR Selects from 15 presets colors, 1 customized color. CUSTOM-C (custom color) Registers a customized color for the buttons.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] – [32] ([0] cannot be set for all color ranges). DSPL-C (display color) Sets a preset color or customized color for the display. COLOR Selects from 15 presets colors, 1 customized color. CUSTOM-C (custom color) Registers a customized color for the display.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] – [32] ([0] cannot be set for all color ranges). ALL-C (all color) Sets a preset color or customized color for the display and buttons. COLOR Selects from 15 presets colors, 1 customized color. CUSTOM-C (custom color) Registers a customized color for the display and buttons.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] – [32] ([0] cannot be set for all color ranges). SND SYNC (sound synchronization) Activates the synchronization of the illumination with the sound: [ON], [OFF]. M. DISPLAY (motion display) Shows moving patterns: [LM], [ON], [OFF]. AUTO SCR (auto scroll) Scrolls long items automatically: [ON], [OFF]. (Not available when the AUX or tuner is selected.) Updating the Firmware You can update the firmware of this unit from the following support site: http://www.sony.eu/support To update the firmware, visit the support site, then follow the online instructions. Precautions Cool off the unit beforehand if your car has been parked in direct sunlight. Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight. Power antenna (aerial) extends automatically. Moisture condensation Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly. To maintain high sound quality Do not splash liquid onto the unit or discs. Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight. Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners. This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit. Discs that this unit CANNOT play Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc. Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit. 8 cm (3

/4 in) discs. Additional Information Notes on discs13GB Notes on CD-R/CD-RW discs If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played. Discs that this unit CANNOT play CD-R/CD-RW of poor recording quality. CD-R/CD-RW recorded with an incompatible recording device. CD-R/CD-RW which is finalized incorrectly. CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi- session. You can connect to the following iPod models. Update your iPod devices to the latest software before use. Compatible iPhone/iPod models “Made for iPod,” and “Made for iPhone,” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. Specifications Tuner section

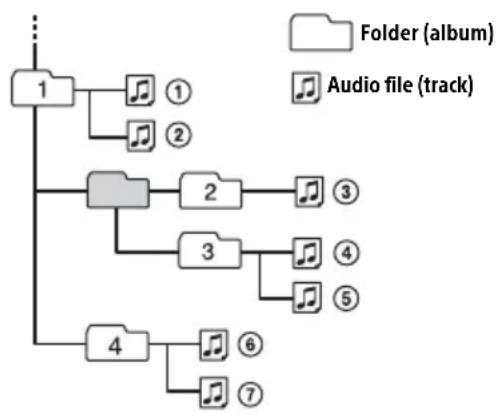

Tuning range: 87.5 – 108.0 MHz Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: FM CCIR: -1,956.5 to -487.3 kHz and +500.0 to +2,095.4 kHz Usable sensitivity: 8 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 73 dB Separation: 50 dB at 1 kHz Frequency response: 20 – 15,000 Hz MW/LW Tuning range: MW: 531 – 1,602 kHz LW: 153 – 279 kHz Antenna (aerial) terminal: External antenna (aerial) connector Sensitivity: MW: 26 μV, LW: 50 μV CD Player section Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit The maximum number of: (CD-R/CD-RW only) folders (albums): 150 (including root folder) files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters) displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo) Corresponding codec: MP3 (.mp3), WMA (.wma) and AAC (.m4a) Playback order of audio files About iPod Compatible Model USB iPhone 6 Plus iPhone 6 iPhone 5s iPhone 5c iPhone 5 iPhone 4s iPhone 4 iPhone 3GS iPhone 3G iPod touch (5th generation) iPod touch (4th generation) iPod touch (3rd generation) iPod touch (2nd generation) iPod classic iPod nano (7th generation) Folder (album)Audio file (track) iPod nano (6th generation) iPod nano (5th generation) iPod nano (4th generation) iPod nano (3rd generation) Compatible Model USB14GB USB Player section Interface: USB (High-speed) Maximum current: 1 A The maximum number of recognizable tracks: 10,000 Corresponding codec: MP3 (.mp3) Bit rate: 8 – 320 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 16 – 48 kHz WMA (.wma) Bit rate: 32 – 192 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 32 kHz, 44.1 kHz, 48 kHz AAC (.m4a, .mp4) Bit rate: 8 – 320 kbps Sampling rate: 11.025 – 48 kHz WAV (.wav) Bit depth: 16 bit Sampling rate: 44.1 kHz, 48 kHz FLAC (.flac) Bit depth: 16 bit, 24 bit Sampling rate: 44.1 kHz, 48 kHz Power amplifier section Output: Speaker outputs Speaker impedance: 4 – 8 ohms Maximum power output: 55 W × 4 (at 4 ohms) General Outputs: Audio outputs terminal (front, rear/sub switchable) Power antenna (aerial)/Power amplifier control terminal (REM OUT) Inputs: Remote controller input terminal Antenna (aerial) input terminal AUX input jack (stereo mini jack) USB port Power requirements: 12 V DC car battery (negative ground (earth)) Rated current consumption: 10 A Dimensions: Approx. 178 mm × 100 mm × 178 mm

/8 in) (w/h/d) Mass: Approx. 1.4 kg (3 lb 2 oz) Package contents: Main unit (1) Parts for installation and connections (1 set) Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information. Design and specifications are subject to change without notice. Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. Android is a trademark of Google Inc. libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

DAMAGES (INCLUDING, BUT NOT LIMITED TO,

CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyrights15GB Troubleshooting The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. For details on using the fuse and removing the unit from the dashboard, see “Connection/Installation” (page 17). If the problem is not solved, visit the support site on the back cover. General No sound or the sound is very low. The position of the fader control [FADER] is not set for a 2-speaker system. The volume of the unit and/or connected device is very low. Increase the volume of the unit and connected device. No beep sound. An optional power amplifier is connected and you are not using the built-in amplifier. The contents of the memory have been erased. The reset button has been pressed. Store again into the memory. The power supply lead or battery has been disconnected or not connected properly. Stored stations and correct time are erased. The fuse has blown. Makes a noise when the position of the ignition is switched. The leads are not matched correctly with the car’s accessory power connector. During playback or reception, the demonstration mode starts. If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts. Set [DEMO-OFF] (page 9). The display disappears from/does not appear in the display window. The dimmer is set to [DIM-ON] (page 12). The display disappears if you press and hold OFF. Press OFF on the unit until the display appears. The display/illumination flashes. The power supply is not sufficient. Check that the car battery supplies enough power to the unit. (The power requirement is 12 V DC.) The operation buttons do not function. The disc will not eject. The connection is not correct. Check the connection of the unit. If the situation does not improve, press the reset button (page 5). The contents stored in memory are erased. For your safety, do not reset the unit while you are driving. Radio reception Stations cannot be received. The sound is hampered by noises. The connection is not correct. Check the connection of the car antenna (aerial). If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead. Preset tuning is not possible. The broadcast signal is too weak. RDS The SEEK starts after a few seconds of listening. The station is non-TP or has weak signal. Deactivate TA (page 7). No traffic announcements. Activate TA (page 7). The station does not broadcast any traffic announcements despite being TP. Tune in another station. PTY displays [- - - - - - - -]. The current station is not an RDS station. RDS data has not been received. The station does not specify the program type. Program service name flashes. There is no alternative frequency for the current station. Press SEEK +/– while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data. CD playback The disc does not play. Defective or dirty disc. The CD-R/CD-RW is not for audio use (page 13). MP3/WMA/AAC files cannot be played. The disc is incompatible with the MP3/WMA/AAC format and version. For details on playable discs and formats, visit the support site on the back cover.16GB MP3/WMA/AAC files take longer to play than others. The following discs take a longer time to start playback. A disc recorded with a complicated tree structure. A disc recorded in Multi Session. A disc to which data can be added. The sound skips. Defective or dirty disc. USB device playback You cannot play items via a USB hub. This unit cannot recognize USB devices via a USB hub. A USB device takes longer to play. The USB device contains files with a complicated tree structure. The sound is intermittent. The sound may be intermittent at a high-bit-rate. DRM (Digital Rights Management) files may not be playable in some cases. Audio file cannot be played. USB device formatted with file systems other than FAT16 or FAT32 are unsupported.*

• This unit supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer. Error displays/Messages CD ERROR: The disc cannot be played. The disc will be ejected automatically. Clean or insert the disc correctly, or make sure the disc is not blank or defective. CD NO MUSIC: There is no playable file. The disc will be ejected automatically. Insert a disc containing playable files (page 13). CD PUSH EJT: The disc could not be ejected properly. Press (eject). HUB NO SUPRT: USB hubs are not supported. IPD STOP: iPod playback has finished. Operate your iPod/iPhone to start playback. NO AF: No alternative frequencies. Press SEEK +/– while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears). NO TP: No traffic programs. The unit will continue searching for available TP stations. OVERLOAD: The USB device is overloaded. Disconnect the USB device, then press SOURCE to select another source. The USB device has a fault, or an unsupported device is connected. READ: Now reading information. Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization. USB ERROR: The USB device cannot be played. Connect the USB device again. USB NO DEV: A USB device is not connected or recognized. Make sure the USB device or USB cable is securely connected. USB NO MUSIC: There is no playable file. Connect a USB device containing playable files (page 14). USB NO SUPRT: The USB device is not supported. For details on the compatibility of your USB device, visit the support site on the back cover. or : The beginning or the end of the disc has been reached. : The character cannot be displayed. For steering wheel remote control operation: ERROR: An error occurred during the function registration. Register again from the function where the error occurred (page 10). TIMEOUT: The function registration failed due to a timeout. Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 10). If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.17GB Cautions Run all ground (earth) leads to a common ground (earth) point. Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing). Before making connections, turn the car ignition off to avoid short circuits. Connect the power supply lead to the unit and speakers before connecting it to the auxiliary power connector. Be sure to insulate any loose unconnected leads with electrical tape for safety. Choose the installation location carefully so that the unit will not interfere with normal driving operations. Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts. Use only the supplied mounting hardware for a safe and secure installation. Note on the power supply lead (yellow)When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component’s fuse amperage rating. Mounting angle adjustment Adjust the mounting angle to less than 45°. Parts List for Installation This parts list does not include all the package contents. The bracket is attached to the unit before shipping. Before mounting the unit, use the release keys to remove the bracket from the unit. For details, see “Removing the bracket” (page 20). Keep the release keys for future use as they are also necessary if you remove the unit from your car. Connection/Installation Precautions

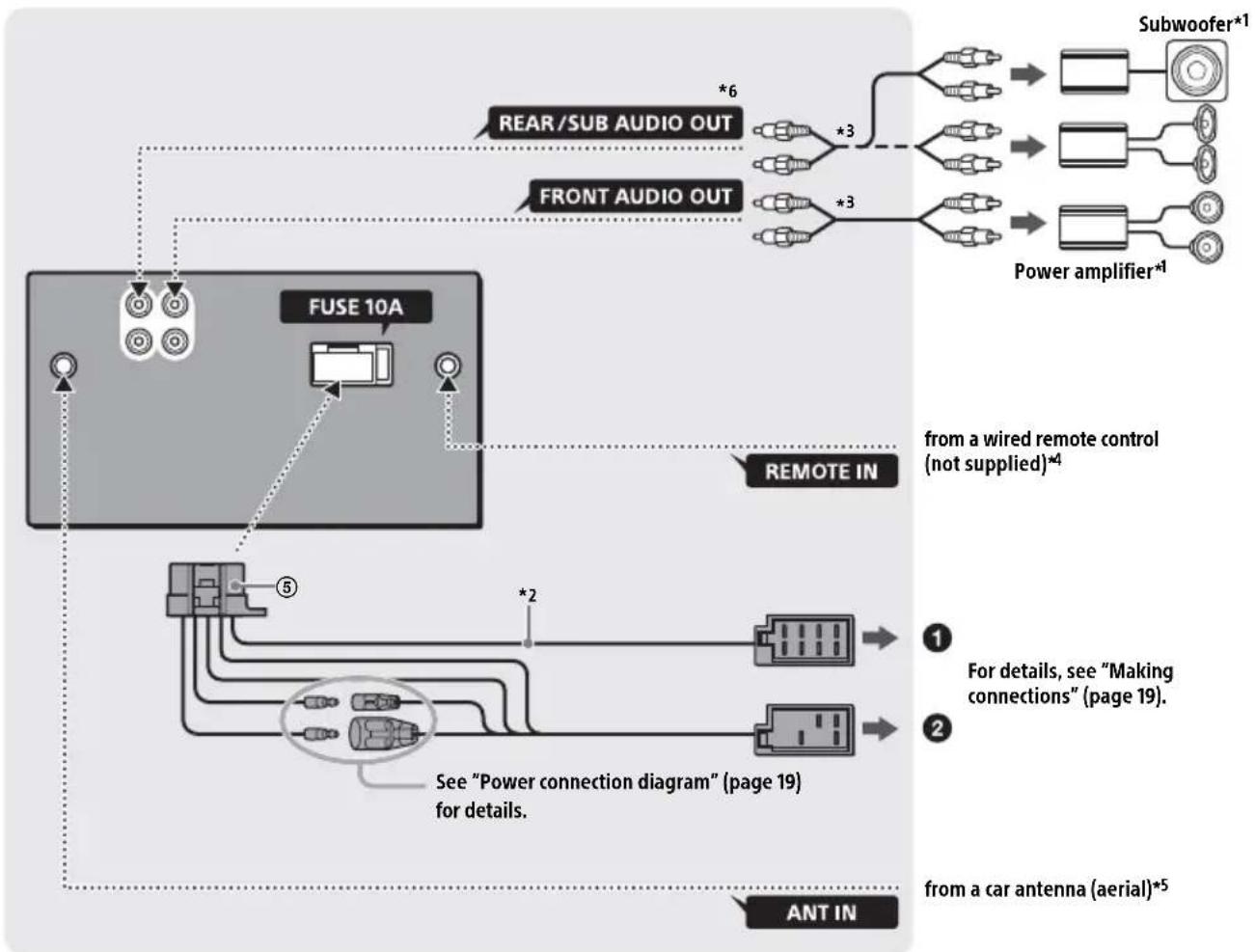

× 6 5 × max. 8 mm(7/32 × max. 5/16 in)18GB Connection *1 Not supplied *2 Speaker impedance: 4 – 8 Ω × 4 *3 RCA pin cord (not supplied) *4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). *5 Depending on the type of car, use an adaptor (not supplied) if the antenna (aerial) connector does not fit. *6 AUDIO OUT can be switched to SUB or REAR. from a wired remote control (not supplied)*

See “Power connection diagram” (page 19) for details. from a car antenna (aerial)*

For details, see “Making connections” (page 19).

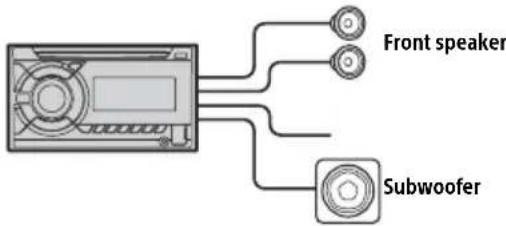

619GB If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead may damage the antenna (aerial). To the car’s speaker connector To the car’s power connector Subwoofer Easy Connection You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord. Notes Preparation of the rear speaker cords is required. Use a subwoofer with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid damage. Memory hold connection When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off. Speaker connection Before connecting the speakers, turn the unit off. Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid damage. Make sure your car’s auxiliary power connector, and match the connections of cords correctly depending on the car. Common connection When the positions of the red and yellow leads are inverted Making connections

Rear speaker (right) Purple

Front speaker (right) Gray

Front speaker (left) White

Rear speaker (left) Green

continuous power supply Yell ow

power antenna (aerial) / power amplifier control (REM OUT) Blue/white striped 15 switched power supply Red 16 ground (earth) Black Front speakerSubwoofer Power connection diagram

continuous power supply Yellow 15 switched power supply Red 12 switched power supply Yellow

continuous power supply Red Auxiliary power connector Red RedYellow Yellow Red RedYellow Yellow20GB When the car without ACC positionAfter matching the connections and switching power supply leads correctly, connect the unit to the car’s power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer. 1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 10). Installation Before installing the unit, remove the bracket from the unit. 1 Insert both release keys until they click, and pull down the bracket , then pull up the unit to separate. When mounting in a Japanese car, see “Mounting the unit in a Japanese car” (page 21). Mounting the unit with the supplied bracket Before installing, make sure the catches on both sides of the bracket are bent inwards 3.5 mm

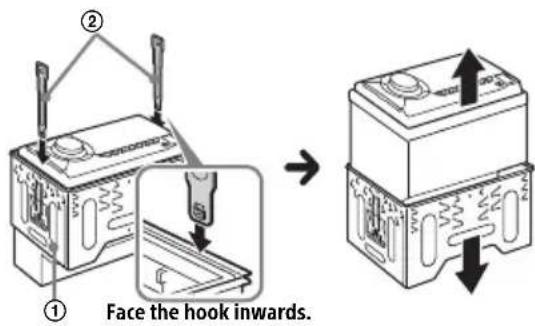

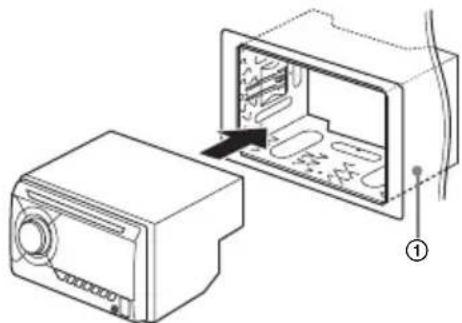

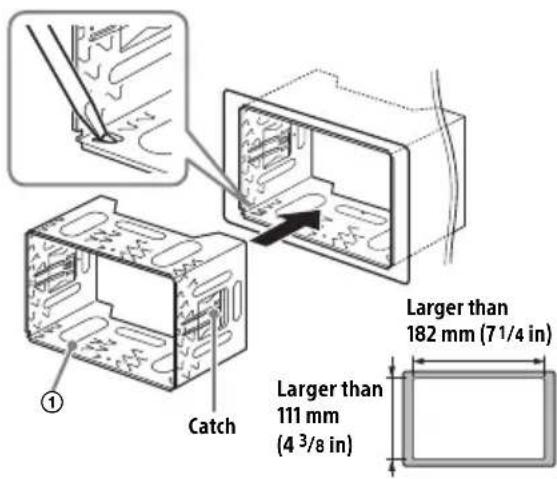

/32 in). 1 Position the bracket inside the dashboard, then bend the claws outward for a tight fit. Using the wired remote control Red Red Ye l l owYellow Removing the bracket Mounting the unit in the dashboard

Face the hook inwards.

Larger than 182 mm (7 /4 in)Larger than 111 mm

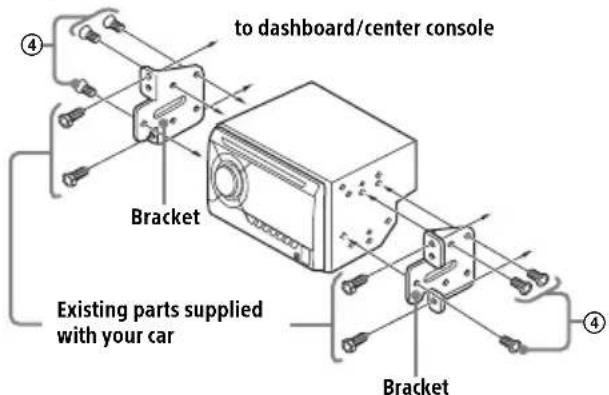

/8 in)Catch 21GB 2 Mount the unit onto the bracket . Note If the catches are straight or bent outwards, the unit will not be installed securely and may spring out. Mounting the unit in a Japanese car You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer. When mounting this unit to the preinstalled brackets of your car, use the supplied screws in the appropriate screw holes, based on your car: T for TOYOTA, M for MITSUBISHI and N for NISSAN. Note To prevent malfunction, install only with the supplied screws . For details, see “Resetting the unit” (page 5). When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

to dashboard/center consoleExisting parts supplied with your car
