USER MANUAL CEG5331X BEKO

CAPPUCCINO WERKING MELKOPSCHU- IMER

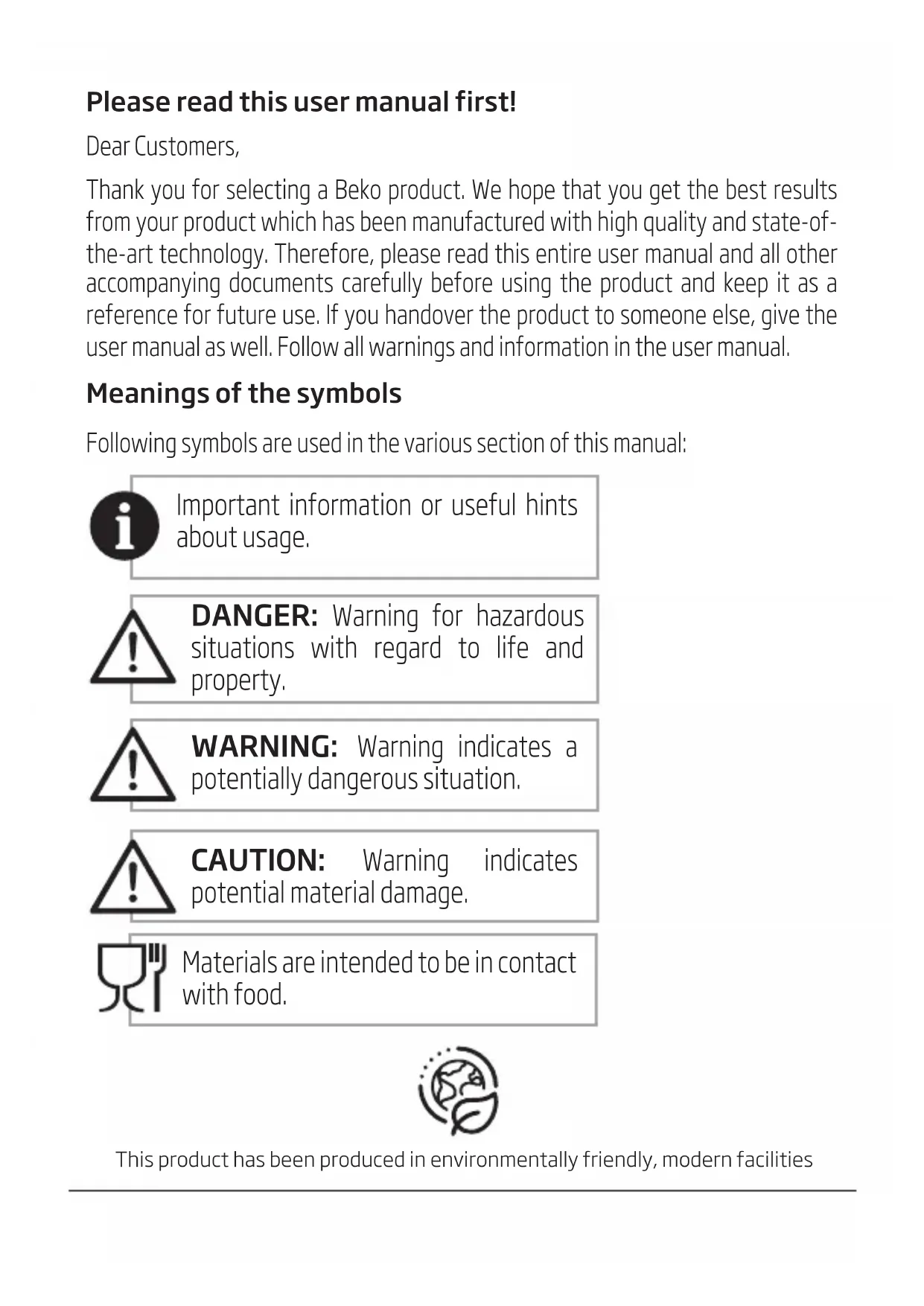

Please read this user manual first! Dear Customers, Thank you for selecting a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of- the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Meanings of the symbols Following symbols are used in the various section of this manual: Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning indicates a potentially dangerous situation. CAUTION: Warning indicates potential material damage. Materials are intended to be in contact with food. This product has been produced in environmentally friendly, modern facilities1. External Drp Tray

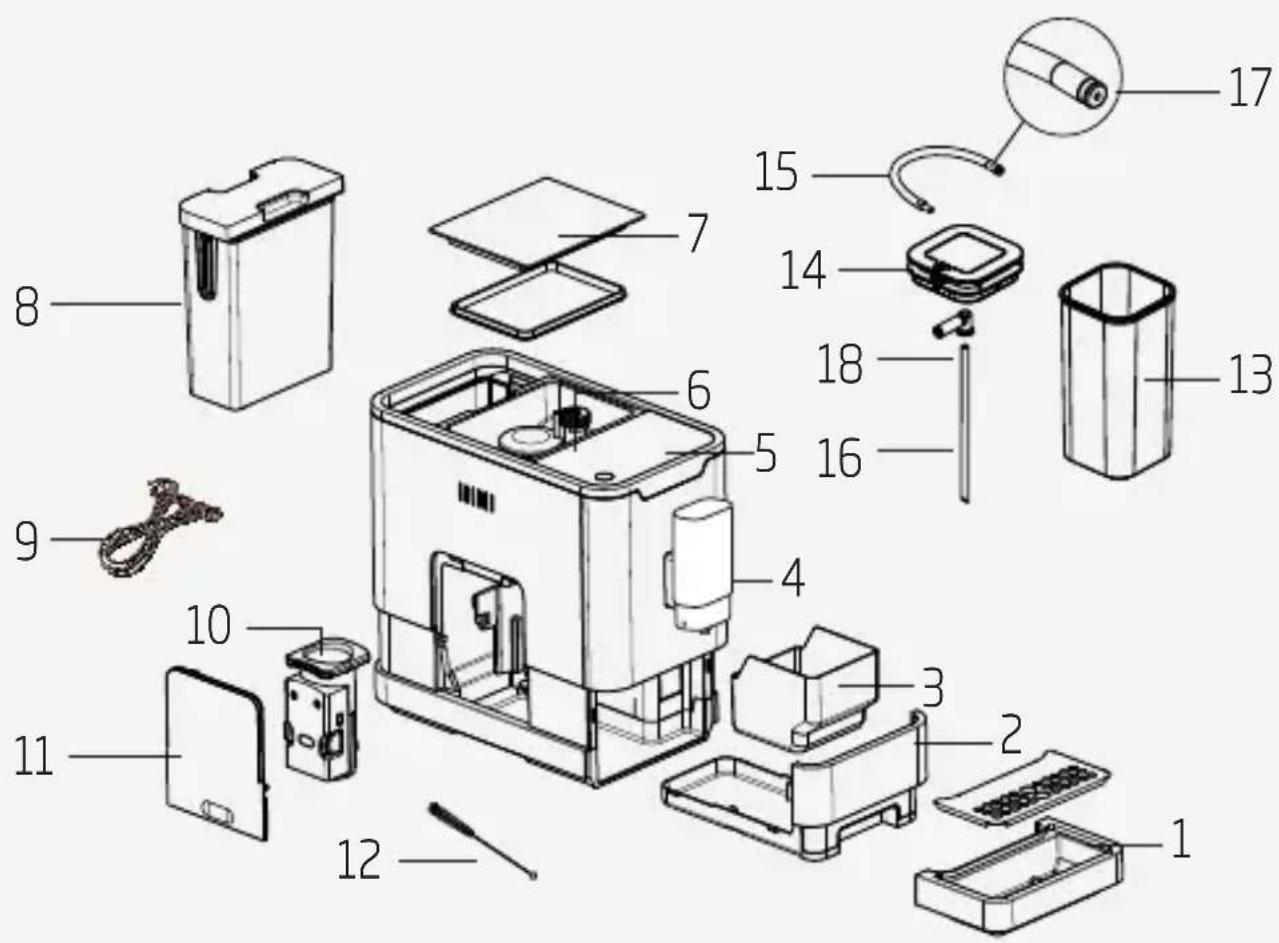

4. Adjustable coffee spout

6. Coffee Bean compartment

Technical data Power supply: 220-240 V~, 50-60 Hz Power: 1350 W Technical and design modifications reserved. All declared values on the product and on the prnted leaflets are pcked up after laboratory measurements performed accordng to related standarts. These values may dffer upon usage and ambent condtons.1 Important instructions for safety and environment 16 / EN Fully Automatic Coffee Machine / User Manual This section includes the safety instructions that will help providing protection against personal injury and material loss risks. Failure to follow these instruc- tions invalidates the granted warranty.

1.1 Danger of electric current

Danger to life by electric current! Contact with live wires or components could lead to serious injury or even death! Observe the following safety precautions to avoid electric shocks:

• Do not use the coffee machine if the connecting cable or mains plug are damaged.

• Before reusing the coffee machine, the mains cable must be renewed by a qualified electrician.

• Do not open the housing of the coffee machine. Danger of electric shock if live connections are touched and/or the electrical and mechanical configuration is changed.1 Important instructions for safety and environment 17 / EN Fully Automatic Coffee Machine / User Manual

• Before cleaning the bean container, pull the mains plug of the appliance out of the socket. Danger from rotating coffee mill!

1.2 Danger of burning or scalding

Parts of the coffee machine can become very hot during operation! Dispensed drinks and escaping steam are very hot! Observe the following safety precautions to avoid burning/scalding yourself and/or others:

• Do not touch either of the metal sleeves on both coffee spouts.

• Avoid direct contact of the skin with escaping steam or hot rinsing, cleaning and descaling water.

1.3 Fundamental safety

precautions Observe the following safety precautions to ensure safe handling of the coffee machine:

• Never play with packaging material. Risk of suffocation.1 Important instructions for safety and environment 18 / EN Fully Automatic Coffee Machine / User Manual

• Inspect the coffee machine for visible signs of damage before use. Do not use a damaged coffee machine.

• If the connecting cable is damaged, it should only be replaced by a service agent recommended by the manufacturer in order to prevent any danger! Please contact the manufacturer or his customer service.

• Repairs to the coffee machine must only be carried out by an authorised specialist or by the works customer service. Unqualified repairs can lead to considerable danger for the user. They will also void the warranty.

• Repairs to the coffee machine during the warranty period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty will become void in the event of subsequent damage.

• Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.1 Important instructions for safety and environment 19 / EN Fully Automatic Coffee Machine / User Manual

• This appliance can be used by children from the age of 8 up as well as by persons with reduced physical, sensory or mental abilities or with lacking experience and/or knowledge, if these persons are supervised or have been instructed how to use the appliance in a safe way and have understood the hazards which could arise from using it. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments, - farm houses, - by clients in hotels, motels and other residential type environments, - bed and breakfast type environments.

• Protect the coffee machine against the effects of weather such as rain, frost and direct sunlight. Do not use the coffee machine outdoors.1 Important instructions for safety and environment 20 / EN Fully Automatic Coffee Machine / User Manual

• Never immerse the coffee machine itself, the mains cable or the mains plug into water or other liquids.

• Do not clean the coffee machine or accessories in a dish washer.

• Do not pour any other liquids apart from water or place foodstuffs into the water tank.

• Do not fill the water tank beyond the maximum mark (lower edge of the filling hole) (1.4 litres).

• Only operate the machine when the coffee grounds container, drip tray and the cup grate are fitted.

• Do not pull the cable to remove the plug from the mains socket or touch with wet hands.

• Do not hold the coffee machine with the mains cable.

• Keep the appliance and its cord out of reach of children aged less than 8 years.

• Do not operate the hot water function continuously for more than one tank of water.1 Important instructions for safety and environment 21 / EN Fully Automatic Coffee Machine / User Manual

The fully automatic coffee machine Beko is intended for use in homes and similar applications, for instance in staff kitchens, shops, offices and similar areas or by customers in bed & breakfast, hotels, motels and other living accommodation. This coffee machine is not intended for commercial use. The machine is only intended for preparing coffee and heating milk and water. Any other use other than previously stated is considered as im- proper use. Danger resulting from improper use! If not used for its intended purpose or used in any other way, the coffee machine may be or become a source of danger.

Therefore, the coffee machine may only be used for its intended purpose.

Observe the proce- dures described in this user manual. No claims of any kind will be accepted for damage or injury resulting from use of the coffee machine for other than its intended purpose. The risk has to be borne solely by the machine owner.1 Important instructions for safety and environment 22 / EN Fully Automatic Coffee Machine / User Manual

1.5 Limitation of liability

All technical information, data and instructions on installation, operation and maintenance of the coffee machine contained in these operating in- structions represent the current status at the time of printing and are based on the best possible knowledge gained by experience and knowhow. No claims can be derived from the information, illustrations and descrip- tions in this user manual. The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended pur- pose, unprofessional repairs, unauthorised modifications or use of non- approved spare parts.

1.6 Compliance with the WEEE Directive and

Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This prod- uct bears a classification symbol for waste electrical and electronic equip- ment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each househol performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences fort he environ- ment and human health.1 Important instructions for safety and environment 23 / EN Fully Automatic Coffee Machine / User Manual

1.7 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials speci- fied in the Directive.

1.8 Package information

Packaging materials of the product are manufactured from re- cyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials togeth- er with the domestic or other wastes. Take them to the packag- ing material collection points designated by the local authorities.24 / EN Fully Automatic Coffee Machine / User Manual

Flashng: Low water level/ Water tank mssng Lack of bean Lghts up stably: coffee grounds contaner s full Flashng: Internal Drp Tray/coffee grounds contaner s mssng Lghts up stably: Brewer s mssng/ nstalled mproperly Flashng: Servce door s opened / nstalled mproperly Lights up stably: Requires to do descaling Flashing: Descaling is under process Empty System Function is running Power ON/OFF Button

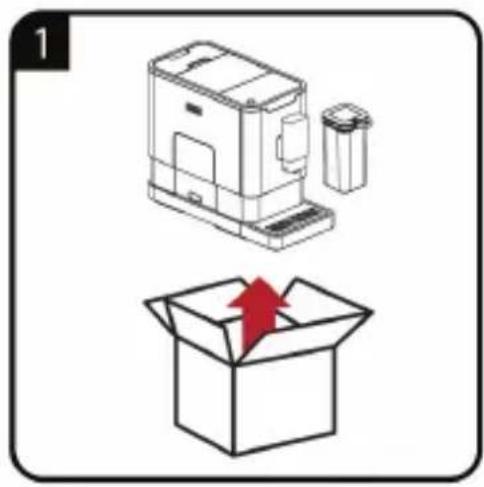

Remove any protective films, stickers and any other packing material on the appliance.

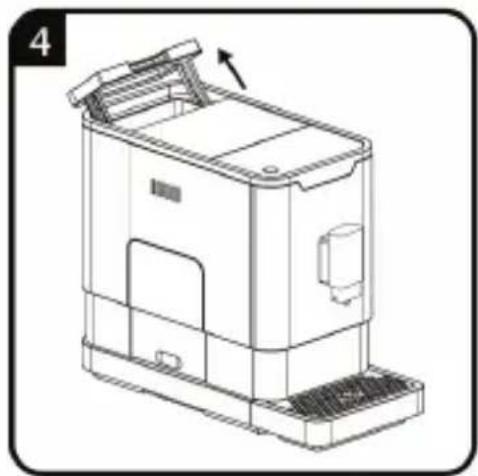

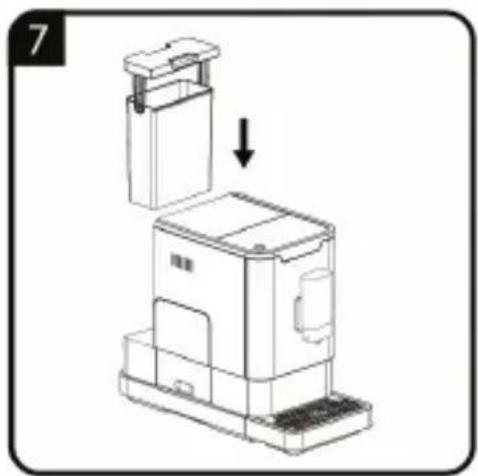

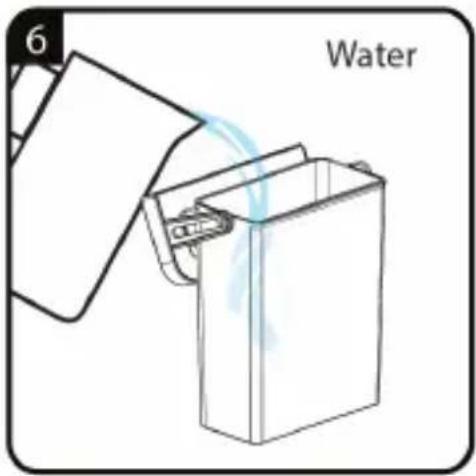

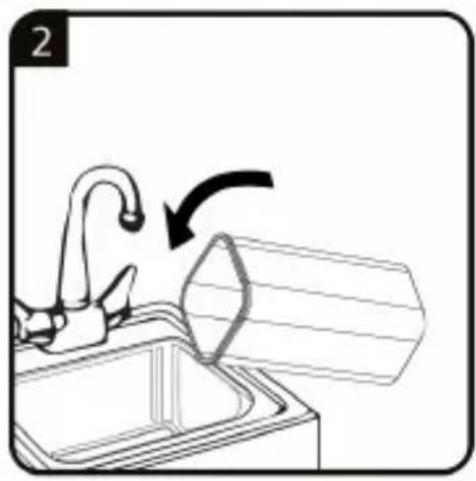

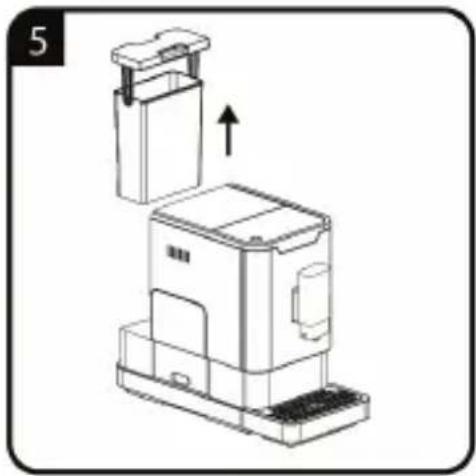

3.2 Fllng the water tank

About the protect program: If the water tank is not fully placed into the machine, a protection mode will be acti- vated in 15 seconds during brewing process. Hot water button will lights on control panel.

1. Make sure that the water tank is fully inserted into the ma-

2. Press the hot water button. After the hot water is dis-

pensed, the machine will be in standby condition.

When is flashing, the water tank is in low water level and requires filling the water tank. To prevent overflow of water from the water tank, do not add water directly into the appliance with another container.

Never fill the water tank with warm, hot, spar- kling water or any other liquid which might damage the water tank and the machine.

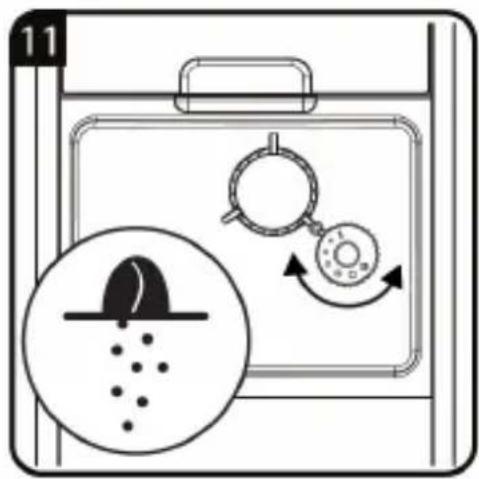

Never do the grinding adjustment when the grinder is not operating. It may damage the grinder. The dots on the adjuster knob indicate the fineness of the grind. When is flashing, the appliance needs to be filled with cof- fee bean.

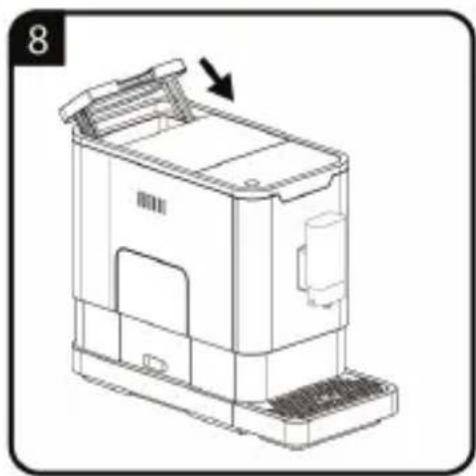

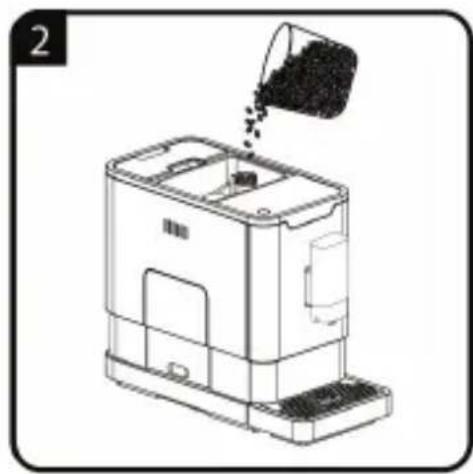

Fill the coffee bean container only with coffee beans. Grounded coffee, instant coffee, caramelized coffee and any other objects may damage the machine. Press the hot water button to clean inside of the coffee maker before first use. The Appliance is equipped with auto-shut off. Depending on the mode you have selected the appliance will have different auto- shut off timing.

4.1 Adjusting The Volume Of Your Coffee/

Hot Water You can memorze your desred volume of coffee for espresso and also the hot water from 25ml to 250ml. There is a protective cover for the milk tube connector inlet, just take it off when you need to insert the milk tube connector.

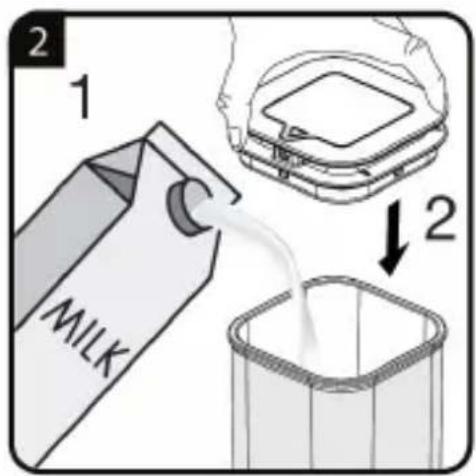

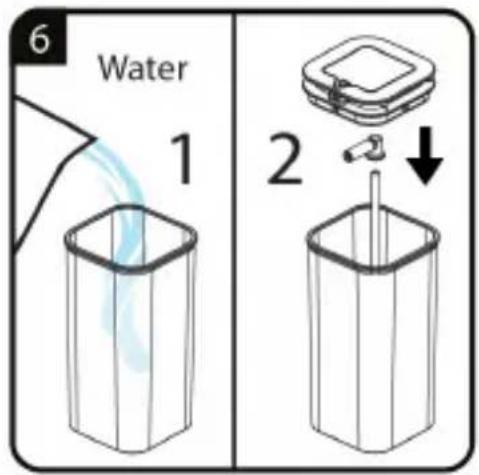

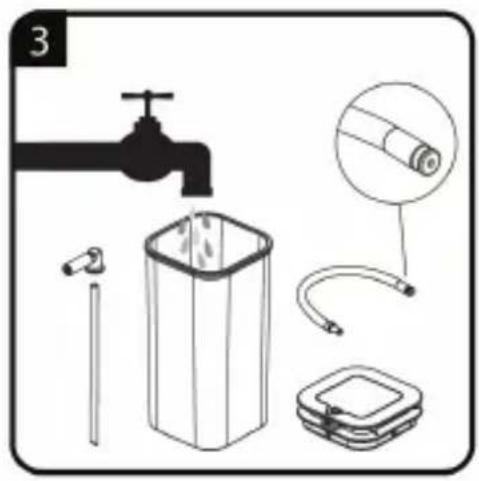

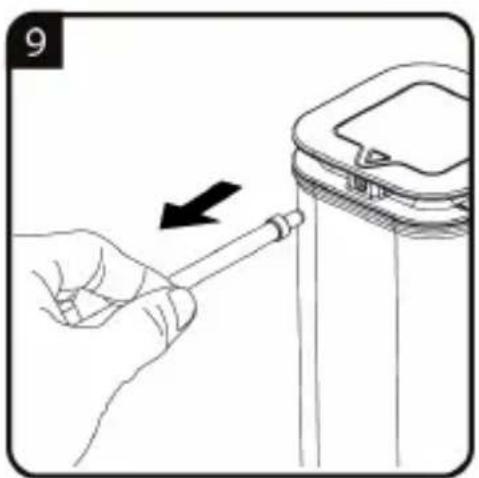

Operaton28 / EN Fully Automatic Coffee Machine / User Manual Cleaning the automatic milk froth system before first use. Use cold milk (at a temperature of approximately 5°C/41°F) with a protein content of at least 3% to ensure an optimal frothing result After use, press button once to perform quick cleaning the system. See chapter “Daily Cleaning of the appliance”, section cleaning the automatic milk froth system).

The appliance can dispense hot water by simply pressing the hot water button. The hot water button and the illumination will lights up indicates that the appliance is heating up the water. When the hot water button and the illumination turn off, the water is ready to serve.

The machne has two dfferent settng: default settng, ECO mode and speed mode. In ECO mode, the applance helps to save more energy. In speed mode, the user can make ther coffee faster than n default set- tng. ECO Mode Speed Mode Default SettingIllumination Light No Yes YesPre-brewing* Yes No YesAuto shut off time 10mins 30mins 20minsCup Volume memory Yes Yes Yes

Operation The pre-brewing function moistens the grounded beans in the brewer with a small amount of water before full extraction. This expands the coffee grounds to build up a greater pressure in the brewer which help extraction of all the oils and full flavor from the grounded beans.

1. When the machne s n standby condton, press and holds the for

2. The wll then be flashng and the followng button wll have the fol-

mode and Espresso button for default setting.Two Beep sound wll be heard ndcates that the mode s beng selected. (Note: If you are pressng the relatve lghts on button for each mode, the machne wll not response).

4. If you would lke to reman the settng unchanged, press agan or

wat for 5 seconds for the machne to return to the standby condton30 / EN Fully Automatic Coffee Machine / User Manual

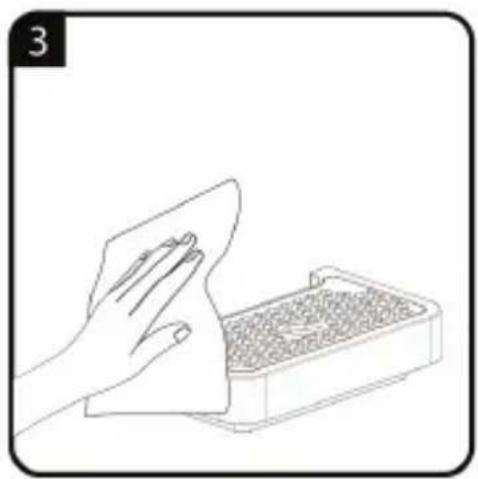

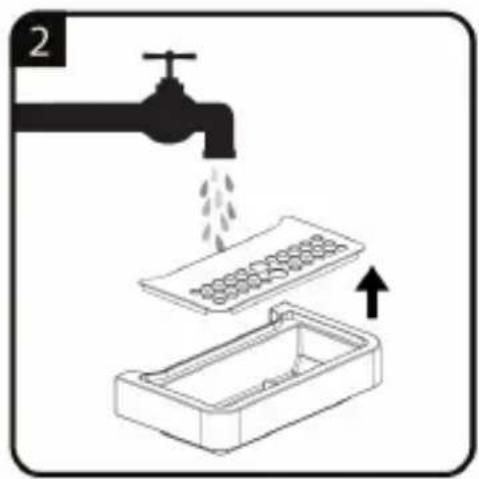

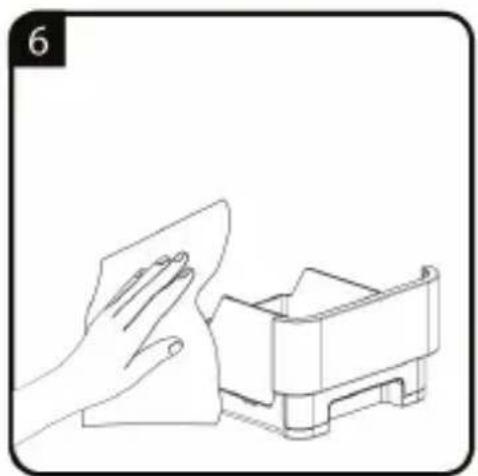

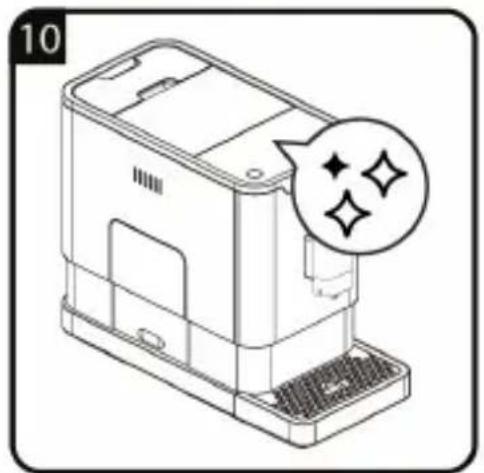

5.1 Cleaning of the appliance

Never use any abrasive, vinegar or descaling agents not included in the box to clean the appliance. When lights up, the coffee grounds container needs to be emptied. This icon will light up after every 10 coffee brews. Clean the container to reset the icon. If the container is clean, It will be enough to remove the container and put it back in place. When lights up stably, it indicates that the brewer is missing / installed improperly. When is flashing, it indicates that the service door is missing/installed improperly. It is important to do this step daily to make sure the function of automatic milk frother running in good condition.

Please wat for fnshng the self cleanng pro- cess and then swtch off the machne. When s flashng, t ndcates that the applance needs to undergo self-cleanng. The applance wll reman n the best condton f ths func- ton s performed at least once a month or more regularly dependng on the hardness of water used. It s also suggested that to

1. Fully fll the water tank.

2. Add one pack of cleaning agent into the water tank.

Do not use vinegar or other cleaning agent to do self-cleaning of this appliance. The cleaning agent might damage the appliance.

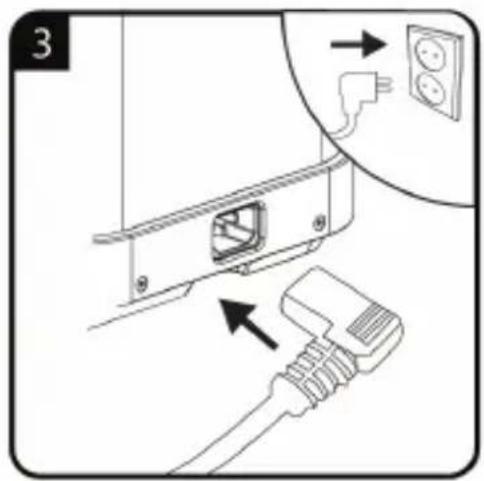

3. Plug in the appliance.

4. Place a sufficient large container under the coffee spout.

5. In standby condition, press and hold and Latte button for 5 se-

conds. A beep sound will be heard with and Latte button will be flashing.

6. Press Latte button to confirm undergoing the self-cleaning pro-

cess. To resume back to the standby condition, press .

7. Will be flashing indicates that the appliance is undergoing the self-

Keep skin/body away from the hot water.

8. When all the water in the water tank is being dispensed out, and

Latte button will be flashing. Remove all the remaining solution in the water tank and fill the tank with normal tap water until the max position. When water is filled into the water tank, will goes off. Then the appliance will continue the self-cleaning process.

9. When the self-cleaning process is completed, the appliance will switch

The empty system function is recommended to be used before long period of non-use, frost protection and before talking to repair agent.

1. In standby condition, press and hold the and Espresso button

together for 5 seconds.

2. will then be flashing.

3. Remove the water tank from the appliance. will light up stably indi-

cates that the empty system is under process. You can press before removing the water tank to resume back to the standby condition.

4. When the empty system function is completed, the appliance will

switch off automatically.

After perform EMPTY SYSYEM FUNCTION; press the hot water button until water can come out from spout when the coffee maker is reused again.

You can perform a manual rinsing cycle to clean the coffee nozzle after use. It is also suggested to perform a manual rinsing if the appliance has not been used for a long period of time.

1. In standby condition, press and hold the and hot water button

Cleanng33 / EN Fully Automatic Coffee Machine / User Manual

2. wll flashng. The coffee nozzle will then dispense a small amount

of water which is used for the rinising.

Water comes out of the coffee nozzle is hot and is collected in the drip tray underneath. Avoid contact with splashes of water.

3. After rinsing, the appliance will return to the standby condition.

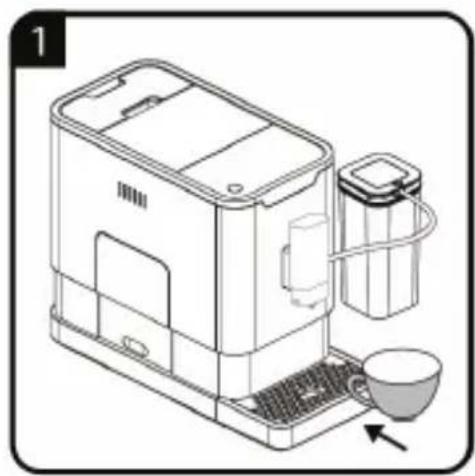

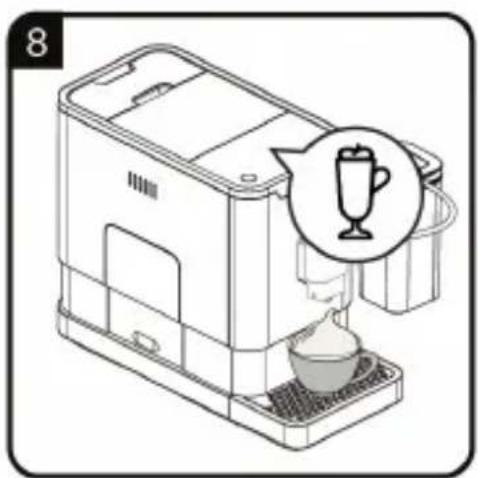

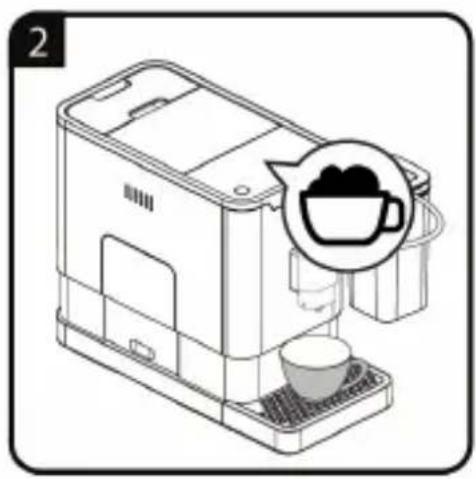

Water The machine can memorize your desired volume of coffee and hot water. Preparing quantity for Latte Macchiato /Cappuccino/Coffee

1. Place a cup under the spout

se the button when mlk froth reaches your desred volume. Mlk froth stops wth two beep sounds and the volume s now stored.

5. If machne dspenses coffee, touch and hold the button to contnue and re-

lease the button when coffee reaches your desred volume. Coffee stops wth two beep sounds and the volume s now stored. Preparing quantity for Hot Water

1. Place a cup under the spout

4. The machne dspenses hot water. Touch and hold the button; release the

button when t reaches your desred volume. Dspensng stops now and the volume s now stored The Latte/Cappuccino/Coffee/Hot water button is programmed: every time it’s pressed, the machine will brew the same amount set. Cancelling the auto-clean mode Your appliance cleans itself automatically before and after each brewing operation. You may follow the steps below to cancel the auto-clean mode.

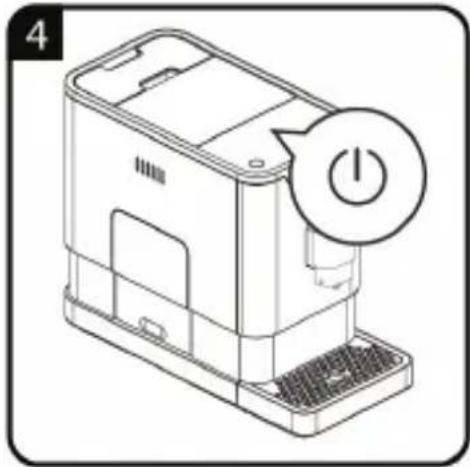

• Turn on the applance by pressng the On-Off swtch and wat untl t engages the Stand-by poston.

• Open the servce cover.

• Press the On-Off swtch for 5 seconds, a beep shall be heard.

• Close the servce cover.

• Now, the auto-clean operaton s cancelled. We recommend you to use the auto-clean mode actively for a healthy operation.35 / EN Fully Automatic Coffee Machine / User Manual Problem Cause Solution The appliance does not work. The appliance is not connected to the mains. - Plug in and press the switch. - Check the cable and the Plug No or delayed response in sev- eral trials of pressing on func- tion key on the panel - Appliance is under an electro- magnetic interference - Dirt over the panel Unplug the appliance. Restart after few minutes Clean the panel with the cloth provided The coffee is not hot enough. - The cups have not been pre- heated. - The brewing unit is too cold. Rinse the appliance at least 3 times before making the cof- fee. The coffee cannot come out from spout. Empty system function maybe used before. Press the hot water button until water can come out from spout. The first cup of coffee is poor quality. The first run of grinder does not pour sufficient quantity coffee power into the brew- ing unit. Throw the coffee away. The other coffees will always be of good quality. Coffee has no cream. - Coffee bean is not fresh. Change or using appropriate brand of coffee bean. The touch buttons are not sensitive Not pressing the touch button from the front direction of the appliance Press the lower bottom part of the icon of the touch button from the front direction of the appliance. The appliance takes too long time to warm up. Excessive scale has built up. Descale the appliance. The water tank is removed / the water level is very low in the water tank but have no alert. The area near the water tank connector is wet. Wipe the water around the wa- ter tank connector Internal drip tray is filled with a lot of water. Coffee powder too fine which block the water to come out. Adjust the coffee fineness to bigger dot during grinder op- eration.

Troubleshootng Problem Cause Solution Coffee is delivered too slowly or a drop at a time. Coffee powder too fine which block the water to come out. Adjust the coffee fineness to bigger dot during grinder op- eration. Lack of bean indicator flashes but there is still a lot of coffee bean inside the container. Internal coffee powder outlet is blocked. Follow the steps in Cleaning the coffee powder outlet. No milk foam out from the ma- chine The automatic milk frother is dirty or not assembled or in- stalled correctly Clean the automatic milk froth- er and make sure it is correctly assembled or installed. No milk foam out from the ma- chine The hole of Milk tube connector is blocked by milk residues Refer to section “Daily Cleaning of the appliance” ,follow “clean- ing the milk container and con- nection milk tube”, Clean the connector and make sure all the hole on the connector is clean, use needle or bristle of brush to clean the hole. The hole of Milk tube connec- tor is blocked by milk residues which hardly to be cleaned The milk tube connector not be cleaned for a long time Soaking the connection milk tube into warm water for an hour, follow the “cleaning the milk container and connection milk tube” in section “Daily Cleaning of the appliance”, keep using frothing milk func- tion to clean until water come from dispenser smoothly. Use needle or bristle of brush to clean the hole The milk froth is of poor quality The type of milk used is not suitable for frothing Different types of milk result in different amounts of froth and different forth qualities. Semi- skimmed or full-fat cow’s milk gives good results. The temperature of the milk is too high No milk foam out from the ma- chine37 / EN Fully Automatic Coffee Machine / User Manual Problem Cause Solution Milk spray out the table Milk dispensing tube is not put in place Milk foam spray out from dis- penser Descaling indicator keep flash- ing even after the descaling process Decaling process is not com- pleted Please be patient and wait for the process finish. The ma- chine will auto shut off auto- matically , don’t switch off the machine manually The appliance no longer per- forms the rinsing cycle when switched on or off. Improper handling when ser- vicing the appliance may be the cause.

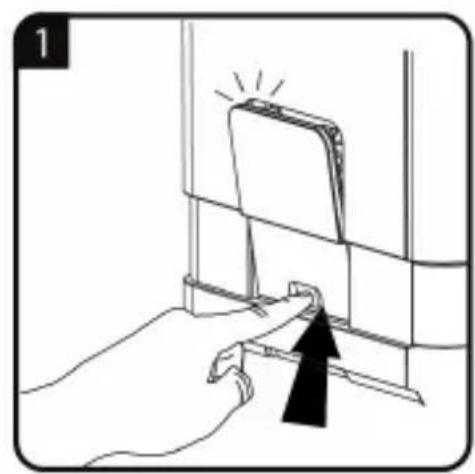

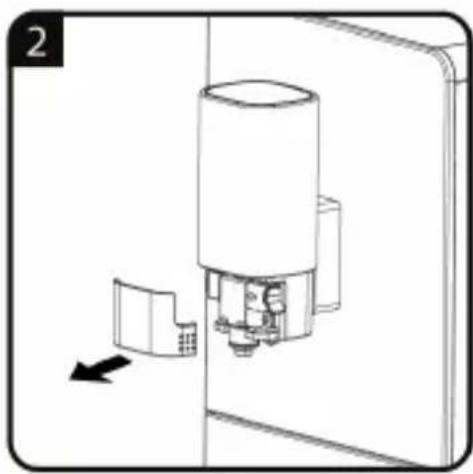

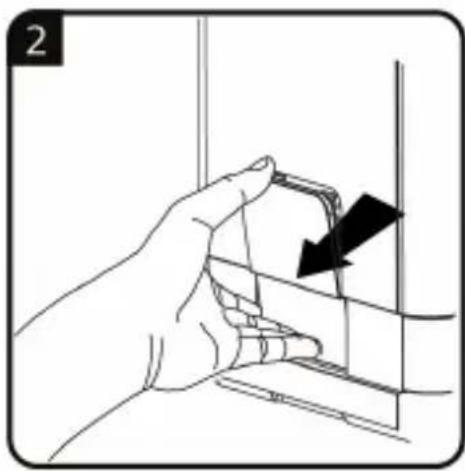

1. When the appliance is on,

remove the coffee group ac- cess door.

2. Press and hold the on/off

button until you hear 2 beeps.
