Features	Details
Product type	Ice maker
Production capacity	Up to 12 kg of ice per day
Cycle time	About 6 to 15 minutes per cycle
Type of ice	Cone-shaped or cube-shaped ice
Water tank	Capacity of 2.2 liters
Dimensions	30 x 25 x 35 cm
Weight	About 10 kg
Power supply	220-240 V, 50 Hz
Energy consumption	150 W
Usage	Ideal for parties, bars, and restaurants
Maintenance	Regular cleaning recommended, descaling depending on water used
Safety	Automatic stop if the tank is empty
Warranty	2 years

Frequently Asked Questions - ICE3 PROLINE

Why is my PROLINE ICE3 ice maker not producing ice?

Check that the machine is plugged in and that the water tank is full. Also make sure the lid is properly closed.

How do I clean my PROLINE ICE3 ice maker?

Unplug the machine, empty the tank, and use a mixture of water and vinegar to clean the inside. Rinse well before restarting.

What is the ice production capacity of the PROLINE ICE3?

The PROLINE ICE3 can produce up to 12 kg of ice per day.

How do I adjust the ice size on my PROLINE ICE3?

The PROLINE ICE3 generally offers two ice sizes. Check the control panel to select the desired size.

What should I do if the ice cubes stick together?

This may be due to excessive humidity. Make sure the machine is in a dry place and try separating the ice cubes manually.

Can I use tap water in my PROLINE ICE3?

Yes, you can use tap water, but for better ice quality, it is recommended to use filtered water.

How do I fix excessive noise during operation?

Check that the machine is placed on a flat and stable surface. If the noise persists, there may be an object blocking the mechanism, so inspect the inside.

What should I do if the power indicator light does not turn on?

Make sure the outlet is working and the power cable is properly connected. If the problem persists, contact customer service.

Can the PROLINE ICE3 ice maker be used outdoors?

It is recommended to use the machine indoors, in a temperate environment, to avoid damage from extreme temperatures.

Where can I find spare parts for my PROLINE ICE3?

Spare parts can be ordered from PROLINE customer service or via their official website.

USER MANUAL ICE3 PROLINE

Black ProLine milk carton with control panel and display (no visible text or symbols on body)

Downloaded from www.vandenborre.be

Catalogue

LanguageofIntroductionPage

English

FrenchFR7-FR13

DutchNL14-NL20

SpanishES21-ES27

PortuguesePT28-PT34

EN1-EN6

WARNINGS

- This appliance is intended to be used in household and similar applications such as:

— staffkitchenareasinshops, officesandotherworkingenvironments;
— farmhousesandbyclientsinhotels,motelsandotherresidentialtype environments;
— bedandbreakfasttypeenvironments;
— cateringandsimilarnon-retailapplications.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in asafeway and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agents similarly qualified persons in order to avoid a hazard.

- WARNING:fillwithpotablewatersupplyonly.

- Theapplianceshallnotbeexposedtorain.

- WARNING: Keepventilationopenings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Donotusemechanical devices or other mean to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Donotdamagetherefrigerantcircuit.

EN

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• For disposal of the appliance:

- To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

• For installation, servicing:

- Appliance should be placed on a horizontal surface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

- For handling:

• Always handle the appliance to avoid any damage.

- Regarding the instructions for cleaning surfaces in contact with food, refer to the section "Cleaning and Maintenance" on page 5 of the manual.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

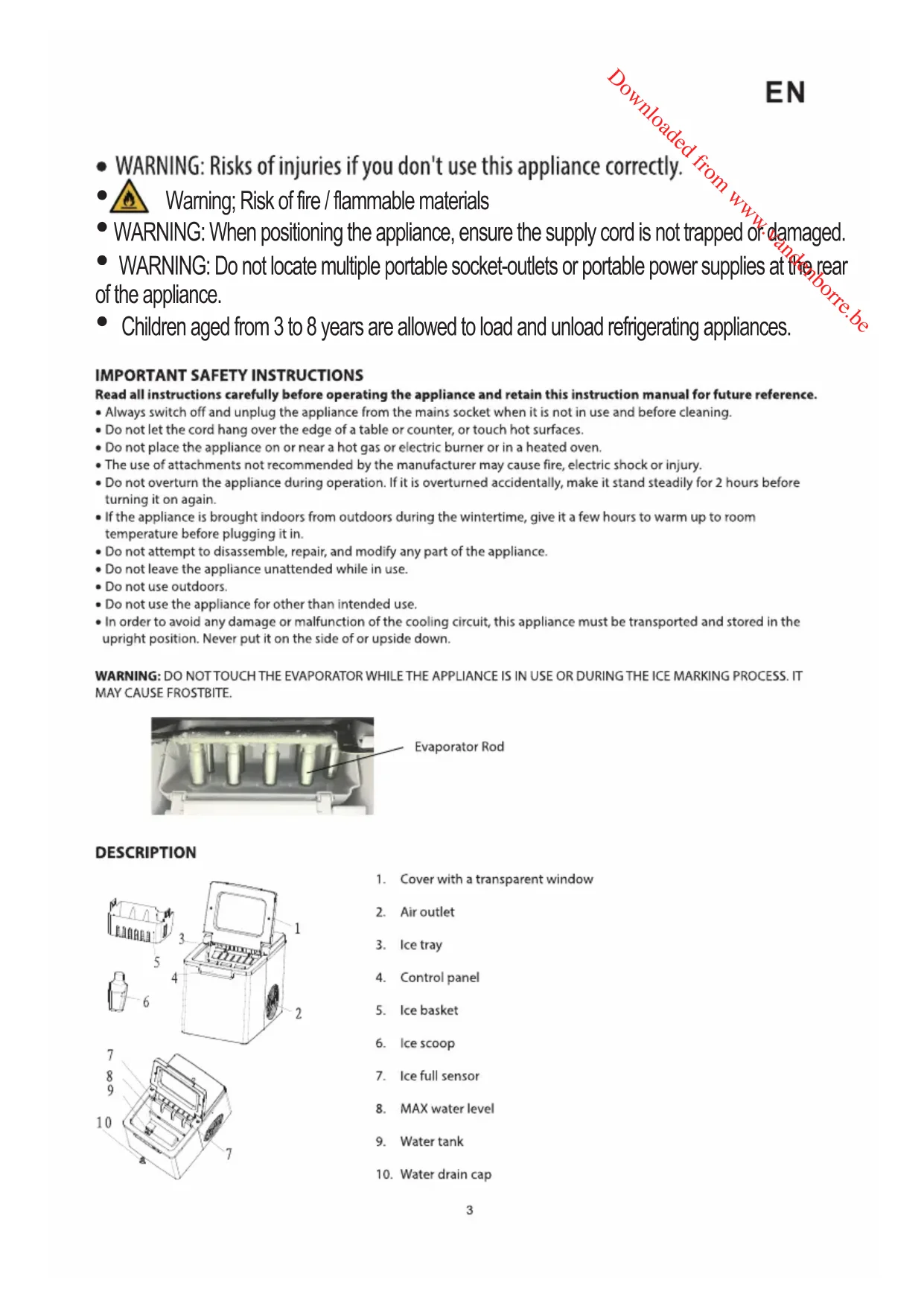

• WARNING: Risks of injuries if you don't use this appliance correctly.
• Warning; Risk of fire / flammable materials
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions carefully before operating the appliance and retain this instruction manual for future reference.

• Always switch off and unplug the appliance from the mains socket when it is not in use and before cleaning.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place the appliance on or near a hot gas or electric burner or in a heated oven.
- The use of attachments not recommended by the manufacturer may cause fire, electric shock or injury.
- Do not overturn the appliance during operation. If it is overturned accidentally, make it stand steadily for 2 hours before turning it on again.
- If the appliance is brought indoors from outdoors during the wintertime, give it a few hours to warm up to room temperature before plugging it in.
- Do not attempt to disassemble, repair, and modify any part of the appliance.
- Do not leave the appliance unattended while in use.
- Do not use outdoors.
- Do not use the appliance for other than intended use.
- In order to avoid any damage or malfunction of the cooling circuit, this appliance must be transported and stored in the upright position. Never put it on the side of or upside down.

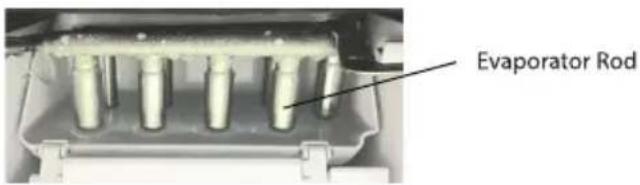

WARNING: DO NOT TOUCH THE EVAPORATOR WHILE THE APPLIANCE IS IN USE OR DURING THE ICE MARKING PROCESS. IT MAY CAUSE FROSTBITE.

Evaporator Rod

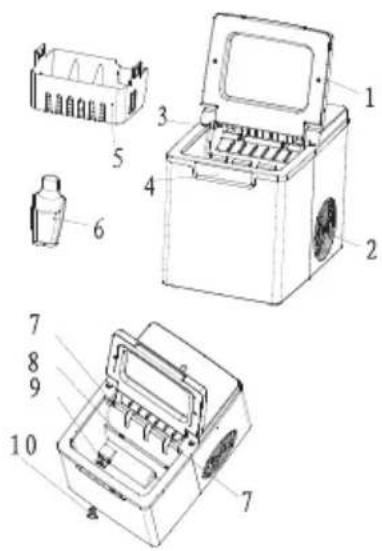

DESCRIPTION

Technical diagram of a washing machine with numbered parts for identification

1. Cover with a transparent window
2. Air outlet
3. Ice tray
4. Control panel
5. Ice basket
6. Ice scoop
7. Ice full sensor
8. MAX water level
9. Water tank
10. Water drain cap

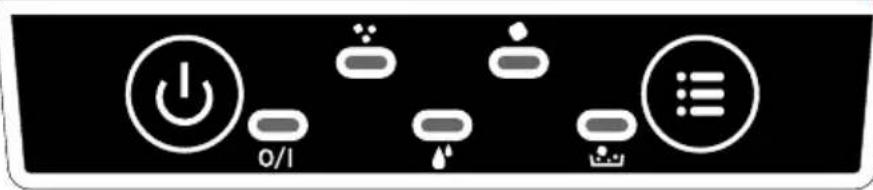

ControlPanel

0/1

Buttons:

PowerON/OFFSelecting cubesize

Indicatorlights:

Power

adding water

Ice full

Small ice cube

Large ice cube

BEFOREFIRSTUSE

• Beforeuse,cleantheinteriorwithlukewarmwaterandasoftcloth.
• Removetheicebasketandicescoopandwashtheminwarmwater.Wipecleantheevaporatorrodsusingawater/vinegar solution.
• Place the appliance on a flat stable surface. It must be positioned so that the plug is accessible. Make sure that there is at least20cmofspacebetweenthebackandsidesoftheapplianceandthewall.
• Allowtherefrigerantfluidtosettlefor2hoursbeforepluggingintheappliance.

OPERATION

1. Ensure the rain cap on the bottom of the appliance is well closed.

2. Openthecover, removetheicebasketandpourwaterintotank.

3. Do not fill the tank with hot water. This may damage the ice maker. It is best to fill it with water at room temperature or lower.

4. KeepwaterlevelbelowtheMAXlevel.

5. Placetheicebasketback into the i cemaker and closethecover.

6. Plug the appliance in themains socket.

- Thepowerindicatorlightwill

5.Press

tobegintheicemakingcycle.

• Thepowerindicatorlightwil +/ flashing.

flashing.

6.Selectthesizeoftheicecubebypressing

1. Theicemakingcyclelasts7to15minutes,dependingonselectionoficecubesizeandroomtemperature.

- Therecommendedroomtemperatureforicemakingis 10^ to 32^ .

1. While the appliance is working, check water level periodically.

- When the water tank is empty or significantly lacking water, the indicator light will illuminate and the ice-making cycle will stop automatically.

- Press 📍 to turn off the appliance, fill the tank with water up to the MAX level and press 📍 again to turn on the appliance.

1. The appliance will automatically stop working when the ice basket is full.

- Theindicatorlightwill dominate. Gentlyremove the ice from the ice basket with the icescoop. After about 5 seconds, the icemaker will restart the icemaking cycle automatically.

- You can also press 🤿 to stop the ice making cycle when you have obtained desired amount of ice.

1. Openthecoverandtransfertheicetoafreezer.

NOTE: The ice will stay frozen in the ice maker for up to 18 hours, depending on the ambient temperature. 11. Change water in the water tank weekly to ensure a reasonable hygiene level. If the appliance is not in use, drain all the water and dry the tank.

CLEANING AND MAINTENANCE

Turn off and unplug the appliance from the mains socket before cleaning.

Remove the ice basket.

Pull the drain cap out of the drain outlet to drain out the water.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Fill the tank with clean water up to the max line. Press and hold ⏻ for about 10 seconds and the water pump will start working. After about 15 minutes, the appliance will enter the standby state. Pull the drain cap out of the drain outlet to drain out the water.

Clean the interior with diluted detergent, warm water and a soft cloth.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of warm clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food. Correct food hygiene practices should always be followed at all times to avoid possibility of food poisoning /cross contamination.

The outside of the appliance should be cleaned regularly with a mild detergent solution and warm water.

Dry the interior and exterior with a soft cloth.

Never immerse the appliance in water.

Insert the drain cap into the drain outlet.

When the appliance is not in use, remove drain cap to drain water completely from the tank.

Clean the ice basket and ice scoop under running water. Do not use any abrasive or chemical cleaner.

TROUBLESHOOTING

Problem			Possible Cause	Possible Solution
The indicator light		illuminates.	Water level is low.	Turn off the appliance, fill the tank with water, and restart.
The indicator light		illuminates.	Ice basket is full.	Remove ice from ice basket.
The indicator lights		and	The ice tray is not in the right position.	Check if it is blocked. Turn off and unplug the appliance and plug it in again, then restart the appliance.
Illuminate.
Ice cubes stick together.			Ice making cycle is too long.	Turn off the appliance, and restart when the ice blocks melt. Select the small ice size.
			Water temperature in the tank is too low.	Change the water in the tank. Temperature of water recommended at 8°C to 25°C.
Ice making cycle is normal but no ice formed.			Room temperature or water temperature in the tank is too high.	The room temperature should be 10°C to 32°C and water temperature should be 8°C to 25°C.
			Refrigerant in cooling system leaks.	Consult a qualified technician.
			Pipe in the cooling system is blocked.	Consult a qualified technician.

SPECIFICATIONS

Power Supply: 220 - 240V\~ 50Hz

Climate Class: ST/SN/N/T

Rated electric current: 0.8A

Refrigerant: R600a / 29g

Power: 105W

Heat insulation material: Cyclopentane

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials and if applicable, batteries. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components and may contain batteries, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance and if applicable, batteries should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

ETABLISSEMENTS DARTY ET FILS © 129 AVENUE GALLIENI 93140 BONDY FRANCE. 06/06/2019

ATTENTION

Symbolic icon of a person moving with arrows, enclosed in a circle (no text or symbols)

CONSIGNE POUVANT VARIER LOCALEMENT > WWW.CONSIGNESDETRI.FR

CONSIGNES DE SÉCURITÉ IMPORTANTES

Close-up of a mechanical component with multiple cylindrical pins and an arrow pointing to a feature (no visible text or symbols)

Technical diagram of an appliance with numbered parts, including a container and fan assembly

7 8 9 10 7

Pure mechanical diagram showing a lever and gear assembly without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Hotline Darty France

Technical diagram of a portable washing machine with numbered parts for identification

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of an appliance with numbered parts, including a container, fan, and battery.

7 8 9 10 7

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Close-up of a mechanical component with multiple cylindrical pins, no visible text or symbols

Vareta do Evaporador

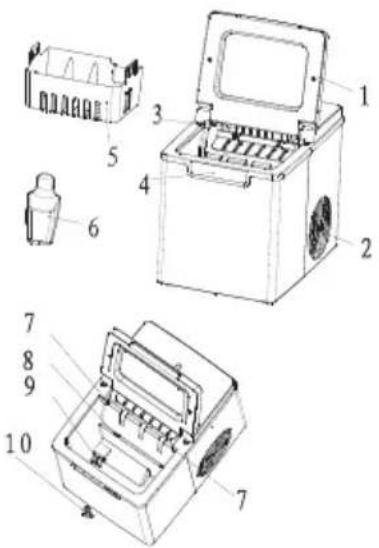

DESCRIÇÃO

Technical diagram of a portable appliance with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

EU Declaration of Conformity N°86201906047

Product Description - Ice Maker

We declare that the above product has been evaluated and deemed to comply with the requirements of the listed European Directives and standards:

Reference number	Title
2014/30/EU	EMC Directive (EMC)
2014/35/EU	Low Voltage Directive (LVD)
2009/125/EC	Eco design requirements for energy-related products (ErP)
2011/65/UE	RoHS

EMC:

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

LVD:

EN 60335-2-24:2010+A1:2019+A2:2019

EN 60335-1/A11:2014+A13:2017

EN 62233:2008

ErP:

(EC)No.1275/2008

2009/125/EC

(EU)No 801/2013

(EC)No 642/2009

EN 50564:2011

EN 62087:2012

The person responsible for this declaration is:

Position - Poste: General Manager Direct Sourcing

Signature - Signature:

Place, Date / Lieu :

Bondy, June 26, 2019

€
