Product Type Wine Cellar
Brand Danby
Model DWC040A3BSSDD
Capacity 38 Bottles (750 ml)
Number of Zones 2 (Upper and Lower)
Temperature Range 5°C to 18°C (41°F to 64°F)
Digital Display Yes, with °C/°F indicator
Interior Lighting Yes (switched by button and door)
Open Door Alarm Yes (after 5 minutes)
Temperature Alarm Yes (HI, LO, CL codes)
Automatic Defrost Yes
Door Type Tempered Glass with UV Protection
Door Reversal Possible
Handle To be installed (supplied)
Adjustable Legs Yes (2 leveling feet)
Dimensions (W x H x D) 49,3 x 84,6 x 63,5 cm
Power Supply 115 V / 60 Hz
Refrigerant R600a (flammable)
Warranty 1 year on functional parts
Customer Service 1-800-263-2629 (Canada/U.S.)

Frequently Asked Questions - DWC040A3BSSDD DANBY

How to adjust the temperature of the wine cellar?
Use the upper and lower temperature buttons to adjust each zone. Press the Up or Down button to adjust in increments of 1°. To switch between °C and °F, press both buttons simultaneously for 3 to 5 seconds. The default temperature is 12°C (54°F).
What to do if the alarm sounds while the door is closed?
Check that the actuator at the bottom of the door is in contact with the unit switch. If the alarm persists, clean the contact area. The open door alarm triggers after 5 minutes of opening.
How to reverse the door opening direction?
Unplug the unit. Remove the hinge cover, top hinge and door. Move the plugs, bottom hinge and solid foot to the other side. Turn the door 180° and reinstall the actuator. Reassemble the door and top hinge. Wait 6 hours before plugging back in.
What is the maximum bottle capacity?
The wine cellar can hold up to 38 bottles of 750 ml. Arrange 7 bottles per shelf on the 4 upper shelves alternating (head-to-tail), and 5 bottles on each lower shelf.
What do the error codes HI, LO and CL mean?
HI: internal temperature above 23°C for more than one hour. LO: temperature below 0°C. CL: temperature stayed at 0°C for more than 30 minutes (unit stops). Unplug the unit for 5 minutes to reset. If the code persists, contact customer service.
How to clean the interior of the wine cellar?
Unplug the unit. Use a soft cloth with a solution of one tablespoon of baking soda in a quart of water, or a mild detergent. Never use products containing ammonia or alcohol. Removable shelves can be washed separately.
Can I install this wine cellar outdoors?
No, this unit is designed for indoor household use only. Do not install it in a garage, patio, or any non-air-conditioned place. Avoid direct sun exposure or heat sources.
How to control the interior lighting?
Press the Light button: once to turn off the light when the door is open (it returns to auto mode when closing the door), twice to activate continuous lighting (stays on even when door closed). A new press cancels continuous mode.
What to do in case of a prolonged power outage?
Minimize door opening. If the outage lasts several months (vacation), empty the unit, unplug it, clean and dry the interior, and leave the door ajar to avoid odors and mold. Wait 3 to 5 minutes before restarting after power returns.
How to level the unit?
Turn the two adjustable feet at the bottom of the unit: counterclockwise to extend until touching the floor, then clockwise to adjust the height until the unit is level. Use a spirit level if necessary.

User questions about DWC040A3BSSDD DANBY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Wine cellar in PDF format for free! Find your manual DWC040A3BSSDD - DANBY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DWC040A3BSSDD by DANBY.

USER MANUAL DWC040A3BSSDD DANBY

Owner's Manual....1 - 9

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: ____

Serial Number: ____

Date of Purchase: ____

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

DANBY DWC040A3BSSDD - Save time and money: - 1

natural_image Simple black telephone handset icon inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

DANBY DWC040A3BSSDD - Save time and money: - 2

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

  • Do not use mechanical devices to defrost refrigerator.
  • Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
  • Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
  • Dispose of properly in accordance with federal or local regulations.
    • Follow handling instructions carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

  • Remove the door or lid.
  • Leave shelves in place so that children may not easily climb inside.

This appliance is intended to be used in household and similar applications such as:

  • Staff kitchen areas in shops, offi ces and other working environments;
  • Farm houses and by clients in hotels, motels and other residential type environments;
    • Bed and breakfast type environments;
    • Catering and similar non-retail applications.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS

LOCATION

  • Two people should be used when moving the appliance.
  • Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
  • Place the appliance on a floor that is strong enough to support it when it is fully loaded.
  • Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
  • Do not use the appliance near water, for example in a wet basement or near a sink.
  • This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
  • Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • This appliance is 19.4 inches (49.3 cm) wide by 33.3 inches (84.6 cm) high by 25 inches (63.5 cm) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.
  • Allow 5 inches (12.7 cm) of space between the back, sides and top of the appliance and all adjacent walls.
  • This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

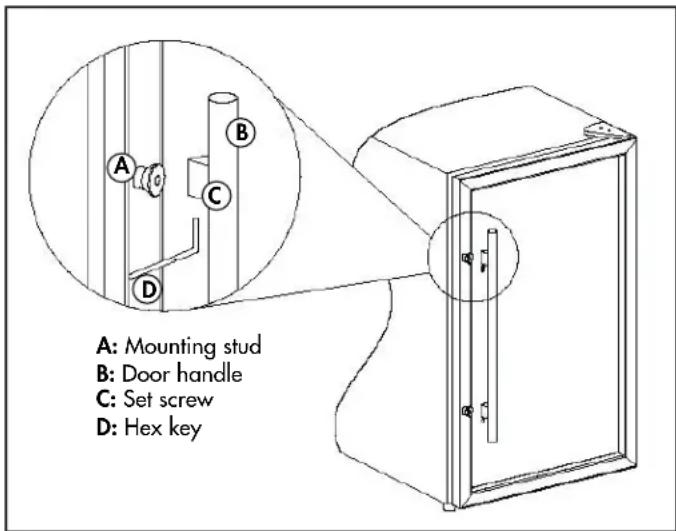

DOOR HANDLE INSTALLATION

The door handle is not pre-attached to the appliance, it is shipped separately to protect it from damage and it must be installed by the end user.

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

  1. Remove the door handle and hex key from the hardware bag inside the appliance.
  2. Place the handle on the mounting studs on the outside of the door. Set screws are pre-installed in the handle. The set screws should face down when installed correctly. There are two extra set screws in the hardware bag.
  3. Push the door handle tightly against the door.
  4. Insert the short end of the hex key into the set screw and tighten 1/4 turn past snug. Set screw will not be recessed into the handle.
  5. Repeat step 4 for the other set screw.
  6. Keep the hex key and installation instructions for future use.

A: Mounting stud B: Door handle C: Set screw D: Hex key

INSTALLATION INSTRUCTIONS

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

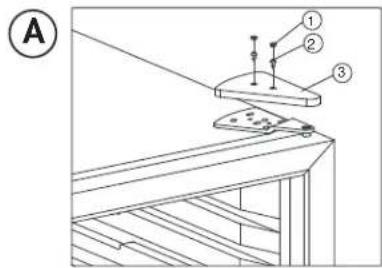

  1. Remove the two screws securing the hinge cover and remove the hinge cover. See figure A.
  2. Remove the three screws securing the upper hinge and remove the upper hinge. Remove the door from the chassis. See figure B.
  3. Remove the hole plugs from the left side of the chassis and place them in the screw holes on the right side of the chassis. See figure C.

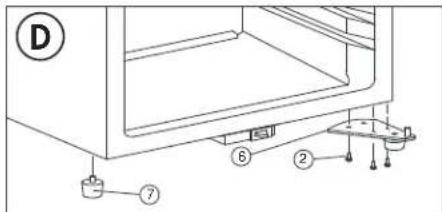

  4. Remove the solid foot from the left side of the chassis and remove the three screws securing the lower hinge on the right side of the chassis. Install the solid foot on the right side of the chassis and the lower hinge on the left side of the chassis. See figure D.

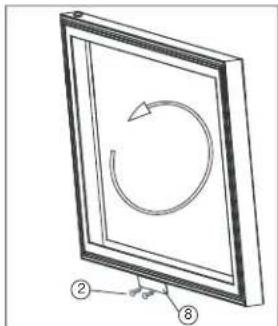

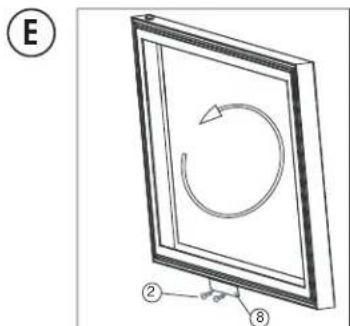

  5. Before reinstalling the door, remove the two screws securing the actuator to the bottom of the door. Flip the door 180° from its original position and use two screws to reinstall the actuator. Screw holes cane be found by gently pulling back the rubber gasket. See figure E.

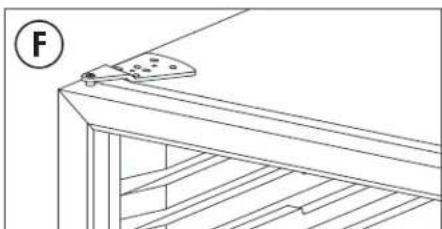

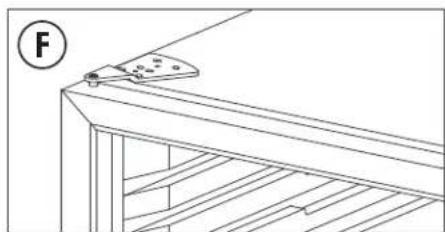

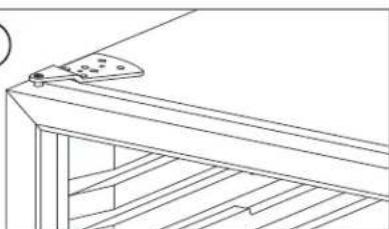

  6. Install the door on the lower hinge and then install the upper hinge on the left side of the chassis. Before tightening the screws in the upper hinge, ensure that the top of the door is properly aligned with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around. Use two screws to install the hinge cover. See figure F.

  7. Rubber Screw Covers

  8. Screws
  9. Hinge Cover
  10. Upper Hinge
  11. Hole Plugs
  12. Lower Hinge
  13. Solid Foot
  14. Actuator

A ① ② ③

B ② ④

DANBY DWC040A3BSSDD - DOOR REVERSAL INSTRUCTIONS - 3

natural_image Simple line drawing of a corner structure with two vertical posts and a numbered label (5), no text or symbols present.

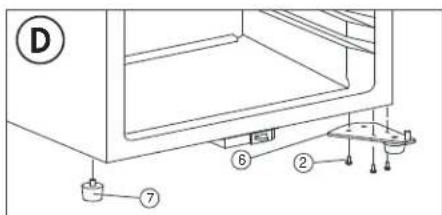

D ⑦ ⑥ ②

E ② ⑧

DANBY DWC040A3BSSDD - DOOR REVERSAL INSTRUCTIONS - 6

natural_image Line drawing of a cabinet or shelf with a handle and a circular icon labeled 'F' (no text or symbols on the diagram itself)

OPERATING INSTRUCTIONS

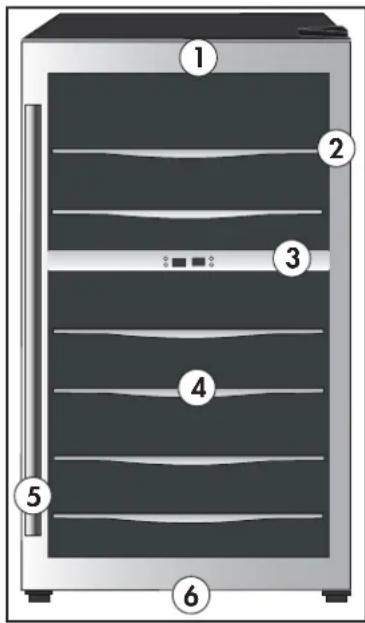

FEATURES

  1. Tempered Glass Door: Tinted UV glass used to reflect and absorb heat.
  2. Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.
  3. Electronic Display and Controls: For viewing and regulating the temperature of the wine cooler.
  4. Shelves: Black wire shelves with stainless look trim.
  5. Handle
  6. Leveling Legs: Adjust to level the appliance.

Diagram of a refrigerator with numbered parts labeled 1 through 6 for identification.

LEVELING INSTRUCTIONS

There are two adjustable feet on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

  1. Turn the leveling feet counter-clockwise until the top of the feet are touching the bottom of the cabinet.
  2. Slowly turn the leveling feet clockwise until the appliance is level.

DANBY DWC040A3BSSDD - LEVELING INSTRUCTIONS - 1

natural_image Pure mechanical diagram showing a rotating component with bidirectional arrows indicating motion (no text or symbols)

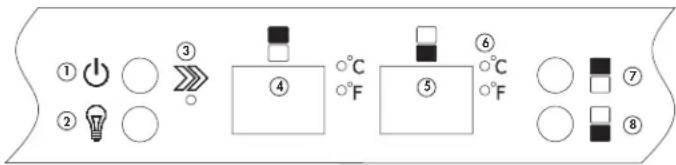

CONTROL PANEL

  1. Power Button: Press once to turn the appliance on. Press and hold for 3 seconds to turn the appliance off.
  2. Light Button: Controls the interior light.
  3. Power Light: Illuminates to indicate that cooling mode is in operation.
  4. Upper Display: Shows the temperature in the upper zone.
  5. Lower Display: Shows the temperature in the lower zone.
  6. °C / °F indicator: Adjacent indicator illuminates to show which temperature scale is being displayed.
  7. Upper Temperature Button: Used to set the temperature in the upper zone.
  8. Lower Temperature Button: Used to set the temperature in the lower zone.

DANBY DWC040A3BSSDD - CONTROL PANEL - 1

The interior light will default to turning on and off when the door is opened or closed.

Press the light button once to turn the light off while the door is open. The light will resume default functioning when the door is closed.

Press the light button twice to set the light to continuous illumination. The light will remain on when the door is opened and closed.

When the light is set to continuous illumination, press the light button once to return to default functioning.

OPERATING INSTRUCTIONS

FUNCTION INSTRUCTION

The default temperature setting is 54^ F ( 12^ C). The default temperature scale is ^ F.

To switch the display between °F and °C, press the Up and Down buttons simultaneously for approximately 3-5 seconds.

The temperature range can be set as low as 41^ F ( 5^ C) or as high as 64^ F ( 18^ C).

Actual temperature inside the appliance can vary based on ambient temperature, how often the door is opened and how many warm bottles have recently been added to the appliance.

Each depression of the Up and Down buttons will adjust the temperature in 1^ increments.

Door Ajar Alarm: If the door is not closed completely for 5 minutes, an alarm will sound. Close the door to silence the alarm.

If the door is closed and the alarm continues to sound, check that the actuator at the bottom of the door is making contact with the switch on the appliance.

Temperature Memory: If the appliance loses power, the control panel will remember the set temperature. Once power is restored, the appliance will return to normal functioning automatically.

Temperature Alarm: If the inner cabinet temperature is higher than 73^ F ( 23^ C) the error code "HI" will show on the display panel and an alarm will sound.

If the inner cabinet temperature is lower than 32^ F ( 0^ C) the error code "LO" will show on the display panel and an alarm will sound.

If the inner cabinet temperature remains at 32^ F ( 0^ C) for more than 30 minutes, the error code "CL" will show on the display panel and an alarm will sound. The appliance will stop functioning to prevent the contents from freezing.

STORAGE INSTRUCTIONS

The maximum capacity of this appliance is 38 wine bottles of 750 ml size.

Position wine bottles alternately (head-to-tail) on each of the upper 4 shelves. This will allow storage of 7 bottles per shelf. See figure A.

Position 5 wine bottles on the bottom two shelves. See figure B.

DANBY DWC040A3BSSDD - STORAGE INSTRUCTIONS - 1

natural_image Diagram of a multi-volume mechanical component with five cylindrical cavities (no text or labels)

DANBY DWC040A3BSSDD - STORAGE INSTRUCTIONS - 2

natural_image Line drawing of a multi-layered plastic container or tray structure (no text or symbols)

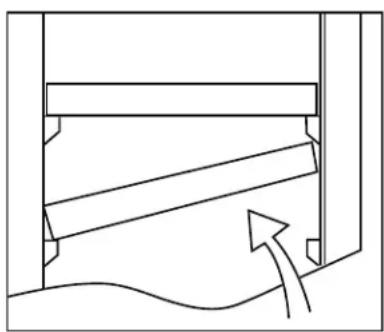

SHELF INSTRUCTIONS

Do not cover shelves with aluminum foil or any other material as this will impede air flow inside the cabinet and can adversely affect the interior cabinet temperature.

  1. To remove a shelf, tilt one side up and then pull outward.
  2. To replace a shelf, ensure it is resting securely on the support brackets and then slide the shelf in until it locks into place.

DANBY DWC040A3BSSDD - SHELF INSTRUCTIONS - 1

natural_image Pure mechanical diagram showing a lever mechanism with an arrow indicating motion (no text or symbols)

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

  • To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
  • Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
  • Clean the outside with a soft, damp cloth and some mild detergent.
  • It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted.

ERROR CODES

If the "HI", "LO" or "CL" error codes appear on the display for more than 5 minutes, a power reset may rectify the issue. Unplug the appliance, wait 5 minutes and then plug the unit back in. If the error code persists after a power reset, contact consumer care or an authorized service agent.

DEFROST

This unit is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

  • Short vacations: Leave the appliance operating during vacations of less than three weeks.
  • Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Make sure the appliance is empty.
- Secure the shelves with tape.
- Secure the door with tape.
- Turn the adjustable foot up to the base to avoid damage.
- Protect the outside of the appliance with a blanket or similar item.
- Be sure the appliance stays in the upright position during transportation.
- If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE
No power • A fuse may be blown or the circuit breakertrippedPlug not fully inserted into the wall outlet
Internal temperature not cold enoughAppliance runs continuouslyAlarm sounding and “HI” on the display panelDoor is not shut properly or opened excessivelyExhaust vent is obstructedRecently added a large quantity of warm bottles to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very highPossible system leak, evaporator fan failure or compressor failure
Condensation on the cabinet or door • Door is notshut properly or opened excessivelyAmbient temperature or humidity is very high
Alarm sounding and “LO” or “CL” on the display panelAmbient temperature is excessively lowSensor failureEvaporator temperature is too low

LIMITED "IN HOME" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (i.e. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

In Home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: |519| 837-0920 FAX: |519| 837-0449

1-800-263-2629

04/17

Danby Products Inc

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: (419) 425-8627 FAX: (419) 425-8629

Bienvenue

natural_image Simple line drawing of a corner structure with two vertical posts and a numbered label (5), no text or symbols present.

D ⑦ ⑥ ②

E ② ⑧

DANBY DWC040A3BSSDD - Bienvenue - 3

natural_image Technical line drawing of a roof structure with ladder and support bracket (no text or symbols)

CONSIGNES D'UTILISATION

CARACTÉRISTIQUES

INSTRUCTIONS DE NIVEAU

natural_image Pure diagram of a mechanical or electrical component with bidirectional arrows indicating rotation, no text or symbols present.

PANNEAU DE CONTRÔLE

LUMIÈRE INTÉRIEURE

natural_image Diagram of a multi-stage bottle holder or rack with five bottles, no text or symbols present

DANBY DWC040A3BSSDD - LUMIÈRE INTÉRIEURE - 1

natural_image Line drawing of a multi-layered plastic container or tank structure (no text or symbols)

INSTRUCTIONS D'ÉTAGÈRE

natural_image Pure mechanical diagram showing a lever mechanism with an arrow indicating motion (no text or symbols)

SOINS ET ENTRETIEN

NETTOYAGE

B
Technical diagram showing a structural support system with labeled components and an upward arrow indicating direction.

C
DANBY DWC040A3BSSDD - NETTOYAGE - 2

natural_image Simple line drawing of a corner structure with two vertical posts and a numbered label (5) on the top edge (no text or symbols beyond labels)

D
Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

E
DANBY DWC040A3BSSDD - NETTOYAGE - 4

natural_image Diagram of a rectangular frame with an arrow indicating clockwise rotation, labeled with numbers ② and ⑧ (no text or symbols on the frame itself)

F
DANBY DWC040A3BSSDD - NETTOYAGE - 5

natural_image Line drawing of a cabinet shelf with ladder and tray (no text or symbols)
natural_image Pure mechanical diagram showing a rotating component with bidirectional arrows indicating motion (no text or symbols)

PANEL DE CONTROL

natural_image Diagram of a multi-stage bottle arrangement in a rack, labeled with circled number A (no text or symbols on the diagram itself)

DANBY DWC040A3BSSDD - PANEL DE CONTROL - 1

natural_image Line drawing of a multi-layered plastic container or holder structure (no text or symbols)
natural_image Pure mechanical diagram showing a piston-cranked mechanism with an arrow indicating motion (no text or symbols)

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [519] 837-0920 FAX: [519] 837-0449

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: (419) 425-8627 FAX: (419) 425-8629

NOTES / REMARQUES / NOTAS :

NOTES / REMARQUES / NOTAS :

NOTES / REMARQUES / NOTAS :

DANBY PRODUCTS LIMITED, ONTARIO, CANADA N1H 6Z9

DANBY PRODUCTS INC., FINDLAY, OHIO, USA 45840

Printed in China

Imprimé en Chine

Impreso en China

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : DANBY

Model : DWC040A3BSSDD

Category : Wine cellar
