| Product type | Wine cooler |
| Brand | Danby |
| Model | DBC057A1BSS |
| Dimensions (W x H x D) | 60.5 x 88.7 x 64.5 cm |
| Weight (estimated) | 30 kg |
| Power supply | 115 V ~ 60 Hz |
| Temperature range | 3 °C to 18 °C (38 °F to 64 °F) |
| Capacity | 154 cans of 355 ml |
| Door type | Low-E glass |
| Interior lighting | Blue LED, switch-controlled |
| Display | Electronic, °C/°F selection |
| Panel lock | Yes, press 3 seconds |
| Defrost | Automatic |
| Ventilation | Front (front breathing) |
| Door reversal | Possible (kit included) |
| Leveling legs | Yes, adjustable |
| Refrigerant | Flammable (type not specified) |
| Interior cleaning | Soft cloth + baking soda or mild soap |
| Warranty | 12 months parts and labor (in-home) |
| Error code C0 | System communication fault |
| Error code E1 | Interior sensor fault |
| Error code E2 | Defrost sensor fault |
| Error code dr | Door open >1 minute |
| Error code EH | Internal temperature >8 °C above set point |
| Error code EL | Internal temperature <8 °C below set point |
Frequently Asked Questions - DBC057A1BSS DANBY
User questions about DBC057A1BSS DANBY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual DBC057A1BSS - DANBY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DBC057A1BSS by DANBY.
USER MANUAL DBC057A1BSS DANBY
Do the right thing.*
OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO
WINE COOLER
Owner's Manual....1 - 10
Welcome to the Danby family.
We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.
You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.
- Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
- Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION after fi lling out a product survey, at www.danby.com/support/product-registration/
Model Number:
Serial Number:
Date of Purchase:
Need Help?
- Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
- Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
- For the Quickest Customer Service, please fill out the web form at www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
- Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.
Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS
DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.
- Do not use mechanical devices to defrost refrigerator.
- Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
- If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
- Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
- Dispose of properly in accordance with federal or local regulations.
- Follow handling instructions carefully.
- Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
CAUTION: Children should be supervised to ensure that they do not play with the appliance.
DANGER: Risk of child entrapment. Before throwing away an old appliance:
- Remove the door or lid.
- Leave shelves in place so that children may not easily climb inside.
This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.
This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments; - Catering and similar non-retail applications.
GROUNDING INSTRUCTIONS
This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord.
Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.
INSTALLATION INSTRUCTIONS
LOCATION
- Two people should be used when moving the appliance.
- Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
- Place the appliance on a floor that is strong enough to support it when it is fully loaded.
- Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
- Do not use the appliance near water, for example in a wet basement or near a sink.
- This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled such as garages, porches, vehicles, etc.
- Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system.
- This appliance is 23.8 inches (60.5 cm) wide, 34.9 inches (88.7 cm) high at maximum leg height and 25.4 inches (64.5 cm) deep including the handle.

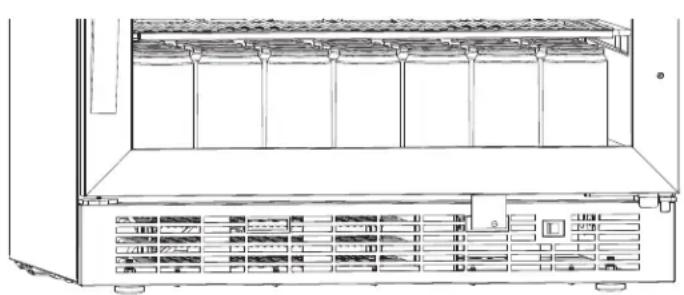

FRONT VENT
This appliance is front breathing. Do not block the front air vent as this will result in high operating temperatures, higher energy usage and possible system overheating and failure.


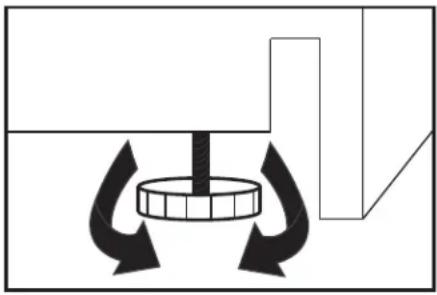

There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level. It is important that the appliance is level to minimize noise and vibration. To level the appliance:
- Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the cabinet.
- Slowly turn the leveling leg clockwise until the appliance is level.


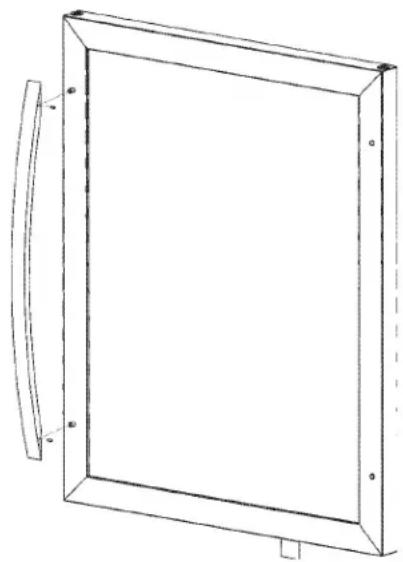

The appliance ships with the handle inside the cabinet to protect it from damage. It must be installed by the end user.
- Position the handle onto the column on the door.
- Tighten the screws in the side of the handle until they are snug.


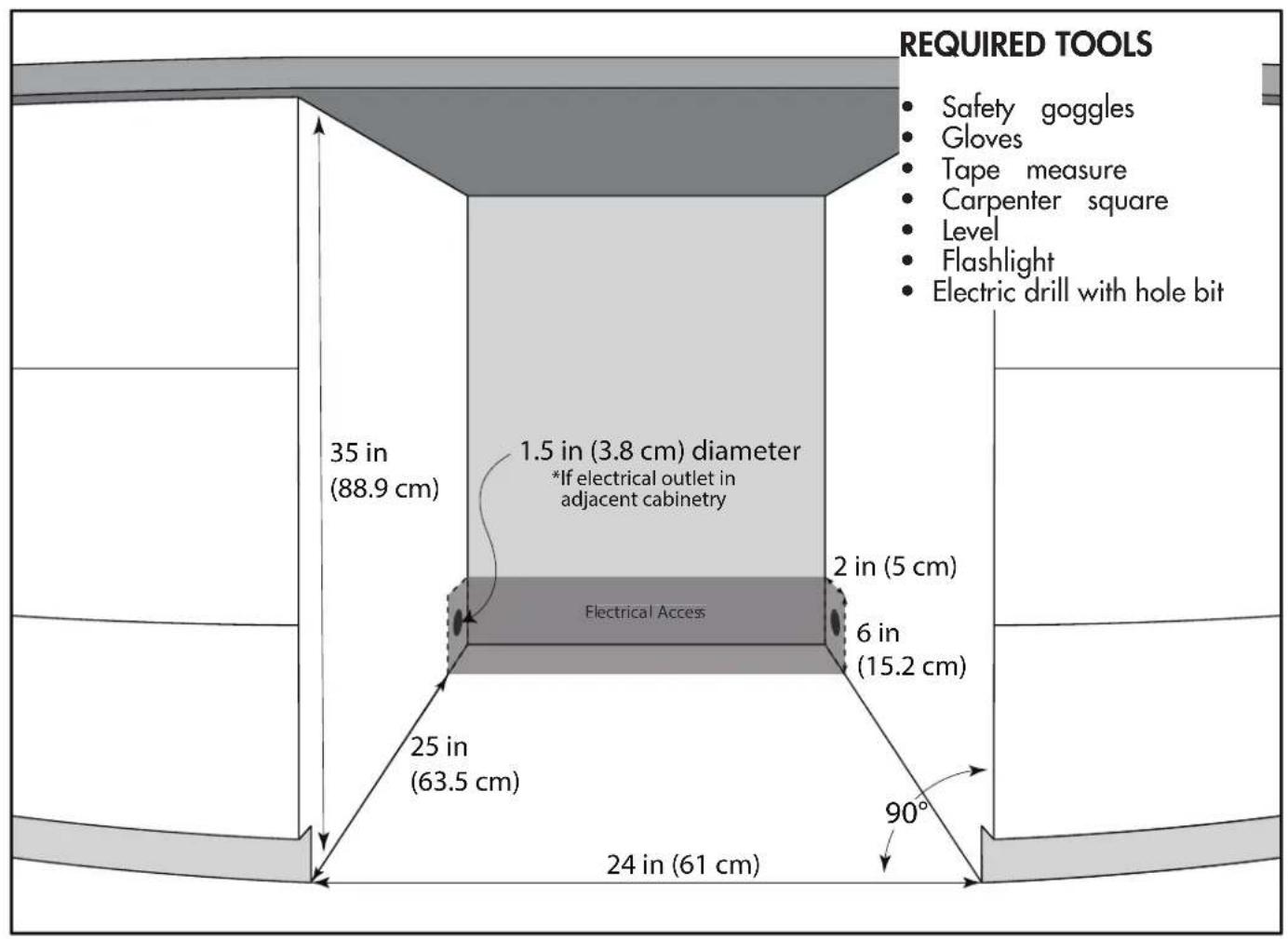

PREPARING THE ENCLOSURE
Gloves and safety goggles should be worn during installation.
It is not recommended to install the appliance into a corner or directly beside a wall. The door will need to be opened more than 90^ to allow full extension of the shelves. If it is necessary to place next to a wall or in a corner, leave at least 2-4 inches (5-10 cm) of space between the wall and the appliance to allow for the door opening.
The cabinet opening must be at least 24 inches (61 cm) wide by 35 inches (88.9 cm) high by 25 inches (63.5 cm) deep.
Note: The listed depth requirement is assuming that the electrical outlet is located in the adjacent cabinetry or flush mounted in the rear wall, not surface mounted inside the enclosure.
If the electrical outlet is located inside adjacent cabinetry, cut a 1.5 inch (3.8 cm) diameter hole to admit the power cord. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.
OPERATING INSTRUCTIONS

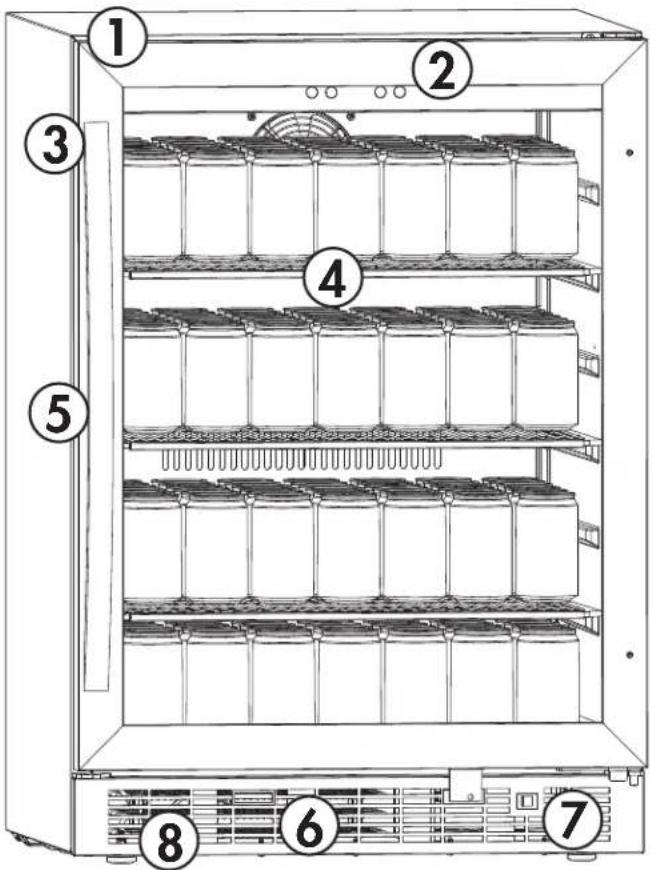

FEATURES
- Low-E Glass Door: Low-E glass used to reflect and absorb heat.
- Electronic Display and Controls: For viewing and regulating the temperature.
- Magnetic Door Gaskets: Tight fl tting seals retain all the cooling power and humidity levels.
- Wire Shelves
- Handle
- Front Mounted Exhaust: Allows for integrated (built-in) applications.
- Light Switch: Allows for constant illumination of the interior of the appliance.
- Leveling Legs: Adjust to level the appliance.
- Interior Light (not shown): Blue LED lighting illuminates the interior without the heat of an incandescent bulb.

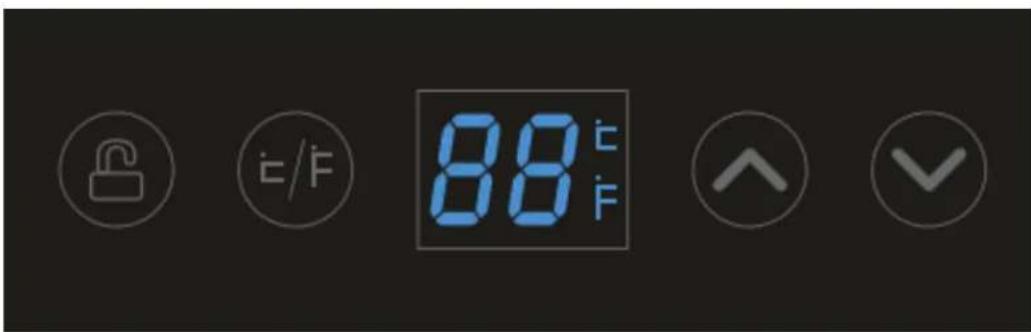

CONTROL PANEL
- Lock Button: Press and hold for 3 seconds to lock the control panel. No buttons can be pressed while the control panel is locked. Press and hold the lock button for 3 seconds to unlock the control panel.
- °C / °F Button: Press to change the temperature display between °C and °F.
- Temperature Display: Shows the set temperature.
- Up and Down Buttons: Used to increase or decrease the set temperature in 1^ increments.
OPERATING INSTRUCTIONS
FUNCTION INSTRUCTION
The default temperature setting is 54^ F ( 12^ C).
The default temperature scale is ^ C.
Press the ^ C/ ^ F button to change the temperature scale.
The temperature can be set as low as 38^ F ( 3^ C) or as high as 64^ F ( 18^ C)
Actual temperature inside the appliance can vary based on ambient temperature, how often the door is opened and how many warm beverages have recently been added to the appliance.
INTERIOR LIGHT
The interior light will default to turning on and off when the door is opened or closed.
The light switch can be used to set the light to constant illumination when the door is both open and closed.
If the door is open for more than 10 minutes, the interior light will automatically turn off.
STORAGE INSTRUCTIONS
The maximum capacity of this appliance is 154 (355 ml) cans.
DEFROST
This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.
Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted.
OPERATING INSTRUCTIONS

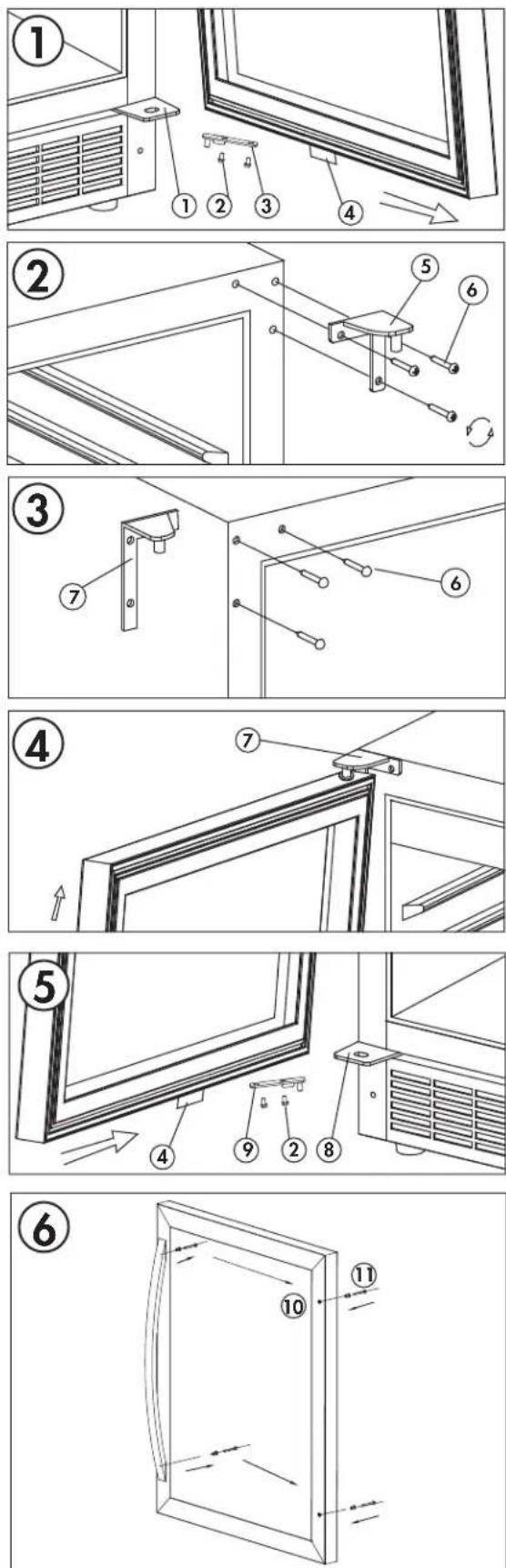

DOOR REVERSAL INSTRUCTIONS
If the appliance is placed on its back or side for any length of time it must be allowed to remain upright for 6 hours before plugging in to avoid damage to internal components.
- Remove the two screws that secure the right hinge axis to the lower right hinge. Slide the door outward from the bottom to remove it from the upper right hinge.
- Remove the upper right hinge from the cabinet.
- Remove the screw hole covers from the upper left side of the cabinet and install the upper left hinge. Place the screw hole covers in the screw holes on the upper right side of the cabinet.
- Remove the hinge hole cover from the upper left side of the door and place it in the hinge hole on the upper right side of the door. Install the door on the upper left hinge.
- Slide the bottom of the door toward the unit to line it up with the lower left hinge. Install the left hinge axis to secure the door to the lower left hinge.
- Loosen the screw on the side of the handle using the provided hexagon spanner. Remove the handle. Remove the door gasket, the bolt and the handle fi xing column on the left side of the door. Install the bolt and the handle fi xing column on the right side of the door. Install the door gasket. Install the handle on the right side of the door using the same screws.
Note: Before tightening the screws to secure the hinge axis, ensure that the top of the door is level with the top of the cabinet, that the actuator on the bottom of the door is making contact with the switch on the cabinet and that the rubber gasket is making a good seal with the cabinet all the way around.
- Lower right hinge
- Axis screws
- Right hinge axis
- Actuator
- Upper right hinge
- Hinge screws
- Upper left hinge
- Lower left hinge
- Left hinge axis
- Handle fi xing column
11.Bolt
CARE & MAINTENANCE
CLEANING
Ensure the appliance is unplugged before cleaning.
- To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
- Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
- Clean the outside with a soft, damp cloth and some mild detergent.
- It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.
Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.
VACATION
- Short vacations: Leave the appliance operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.
MOVING
• Make sure the appliance is empty.
- Secure the shelves with tape.
- Secure the door with tape.
- Turn the adjustable foot up to the base to avoid damage.
- Protect the outside of the appliance with a blanket or similar item.
- Be sure the appliance stays in the upright position during transportation.
- If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.
DISPOSAL
This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.
TROUBLESHOOTING
| PROBLEM POSSIBLE CAUSE | |
| No power • A fuse may be blown or the circuit breaker | trippedPlug not fully inserted into the wall outlet |
| Internal temperature not cold enoughAppliance runs continuously | Door is not shut properly or opened excessivelyExhaust vent is obstructedRecently added a large quantity of warm bottles to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very highPossible system leak, evaporator fan failure or compressor failure |
| Condensation on the cabinet or door • Door is not | shut properly or opened excessivelyAmbient temperature or humidity is very high |
ERROR CODES
| C0 • | control system communication fault |
| E1 • | interior sensor fault |
| E2 • | defrost sensor fault |
| dr • | door is open for more than 1 minute |
| EH | • internal temperature is 8 degrees higher than the set temperature for more than 30 minutes |
| EL • | internal temperature is 8 degrees lower than the set temperature for more than 30 minutes |
If error codes appear on the display for more than 5 minutes, a power reset may rectify the issue. Unplug the appliance, wait 5 minutes and then plug the appliance back in. If the error code persists after a power reset, contact consumer care or an authorized service agent.
LIMITED "IN HOME" WARRANTY
This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.
First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.
To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.
Boundaries of in-home service Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.
Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.
EXCLUSIONS
Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (i.e. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).
Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.
Warranty Service
In Home
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: |519| 837-0920 FAX: |519| 837-0449
1-800-263-2629
04/17
Danby Products Inc
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 FAX: (419) 425-8629
PRÉPARER L'ENCEINTE
PANNEAU DE CONTRÔLE
PROBLÈME CAUSE POSSIBLE
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Pure mechanical diagram showing a rotating component with three curved arrows indicating rotational motion (no text or symbols)natural_image
Technical line drawing of a rectangular frame with mounting holes and a curved side (no text or symbols)geo
| Dimension | Value (cm) | | --------- | ---------- | | Current Diámetro | 1.5 | | Current Current | 2 | | Current Current | 6 | | Current Current | 25 | | Current Current | 24 | | Current Current | 35 | | Current Current | 63.5 | | Current Current | 15.3 | | Current Current | 88.9 | | Current Current | 61 | The chart displays 'HERRAMIENTAS REQUERIDAS' with labels indicating the components and their corresponding values.PANEL DE CONTROL
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: [519] 837-0920 FAX: [519] 837-0449
1-800-263-2629
04/17
Danby Products Inc.
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 FAX: (419) 425-8629
Danby Products Limited, Guelph, ON, Canada N1H 6Z9 Danby Products Inc., Findlay, Ohio, USA 45840
