DWC172BLPDB - Wine cellar DANBY - Free user manual and instructions

Product Type	Wine Cellar
Brand	Danby
Model	DWC172BLPDB
Capacity	17 bottles of 750 ml
Dimensions (W x H x D)	45 cm x 50 cm x 50 cm
Door Type	Tempered tinted glass door with UV protection
Shelves	5 plastic-coated shelves, removable
Temperature Control	Graduated rotary knob (blue), position 0 for off
Temperature Range	Adjustable via knob, no exact values provided
Defrost	Automatic
Door Reversal	Possible, instructions provided
Refrigerant	Flammable, do not puncture tubes
Power Supply	120 V / 60 Hz (North American standard)
Grounding	Required, 3-prong plug
Interior Maintenance	Baking soda solution (1 tbsp per 1 L water) or mild detergent
Exterior Maintenance	Soft damp cloth with mild detergent. Do not use ammonia or alcohol.
Warranty	12-month limited "in-home" warranty (functional parts), extension possible via online registration
Customer Service	Online form at www.danby.com/support or phone [phone]
Installation	Freestanding only, clearance of 12.7 cm (5 in) at the rear, sides, and top
Noise Level	Not specified

Frequently Asked Questions - DWC172BLPDB DANBY

How many bottles can this wine cellar hold?

This wine cellar can hold up to 17 bottles of 750 ml. The recommended arrangement is 4 bottles on the top two shelves, 3 bottles on the middle shelf, and 3 bottles on each of the bottom two shelves.

How do I adjust the temperature?

The temperature is adjusted using the rotary knob located at the rear of the unit. The dial is graduated in blue: the darker the color, the colder the temperature. Setting slightly beyond the center point provides adequate cooling. To turn off, rotate the knob to the 0 position.

How do I reverse the door swing?

Door reversal is possible. Detailed instructions are in the manual. You need to remove the top hinge, the door, then move the bottom hinge and adjustable foot to the other side. After the operation, leave the unit upright for 6 hours before plugging it in.

What to do in case of a power outage?

Most power outages are short and do not affect the temperature if the door remains closed. In case of a prolonged outage, take measures to protect the contents. After an interruption, wait 3 to 5 minutes before restarting the unit.

How do I clean the interior of the wine cellar?

Use a soft cloth and a solution of one tablespoon of baking soda per liter of water, or a mild detergent. The removable shelves can be washed separately. Never use products containing ammonia or alcohol.

Why is there condensation on the door or cabinet?

Condensation can be due to a door not closing properly, too frequent openings, or very high ambient temperature or humidity. Check the door seal and reduce openings.

What if the wine cellar does not cool enough?

Check that the door is properly closed, that the ventilation openings are not blocked, that the unit is not near a heat source, and that the thermostat is set correctly. If the problem persists, contact customer service.

Does this wine cellar require manual defrosting?

No, the unit is equipped with an automatic defrost function. The defrost water evaporates using the compressor's heat.

Can I install this wine cellar built-in in a kitchen?

No, this unit is designed for freestanding installation only. It should not be built into a cabinet or countertop. Leave a space of 12.7 cm (5 inches) at the rear, sides, and top.

What is the warranty and how to get service?

The limited 'in-home' warranty covers functional parts for 12 months. For a free 2-month extension, register your product online at www.danby.com/fr/soutien/enregistrement-du-produit/. For service, fill out the form at www.danby.com/support or call 1-800-263-2629.

USER MANUAL DWC172BLPDB DANBY

OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO

MODEL * MODÈLE * MODELO

DWC172BLPDB

WINE COOLER

Owner's Manual......1 - 14

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9

Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com

Printed in China | Imprimé en Chine | Impreso en China

2025.10.03

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. Read this owner's manual before plugging in your new appliance as it contains important operation information to ensure the reliability and longevity of your appliance. You are entitled to the warranty coverage as described in the owner's manual.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and fill out a survey to receive a FREE 2 MONTH WARRANTY EXTENSION. Follow the link: www.danby.com/support/product-registration

Model Number: ____

Serial Number: ____

Date of Purchase: ____

Need Help?

1. Read your Owner's Manual for installation, troubleshooting, and maintenance.
2. Visit www.Danby.com to access self-service tools, FAQs and more by searching for your model number using the search bar at the top of the page.
3. For consumer service, please fill out the web form at: www.danby.com/support. Your submission will go directly to an expert on your appliance. Our average response times are between 20 minutes and 2 hours, during business hours.
4. Or call 1-800-263-2629 - hold times can exceed one hour in peak periods.

PARTS & SERVICE DISCLAIMER: Danby does not guarantee availability of all parts indefinitely, service manuals for every model, or availability of service technicians in all areas.

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion.

Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

DANGER: Do not add a lock to the door or lid. This can cause child entrapment and harm.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

INSTALLATION INSTRUCTIONS

LOCATION

• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
• Do not use the appliance near water, for example in a wet basement or near a sink.
• This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- This appliance is 45 cm (17.7 inches) wide by 50 cm (19.7 inches) high by 50 cm (19.7 inches) deep. Do not cover any of the ventilation openings with any material as the appliance needs adequate space to breathe.

- Allow 12.7 cm (5 inches) of space between the back, sides and top of the appliance and all adjacent walls.

- This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

INSTALLATION INSTRUCTIONS

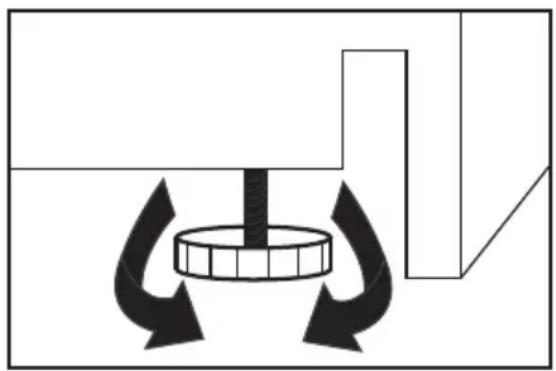

LEVELING INSTRUCTIONS

There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

1. Turn the leveling leg counterclockwise as far as it will go, until the top of the foot is touching the bottom of the cabinet.
2. Slowly turn the leveling leg clockwise until the appliance is level.

OPERATING INSTRUCTIONS

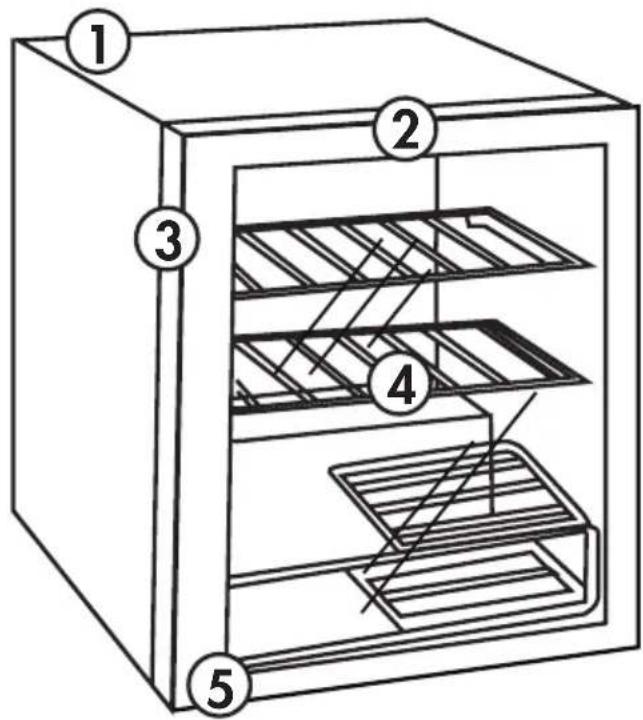

FEATURES

1. Thermostat Dial: (Externally mounted rear wall thermostat) For controlling the temperature inside the wine cooler; the compressor activates as soon as the temperature rises above the desired level.
2. Tempered Glass Door: Tinted for UV protection while still allowing for easy interior viewing.
3. Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.
4. Plastic Coated Shelves: Odor resistant, rustproof, and removable for easy cleaning.
5. Leveling Leg: Adjust to level the appliance.

OPERATING INSTRUCTIONS

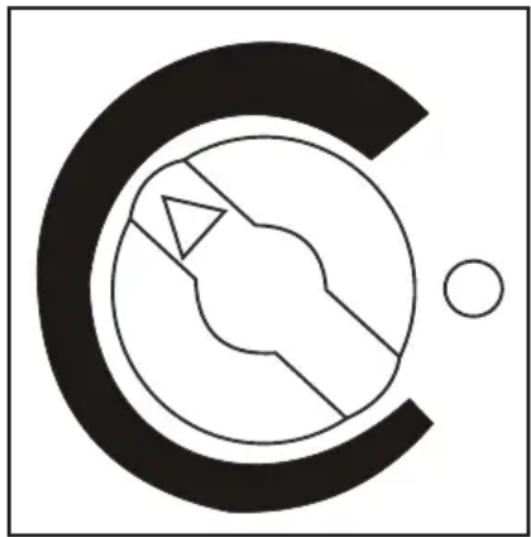

TEMPERATURE CONTROL

The temperature is controlled by the temperature knob on the back of the appliance.

On the graduated blue dial, the thicker, darker blue indicates colder temperatures and the thinner, lighter blue indicates warmer temperatures.

The internal temperature will vary depending on the ambient room temperature, the quantity of wine stored, and the frequency that the door is opened.

Setting the control knob to just past the middle point of the graduated blue line should provide adequate cooling.

To turn the appliance off, turn the control knob to the "0" position.

OPERATING INSTRUCTIONS

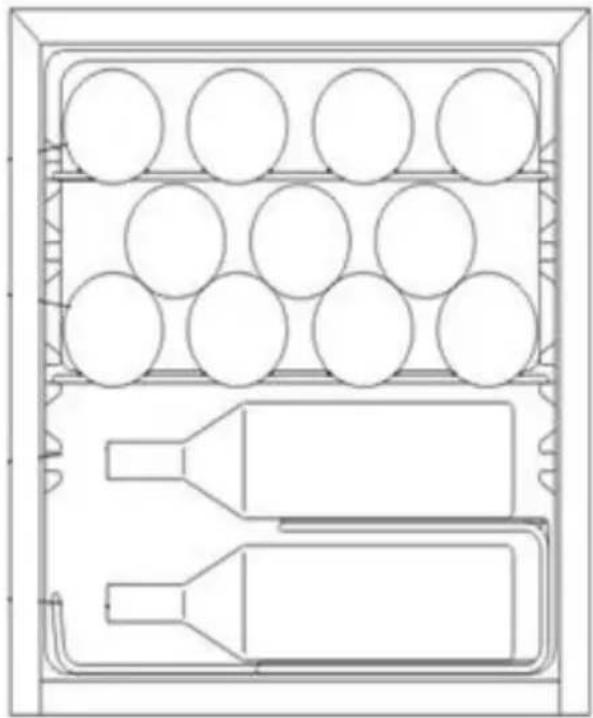

STORAGE INSTRUCTIONS

This appliance can hold up to 17 wine bottles of 750 ml size.

Place four bottles on the two top shelves.

Place three bottles on top of the four bottles on the second shelf.

Place three bottles on each shelf of the two lower shelves.

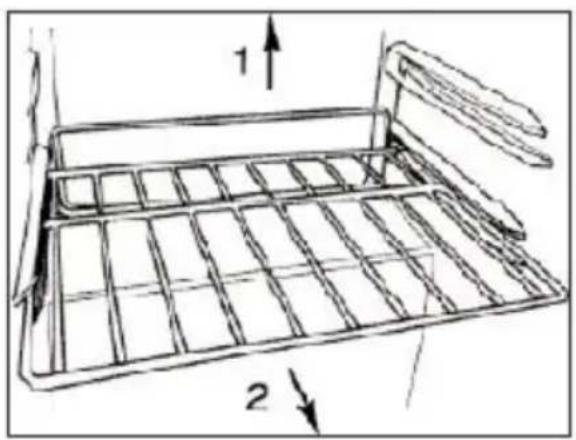

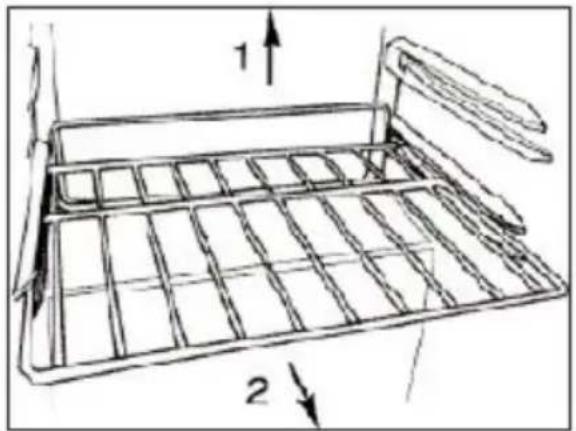

SHELF INSTRUCTIONS

To remove a shelf from its locked position, lift the rear of the shelf upward and then slide the shelf out of the unit.

To replace the shelf, ensure it is resting securely on the support brackets and then push inward until the shelf locks into place.

Note: Do not cover shelves with aluminum foil or any other material that will prevent air circulation within the appliance as this can adversely affect internal temperature.

OPERATING INSTRUCTIONS

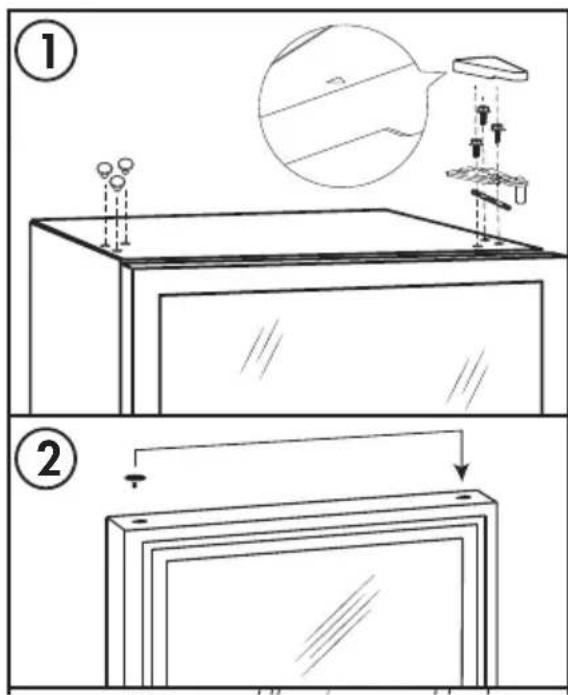

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

1. Use a straight screwdriver to pry open the upper hinge cover from the position below the triangular mark on the upper hinge cover. Remove the upper hinge. Remove the hinge hole covers from the top left side of the cabinet. Remove the door from the cabinet.
2. Remove the hinge hole cover from the top left side of the door and place it in the hinge hole on the top right side of the door.

OPERATING INSTRUCTIONS

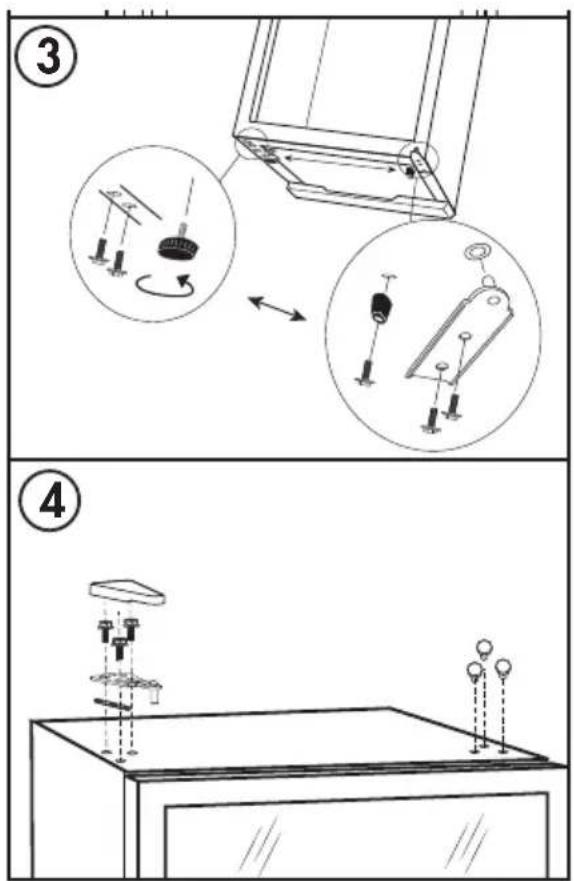

1. Remove the adjustable foot from the bottom left side of the cabinet and remove the solid foot and lower hinge from the bottom right side of the cabinet. Install the lower hinge and solid foot on the bottom left side of the cabinet and install the adjustable foot on the bottom right side of the cabinet.
2. Place the door on the cabinet and install the upper hinge on the top left side of the cabinet. Before tightening the screws in the upper hinge, ensure that the top of the door is level with the top of the cabinet and that the rubber gasket is making a good seal with the cabinet all the way around. Install the hinge cover over the hinge.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted.

CARE & MAINTENANCE

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Ensure the appliance is empty.
• Secure the door with tape.
• Turn the adjustable leg up to the base to avoid damage.
• Protect the outside of the appliance with a blanket or similar item.
• Ensure the appliance stays in the upright position during transportation.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to the internal components.

DISPOSAL

This appliance may not be treated as regular household waste; it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE
No power • A fuse may be blown or the circuit breaker tripped• Plug not fully inserted into the wall outlet
Internal temperature not cold enoughAppliance runs continuously	• Door is not shut properly or opened excessively• Exhaust vent is obstructed• Recently added a large quantity of warm contents to the cabinet• Close proximity to heat source or direct sunlight• Ambient temperature or humidity is very high• Possible system leak, evaporator fan failure or compressor failure
Condensation on the cabinet or door	• Door is not shut properly or opened excessively• Ambient temperature or humidity is very high

Limited "In-Home" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months

During the first twelve (12) months, any functional parts of this product found to be defective will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service

Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service" will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not covered by this warranty and are the responsibility of the purchaser.

Exclusions

Except as provided herein by Danby, there are no other warranties, conditions, representations, or guarantees, express or implied, made or intended by Danby or its authorized distributors. All other warranties, conditions, representations, or guarantees, including any warranties, conditions, representations, or guarantees under any Sale of Goods Act or similar legislation or statute, are hereby expressly excluded. Except as provided herein, Danby shall not be responsible for any damages to persons or property, including the unit itself, however caused, or any consequential damages arising from the malfunction of the unit. By purchasing the unit, the purchaser agrees to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring, or inadequate fuses.
4. Accident, alteration, abuse, or misuse of the appliance, such as inadequate air circulation in the room or abnormal operating conditions (e.g., extremely high or low room temperature).
5. Use for commercial or industrial purposes (i.e., if the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods, etc.
7. Service calls resulting in customer education.
8. Improper installation (e.g., building in a free-standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches, or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

INSTRUCTIONS FOR USE

FEATURES

1. Thermostat dial:

INSTRUCTIONS FOR USE

TEMPERATURE CONTROL

INSTRUCTIONS FOR USE

STORAGE INSTRUCTIONS

INSTRUCTIONS FOR THE SHELVES

INSTRUCTIONS FOR USE

CARE AND MAINTENANCE

CLEANING
