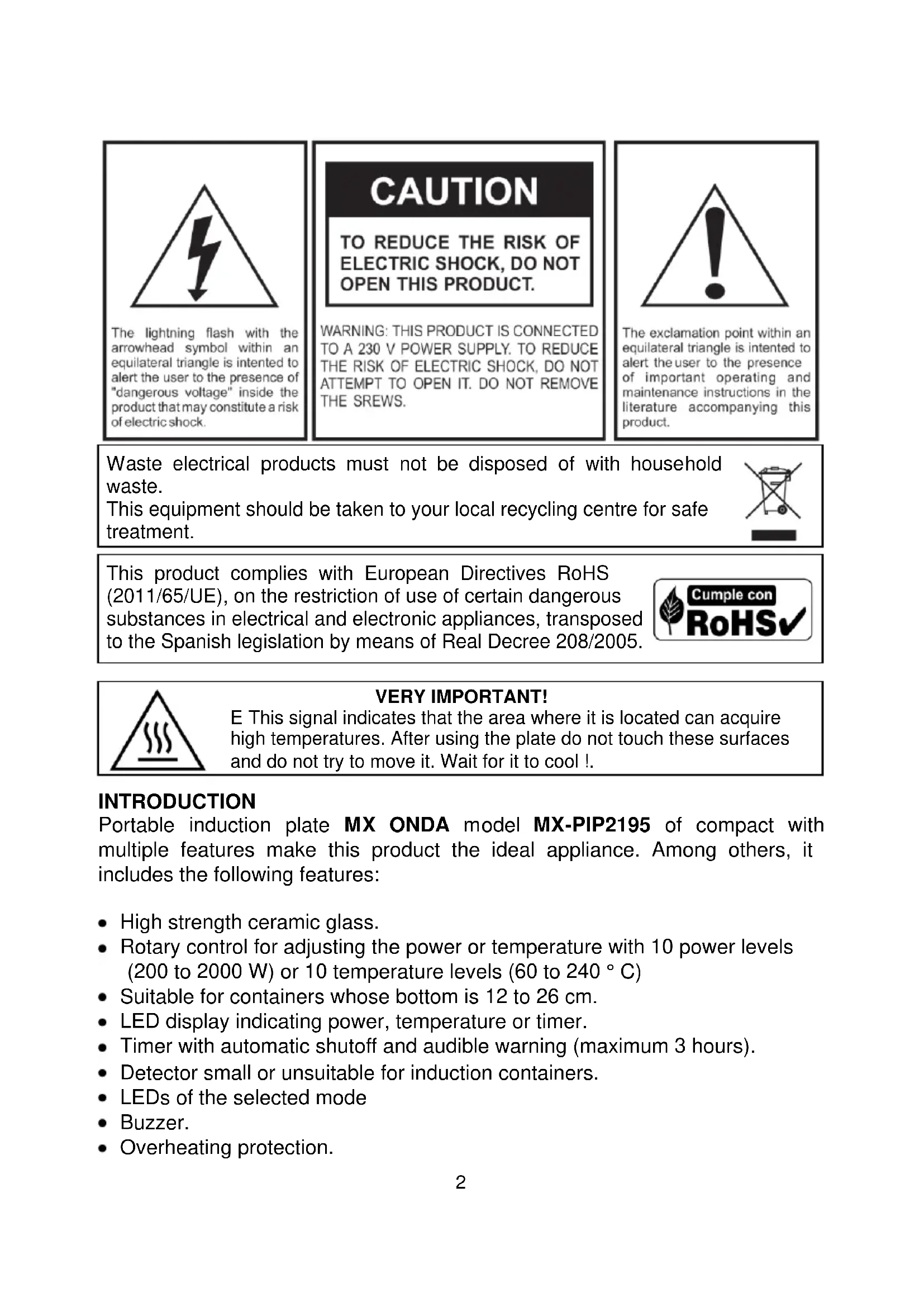

INTRODUCTION

Portable induction plate MX ONDA model MX-PIP2195 of compact with multiple features make this product the ideal appliance. Among others, it includes the following features:

• High strength ceramic glass.
- Rotary control for adjusting the power or temperature with 10 power levels (200 to 2000 W) or 10 temperature levels (60 to 240 °C)
- Suitable for containers whose bottom is 12 to 26 cm.
- LED display indicating power, temperature or timer.
- Timer with automatic shutoff and audible warning (maximum 3 hours).
- Detector small or unsuitable for induction containers.
• LEDs of the selected mode
- Buzzer.
• Overheating protection.

BEFORE CONNECTING THE APPLIANCE

• Read these instructions and save them for later use carefully.
• Check that the voltage of your outlet is 230V.
• The power cord is relatively short, to prevent accidents caused by tripping or entanglement.
• If you need to use an extension cord, use only an extension cord that is in good condition and is suitable for the power of the appliance.
• Do not leave the power cord below the plate, which comes into contact with hot surfaces as you risk damaging the insulating sheath of the cable network.
• To protect against risk of electric shock and personal injury, do not insert the cable, plug or plate in water or any other liquid.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use it and contact the technical support staff.
• Keep out of reach of children packaging materials (bags, polystyrene parts, etc.), as they are a potential source of danger.
• Place the plate at least 30 cm from the walls of other appliances, furniture or anything that could be damaged by heat.
• The manufacturer declines any liability for damages resulting from improper, incorrect or careless use of the appliance.

SECURITY MEASURES

• Children should not play with this device.
- Cleaning and maintenance by the user can not be done by children unless they are older than 8 years and are supervised.
- Failure to follow these safety warnings could result as a result burns or serious injury.
- This device can not be used by children (under the age of 8 years) or persons with or without experience and knowledge reduced physical, sensory or mental capabilities, unless they

have received appropriate on using the appliance instructions and be supervised by an adult or person responsible.

- This appliance is designed only for domestic use, not professional. MX ONDA not accept any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions.

- Do not use this device near flammable materials (curtains, net curtains, etc)

- To reduce the risk of fire, electric shock or personal injury, do not block or insert objects into the ventilation slots.

- This plate is designed for indoor use not use outdoors. Avoid exposure to rain, moisture or other atmospheric phenomena.

- This device operates at high temperatures, so during handling DO NOT touch the glass surface. Before cleaning or moving the plate wait for it to cool. If necessary, use gloves or oven mitts.

- Keep out of reach of children, the surface of the plate and containers, can reach high temperatures.

- Unplug the plate when not in use for a long period of time, when a power outage occurs, or "skip" a fuse or circuit or during the cleaning process.

- Make sure the outlet where the device is connected is easily accessible. To disconnect the board from mains pull the plug from the socket. you do never pull on the cable.

- Do not place the plate above cookers, microwave ovens or other plates.

- Never move the plate during use, remove the plate and let it cool before moving it.

- While the unit is connected and the plate is still hot, do not neglect their vigilance and keep it out of reach of children.

- The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or injury.

- Use only containers suitable for induction, whose background is from 12 to 26 cm and is completely flat. The containers with slightly curved bottom or dished not be used.

• Avoid accumulation of grease or food scraps on the surface of the plate, as it decreases performance and can cause odors and even fire the remains of grease or food.
• Do not attempt to cook on the surface of the plate.
• Do not attempt to cut foods that are inside the container while the plate is in operation.
• Do not leave containers with oil or grease unattended in case of overheating can inflame. In case of fire, never try to extinguish the flames with water. Close the lid and smother the flames with a damp cloth.
• In case of liquid between the container base and plate vapor pressure may occur, so the container could jump. Always keep the surface of the plate clean and dry.
• Do not place metal objects on the surface of the plate, as these can be heated quickly.
• People with implanted pacemakers should refrain from approaching manipulate the induction cooktop. Although this product meets all current safety regulations and electromagnetic compatibility, it is possible that some device not meet 100% and produce interference to these devices.
• In case of failure, anomalies, if the glass plate is cracked, cracks, etc., the plug or other parts have impaired, or the cord is damaged, unplug the appliance and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA.

INDUCTION COOKING

Advantages of induction cooking

Induction cooking involves a radical change in the traditional way to cook food, heat is generated directly in the container so that the heat loss between the various elements (container, glass ceramic plates, etc.) is removed the advantages are:

• Decreased time to cook: the container is heated faster.
- Energy savings: by reducing the time for cooking and / or frying. When the container of the cooking area is removed, automatically stops supplying heat if within 30 seconds it repositions the container will supply heat and with the same level previously set.
- easy cleaning; not being so hot surface spilling food do not burn so quickly.

Appropriate containers for induction

Ferromagnetic containers

Suitable for induction cooking, containers are those made of ferromagnetic material. They can be enamelled steel, cast iron or special dishes for induction stainless steel. To find out if a container is suitable for induction cooking, check that they are attracted by a magnet.

Special containers

Other types of containers whose base is not entirely ferromagnetic. Before use check the diameter of the base and that these containers are detected by the induction plate.

Containers not suitable for induction

Never use normal stainless steel containers, glass, clay, copper, or aluminum.

Features of the container base

The base of a container can influence heat distribution and consequently the result of cooking. Choosing a container with a higher quality base (eg sandwich) will save us time and energy cooking.

Pay special attention to the shape of the base, since it must be completely flat. If you have a small curvature or bulge, heat losses and therefore produce more cooking time and a considerable increase in energy expenditure.

Empty containers or very thin base

Never place an empty container on the plate and turn it, as it can cause overheating of the container (excess heat) and damage the ceramic glass or the plate itself. If the container base is very thin it can also overheat, do not use this type of containers.

Detection of the container

The plate has a minimum detection limit of the cooking zone and is 12 cm. For this reason, you should refrain from using containers whose base is less than 12 cm in diameter. If you turn the plate without any container with a container whose base is less than 12 cm or unfit for induction container, the plate will not work in the display "EO" will appear, notify acoustically and after 50 seconds will turn off automatically.

Fan

In the base plate there is a fan which aims to maintain a stable temperature inside the induction plate.

Each time the board goes on and the power or temperature setting, the fan will also be put into operation. When the plate is off, the fan will remain in operation and will shut down automatically after 3 minutes.

At the base of the plate should NEVER put tea towels, dishcloths or other objects that may obstruct the holes in the fan, thus preventing proper ventilation and cause overheating of the circuits, so act security protections.

Note:

Remember that the fan remains in operation for 3 minutes after turning off the plate. This is normal and does not indicate a malfunction.

INSTALLATION

1. Place the plate on a stable, level surface, away from hot areas with high humidity or near flammable materials (oil, curtains, cloths, etc.).
2. To ensure adequate ventilation allow at least 30 cm on each side of the plate. DO NOT obstruct the ventilation slots on both sides and in the back of the plate and how the holes in the fan (located at the base of the plate).
3. Fully unroll the cord and plug the appliance plug into the mains. The buzzer will "beep" to warn that the board has been plugged into the power outlet.

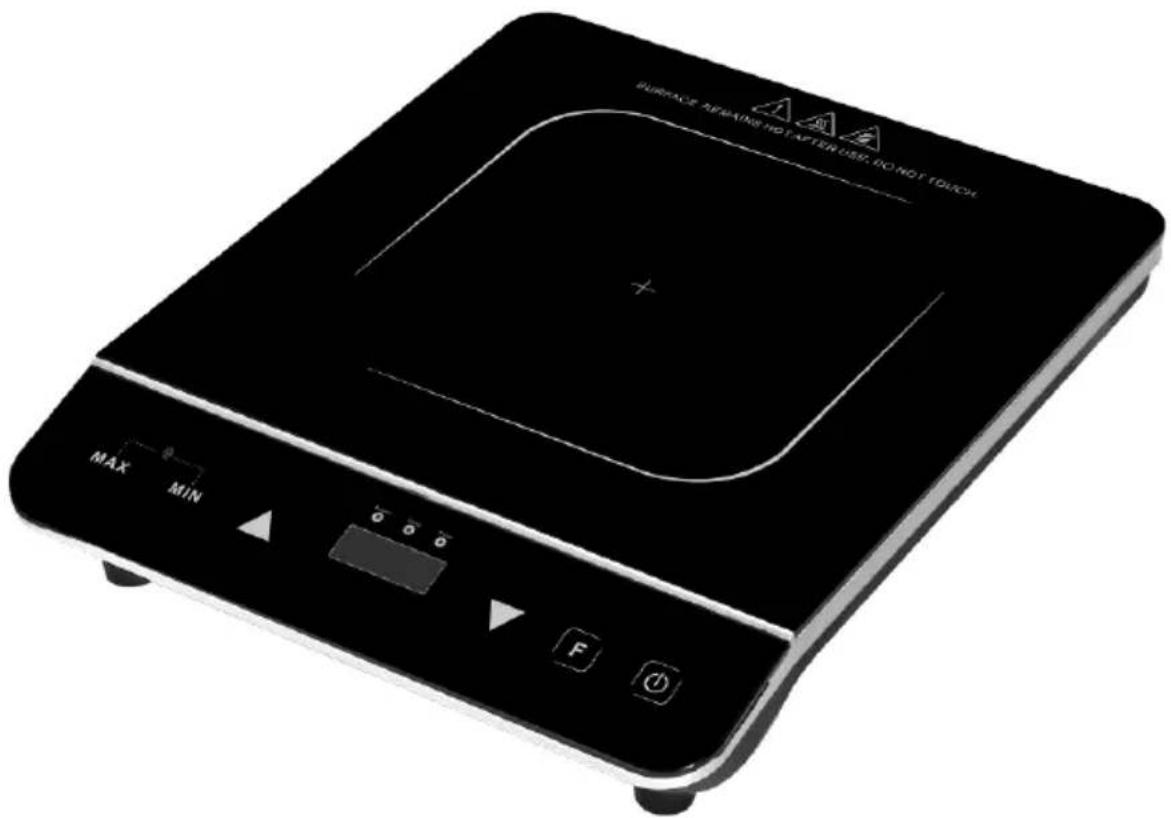

CONTROLS AND ELEMENTS

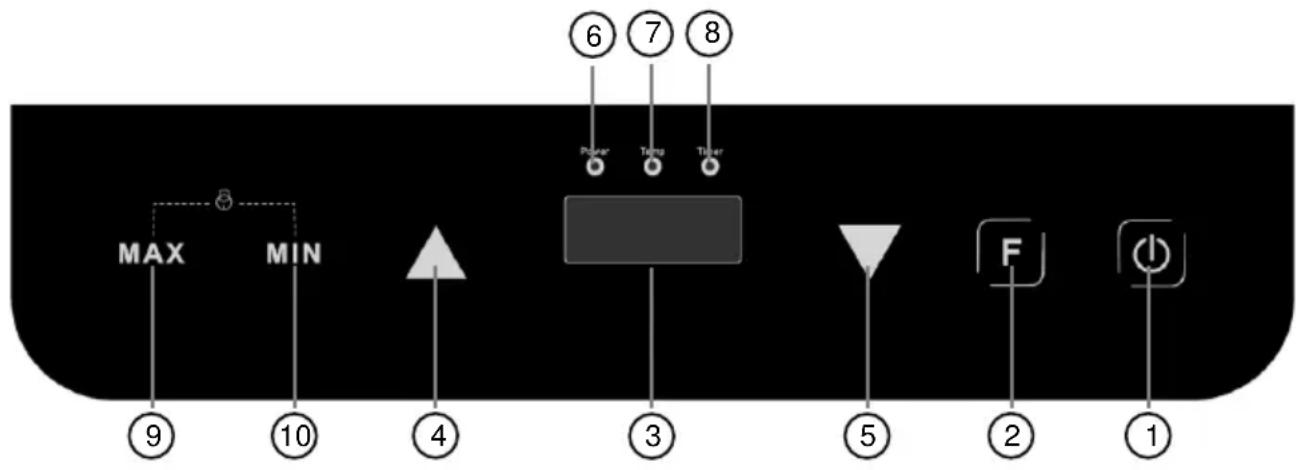

MAX MIN ⑨ ⑩ ④ ③ ⑤ ② ① ⑥ ⑦ ⑧ Power Terms Timer

1. On / off button
2. Function selector button
3. Led screen
4. Increase button
5. Decrease button
6. LED indicator of selected power mode
7. LED indicator of the selected temperature mode
8. LED indicator of timer mode activated
9. Jump button at maximum power or temperature
10. Jump button at minimum power or temperature

TURN ON AND OFF

1. Place the container in the cooking area, remember that this must be suitable for induction and its base must be between 12 and 26 cm.
2. To turn the plate press button 1 ( ⏻ ), the display will show "ON " and the buzzer will sound a "beep".
3. By the function selector 2 (F) select the desired mode, see the following section.
4. To turn off the plate again press button 1 (⏻) the display will turn off and the buzzer will sound a "beep".

Note:

If you turn on the plate and do not select any function, automatically turns off after about 30 seconds.

FUNCTION SELECTOR

By the function selector 2 (F) you can choose the mode of working in power (200 W to 2000 W) at temperature (60 °C to 240 °C) or set the timer.

To select the operating mode in power or temperature follow the steps below to adjust the timer, see the following section.

Power operating mode

1. With the plate turn on and a container in the cooking zone, press once the button 2 (F) the display will show the power level and the default mode LED power indicator 6 will turn on.
2. Tap the 4 (▲) or 5 (▼) button with your fingertip to increase or decrease the power respectively. The display 3 will show the selected power.
3. Touch the button 10 (MAX) or 9 (MIN) with your fingertip to directly select the maximum or minimum temperature of the plate.
4. At any time during cooking you can increase or decrease the temperature, change the power mode or set the timer.

Temperature operating mode

1. With the plate on and a container in the cooking zone, press button 2 (F) three times, the display will show the default temperature level and the LED indicator for temperature mode 5 will light up.
2. Touch the button 4 (▲) or 5 (▼) with your fingertip to increase or decrease the temperature respectively. Screen 3 will show the selected temperature.
3. Touch the button 10 (MAX) or 9 (MIN) with your fingertip to directly select the maximum or minimum temperature of the plate.
4. At any time during cooking you can increase or decrease the temperature, change the power mode or set the timer.

TIMER

The timer allows you to set a time for automatic shutdown, this time can vary from 1 minute to 3 hours. For the timer setting you must first select an operating mode (power or temperature) and a power level or temperature respectively.

For the timer setting, follow these steps:

1. With the plate turned on and a pan in the cooking zone, choose an operating mode and a power or temperature level.
2. Momentarily touch the button 2 (F) with the tip of your finger, the display will show the indication "0" and the LED indicator of the timer mode 7 flashing.
3. Touch the touch pad 4 (▲) or 5 (▼) with your fingertip to increase or decrease the time in 1 minute jumps respectively, if you touch and keep the touch of the finger on these buttons, the jumps will be 10 minutes. Screen 3 will show the time in minutes.
4. Once the time has been selected, screen 3 will alternately show the selected power or temperature and the remaining time for automatic shutdown. The LED indicator of timer mode 8 will remain lit to let you know that the timer is activated.
5. During cooking you can increase or decrease the power or temperature, using the 4 (▲) or 5 (▼) buttons.
6. To cancel the timer, touch the button 2 (F) with your fingertip and choose an operating mode and a power or temperature level again, the timer mode LED indicator 8 will turn off.

Note:

If activating the timer (display "0" flashing) within 5 seconds to select the time for shutdown, timer mode is automatically deactivated.

CONTROL PANEL LOCK

The induction plate incorporates a blocking device, which deactivates the operation of the function selection button (F) and the increase (▲) and decrease (▼) buttons of the power and / or temperature.

The blocking of the control panel prevents the induction plate from being turned on by mistake or by mistake (if the plate is switched off), or the power or the chosen temperature is changed (if the plate is in operation).

To lock the control panel, press both buttons 10 (MAX) and 9 (MIN) at the same time. When the control panel is locked, screen 3 show the indication "L".

To unlock the control panel, simultaneously touch and for 2 seconds the two jump buttons 10 (MAX) and 9 (MIN), when the control panel is unlocked the indication "L" will disappear from the screen.

PROBLEM SOLVING

If there is any abnormality or problem in the operation of the induction hotplate, the display 5 show the detected error. Error messages appear on the screen with the letter "E" followed by a number, see the table below to identify the error and solution.

Message	Description	Solution
E0	No container, the container is not suitable for induction or the diameter of its base is less than 12 cm	Place a container on the cooking zone or replace the container that is invalid.
E2	The NTC sensor is defective	Contact our Customer Service nearest MX ONDA.
E3, E4	Undervoltage protection or overvoltage portection	If the voltage at the outlet network is less than or greater than that specified, consult a qualified electrician.
E5	The glass or ceramic plate has overheated	Unplug the induction plate and allow to cool.
E6	It is activated overheating protection	Failure in the ventilation system, check that the fan is not clogged and functioning properly. Unplug the induction plate and allow to cool.

MAINTENANCE AND CLEANING

Before cleaning disconnect the unit from the mains power supply. And make sure the plate is completely cold. Do not use alcohol or abrasive products and not allow the appliance to contact volatile agents such as gasoline, solvents, insecticides, etc.

Cleaning the cooking plate

• After each use you should clean the plate, thus it will prevent burning remains attached.
• Do not clean the plate until it is cold enough.
• Use only specific products for cleaning induction plates, failure to do so could damage the cooking surface.
• Never use scouring pads that may scratch the surface, nor should use abrasive cleaning fluids how sprays for furnaces.

Cleaning the plastic surface

- Clean the plastic surface with a damp cloth and then with a dry one. Avoid water from the vents.

- If you see the holes in the fan has accumulated a lot of dirt, remove it with a brush.

TECHNICAL SPECIFICATIONS

Supply voltage 220-240 V \~ 50/60 Hz

Maximum consumption 2000 W

cooking surface Glass ceramic high resistance

Cooking diameter 12 to 26 cm

Power levels 10 levels

Temperature levels 10 levels

Power range 200 W to 2000 W

Temperature range 60 °C to 240 °C

Timer up to 3 hours

Dimensions 290 x 370 x 69 mm (L, W, H)

Weight 2,34 Kg

Specifications subject to change without notice.
