HOMESCB17A - Tumble drier EDESA - Free user manual and instructions

Product type	Condenser dryer
Brand	Edesa
Model	HOMESCB17A
Maximum load capacity	7 kg (cotton)
Drum volume	115 L
Dimensions (H x W x D)	85 x 60 x 60 cm
Energy class	B
Power supply	220-240 V, 50 Hz, 10 A
Drying programs	Perfect Home, Extra Dry, Dry, Ready to Iron, Wool, No Crease, Quick 40, Timed (30-150 min), Frizz-Free
Options	Gentle drying (low temperature), Delayed start (3/6/9 h), Delayed end
Sensor type	Humidity sensor (Sensor Dry)
Water tank	Yes, with full indicator
Lint filter	Yes, to be cleaned after each cycle
Condenser	Yes, regular cleaning required
Child safety	Yes, door lock
Door opening	Front, handle
Noise level	Not specified in the manual
Net weight	Not specified in the manual
Customer service	GIAS Service for repairs and spare parts
Included accessories	User manual, warranty card, energy label

Frequently Asked Questions - HOMESCB17A EDESA

What is the maximum drying capacity of this dryer?

The maximum capacity is 7 kg for cotton textiles. For synthetics, do not exceed 3.5 kg.

How to clean the lint filter?

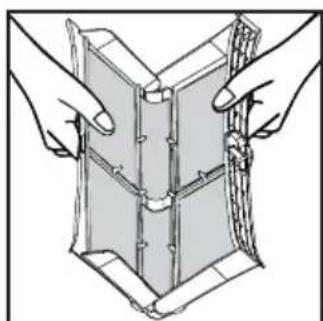

Pull the filter upwards, open it and remove the lint with your fingers or a soft brush. Do not clean with water. Replace it correctly before each cycle.

What to do if the water tank is full?

Empty the tank after each cycle. To remove it, take off the protective cover, pull the handle and empty the water. The full tank weighs about 4 kg.

How to clean the condenser?

Unplug the appliance, remove the protective cover, unlock the levers, take out the condenser, clean it under running water to remove lint, then put it back in place locking the levers.

Can I dry wool garments in this dryer?

Yes, the Wool program is specially designed for woolens. It lasts 12 minutes with warm air to refresh and soften garments. Do not use for full drying.

My laundry comes out wrinkled, what to do?

Use the No Crease program which alternates heat and cooling to reduce wrinkles. You can also remove laundry as soon as the cycle ends to avoid creases.

How to delay the start of drying?

Press the Delayed Start button to choose 3, 6 or 9 hours. Then press Start/Pause to launch the countdown. The cycle will start automatically after the selected delay.

What does the flashing DRY indicator mean?

The DRY indicator flashes when the program is in drying progress. It remains steady once the cycle has started. At the end of the cycle, the END indicator lights up and the drum rotates intermittently to prevent wrinkles.

Why is drying too long?

Check that the filter and condenser are clean, that the load is not too large, that clothes have been properly spun and that the appropriate program has been selected. Also ensure that the air intakes are not obstructed.

Can I install the dryer on top of a washing machine?

Yes, with a suitable stacking kit (references 35100019 for washing machines with min. depth 49 cm, or 35900120 for 51 cm). Follow the kit instructions.

USER MANUAL HOMESCB17A EDESA

Utilice sempre recambios originales, que seSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO

Servicio Tecnico De Gias

Environmental Issues 33

Gias Service 33

Electrical Requirements 33

Adjusting the Feet 33

Preparing the Load 34

Clothes Preparation 34

Do Not Tumble Dry 34

Energy Saving 34

Sorting the Load 34

Drying Guide 34

Controls and Indicators 35

Selecting the Programme 36

Door and Filter 37

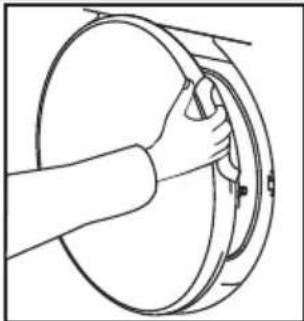

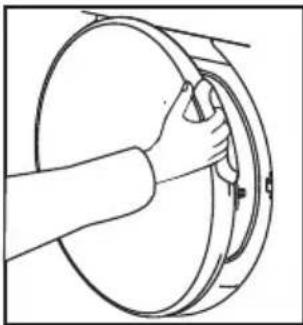

Opening the Door 37

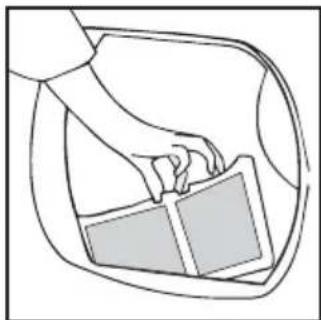

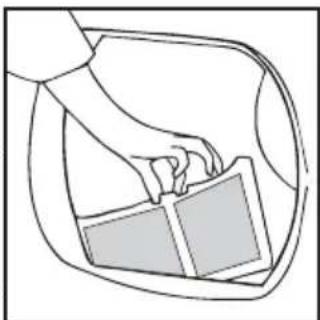

Filter 37

Filter Care Indicator 37

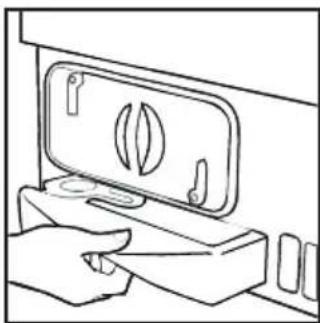

Water Container 38

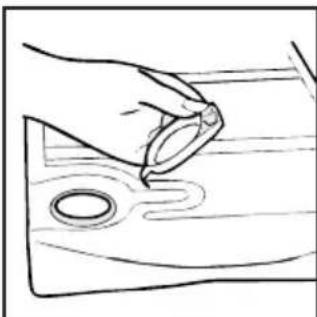

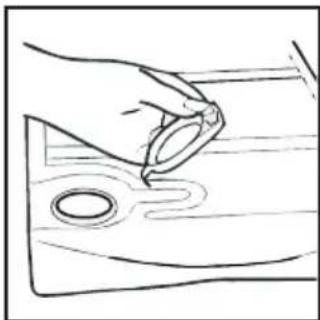

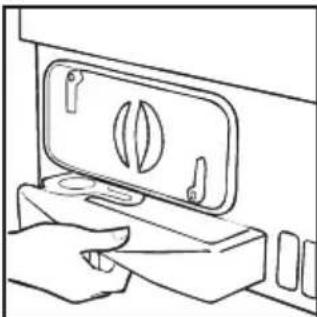

To Remove the Container 38

Condenser 38

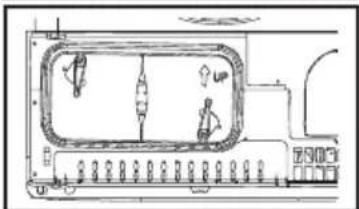

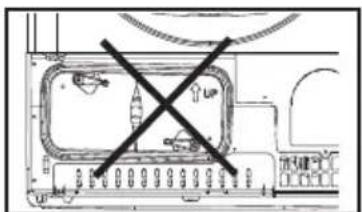

To Remove the Condenser 38

Operation 39

Delay Start Function 39

Cancelling and Resetting the Programme 39

Cleaning and Routine Maintenance 39

Cleaning the Dryer 39

Technical Specifications 39

Troubleshooting 40

Customer Service 40

Spares 40

Gias Service 40

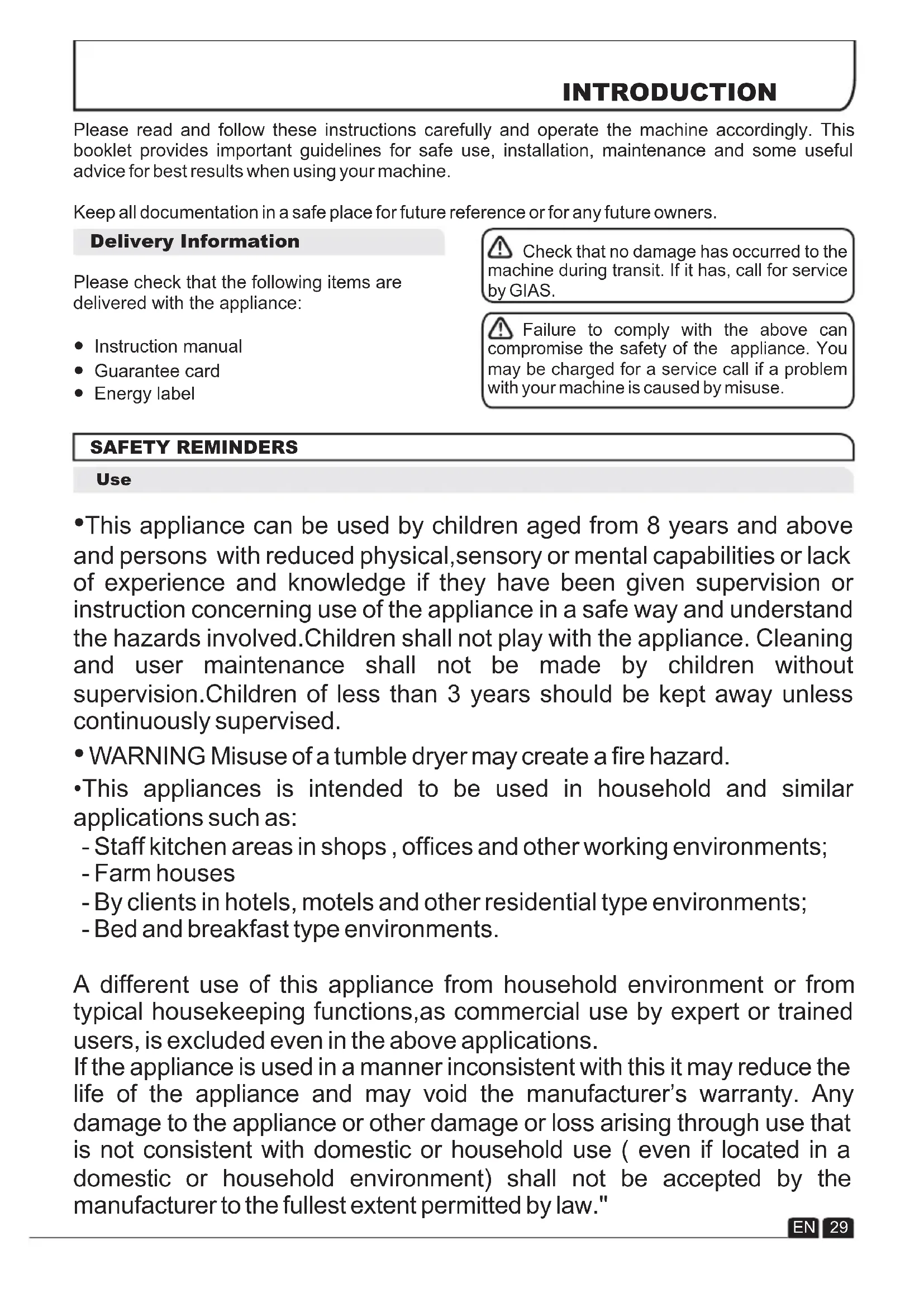

INTRODUCTION

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

SAFETY REMINDERS

Use

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.
• WARNING Misuse of a tumble dryer may create a fire hazard.

• This appliances is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops , offices and other working environments;

• Farm houses
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law."

SAFETY REMINDERS

Use

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.
• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
  Maximum load drying weight:7 kg.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

SAFETY REMINDERS

Installation

• Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.
• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
  The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

The Laundry

• Do not dry unwashed items in the tumble dryer.

• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
  -WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
  Always refer to the laundry care labels for directions on suitability for drying.

• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

• Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

SAFETY REMINDERS

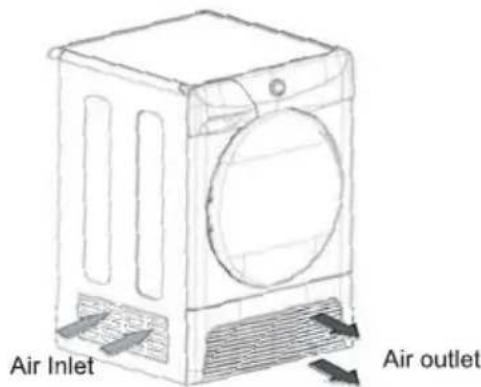

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

• Installing the rear of the appliance close to a wall or vertical surface.

• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.

• Check regularly that the air flowing through the dryer is not restricted.

• Check frequently the fluff filter after use, and clean, if necessary.

Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet

• NEVER install the dryer up against curtains.

• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49cm

-Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2^ and +35^ . Please note that operating in cold condition (between +2 and +15^ ) might imply some water condensation and water drops on floor.

SAFETY REMINDERS

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
• To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2012/19/EC

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE should not be treated as household waste.
- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

GIAS Service

• To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50Hz single phase. Check that the supply circuit is rated to at least 10 A.

Electricity can be extremely dangerous. This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.
You may be charged for a service call if a problem with your machine is caused by incorrect installation.
If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or paper clothes (danger of fire or explosion).

During the last 15 minutes (roughly) the load is always tumbled in cool air

Do not overload the drum, large items when an exceed the maximum admissible clothes (for example: sleeping bags, duvets).

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Maximum Drying Weight

Cottons

Max. 7 kg

Synthetics

Max. 3,5 kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the button to select low drying temperature.

Drying Guide

The standard cycle CUPBOARD DRY () is the most energy efficient and best suited for drying normal wet cotton laundry.

The table below shows the approximate time and energy consumption of the main drying programmes.

CYCLE	LOAD	ENERGY	TIME
		(kWh)	(Min)
Perfect Home	FULL	5,04	183
Extra Dry	FULL	4,75	159
Cupboard Dry	FULL	4,20	135
Cupboard Dry	HALF	2,31	80
Iron Dry	FULL	3,36	111

Power consumption of "left on-mode"	0,80 W
Power consumption of "off-mode"	0,25 W

CONTROLS AND INDICATORS

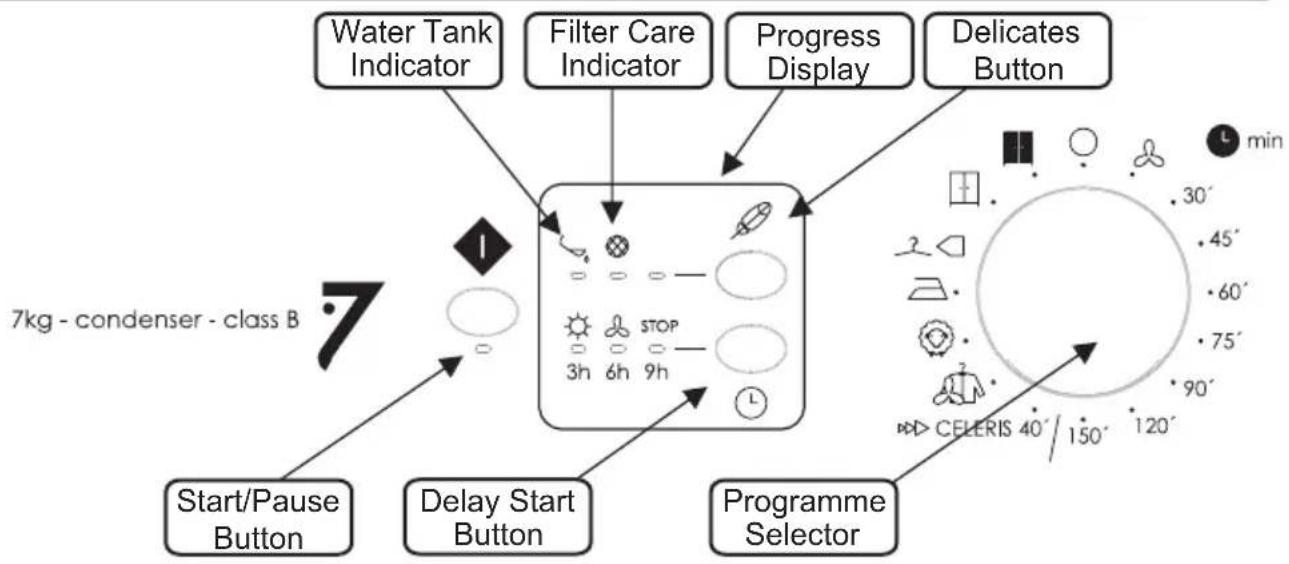

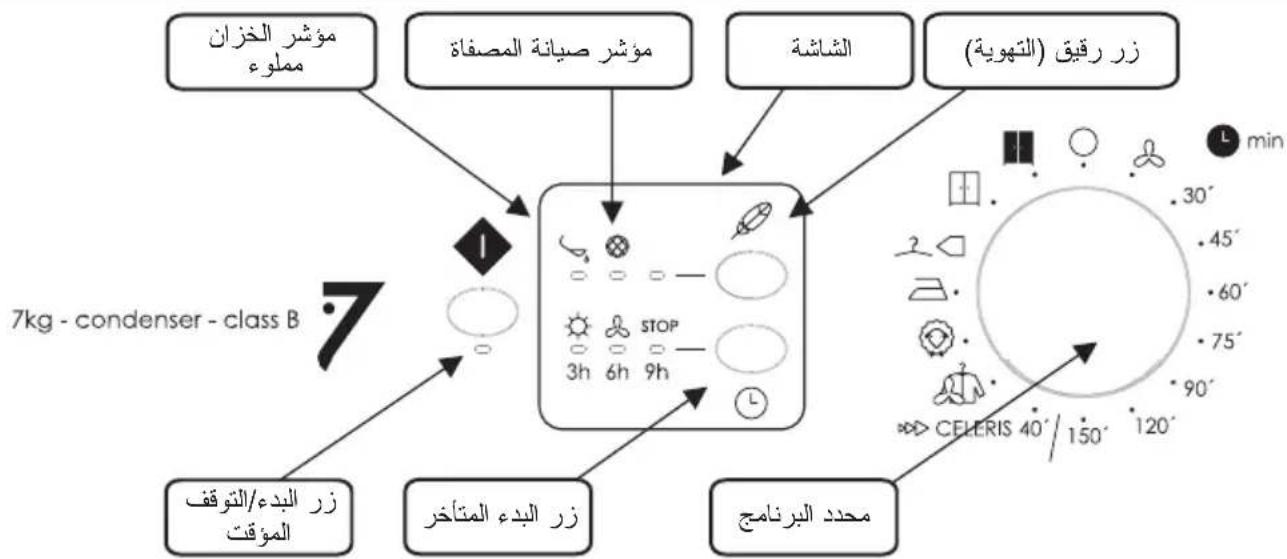

Control Panel and Indicator Lights

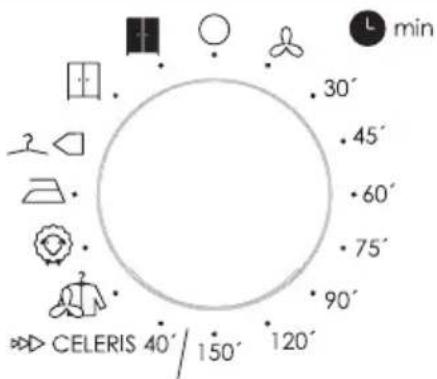

Programme Selector - Select the required programme

Delay Start button - Allows the user to delay the start of the drying cycle (see details of Operation on page 10)

Start/Pause button - Press to commence the selected drying prog

Delicates button - Press to reduce the heat level for delicate items, the indicator above the button will light up. To change the heat setting the programme must be reset

Low Heat-Indicator light ON High Heat-Indicator light OFF

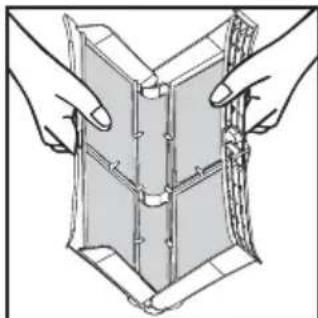

Filter Care indicator - lights when the filter needs cleaning Empty Water indicator - lights when the water container is full

Progress display

DRY - When the programme is selected the DRY indicator will flash, when the programme starts the DRY indicator will light up.

• Indicator lights when there is a short time left until completion of the programme. At this stage of the drying cycle the machine enters the Cool Down phase.

The length of the Cool Down phase varies between 10 and 15 minutes depending on the programme.

END - Indicator lights when the programme is finished.

SELECTING THE PROGRAMME

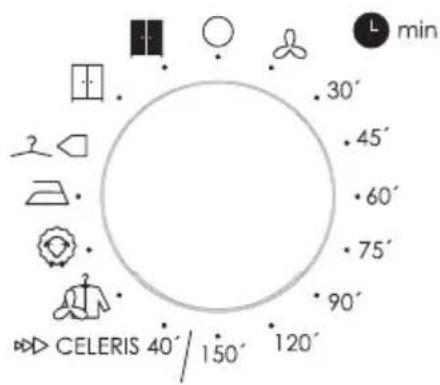

The Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table on the next page lists the programmes and the function of each programme.

Note: The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes.

Set the programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown.

If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours.

SELECTING THE PROGRAMME

PROGRAMME	DESCRIPTION
Perfect Home	Select the degree of dryness that you require. This ranges from 1 for bath towels and bathrobes, through 2 for items that will be put away without ironing, to the programme that leaves the laundry suitable for ironing.
Extra Dry
Cupboard Dry
Iron Dry
Wool Finish	A gentle programme specially created to get woollens softer after air-drying. This delicate warm air cycle, lasting 12 minutes, can also be used to get woollens 'refreshed' after being stored in the wardrobe.
No Crease	The no crease programme provides a conditioning and anticreate function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. This programme relaxes the creases in the fabric making ironing quicker and easier.
Celeris 40	The Celeris 40 programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40'. This special programme constantly monitors the dryness and temperature in the drum thanks to the sensor using, using the exact time and energy you need! The machine finishes the cycle when the cupboard dry level is reached. The stated cycle length could vary according to fabric types, load size and residual moisture in the garments. The maximum load is 2kg and the programme is suitable for all types of fabric where tumble drying is appropriate.
150'	150' minutes of drying
120'	120' minutes of drying
90'	90' minutes of drying
75'	75' minutes of drying
60'	60' minutes of drying
45'	45' minutes of drying
30'	30' minutes of drying
Refresh	Tumbling the laundry in cool air for 20 minutes

Opening the Door

Pull on handle to open the door.

To restart the dryer, close the door and press.

WARNING! When the tumble dryer is in the drum and door may be VERY HOT.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1.Pull the filter upwards.

1. Open filter as shown.

3.Gently remove lint using a soft brush or your fingertips.

4.Snap the filter together and push back into place.

Filter Care Indicator

Lights when the r needs cleaning.

If the laundry is not drying check that the filter is not clogged.

DO NOT USE WATER TO CLEAN THE FILTER.

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container at the bottom of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull the bottom of the kickplate so that it unclips from the dryer. The top section can then be unhinged allowing the kickplate to be completely removed.

2.Pull firmly on the handgrip and slide the water container out of the dryer

Support the container with both hands. When full, the water container will weigh about 4kg

1. Open the lid located on the top of the container and empty the water.

2. Refit the lid and slide the water container back into position.

PUSH FIRMLY INTO PLACE.

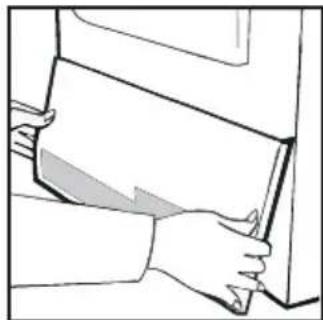

1. Refit the kickplate by engaging the hinges at the top and 'snapping' the lower clips into place.

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To Remove the Condenser

1.Remove the kickplate.

1. Turn the two locking levers anti-clockwise and pull out the condenser.

3.Pull out the condenser unit.

1. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

2. Check the gasket position after cleaning. Fit the gasket in to the groove if it is misaligned.

3. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise. Be sure that condenser unit fixed to the basement tightly.

4. Refit the kickplate.

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
4. If drying synthetics, acrylics or delicate items, press the button to reduce the heat level. The light next to the push button will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the button, after this time reset the machine to change the setting.
5. Press the button. The dryer will start automatically and the DRY indicator will be continuously lit.
6. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.
7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
8. When the programme is complete the END indicator will light.
9. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Delay Start Function

The Delay Start Function 已 allows the user to delay the start of the drying cycle by 3, 6 or 9 hours.

When the function is first selected the display will show a delay of 3 hours, subsequent presses of the button will increase the delay to 6 or 9 hours.

To commence the programme press and the appliance will complete the drying cycle at the end of this time. The 3, 6 or 9 hour indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the that it has been reset.

button for 3 seconds. The DRY light will flash to indicate

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  Regularly clean the condenser.
  After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
  DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff, clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may very hot.

Technical Specifications

Drum capacity

115 litres

Maximum load

7 kg

Height

85 cm

Width

60 cm

Depth

60 cm

Energy Label Band

B

Information for Test Laboratory

EN 61121 Programme

Programme To Use

-DRY COTTON

-CUPBOARD DRY

-IRON DRY COTTON

-IRON DRY

-EASY-CARE TEXTILE

-CUPBOARD DRY +

SYNTHETIC

IMPORTANT Always switch off and

remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label

on the front of the dryer cabinet (with the door open).

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
  Is the dryer overloaded?
• Has the option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?
  Is there a power failure?
• Has the fuse blown?
  Is the door fully closed?
• Is the dryer switched on, both at the mains supply and at the machine?
• Has the drying time or the programme been selected?
• Has the machine been switched on again after opening the door?

The dryer is noisy...

• Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

• Does the filter need cleaning?

The Indicator is on...

• Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
- Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Introduction 42

Specifications Techniques

Szaritogep tisztlitasaa 91

Muszaki leirás 91

Problémamegoldás 92

Ugyfelszolgálat 92

Jl jla iI gaiyagai Ij yaiia 1i
aie Jyaiyaiyaiyaii yaiyaiyaiyaiia
saiyaiyaiyaiyaiyaiyaiyaiyaiia
suiia yaiyaiyaiyaiyaiyaiyaiia
siayaiyaiyaiyaiyaiyaiyaiia
siayaiyaiyaiyaiyaiyaiia

. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1. i 2. #

I 1111 1111 1111 1111

wL3 a:ai 1031

aiaaii iiaai iiaai iiaai iiaai

aIbIe Ibsi jgugua Cwuiiaaaaiy
aeiaaa ai yai biaig. iisla glaiai y
iiu nn lgilaiaie

J J

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

...aLalaiay Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy Laiy

...J 1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J

... 1
yiall ydi I yil g jie jg 0
.
...
!olal yj
?ayll wgl sll .
...
!olal no jz lgl

a:ijgJ aiJnJg a,b,

aalal alall aalaae bao yol . aalal

g 1

jgl jll 1i iiaai

.

a

115

ai + 1ai

257

a#

85

≥ 60

60

B

S OBC = S AOB + S_ BOC

cI aIbI bI dIe IaI

1

EN 61121

jbioll

S ACD = S COD + S_ CDA

e 1

=

S = S1 + S2 + ·s + S_n

gelbal + biall jalz

1

aaiu uui 100

aic jySll jill g jie

aillbll aiee clll lgl Jgall

e jll g d jg jll aal aal aal aal

1

a.o.

1

小小 ( g1h1 = g1^2 + g2^2 - 2)

2

.

0000 3

（）

4

jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll

j 1

i j 5

. Jd DRY

6

aill 1

S OBC = S COD + S BOC - S BOC

jgl jld jdi gilgic 8d 7

aiee eae

S ADB = S COD + S_ BDO

.END 15

J 9

yaiy 1

1

y

Jlill 1o Jn 10

i#

i 1

a511 21

.1

J 2

.

即 0 ≤ x ≤ 1,3

yliy, 1j. 4

lg( 12) ÷ 9 < 5 < 6

5

i 1111 1111 1111 1111

1

6

J 100000000000000000000000000000000000000000000

i 1

.7

a山山

aill 12345678901011111111111111111111111111111111111111111111111111111111

1

aalll 1
aall aagl no ayie
aai jgl jc lsl
gag yall c jz jcs
aall gj bca la
aall gag yw .2
aljio olall n jz jol
jglj gol

. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3
4 .
.
.
.
.
.
.

4
4
4
4
4
4
4

1

1. 1

i 1

olalil

a 1

Jll 1c olal 2
Jl J
Xaaia 3
aI bI aI I
Lg j4
lgS

aL aI aJ L

Lai Lioie 8
11. g .aill all
10. g sll aall
11. slal all p

الإستعمال	الإستعمال
الإستعمالalls�ddsی نه‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پورهگزه‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره‌کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پوره کانی پorsکی پوره کانی پorsکی پوره کانی پorsکی پوره کانی پorsکی پوره کانی پorsکی پوره کانی پorsکی پorsکی پوره کانی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsکی پorsKC	الإستعمالalls:الإستعمالalls:ال,en\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ill\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ell\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\ff\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\\frak{g}\text{ }}\text{ }	Celeris 40
الإستعمالalls:ال,en\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ll\\ell\\ll\\ll\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ell\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ell\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ll\\ell\\ll\\ll\\ll\\ell\\ll\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll\\ell\\ll	Celeris 40
150	'150
'120	'120
'90	'90
'75	'75
'60	'60
'45	'45
'30	'30
'20	'20

1

L

1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

J 111111111111111111111111111111111111

3 3

11g 1g

100 200

aaiy 1 aie biai -gall gill/ j

a 100

aai jn 1

a

i j k l o s y

l长 1 = l长 2

J 1 J
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 1
A 2

j 1

J 1

（）

.

1

J 1

.

y

jglal 8

y

.

J 1

60 jgl 1

J 1

1

.

J 1

.

Jgll (y) 1000

aaiy

7 15

J 1

1

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

P

J 8 J a J 10000000000000000000000000000000000000000000000000000000000000

Jg

.
