Irony YGS737 - Wristwatch SWATCH - Free user manual and instructions

Product type	Wrist watch
Brand	Swatch
Model	Irony YGS737
Movement	Quartz
Display type	Analog (hands)
Case	Stainless steel
Glass	Mineral
Bracelet	Stainless steel
Clasp	Deployant buckle
Case diameter	Approximately 40 mm
Case thickness	Approximately 10 mm
Weight	Approximately 80 g
Power	Lithium button cell (type SR621SW or equivalent)
Battery life	Approximately 2 years
Water resistance	200 meters (20 ATM)
Main functions	Time, Date, Day, Touch alarm, Loomi (light), Scuba (elapsed time), Touch game
Time setting	Crown in position C (2)
Date/day setting	Crown in position B (1)
Maintenance	Rinse with fresh water after immersion in salt water
Repairability	Battery replacement by a professional watchmaker

Frequently Asked Questions - Irony YGS737 SWATCH

How to set the time on my Swatch Irony YGS737?

Pull the crown to position C (2). Turn slowly for minutes, quickly for hours. Push the crown back to position A (0) to finish.

How to set the date and day?

Pull the crown to position B (1). Turn counterclockwise for the date, clockwise for the day. Push the crown back.

How to activate or deactivate the alarm?

Press the crown to toggle between ON and OFF modes. The hands indicate the mode.

How to set the alarm time?

Pull the crown to position B (1). Turn it slowly for minutes, quickly for hours. Push the crown back to confirm and activate the alarm.

How to use the Loomi (light) function?

Tap lightly on your Swatch to activate Loomi. The light turns on.

How to use the Scuba (elapsed time) function?

Place the bezel reference mark opposite the minute hand. The minute hand indicates the elapsed time on the bezel.

What to do if the hands do not show noon/midnight during the initialization test?

Pull the crown to position C (2). Turn clockwise to adjust the hour hand, counterclockwise for the minute hand. Push the crown back.

How to perform the initialization test?

Press the crown for 5 seconds. If the hands show exactly noon/midnight, the test is successful. Press again to return to the time.

How to play with the Touch function?

Press your Swatch. The hands rotate around the dial and then stop randomly, displaying the game result for a few seconds before returning to the time.

How to maintain my watch after swimming in the sea?

Rinse the watch with fresh water after any immersion in salt water to prevent salt deposits.

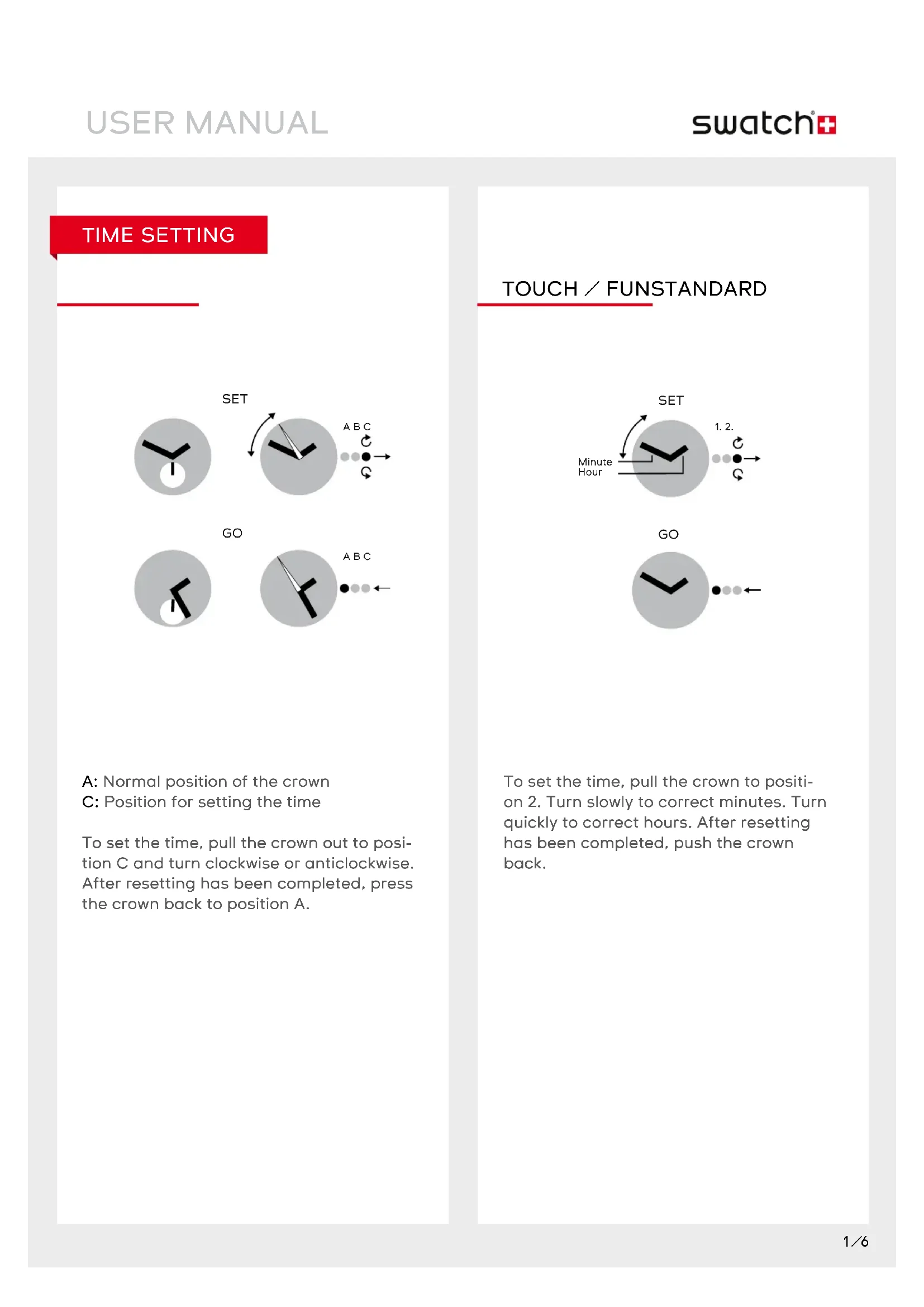

USER MANUAL Irony YGS737 SWATCH

A: Normal position of the crown
C: Position for setting the time

To set the time, pull the crown out to position C and turn clockwise or anticlockwise. After resetting has been completed, press the crown back to position A.

TOUCH/FUNSTANDARD

To set the time, pull the crown to position 2. Turn slowly to correct minutes. Turn quickly to correct hours. After resetting has been completed, push the crown back.

DATE OR DAY SETTING

STANDARD

To set the date, pull the crown out to position B, and turn anticlockwise. To set the day, turn the crown in a clockwise direction. After resetting has been completed, press the crown back to position A.

READJUSTMENT

TOUCH/FUN

ADJUST HAND/+HOUR

ADJUST HAND/+MINUTES

Push crown for 5 seconds. If both hands go to 12 o'clock, test is ok. Push crown again and hands go back to time.

If hands are not exactly at 12 o'clock, pull crown to position 2. Turn clockwise to readjust hour hand. Turn counter clockwise to readjust minute hand. Push crown back and hands turn back to show time.

LOOMI FUNCTION: DISPLAY

TOUCH LOOMI

TOUCH YOUR SWATCH

LOOMI ON

LOOMI

LIGHT FUNCTION

POP

POP-IN

POP-OUT

POP ON CLOTHES

Note: Wear your Swatch simply with its band or try „popping" it directly onto your clothes.

TOUCH ALARM

SHOW ALARM TIME

4 secs.

Touch your Swatch.

Hands move to show alarm time for approx. 4 seconds.

STOP ALARM

Touch your Swatch to stop alarm.

ALARMON/OFF

...CHANGE ON/OFF

SHOW LAST ALARM

...SET NEW ALARM

GO

Switch alarm on/off and set alarm time Press crown and hands go to actual mode on or off.

Press crown again to change mode.

Rull crown to position 1 and the hands go to the last alarm time.

To set a new alarm time, turn crown (turn slowly = minutes, turn quickly = hours).

Then push crown back and hands turn back to time and alarm mode will be "on".

ALARM DEMO

Press crown for 2 seconds to start alarm demo.

To stop, press crown again.

IMPORTANT: When the hands do not show correctly ON-OFF (alarm mode), the Touch Alarm must be adjusted (e.g. after battery change or a hard knock).

TOUCH GAME

Touch your Swatch.

Hands come together at 12 o'clock and start to rotate at least on full turn.

IMPORTANT: If hands are not exactly at 12 o'clock, they have to be readjusted.

4 secs.

Hands stop by accident and show the result of your game for some seconds... ...then, hands turn back to time.

SCUBA FUNCTION: ELAPSED TIME

Using the adjustment ring

For setting the start time and duration of an activity, line up the marker on the adjustment ring with the minute hand. Timing starts at the time indicated by the marker. The elapsed time is indicated by the minute hand pointing the number on the adjustment ring.

WARNING NOTE

IMPORTANT: After being submerged in salt water, the Scuba 200 Chrono should always be rinsed with fresh water.

CAUTION: The Irony Scuba 2OO Chrono is not a professional diving watch.

ZEIT EINSTELLEN

EINSTELLLEN

BETRIEB

TIPPEN SIE AUF IHRE SWATCH

LOOMI GEHT AN

LOOMI

BELEUCHTUNG

POP

LOOMI-FUNCTIE: SCHERM

TOUCH LOOMI

RAAK JE SWATCH AAN

LOOMI ON

LOOMI

LICHT-FUNCTIE

POP

ERIN DRUKKEN

UITWIPPEN

AAN KLEDING BEVESTIGEN
