USER MANUAL G24IW GREENWORKS

Technical line drawing of two robotic devices with no visible text or symbols

CE

Attention! Il est indispensable que vous lisiez les instructions contenues dans ce manuel avant la mise en service de l'appareil.
Important!	It is essential that you read the instructions in this manual before operating this machine.
Achtung!	Bitte lesen Sie unbedingt vor Inbetriebnahme die Hinweise dieser Bedienungsanleitung.
¡Atención! Es imprescindible que lea las instrucciones de este manual antes de la puesta en servicio.
Attenzione! Prima di procedere alla messa in funzione, è indispensabile leggere attentamente le istruzioni contenute nel manuale.
Atenção! É indispensável que leia as instruções deste manual antes de utilizar a máquina.
Let op! Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest vooraleer u dit toestel in gebruik neemt.
Observera! Det är nödvändigt att läsa instruktionerna i denna bruksanvisning innan användning.
OBS! Denne brugervejledning skal gennemlæses inden maskinen tage i brug.
Advarse! Det er meget viktig at du leser denne brukerveiledningen før du tar maskinen i bruk.
Huomio! On ehdottoman välttämätöntä lukea tässä käyttöohjeessa annetut ohjeet ennen käyttöönottoa.
Figyelem!	Feltétlenül fontos, hogy a jelen használati útmutatóban foglalt előírásokat az üzembe helyezés előtt elolvassa!
Dûležité upozornění!	Nepoužívejte tento přístroj dříve, než si přečtete pokyny uvedené v tomto návodu.
Внимание!	Перед сборкой и запуском инструмента необходимо ознакомиться с инструкцией по эксплуатации.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de operarea acestui aparat.
Uwaga!	Przed przystąpieniem do użytkowania tego urządzenia, należy koniecznie zapoznać się z zaleceniami zawartymi w niniejszym podręczniku.
Pomembno!	Pred uporabo tega stroja, obvezno preberite navodila iz tega priročnika.
Upozorenje!	Neophodno je da pročitate ove upute prije uporabe ovog uređaja.
Tähtis!	Enne trelli kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Dèmesio!	Prieš pradėdami eksploatuoti šį prietaisą, svarbu, kad perskaitytumėte šiose instrukcijose pateiktus nurodymus.
Uzmanību!	Svarīgi, lai jūs pirms mašīnas darbināšanas izlasītu instrukcijas šajā rokasgrāmatā.
Dôležité!	Pre prácou s týmto zariadením je dôležité, by ste si prečítali pokyny v tomto návode.
Важно!	От изключителна важност е да прочетете инструкциите в това ръководство, преди да стартирате и използвате тази машина.

Sous réserve de modifications techniques / Subject to technical modifications / Technische Änderungen vorbehalten / Sujeto a modificaciones técnicas / Con riserva di eventuali modifiche tecniche / Com reserva de modificações técnicas / Technische wijzigingen voorbehouden / Med förbehåll för tekniska ändringar / Med forbehold for tekniske ændringer / Med forbehold om tekniske endringer / Tekniset muutokset varataan / A műszaki módosítás jogát fenntartjuk / Změny technických údajů vyhrazeny / Morут быть внесены технические изменения / Sub rezerva modificațiilor tehnice / Z zastrzeženiem modyfikacji technicznych / Tehnične spremembe dopuščene/ Podložno tehničkim promjenama / Tehnilised muudatused võimalikud / Pasiliekant teisę daryti techninius pakeitimus / Paturam tiesības mainīt tehniskos raksturlielumus / Technické zmeny vyhradené /

Technical illustration of a handheld tool with a curved arrow indicating motion, showing internal components and a close-up inset of wood grain (no text or symbols)

Diagram illustrating a hairdryer tool with directional arrows and a magnified view of the blade structure.

6

Diagram illustrating a mechanical or safety system with labeled components and an inset showing motion indicators.

English (Original instructions)

English

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

English (Original instructions)

▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the rest of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Impact Driver safety warnings

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord, fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Additional Safety and Working Instructions

Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.
▶ Read the operating instructions of the battery charger.
▶ Apply the power tool to the screw/nut only when it is switched off. Rotating tool inserts can slip off.
When working with an application tool, pay attention that the application tool is firmly seated on the tool holder. When the application tool is not firmly connected with the tool holder, it can come loose again and not be controlled.
The torque depends on the impact duration. The maximum achieved torque results from the sum of all individual torques achieved through impact.
▶ Check the actually reached torque with a torque wrench.
▶ To save energy, only switch the power tool on when using it.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

English (Original instructions)

Safety instructions for battery pack

a) Do not dismantle, open or shred secondary battery pack.

b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

c) Do not short-circuit battery pack. Do not store battery pack haphazardly in a box or

drawer where they may short-circuit each other or be short-circuited by other metal objects.

d) Do not remove battery from its original battery pack enclosure required for use.

e) Do not subject battery pack to mechanical shock.

f) In the event of leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

g) Do not use any charger other than that specifically provided for use with the equipment.

h) Observe the plus (+) and minus (−) marks, battery and equipment and ensure correct use.

i ) Do not use any battery pack which is not designed for use with the equipment.

j ) Do not mix battery pack with different manufacture, capacity, size or type within a device.

k) Keep battery pack out of the reach of children.

I) Seek medical advice immediately if battery pack has been swallowed.

m) Always purchase the correct cell or battery for the equipment.

n) Keep battery pack clean and dry.

o) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

p) Secondary battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.

g) Do not leave a battery pack on prolonged charge when not in use.

r) After extended periods of storage, it may be necessary to charge and discharge the cells or battery pack several times to obtain maximum performance.

s) Secondary battery pack give their best performance when they are operated at normal room temperature (20 °C ± 5 °C).

t) Retain the original product literature for future reference.

English (Original instructions)

Symbol	Meaning
	Read all safety warnings and all instructions
	Always wear ear protection
	Movement direction
	Reaction direction
	Right/left rotation
	Low speed
	High speed
	Switching On
	Switching Off

Delivery Scope

Cordless impact wrench.

Battery, application tools and other accessories shown or described are not part of the standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for driving in and loosening screws and bolts as well as for tightening and loosening nuts within the respective range of dimension.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Technical Data

	24V Impact Driver 24V Impact WrenchProduct
		3800107a32047aModel
Voltage	24 Volts	24 Volts
No-load speed	0~3200 RPM	0~3200 RPM
Impact rate	4000 IPM	4000 IPM
Max torque	280 N.m	300 N.m
Tool holder	6.35 mm	12.7 mm
Weight with battery pack	1.57kg	1.57kg
Sound pressure level	78dB	78dB
Sound power level	89dB	89dB
Uncertainty K	3dB(A)	3dB(A)
Vibration	10.911m/s^2	10.911m/s^2
Battery Pack	29807 / 29837
Charger	29817

English (Original instructions)

Noise/Vibration Information

Noise and vibrational values (vector sum of three direction determined according to EN60745.

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, ke ep hands warm, organise work patterns.

Maintenance and Cleaning

s) For safe and proper working, always keep the machine and ventilation slots clean.

Clean the application tool, the tool holder, the power tool's ventilations slots, and the battery's ventilation slots each time after using.

Transport

The contained lithium ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements. When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

DISPOSAL

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

OPERATION

24V Impact Driver	24V Impact Wrench
Fig. 1: Removing the battery	Fig. 1: Removing the battery
Fig. 2: Inserting the battery	Fig. 2: Inserting the battery
Fig. 3: Checking the battery charge condition	Fig. 3: Checking the battery charge condition
Fig. 4: Installing/Removing Bits	Fig. 4: Installing/Removing Bits

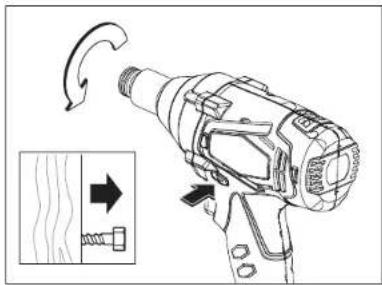

Fig. 5: Reversing the rotational direction	Fig. 5: Reversing the rotational direction

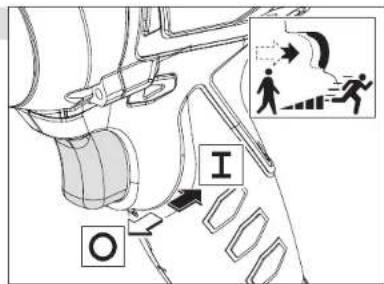

Fig. 6: Switching on and off	Fig. 6: Switching on and off

Greenworks Tools Warranty Policy for DIY machines

PERIOD OF WARRANTY

All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers.

This warranty is non-transferable.

LIMITATIONS

This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.
2. Routine tune up or adjustment.
3. Damage caused by improper handling/abuse/misuse or neglect.
4. Overheating due to lack of maintenance
5. Damage due to fittings/fasteners becoming loose/detached through lack of maintenance.

6. Damage caused by cleaning with water.

7. Machines serviced or repaired by non-authorised Greenworks Tools service centres.

8. Machines incorrectly assembled or adjusted.

9. Damage caused by improper use of the machine.

10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by the warranty, including but not limited to:

- Batteries

- Electric cables

- Blade and blade assemblies

- Belts

- Filters

- Chucks and tool holders

1. Certain products may contain components such as engines, transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer's warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer's warranty period.

2. Second hand goods are not covered under this warranty policy.

3. The fitting of spares, replacements or extra components which are not supplied or approved by Greenworks Tools Europe GmbH.

Warranty

To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced.

If the central service facility finds that machine is not found to be at fault then the consumer will be advised they will need to pay for the cost of the repair.

This warranty policy is subject to change from time to time to accommodate the needs of new products. A copy of the latest warranty policy will be available at www.greenworkstools.eu.

Adresse: Address: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

EC DECLARATION OF CONFORMITY

Name: Changzhou Globe Co., Ltd.

Address: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Name and address of the person authorised to compile the technical file:

Name: Gary Gao Naixin (Vice President of Engineering)

Adress: Green works Tools Europe GmbH, Wankelstrasse 40. 50996 Koln Germany

Herewith we declare that the product

Category 24V Impact Driver

24V Impact Wrench

Model 32047a/3800107a

for driving in and loosening screws and bolts

as well as for tightening and loosening nuts

Serial number ......See product rating label

Year of Construction......See product rating label

is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)

■ is in conformity with the provisions of the following other EC-Directives

EMC Directive (2014/30/EU),

And furthermore, we declare that

The following (parts/clauses of) European harmonised standards have been used

EN 60745-1:2009+A11:2010,EN 60745-2-2:2010,EN 55014-1:2006+A1:2009+A2:2011,EN 55014-2:1997+A1:2001+A2:2008

Place, date: Changzhou, 12/25/2015

Gary Gao Naixin (BEng, CEng, MIET) Signature: Vice president of Engineering

Signature: vice president of Engineering

Hersteller: Changzhou Globe Co., Ltd.

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Endereço: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.China

Adress: Green works Tools Europe GmbH, Wankelstrasse 40. 50996 Koln Germany

Model....32047a/3800107a

Model....32047a/3800107a

Nimi: Gary Gao Naixin (Asepresident tootmise alal)

Aadress: Greenworks Tools Europe GmbH, Wankelstrasse 40. 50996 Köln Germany

Kinnitame, et see toode,

Nimetus ...... Löök-kruvikeeraja 24 V

Löök-mutrivõti 24 V

Mudel....32047a/3800107a

Adrese: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.China

Adrese: Greenworks Tools Europe GmbH, Wankelstrasse 40. 50996 Koln Germany
