USER MANUAL CDIM 2512PR CANDY

50°C/ 60°C 45°C/ 55°CCongratulations! Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND

GUARANTEE Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical break- down excluding: A. Any faults which occur due to bad installation or misuse of the machine. B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service. C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts. D. Any faults arising from non-domestic use or unusual or abnormal use of the machine. E. Any faults arising from operation at incorrect voltage. F. Any faults arising from incorrect operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

For service and repairs call your local engineer on our national telephone number: GIAS Service Tel: 0884 995599 Support Service (Eire 0818 200021)

8 persons Min. 0,08 - Max. 0,8 See rating plate Power consumption of the off-mode and of the left-on mode: 0,30 W / 0,45 W *Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage). 1,97 1,35 0,90 0,59

(Use in conjunction with programme guide) "DEGREE OF SOILING" buttons These buttons allow to modify the wash intensity, according to how dirty the dishes are. The wash time and temperature will be modified. Pressing the button + the intensity of wash will be increased, pressing the button – the intensity of wash will be reduced and the wash time will be remarkably shorter. The combination of the buttons with the 4 main wash programmes enable to have 8 additional wash cycles. IMPORTANT When the dishwasher is switched on, the "DEGREE OF SOILING" last used will be indicated. "Perfect Rapid zone" The "Perfect Rapid zone" is identified by the left side of the tub, in which two extra washing arms will be activated during Rapid programs (RAPID 24' and A Class 59’) and U-WASH + programs (Hygienic, Universal Plus and Eco Plus) to provide an extra washing force, more water, in that zone. Programme settings ■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button . The display will show two lines. ■ Choose a programme by pressing the "PROGRAMME SELECTION" button ("PROGR."). ■ If you wish to choose the "DEGREE OF SOILING", press the corresponding button. ■ If you wish to select an option, press the option button (the corresponding indicator light will light up). The option button can be selected or deselected WITHIN one minute of the programme commencing. ■ Press the "START" button. The length of the program will be shown on the display alternating hours with minutes [I.e.: 1 h (1 hour) / 25 (25 minutes)]. ■ Close the door (after an audible signal has sounded, the programme will start automatically). WHITIN one minute of the programme commencing, another programme can be selected, by pressing the "PROGRAMME SELECTION" button (it is also possible to change the "DEGREE OF SOILING" setting). "IMPULSE" programmes The “IMPULSE” programmes use an impluse washing technology, which reduces consumption, noise and increases performances. IMPORTANT The “intermittent” working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme.

“AUTOMATIC” programmes The dishwasher is equipped with a dirt sensor, able to analyse water murkiness during all "AUTOMATIC" programme phases (see programme list); thanks to this sensor the washing cycle parameters are automatically adapted to the real quantity of dirt on dishes. Thus excellent washing results are guaranteed while optimising water and energy consumption. Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. Changing a running programme Proceed as follows to change or cancel a running programme: ■ Open the door. ■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound. ■ The running programme will be cancelled. The display will show two lines. ■ At this point a new programme can be set. WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. Programme end A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for a new cycle. Option buttons “ALL in 1” button This option optimises the use of “ALL in 1” (“3 in 1”/ “4 in 1”/“5 in 1”, etc...) combined detergents. By pressing this button, the selected washing programme is modified to get the best performance from combined detergents; furthermore, the salt and rinse aid shortage lights are de-activated. WARNING! Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again. IMPORTANT This option is recommended when using the RAPID 24' program, the duration of which will be extended for about 15 minutes, allowing the detergent tablets to achieve a better performance.16 "DELAY START" button Dishwasher start time can be set with this button, delaying start from 1 to 23 hours. Proceed as follows to set a delayed start: ■ Press the "DELAY START" button ("00" will appear on the display). ■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23). The “DELAY START” indicator light will turn on. ■ To start the countdown press the "START" button (the “DELAY START” indicator light will start to flash). At the end of the countdown, the programme will automatically start (the “DELAY START” indicator light will turn off). If you wish to see which programme has been selected, press the "PROGRAMME SELECTION" button. Proceed as follows to cancel a delayed start: ■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound. ■ The delayed start and the selected programme will be cancelled. The display will show two lines. ■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section. Alarm mute for the PROGRAMME END The alarm for the programme end may be muted as follows: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 15 seconds (during this time, 2 audible signals will sound).

3. Release the button when the second

audible signal sounds ("b1" will appear on the display to indicate that the alarm is on).

4. Press the same button again ("b0" will

appear on the display to indicate that the alarm is off).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. To turn the alarm on again, follow the same procedure.17

AUTOMATIC FAULT SIGNALS

Turn off the dishwasher, open the inlet hose and reset the cycle. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Contact Customer Service. Clean the filter plate. If the problem persists, contact Customer Service.

appears on the display and the alarm sounds. E3 appears on the display and the alarm sounds. E4 appears on the display and the alarm sounds. E5,E6,E7,Ef or EL appears on the display and the alarm sounds. E8 or Ei appear on the display and the alarm sounds. No water (inlet hose closed). The machine cannot drain water. Water leak Electronic control fault. The water heating element is not working correctly or the filter plate is clogged. The dishwasher is able to signal a series of faults in the display.

4. Press the same button again ("A1" will

appear on the display to indicate that the memorization is on).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. To disable the memorization, follow the same procedure. IMPORTANT This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur. WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher. Memorization of the last programme used The last programme used can be memorized by following the below: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 30 seconds (during this time, 3 audible signals will sound).

3. Release the button when the THIRD

audible signal sounds ("A0 " will appear on the display to indicate that the memorization is off).18 The main inlet pipe is contained within a protective transparent hose. In the event of damage occurring to the main inlet pipe any water leakage is retained within the transparent hose. If water has leaked from the main inlet pipe there will be a visible sign within the transparent hose. You may continue to complete the programme cycle but for safety we recommend the immediate replacement of the complete hose assembly. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from a Service Centre.

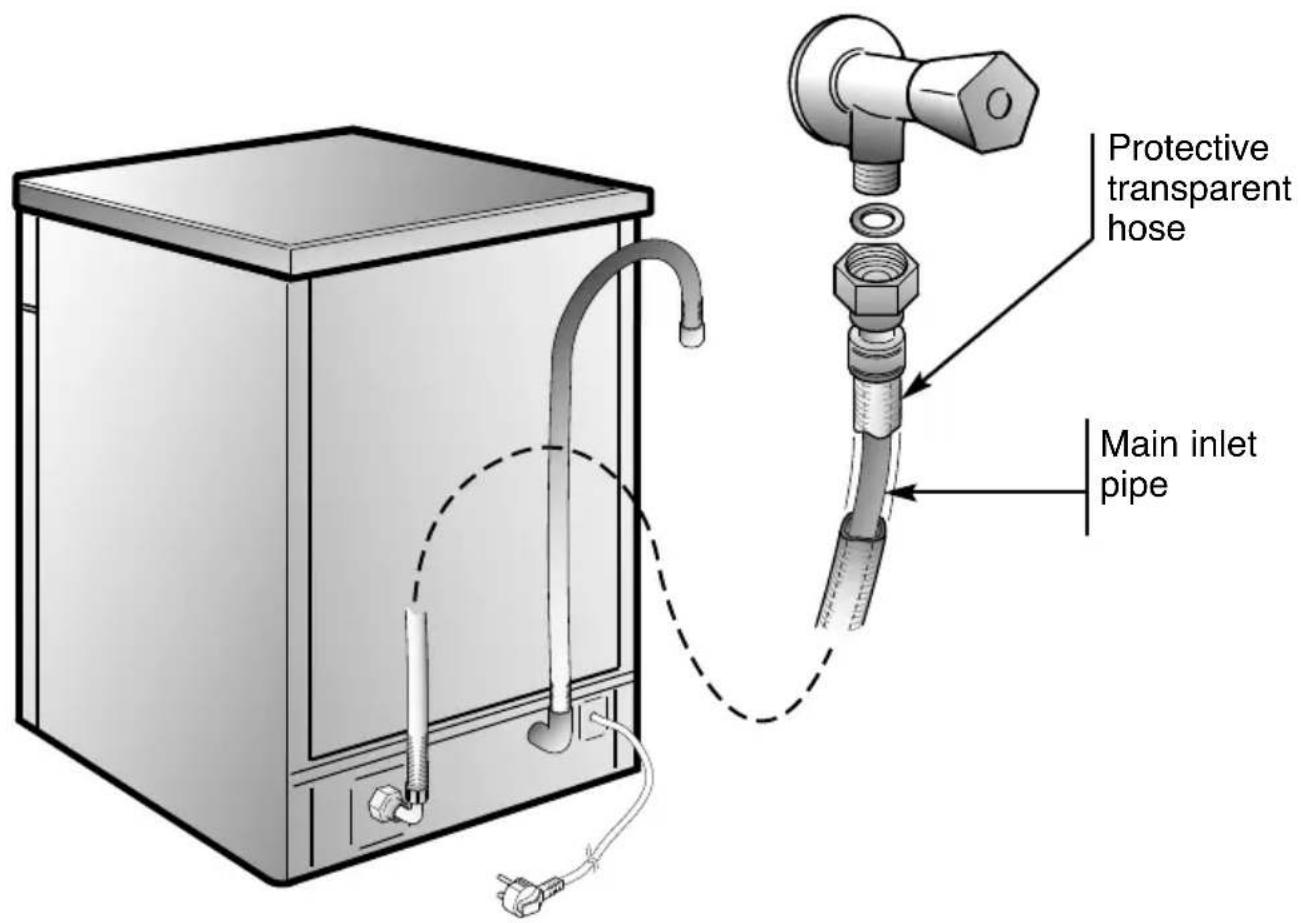

AQUAPROTECT – PROTECTED INCOMING WATER PIPE

Main inlet pipe Protective transparent hose19

• The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Regulate the setting of your water softener unit according to the degree of hardness of your water as follows: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 5 seconds, UNTIL a brief audible signal sounds. The current water softener setting level will be shown on the display.

3. Press the same button again to select

the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".

4. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener The water softener can treat water with a hardness level of up to 90°fH (French grading) or 50°dH (German grading) through 8 settings. The settings are listed in the table below:

Water hardness Water softener setting Use of regenerating salt Salt loading indicator This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container. IMPORTANT The appearance of white stains on dishes is generally an important sign that the salt container needs filling.= "IMPULSE" programmes

PROGRAMME GUIDE Wash with prewashFor wash programmes with prewash, it is advisable to add a second dose of detergent (max.10 g) directly in the machine.Once a day - for heavily soiled pans and anyother items that have been left all day forwashing.Hygienic 75°CSuitable for heavily soiled items that are to bewashed straight after a meal (Max 8 place load).Quick wash for dishes which are to be washedimmediately after the meal. Wash load of6 persons.Suitable for delicate crockery and glassware. Alsofor less soiled items excluding pans.Short cold pre-wash for items that are stored inthe dishwasher until you are ready to wash a fullload.Once a day - for normal soiled pans and any otheritems that have been left all day for washing. INTENSIVE 75°CStrong & Fast 65°CUniversal Plus 65°-75°CUNIVERSAL 50°-60°CDaily 45°-55°CEco Plus 55°CECO 45°CDelicate 45°C A Class 59’ 65°C RAPID 24' 50°CPre-washAn antibacterial cycle, intended for washing andsterilising dishes (even heavily stained ones)babies’ bottles etc.Intended for rapid washing of very dirty dishes.Intended for everyday dishwashing. Two finalrinses ensure a high level of hygiene andcleanliness.Fast cycle, for “normally” dirty dishes - intendedfor frequent washes and normal loads.A medium temperature programme, intended forwashing pans and dishes that are “normally” dirty,using detergents which contain enzymes.

Programme for normally soiled tableware (themost efficient in terms of its combined energy andwater consumption for that type of tableware). Programme standardised to EN 50242.= "AUTOMATIC" programmes/( ) = "AUTOMATIC" PROGRAMMES ARE OPTIMISED THANKS TO THE DIRT SENSOR THAT ADAPTSWASHING PARAMETERS TO DISH DIRT LEVELS.

YES YES YES YES YES YES = "Perfect Rapid zone" switched on 115/
