KA 5800 - Coffee maker SEVERIN - Free user manual and instructions

Product Type	Duo filter coffee maker with two separate brewing systems
Brand	SEVERIN
Model	KA 5800
Power Supply	220-240 V ~ 50/60 Hz
Power	Approximately 1000 W
Maximum Capacity	Approximately 1.25 L (10 cups of 125 ml)
Carafe Type	Glass carafe with lid (standard model) or insulated carafe depending on version
Filter	Swivel filter holder for size 4 paper filters
Main Functions	Preparation of coffee and tea, automatic shut-off, keep warm, anti-drip system, Duo function (two independent circuits)
Automatic Shut-off	35 minutes after the end of the cycle (glass carafe) or immediately (insulated carafe)
Keep Warm	On hotplate for approximately 35 minutes
Water Level Indicator	Graduations on the reservoir (regular 125 ml cups and small ones)
Tea Filter Included	Yes, suitable for glass carafe
Care and Cleaning	Carafe, lid, filter holder, and tea filter are dishwasher safe; body wiped with a damp cloth
Recommended Descaling	Every 30 to 40 brewing cycles with vinegar or a compatible descaling agent
Safety	Automatic shut-off, overheat protection, non-slip feet, short power cord to prevent hazards
Use by Children	Allowed from age 8 under supervision; cleaning not allowed for children under 8
Repairability	Repairs exclusively by SEVERIN after-sales service; parts available on request
Included Accessories	Glass carafe, lid, tea filter, filter holder, cord storage compartment
Weight	Approximately 2.5 kg (estimate)
Dimensions (W x D x H)	Approximately 30 x 22 x 36 cm (estimate)

Frequently Asked Questions - KA 5800 SEVERIN

How to descale the SEVERIN KA 5800 coffee maker?

To descale your appliance, mix 80 ml of white vinegar with the maximum amount of cold water. Pour this solution into the reservoir, place an empty paper filter in the filter holder, then run a complete cycle. Repeat if necessary. Then run 2 to 3 cycles with fresh water to rinse. Ensure good ventilation during the operation.

Can I brew tea with this coffee maker?

Yes, the KA 5800 is a Duo coffee maker that allows you to prepare tea. Use the provided tea filter, place a small amount of tea leaves (the flavor is more concentrated), then start the brewing cycle. The steeping time depends on your taste.

What is the maximum capacity in cups?

The coffee maker can brew up to about 10 cups of 125 ml (1.25 liters). For tea, it is recommended not to exceed 7 cups.

Are the parts dishwasher safe?

Yes, the glass carafe, lid, filter holder, and tea filter are dishwasher safe. The appliance body should be cleaned with a damp cloth and mild detergent.

How to avoid burns when opening the lid?

Before opening the lid, always unplug the appliance and let it cool down. This prevents splashes of hot water or steam. Never open during the cycle.

What to do if the coffee maker does not shut off automatically?

First check the carafe type: with a glass carafe, automatic shut-off occurs 35 minutes after the end of the cycle. With an insulated carafe, it is immediate. If the issue persists, contact SEVERIN after-sales service.

What type of paper filter to use?

Use size 4 paper filters. Slightly fold the perforated sides before inserting them into the swivel filter holder.

Is the appliance safe for children?

The appliance can be used by children aged 8 and over under supervision. Cleaning is not allowed for children under 8. Keep the appliance and cord out of reach of children under 8.

How to store the power cord?

Under the base of the appliance there is an integrated cord storage compartment. Wind up the excess cord and place it in this compartment.

Where to find spare parts or get the appliance repaired?

Repairs must be carried out by an authorized SEVERIN after-sales service. You will find the contact details in the manual. For spare parts, contact SEVERIN customer service.

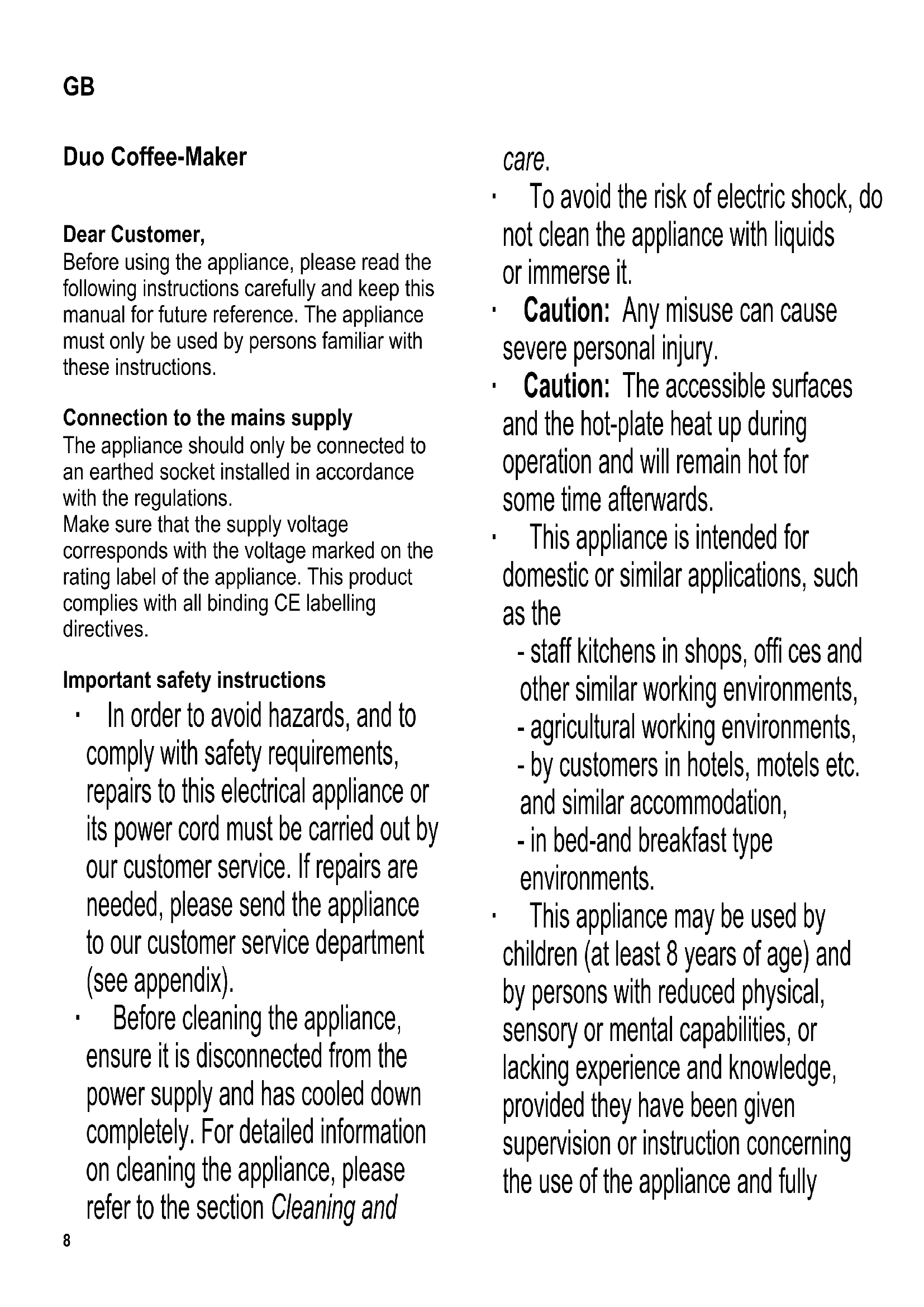

USER MANUAL KA 5800 SEVERIN

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Important safety instructions

In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
- Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. For detailed information on cleaning the appliance, please refer to the section Cleaning and

care.

• To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
• Caution: Any misuse can cause severe personal injury.

• Caution: The accessible surfaces and the hot-plate heat up during operation and will remain hot for some time afterwards.
  This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,

• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully

understand all dangers and safety precautions involved.

Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.
Children must not be permitted to play with the appliance.
Caution: Keep any packaging materials well away from children - these are a potential source of danger, e.g. of suffocation.
- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
During operation, the coffee maker must be placed on a level, non-slip surface, impervious to splashes and stains.
- Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources.
- Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.

Always remove the plug from the wall socket

-in case of any malfunction,
- after use, and also
- before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• To prevent the danger of hot water or steam being emitted, always switch off the coffee maker and allow sufficient time for the appliance to cool down before opening the lid or removing any accessories or attachments.
• Do not leave the appliance unattended while it is switched on.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Features

This Duo Coffee-Maker has two separate water passage systems. The features and accessories of your appliance will depend on the model.

Automatic switch-off

To save energy, models with a thermo vacuum jug will switch off automatically once the brewing cycle has been completed. Those with a regular glass jug will automatically switch off about 35 minutes after brewing.

General information before use

• Scales on the water containers facilitate filling them with the correct amount of clean water. With a dual-scale, the left scale is used for regular-sized cups of approx.125ml, while the right scale is used for smaller cups. Make sure that the indicated maximum is not exceeded.

• If several consecutive brewing cycles are required, switch off the coffee maker after each cycle and let it cool down for approx. 5 minutes.

• Important note: When filling the appliance with fresh water shortly after a brewing cycle is completed, there is a danger of scalding from hot water or steam escaping through the water outlet.

Before using for the first time

Before making coffee for the first time, let the appliance go through two or three filtration cycles without using ground coffee. This should also be done if the appliance has not been used for an extended period of time, and after descaling.

Making coffee

Filling with water:

Open the water container lid, fill the container with the desired quantity of clean, cold water (using the glass jug) and close the lid.

• Inserting the paper filter:

Open the swing-out fi Iter holder and insert a size-4 paper filter, first folding down the perforated sides of the fi Iter.

Filling with ground coffee:

For each regular-sized cup (125ml), a measure of about 6 g (= 112 - 2 teaspoons) of medium or finely ground coffee will be required. For smaller cups, about 4g = 1 - 112 teaspoons will be required. Close the swing-out holder afterwards.

Preparing the glass jug:

Make sure to fit the lid onto the glass jug before placing it onto the hot-plate. If correctly inserted, the lid will disable the drip-stop mechanism in the swing-out fiiter during the brewing cycle.

Starting the brewing cycle:

Insert the plug into a suitable wall outlet and use the appropriate On/Off button to turn on the side of the coffee maker to be used. The filtration cycle starts.
- Removing the freshly brewed coffee: Wait until all the water has passed through the filter before removing the jug from the appliance.

• Switching off the coffee maker:

The coffee may be kept warm inside the jug by leaving it standing on the hot-plate. The plate is kept hot for around 35 minutes after brewing is complete. However, it can also be switched off earlier by pressing the On/Off button again.

• Disconnecting from the mains:

Remove the plug from the wall socket once.
brewing/keeping-warm is complete.

Making tea

Filling with water:

Open the container lid and fi II the container with the desired quantity of clean, cold water.

Caution: Do not put in more than max. 7 cups of water. Close the lid.

Filling with tea leaves:

To load the tea filter, take off its top by turning anti-clockwise, put in the required amount of tea leaves and close again.

Compared with traditional tea-brewing, only a reduced amount of tea leaves should be used, as the yield of the leaves is higher when using this appliance.

• Inserting the tea filter:

Insert a tea filter into the glass jug.

Preparing the jug:

Make sure to fit the lid onto the glass jug before placing it onto the hot-plate. Keep the swing-out fi tter closed.

Starting the brewing cycle:

Insert the plug into a suitable wall outlet and use the appropriate On/Off switch to turn on the side of the coffee maker to be used. The filtration cycle starts.

- Removing the freshly brewed tea:

The time the tea is left to stand largely depends on your personal taste as well as on the type of leaves used. Take the jug from the hot-plate and carefully lift out the tea filter. The tea filter may be put onto the closed glass jug to drain off.

- Switchingoff:

The tea may be kept warm inside the jug by leaving it standing on the hot-plate. The plate is kept hot for around 35 minutes after brewing is complete. However, it can also be switched off earlier by pressing the On/Off button again.

- Disconnecting from the mains:

Remove the plug from the wall socket once brewing/keeping-warm is complete.

Dscaling

Depending on the water quality (lime content) in your area as well as the frequency of use, all thermal household appliances using hot water need descaling (i.e. removal of lime deposits) on a regular basis to ensure proper functioning.
Any warranty claim will be null and void if the appliance malfunctions because of insufficient cients.
A lengthening of the brewing time and increased noise during brewing indicate that descending of the coffee maker has become necessary.
An excessive build-up of lime deposits is very difficult to remove, even when strong.
descaling agents are used. It may also
cause the brewing system to leak. We

therefore strongly recommend descending the appliance after each thirty to forty brewing cycles. For descending, a vinegar solution may be used.

• Mix 80 ml of vinegar essence with the indicated maximum amount of cold water.
  Pour the descending solution into the water container, insert a paper filter into the filter holder but without adding any ground coffee as described in section Making coffee, and let the appliance run through one filtration cycle. Repeat the procedure if necessary. During descending, ensure sufficient ventilation and do not inhale any vinegar vapours.
  To clean the appliance after descaling, let it run through 2-3 ft ltration cycles using clean water only.
• Do not pour descalers down enamel sinks.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has completely cooled down.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.
• The housing may be wiped with a slightly damp lint-free cloth and a mild household detergent. Wipe thoroughly dry afterwards.
• Dispose of the coffee grounds and rinse the filter. As a natural substance, the coffee grounds may be composted.
• The glass jug, lid, filter holder and tea fi liter may be cleaned in soapy water or in a dish-washer.

Power-cord storage compartment

The integrated power-cord storage compartment is used for storing the power cord. The recess at the bottom facilitates limiting the length of the power cord.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please

also provide the guarantee card and proof of purchase.
