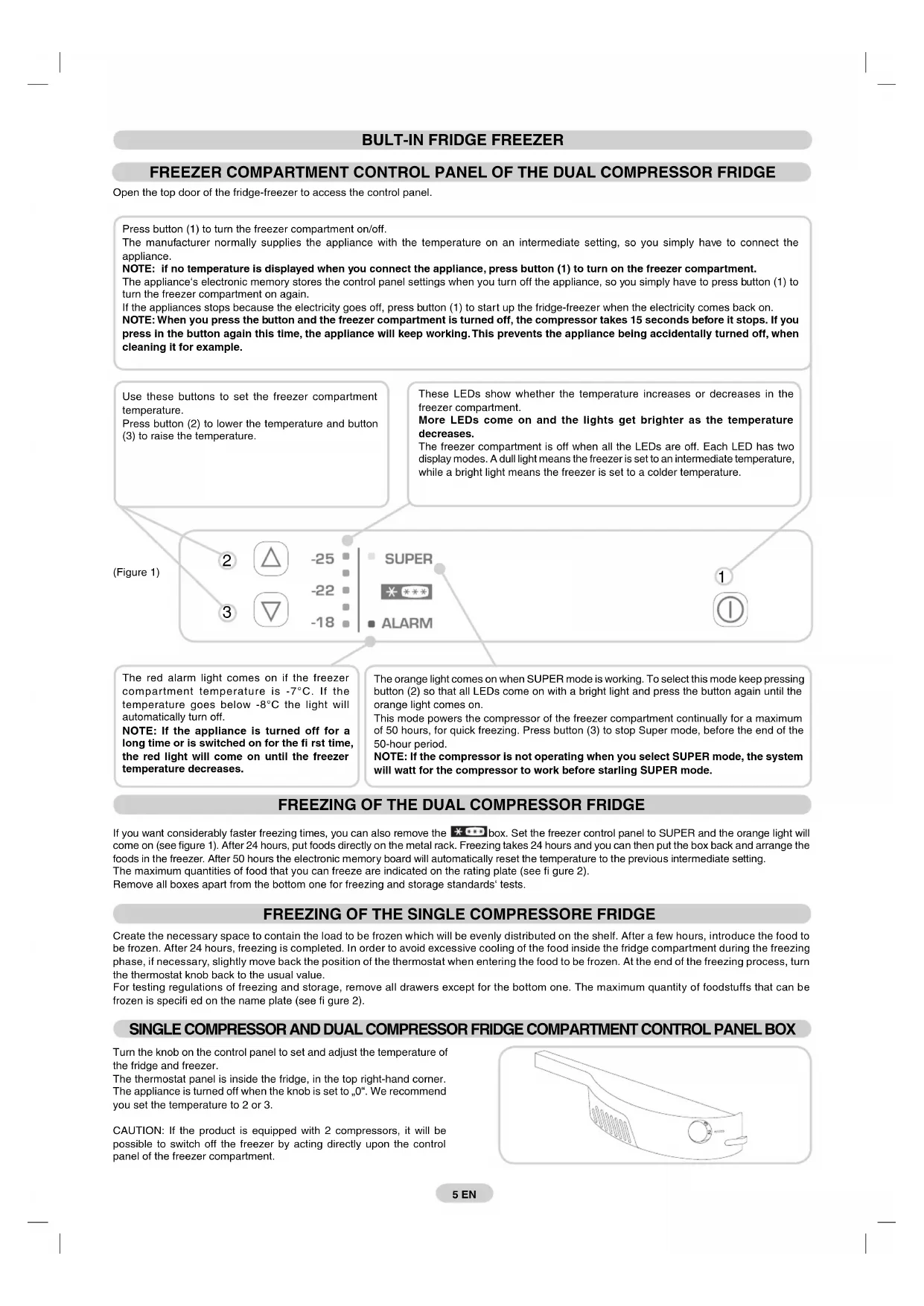

USER MANUAL IBC 313 A IBERNA

Open the top door of the fridge-freezer to access the control panel.

Press button (1) to turn the freezer compartment on/off.

The manufacturer normally supplies the appliance with the temperature on an intermediate setting, so you simply have to connect the appliance.

NOTE: if no temperature is displayed when you connect the appliance, press button (1) to turn on the freezer compartment.

The appliance's electronic memory stores the control panel settings when you turn off the appliance, so you simply have to press button (1) to turn the freezer compartment on again.

If the appliances stops because the electricity goes off, press button (1) to start up the fridge-freezer when the electricity comes back on.

NOTE: When you press the button and the freezer compartment is turned off, the compressor takes 15 seconds before it stops. If you press in the button again this time, the appliance will keep working. This prevents the appliance being accidentally turned off, when cleaning it for example.

Use these buttons to set the freezer compartment temperature.

Press button (2) to lower the temperature and button (3) to raise the temperature.

These LEDs show whether the temperature increases or decreases in the freezer compartment.

More LEDs come on and the lights get brighter as the temperature decreases.

The freezer compartment is off when all the LEDs are off. Each LED has two display modes. A dull light means the freezer is set to an intermediate temperature, while a bright light means the freezer is set to a colder temperature.

(Figure 1)
2

-25

3

-18
ALARM

The red alarm light comes on if the freezer compartment temperature is -7^ . If the temperature goes below -8^ the light will automatically turn off.

NOTE: If the appliance is turned off for a long time or is switched on for the first time, the red light will come on until the freezer temperature decreases.

The orange light comes on when SUPER mode is working. To select this mode keep pressing button (2) so that all LEDs come on with a bright light and press the button again until the orange light comes on.

This mode powers the compressor of the freezer compartment continually for a maximum of 50 hours, for quick freezing. Press button (3) to stop Super mode, before the end of the 50-hour period.

NOTE: If the compressor is not operating when you select SUPER mode, the system will wait for the compressor to work before starling SUPER mode.

FREEZING OF THE DUAL COMPRESSOR FRIDGE

If you want considerably faster freezing times, you can also remove the * * * * box. Set the freezer control panel to SUPER and the orange light will come on (see figure 1). After 24 hours, put foods directly on the metal rack. Freezing takes 24 hours and you can then put the box back and arrange the foods in the freezer. After 50 hours the electronic memory board will automatically reset the temperature to the previous intermediate setting.

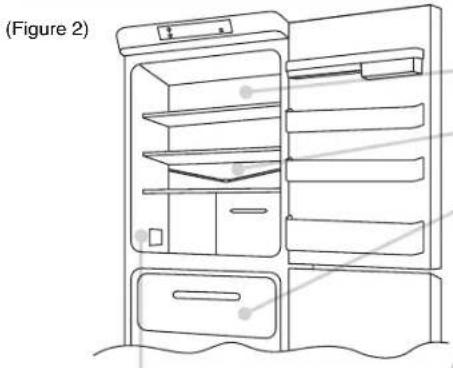

The maximum quantities of food that you can freeze are indicated on the rating plate (see figure 2).

Remove all boxes apart from the bottom one for freezing and storage standards' tests.

FREEZING OF THE SINGLE COMPRESSORE FRIDGE

Create the necessary space to contain the load to be frozen which will be evenly distributed on the shelf. After a few hours, introduce the food to be frozen. After 24 hours, freezing is completed. In order to avoid excessive cooling of the food inside the fridge compartment during the freezing phase, if necessary, slightly move back the position of the thermostat when entering the food to be frozen. At the end of the freezing process, turn the thermostat knob back to the usual value.

For testing regulations of freezing and storage, remove all drawers except for the bottom one. The maximum quantity of foodstuffs that can be frozen is specified on the name plate (see figure 2).

SINGLE COMPRESSOR AND DUAL COMPRESSOR FRIDGE COMPARTMENT CONTROL PANEL BOX

Turn the knob on the control panel to set and adjust the temperature of the fridge and freezer.

The thermostat panel is inside the fridge, in the top right-hand corner. The appliance is turned off when the knob is set to 0^ . We recommend you set the temperature to 2 or 3.

CAUTION: If the product is equipped with 2 compressors, it will be possible to switch off the freezer by acting directly upon the control panel of the freezer compartment.

DEFROSTING

The fridge compartment is automatically defrosted when the compressor is not working.

A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal.

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge.

We recommend you defrost the freezer compartment when the frost is more than 3mm thick.

N.B. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Note: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the knob to lower settings (1-2).

DRAINING WATER

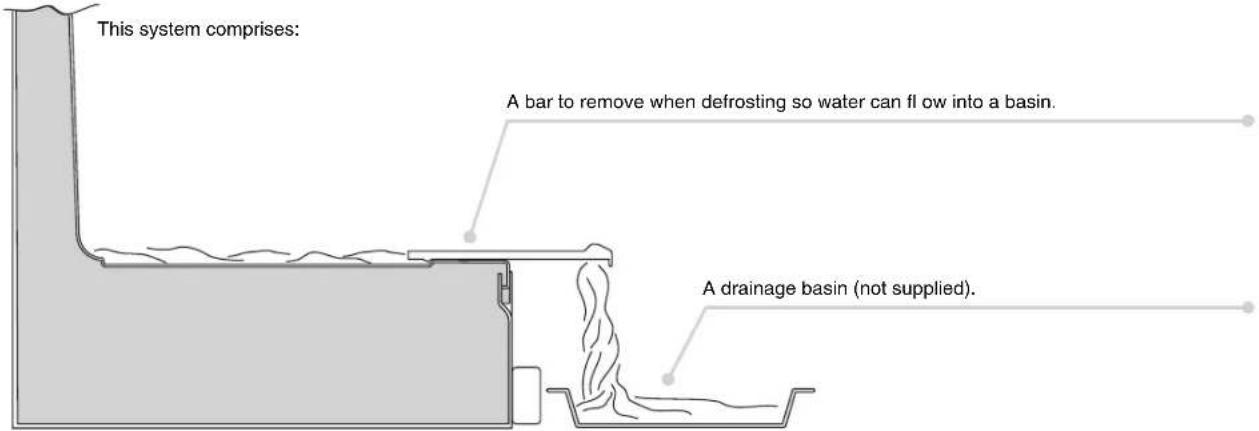

The appliance has a system for draining water from defrosting.

REVERSING THE FRIDGE-FREEZER DOORS

Remove the pin and bushing from the toppanel.

Remove the top door.

Remove the middle hinge and washers.

Remove the bottom door.

Remove the pin of the bottom right-hand hinge and refill it on the bottom left-hand hinge.

Reverse the bracket cover snap, which is snap-fi tted on the bracket.

Fit the hinge and doors, working from top to bottom 1 2-3

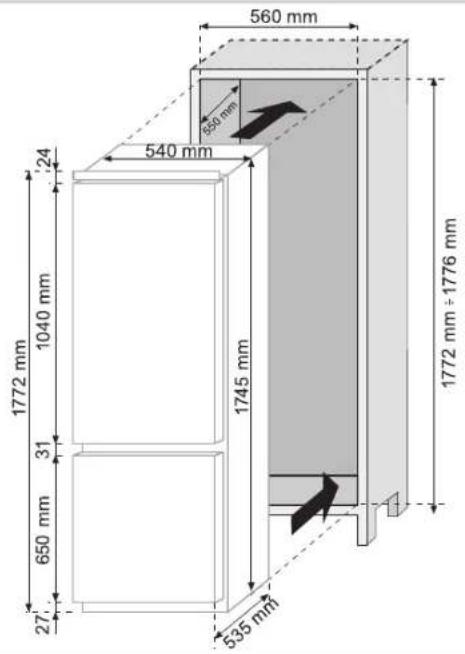

SIZE OF THE APPLIANCE AND UNIT

INSTALLING THE APPLIANCE IN A UNIT

Secure the seal (supplied) to the appliance, on the opposite side from the hinges.

1

Install the appliance in the unit, Aligning it on the opposite side from the hinges.

2

Make sure the top bracket of the appliance is against the unit.

3

Secure the top of the appliance to the unit with the screws provided.

4

Secure the bottom of the appliance with the screws provided.

5

Fit the ventilation grid. Loosen the screws on the middle right-hand hinge.

6

7

Position the plate close to the column.

8

Fit the bracket to the unit with the screws provided.

9

Tighten the screws in the middle right-hand hinge.

10

Repeat the same steps for the middle left-hand hinge.

11

ALIGNING UNIT DOORS WITH THE FRIDGE-FREEZER DOORS

The appliance is supplied with fittings (slides and slide brackets) to align the fridge-freezer doors with the doors of the unit.

ENSURING YOUR FRIDGE-FREEZER WORKS PROPERLY

After fitting the appliance, place the rear of the unit against the wall to prevent access to the compressor unit.

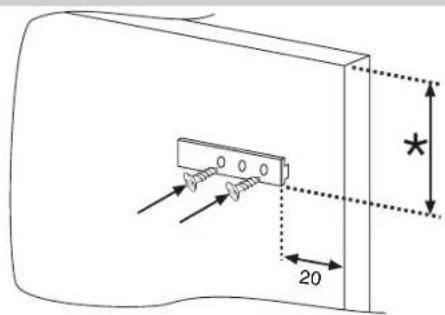

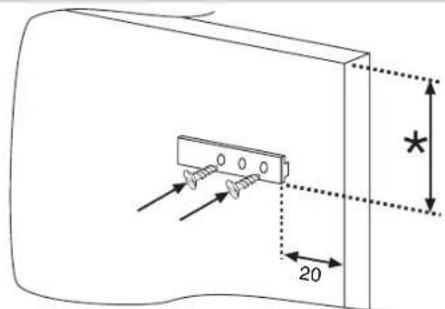

Fix the slide on the inside of the unit door, at the height you want. Make sure it is approximately 20mm from the outside edge door.

To make sure the fridge-freezer works properly, air must circulate to cool the condenser which is situated at the bottom of the appliance.

The unit must have a rear outlet with top opening that is not obstructed and a front opening which is covered by the ventilation grid.

Open the doors of the unit and fridge. Position the slide bracket around the slide and secure to the appliance door.

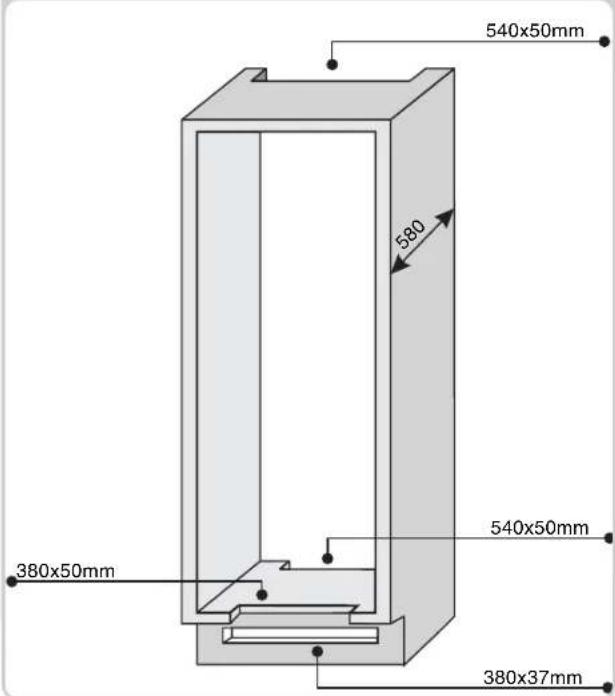

Size of the unit cut outs.

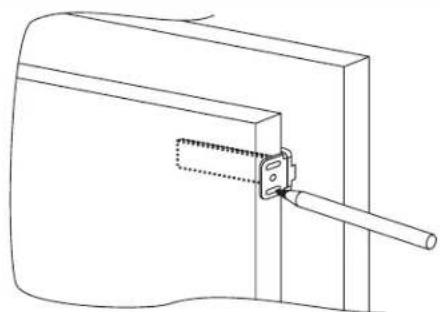

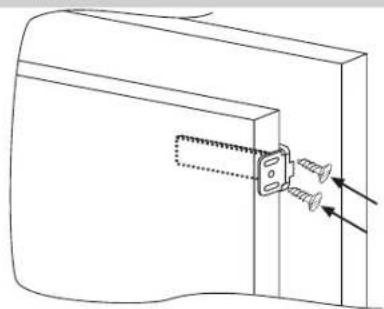

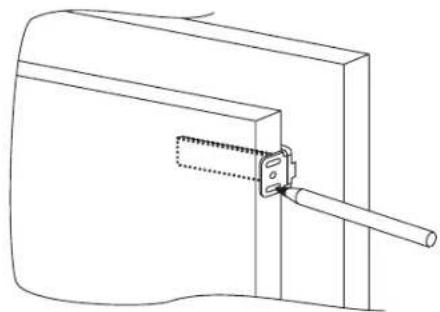

Mark the holes for the screws and drill with a 2.5 mm diameter bit.

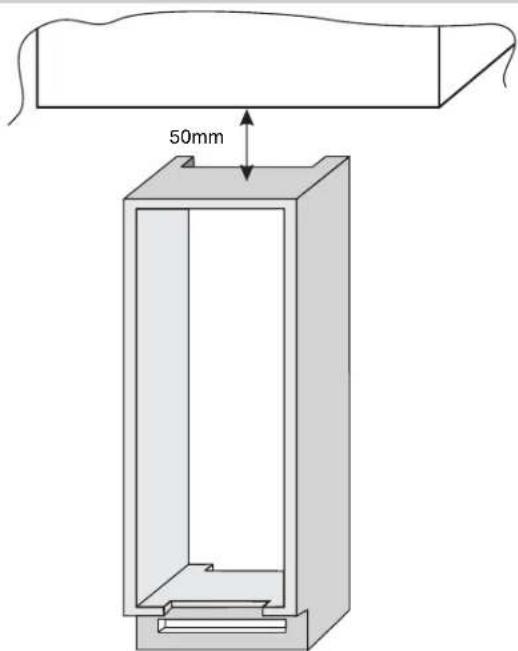

Room to leave between the unit and ceiling.

Fit the appliance door to the door of the unit, using the slots on the slide bracket as a guide.

COMBINÉ ENCASTRABLE

PANNEAU DE COMMANDE DU COMPARTIMENT CONGELATEUR DU REFRIGERATEUR A DOUBLE COMPRESSEUR

TOnoBETnOte to Eaouka Kovta otny KooWvA.

8

BIOWOTIyvuaOToEITIMAo, XPOIOTIOwVTAcTIS BIEcTou DiATIEvTAI.

9

ΣΦIεT TIS βIDEs ΕTEPΕWONs TOU KΕVTPIKOU μΕVTESE δΕγι.

10

Enavaaabe TIS idies kivnoe yia tvkVtpkiyuvia apotepa.

11

SYNDAEESH TQN OYPON THE NTOYANAPME TIE OYPESE THE EKEYH

H oukeui diaotei eapnmuata ouvdeons twv thupw vns oukeunc me n ts upe ts voulaatac (oiaothnpes).

Tepewote ToV Oioohtnpa 0To eOwTEpiko TnTTOPTAs TnVouAATAC 0To EtnuHIO TOUOS, KAI TEPITOU 20 XIAOOTa ATTO TgEwTEpiko akpo Tns TPOTA.

AvoiTe TIs TIOptes TnVouAANTs KAI TOU yuyeiou. ToTOneTneTo appWTO EApTnua OiaOthans TAVw OTov OAOTnpa, KAI OTNouvExia TPOoKaAAnote To OTNV TIOPTa Tou yuyeiou.

JneWote ta onueia oTepewong vi Tis BiEs, kai aoiTe oties diapetou 2,5.

Euovdeote nTv npota Tns ouakeuncs Otnv npota nts VoulaTnAs, exovtas onueio avapopac ts ontc tou eapntmuos oiaonans.

INBOUW KOEL/VRIESCOMBINATIE

BEDIENINGSPANEEL DIEPVRIESCOMPARTIMENT VAN KOEL/VRIESCOMBINATIE METTWEE COMPRESSORS

JÄKAAPPI-PAKASTIMESI OIKEAN TOIMINNAN VARMISTAMINEN

INNBYGGING AV APPARATET

INBYGGD KYL OCH FRYS

KONTROLLPANEL FÜR FRYSDELEN, KYLSKÄP MED DUBBEL KOMPRESSOR
