BL1100 - Blender BLACK & DECKER - Free user manual and instructions

USER MANUAL BL1100 BLACK & DECKER

Exterior view of a modern kitchen blender with black and silver casing (no visible text or symbols)

Close-up of a tomato sauce in red sauce with a green leaf garnish, served in a clear glass bowl (no text or symbols visible)

Thank you for your purchase!

Should you have any questions or concerns with your new product, please call our Customer Service Line at 1-800-231-9786 (US and Canada). Please do not return to the store.

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

IMPORTANT SAFEGUARDS.

When using electrical appliances, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• To protect against risk of electrical shock, do not put blender base, cord or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
• Avoid contacting moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Contact the consumer service number listed in this manual.
• The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let the plug or cord hang over the edge of table or counter, or touch with hot surfaces including stove.

• Do not place on or near a hot gas or electric burner or in a heated oven.

• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

• Blades are sharp. Handle carefully.
• To reduce the risk of injury, never place blade assembly on base without the jar properly attached.
  • Always operate blender with cover in place.
• When blending hot liquids, remove the lid cap from the lid. Do not blend hot liquids for the personal blender jar.
• Do not use appliance for other than intended use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

SAFETY FEATURES

POLARIZED PLUG (120V models only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

ELECTRICAL CORD

1) A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2) Longer detachable power cords or extension cords are available and may be used if care is exercised in their use.
3) If a long detachable power-supply cord or extension cord is used,
a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance,
b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
c) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

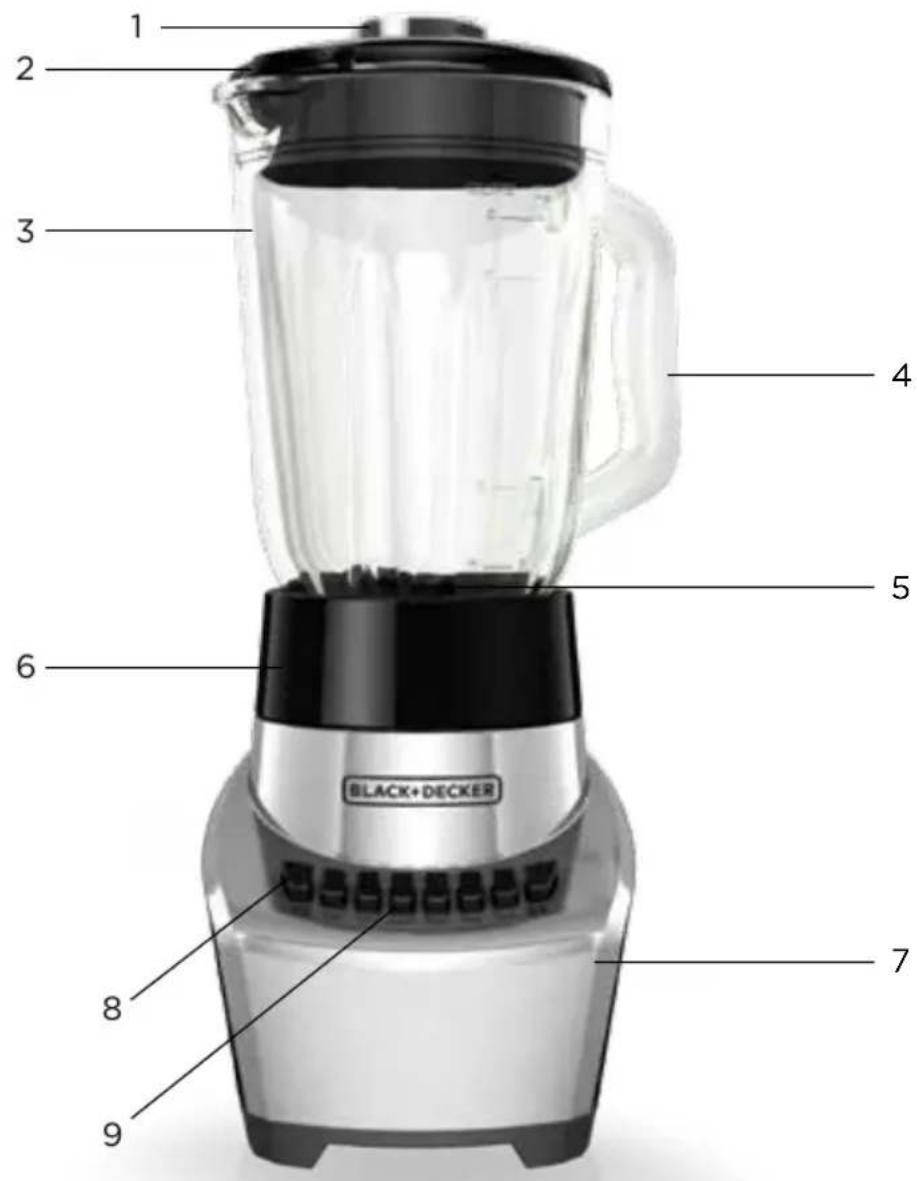

GETTING TO KNOW YOUR

FUSIONBLADE™

12-SPEED BLENDER

1 2 3 4 5 6 BLACK+DECKER 7 8 9

1. Measuring cup lid cap (Part# BL1130-01)
2. Lid (Part# BL1130-02)
3. Blending jar (Part# BL1130-03)
4. Handle

5. Blade assembly (not shown) (Part# BL1130-04)

6. Jar base (Part# BL1130-06)

7. Base (blender bases may differ depending on model number purchased)
8. PULSE/OFF button
9. Speed Buttons

Product may vary slightly from what is illustrated.

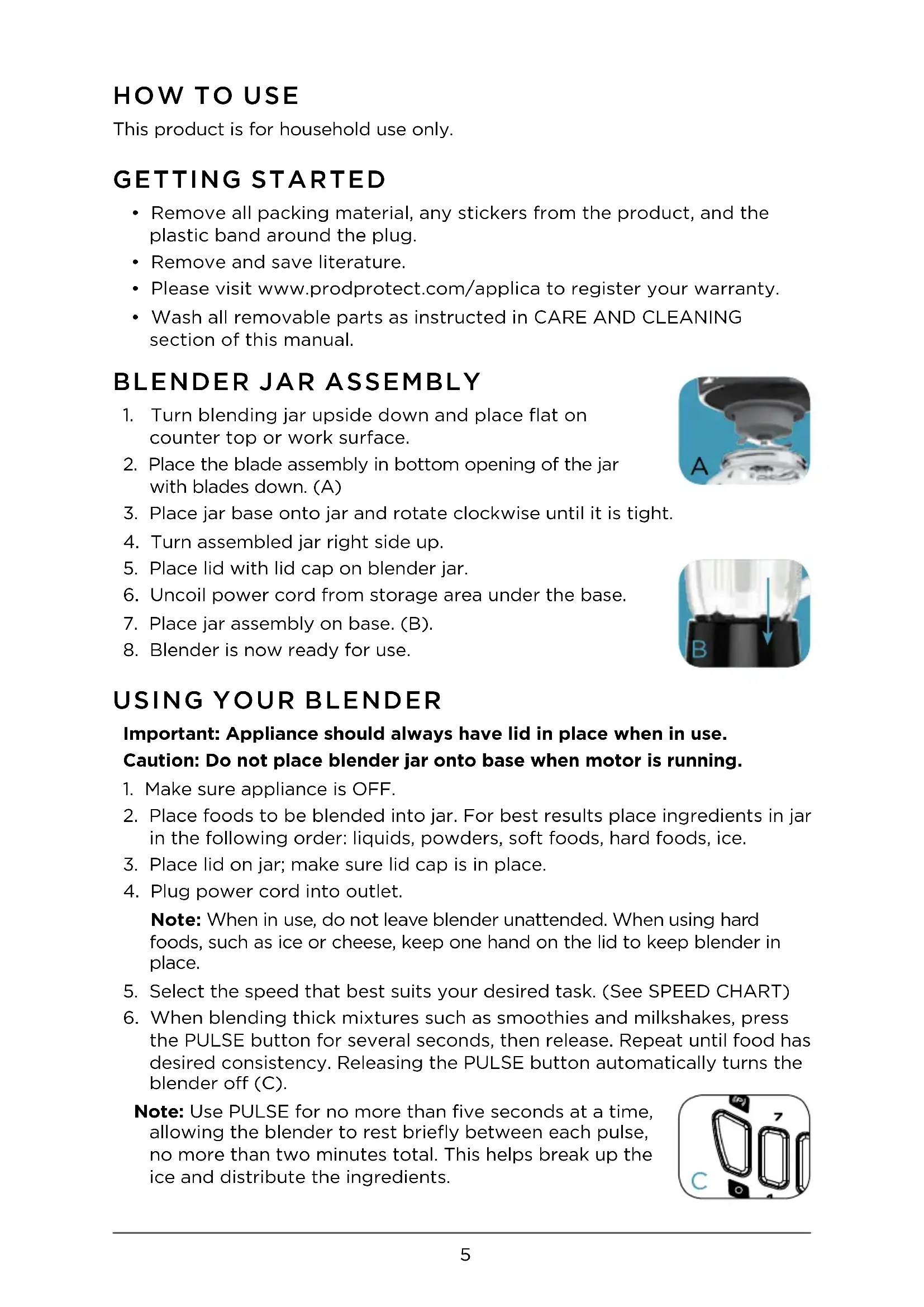

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers from the product, and the plastic band around the plug.
• Remove and save literature.
• Please visit www.prodprotect.com/applica to register your warranty.
• Wash all removable parts as instructed in CARE AND CLEANING section of this manual.

BLENDER JAR ASSEMBLY

1. Turn blending jar upside down and place flat on counter top or work surface.
2. Place the blade assembly in bottom opening of the jar with blades down. (A)
3. Place jar base onto jar and rotate clockwise until it is tight.
4. Turn assembled jar right side up.
5. Place lid with lid cap on blender jar.
6. Uncoil power cord from storage area under the base.
7. Place jar assembly on base. (B).
8. Blender is now ready for use.

Close-up of a mechanical component with a blue background and labeled section A (no readable text or symbols)

Close-up of a mechanical component with a black base and blue arrow indicator (no text or symbols)

USING YOUR BLENDER

Important: Appliance should always have lid in place when in use.

Caution: Do not place blender jar onto base when motor is running.

1. Make sure appliance is OFF.
2. Place foods to be blended into jar. For best results place ingredients in jar in the following order: liquids, powders, soft foods, hard foods, ice.
3. Place lid on jar; make sure lid cap is in place.
4. Plug power cord into outlet.

Note: When in use, do not leave blender unattended. When using hard foods, such as ice or cheese, keep one hand on the lid to keep blender in place.

1. Select the speed that best suits your desired task. (See SPEED CHART)

2. When blending thick mixtures such as smoothies and milkshakes, press the PULSE button for several seconds, then release. Repeat until food has desired consistency. Releasing the PULSE button automatically turns the blender off (C).

Note: Use PULSE for no more than five seconds at a time, allowing the blender to rest briefly between each pulse, no more than two minutes total. This helps break up the ice and distribute the ingredients.

Diagram of three rectangular panels labeled (P), 7, and C, with no readable text or symbols beyond labels

1. Open the lid cap to add ingredients while the blender is running and drop ingredients through the opening (D).

Important: Do not remove the lid while the blender is running.

Close-up of a cylindrical mechanical component with a circular top and a labeled end (D), no readable text or symbols beyond the label.

1. When finished, press the PULSE/OFF button. Make sure blades have completely stopped before attempting to remove the blending jar from the base.
2. To remove the jar, grasp the handle and lift up.
3. Remove lid to pour.
4. Always unplug the appliance when not in use.

BLENDING TIPS AND TECHNIQUES

• Cut food into pieces no larger than 3/4 for use in the blender.
• When preparing foods that have several different kinds of ingredients, always add liquid ingredients first.
• When ingredients splatter onto the sides of the jar or the mixture is very thick, press the PULSE/OFF button to turn appliance off. Remove the lid and use a rubber spatula to scrape down the sides of the jar and to redistribute the food, pushing food toward the blades. Replace the lid and continue blending.
• The lid cap holds up to 2 oz. of liquid and can be used as a measure when adding ingredients such as juices, milk, cream or liquor.
• When making bread crumbs make sure blender jar is completely dry.
• When using PULSE function, use short bursts. Allow the blades to stop rotating between pulses. Do not use PULSE for more than 2 minutes.
• Use the ICE CRUSH button when preparing beverages that include ice cubes or anything frozen; this helps to produce a smoother texture.
• It is helpful to begin the blending process on the lowest speed and then increase to a higher speed, if necessary.
• To stop blending at any time, press the PULSE/OFF button.
• When blending hot ingredients, remove the lid cap and then put it back partly open, with the opened side tilted away from you. Cover lid with a cloth to avoid splattering and only use the lowest speed. Do not blend more than 2 12 to 3 cups at a time.
• Do not store foods in the blending jar.
• Do not overfill the blender (the blender is more efficient with less rather than more).
• Do not run blender for longer than 1 12 minutes at a time. Scrape down sides of blending jar, if necessary, and continue blending.
• Do not use if blending jar is chipped or cracked.
• It is not recommended to use your blender to beat egg whites, mix dough, mash potatoes, or grind meats.

DO NOT PLACE ANY OF THE FOLLOWING IN THE BLENDER:

• Large pieces of frozen foods
- Tough foods such as raw turnips, sweet potatoes and potatoes
- Bones
- Hard salami, pepperoni
- Boiling liquids (cool for 5 minutes before placing in blending jar)

SPEED CHART

SPEED FUNCTION USAGE
Pulse/Off		Use for thick mixtures. Press and release.
1	Stir	Reconstitute frozen juices, drink mixes and condensed soupsPrepare salad dressingsBlend puddingsPuree hot liquids
2	Mix	Mix batters for pancakes, muffins and quick breadsMix ingredients for baked goods
3	Crumb	Make cookie, cereal and bread crumbs
4	Chop	Chop fruits and vegetablesChop cooked meats
5	Whip	Whip homemade whipped creamMake cream cheese schmearsMix up butter
6	Clean	Blend drop of dish washing liquidand hot water to clean blender
7	Blend	Blend salsasPrepare saucesRemove lumps from gravies
8	Grind	Grind hard cheese, cooked meats and coconut
9	Puree	Puree fruits and vegetables
10	Liquefy	Blend protein drinksLiquefy frozen drinks, smoothies
11	Smoothie	Blend milk shakes and maltsPrepare smoothies
12	Ice Crush	Crush ice and frozen food
Hi/Low		Select to change speed between Hi and LowHi - the button is outLow - the button is in

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING:

1. Before cleaning, turn off and unplug the appliance.
2. Lift the blending jar by the handle off the base.
3. Remove jar base by turning it counterclockwise until loose.
4. Remove the blade assembly.

Caution: Blades are sharp, handle carefully.

1. Remove lid and lid cap.
2. Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

HELPFUL TIPS:

• For quick cleanup, combine 1 cup hot water and a drop of liquid dish soap in the blending jar.
• Cover and blend on CLEAN for about 30 seconds.
• Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto the base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or finish.

RECIPES

BLUE CHEESE SALAD DRESSING

This creamy, fresh dressing is great with any salad greens. Try it as a dip with chicken wings or as a dip for your favorite veggies.

12 cup sour cream	1 garlic clove, peeled and chopped
14 cup mayonnaise	2 tsp. lemon juice
1 Tbsp. fresh chopped parsley	18 tsp. each, salt and pepper

Place all ingredients in blender jar. Cover; press Blend/Stir and run 30 seconds or until blended.

Store covered in refrigerator up to 2 days. Stir before using. For a larger batch, double the recipe and prepare using the full size blender jar.

Makes about 1 cup.

QUICK AND EASY SALSA

This fast and easy restaurant-style salsa is a great substitution for fresh Pico de Gallo when tomatoes are no longer in season. Serve it with your favorite chips or as a topping for tacos.

2 cans (10 oz.) diced tomatoes with green chilies

^1/_2 cup loosely packed cilantro leaves

^1/_2 small onion, quartered

1 Tbsp. lime juice

1 small jalapeno pepper, seeded, deveined

1 tsp. sugar

1 clove garlic, peeled and smashed

^1/_2 tsp. cumin

^1/_2 tsp. salt

Place all ingredients in blender jar. Cover and pulse 30 seconds or to desired consistency. For a small batch, cut recipe in half and blend in your personal size blender jar.

NEED HELP?

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/applica.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does my warranty cover?

- Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

How long is the warranty period?

- Your warranty extends two years from the date of original purchase with proof of purchase.

What support does my warranty provide?

- Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get support?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does my warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
  • Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law affect my warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

Close-up of a metallic mechanical component with a cylindrical top and base, labeled 'A' (no visible text or symbols on the object itself)

Close-up of a mechanical component with a blue arrow pointing to a section, labeled 'B' (no text or symbols on the object itself)

USO DE LA LICUADORA

Diagram of three rectangular objects with labeled parts (P, 7, C) and a small circular symbol at the bottom left (no readable text or symbols beyond labels)

Close-up of a cylindrical mechanical component with a circular top and a labeled end (D), no readable text or symbols beyond the label.

Close-up of a metallic mechanical component with a blue background (no visible text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a section, labeled 'B' (no text or symbols on the object itself)

Diagram of three rectangular objects with labeled parts (P, 7, C) and a small circular symbol at the bottom left (no readable text or symbols beyond labels)

Close-up of a cylindrical mechanical component with a circular top and a labeled end (D), no readable text or symbols beyond the label.

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

LRM ELECTRONICA

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas

Tel. [phone]

www.applicaservice.com

[e-mail]

Glass of red beverage with a single strawberry on top, accompanied by fresh strawberries (no text or symbols visible)

© 2014 The Black & Decker Corporation and Spectrum Brands, Inc., Middleton, WI 53562

Made in People's Republic of China Fabricado en la República Popular de China Fabriqué en République populaire de Chine

BLACK+DECKER and the BLACK+DECKER logo are trademarks of The Black & Decker Corporation and are used under license. All rights reserved. BLACK+DECKER y el logo tipo BLACK+DECKER son marcas registradas de The Black&Decker Corporation y son utilizados bajo licencia. Todos los derechos reservados. BLACK + DECKER et le logo BLACK &+DECKER sont des marques de commerce de The Black & Decker Corporation, et sont utilisés sous licence. Tous droits réservés.

T22-5001519 2014/8/26/133 E/S
