USER MANUAL BL6010KT BLACK & DECKER

Rate and review your products at

Share your pictures & stories with us online

Should you have any questions or concerns with your new product, please call our Customer Service Line at 1-800-231-9786 (US and Canada). Please do not return to the store.

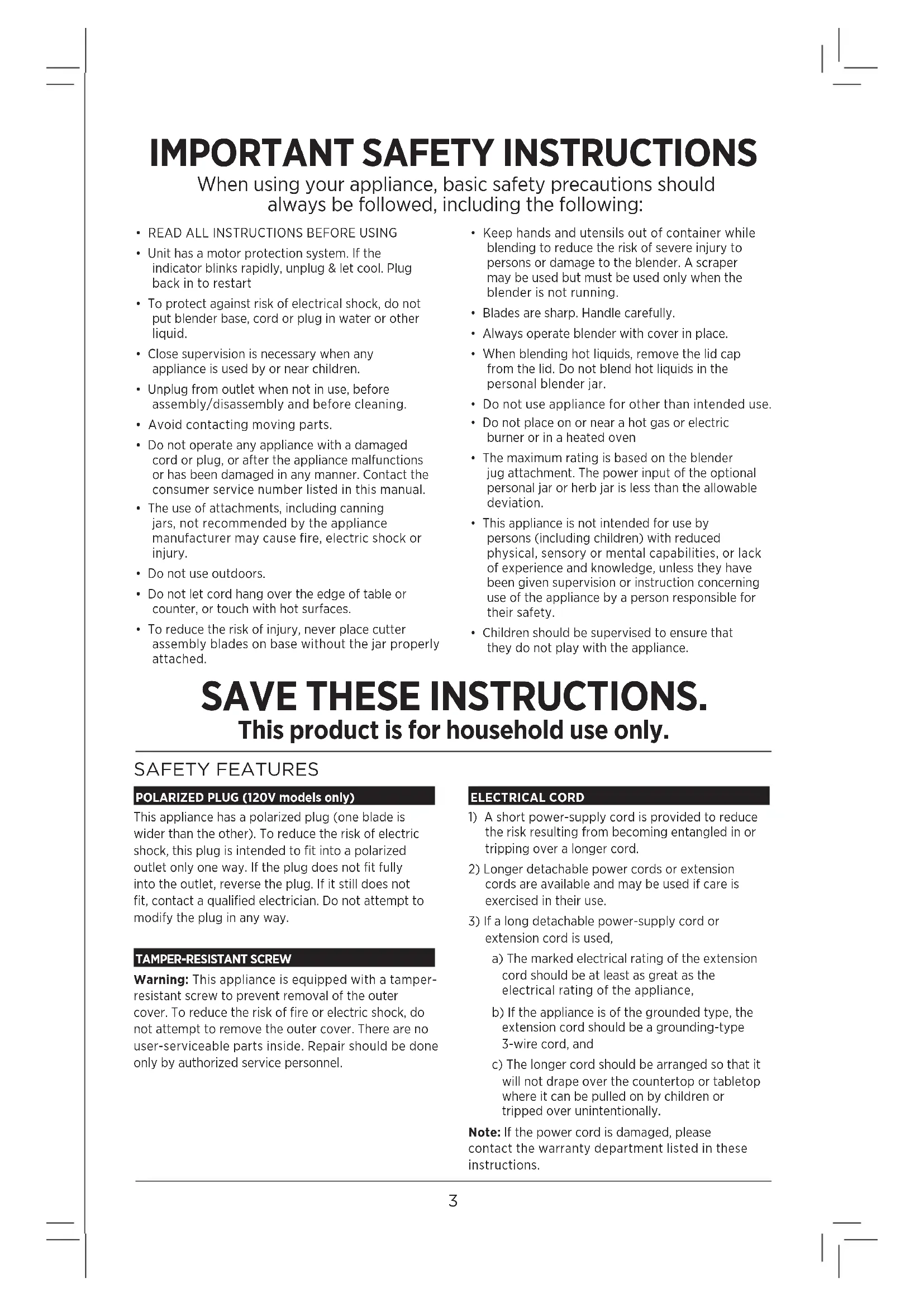

IMPORTANT SAFETY INSTRUCTIONS

When using your appliance, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING
• Unit has a motor protection system. If the indicator blinks rapidly, unplug & let cool. Plug back in to restart
• To protect against risk of electrical shock, do not put blender base, cord or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before assembly/disassembly and before cleaning.
• Avoid contacting moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact the consumer service number listed in this manual.
• The use of attachments, including canning jars, not recommended by the appliance manufacturer may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let cord hang over the edge of table or counter, or touch with hot surfaces.

• To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached.

• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

• Blades are sharp. Handle carefully.
• Always operate blender with cover in place.
• When blending hot liquids, remove the lid cap from the lid. Do not blend hot liquids in the personal blender jar.
• Do not use appliance for other than intended use.
• Do not place on or near a hot gas or electric burner or in a heated oven
• The maximum rating is based on the blender jug attachment. The power input of the optional personal jar or herb jar is less than the allowable deviation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS. This product is for household use only.

SAFETY FEATURES

POLARIZED PLUG (120V models only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1) A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2) Longer detachable power cords or extension cords are available and may be used if care is exercised in their use.
3) If a long detachable power-supply cord or extension cord is used,

a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance,
b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
c) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

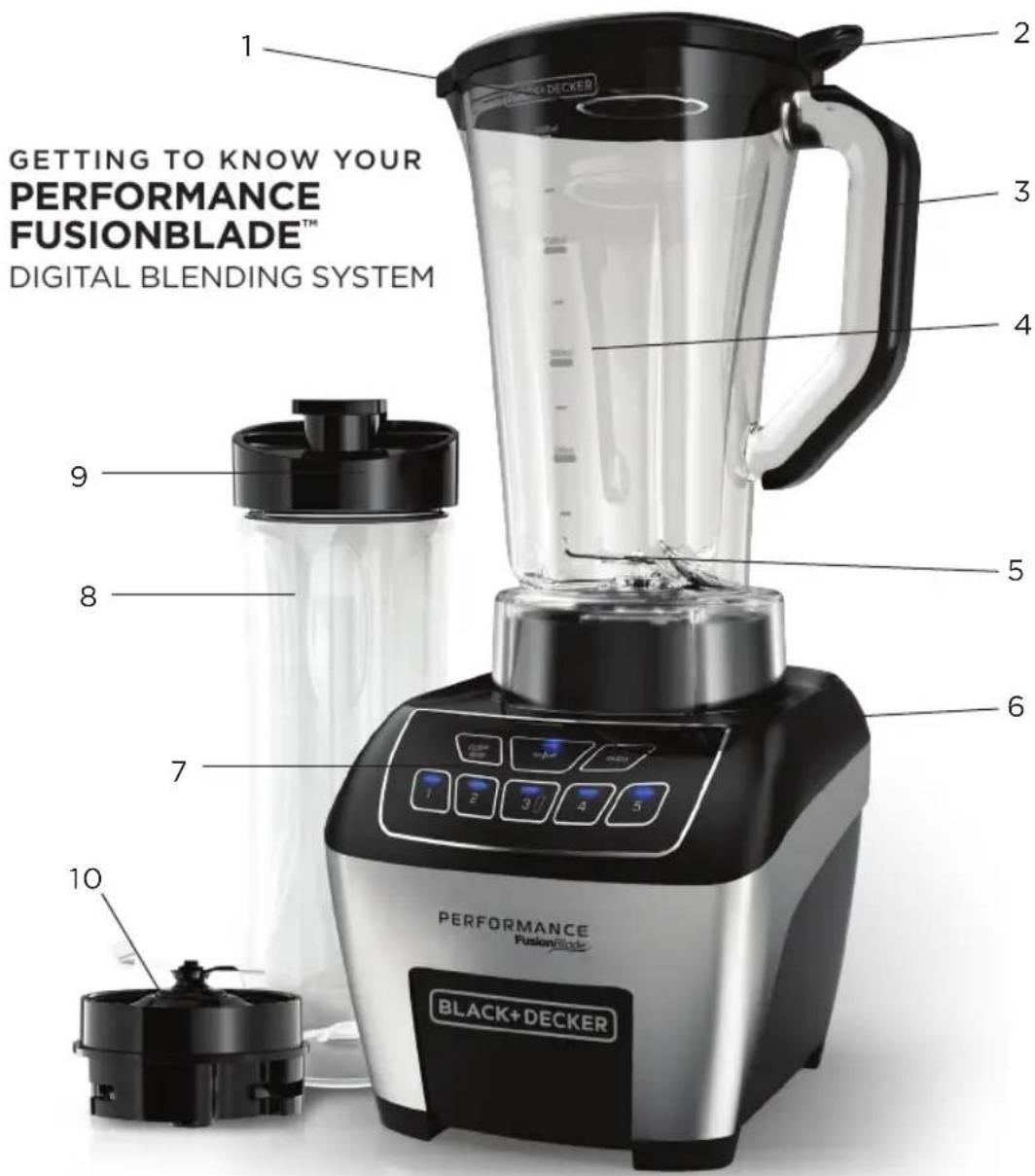

Congratulations on your new Performance FusionBlade ™ Digital Blending System! Designed for premium food prep and culinary excellence, your new performance blender will help you crush, create, blend, chop, mix & prep. Enjoy!

1. Lid cap (Part# BL6010-01)
2. Easy-off lid (Part# BL6010-02)
3. Handle
4. One-piece Tritan blender jar (Part# BL6010-03)
5. Integrated blade (non removable)
6. Base

7. Digital Control Panel

8. Personal blender jar (Part# BL1130-08)

9. Drinking lid attachment (Part# BL1130-07)

10. Personal jar blade assembly (Part# BL1130-09)

Note: additional personal jars can be purchased separately at BlackAndDeckerAppliances.com

• Tritan® is a trademark of Eastman Chemical Company, or one of its subsidiaries.

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please visit www.prodprotect.com/applica to register your warranty.
• Wash all removable parts as instructed in CARE AND CLEANING section of this manual.

USING YOUR BLENDER

1. Make sure the jar is securely situated on the base.
2. Place foods to be blended into the jar. Do not fill past the 64 oz marking.

Note: when blending hot ingredients, only fill jar ^2/3 full (A)

1. Place lid securely on jar; make sure lid cap is in place.

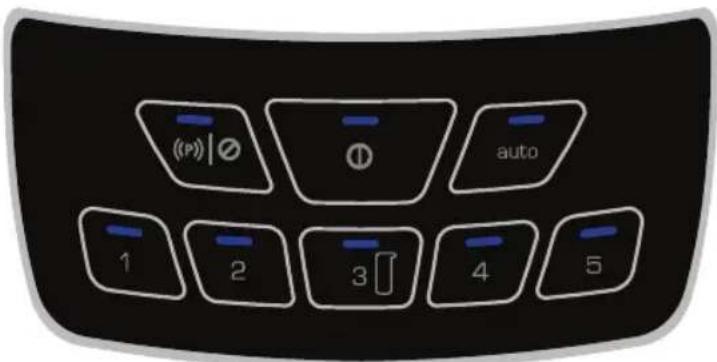

2. Plug power cord into outlet. Press (on/off) button (B). The button will illuminate, indicating blender is in STANDBY mode.

Note: if no buttons are pressed within 60 seconds, the unit will automatically power off.

1. Press the desired speed button to start the blender, or select auto plus the speed button (#1-5) of desired pre-programmed cycle. The LED will blink slowly when in use. (See AUTO FUNCTIONS and SPEED CHART). When food reaches desired consistency, press(p) pulse/stop) button to stop blending. (C)

Note: When in use, do not leave blender unattended.

1. When using the ()|口 (pulse/stop) button, press and hold the ()|口 (pulse/stop) button several seconds then release. Repeat until food reaches desired consistency. Releasing pulse stops the blending and the unit returns to STANDBY.

Important: Do not hold speed or pulse buttons down when blending. Holding the button for longer than 30 seconds will cause an error. Unplug the unit to reset.

1. Remove the lid cap and drop ingredients through the lid cap opening while the blender is running (D). When blending hot liquids, remove lid cap and cover opening with towel to prevent hot liquids from splattering.

Important: Do not remove the lid while the blender is running.

1. When finished press (P) else/stop) to stop blending. Make sure blades have completely stopped before attempting to remove the blending jar from the base. (Refer to troubleshooting for any issues).

2. Press (on/off) to power off (E). Unit will auto shutoff after 60 seconds without use.

3. To remove the jar, grasp the handle and lift up.

4. Remove lid to pour.

5. Always unplug the appliance when not in use.

USING THE PERSONAL BLENDER JAR

Note: Do not blend hot liquids in the personal jar.

1. Place the personal blender jar on a flat surface with the open end facing up. Fill the jar with ingredients. Do not fill ingredients past the "20oz." marking.
2. Tighten the personal jar blade assembly on the open end of the personal jar with the blade facing down towards the ingredients. It is important to tighten to prevent leaking during blending.
3. Turn personal jar upside down and place on the blender base, turning clockwise to lock into place.
4. Select the appropriate speed or use (p) pulse/stop) to blend to desired consistency.

IMPORTANT: It is recommended to only use speeds 1-3 or auto 3 when using the personal jar.

1. Once blending has finished, remove the personal jar by turning counterclockwise and lifting off the base. Turn the jar over and place it on a flat surface.

IMPORTANT: If the jar gets stuck on the blending base or begins to loosen from the blade assembly, follow these steps:

a. Unplug the unit
b. Turn the jar clockwise to tighten jar onto the blade assembly
c. Turn jar and blade assembly counterclockwise to unlock from blending base and lift up.

1. Remove the blade assembly from the personal jar by turning counterclockwise. Place the personal jar drinking lid on the personal jar and enjoy your delicious drinks on the go.

ORDER OF INGREDIENTS

For best results, add ingredients in the following order:

Full Size Jar Personal Jar
1 Liquids	1 Liquids
2 Powders	2 Ice Cubes
3 Soft Foods	3 Hard Foods
4 Hard Foods	4 Soft Foods
5 Ice Cubes	5 Powders

AUTO FUNCTIONS

This blender features 5 different auto functions, pre-programmed cycles to deliver exceptional results for a wide variety of recipes. To use an auto function:

1. Press auto. Once pressed, all numbered buttons will blink
2. Press the button of the desired function as listed in the chart below:

AUTO FOOD TYPE DESCRIPTION TIPS
1 Soup		Puree perfectly creamy soups	When blending hot liquids, do not fill blender more than 2/3 full to allow for expansion during blending and to prevent splattering.
2 Nut Butters Cream		smooth or chunky nut butters	Do not exceed 3 cups of nuts or use less than 2 cups when making nut butters.
3 Personal Jar / Half Recipes		Use with personal jar or when making a smaller recipe/serving	Do not fill past the 20oz. mark. For best results using personal jar, add ingredients in the correct order (see chart).
4 Dry Goods Grind		and chop dry ingredients	When blending dry goods, do not exceed 1-2 cup volume. Place dry goods (rice, corn) in freezer 15 minutes prior to blending to prevent overheating.
5 Smoothes	Blend frozen fruits and ingredients into a thick consistency	For best results using full size jar, place ingredients in the correct order (see chart).

Note: When blending dry goods, you may experience abrasions on the inside of the jar, making it cloudy. This is not preventable but is normal and will not impact the performance of the blender.

SPEED CHART

FUNCTION FOOD TYPE	SPEED SETTING
Puree Fruits and Vegetables	bles Soups Baby Food Milkshakes	Speeds 1 - 5
Crumb Bread crumbs	Cereals Cookies	Pulse to desired consistency
Mix Dressings	Batters Dips	Speeds 1 - 3
Chop Salsa	Nuts Vegetables	Pulse to speed 2 or desired consistency
Ice Crush / Frozen Blend	Ice (max 2 cups) Frozen Fruits	Pulse to speed 5
Blend / Smoothies Smoieties	thies Fruits Vegetables	Pulse to speed 5
Grind/Flours Rice	Corn Oats Grains	Speeds 1-3
Nut Butters Peanuts	Almonds Walnuts Cashews	Pulse until desired texture reached
Personal Jar Recipes Half Recipe / Use with Personal Jar Speeds		1 - 3

HELPFUL HINTS & TIPS

• When using hard foods, such as ice or cheese, keep one hand on the lid to keep blender jar and base in place.
• Cut food into pieces no larger than 34 before blending.
• When ingredients splatter onto the sides of the jar or the mixture is very thick, turn the appliance off. Remove the lid and use a rubber spatula to scrape down the sides of the jar and to redistribute the food, pushing food toward the blades. Replace the lid and continue blending.

• The lid cap holds up to 2 oz. of liquid and can be used as a measure when adding ingredients such as oil, milk, cream or liquor.

• When making bread, cookie, cereal, or cracker crumbs, make sure blending jar is completely dry.

• When using the pulse function, use short bursts. Allow the blades to stop rotating between pulses. Do not pulse for more than 30 seconds continuously.
• It is helpful to begin the blending process on the lowest speed and then increase to a higher speed, if necessary.
• Never operate the blender without the lid.
• To stop blending at any time, press the (p) pulse/stop) or 0(on/off) button.
• When blending hot ingredients, always let them cool at least 5 minutes before blending. Begin blending on the lowest speed with the lid cap off to allow steam to escape. Cover lid cap hole with towel or hot pad.
• When crushing ice with no other ingredients, use 2 cups ice max (about 15 cubes). Make sure blender jar is completely dry before ice crushing.

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

• Unplug the blender base before cleaning. Wipe the blender base using a damp cloth. Do not immerse the blender base in water.
• Lift the blending jar, by the handle, off the base.
• Remove lid and lid cap.
• Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

Caution: Blades are sharp. Handle with care when hand washing.

CLEANING TIPS:

• For quick cleanup, combine 1 cup hot water and a drop of liquid dish soap in the blending jar.
• Place lid with lid cap securely on jar and blend on speed 3 for about 30 seconds.
• Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto the base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or finish.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
All LEDs blinking quickly (100 msec/time)	Blender overheated or button held longer than 30 seconds.	Unit must be reset. Unplug to reset. Let unit cool for at least 20 minutes.
Blender stops or goes into STANDBY mode	Blending time exceeds 2.5 minutes.	Re-select appropriate speed setting to start blender.
Blender is having difficulty blending	Mixture is too thick or air bubble has formed between mixture & blade.	Turn blender off. Use rubber spatula to scrape down sides of jar and redistribute, pushing food towards blades. Add more liquid if needed.

RECIPIES

PEANUT BUTTER

3 cups peanuts

1/3 cup peanut oil

Place all ingredients into the blender jar. Press auto plus 2 to blend. For a chunkier nut butter, press (p) (pulse/stop) when it has reached your desired consistency.

RICE FLOUR

12 cup white rice

Freeze rice for 15 minutes prior to blending. Place into the blender jar and select auto plus 4 to grind into flour.

PINEAPPLE STRAWBERRY SMOOTHIE

1 cup pineapple juice
2 cup vanilla flavored yogurt
1 cup fresh strawberries
8-10 ice cubes

Place all ingredients, in the order listed, into your blender jar. Select auto plus 5 to blend.

PERSONAL JAR ORANGE MANGO SMOOTHIE

12 cup orange juice
4-5 ice cubes
12 cup fresh mango
1 cup plain or vanilla flavored yogurt

Place all ingredients, in the order listed, into your personal jar. Place personal jar blade assembly on top of jar and screw tightly in place. Turn jar upside down and place on blender base, turning clockwise to lock into place.

Select auto plus 3 to blend.

CREAMY BUTTERNUT SQUASH SOUP

2 Tbsp. butter
1 small onion, chopped
2 lbs. butternut squash, peeled, seeded and cut into 1-inch cubes
2 cups chicken or vegetable broth
1/8 tsp. salt
1/8 tsp. black pepper
12 cup heavy cream

Melt butter in large sauce pan on medium heat. Add onion; cook and stir 3 minutes or until tender.

Add squash, chicken broth, salt and pepper. Bring to boil. Reduce heat to medium low, cover and simmer 20 minutes or until squash is tender.

Puree squash mixture in two batches on speed 2, 15 seconds or until smooth.

Return pureed soup to sauce pan. Stir in cream and heat through. Do not boil.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this pamphlet.

Warranty Information

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Spectrum Brands' liability will not exceed the purchase price of product.

For how long?

• Three years from the date of original purchase with proof of such purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

RÉGLES DE SECURITÉ IMPORTANTES

FusionBlade" is a trademark of Spectrum Brands, Inc.

BLACK+DECKER and the BLACK+DECKER logo are trademarks of The Black & Decker Corporation and are used under license. All rights reserved.

© 2015 The Black & Decker Corporation and Spectrum Brands, Inc. Middleton, WI 53562
