USER MANUAL BCKM101 BLACK & DECKER

Charging dock Fig. A

Storage bin channels

Wine opener corkscrew

Can opener side wall

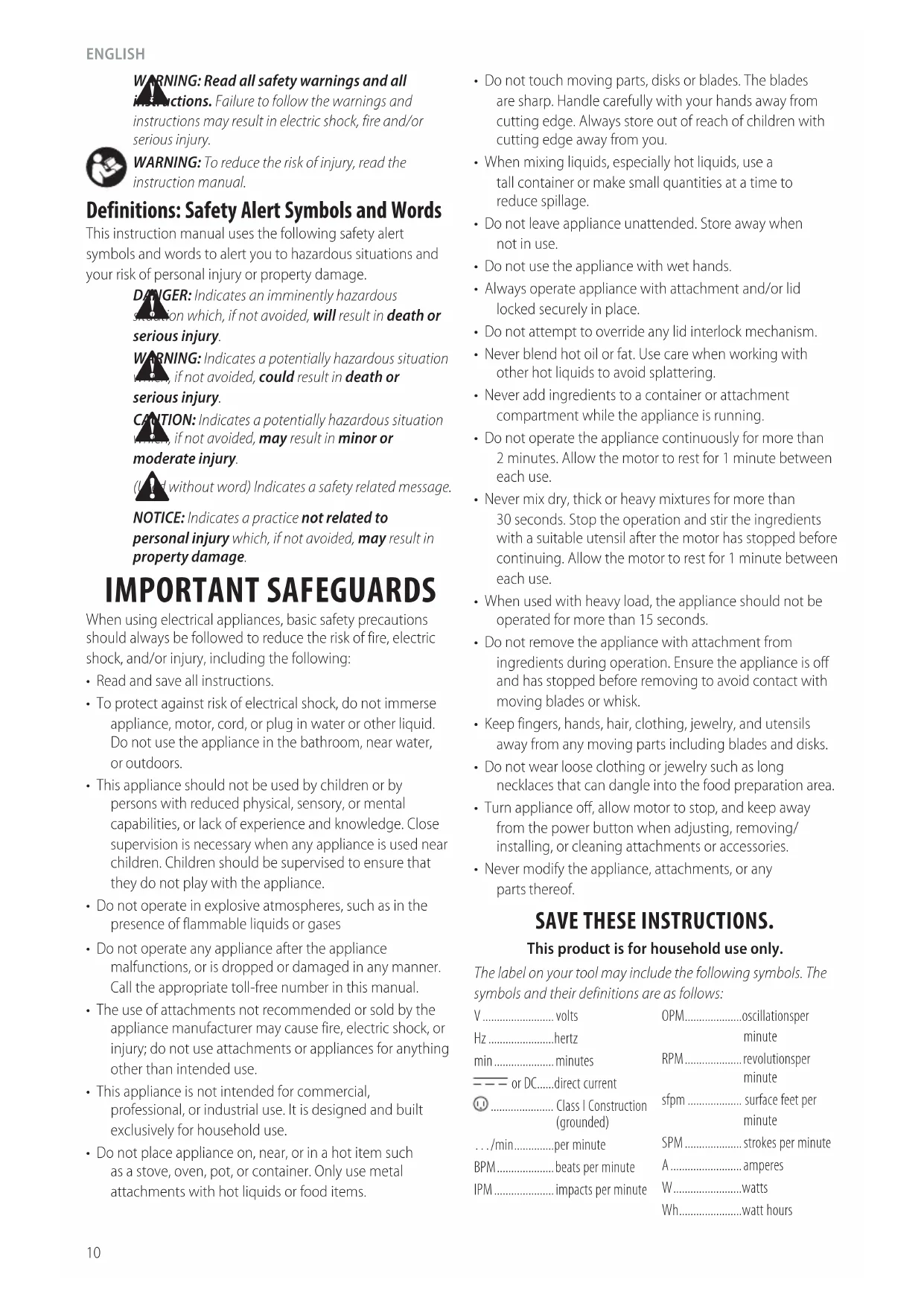

• Do not touch moving parts, disks or blades. The blades are sharp. Handle carefully with your hands away from cutting edge. Always store out of reach of children with cutting edge away fromyou.

• When mixing liquids, especially hot liquids, use a tall container or make small quantities at a time to reducespillage.

• Do not leave appliance unattended. Store away when not inuse.

• Do not use the appliance with wethands.

• Always operate appliance with attachment and/or lid locked securely inplace.

• Do not attempt to override any lid interlockmechanism.

• Never blend hot oil or fat. Use care when working with other hot liquids to avoidsplattering.

• Never add ingredients to a container or attachment compartment while the appliance isrunning.

• Do not operate the appliance continuously for more than 2minutes. Allow the motor to rest for 1minute between eachuse.

• Never mix dry, thick or heavy mixtures for more than 30seconds. Stop the operation and stir the ingredients with a suitable utensil after the motor has stopped before continuing. Allow the motor to rest for 1minute between eachuse.

• When used with heavy load, the appliance should not be operated for more than 15seconds.

• Do not remove the appliance with attachment from ingredients during operation. Ensure the appliance is off and has stopped before removing to avoid contact with moving blades orwhisk.

• Keep fingers, hands, hair, clothing, jewelry, and utensils away from any moving parts including blades anddisks.

• Do not wear loose clothing or jewelry such as long necklaces that can dangle into the food preparationarea.

• Turn appliance off, allow motor to stop, and keep away from the power button when adjusting, removing/ installing, or cleaning attachments oraccessories.

• Never modify the appliance, attachments, or any partsthereof. SAVE THESE INSTRUCTIONS. This product is for household useonly. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read and save allinstructions.

• To protect against risk of electrical shock, do not immerse appliance, motor, cord, or plug in water or other liquid. Do not use the appliance in the bathroom, near water, oroutdoors.

• This appliance should not be used by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with theappliance.

• Do not operate in explosive atmospheres, such as in the presence of flammable liquids or gases

• Do not operate any appliance after the appliance malfunctions, or is dropped or damaged in any manner. Call the appropriate toll‑free number in thismanual.

• The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury; do not use attachments or appliances for anything other than intendeduse.

• This appliance is not intended for commercial, professional, or industrial use. It is designed and built exclusively for householduse.

• Do not place appliance on, near, or in a hot item such as a stove, oven, pot, or container. Only use metal attachments with hot liquids or fooditems. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

instructionmanual. English (original instructions)11 ENGLISH Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

• DO NOT attempt to charge the battery with any chargers other than a BLACK+DECKER charger. BLACK+DECKER chargers and batteries are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging BLACK+DECKER rechargeable batteries. Charging other types of batteries may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not place any object on top of the charger. Place the charger in a position away from any heatsource.

• Do not operate the charger with a damaged cord orplug–have them replacedimmediately. over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged tools should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged tool disconnected from thecharger. Transportation NOTE: Integral Li‑ion tools should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage. Tool Disposal This product uses a lithium‑ion rechargeable and recyclable battery. When the battery no longer holds a charge, the tool should be recycled. The tool should not be incinerated or placed in the trash or curbsiderecycling. The tool can be taken for disposal to an Authorized Service Center. Some local retailers are also participating in a national recycling program (refer to RBRC®). For more information visit www.call2recycle.org or call the toll‑free number in the RBRC Seal. RBRC is a registered trademark of Call 2Recycle, Inc. If you bring the tool to an Authorized Service Center, the Center will arrange to recycle the tool and its battery. Or, contact your local municipality for proper disposal instructions in your city/town.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Integral Battery Tools

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

• NEVER force a charger plug to fit thetool.

• DO NOT modify the charger plug of a non‑compatible charger in any way to fit the tool as the battery may rupture causing serious personalinjury.

• DO NOT charge or use the battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the charger plug from the tool may ignite the dust orfumes.

• Only charge the battery with the providedcharger.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to entertool.

• DO NOT store or use the tool in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store tools in a cool, drylocation. NOTE: Do not store the tool with the switch locked on. Never tape the switch in the ONposition.

• DO NOT incinerate the tool even if it is severely damaged or is completely worn out. The battery can explode in a fire. Toxic fumes and materials are created when lithium‑ion batteries areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the tool for any reason. If the tool case is cracked or damaged, do not charge. Do not crush, drop or damage the tool. Do not use a tool or charger that has received a sharp blow, been dropped, run Ah ....................... amp hours or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

do not expose to rainENGLISH

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep hands away from the switch before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. Hot/Cold Delay When the charger detects a battery that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has reached an appropriate temperature. The charger then automatically switches to the charging mode. This feature ensures maximum batterylife. A cold battery may charge at a slower rate than a warmbattery. The hot/cold pack delay will be indicated by all 3LEDs continuously flashing a short ON followed by a longer ON. Once the battery has reached an appropriate temperature, the charger will resume the chargingprocedure. Electronic Protection System Li‑Ion tools are designed with an Electronic Protection System that will protect the battery against overloading, overheating or deep discharge. The tool will automatically turn off and the battery will need to berecharged. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to thebattery.

2. The charger and tool may become warm to the touch

while charging. This is a normal condition and does not indicate a problem. To facilitate the cooling of the tool after use, avoid placing the charger or tool in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery does not charge properly:

a. Check operation of receptacle by plugging in a lamp or otherappliance. b. Check to see if receptacle is connected to a light switch which turns power off when you turn out thelights. c. If charging problems persist, take the tool and charger to your local servicecenter.

4. You may charge a partially used battery whenever you

desire with no adverse effect on thebattery. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Soiling may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.

SAVE THESE INSTRUCTIONS FOR

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the chargerconnector.

• Always unplug the charger from the power supply when there is no battery beingcharged. Charging a Battery (Fig.B)

WARNING: For use only with the suppliedcharger.

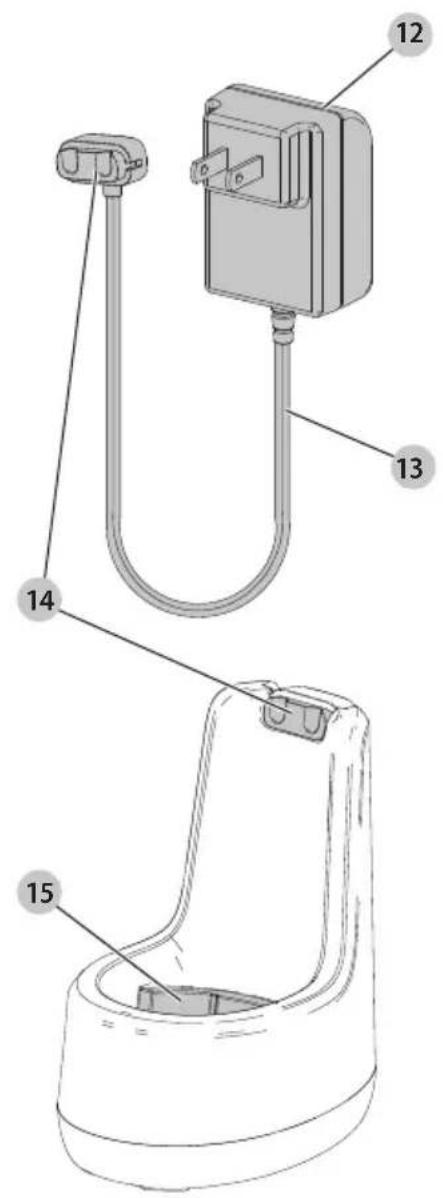

NOTE: Ensure the charging dock

is placed securely on a flat level countertopsurface.

2. Insert unit into the charging dock with the charging

on the appliance aligned with the notches on the charger connector

. Ensure the charger connector is fully attached to the chargingdock. To ensure charger connector is properly assembled, press on lower section of the connector with 2 thumbs to fully seat connector in correct position. NOTE: The charger connector can be removed from the charging dock to charge the unit separately or in the storagebins.

on the top of the appliance will illuminate whilecharging. 1 flashing LED < 33% charged First LED solid, second flashing 33 ‑ 66% charged 2 solid LEDs, third flashing 66 ‑ 99% charged 3 solid LEDs 100% charged

4. The LEDs will turn off upon completion ofcharging.

NOTE: While charging, the charger may get warm, this is perfectly normal and safe. It is safe to leave the appliance connected to the charger indefinitely. The charger automatically reduces power consumption when charging iscomplete. NOTE: The appliance can be charged while in the storage bin. Refer to the CHARGING IN STORAGE BINsection.

5. When discharging:

1 LED < 33% charged 2 LEDs < 66% charged 3 LEDs > 66% charged13 ENGLISH Storage Bins The storage bins

of the top bin with the recess

2. Place the first bin on top of the second bin so it is engaged

to prevent shifting. The bins will not lock together so tipping may dislodge thebins. NOTE: It is not recommended to stack higher than twobins. NOTE: Two small bins can be stored on top of a largebin. Side‑by‑Side Storage (Fig. H)

1. Slide the storage bin connector

onto the storage bin channel

of one bin until it clicks into place and issecure.

2. Slide the channel of a second bin along the connector

until it clicks into place and issecure. NOTE: It is not recommended to connect two large bins side byside. Charging in Storage Bin (Fig. I)

1. Place the charger connector

into the connector detent

2. Run the charger cord

through the cord channel

of the bin and out of the charging notch

3. Lay the unit in the bin so the charging pegs

on the unit fully engage with the chargerconnector. Proper Hand Position (Fig.F)

WARNING: To reduce the risk of serious personal injury,

ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Hold the appliance

so your palm presses down the unlock button

and use your thumb or a finger to push down the powerbutton

Speed Control (Fig.E) The appliance has a variable‑speed dial

. Turn the dial to the appropriate speed for the attachment being used (1 is the lowest speed, 5is the highestspeed). ATTACHMENT SPEED Immersion Blender Start at 1, increase as needed Wine Opener 5 Can Opener 5 Spice Grinder 5 Whisk Start at 1, increase as needed Frother Start at 5, decrease as desired NOTE: With a 5‑second delay before the unit turns off, you can release the buttons and use your thumb to adjust speed without turning the unitoff. On / Off (Fig.D) IMPORTANT: Never turn the motor on unless attachments are securelyattached. NOTE: Optimal temperature for use is between 50–104°F (10–40°C).

‑ Press power button, then press unlockbutton. ‑ Press unlock and power buttonssimultaneously. NOTE: There is a slight delay between pressing both buttons and the appliancestarting.

2. When the appliance is ready to use, the LEDs

will illuminate and remain solid. If they do not, refer to the TROUBLESHOOTINGsection. NOTE: If LEDs go off during use, or don't light when starting unit, release buttons and go back to step1.

3. Once the unit is on, the buttons may be released for up to

5seconds. The motor will stop running after the buttons are released but the appliance remains active for 5seconds. As long as the power button is pressed at least once within 5seconds after releasing, the appliance will turn backon.

4. To turn off, release both buttons. The appliance will

remain active for 5seconds before turningoff.

WARNING: The LEDs will stay on after buttons are

released. Ensure the LEDs are off and the unit has fully stopped before removingattachments. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep hands away from the switch before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. Installing and Removing Attachments (Fig.C)

WARNING: Ensure LEDs are off and the system is noton.

Blender / Wine Opener / Can Opener / Spice Grinder

1. To install, slide the attachment head

of the attachment onto the motor

and turn clockwise (as viewed from the end of the attachment) until it securely locksin. NOTE: The attachment can be installed on the motor in four different locations, so it does not need to be placed in any one specificorientation.

2. To remove, turn counterclockwise and pull attachmentoff.

into the adaptor hole

until it clicks into place and issecure.

and turn clockwise (as viewed from the end of the attachment) until it locks insecurely. NOTE: The attachment can be installed on the motor in four different locations, so it does not need to be placed in any one specificorientation.

3. To remove, turn adaptor counterclockwise and pull it off,

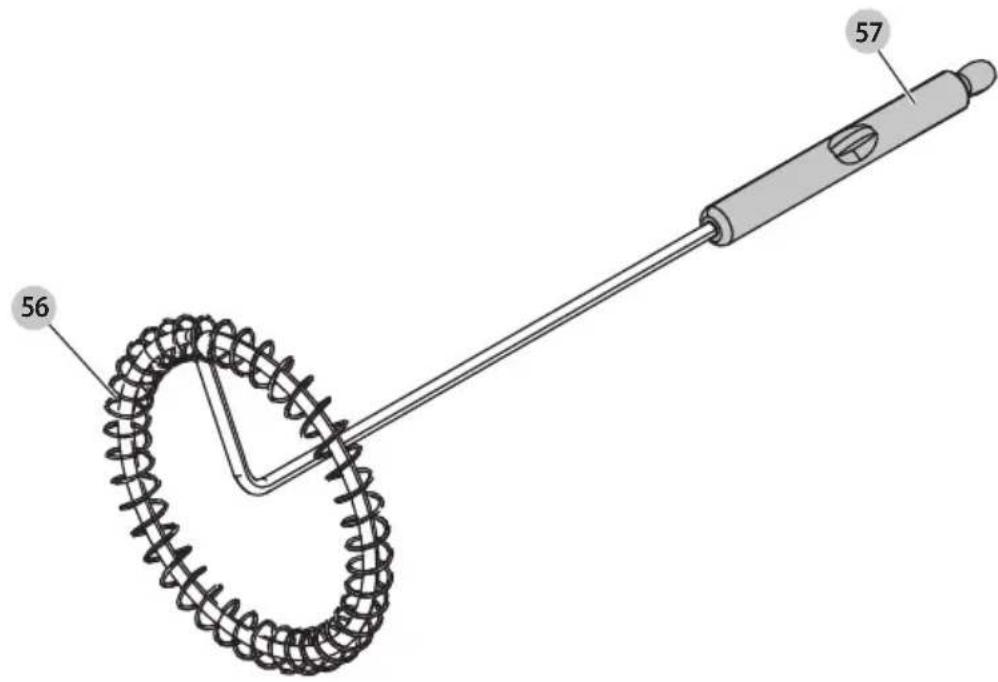

then pull the whisk or frother from theadaptor.English

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from the power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. WINE OPENER BCKM101Wn Intended Use This wine opener is intended for residential use only for the removal of corks from wine bottles. Do not use on bottles with carbonatedcontents. DO nOT let children come into contact with theappliance. Attaching and Removing Blender Guard (Fig. K)

CAUTION: Do not attach or remove immersion blender guard

while the immersion blender attachment is installed to the motor. Avoid contact with the blade while attaching and removing the blender guard.

on the immersion blender attachment. Slide the blender guard onto the immersion blender attachment. Ensure the guard clicks firmly into the detents.

2. To remove, depress the detents and slide the guard off.

3. Clean the blender guard as needed. For more

information, refer to cleaning section. nOTE: Do not pull blender out quickly. Blending creates suction at the bottom of the cup which can cause contents to splatter.

8. Keep blender attachment inside the mixing cup to

prevent dripping oncounter.

9. After processing, disassemble the immersion blender from

the motor by turning the attachment counterclockwise

10. Clean the attachment as needed. For more information,

refer to cleaning section. Immersion Blender Tips and Tricks

• The immersion blender blends foods and liquids rapidly, therefore it is easy to overprocess. Stop the motor and check food throughout the operation to avoidoverprocessing.

• When pureeing and blending, cut food into uniform sizes. This will ensure smooth and consistentresults.

• Allow hot food to cool slightly beforeblending.

WARNING: Ensure the immersion blender attachment

head is assembled to the motor as detailed in the INSTALLING AND REMOVING ATTACHMENTSsection. nOTE: Do not use the immersion blender

with non‑stick cookware as it may scratch or mark non‑stickcoatings. Blending (Fig. J)

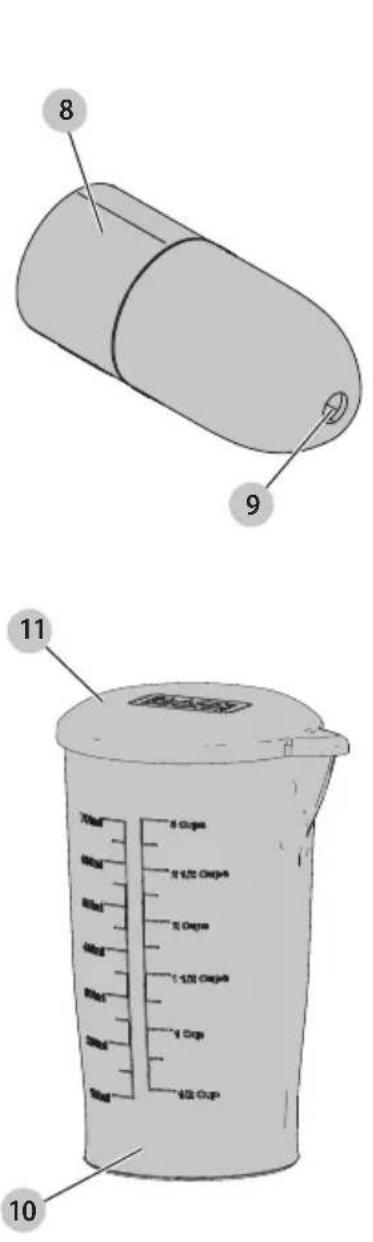

1. Place food to be processed in mixing cup

. The container should only be 1⁄2 full or less when blending liquids or when making a puree of fruit and/or vegetables to prevent food fromoverflowing.

as deeply as possible into the mixingcup.

to 1and increase speed by turning thedial. This will help avoid splattering and overprocessing.

4. Turn the unit on as described in the ON / OFFsection.

5. Blend the ingredients by moving the appliance up and

down and in circles. Do not pull immersion blender head out of food iMPORTAnT: The continuous operating time must be less than 30seconds. Never blend hot oil, fat, ormeat.

6. After you have completed blending, release the unlock

becomes blocked: ‑ Turn unit off while keeping the blender headsubmerged, ‑ Allow the blade to stop, ‑ Wait until the LEDs turn off, ‑ Lift the blender out of the container ‑ Disassemble the blender from the motor by turning the attachment counterclockwise, ‑ Remove blockage, ‑ Securely reattach theblender. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from the power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. IMMERSION BLENDER BCKM101MB Intended Use This immersion blender is intended for residential use only. It blends liquids such as sauce, soup, and smoothies, mixes batters, and purees fruits andvegetables. DO nOT let children come into contact with theappliance.

4. Ensure the LEDs on the top of the unit illuminate. If they

do not, check the connection between the unit and chargerconnector.

into anoutlet.15 English

WARNING: Do not touch blade. It is sharp and may

cause seriousinjury.

WARNING: Ensure the can opener attachment is

assembled to the motor as detailed in the INSTALLING AND REMOVING ATTACHMENTSsection. Opening a Can (Fig. O–Q) iMPORTAnT: The can needs to remain vertical at alltimes. nOTE: Can opener cuts cans from the side below the can's end seam

is vertical as shown in Fig. O.

3. Slide the can opener onto the can so the blade

comes in contact with the side of thecan.

4. Align the can opener center line

with the center of the can as shown in Fig. P.

5. Ensure the can sits flush against the can opener base

, and inside the can opener recess

as shown in Fig. P. The can must stay in contact with the base, wall, and recess at alltimes.

6. Push the lever down to puncture the can as shown in

Fig.P. Ensure the lever is engaged and the can is fully punctured. Keep lever down while opening thecan.

7. After puncturing, lift the can slightly off the surface so it

rotates freely whileopening.

8. Turn the unit on as described in the ON / OFF section.

9. Once the top of the can is fully cut off, release the unlock

10. Ensure the motor has completely stopped before lifting

the can opener off the can. The can lid will be attached to the can opener as long as the lever is still down.

11. Hold the can opener over the garbage and pull the lever

up as shown in Fig. Q to release the cantop.

12. After opening the can, disassemble the can opener from

the motor by turning the attachment counterclockwise

13. Clean the attachment as needed. For more information,

refer to cleaning section. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from the power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. CAN OPENER BCKM101Cn Intended Use This can opener is intended for residential use only. It cuts the side of cans to openthem. DO nOT let children come into contact with theappliance.

WARNING: Ensure the wine opener attachment head

is assembled to the motor as detailed in the INSTALLING AND REMOVING ATTACHMENTSsection.

They are sharp and may cause seriousinjury.

WARNING: Do not place objects into the wine opener

other than those describedbelow. Cutting Foil (Fig. L) nOTE: Foil on top of the wine bottle must be removed before using the wine opener

1. Remove the foil cutter

from the wineopener.

2. Place the foil cutter on top of the wine bottle so the foil

surround the neck of thebottle.

3. Squeeze the sides and turn the cutter around the bottle

until the foil is fullycut.

4. Remove cutter andfoil.

Removing the Cork (Fig. M)

1. Ensure the foil cutter is removed from the wineopener.

2. Place wine bottle on a flatsurface.

4. Place the wine opener vertically on top of the bottle and

press down until you feel resistance. The corkscrew

will be slightly above thecork.

5. Turn the unit on as described in the ON / OFF section. The

corkscrew will move down into thecork.

6. Once the cork is fully removed, you will see it freely

spinning above the bottle's neck. Release the unlock button

7. Ensure the motor has completely stopped before lifting

the wine opener off thebottle.

8. Once the wine opener is off, the internal spring

will automatically push the cork to the end of the corkscrew and drop the cork out of the wine opener. Place your hand under the wine opener to catch thecork. ‑ If the cork does not come all the way off of the corkscrew, manually twist it off. ‑ If the cork is jammed, place a small, flat object into one of the windows

to unjam the cork so it can be ejected by the spring. Do not turn appliance on when doingthis.

9. After the bottle is open, disassemble the wine opener from

the motor by turning the attachment counterclockwise

10. Clean the attachment as needed. For more information,

refer to cleaning section. Storing Wine Opener (Fig. N) It is recommended to store the wine opener with the foil cutter

attached to thebottom.

• Snap the cutter onto the bottom of the wineopener. Wine Opener Tips and Tricks

• When you can see the cork begin to move freely outside the bottle, pull the bottle away from theunit.

• Place your hand under the wine cork after removing from the bottle to easily grab it whenreleasing.English

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from the power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. WHISK BCKM101Wh Intended Use This whisk is intended for residential use only. It can be used to beat eggs, mix batters, and make meringue and whipcream. DO nOT let children come into contact with theappliance. line ( or )

, the dial will rotate but not change thecoarseness.

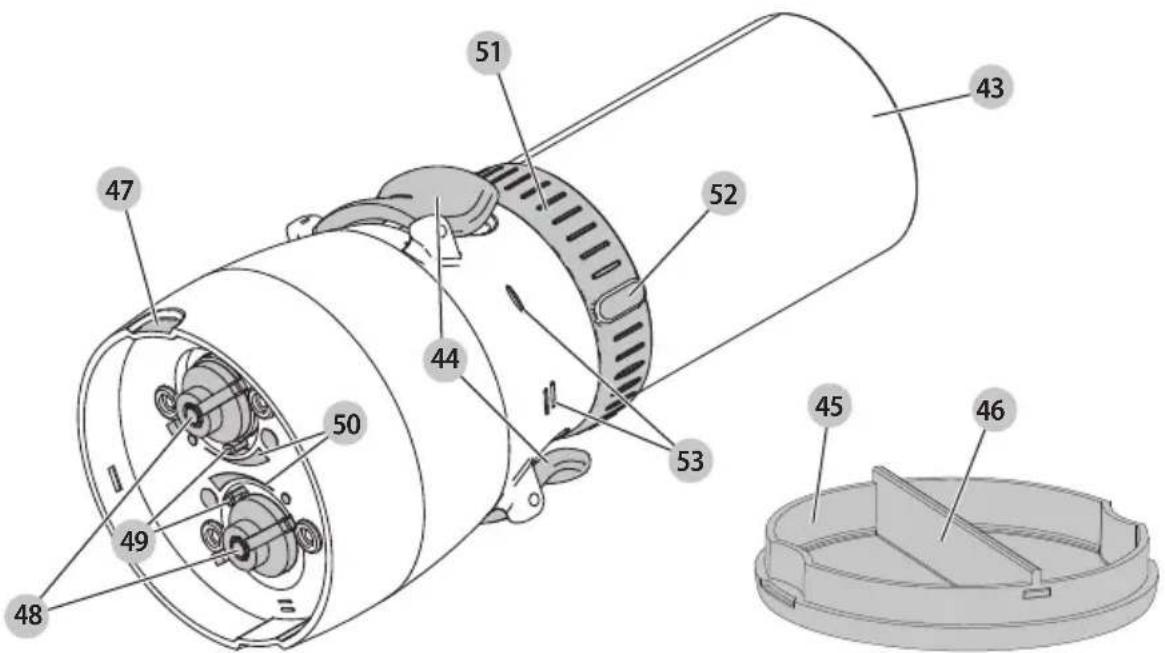

3. Set the coarseness of the spice by turning the grinder dials

‑ Clockwise for more finespices. ‑ Counterclockwise for more coarsespices. nOTE: There is one dial for each side of the grinder.

4. The level of coarseness is shown by where the coarseness

indicator sits along the coarseness scale

left or right to choose which side togrind.

2. Select the desired spice by aligning the door selector

with the door line ( or )

that matches the line on the dooritself. nOTE: Only one side of the grinder can be used at atime.

4. Turn the unit on as described in the ON / OFF section.

become blocked: ‑ Turn unit off, ‑ Disassemble the grinder from the motor

turning the attachment counterclockwise, ‑ Remove cap if needed, ‑ Remove blockage, ‑ Reattach thegrinder.

6. After you have completed grinding, release the unlock

7. After grinding, disassemble the spice grinder from the

motor by turning the attachment counterclockwise

8. Clean the attachment as needed. For more information,

refer to cleaning section. Spice Grinder Tips and Tricks

• Use a funnel to help load the spicegrinders.

• If you want to adjust the size of the spice being ground, rotate the grinder dials on the bottom of the grinder as described in the SETTING SPICE COARSENESSsection.

• Place the cap on the unit when not in use to prevent excess spicespills.

WARNING: Do not adjust grinder dials

while in use. They may cause seriousinjury.

WARNING: Ensure the spice grinder attachment head

is assembled to the motor as detailed in the INSTALLING AND REMOVING ATTACHMENTSsection. Loading Grinder (Fig. R) nOTE: Use hard spices only. Soft and wet ingredients may obstruct and damage the spice grinder and its internal grindingwheels.

2. Load spices into the dedicated compartment. Place one

spice in the door marked with and another spice in the door marked with . If you only want to grind one spice, either door may beused.

3. Close the door until it clicks, ensuring it is fully closed so

off to grind spices directly on food. To remove the cap, pull off at the spice grinder recess

2. Put cap on by lining it up with the bottom of the spice grinder

and snapping it into place. The cap wall will separate spices so they don't mix and keep the spices off yourcounter. Adjust Spice Coarseness (Fig. T)

1. Remove the cap ifneeded.

to the side you wish to adjust. If the spice selector is not lined up with the matching door OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from the power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. SPICE GRINDER BCKM101sP Intended Use This spice grinder is intended for residential use only. It grinds hard spices such as salt and pepper for use infood. DO nOT let children come into contact with theappliance. Can Opener Tips and Tricks

• Do not release the lever until you are over the trash can to prevent the need of grabbing the canlid.

• Do not begin using until the lever is completelyhorizontal.

• Once you have begun, raise the can off of the counter to remove the resistance torotating.

• Keep the can perpendicular to the counter and just slightly off the countertop to preventmesses.

• If draining the can is needed, angle can lid slightly and move to the sink. Rotate the can to allow excess liquid to exit while holding the lid inplace.17 ENGLISH Troubleshooting Unit not running: Place the appliance on charger until all LEDs are on and solid. Then try using the unitagain. Splatters food outside container: Adjust the variable‑speed dial. Start with the speed on the lowest setting to prevent making a mess and adjust to higher speeds as ingredients become well mixed, and as you feel more comfortable with thespeed.

WARNING: Ensure the frother pole is assembled to

the adaptor and that the adaptor is assembled to the motor as detailed in the INSTALLING AND REMOVING ATTACHMENTSsection.

• Do not use frother with non‑stick cookware as it may scratch or mark non‑stickcoatings. Frothing (Fig.W)

1. Place ingredients to be frothed into acup.

in the middle of the liquid. Do not push to thebottom.

to 5and decrease speed by turning the dial asdesired.

4. Turn the unit on as described in the ON / OFFsection.

5. Hold the frother in the middle of the cup for bestresults.

IMPORTANT: The continuous operating time must be less than 2minutes. Never froth hot oil, fat, ormeat.

6. If your frother becomes blocked:

‑ Turn unit off while keeping the frother submerged, ‑ Lift frother out of the cup, ‑ Disassemble the frother and adaptor from the motor by turning the adaptor counterclockwise, ‑ Remove blockage, ‑ Reattach the frother andadaptor.

7. After you have completed frothing, release the unlock

8. Ensure the motor has completely stopped before lifting

the frother out of thecontainer.

9. After use, pull the frother pole from the adaptor and

remove the adaptor from the motor by turning the adaptor counterclockwise

10. Clean the attachment as needed. For more information,

refer to cleaning section. Frother Tips and Tricks

• It is recommended to use at the top speed to create the greatest froth quickly. Use with whole milk orcream. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from the power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. to froth cream or milk fordrinks. DO NOT let children come into contact with theappliance. FROTHER BCKM101MF Intended Use This frother is intended for residential use only. It can be used

WARNING: Ensure the whisk pole is assembled to the adaptor

and that the adaptor is assembled to the motor as detailed in the INSTALLING AND REMOVING ATTACHMENTSsection. NOTE: Do not use the whisk

with non‑stick cookware as it may scratch or mark non‑stickcoatings. Whisking (Fig.V)

1. Place ingredients to be whisked into abowl.

NOTE: To incorporate air into the ingredients when whisking, use a deep and wide container and move the whisk

2. Immerse the whisk completely in the ingredients, to the

to 1and increase speed by turning the dial asdesired. NOTE: If selecting a higher speed, it is recommended that you start on low speed and then increase to high speed to avoid splattering and overprocessing.

4. Turn the unit on as described in the ON / OFF section. Do

5. Whisk ingredients by moving the appliance slowly up

and down and in circles. Do not remove whisk fromfood.

6. If your whisk becomes blocked:

‑ Turn unit off while keeping the whisk submerged, ‑ Lift whisk out of the container, ‑ Disassemble the whisk and adaptor

from the motor by turning the adaptor counterclockwise, ‑ Remove blockage, ‑ Securely reattach the whisk andadaptor. IMPORTANT: The continuous operating time must be less than 2minutes. Never whisk hot oil, fat, ormeat.

7. After you have completed whisking, release the unlock

8. Ensure the motor has completely stopped before lifting

the whisk out of thecontainer.

9. After use, pull the whisk from the adaptor and remove

the adaptor from the motor by turning the adaptor counterclockwise

10. Clean the attachment as needed. For more information,

refer to cleaning section. Whisk Tips and Tricks

• For whipping cream, always use fresh chilledcream.

• For egg whites, whisk fresh, room temperature eggs in a glass bowl to achieve greater and more stablevolume.

• It is recommended to use the highest speed when whisking egg whites andcream.ENGLISH

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two(

) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways: The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER’s option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at ww.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for suchinformation. Imported by.Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 BlackandDecker.com (1-800-544-6986) Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

NewOwner Repairs The charger and internal battery are notserviceable. There are no serviceable parts inside the charger orappliance. Optional Accessories

WARNING: Since accessories, other than those offered

by BLACK+DECKER, have not been tested with this product, use of such accessories with this appliance could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with thisproduct. Consult your dealer for further information on the appropriateaccessories. Cleaning

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

CAUTION: Blender guard, whisk, frother, mixing cup, and mixing cup lid are top rack only, dishwasher safe. It is recommended that you manually rinse before placing them in the top rack of the dishwasher.

1. Remove the attachment from the motor

as detailed in the INSTALLING AND REMOVING ATTACHMENTS section.

2. Blender guard, whisk, frother, mixing cup and mixing cup lid

are dishwasher safe on top rack only on normal setting. All other attachments and components, clean by hand with a cloth and warm, soapy water.

3. Ensure the attachment or component is dry before

WARNING: To reduce the risk of serious personal

injury, turn unit off and keep away from power button before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. Your BLACK+DECKER appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regularcleaning. If unit is not charging:

• Ensure the charger is plugged in.

• Wipe down the charging pegs on the appliance as well as the charger connector. Use a cloth dampened only with water and mildsoap.

• Temperature fault or overcurrent conditions may haveoccurred. ‑ Temperature fault: LEDs will blink in the following pattern ‑ . ‑ . (250ms ON, 250ms OFF, 10ms ON, 250msOFF). ‑ Over current: unit will shut down with noflashing. ‑ Refer to the HOT/COLD DELAY section for moreinformation.FRAnçAis
