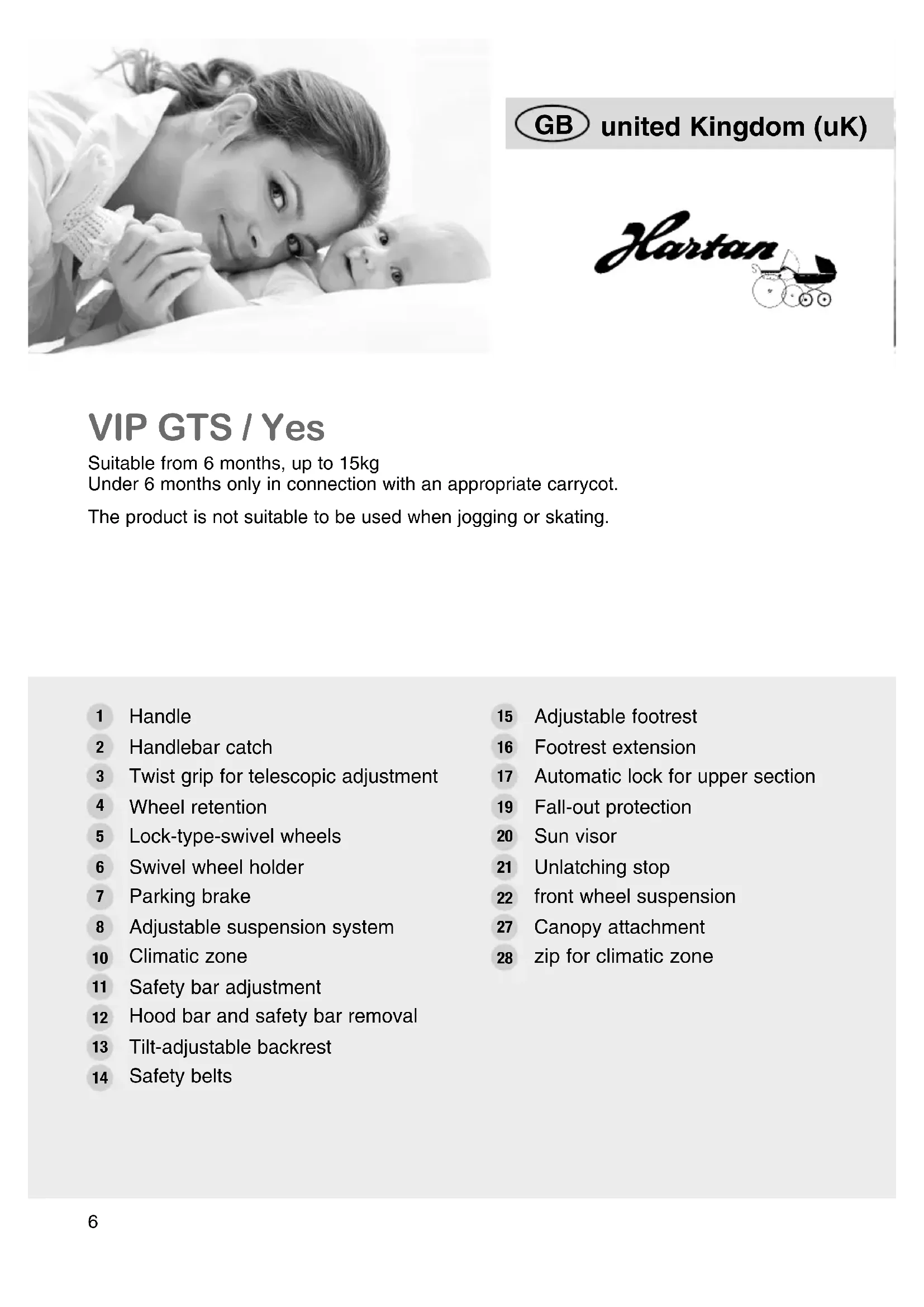

GB united Kingdom (uK)

Hartan

VIP GTS / Yes

Suitable from 6 months, up to 15kg

Under 6 months only in connection with an appropriate carrycot.

The product is not suitable to be used when jogging or skating.

1 Handle
2 Handlebar catch
3 Twist grip for telescopic adjustment
4 Wheel retention
5 Lock-type-swivel wheels
6 Swivel wheel holder
7 Parking brake
8 Adjustable suspension system
10 Climatic zone
11 Safety bar adjustment
12 Hood bar and safety bar removal
13 Tilt-adjustable backrest
14 Safety belts

15 Adjustable footrest
16 Footrest extension
17 Automatic lock for upper section
19 Fall-out protection
20 Sun visor
21 Unlatching stop
22 front wheel suspension
27 Canopy attachment
28 zip for climatic zone

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purcha-sed a Hartan high-quality product. You have made an excellent choice. Hartan products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will rovide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the industry's own, Öko-Tex-Standard 100' to guarantee that all the fabric parts of your pram are safe for your baby.

importantly! Please do not use this pram before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer. Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

For the safety of your child

WARNING! – Before use, conduct an initial check of the carriage, and do not use it if it is damaged or if parts are torn or broken.

WARNING! – Make sure when unfolding the pram and folding it together that your child is at a safe distance, to avoid any injuries

WARNING! – Never leave your child unattended in the pram.

WARNING! – Make sure before using it that the carrycot or the seat unit or the child's car seat is correctly latched into place.

WARNING! – Negotiating stairs or steps as well as overloading may damage the pram and endanger your child.

WARNING! – When parking the pram, make sure the brake is engaged. When using public transport, ensure the pram stands safely.

WARNING! – A pram, stroller or carrycot is not a substitute for a cradle or a bed. It is intended to be used exclusively as a means of transport.

WARNING! – Using this pram while jogging, skating, etc. can be dangerous and is therefore not allowed.

WARNING! – Do not allow children to play either near or with the pram.

WARNING! – Always use the restraint system.

WARNING! – Fix no bags, handbags or other loads to the handle, backrest or sides of the carriage, as this will affect its stability.

WARNING! – This model has been designed for 1 child.

WARNING! – A second child seat is not allowed for this model.

WARNING! – The seat unit and carrycot are not to be used for transporting in a car.

WARNING! – The rain cover may not be used when the hood is taken off (danger of suffocation). Never expose the rain cover hood to sun while the child is in the carriage (overheating).

WARNING! – Keep the carriage away from open fires or other sources of heat.

WARNING! – Remove immediately all film packaging, and do not allow your child to play with it (asphyxiation).

WARNING! – Accessories and spare or replacement parts not approved by the manufacturer must not be used.

Instructions for use

WARNING! When opening out and folding down the frame and when adjusting the back-rest, pinch-points may be caused in which fingers etc. can be trapped unless care is exercised. Ensure that your child has plenty of clearance space.

Unfolding the carriage

Lift the handle 1 until the two lateral handle catches 2 have engaged.

WARNING! Before using the pram, make sure all catches are locked. Take care that you keep your child's body parts at a safe distance.

Folding the carriage

Turn the twist grip 3 inwards and push at the same time the telescopic handle to the stop. With the grip 3 still twisted, depress the red button 21, and push the handle 1 forcibly until it disengages.

Height-adjustable Telescopic handle

Turn the twist grip 3 inward and slide the handle 1 in the desired position until it engages on both sides.

Changing the rear wheels

Release the parking brake 7. Depress push button 4 and pull the wheel off. Push the wheel right to the axle's stop. Make sure, all wheels are held in place properly. Then, depress the button again.

Lock-type-swivel wheels

Turn down the lock lever 5 to pre-select the straight-line motion mode, which will be activated the moment the wheels point in forward direction. To allow the wheels to swivel freely again, turn the lever 5 back to the horizontal position. On very uneven surfaces, and when going very fast, we recommend locking the swivel movement, to prevent the wheels from blocking.

Close-up of a black mechanical component with a numbered label '5' pointing to a feature (no readable text or symbols beyond the number)

Changing the swivel wheels

To remove the wheel, release the push-button in the centre of the cap 6 and pull the wheel off the holding device. To assemble the wheel, insert the fastening pin in the holding device, and engage it by a forcible push, which is indicated by a click sound.

Parking brake

Push the red brake button 7 to engage the brake. Having parked the pram, try to push it to check the brake. Push the green brake button 7 to release the brake.

WARNING! Make sure the

brake is always closed when placing the baby in the carriage or taking it out of it.

Adjustable suspension system

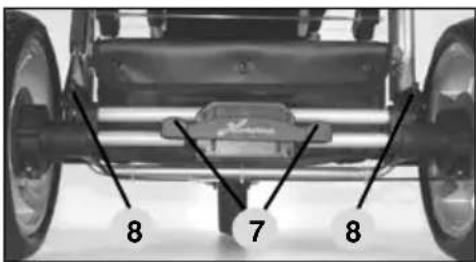

By turning the selector 8, a „hard“ or „soft“ position can be selected for suspension.

Climatic zone 10

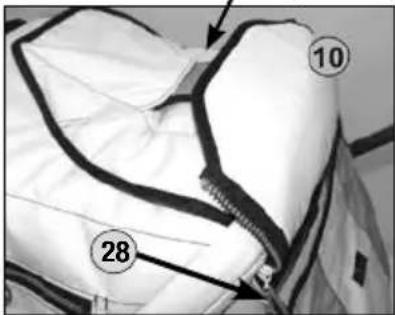

To provide good ventilation to the hood and to prevent heat from accumulating inside, open the two zip fasteners 28 and fold up the hood flap. Use the Velcro band below the additional tap to secure the flap to the hood. As an additional protection, the sun visor 20 can be pulled out.

Hood and safety bar

By pressing the bayonet joint 12, the hood or the safety bar can be pulled out. When inserting it, make sure the safety bar locks into place correctly and be careful not to pinch any of the fabric parts. By pressing the buttons 11, the safety bar position can be changed.

8 7 8

Additional tap

10 28

WARNING! The hood bar of the stroller and the safety bar are not suitable for carrying the stroller.

Adjusting the backrest

By raising adjustment lever 13 on the back, the seat-back can be precisely adjusted to any incline between an upright seated position and a lying position. WARNING! When adjusting the backrest, take care that no movable parts jam the baby's limbs or fingers, etc. Finally, make sure the backrest has reengaged properly.

Protection from falling out WARNING!

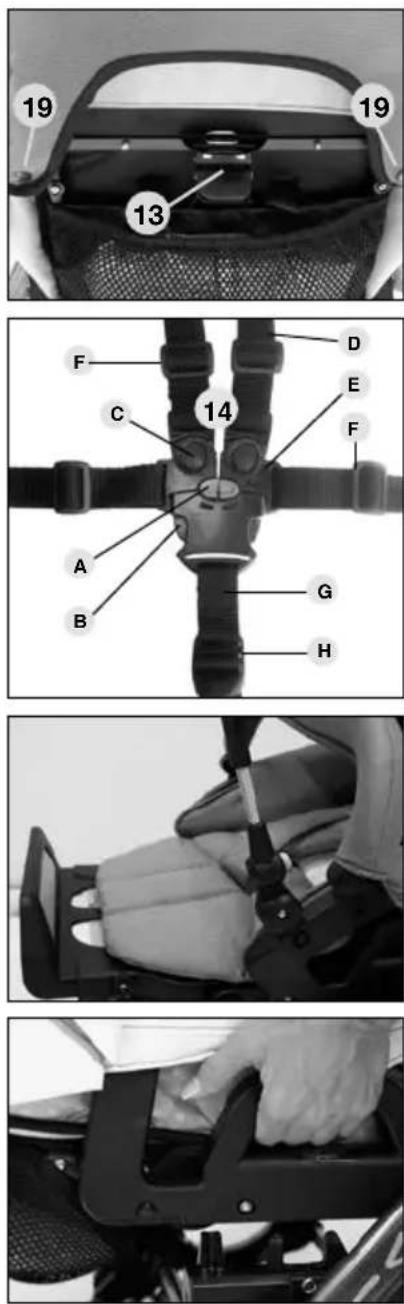

As additional protection against falling out, fix the press-buttons 19 of the hood to the metal frame of the backrest.

Safety belt WARNING!

Secure your child with the five-point harness system 14.

Make sure the shoulder straps D are plugged in and that the belt is securely fastened. The length of the belt can be adjusted with sliding buckle F, the length of the crotch strap G can be adjusted with quick-release slider H.

To undo the harness: press the two tongues B together using your thumb and forefinger, then press the red button A, so that you can pull the two plugs E out upwards. To undo the shoulder straps you then press button C.

Canopy attachment 27

Insert then the fixing peg of the canopy in the slot of the canopy attachment.

Automatic lock for upper section 17

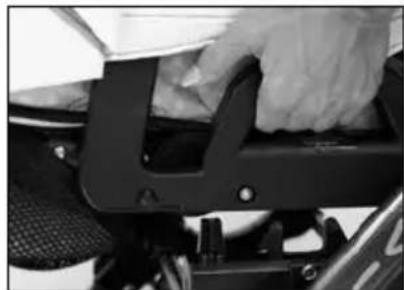

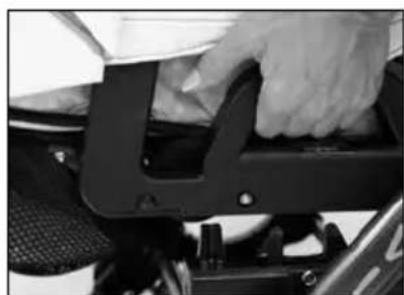

Place the seat unit on the frame in such a way that both locking handles are sitting on top of the support studs. The latches on both sides lock automatically as soon as you let go of the handles.

WARNING! Check before use that the seat unit is securely fixed! To open the lock, pull the red knob out slightly, then the seat unit can be removed. The seat unit can also be turned round.

Suitability for the child

The seat unit is designed for a child from 6 months, and weighing up to 15 kg (33 lbs).

WARNING! This product is only suitable for a child which cannot yet sit up or roll onto its side on its own or support itself on hands and knees.

Maximum weight of the child: 9 kg.

Never use these carrycots on a stand.

Checking and care instructions

All the materials we use can easily be cared for.

Care of the fabric parts

Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30 °C. Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer's. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.

Care of the chassis

The chassis requires regular care. You should clean and slightly lubricate the wheel axles at a regular 4-weeks interval. Before oiling the wheels and push-in axles, make sure these are absolutely clean and free of sand etc., in order not to compromise the proper working of the locking mechanism. Use a silicone based lubricant spray for all moving plastic parts to maintain them in an operative condition. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator. Do not use high-pressure cleaners when cleaning your carriage, due to risk of damaging the ball bearings of the wheels (greased) and other functional parts (grinding and creaking noise). Wheels: Overpressure may result in accidents and personal injuries. Replace worn plain wheel bearings and springs in time. Replace worn plain wheel bearings and springs in time. Little stones in the thread, etc. may just as well damage the floor covering. When parking the carriage in the blazing sun or cramming it in the boot at temperatures of above 40^ C, the semi pneumatic tires may flatten or become deformed.

For pneumatic tires

When using pneumatic wheels, make sure they have got enough air in the tire. Specified tire inflation pressure should be between 1.2 and 1.5bar max.

WARNING! Max. tire pressure will be reached quickly. Tires tend to lose

air over time. When blowing up a flat tire, inflate it only halfway first, and make sure the tire is evenly seated, to avoid "wobble". Replace worn plain wheel bearings and springs in time. Then continue to inflate it to the proper pressure.

2 YEARS warranty

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER .....

We disclaim liability for defects in the object of purchase that are beyond our control.

This especially applies to:

■ natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
■ defects due to improper or inappropriate use (see Instructions)
■ defects due to incorrect assembly or operation
■ defects due to negligent handling or lack of maintenance of the product
■ defects due to improper alteration of the product.

WARRANTY CLAIM — YES OR NO?

Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty.

Scratches: Scratches caused by wear and tear will not be covered by the warranty.

Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty.

Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty.

Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine.

Tearing of seams, fabrics, press studs: At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered.

Wheels: As wheels used on prams will not be balanced, they may show slight run-outs („wobbles“). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a „flat“. This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.

WHAT TO REMEMBER WHEN BUYING YOUR PRAM

Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the hand-over check.

WHAT TO DO IN CASE OF A COMPLAINT

Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.

Make sure that the pram is in a clean condition before being sent in for repair. Repairs will not be carried out on prams which are in a dirty condition.

USE, CARE AND MAINTENANCE

To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.
