USER MANUAL CR 13V2 HITACHI

Model Reciprocating Saw

Technical line drawing of a mechanical tool with no visible text or symbols

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool.

This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS .... 3 MEANINGS OF SIGNAL WORDS .... 3

SAFETY .... 3 GENERAL POWER TOOL SAFETY WARNINGS ... 3 SPECIFIC SAFETY RULES AND SYMBOLS .... 4 DOUBLE INSULATION FOR SAFER OPERATION .... 5

FUNCTIONAL DESCRIPTION .... 6 NAME OF PARTS .... 6 SPECIFICATIONS .... 6

ASSEMBLY AND OPERATION .... 7 APPLICATIONS .... 7 PRIOR TO OPERATION .... 7 HOW TO USE THE RECIPROCATING SAW .... 10

MAINTENANCE AND INSPECTION .... 12 ACCESSORIES .... 13 STANDARD ACCESSORIES .... 13 OPTIONAL ACCESSORIES .... 13 PARTS LIST .... 42

TABLE DES MATIERES

Français

Page Page

CONSIGNES DE SÉCURITÉ IMPORTANTES ..... 15 SIGNIFICATION DES MOTS D'AVERTISSEMENT ..... 15

SECURITE .... 15 AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX CONCERNANT LES OUTILS ÉLECTRIQUES ..... 15 REGLES DE SECURITE SPECIFIQUES ET SYMBOLES .... 17 DOUBLE ISOLATION POUR UN FONCTIONNEMENT PLUS SUR .... 18

DESCRIPTION FONCTIONNELLE .... 19 NOM DES PARTIES .... 19 SPECIFICATIONS .... 19

ASSEMBLAGE ET FONCTIONNEMENT .... 20 APPLICATIONS .... 20 AVANT L'UTILISATION .... 20 COMMENT UTILISER LA SCIE ALTERNATIVE .... 23

ENTRETIEN ET INSPECTION .... 25 ACCESSOIRES .... 26 ACCESSOIRES STANDARD .... 26 ACCESSOIRES SUR OPTION .... 27

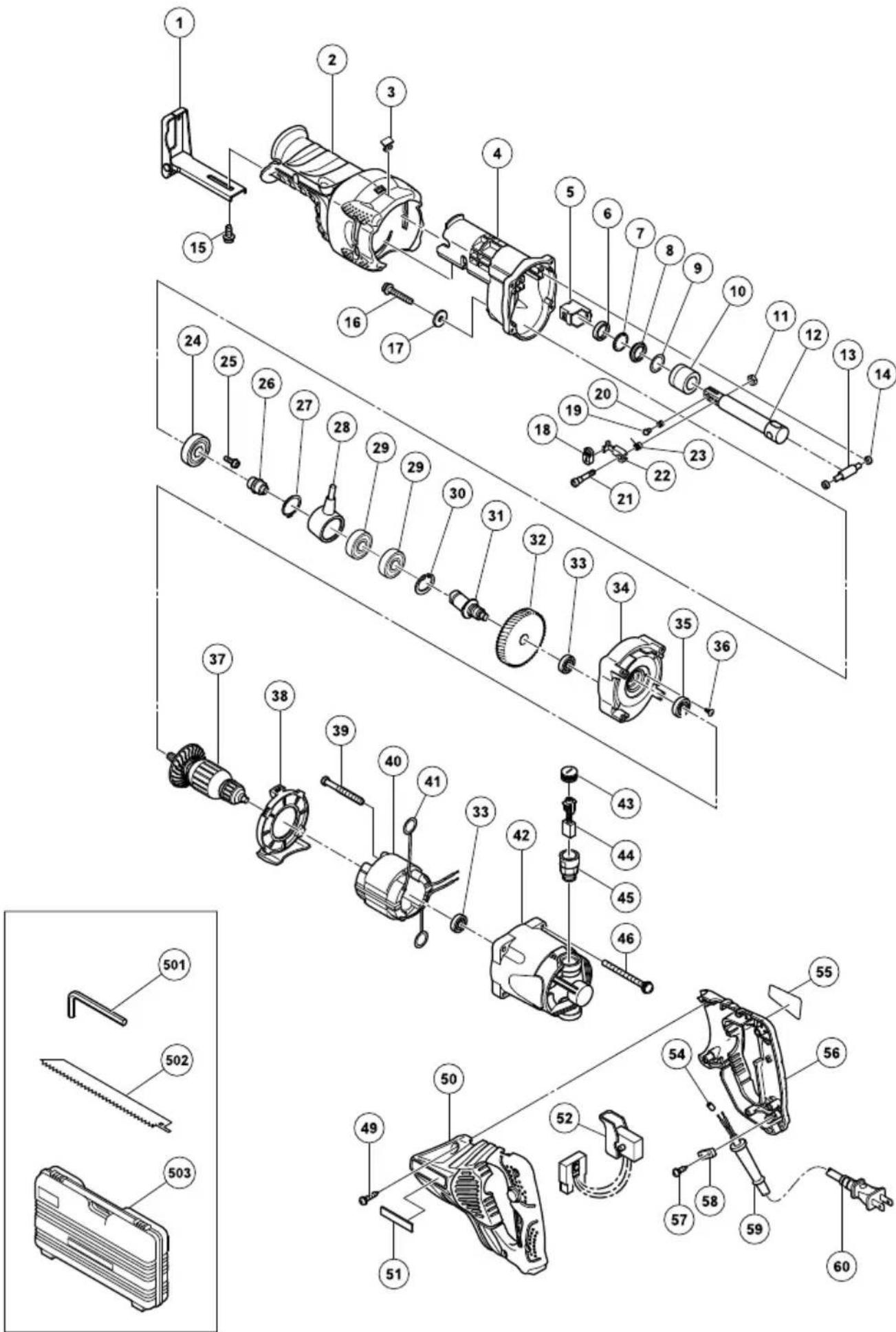

LISTE DES PIECES 42

ÍNDICE

Español

Página Página

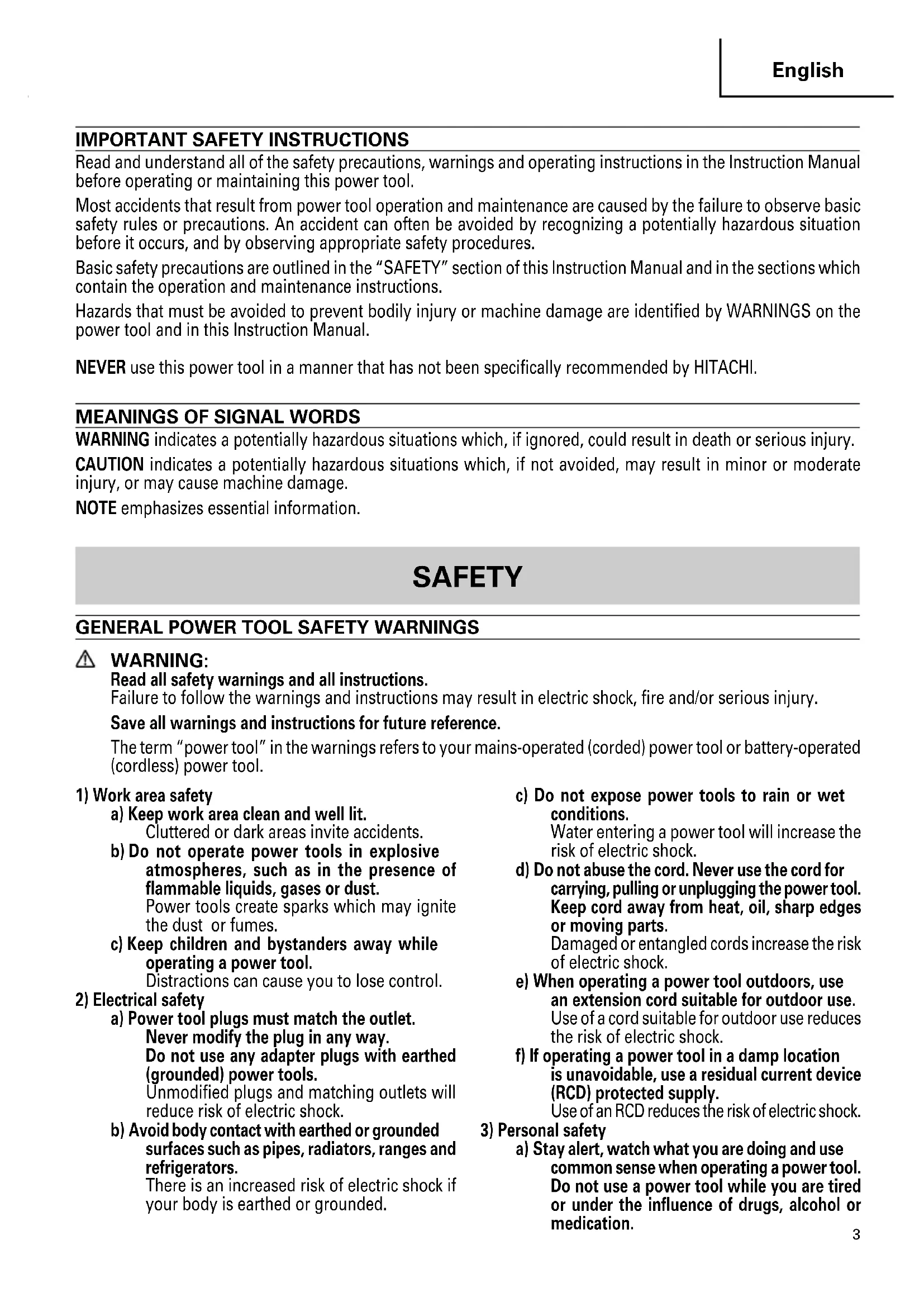

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING:

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

2. Use clamps or another practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

3. Wear ear protectors when using the tool for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

4. Never touch moving parts.

Never place your hands, fingers or other body parts near the tool's moving parts.

1. Never operate without all guards in place.

Never operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended — for example — don't use circular saw for cutting tree limbs or logs.

1. Never use a power tool for applications other than those specified.

Never use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. Never allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. Keep motor air vent clean.

The tool's motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.

1. Operate power tools at the rated voltage.

Operate the power tool at voltages specified on its nameplate.

If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

1. Never use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

1. Never leave tool running unattended. Turn power off.

Don't leave tool until it comes to a complete stop.

1. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS wear eye protectors during operation.

2. ALWAYS be careful with buried object such as an underground wiring.

Touching these active wiring or electric cable with this tool, you may receive an electric shock.

Comfirm if there are any buried object such as electric cable within the wall, floor or ceiling where you are going to operate here after.

1. Definitions for symbols used on this tool

V ....volts

Hz hertz

A ...... amperes

n_0 no load speed

W ...... watt

Class II Construction

---/min ....revolutions or reciprocation per minute

\~ ...... Alternating current

To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. "Double insulation" means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol "固" or the words "Double insulation" appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments.

To keep the double insulation system effective, follow these precautions:

○ Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed.

○ Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly.

Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

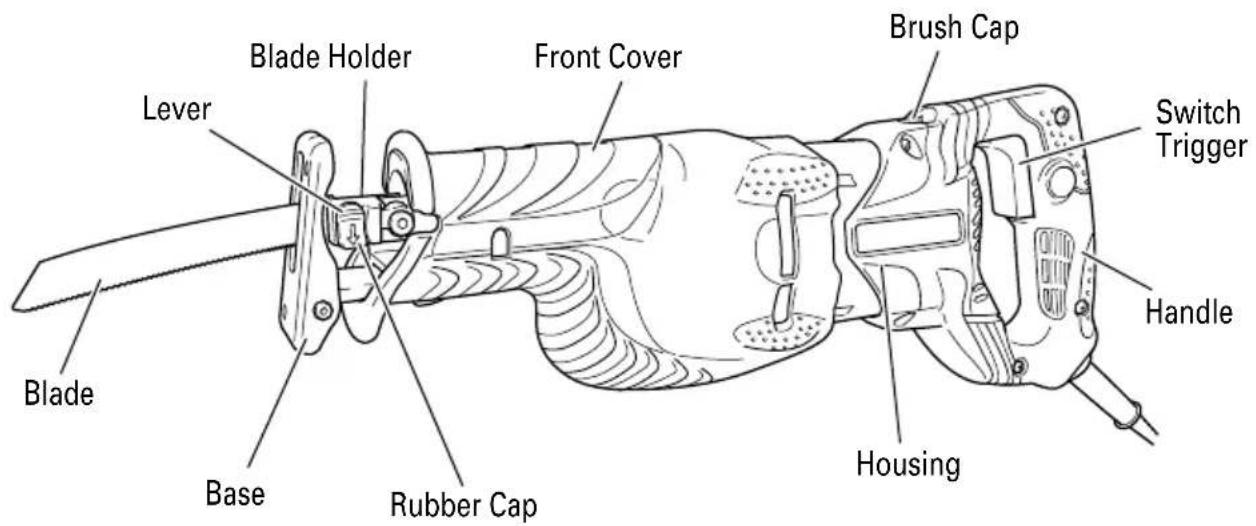

NAME OF PARTS

Blade Holder Front Cover Brush Cap Switch Trigger Handle Lever Blade Base Rubber Cap Housing

Fig. 1

SPECIFICATIONS

Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase, 120 V AC 60 Hz
Current 10 A
Capacity Mild Steel Pipe: O.D. 5" (130 mm)	Vinyl Chloride Pipe: O.D. 5" (130 mm)Wood: Depth 5" (130 mm)
No-Load Speed 0 – 2800/min.

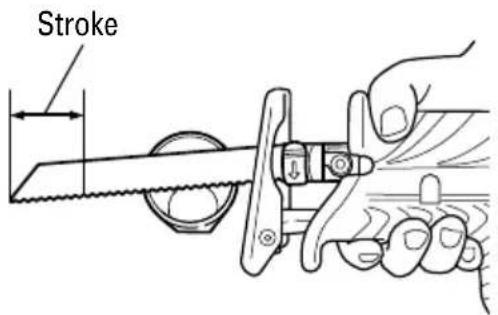

Stroke 1-1/8" (29 mm)
Weight (without cord) 7.3 lbs (3.3 kg)

ASSEMBLY AND OPERATION

APPLICATIONS

○ Cutting metal and stainless steel pipe.
○ Cutting various lumber.
○ Cutting mild steel, aluminum and copper plate.
○ Cutting synthetic resins, such as phenol resin and vinyl chloride.

PRIOR TO OPERATION

1. Power source
   Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.
2. Power switch
   Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.
3. Extension cord
   When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

WARNING: Damaged cord must be replaced or repaired.

1. Check the receptacle
   If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.
   If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.

2. Confirming condition of the environment:

Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.

1. Mounting the blade

This unit employs a detachable mechanism that enables mounting and removal of saw blades without the use of a wrench or other tools.

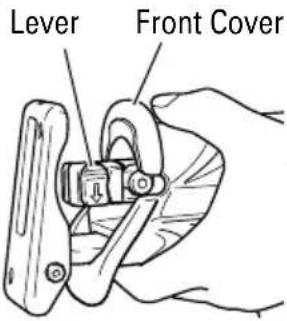

(1) Turn on and off the switching trigger several times so that the lever can jump out of the front cover completely. Thereafter, turn off the switch and unplug the power cord. (Fig. 2)

Lever Front Cover

Fig. 2

CAUTION:

Be absolutely sure to keep the switch turned off and the power cord unplugged to prevent any accident.

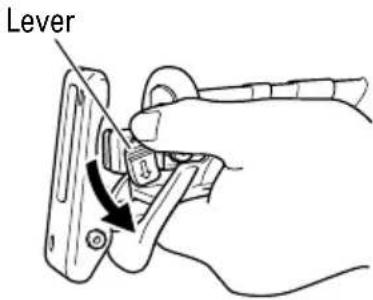

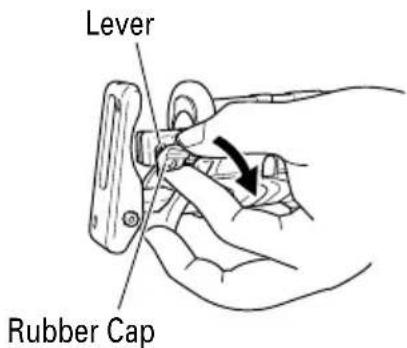

(2) Push the lever in the direction of the arrow mark shown in Fig. 3 marked on the lever.

Lever

Fig. 3

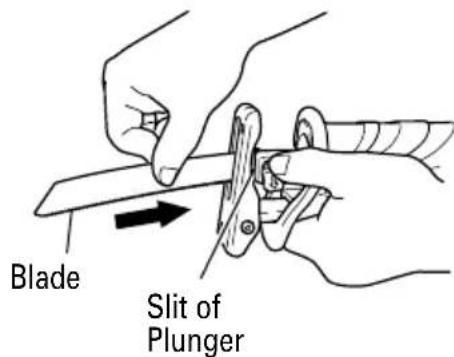

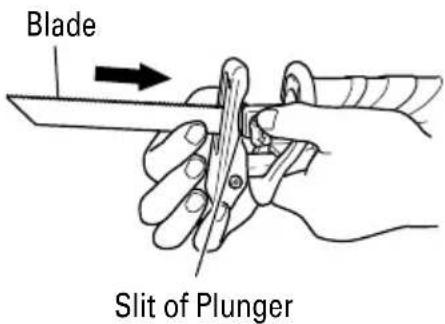

(3) Insert the saw blade all the way into the small slit of the plunger tip with the lever pushing. You can mount this blade either in the upward or downward direction. (Fig. 4, Fig. 5)

Blade Slit of Plunger

Fig. 4

Blade Slit of Plunger

Fig. 5

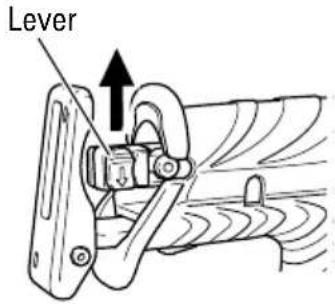

(4) When you release the lever, the spring force will return the lever to the correct position automatically. (Fig. 6)

Lever

Fig. 6

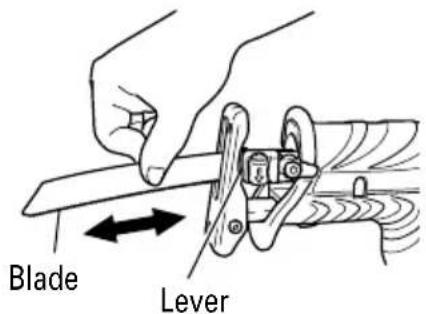

(5) Pull the back of the saw blade two or three times by hand and check that the blade is securely mounted. When pulling the blade, you will know it is properly mounted if it clicks and the lever moves slightly. (Fig. 7)

Blade Lever

Fig. 7

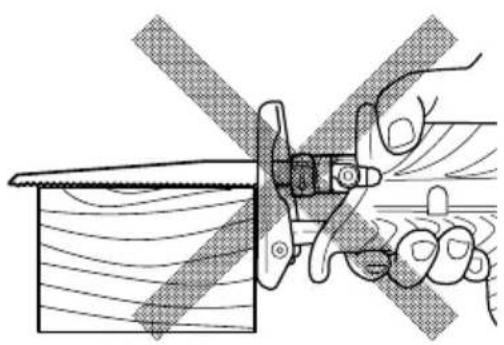

CAUTION:

When pulling the saw blade, be absolutely sure to pull it from the back. Pulling other parts of the blade will result in an injury.

7. Dismounting the blade

(1) Turn on and off the switching trigger several times so that the lever can jump out of the front cover completely (Fig. 2). Thereafter, turn off the switch and unplug the power cord.

CAUTION:

Be absolutely sure to keep the switch turned off and the power cord unplugged to prevent any accident.

(2) After you have pushed the lever in the direction of the arrow mark shown in Fig. 3, turn the blade so it faces downward. The blade should fall out by itself. If the blade doesn't fall out, pull it out by hand.

CAUTION:

Never touch the saw blade immediately after use. The metal is hot and can easily burn your skin.

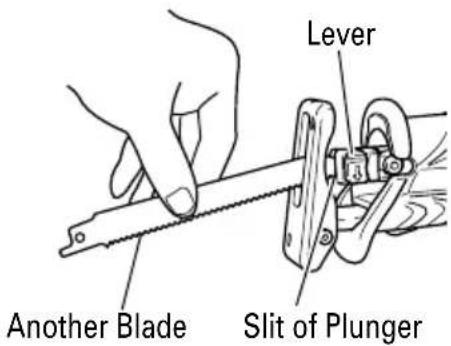

WHEN THE BLADE IS BROKEN

Even when the saw blade is broken and remains inside the small slit of the plunger, it should fall out if you push the lever in the direction of the arrow mark, and face the blade downward. If it doesn't fall out itself, take it out using the procedures explained below.

(1) If a part of the broken saw blade is sticking out of the small slit of the plunger, pull out the protruding part and take the blade out.
(2) If the broken saw blade is hidden inside the small slit, hook the broken blade using a tip of another saw blade and take it out. (Fig. 8)

Lever Another Blade Slit of Plunger

Fig. 8

MAINTENANCE AND INSPECTION OF SAW BLADE MOUNT

(1) After use, blow away sawdust, earth, sand, moisture, etc., with air or brush them away with a brush, etc., to ensure that the blade mount can function smoothly.

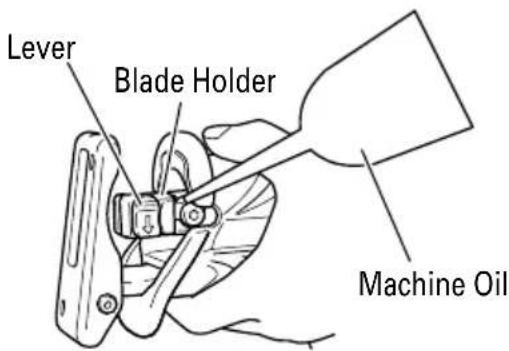

(2) As shown in Fig. 9, carry out lubrication around the blade holder on a periodic basis by use of cutting fluid, etc.

Lever Blade Holder Machine Oil

Fig. 9

NOTE:

Continued use of the tool without cleaning and lubricating the area where the saw blade is installed can result in some slack movement of the lever due to accumulated sawdust and chips. Under the circumstances, pull a rubber cap provided on the lever in the direction of an arrow mark as shown in Fig. 10 and remove the rubber cap from the lever. Then, clean up the inside of the blade holder with air and the like and carry out sufficient lubrication.

The rubber cap can be fitted on if it is pressed firmly onto the lever. At this time, make certain that there exists no clearance between the blade holder and the rubber cap, and furthermore ensure that the saw-blade-installed area can function smoothly.

Lever Rubber Cap

Fig. 10

CAUTION:

Do not use any saw blade with a worn-out blade hole. Otherwise, the saw blade can come off, resulting in personal injury. (Fig. 11)

Blade Hole Blade

Fig. 11

8. Adjusting the base

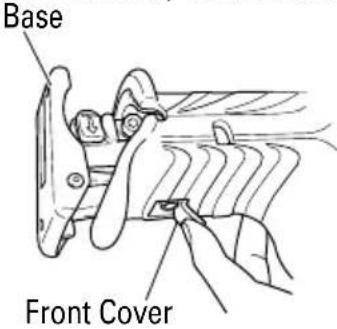

(1) Lift the front cover up as illustrated in Fig. 12.

Base Front Cover

Fig. 12

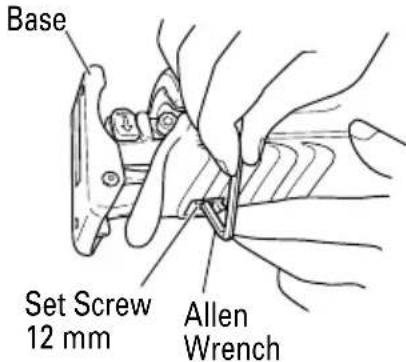

(2) If a base setting screw is loosened with an attached allen wrench, you can adjust a base installing position. (Fig. 13, Fig. 14)

Base Set Screw 12 mm Allen Wrench

Fig. 13

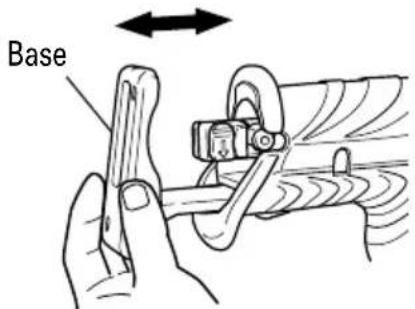

Base

Fig. 14

(3) After adjusting the base installing position, tighten the base setting screw with the attached allen wrench completely.

9. Adjusting the blade reciprocating speed

This unit has a built-in electronic control circuit that makes it possible to adjust the variable speed of the saw blade by pulling the switching trigger. (Fig. 15)

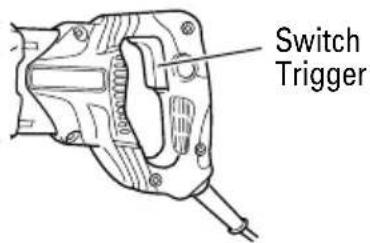

If you pull the trigger further in, the speed of the blade accelerates. Begin cutting at a low speed to ensure the accuracy of your target cut position. Once you've obtained a sufficient cutting depth, increase the cutting speed.

Switch Trigger

Fig. 15

CAUTION:

Although this unit employs a powerful motor, prolonged use at a low speed will increase the load unduly and may lead to overheating. Properly adjust the saw blade to allow steady, smooth cutting operation, avoiding any unreasonable use such as sudden stops during cutting operation.

HOW TO USE THE RECIPROCATING SAW

CAUTION:

● Avoid carrying it plugged to the outlet with your finger on the switch. A sudden startup can result in an unexpected injury.
- Be careful not to let sawdust, earth, moisture, etc., enter the inside of the machine through the plunger section during operation. If sawdust and the like accumulate in the plunger section, always clean it before use.
- Do not remove the front cover (refer to Fig. 2). Be sure to hold the body from the top of the front cover.
● During use, press the base against the material while cutting.
Vibration can damage the saw blade if the base is not pressed firmly against the workpiece.
Furthermore, a tip of the saw blade can sometimes contact the inner wall of the pipe, damaging the saw blade.

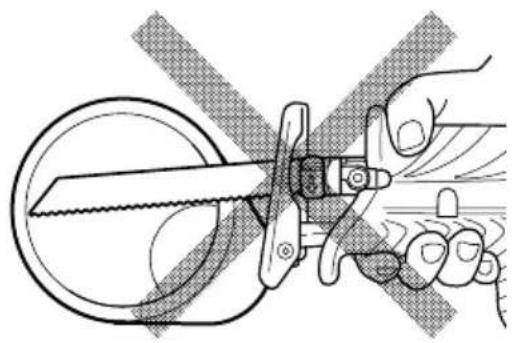

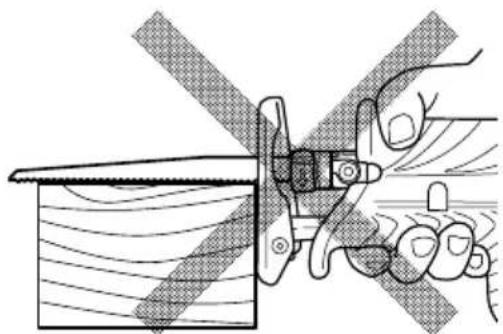

- Select a saw blade of the most appropriate length. Ideally, the length protruding from the base of the saw blade after subtracting the stroke should be larger than the material (see Fig. 16 and Fig. 18). If you cut a large pipe, large block of wood, etc., that exceeds the cutting capacity of a blade; there is a risk that the blade may contact with the inner wall of the pipe, wood, etc., resulting in damage. (Fig. 17, Fig. 19)

Stroke

Fig. 16

Illustration of a hand using a power tool to cut a circular object, no text or symbols present

Fig. 17

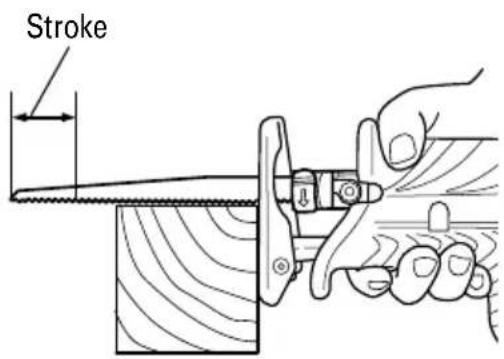

Stroke

Fig. 18

Illustration of a hand using a tool to cut wood grain using a cutting tool (no text or symbols present)

Fig. 19

1. Cutting metallic materials

CAUTION:

● Press the base firmly against the workpiece.
● Never apply any unreasonable force to the saw blade when cutting. Doing so can easily break the blade.

(1) Fasten a workpiece firmly before operation. (Fig. 20)

Illustration of hands using a tool to interact with a mechanical device (no text or symbols visible)

Fig. 20

(2) When cutting metallic materials, use proper machine oil (turbine oil, etc.). When not using liquid machine oil, apply grease over the workpiece.

CAUTION:

The service life of the saw blade will be drastically shortened if you don't use machine oil.

2. Cutting lumber

When cutting lumber, make sure that the workpiece is fastened firmly before beginning. (Fig. 21)

Illustration of a hand using a tool to lift a wooden block, no text or symbols present

Fig. 21

CAUTION:

Never apply any unreasonable force to the saw blade when cutting. Also remember to press the base against the lumber firmly.

3. Sawing curved lines

We recommend that you use the BIMETAL blade mentioned in Page 14 for the saw blade since it is tough and hardly breaks.

CAUTION:

Delay the feed speed when cutting the material into small circular arcs. An unreasonably fast feed may break the blade.

4. Plunge cutting

With this tool, you can perform pocket cutting on plywood panels and thin board materials. You can carry out pocket cutting quite easily with the saw blade installed in reverse as illustrated in Fig. 23, Fig. 25, and Fig. 27. Use the saw blade that is as short and thick as possible. We recommend for this purpose that you use BI-METAL Blade No. 132 mentioned in Page 14. Be sure to use caution during the cutting operation and observe the following procedures.

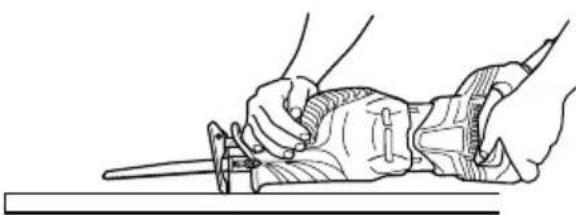

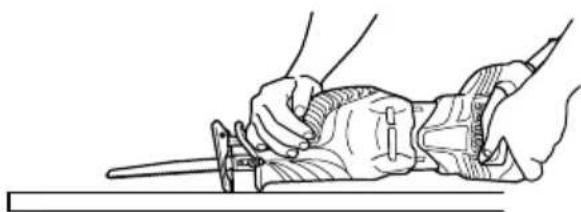

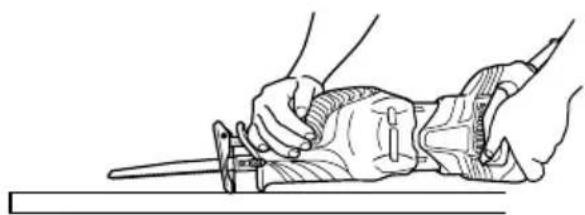

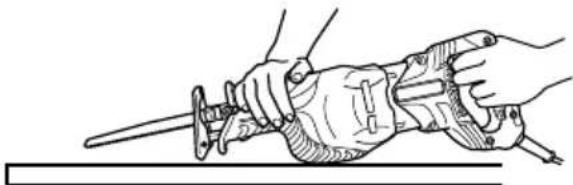

(1) Press the lower part (or the upper part) of the base against the material. Pull the switch trigger while keeping the tip of the saw blade apart from the material. (Fig. 22, Fig. 23)

Illustration of hands using a tool to cut a cylindrical object (no text or symbols present)

Fig. 22

Line drawing of hands using a saw to cut a tool (no text or symbols present)

Fig. 23

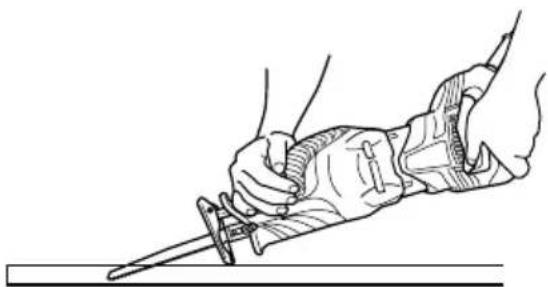

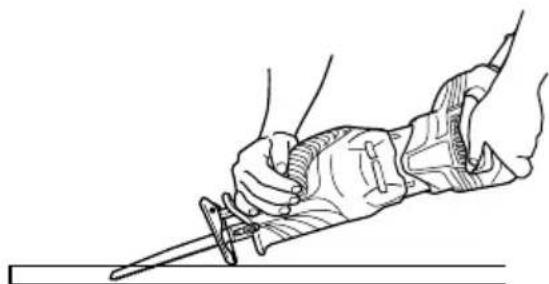

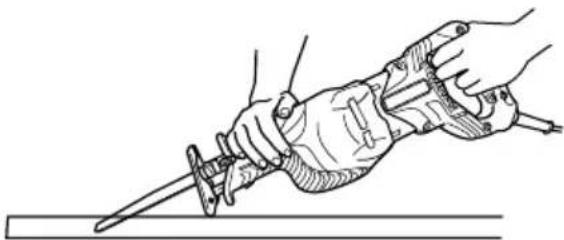

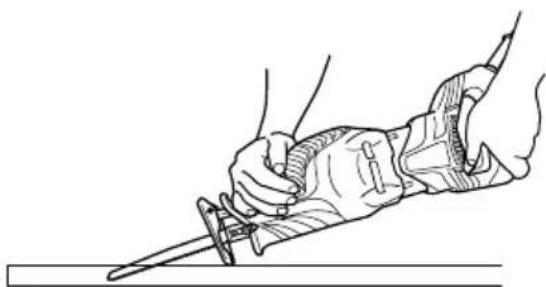

(2) Raise the handle slowly and cut in with the saw blade little by little. (Fig. 24, Fig. 25)

Line drawing of a hand using a sprocket to cut a tool, no text or symbols present

Fig. 24

Line drawing of a hand holding a sword with a knife inserted, no text or symbols present

Fig. 25

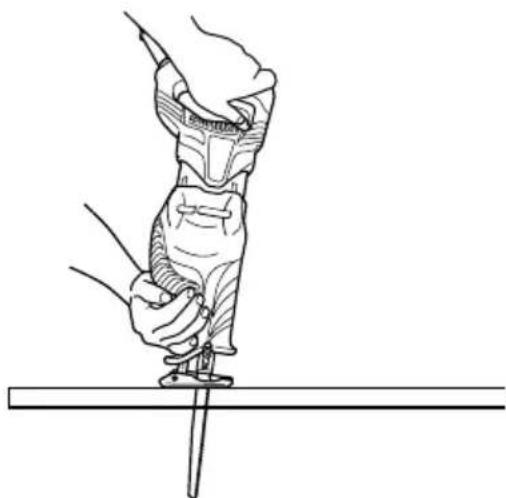

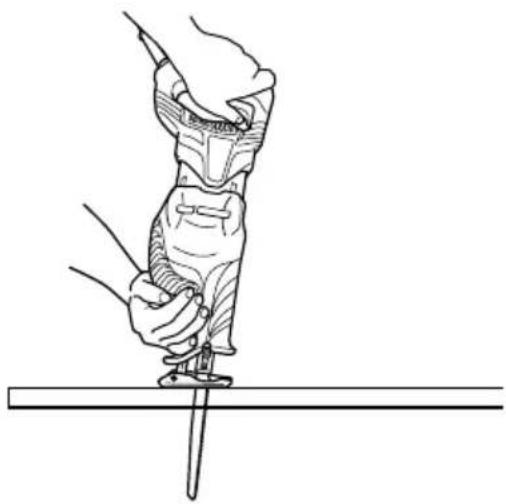

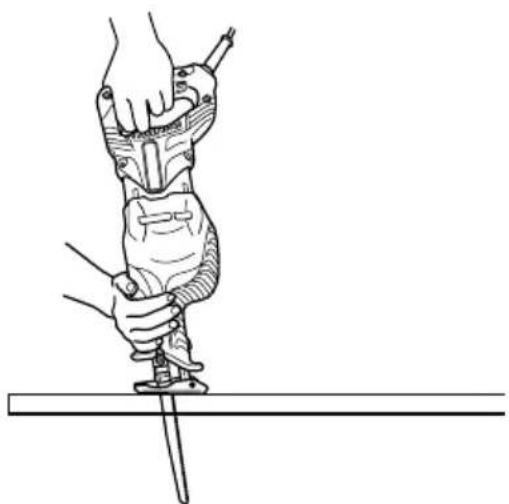

(3) Hold the body firmly until the saw blade completely cuts into the material. (Fig. 26, Fig. 27)

Illustration of a hand using a tool to lift a cylindrical object, no text or symbols present

Fig. 26

Line drawing of a hand holding a tool over a flat surface, no text or symbols present

Fig. 27

CAUTION:

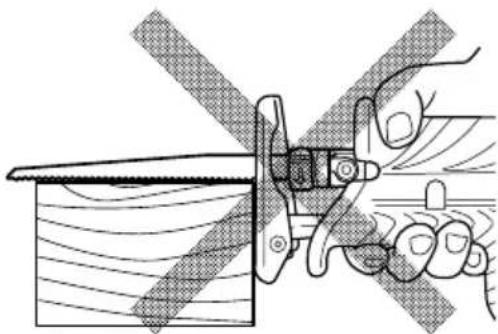

● Avoid plunge cutting for metallic materials. This can easily damage the blade.
● Never pull the switch trigger while the tip of the saw blade tip is pressed against the material. If you do so, the blade can easily be damaged when it collides with the material.
● Make absolutely sure that you cut slowly while holding the body firmly. If you apply any unreasonable force to the saw blade during the cutting operation, the blade can easily be damaged.

MAINTENANCE AND INSPECTION

WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the blade
   Continued use of a dull or damaged blade will result in reduced cutting efficiency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.
2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loosened, retighten them immediately.

WARNING: Using this reciprocating saw with loosen screws is extremely dangerous.

1. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

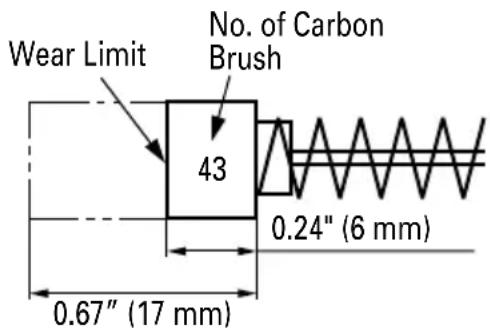

1. Inspecting the carbon brushes (Fig. 28)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the "wear limit", it could result in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers shown in the figure. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

Wear Limit No. of Carbon Brush 43 0.24" (6 mm) 0.67" (17 mm)

Fig. 28

NOTE: Use HITACHI carbon brush No. 43 indicated in Fig. 28.

1. Replacing carbon brushes

Disassemble the brush caps with a slotted-head screwdriver. The carbon brushes can then be easily removed.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

1. Service parts list

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

ACCESSORIES

WARNING: ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE: Accessories are subject to change without any obligation on the part of the HITACHI.

STANDARD ACCESSORIES

(1) Blade (Code No. 725362) .... 1
(2) Case (Code No. 321142)....1
(3) Allen wrench (Code No. 944458) ....1

OPTIONAL ACCESSORIES sold separately

(1) Cut off guide for cutting pipe

Product Cutting application Blade used Code No.
Cut-off Guide (L)	Outer diamaeter 75mm – 165mm	No. 725331 330852

NOTE: Please refer to the cut off guide user's manual for details on how to use it correctly.

(2) Selection of blades

TYPE LENGTH	WIDTH TPI MATERIAL CODE NO.					BLADES /POUCH
WOOD CUTTING 9	6" (152 mm) 3/4	"(18 mm) 6	HCS 72530	0 5
	"(228 mm) 3/4	"(18 mm) 5	HCS 72530	1 5
	12" (305 mm) 3/4	"(18 mm) 6	HCS 72530	2 5
WOOD CUTTINGNAIL-EMBEDED	6" (152 mm) 3/4	"(18 mm) 6	BI-METAL	725310 5
	6" (152 mm) 3/4	"(18 mm) 6	BI-METAL	725311 5
	6" (152 mm) 5/8	"(16 mm) 6	BI-METAL	725312 5
	9" (228 mm) 3/4	"(18 mm) 6	BI-METAL	725313 5
	12" (305 mm) 3/4	"(18 mm) 6	BI-METAL	725314 5
METAL CUTTING	6" (152 mm) 3/4	"(18 mm) 10	BI-METAL	725320 5
	9" (228 mm) 3/4	"(18 mm) 10	BI-METAL	725321 5
	6" (152 mm) 3/4	"(18 mm) 14	BI-METAL	725322 5
	9" (228 mm) 3/4	"(18 mm) 14	BI-METAL	725323 5
	6" (152 mm) 3/4	"(18 mm) 18	BI-METAL	725324 5
	9" (228 mm) 3/4	"(18 mm) 18	BI-METAL	725326 5
	6" (152 mm) 3/4	"(18 mm) 24	BI-METAL	725325 5
	9" (228 mm) 3/4	"(18 mm) 24	BI-METAL	725327 5
ALL PURPOSE	6" (152 mm) 3/4	"(18 mm)	10//14	BI-METAL	725330 5
	9" (228 mm) 3/4	"(18 mm)	10//14	BI-METAL	725331 5
	12" (305 mm) 3/4	"(18 mm)	10//14	BI-METAL	725332 5
CARBIDE GRIT	9" (228 mm) 3/4	"(18 mm) GRIT		—	725340 3
DEMOLITION	9" (228 mm) 7/8	"(22 mm) 6	BI-METAL	725350 3
	9" (228 mm) 7/8	"(22 mm) 9	BI-METAL	725351 3
NEW WOOD	6" (152 mm) 3/4	"(18 mm)	PROG.	BI-METAL	725360 5
NEW METAL	6" (152 mm) 3/4	"(18 mm)	PROG.	BI-METAL	725361 5
NEW ALL PURPOSE	8" (203 mm) 3/4	"(18 mm)	PROG.	BI-METAL	725362 5

PROG.: NEW PROGRESSIVE TOOTH HCS: HIGHSPEED CARBON STEEL
NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Line drawing of a hand using a clamp or crimping tool to adjust a mechanical part (no text or symbols present)

Fig. 2

ATTENTION:

Mechanical diagram showing a clamp or bracket assembly with an upward arrow indicating motion (no text or symbols present)

Fig. 6

Illustration of a hand using a power tool to cut a saw blade, with no text or symbols present.

Fig. 17

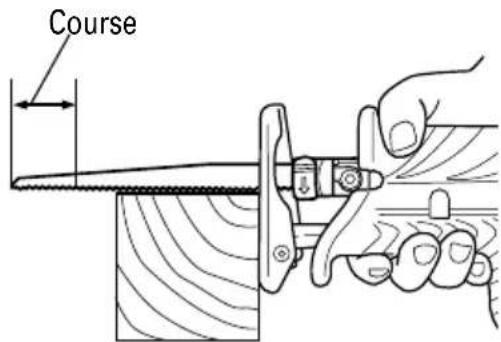

Course

Fig. 18

Illustration of a hand using a tool to cut a wooden plank, with no text or symbols present.

Fig. 19

1. Coupe de métaux

ATTENTION:

Illustration of hands using a tool to lift a mechanical component (no text or symbols present)

Fig. 20

Illustration of hands using a tool to cut or adjust a wooden block (no text or symbols present)

Fig. 21

ATTENTION:

Line drawing of hands using a lathe tool to cut a cylindrical object (no text or symbols present)

Fig. 22

Line drawing of hands using a saw to cut a tool (no text or symbols present)

Fig. 23

Line drawing of a hand using a sawdriver to cut a tool (no text or symbols present)

Fig. 24

Line drawing of a hand holding a sword with a knife inserted, no text or symbols present

Fig. 25

Line drawing of a hand using a tool to tighten or tighten the tool, with no text or symbols present.

Fig. 26

Line drawing of a hand using a tool to cut or hold a piece of material, no text or symbols present

Fig. 27

ATTENTION:

Hand using a tool to adjust or install a mechanical component, no text or symbols visible

Fig. 3

Mechanical assembly diagram showing a clamp or bracket with an upward arrow indicating force (no text or symbols present)

Fig. 6

Illustration of a hand using a power tool to cut a saw blade, with no text or symbols present.

Fig. 17

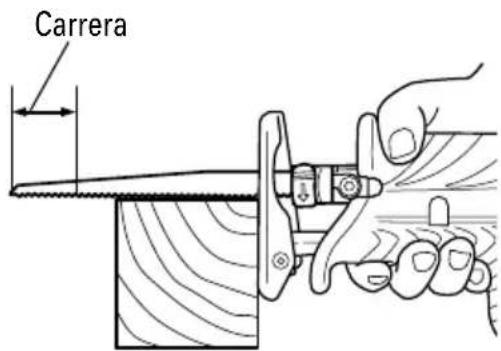

Carrera

Fig. 18

Illustration of a hand using a tool to cut a wooden plank, no text or symbols present

Fig. 19

Illustration of hands using a tool to connect a mechanical component (no text or symbols visible)

Fig. 20

Illustration of hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

Fig. 21

PRECAUCION:

Line drawing of a hand using a tool to cut a cylindrical object (no text or symbols present)

Fig. 22

Line drawing of hands using a saw to cut a tool (no text or symbols present)

Fig. 23

Line drawing of a hand using a sprocket to cut a tool, no text or symbols present

Fig. 24

Line drawing of a hand holding a sword with a knife inserted, no text or symbols present

Illustration of a hand using a tool to tighten a screwdriver on a flat surface (no text or symbols)

Fig. 26

Line drawing of a hand holding a tool, no text or symbols present

Fig. 27

PRECAUCION:

Line drawing of a quill pen with inkwell (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Item No.	Part Name Q'TY
1 BASE (F) 1
2 FRONT COVER (F) 1
3 COVER PIN 1
4 GEAR COVER (F) 1
5 BLADE HOLDER (C) 1
6 FELT WASHER 1
7 WASHER (H) 1
8 V-RING 1
9 O - R ING 1
10 METAL (B) 1
11 LOCK NUT M5 1
12 PLUNGER (F) 1
13 CONNECTOR PIN (F)		1
14 SWING ROLLER		2
15 NYLOCK BOLT (W/FLANGE) M5×12		1
16 NYLOCK BOLT (W/FLANGE) M6×35		1
17 WASHER (G)		1
18 CAP		1
19 HOLDER PIN (B)		1
20 SPRING (B)		1
21 SPECIAL BOLT M5		1
22 LEVER (C)		1
23 BLADE SPRING		1
24 BALL BEARING 6002DDCMPS2L		1
25 NYLOCK BOLT (W/FLANGE) M4×12		3
26 SUB SHAFT (B)		1
27 RETAINING RING FOR D17 SHAFT		1
28 RECIPRO PLATE (F)		1
29 BALL BEARING 6003VVCMPS2L		2
30 RETAINING RING FOR D35 HOLE		1
31 SECOND SHAFT (F)		1
32 GEAR		1
33 BALL BEARING 608VVC2PS2L		2
34 INNER COVER (F)		1
35 BALL BEARING 6001VVCMPS2L		1
36 SLOTTED HD. SCREW (SEAL LOCK) M4×10		2
37 ARMATURE		1
38 FAN GUIDE (F) 1
39 HEX. HD. TAPPING SCREW D5×55		2
40 STATOR ASS'Y		1
41 BRUSH TERMINAL		2
42 HOUSING		1
43 BRUSH CAP		2
44 CARBON BRUSH (1 PAIR)		2
45 BRUSH HOLDER		2
46 MACHINE SCREW (W/WASHERS) M5×60		4
49 TAPPING SCREW (W/FLANGE) D4×25		5

Item No.	Part Name Q'TY
50 H	HANDLE (H)	1
51 H	TACHI LABEL	1
52 S	WITCH	1
54 T	UBE (D)	2
55 N	AME PLATE	1
56 H	HANDLE (G)	1
57 T	APPING SCREW (W/FLANGE) D4×16	2
58 C	ORD CLIP	1
59 C	ORD ARMOR 1
60 C	ORD	1
501	HEX. BAR WRENCH 4MM	1
502	SABER SAW BLADES	1
503	CASE	1

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

●Lead from lead-based paints,

●Crystalline silica from bricks and cement and other masonry products, and

●Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

PO Box 970

Braselton, GA 30517

Hitachi Koki Canada Corp.

450 Export Blvd. Unit B, Mississauga ON L5S 2A4

Hitachi Power Tools de México, S. A. de C. V.

Code No. C99178562 F

Printed in China
