Product type	Air purifier
Brand	Boneco
Model	P340
Supply voltage	220-240 V ~ 50 Hz
Power consumption	50 W
Maximum noise level	57 dB(A)
CADR (Clean Air Delivery Rate)	210 m³/h
Maximum airflow	300 m³/h
Dimensions (W × D × H)	336 × 206 × 527 mm
Net weight	5.3 kg
Filter type	A341 filter (included)
Operating modes	Automatic (Auto) and manual (ventilation adjustment)
Ionizer	Yes, can be activated/deactivated
Timer	1, 2, 4 or 8 hours
Air quality display	Green (clean), orange (acceptable), red (poor)
Filter replacement indicator	Yes (lights up when filter is worn out)
Pre-filter cleaning	Vacuum or running water, dry completely before restarting
Filter reset	Press and hold the On/Off button for 5 seconds
Number of ventilation levels	Several levels (L, etc.)
Automatic operation	Automatic level adjustment according to air quality
Package contents	P340 purifier, power cord, A341 filter

Frequently Asked Questions - P340 BONECO

How to replace the filter of the Boneco P340?

When the Filter icon lights up, replace it with an A341 filter. Follow the steps on page 28 of the manual, then press and hold the On/Off button for 5 seconds to reset.

How to clean the pre-filter?

Clean the pre-filter with a vacuum or running water. Let it dry completely before reinstalling.

What does the air quality display mean?

The indicator shows: green (clean air), orange (acceptable air), red (poor air). The sensor measures dust and gases.

How to use the timer?

Press the Timer button to set the duration (1, 2, 4 or 8 hours). The device turns off automatically at the end of the selected time.

Is the ionizer useful?

The ionizer improves purification by charging particles. It can be activated/deactivated with the ION button.

What is the maximum noise level?

The maximum noise level is 57 dB(A), which is comparable to the sound of an air conditioner.

What are the dimensions of the device?

Dimensions: 336 × 206 × 527 mm (W × D × H). Weight: about 5.3 kg.

How does automatic mode work?

In Auto mode, the device automatically adjusts the ventilation according to the air quality measured by the sensor.

Where to buy a replacement filter?

The replacement filter is model A341. Available from Boneco dealers or at www.shop.boneco.com.

How to manually adjust the ventilation?

Press the ventilation level selection button multiple times to choose the desired power.

USER MANUAL P340 BONECO

Read and save these instructions

Instructions for use 13

Mode d'emploi 23

Overview and part names 17

Start-up 18

Symbols and displays 19

Basic functions 20

"Auto" mode 20

Air quality indicator 20

Manually controlling the fan level 20

Ionizer and timer function 21

Ionizer 21

Timer function 21

Setting the OFF timer 21

Cleaning and maintenance 22

Replacement filters 22

Replacing the filter 22

Cleaning the pre-filter 22

INSTRUCTIONS FOR USE FOR BONECO P340

DEAR CUSTOMER,

Congratulations on your purchase of the BONECO P340. The extremely efficient air purifier is equipped with a high-quality filter which rids the air of odors as well as dust, pollen and dirt particles. The filter also effectively alleviates many forms of discomfort caused by allergies. This also includes hay fever or allergic reactions to household dust and mite excrement.

The BONECO P340 is designed for easy, fully automated operation. The smart control system ensures that the noise level remains as low as possible. Thanks to the integrated timer, the appliance also runs whenever you are not at home. This means you can always come home to an optimal room climate.

We hope you enjoy your new BONECO P340 air purifier!

ITEMS INCLUDED

BONECO P340 with country-specific power cable

Filter A341

TECHNICAL DATA

TECHNICAL DATA

Type designation	BONECO P340
Mains voltage	220-240 V ~ 50 Hz
Power consumption	50 W
Operating noise level	57 dB(A)
Cleaning output (CADR)	\( {210}{\mathrm{\;m}}^{3}/\mathrm{h} \) (177 CFM)
Air flow	\( {300}{\mathrm{\;m}}^{3}/\mathrm{h} \) (177 CFM)
Dimensions L×W×H	\( {336} \times {206} \times {527}\mathrm{\;{mm}} \)
Weight (empty)	\( {5.3}\mathrm{\;{kg}}/{6.3}\mathrm{\;{kg}} \)

• Subject to change

OVERVIEW AND PART NAMES

1 Front cover
2 Pre-filter
3 Filter A341
4 BONECO P340
5 Keypad with displays

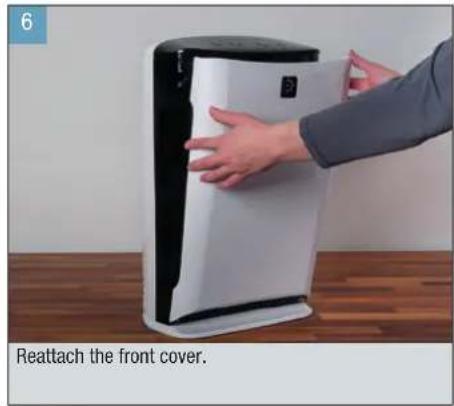

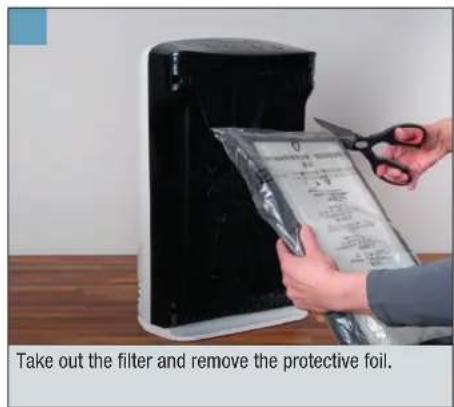

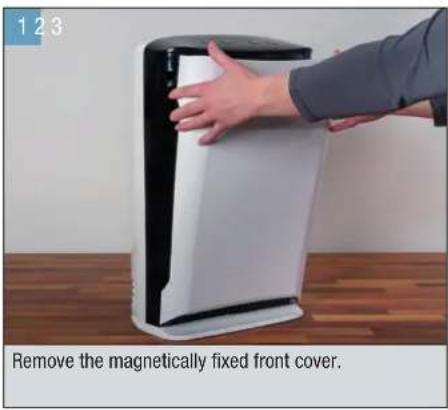

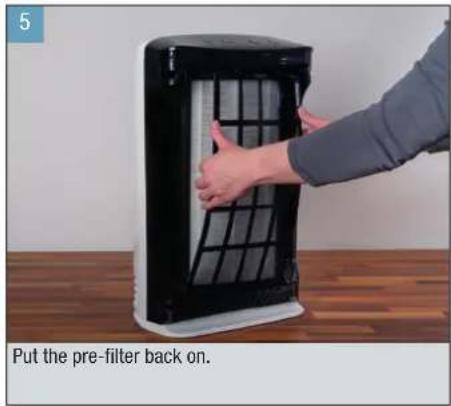

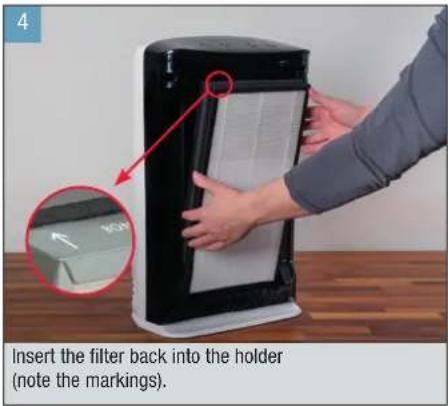

START-UP

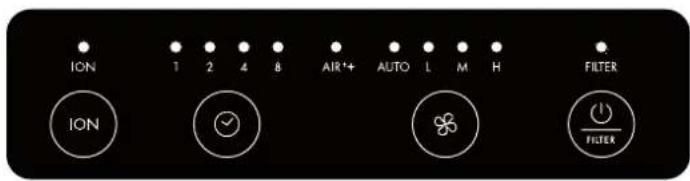

SYMBOLS AND DISPLAYS

Indicators Meaning

Filter used up, replace 22

AUTO mode and fan level 20

Display of air quality (green, orange, red) 20

Timer function (1, 2, 4 or 8 hours) 21

lonizer is switched on or off 21

Control buttons

Switch appliance on and off

Put the filter back (5 seconds)

Regulate the output level

Access the timer function

Switch ION on and off

BASIC FUNCTIONS

The BONECO P340 can easily be adapted to your needs. During start-up of the appliance, the basic setting of the fan level is in automatic mode (AUTO MODE).

"AUTO" MODE

In the mode Athofan level is automatically regulated depending on the air quality. After the appliance is switched on for the first time, it runs at the lowest fan level L for the first few minutes.

AIR QUALITY INDICATOR

The air quality is measured by the built-in sensor and is visualized by different colors on the "air" display.

Clean Acceptable Poor

Once the appliance is switched on, it takes around one minute for the sensor to measure the current air quality. During this time, the appliance runs at level «L».

Please note that the measured values may change depending on the size of the room and the position of the appliance.

The sensor registers the smallest dirt particles and gases. They include house dust, pollen, gases such as tobacco smoke, organic compounds and odors.

MANUALLY CONTROLLING THE FAN LEVEL

The fan level of the BONECO P340 can be manually controlled.

Push the button several times until the desired fan level is attained.

IONIZER AND TIMER FUNCTION

IONIZER

The ionizer is activated by pressing the "ION" button once. Pressing the button again switches off the ionizer.

TIMER FUNCTION

The timer function lets you determine how long the BONECO P340 should run before it switches off automatically (OFF timer).

SETTING THE OFF TIMER

1. Switch on the BONECO P340 by pressing the button.
2. Select the desired operating setting and the desired comfort mode.
3. Press the button once.
4. Use the button to set how long the appliance operates (1, 2, 4 or 8 hours).

The appliance runs for the specified period and is then switched off.

1. In order to end the timer prematurely, keep the button pressed until the timer switches off. Alternatively, you can switch off the BONECO P340 using the button.

CLEANING AND MAINTENANCE

Do not use alcohol or corrosive cleaning agents for cleaning.

REPLACEMENT FILTERS

You can obtain replacement filters from your BONECO specialist dealer or in the online store at: www.shop.boneco.com

REPLACING THE FILTER

The filter is used up when the "filter indicator is illuminated. The filter must now be replaced to continue to ensure optimal air purification.

The procedure for replacing the filter corresponds to the figures on page 18.

1. Replace the filter in accordance with the instructions on page 18.
2. Press the -button for 5 seconds until the indicator goes out.

CLEANING THE PRE-FILTER

The pre-filter prevents excessive dust accumulation from getting inside the BONECO P340.

1. Clean the pre-filter under running water or using a vacuum cleaner.
2. Allow the pre-filter to dry completely before you re-insert it.
