Product Type	Wi-Fi Repeater
Brand	TP-Link
Model	RE220
Dimensions (approx.)	85 × 70 × 45 mm
Weight (approx.)	100 g
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	≤ 6 W
Wi-Fi Frequencies	2.4 GHz and 5 GHz (dual band)
Maximum Speed	300 Mbps (2.4 GHz) + 433 Mbps (5 GHz)
Ethernet Port	1 RJ45 10/100 Mbps port
Main Functions	Wi-Fi Extender, Access Point Mode, Wi-Fi Client
Maintenance and Cleaning	Unplug before cleaning; use a soft dry cloth
Safety	Keep away from water, fire, and heat; do not open
Spare Parts and Repairability	Not user-repairable; no spare parts provided
General Information	Limited 3-year warranty; complies with EU directives

Frequently Asked Questions - RE220 TP-LINK

How do I reset the RE220 repeater?

Press and hold the RESET button on the repeater while it is powered on until all LEDs briefly turn off, then release the button.

Why can't I access the configuration page (http://tplinkrepeater.net)?

Check that your computer is properly connected to the repeater's Wi-Fi network or via an Ethernet cable. Make sure the IP address is obtained automatically. If necessary, use the address 192.168.0.254 or reset the repeater.

What is the default password of the repeater?

There is no default password. You must create a password during the initial setup via the web page or the Tether app.

How do I connect my repeater to my router?

Plug the repeater into an outlet near the router. Connect your computer to the repeater's Wi-Fi network (e.g., TP-Link_Extender) or via Ethernet. Open a browser and follow the setup instructions.

Can I use the Ethernet port on the repeater to connect a wired device?

Yes, the Ethernet port can be used in Wi-Fi client mode to connect a non-Wi-Fi device (TV, console, etc.) to your network. Connect the repeater to the router, then plug the device via Ethernet cable.

How do I update the firmware of the repeater?

Log in to the repeater's web interface, go to System Tools > Firmware Update, and follow the instructions. You can also use the Tether app.

Where should I place the repeater for the best coverage?

Plug the repeater halfway between your router and the area to be covered, in a location where the router's Wi-Fi signal is still good (about 50% strength).

Does the repeater work with any router?

Yes, the repeater is compatible with most standard Wi-Fi routers, regardless of the manufacturer.

How do I configure the repeater via the Tether app?

Download the TP-Link Tether app from the App Store or Google Play. Open the app and follow the instructions to connect and configure the repeater.

What should I do if the WPS LED blinks constantly?

This indicates the repeater is trying to connect via WPS. If the connection fails, check that your router supports WPS, or configure manually via the web interface.

USER MANUAL RE220 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link France SARL
16-18 avenue Morane Saulnier
78140 Velizy-Villacoublay France

TP-Link Hellas Ltd.
Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. 口 link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

Quick Installation Guide

Wi-Fi Range Extender

*Images may differ from actual products.

Contents

Deutsch- 1
English 4
Espanol -7
Eλληνικα- 10
Francais- 13
Italiano 16
Portugues 19
Suomi 22
Nederlandsd 25
Svenska- 28
Norsk- 31
Dansk 34

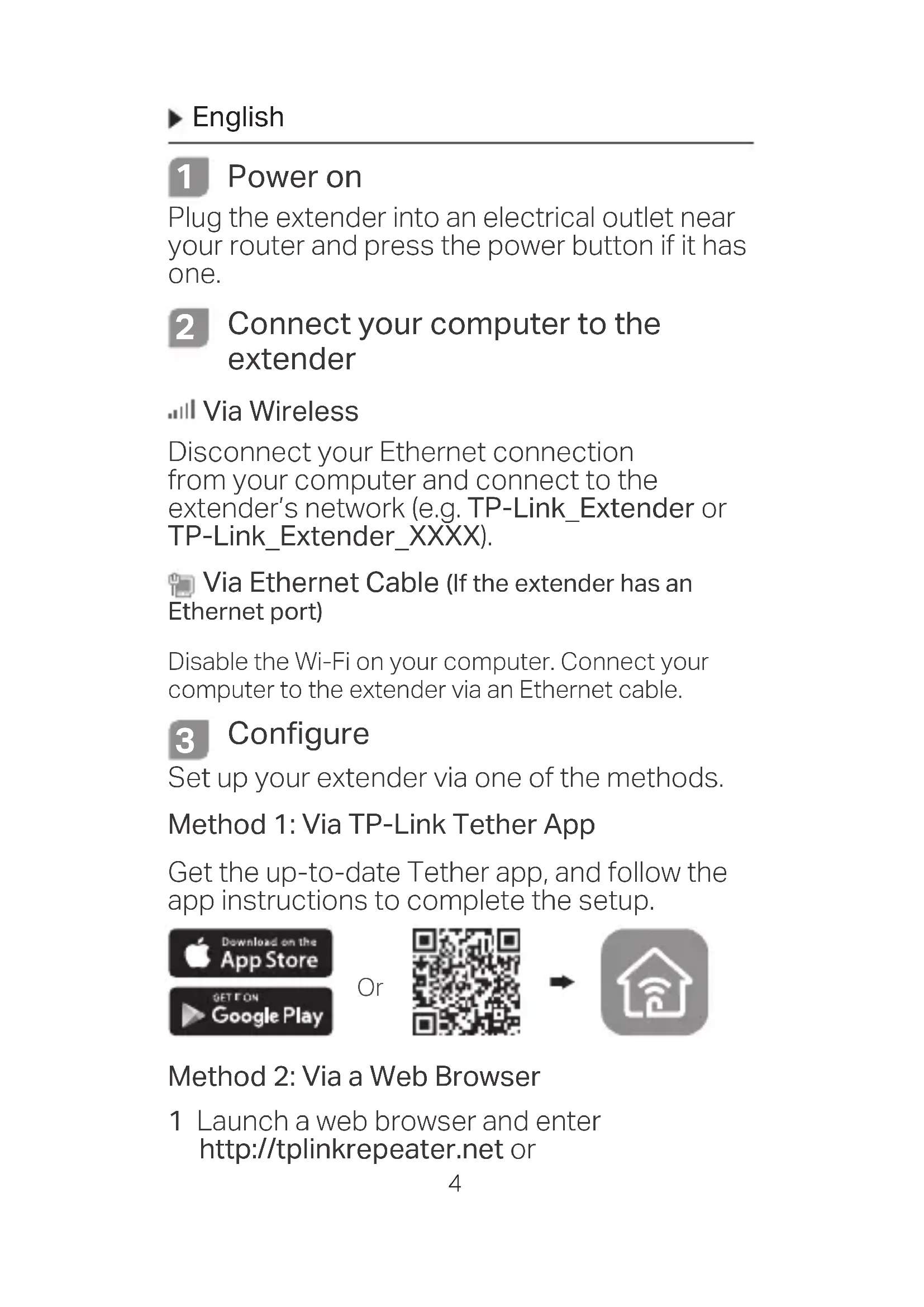

1 Einsatzalen

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Launch a web browser and enter http://tplinkrepeater.net or

http://192.168.0.254 in the address bar.

Create a password to log in.

2 Follow the instructions on the web page to complete the initial configuration.

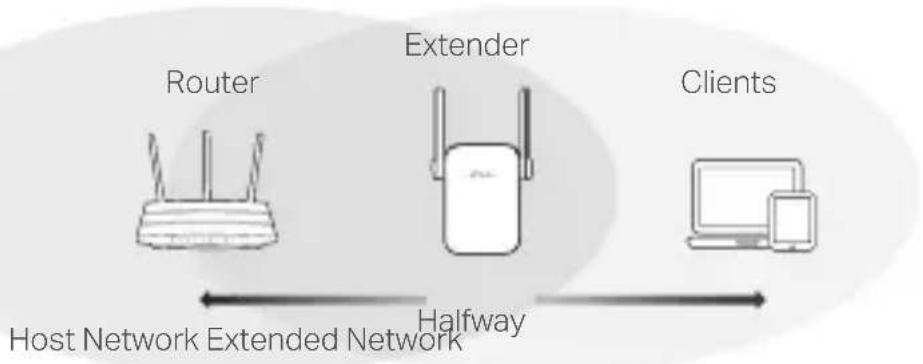

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

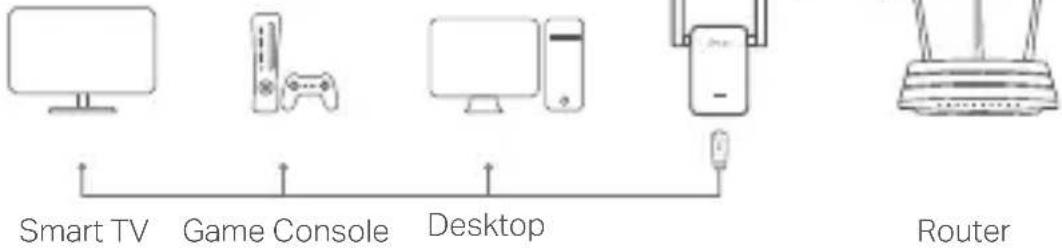

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.

• Do not use the device where wireless devices are not allowed.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
