USER MANUAL Deebot 500 ECOVACS

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.

Live Smart. Enjoy Life.

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician will be able to help you with your specific problem or question.

For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com

The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Thank you for choosing DEEBOT!

Contents

1. Important Safety Instructions....4
2. Package Contents ....8
3. Operating and Programming......11
4. Maintenance....16
5. Indicator Light and Alarm Sounds....20
6. Troubleshooting ....21
7. Technical Specifications....23

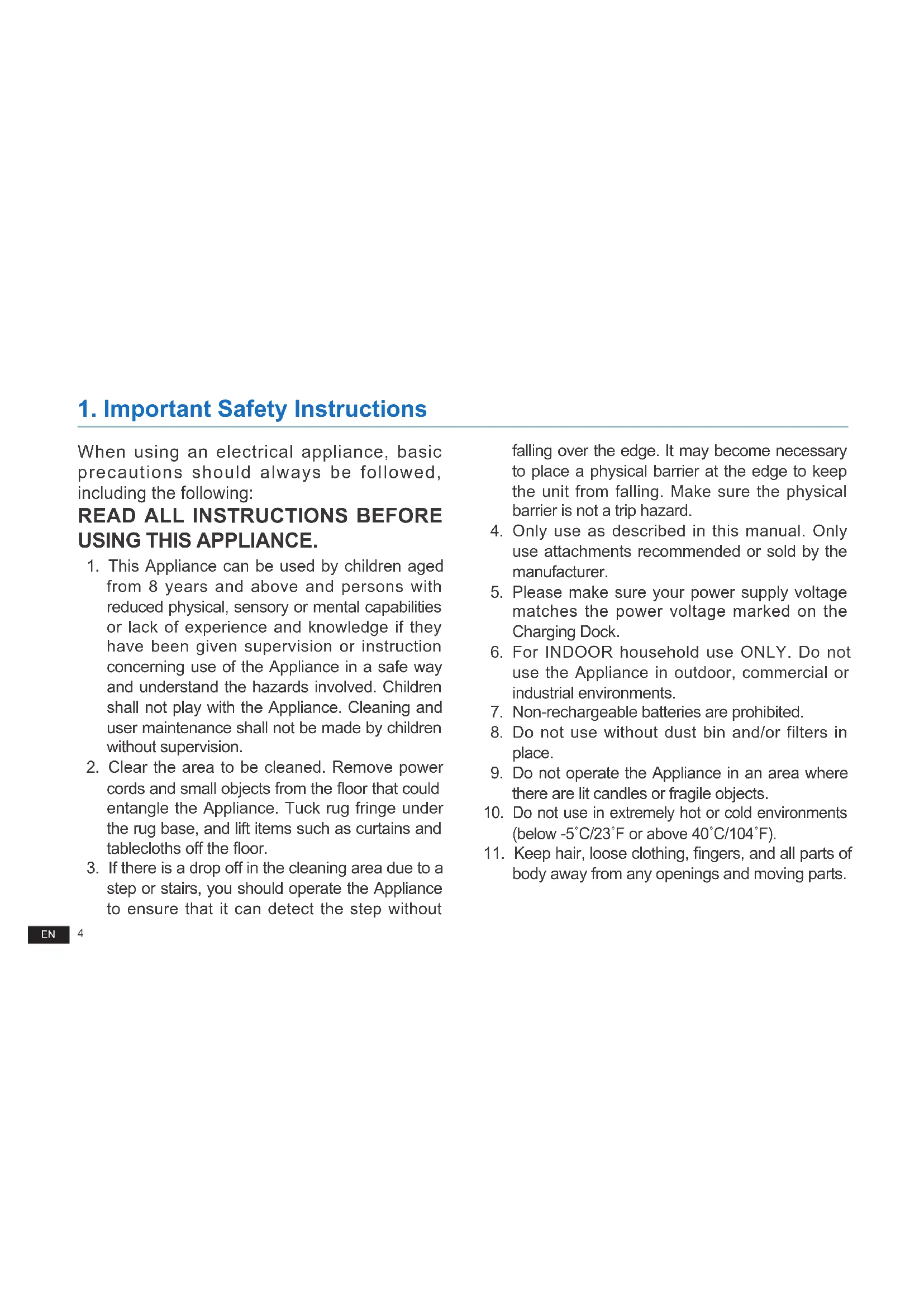

1. Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without

falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

1. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
2. Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.
3. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
4. Non-rechargeable batteries are prohibited.
5. Do not use without dust bin and/or filters in place.
6. Do not operate the Appliance in an area where there are lit candles or fragile objects.
7. Do not use in extremely hot or cold environments (below -5^/23^ or above 40^/104^ ).
8. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.

1. Important Safety Instructions

1. Do not operate the Appliance in a room where an infant or child is sleeping.
2. Do not use Appliance on wet surfaces or surfaces with standing water.
3. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
4. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
5. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
6. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
7. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do

not run Appliance over the power cord. Keep power cord away from hot surfaces.

1. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

2. Do not use the Charging Dock if it is damaged.

3. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

4. Turn OFF the power switch before cleaning or maintaining the Appliance.

5. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.

6. Remove the Appliance from the Charging Dock, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

1. Important Safety Instructions

1. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
2. Please dispose of used batteries according to local laws and regulations.
3. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
4. When not using the Charging Dock for a long period of time, please unplug it.
5. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
6. The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.

7. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.

8. WARNING: For the purposes of recharging the battery, only use the detachable supply unit YJS015F-1900600G/DK18-190060H-V provided with this appliance.

9. The Remote Control requires two non-rechargeable AAA batteries. To replace the battery of the Remote Control, please turn over the Remote Control, press and remove its Battery Cover. Remove the batteries, and insert the new batteries with the correct polarity. Reassemble the Battery Cover.
10. Non-rechargeable batteries are not to be recharged.
11. Different types of batteries or new and used batteries are not to be mixed.
12. Batteries of the Remote Control are to be inserted with the correct polarity.
13. Exhausted batteries are to be removed from the Appliance and safely disposed of.
14. If the Remote Control is to be stored unused for a long period, the batteries should be removed.
15. The supply terminals are not to be short-circuited.

1. Important Safety Instructions

detachable supply unit

SAVE THESE INSTRUCTIONS

To disable Wi-Fi module on DEEBOT, power the robot ON.

Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection.

Press and hold the AUTO Mode Button on the robot for 10 seconds until DEEBOT emits 3 beeps.

To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi-Fi module is turned on when DEEBOT is restarted.

For EU Countries

For EU Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

2. Package Contents

2.1 Package Contents

Simple line drawing of a circular object with two side handles and a small circle labeled '0' at the center (no text or symbols beyond basic markings)

Robot

Line drawing of a portable device with a cord and cable, alongside a separate electrical plug (no text or symbols)

Charging Dock + Power Adapter

(2) Side Brushes

Remote Control with Batteries

Multi-Function Cleaning Tool

Instruction Manual Quick Start Guide

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

2. Package Contents

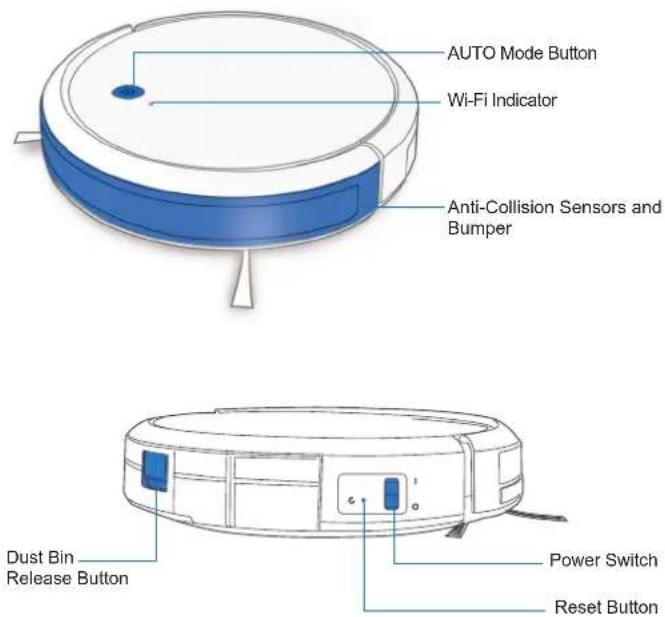

2.3 Product Diagram
Robot

AUTO Mode Button Wi-Fi Indicator Anti-Collision Sensors and Bumper Dust Bin Release Button Power Switch Reset Button

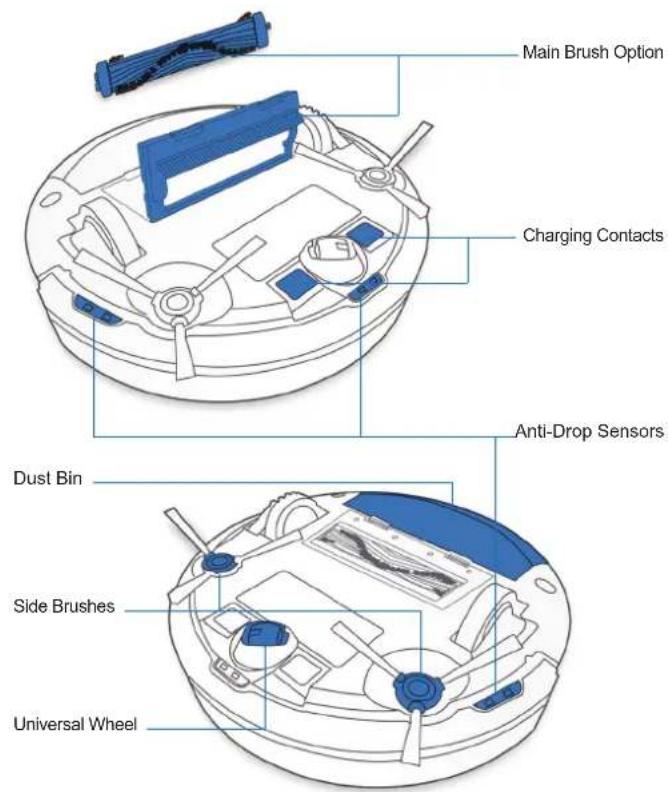

Bottom View

Main Brush Option Charging Contacts Anti-Drop Sensors Dust Bin Side Brushes Universal Wheel

2. Package Contents

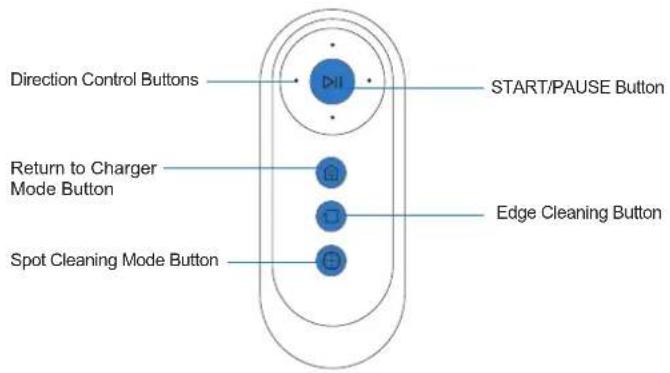

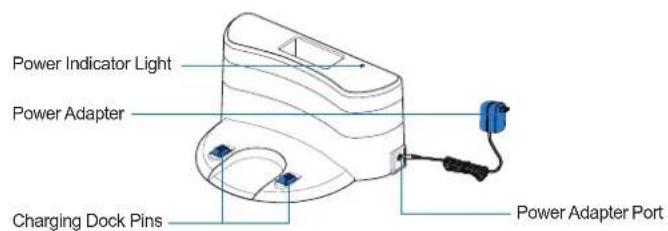

Charging Dock Remote Control

Power Indicator Light Power Adapter Charging Dock Pins Power Adapter Port

Direction Control Buttons RETURN TO CHARGER MODE BUTTON Spot CLEANING MODE BUTTON START/PAUSE Button Edge Cleaning Button

3. Operating and Programming

3.1 Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.

Simple line drawing of a circular vacuum cleaner with attached circuit board (no text or symbols)

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Isometric line drawing of a staircase with blue and white panels, a circular object on top, and a checkmark (no text or symbols)

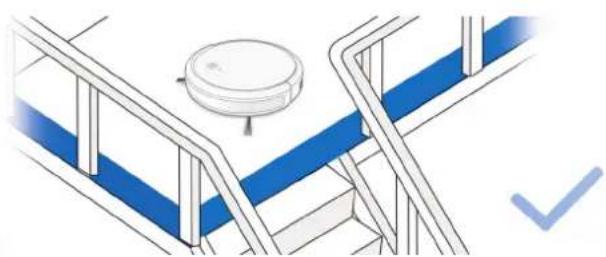

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Two hand-drawn line drawings of a room with furniture and a table, no text or symbols present.

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Three abstract line drawings: a pair of flat slippers, a simple open-loop shoe, and a coiled cord with a blue X mark (no text or symbols)

Remove power cords and small objects from the floor that the robot could be obstructed by.

3. Operating and Programming

3.2 Preparation

1 Remove Protective Strip

Line drawing of a robotic vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

2 Plug in Adapter

Line drawing of a portable electronic device with a cable and plug, no text or symbols present

3 Charging Dock Placement

0.5m (1.6') 0.5m (1.6') 1.5m (5')

4 Install Side Brushes

Diagram of a helicopter's head and fuselage with propellers and a magnified inset showing flight trajectory (no text or symbols)

5 Power ON

ON OFF

6 Charge DEEBOT

4h =

Note: When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Charging Dock to recharge itself.

3. Operating and Programming

3.3 Selecting Cleaning Mode

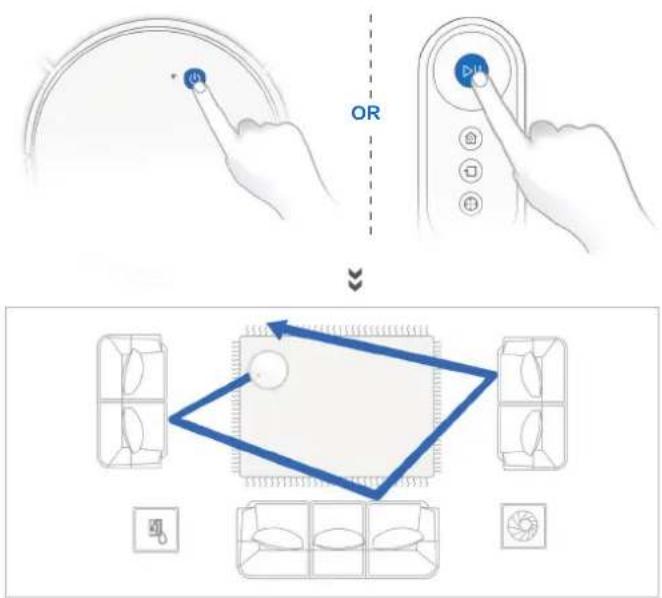

1 AUTO Cleaning Mode

A Random Cleaning Pattern (optimized for carpets) will be selected by default.

OR ↓

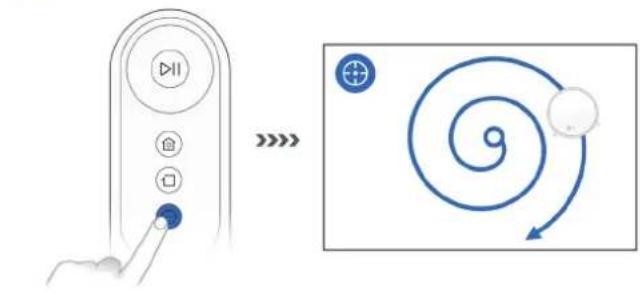

2 Spot Cleaning Mode (Less than 3 minutes)

Diagram showing a hand pressing a button labeled 'DII' next to a schematic of a circuit or signal flow with directional arrows and circular nodes.

3. Operating and Programming

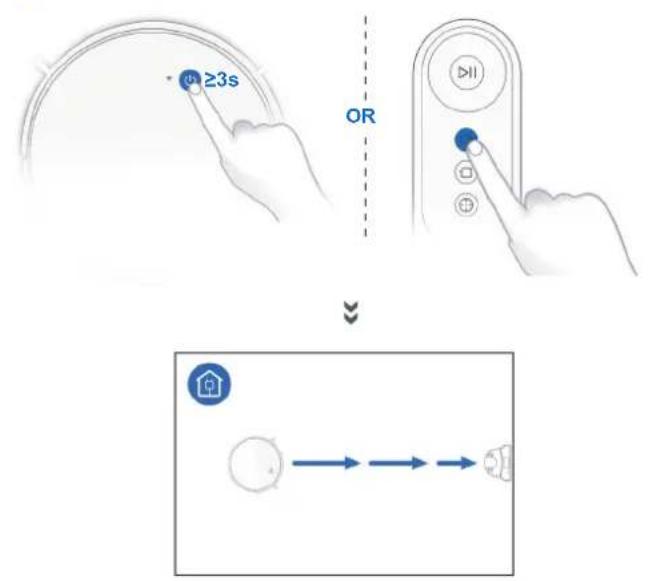

4 Return to Charging Dock

≥3s OR

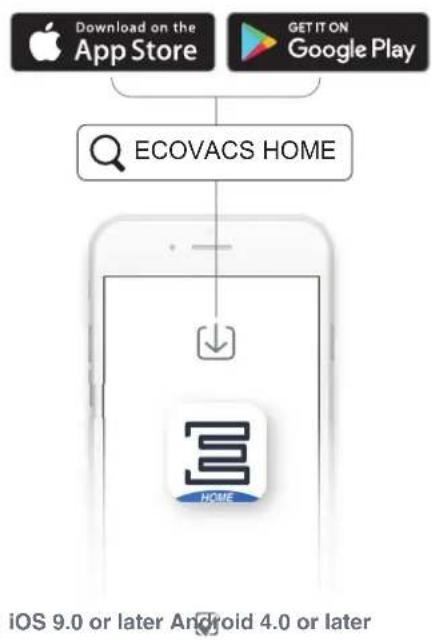

All the functions mentioned above can be enabled on the App. Download ECOVACS App to access more features, including Edge Cleaning, Scheduled Cleaning, etc.

Download on the App Store GET IT ON Google Play ECOVACS HOME iOS 9.0 or later Android 4.0 or later

3. Operating and Programming

3.4 Pause, Wake Up, Power Off

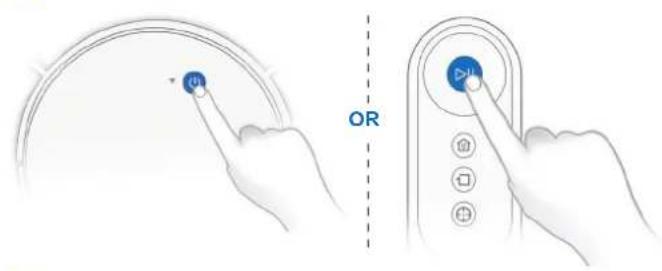

1 Pause

OR

Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

3 Power OFF

ON OFF

Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging.

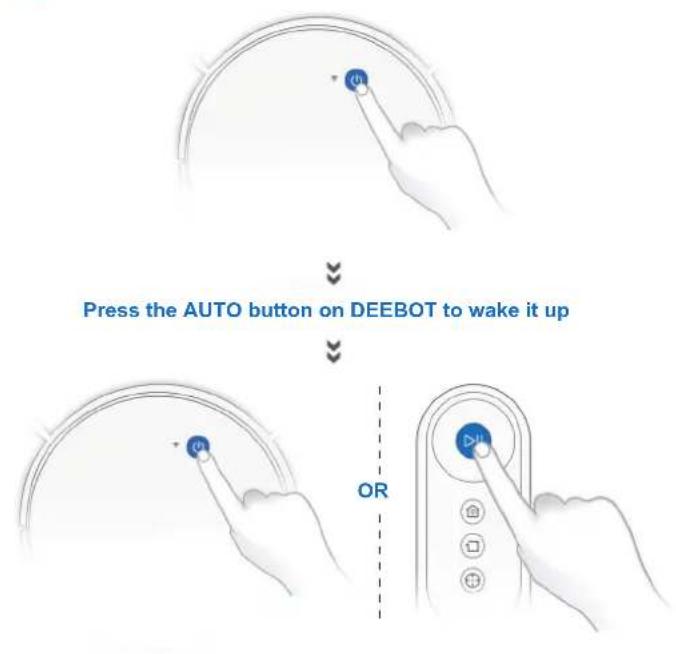

2 Wake Up

Press the AUTO button on DEEBOT to wake it up OR

4. Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Charging Dock.

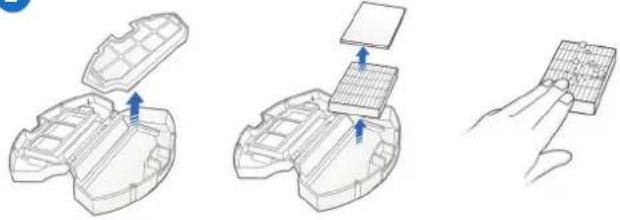

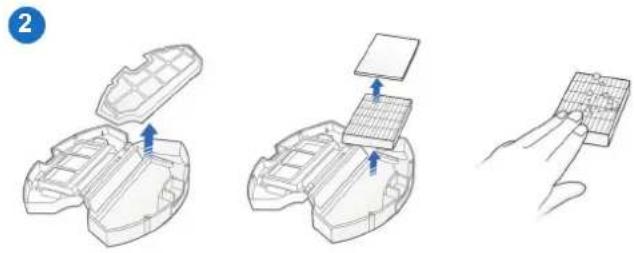

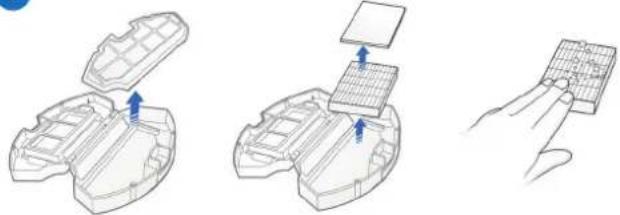

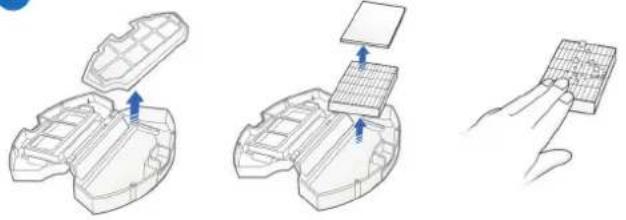

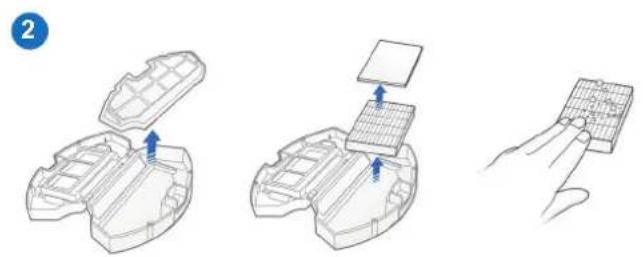

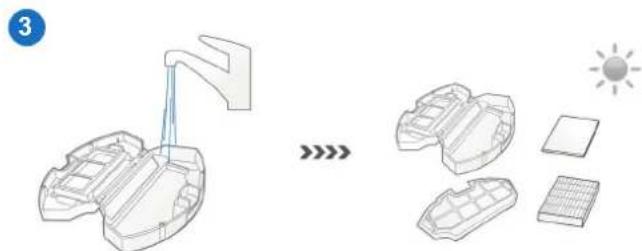

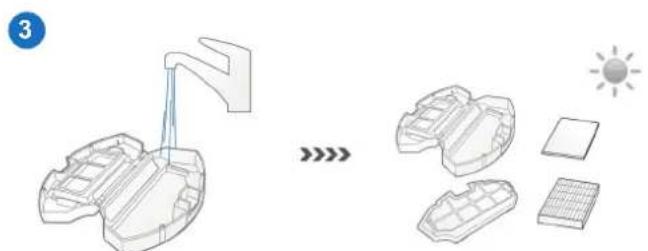

4.1 Dust Bin and Filters

Dust Bin

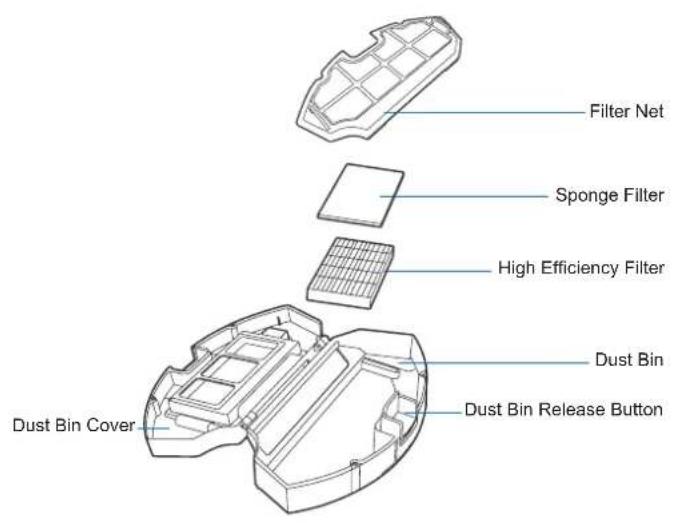

Filter Net Sponge Filter High Efficiency Filter Dust Bin Dust Bin Release Button Dust Bin Cover

Diagram showing a circular device with a blue arrow pointing to it, and a container with blue dots falling into the liquid (no text or symbols present)

Diagram illustrating three steps of a device assembly: open casing, grid panel, and screen capture.

Diagram showing a solar panel array and its components, with no visible text or symbols.

4. Maintenance

4.2 Main Brush and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

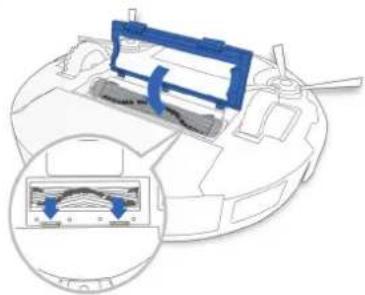

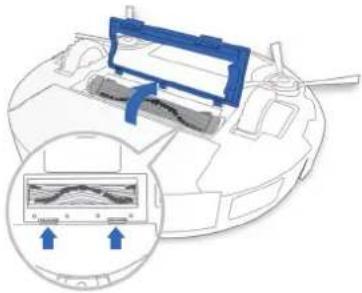

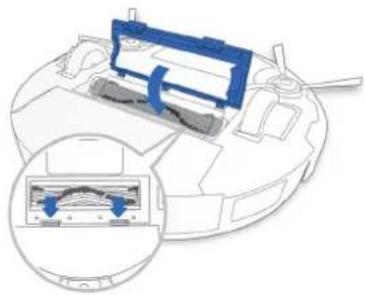

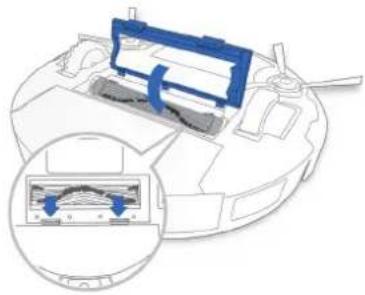

Main Brush

1

Diagram of a vehicle's internal components with a magnified inset showing waveforms (no text or symbols)

2

Diagram of a robotic device with a blue arrow indicating a specific component (no text or symbols present)

3

Illustration of a hand holding a tool with a small object inside, no text or symbols present

4

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

5

Diagram of a robotic device with a blue control panel and internal components, showing a close-up inset (no text or symbols)

4. Maintenance

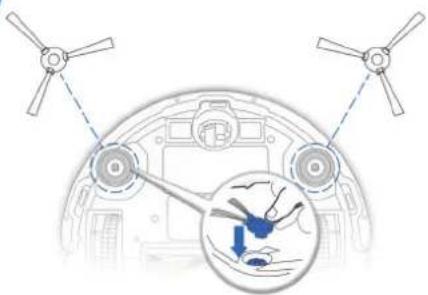

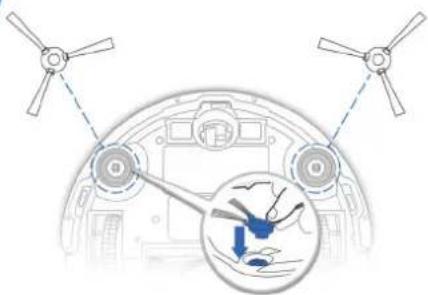

Side Brushes
1

Diagram of a mechanical device with two rotating components and an inset showing a blue arrow pointing to a water droplet (no text or symbols present)

●

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

●

Diagram of a helicopter's interior showing two propellers above the cockpit with an inset close-up of a hand holding a blue object (no text or symbols present)

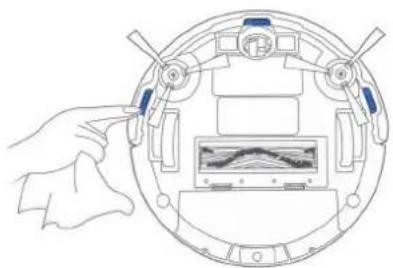

4.3 Other Components

Technical line drawing of a mechanical component with internal components and a central display (no text or symbols)

Diagram of a hand interacting with a circular device showing internal components and a waveform display (no text or symbols)

Illustration of a hand cleaning a blue and white robotic vacuum cleaner (no text or symbols)

4. Maintenance

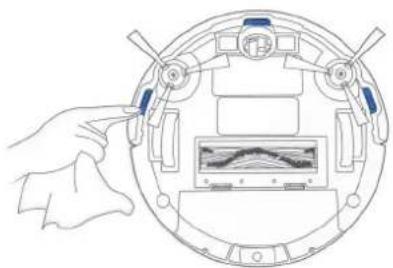

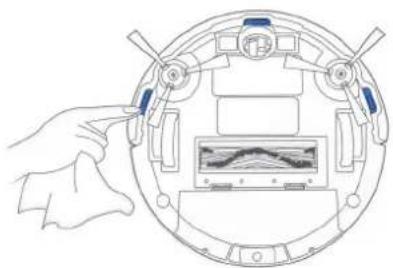

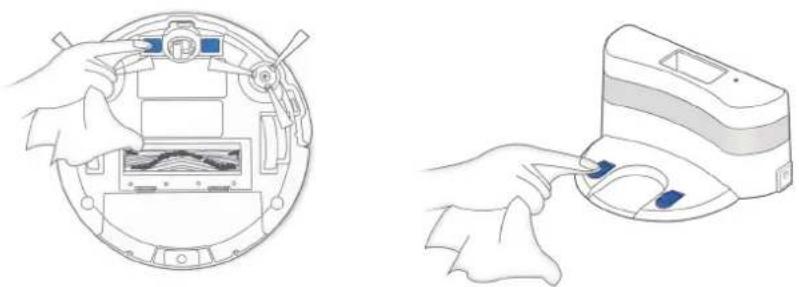

Note: Before cleaning the robot's Charging Contacts and Charging Dock Pins, turn the robot OFF and unplug the Charging Dock.

Illustration showing two steps of a device cleaning process: one with hand holding a component, the other with hand inserting a clip into a device (no text or symbols present)

4.4 Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance	Frequency Replacement Frequency
Side Brush Once every 2	weeks Every 3-6 months
Main Brush Once per week	Every 6-12 months
Sponge Filter/ High Efficiency Filter	Once per week Every 3-6 months
Universal WheelAnti-Drop SensorsBumperCharging ContactsCharging Dock Pins	Once per week /

A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

5. Indicator Light and Alarm Sounds

DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS App and online website.

Indicator Light

Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging AUTO Mode Button flashes WHITE
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem AUTO Mode Button flashes RED

Alarm Sounds

Alarm Sound Problems	Solution
One Beep Main Brush or Side Brush is tangled.		Clean Main Brush or Side Brush as mentioned in Section 4 Maintenance.
Continuous Beeps	The Robot is suspended or the Driving Wheels are tangled.	Put the Robot back on the ground or gently pat the bumper and clean the Driving Wheel as mentioned in Section 4 Maintenance.

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
1	DEEBOT is not charging.	DEEBOT is not switched ON. Switch ON DEEBOT.
		DEEBOT has not connected to the Charging Dock.	Be sure that the robot's Charging Contacts have connected to the Charging Dock Pins.
		The battery is completely discharged.	Re-activate the battery. Switch ON DEEBOT. Place DEEBOT on the Charging Dock by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.
2	DEEBOT cannot return to the Charging Dock.	The Charging Dock is not correctly placed. Refer to section 3.2 to correctly place the Charging Dock.
3	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
4	DEEBOT returns to the Charging Dock before it has finished cleaning.	When the battery gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself.	This is normal. No solution necessary.
		Working time varies according to floor surface, room complexity and the Cleaning Mode selected.	This is normal. No solution necessary.

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
5	DEEBOT does not clean automatically at the scheduled time.	Time Scheduling function is cancelled.	Program DEEBOT to clean at specific times using the ECOVACS App.
		The Continued Cleaning function is turned ON and DEEBOT has just finished cleaning the scheduled cleaning area.	This is normal. No solution necessary.
		DEEBOT is switched OFF. Switch ON DEEBOT.
		The robot's battery is low.	Keep DEEBOT switched ON and connected to the Charging Dock to make sure it has a full battery to work at any time.
		The robot's Suction Intake is blocked and/or there is debris stuck in its components.	Power OFF DEEBOT, clean the Dust Bin and invert the robot. Clean the robot's Suction Intake, Side Brushes and the Main Brush as described in Section 4.
6	DEEBOT does not clean the whole area.	The cleaning area is not tidy.	Remove small objects from the floor and tidy up the cleaning area before DEEBOT starts cleaning.
7	DEEBOT is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal.
		Network setup started before DEEBOT was ready.	Turn ON Power Switch. Press the RESET Button for 3 seconds. DEEBOT is ready for network setup when it plays a musical tune and its Wi-Fi Indicator light flashes slowly.
		Your smartphone's operating system needs to be updated.	Update your smartphone's operating system. The ECOVACS App runs on iOS 9.0 and above, Android 4.0 and above.

7. Technical Specifications

Model DC3G/DC3G.10/DC3G.20
Rated Input 19V	= 0.6A 11.4W
Charging Dock
Rated Output Voltage 19V	=	Rated Output Current 0.6A
Power Adapter Model YJS015F-1900600G/DK18-190060H-V
Rated Input 100-240V	~ 50-60Hz 0.5A
Rated Output 19V	= 0.6A
Remote Control Model RC1633	Input Voltage 3V		=
Off/Standby Mode Power Less than 0.50 W
Networked Standby Power Less than 2.00 W
Frequency Bands and power	Operating frequency: 2412MHz - 2472MHz
	Maximum transmitting power: 19 dBm.

Note: Technical and design specifications may be changed for continuous product improvement. This equipment should be operated with a minimum distance of 20cm between the radiator and your body.

Simple circular diagram with two side handles and a central dot labeled '0' (no text or symbols beyond the label)

Roboter

Line drawing of a portable electronic device with a cord and cable, no text or symbols present

Simple line drawing of a circular vacuum cleaner with attached circuit board (no text or symbols)

Two hand-drawn line drawings of a room with furniture and a table, no text or symbols present.

Isometric line drawing of a staircase with blue and white panels, a circular object on top, and a checkmark (no text or symbols)

Three abstract line drawings: a pair of flat slippers, a simple open-loop shoe, and a coiled cord with a blue X symbol (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Line drawing of a device with a blue arrow pointing to a cable or connector (no text or symbols present)

0.5m (1.6') 0.5m (1.6') 1.5m (5')

Diagram of a helicopter's head and fuselage with propellers and a magnified inset showing flight path (no text or symbols)

Diagram showing a hand pressing a button next to a blue circuit diagram with directional arrows and a circle.

Download on the App Store GET IT ON Google Play ECOVACS HOME iOS 9.0 or later Android 4.0 or later

Hand pointing at a circular interface element with a blue button (no text or symbols)

Diagram showing a circular device with a blue arrow pointing to it, and a container with scattered blue dots emerging from its side (no text or symbols present)

Three-step diagram showing a device being processed into a housing, with arrows indicating movement (no text or symbols present)

Diagram illustrating solar heating process with water flow, heat transfer, and solar panel components

4. Wartung

Diagram of a vehicle's internal components with a blue panel and a digital display showing waveform graphs (no text or symbols)

2

3D diagram of a robotic device with a blue mechanical component and directional arrow (no text or symbols)

3

Line drawing of a hand holding a tool with a blue tool, no text or symbols present

4

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

5

Diagram of a robotic device with a blue control panel and an inset showing internal components (no text or symbols)

4. Wartung

Seitenbürsten

1

Diagram of a vehicle interior showing steering wheel, dashboard, and gear mechanism with an inset showing a hand holding a bird (no text or symbols present)

●

Line drawing of a mechanical component with a hand holding a tool (no text or symbols)

●

Diagram of a helicopter's cockpit showing propellers and a hand holding a bird, with an inset close-up highlighting the bird's body (no text or symbols present)

4.3 Sonstige Teile

Top-down schematic of a circular device with internal components and a central display (no text or symbols)

Diagram of a hand interacting with a circular device showing internal components and a waveform display (no text or symbols)

Line drawing of a hand cleaning a blue and white robotic vacuum cleaner (no text or symbols)

4. Wartung

Diagram of a hand operating a device with a control panel and internal components (no text or symbols)

Line drawing of a hand holding a medical device with two blue buttons (no text or symbols)

Simple line drawing of a circular object with two side handles and a small circle labeled '0' at the center (no text or symbols beyond basic markings)

Robot

Line drawing of a portable device with a cord and cable, alongside a separate electrical plug (no text or symbols)

Simple line drawing of a circular vacuum cleaner with attached circuit board (no text or symbols)

Two hand-drawn architectural sketches of a room with furniture and windows, no text or symbols present

Isometric line drawing of a staircase with blue and white panels, no text or symbols present

Illustration of three types of sandals and a cord with a blue X mark (no text or symbols)

Line drawing of a robotic vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Line drawing of a device with a blue arrow pointing to a cable or connector (no text or symbols present)

0.5m (1.6') 0.5m (1.6') 1.5m (5')

Diagram of a helicopter's head and fuselage with propellers and a magnified inset showing flight trajectory (no text or symbols)

5 Encendido

ON OFF

6 Carga del DEEBOT

4h =

Diagram illustrating home control interface with finger pressing, navigation via door panel, and layout of furniture and fixtures.

Diagram showing a hand pressing a button next to a blue circuit diagram with directional arrows and a circle.

≥ 3 s ↓ ← →

Download on the App Store GET IT ON Google Play ECOVACS HOME iOS 9.0 or later Android 4.0 or later

Diagram showing finger pressing a button on a curved interface, with a vertical dashed line and circular arrow indicating alignment.

Diagram showing a circular device with a blue arrow pointing to it, and a container with blue dots falling into the liquid (no text or symbols present)

2

Three technical line drawings showing a device's open lid, internal grid structure, and a finger interacting with a grid (no text or symbols)

3

Diagram showing a water spray system and its corresponding solar panel components (no text or symbols)

4. Mantenimiento

4.2 Cepillo principal y laterales

Diagram of a vehicle's internal components with a blue tab and control panel, showing a speedometer display (no text or symbols present)

2

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

3

Line drawing of a hand holding a small object with a blue textured surface (no text or symbols)

4

Diagram of a robotic device with a blue arrow pointing to a component, no text or symbols present

5

Diagram of a car interior with a blue plastic cover and a magnified inset showing internal airflow or traffic flow (no text or symbols)

4. Mantenimiento

Cepillos laterales

1

Diagram of a vehicle interior showing steering wheel, dashboard, and gear mechanism with an inset showing a blue airplane flying over water (no text or symbols)

●

Line drawing of a hand holding a small object with a tool, no text or symbols present

●

Diagram of a helicopter's cockpit showing two propellers and a highlighted aircraft interior (no text or symbols)

Top-down schematic of a circular device with internal components and a central display (no text or symbols)

Diagram of a hand interacting with a circular device showing internal components and a waveform display (no text or symbols)

Line drawing of a hand cleaning a blue and white robotic vacuum cleaner (no text or symbols)

4. Mantenimiento

Line drawings of two different cleaning or installation methods: one showing hand positioning inside a circular device, the other showing hand inserting a component into a device (no text or symbols present)

Simple line drawing of a circular object with two side handles and a small circle labeled '0' at the center (no text or symbols beyond basic markings)

Robot

Line drawing of a portable electronic device with a cord and cable, no text or symbols present

Simple line drawing of a circular vacuum cleaner with attached circuit board (no text or symbols)

Isometric line drawing of a staircase with blue and white panels, a circular object on top, and a checkmark (no text or symbols)

Two hand-drawn line drawings of a room with furniture and a table, no text or symbols present.

Three abstract line drawings: a pair of flat slippers, a simple open-loop shoe, and a coiled cord with a blue X mark (no text or symbols)

Line drawing of a robotic vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Line drawing of a portable electronic device with a cable and power cord, no text or symbols present

0.5m (1.6') 0.5m (1.6') 1.5m (5)

Diagram of a helicopter's head and fuselage with propellers and a magnified inset showing a hand holding a bird (no text or symbols)

5 Mise sous tension

ON OFF

6 Charge du robot DEEBOT

4h =

Diagram showing a hand pressing a button next to a schematic of a circuit or signal flow with labeled components.

iOS 9.0 or later Android 4.0 or later

Hand pointing at a circular interface element with a blue 'O' mark (no text or symbols on the diagram itself)

Diagram showing finger pressing a button on a device, with 'OU' label indicating action point

4. Entretien

Diagram showing a circular device with internal components and a close-up of its interior with blue particles (no text or symbols)

2

Three technical line drawings showing a device's open lid, internal grid structure, and a finger interacting with a grid (no text or symbols)

3

Diagram showing a water spray system and its corresponding solar panel components (no text or symbols)

4. Entretien

Diagram of a vehicle's internal components with a monitor and navigation screen, showing no text or symbols.

2

Diagram of a robotic device with a blue arrow indicating a specific component (no text or symbols present)

3

Line drawing of a hand holding a tool with a blue tool, no text or symbols present

4

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

5

Diagram of a vehicle's internal components with a magnified inset showing internal structure (no text or symbols)

4. Entretien

Brosses latérales
1

Diagram of a vehicle interior showing steering wheel, dashboard, and gear mechanism with an inset showing a hand holding a bird (no text or symbols present)

●

Line drawing of a mechanical component with a hand holding a tool (no text or symbols)

●

Diagram of a helicopter's cockpit showing two propellers and a highlighted aircraft interior (no text or symbols)

Top-down schematic of a circular device with internal components and a central display (no text or symbols)

Diagram of a hand interacting with a circular device showing internal components and a waveform display (no text or symbols)

Line drawing of a hand cleaning a blue and white robotic vacuum cleaner (no text or symbols)

4. Entretien

Diagram of a hand operating a device with a circular frame and internal components (no text or symbols)

Line drawing of a hand holding a medical device with blue buttons, no text or symbols present

https://www.ecovacs.com/global/compliance

Simple circular diagram with two side tabs and a central circle containing a circled number 'a' (no text or symbols beyond the label)

Robot

Line drawing of a portable electronic device with a cord and cable, no text or symbols present

Simple line drawing of a circular vacuum cleaner with attached circuit board (no text or symbols)

Two hand-drawn line drawings of a room with furniture and a table, no text or symbols present.

Isometric line drawing of a staircase with blue and white panels, a circular object on top, and a checkmark (no text or symbols)

Three abstract line drawings: a pair of flat slippers, a simple open-loop shoe, and a coiled cord with a blue X symbol (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Line drawing of a portable electronic device with a cable and plug, no text or symbols present

0.5m (1.6') 0.5m (1.6') 1.5m (5')

Diagram of a helicopter's head and fuselage with propellers and a magnified inset showing flight trajectory (no text or symbols)

5 Accensione (ON)

ON OFF

Diagram showing a hand pressing a button labeled 'DII' next to a schematic of a circuit or signal flow with directional arrows and a circle.

≥3s OPPURE

iOS 9.0 or later Android 4.0 or later

Diagram showing a circular device with a blue arrow pointing to a container with scattered blue dots (no text or symbols)

2

Three technical diagrams showing a 3D model of a device with open lid, a grid panel, and a hand holding a grid (no text or symbols)

3

Diagram showing a water spray system and its corresponding solar panel components (no text or symbols)

4. Manutenzione

Diagram of a robotic device with a blue handle and control panel, showing internal waveform display (no text or symbols)

2

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

3

Line drawing of a hand holding a small object with a grid-like structure, possibly a tool or device (no text or symbols present)

4

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

5

Diagram of a military vehicle with a blue mechanical device and a close-up inset showing internal components (no text or symbols)

4. Manutenzione

Spazzole laterali
1

Diagram of a ship's interior showing steering wheel, gear, and boat, with an inset illustrating the speed of landing (no text or symbols present)

●

Line drawing of a mechanical component with a hand holding a tool (no text or symbols)

●

Diagram of a helicopter's cockpit showing propellers and a magnified view of the engine (no text or labels)

Top-down schematic of a circular device with internal components and a central display (no text or symbols)

Diagram of a hand interacting with a circular device showing internal components and a waveform display (no text or symbols)

Line drawing of a hand cleaning a blue and white robotic vacuum cleaner (no text or symbols)

4. Manutenzione

Diagram of a hand operating a device with a screen and control panel (no text or symbols visible)

Line drawing of a hand holding a medical device with two blue buttons (no text or symbols)

Simple line drawing of a circular object with two side handles and a small circle labeled '0' at the center (no text or symbols beyond basic markings)

Робот

Line drawing of a portable device with a cord and cable, alongside a separate electrical plug (no text or symbols)

Simple line drawing of a circular vacuum cleaner with attached circuit board (no text or symbols)

Two hand-drawn architectural sketches of a room with furniture and windows, no text or symbols present

Isometric line drawing of a staircase with blue and white panels, no text or symbols present

Three abstract line drawings: a pair of flat slippers, a simple open-loop shoe, and a coiled cord with a blue X mark (no text or symbols)

Line drawing of a robotic vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Line drawing of a device with a cable and connector, no text or symbols present

0.5m (1.6') 0.5m (1.6') 1.5m (5)

Diagram of a helicopter's head and fuselage with propellers and a magnified inset showing a hand holding a bird (no text or symbols)

5 Включение питания

ON OFF

4h = Battery ON OFF

Diagram showing a hand pressing a button next to a schematic of a device with control buttons and a loop.

iOS 9.0 or later Android 4.0 or later

Hand pointing at a circular interface element with a blue button labeled 'M', no text or symbols present.

Diagram showing a circular device with a blue arrow pointing to it, and a container with blue dots rising from its side (no text or symbols)

2

Three technical diagrams showing a mechanical assembly with arrows indicating motion or force, no text or symbols present.

3

Diagram showing a water spray system transitioning to solar panels and a grid, with no visible text or symbols.

Diagram of a vehicle's internal components with a blue outline and an inset showing a speedometer (no text or labels)

2

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

3

Line drawing of a hand holding a pen or stylus with a small object nearby (no text or symbols)

4

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

5

Diagram of a robotic device with a blue control panel and a close-up inset showing internal components (no text or symbols)

Diagram of a vehicle interior with steering wheel and dashboard, showing a magnified view of the dashboard's internal components (no text or symbols present)

●

Line drawing of a mechanical device with a hand holding a tool (no text or symbols)

●

Diagram of a helicopter cockpit with two propellers and a highlighted interior view showing flight trajectory (no text or symbols)

Top-down schematic of a circular device with internal components and a central display (no text or symbols)

Diagram of a hand interacting with a circular device component, showing internal components and a waveform display (no text or symbols)

Illustration of a hand cleaning a blue and white robotic vacuum cleaner (no text or symbols)

Diagram of a mechanical device with a hand operating the top component (no text or symbols visible)

Line drawing of a hand holding a medical device with blue buttons, no text or symbols present

No. 18 You Xiang Road, Wuzhong District, Suzhou City,

Jiangsu Province, P.R.China

DC3G-EU01-IM2019R00
