USER MANUAL MVH-X560BT PIONEER

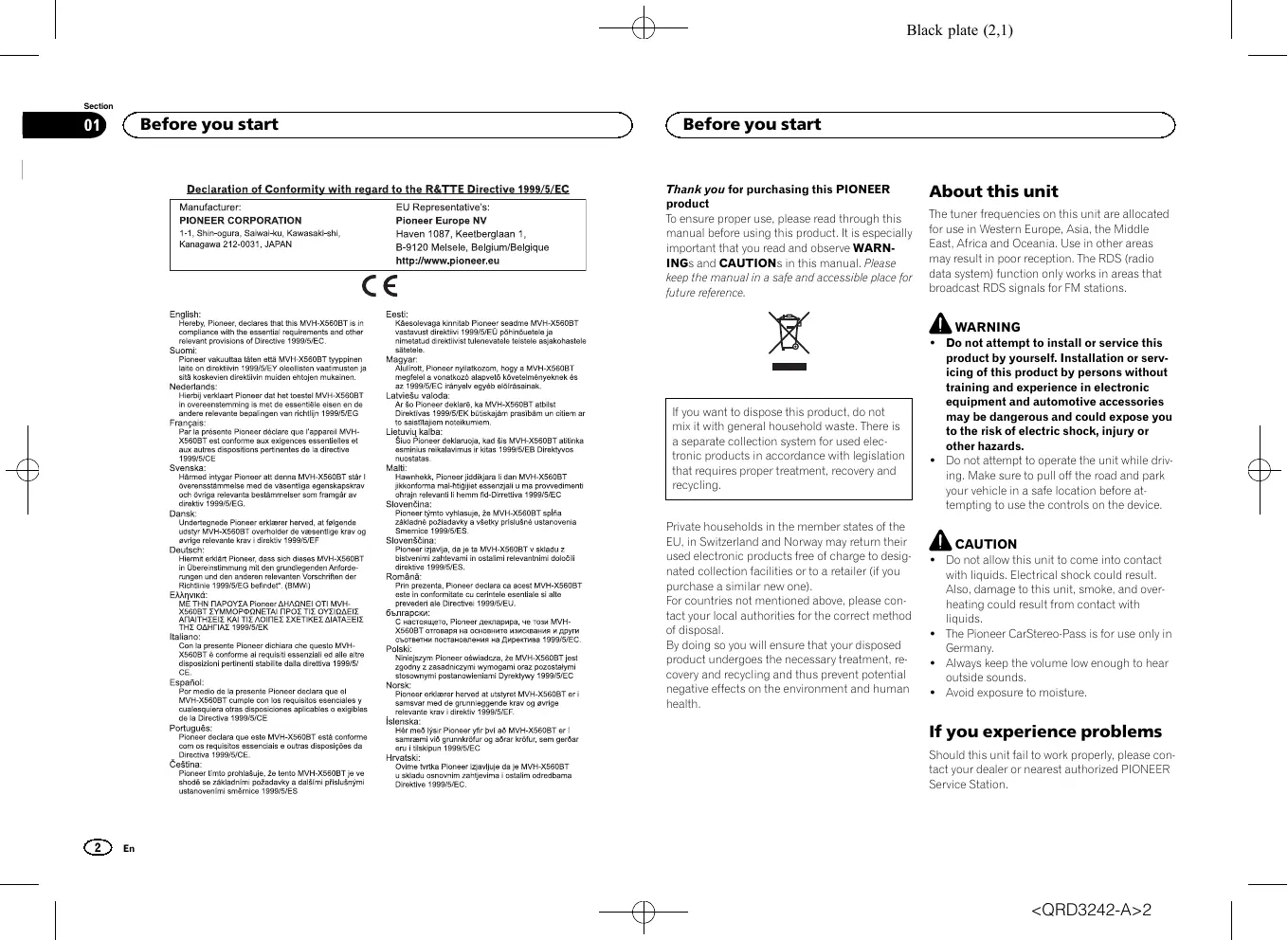

Black plate (1,1) Black plate (2,1) Section Before you start

Before you start Thank you for purchasing this PIONEER product To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference. About this unit The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations. WARNING If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please contact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. ! Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards. ! Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device. CAUTION ! Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids. ! The Pioneer CarStereo-Pass is for use only in Germany. ! Always keep the volume low enough to hear outside sounds. ! Avoid exposure to moisture. If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.

<QRD3242-A>2 Black plate (3,1) Section Using this unit Using this unit Head unit

(auto answer) Shows when the automatic answering function is on.

Appears when a lower tier of folder or menu exists.

LOC (local seek tuning)

TP (traffic program identification) (iPod control)

TA (traffic announcements) (back)/DIMMER (dimmer)

(list) (sound retriever) (random/shuffle)

Turn M.C. to switch to YES. # If you do not use the unit for 30 seconds, the set up menu will not be displayed. # If you prefer not to set up at this time, turn M.C. to switch to NO. Press M.C. to select. 4 Follow these steps to set the menu. To proceed to the next menu option, you need to confirm your selection. LANGUAGE (multi-language) This unit can display the text information from a compressed audio file even for information embedded in English, Russian or Turkish. ! If the embedded language and the selected language setting are not the same, text information may not display properly. ! Some characters may not be displayed properly. 1 Turn M.C. to select the desired setting. ENG (English)—РУС (Russian)—TUR (Turkish) 2 Press M.C. to confirm the selection.

(Bluetooth indicator) CLOCK SET (setting the clock)

(Bluetooth audio indicator)

(Bluetooth phone indicator)

(repeat) (iPod control) This unit’s iPod function is operated from your iPod. Set up menu

6 8 a ce 7 9 bdf 1 After installation of this unit, turn the ignition switch to ON. SET UP appears. # If you prefer to change your setting again, turn M.C. to switch to NO.

to 6/ 5 To finish your settings, turn M.C. to select YES. English

Main information section ! Tuner: band and frequency ! RDS: program service name, PTY information and other literal information ! USB storage device and iPod: elapsed playback time and text information

Press M.C. to select. Notes ! You can set up the menu options from the system menu and initial menu. For details about the settings, refer to System menu on page 12 and Initial menu on page 14. ! You can cancel set up menu by pressing SRC/OFF. Basic operations Important ! Handle the front panel with care when removing or attaching it. ! Avoid subjecting the front panel to excessive shock. ! Keep the front panel out of direct sunlight and high temperatures. ! To avoid damaging the device or vehicle interior, remove any cables and devices attached to the front panel before detaching it. Turn M.C. to adjust hour. Press M.C. to select minute. Turn M.C. to adjust minute. Press M.C. to confirm the selection. FM STEP (FM tuning step) Use FM STEP to set FM tuning step options (seek step settings). 1 Turn M.C. to select the FM tuning step. 100 (100 kHz)—50 (50 kHz) 2 Press M.C. to confirm the selection. QUIT appears. ! The manual tuning step is fixed at 50 kHz. ! When AF and TA are turned off, the seek step is fixed at 50 kHz even if set to 100.

Black plate (4,1) Section Using this unit

Removing the front panel 1 Press the detach button to release the front panel. 2 Push the front panel upward (M) and then pull it toward (N) you. Using this unit Note When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Frequently used menu operations 3 Always store the detached front panel in a protective case or bag. Re-attaching the front panel 1 Slide the front panel to the left. Returning to the previous display Returning to the previous list (the folder one level higher) 1 Press /DIMMER. Returning to the ordinary display Canceling the main menu 1 Press BAND/ . Returning to the ordinary display from the list 1 Press BAND/ . 2 Press the right side of the front panel until it is firmly seated. Forcing the front panel into place may result in damage to the front panel or head unit. Turning the unit on 1 Press SRC/OFF to turn the unit on. Turning the unit off 1 Press and hold SRC/OFF until the unit turns off. Selecting a source 1 Press SRC/OFF to cycle between: RADIO—USB/iPod—APP (application)—AUX —BT AUDIO ! USB MTP displays while the MTP connection is in use. Adjusting the volume 1 Turn M.C. to adjust the volume.

Radio Basic operations Selecting a band 1 Press BAND/ until the desired band (FM1, FM2,FM3 for FM or MW/LW) is displayed. Switching preset stations 1 Turn LEVER. ! Select PCH (preset channel) under SEEK to use this function. Manual tuning (step by step) 1 Turn LEVER. ! Select MAN (manual tuning) under SEEK to use this function. Seeking 1 Turn and hold down LEVER. ! While turning and holding down LEVER, you can skip stations. Seek tuning starts as soon as you release LEVER. Notes ! For details about SEEK, refer to SEEK (LEVER tuning setting) on page 5. ! This unit’s AF (alternative frequencies search) function can be turned on and off. AF should be off for normal tuning operation (refer to AF (alternative frequencies search) on page 5). Storing and recalling stations for each band Using preset tuning buttons 1 To store: Press and hold down one of the preset tuning buttons (1/ to 6/ ) until the number stops flashing. 2 To recall: Press one of the preset tuning buttons (1/ to 6/ ). Switching the display Selecting the desired text information 1 Press DISP to cycle between the following: ! FREQUENCY (program service name or frequency) ! BRDCST INFO (program service name/PTY information) ! CLOCK (source name and clock) Notes ! If the program service name cannot be acquired in FREQUENCY, the broadcast frequency is displayed instead. If the program service name is detected, the program service name will be displayed. ! Depending on the band, text information can be changed. ! Text information items that can be changed depend on the area. Using PTY functions You can tune in to a station using PTY (program type) information. Searching for an RDS station by PTY information (list). 1 Press 2 Turn M.C. to select a program type.

NEWS/INFO—POPULAR—CLASSICS—

OTHERS 3 Press M.C. to begin the search. The unit searches for a station broadcasting that type of program. When a station is found, its program service name is displayed. ! To cancel the search, press M.C. again. ! The program of some stations may differ from that indicated by the transmitted PTY. ! If no station is broadcasting the type of program you searched for, NOT FOUND is displayed for about two seconds and then the tuner returns to the original station. PTY list For more details about PTY list, visit the following site: http://www.pioneer.eu/eur/products/25/121/tech/ CarAudio/PTY.html Function settings

Black plate (5,1) Section Using this unit 3 Turn M.C. to select the function. Once selected, the following functions can be adjusted. # If MW/LW band is selected, only BSM, LOCAL and SEEK are available. FM SETTING (FM sound quality settings) The sound quality level can be set to match the broadcast signal conditions of the FM band signal. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting. ! STANDARD – This is the standard setting. ! HI-FI – This is the setting to use to prioritize the high quality of stereo sound. ! STABLE – This is the setting to use to prioritize the low noise of monaural sound. BSM (best stations memory) BSM (best stations memory) automatically stores the six strongest stations in the order of their signal strength. 1 Press M.C. to turn BSM on. To cancel, press M.C. again. REGIONAL (regional) When AF is used, the regional function limits the selection of stations to those broadcasting regional programs. 1 Press M.C. to turn the regional function on or off. LOCAL (local seek tuning) Local seek tuning allows you to tune in to only those radio stations with sufficiently strong signals for good reception. 1 Press M.C. to select the desired setting.

FM: OFF—LV1—LV2—LV3—LV4

MW/LW: OFF—LV1—LV2

The highest level setting allows reception of only the strongest stations, while lower levels allow the reception of weaker stations. TA (traffic announcement standby) 1 Press M.C. to turn traffic announcement standby on or off. AF (alternative frequencies search) 1 Press M.C. to turn AF on or off. NEWS (news program interruption) 1 Press M.C. to turn the NEWS function on or off. SEEK (LEVER tuning setting) You can assign a function to the LEVER on the unit. Select MAN (manual tuning) to tune up or down manually or select PCH (preset channel) to switch between preset channels. 1 Press M.C. to select MAN or PCH. USB storage device MTP connection MTP-compatible Android devices (running Android OS 4.0 or higher) can be connected by MTP connection using the USB source. To connect an Android device, use the cable that came with the device. ! This function is not compatible with WAV. Basic operations Playing songs on a USB storage device 1 Plug in the USB storage device using the USB cable. Stopping playback of files on a USB storage device 1 Disconnect the USB storage device. Selecting a folder 1 Press 1/ or 2/ . Selecting a track 1 Turn LEVER. Fast forwarding or reversing 1 Turn and hold down LEVER to the right or left. ! When playing compressed audio, there is no sound during fast forward or reverse. Returning to root folder 1 Press and hold BAND/ . Switching between playback memory devices You can switch between playback memory devices on USB storage devices with more than one Mass Storage Device-compatible memory device. 1 Press BAND/ . ! You can switch between up to 32 different memory devices. Note Disconnect USB storage devices from the unit when not in use.

Operations using the MIXTRAX button English 2 Turn M.C. to change the menu option and press to select FUNCTION. Using this unit Turning MIXTRAX on or off You cannot use this function with USB MTP. 1 Press MIX to turn MIXTRAX on or off. ! For more details about MIXTRAX, refer to About MIXTRAX on page 13. ! When MIXTRAX is in use, the sound retriever function is disabled. Switching the display Selecting the desired text information 1 Press DISP to cycle between the following:

MP3/WMA/WAV

! TRACK INFO (track title/artist name/album title) ! FILE INFO (file name/folder name) ! ELAPSED TIME (track number and playback time) ! CLOCK (source name and clock) ! SPEANA (spectrum analyzer) Selecting and playing files/ tracks from the name list 1 Press list mode. to switch to the file/track name 2 Use M.C. to select the desired file name (or folder name). Selecting a file or folder 1 Turn M.C. Playing 1 When a file or track is selected, press M.C. Notes ! This function is not compatible with MIXTRAX.

Black plate (6,1) Section Using this unit

Viewing a list of the files (or folders) in the selected folder 1 When a folder is selected, press M.C. Playing a song in the selected folder 1 When a folder is selected, press and hold M.C. Operations using special buttons Selecting a repeat play range to cycle between the following: 1 Press 6/ ! ALL – Repeat all files ! ONE – Repeat the current file ! FLD – Repeat the current folder Playing tracks in random order to turn random play on or off. 1 Press 5/ Tracks in a selected repeat range are played in random order. ! To change songs during random play, turn LEVER to the right to switch to the next track. Turn LEVER to the left to restart playback of the current track from the beginning of the song. Pausing playback 1 Press 4/f to pause or resume. Enhancing compressed audio and restoring rich sound (sound retriever) 1 Press 3/S.Rtrv to cycle between: 1—2—OFF (off) 1 is effective for low compression rates, and 2 is effective for high compression rates. ! Key operation is disabled when MIXTRAX is on. Function settings

Using this unit 2 Turn M.C. to change the menu option and press to select FUNCTION. Once selected, the function below can be adjusted. ! S.RTRV is not available when MIXTRAX is turned on. S.RTRV (sound retriever) Automatically enhances compressed audio and restores rich sound. 1 Press M.C. to select the desired setting. For details, refer to Enhancing compressed audio and restoring rich sound (sound retriever) on page 6. iPod Basic operations Playing songs on an iPod 1 Connect an iPod to the USB cable. Selecting a song (chapter) 1 Turn LEVER. Fast forwarding or reversing 1 Turn and hold down LEVER to the right or left. Selecting an album 1 Press 1/ or 2/ . Notes ! The iPod cannot be turned on or off when the control mode is set to CONTROL AUDIO. ! Disconnect headphones from the iPod before connecting it to this unit. ! The iPod will turn off about two minutes after the ignition is switched off. Operations using the MIXTRAX button Turning MIXTRAX on or off 1 Press MIX to turn MIXTRAX on or off. ! For more details about MIXTRAX, refer to About MIXTRAX on page 13. Switching the display Selecting the desired text information 1 Press DISP to cycle between the following: ! TRACK INFO (track title/artist name/album title) ! ELAPSED TIME (track number and playback time) ! CLOCK (source name and clock) ! SPEANA (spectrum analyzer) Browsing for a song 1 Press search.

to switch to the top menu of list Use M.C. to select a category/song. Changing the name of the song or category 1 Turn M.C. Playlists—artists—albums—songs—podcasts —genres—composers—audiobooks Playing 1 When a song is selected, press M.C. Viewing a list of songs in the selected category 1 When a category is selected, press M.C. Playing a song in the selected category 1 When a category is selected, press and hold M.C. Searching the list by alphabet 1 When a list for the selected category is disto switch to alphabet search played, press mode. 2 Turn M.C. to select a letter. 3 Press M.C. to display the alphabetical list. ! To cancel searching, press /DIMMER. Notes ! You can play playlists created with the computer application (MusicSphere). The application will be available on our website. ! Playlists that you created with the computer application (MusicSphere) are displayed in abbreviated form. Operations using special buttons Selecting a repeat play range 1 Press 6/ to cycle between the following: ! ONE – Repeat the current song ! ALL – Repeat all songs in the selected list ! When the control mode is set to CONTROL iPod, the repeat play range will be same as what is set for the connected iPod. Selecting a random play range (shuffle) to cycle between the following: 1 Press 5/ ! SNG – Play back songs in the selected list in random order. ! ALB – Play back songs from a randomly selected album in order. ! OFF – Not play back in random order. Playing all songs in random order (shuffle all) to turn shuffle all on. 1 Press and hold 5/ ! To turn off shuffle all, select OFF in shuffle. For details, refer to Selecting a random play range (shuffle) on page 6.

<QRD3242-A>6 Black plate (7,1) Section Using this unit Using this unit Using this unit’s iPod function from your iPod AUDIO BOOK (audiobook speed) Enhancing compressed audio and restoring rich sound (sound retriever) 1 Press 3/S.Rtrv to cycle between: 1—2—OFF (off) 1 is effective for low compression rates, and 2 is effective for high compression rates. This unit’s iPod function can be controlled by using the connected iPod. CONTROL iPod is not compatible with the following iPod models. ! iPod nano 1st generation ! iPod with video 1 Press M.C. to display the setting mode. 2 Turn M.C. to select your favorite setting. ! FASTER – Playback at a speed faster than normal ! NORMAL – Playback at normal speed ! SLOWER – Playback at a speed slower than normal S.RTRV (sound retriever) Playing songs related to the currently playing song You can play songs from the following lists.

• Album list of the currently playing artist
• Song list of the currently playing album
• Album list of the currently playing genre 1 Press and hold mode. to switch to link play 2 Turn M.C. to change the mode; press to select. ! ARTIST – Plays an album by the artist currently playing. ! ALBUM – Plays a song from the album currently being played. ! GENRE – Plays an album from the genre currently being played. The selected song/album will be played after the currently playing song. Notes ! The selected song/album may be canceled if you use functions other than link search (e.g. fast forward and reverse). ! Depending on the song selected to play, the end of the currently playing song and the beginning of the selected song/album may be cut off. to switch the control ! CONTROL iPod – This unit’s iPod function can be operated from the connected iPod. ! CONTROL AUDIO – This unit’s iPod function can be controlled by using this unit. Notes ! Switching the control mode to CONTROL iPod pauses song playback. Use the iPod to resume playback. ! The following operations are still accessible from the unit even if the control mode is set to CONTROL iPod. — Pausing — Fast forward/reverse — Selecting a song (chapter) ! The volume can only be adjusted from this unit. Function settings

2 Turn M.C. to change the menu option and press to select FUNCTION. 3 Turn M.C. to select the function. Once selected, the following functions can be adjusted. ! AUDIO BOOK is not available when CONTROL iPod is selected in the control mode. For details, refer to Using this unit’s iPod function from your iPod on page 7. 1 Press M.C. to select the desired setting. For details, refer to Enhancing compressed audio and restoring rich sound (sound retriever) on page 7. Using connected device applications You can use this unit to perform streaming playback of and control tracks in iPhone or smartphone applications or just for streaming playback. Important Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data. ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND

SECURITY OF USER DATA AND PRIVACY

PRACTICES. BY ACCESSING THIRD PARTY

APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP. English Pausing playback 1 Press 4/f to pause or resume.

Information for compatibility of connected devices The following is the detailed information regarding the terminals required to use the application for iPhone or smartphone on this unit. For iPhone users ! This function is compatible with iPhone and iPod touch. ! The device has iOS 5.0 or higher. For smartphone users ! The device has Android OS 2.3 or higher. ! The device supports Bluetooth SPP (Serial Port Profile) and A2DP (Advanced Audio Distribution Profile). The device is connected to this unit via Bluetooth. ! Compatibility with all Android devices is not guaranteed.

Black plate (8,1) Section Using this unit

For details about Android device compatibility with this unit, refer to the information on our website. Notes ! Please check our website for a list of supported iPhone or smartphone applications for this unit. ! Pioneer is not liable for any issues that may arise from incorrect or flawed app-based content. ! The content and functionality of the supported applications are the responsibility of the App providers. Starting procedure for iPhone users

Connect an iPhone to USB cable. 2 Select WIRED in APP CONN. SET. For details, refer to APP CONN. SET (APP connect mode setting) on page 12.

Switch the source to APP. 4 Start up the application on the iPhone and initiate playback. Starting procedure for smartphone users 1 Connect your smartphone to this unit using Bluetooth wireless technology. For details, refer to Connection menu operation on page 9. 2 Select BLUETOOTH in APP CONN. SET. For details, refer to APP CONN. SET (APP connect mode setting) on page 12.

Switch the source to APP. 4 Start up the application on the smartphone and initiate playback.

Using this unit Basic operations Selecting a track 1 Turn LEVER. Fast forwarding or reversing 1 Turn and hold down LEVER to the right or left. Pausing playback 1 Press BAND/ to pause or resume. Switching the display Selecting the desired text information 1 Press DISP to cycle between the following: ! TRACK INFO (track title/artist name/album title) ! APP NAME (application name) ! ELAPSED TIME (playback time) ! CLOCK (source name and clock) ! SPEANA (spectrum analyzer) Function settings

2 Turn M.C. to change the menu option and press to select FUNCTION. 3 Turn M.C. to select the function. Once selected, the following functions can be adjusted. PAUSE (pause) 1 Press M.C. to pause or resume. S.RTRV (sound retriever) 1 Press M.C. to select the desired setting. 1—2—OFF (off) 1 is effective for low compression rates, and 2 is effective for high compression rates. Using Bluetooth wireless technology Switching between callers on hold 1 Press M.C. Using the Bluetooth telephone Canceling call waiting 1 Press and hold Important ! Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the battery. ! Operations may vary depending on the kind of cellular phone. ! Advanced operations that require attention such as dialing numbers on the monitor, using the phone book, etc., are prohibited while driving. Be sure to park your vehicle in a safe place and apply the parking brake before proceeding. Adjusting the other party’s listening volume 1 Turn LEVER while talking on the phone. ! When private mode is on, this function is not available. Turning private mode on or off 1 Press BAND/ while talking on the phone. Note If private mode is selected on the cellular phone, hands-free phoning may not be available. Storing and recalling phone numbers Setting up for hands-free phoning 1 Connection Use the Bluetooth telephone connection menu. Refer to Connection menu operation on page 9. 2 Function settings Use the Bluetooth telephone function menu. Refer to Phone menu operation on page 10. 1 To store: Press and hold down one of the preset tuning buttons (1/ to 6/ ). The functions below can be used to store phone numbers to the memory. For details, refer to Phone menu operation on page 10.

MISSED (missed call history) DIALLED (dialed call history) RECEIVED (received call history) PHONE BOOK (phone book) 2 To recall: Press one of the preset tuning buttons (1/ to 6/ ). Basic operations Making a phone call 1 Refer to Phone menu operation on page 10.

Answering an incoming call 1 When a call is received, press Ending a call 1 Press Rejecting an incoming call 1 When a call is received, press and hold Answering a call waiting 1 When a call is received, press Press M.C. to make a call.

Selecting the desired text information You can change the display during a call. 1 Press DISP to cycle between the following: ! Call time ! Name of other party ! Number of other party

<QRD3242-A>8 Black plate (9,1) Section Using this unit Using voice recognition 1 Press and hold M.C. to switch to voice recognition mode. 2 Press M.C. and then talk into the microphone to input voice commands. To end voice recognition mode, press BAND/ . Notes ! For details on voice recognition features, check the manual for your iPhone. ! In order for your voice commands to be recognized and interpreted correctly, ensure that conditions are suitable for recognition. ! Please note that wind blowing through the vehicle windows and noise coming from outside the vehicle can interfere with voice command operation. ! For optimum pick-up, the microphone should be placed directly in front of the driver at a suitable distance. ! Speaking too soon after the start of the command may cause voice recognition to fail. ! Speak slowly, deliberately, and clearly. Connection menu operation Important Connected devices may not work properly if more than one Bluetooth device is connected at a time (e.g. a phone and a separate audio player are connected simultaneously). 1 Press and hold tion menu. to display the connec- # You cannot perform this step during a call. 2 Turn M.C. to select the function. Once selected, the following functions can be adjusted. DEVICELIST (connecting or disconnecting a device from the device list) 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the name of a device you want to connect/disconnect. ! Press and hold M.C. to swap between the Bluetooth device address and the device name. 3 Press M.C. to connect/disconnect the selected device. If the connection is established, * is indicated on the device name. ! When no device is selected in the device list, this function is not available. DEL DEVICE (deleting a device from the device list) 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the name of a device you want to delete. ! Press and hold M.C. to swap between the Bluetooth device address and the device name. 3 Press M.C. to display DELETE YES. 4 Press M.C. to delete the device information from the device list. ! When no device is selected in the device list, this function is not available. ! While this function is in use, do not turn off the engine. ADD DEVICE (connecting a new device) 1 Press M.C. to start searching. ! To cancel, press M.C. while searching. ! If this unit fails to find any available cellular phones, NOT FOUND is displayed. 2 Turn M.C. to select a device from the device list. ! If the desired device is not displayed, select RE-SEARCH. ! Press and hold M.C. to swap between the Bluetooth device address and the device name. 3 Press M.C. to connect the selected device. ! To complete the connection, check the device name (Pioneer BT Unit) and enter the PIN code on your device. ! PIN code is set to 0000 as the default. You can change this code. ! A 6-digit number may display on both this unit and the Bluetooth device. Select yes if the 6-digit numbers displayed on this unit and the Bluetooth device are the same. ! 6-digit number appears on the display of this unit. Once the connection is established, this number disappears. ! If you are unable to complete the connection using this unit, use the device to connect to the unit. ! If three devices are already paired, DEVICEFULL is displayed and it is not possible to perform this operation. In this case, delete a paired device first. A. CONN (connecting to a Bluetooth device automatically) 1 Press M.C. to turn automatic connection on or off. VISIBLE (setting the visibility of this unit)

Bluetooth visibility can be turned on so that other devices can discover the unit. 1 Press M.C. to turn the visibility of this unit on or off. English This feature can be used on an iPhone equipped with voice recognition that is connected by Bluetooth. Using this unit PIN CODE (PIN code input) You must enter a PIN code on your device to confirm the Bluetooth connection. The default code is 0000, but you can change it with this function. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select a number. 3 Press M.C. to move the cursor to the next position. 4 After inputting PIN code, press and hold M.C. ! After inputting, pressing M.C. returns you to the PIN code input display, and you can change the PIN code. DEV. INFO (Bluetooth device address display) 1 Press M.C. to display the setting mode. 2 Turn M.C. to display the device information. Device name—Bluetooth device address GUEST MODE (guest mode) When this mode is turned on, if a pairing is attempted while there are already three devices paired together, the unit will move to the DEL DEVICE screen automatically and prompt you to delete a device. For details, refer to DEL DEVICE (deleting a device from the device list) on page 9. 1 Press M.C. to turn the guest mode on or off. A. PAIRING (auto pairing) If this function is turned on while there is an iPhone connected to the unit by USB, you will be automatically prompted to pair the unit and iPhone. 1 Press M.C. to turn auto pairing on or off. ! This function may not be available depending on what version of iOS you are using.

Black plate (10,1) Section Using this unit

Phone menu operation

Press 2 Turn M.C. to select the function. Once selected, the following functions can be adjusted. MISSED (missed call history) DIALLED (dialed call history) RECEIVED (received call history) 1 Press M.C. to display the phone number list. 2 Turn M.C. to select a name or phone number. 3 Press M.C. to make a call.

Press M.C. to display the setting mode. Turn M.C. to select the desired preset number. Press M.C. to make a call. You can also use the preset number buttons 1/ to 6/ to recall a preset phone number. For more details about storing phone numbers, refer to Storing and recalling phone numbers on page 8. PHONE FUNC (phone function) You can set A. ANSR, R.TONE and PB INVT from this menu. For details, refer to Function and operation on page 10. PHONE BOOK (phone book) Function and operation The contacts on your phone will normally be transferred automatically when the phone is connected. If it is not, use your phone menu to transfer the contacts. The visibility of this unit should be on when you use the phone menu. Refer to VISIBLE (setting the visibility of this unit) on page 9. 1 Press M.C. to display SEARCH (alphabetical list). 2 Turn M.C. to select the first letter of the name you are looking for. ! Press and hold M.C. to select the desired character type. TOP (alphabet)–ΟΛΑ (Greek alphabet)–ВСЕ (Cyrillic alphabet) 3 Press M.C. to display a registered name list. 4 Turn M.C. to select the name you are looking for. 5 Press M.C. to display the phone number list. 6 Turn M.C. to select a phone number you want to call. 7 Press M.C. to make a call. 1 Display PHONE FUNC. Refer to PHONE FUNC (phone function) on page

PRESET 1-6 (preset phone numbers)

3 Turn M.C. to select the function. Once selected, the following functions can be adjusted. A. ANSR (automatic answering) 1 Press M.C. to turn automatic answering on or off. R.TONE (ring tone select) Bluetooth Audio Important ! Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels: — A2DP profile (Advanced Audio Distribution Profile): You can only playback songs on your audio player. The A2DP connection can only be used with APP (smartphone) and BT AUDIO. — AVRCP profile (Audio/Video Remote Control Profile): You can perform playback, pause playback, select songs, etc. ! To use a Bluetooth audio player with this unit, refer to this manual and the manual for your device for operating instructions. ! As the signal from your cellular phone may cause noise, avoid using it when you are listening to songs on your Bluetooth audio player. ! The sound of the Bluetooth audio player will be muted when the phone is in use. ! When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically. ! Playback continues even if you switch from your Bluetooth audio player to another source while listening to a song. ! Depending on the type of Bluetooth audio player you have connected to this unit, operation and information display may not be available for some functions. 1 Connection Use the Bluetooth telephone connection menu. Refer to Connection menu operation on page 9. Basic operations Fast forwarding or reversing 1 Turn and hold down LEVER to the right or left. Selecting a track 1 Turn LEVER. Starting playback 1 Press BAND/ . Switching the display Selecting the desired text information 1 Press DISP to cycle between the following: ! DEVICE INFO (device name) ! TRACK INFO (track title/artist name/album title) ! ELAPSED TIME (track number and playback time) ! CLOCK (source name and clock) ! SPEANA (spectrum analyzer) 1 Press M.C. to turn the ring tone on or off. PB INVT (phone book name view) Setting up for Bluetooth audio 1 Press M.C. to invert the order of names in the phone book. Before you can use the Bluetooth audio function you must set up the unit for use with your Bluetooth audio player. You will need to pair this unit with your Bluetooth audio player.

<QRD3242-A>10 Black plate (11,1) Section Using this unit Operations using special buttons Playing tracks in random order to turn random play on or off. 1 Press 5/ ! The random play range varies depending on the Bluetooth audio player in use. Pausing playback 1 Press 4/f to pause or resume. Enhancing compressed audio and restoring rich sound (sound retriever) 1 Press 3/S.Rtrv to cycle between: 1—2—OFF (off) 1 is effective for low compression rates, and 2 is effective for high compression rates. Function settings

2 Turn M.C. to change the menu option and press to select FUNCTION. 3 Turn M.C. to select the function. Once selected, the following functions can be adjusted. S.RTRV (sound retriever) 1 Press M.C. to select the desired setting. For details, refer to Enhancing compressed audio and restoring rich sound (sound retriever) on page 11. Audio adjustments

2 Turn M.C. to change the menu option and press to select AUDIO. 3 Turn M.C. to select the audio function. Once selected, the following audio functions can be adjusted. ! FADER is not available when SW is selected in REAR-SP. For details, refer to REAR-SP (rear output setting) on page 14. ! SUB.W CTRL is not available when SUB.W is selected in OFF. For details, refer to SUB.W (subwoofer on/off setting) on page 11. ! SLA is not available when FM is selected as the source. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the equalizer. POWERFUL—NATURAL—VOCAL—CUSTOM1—CUSTOM2—FLAT—SUPER BASS The equalizer band and equalizer level can be customized when CUSTOM1 or CUSTOM2 is selected. If selecting CUSTOM1 or CUSTOM2, complete the procedures outlined below. If selecting other options, press M.C. to return to the previous display. ! CUSTOM1 can be set separately for each source. However, each of the below combinations are set to the same setting automatically. ! USB, iPod and APP (iPhone) ! BT AUDIO and APP (smartphone) ! CUSTOM2 is a shared setting used in common for all sources. 3 Press M.C. to display the setting mode. 4 Press M.C. to cycle between the following: Equalizer band—Equalizer level 5 Turn M.C. to select the desired setting. Equalizer band: 80HZ—250HZ—800HZ— 2.5KHZ—8KHZ Equalizer level: +6 to –6 FADER (fader adjustment) LOUDNESS (loudness) 1 Press M.C. to display the setting mode. 2 Turn M.C. to adjust the front/rear speaker balance. Loudness compensates for deficiencies in the lowfrequency and high-frequency ranges at low volume. 1 Press M.C. to select the desired setting. OFF (off)—LOW (low)—MID (mid)—HI (high) BALANCE (balance adjustment) 1 Press M.C. to display the setting mode. 2 Turn M.C. to adjust the left/right speaker balance. STOP (stop) 1 Press M.C. to stop the playback. SUB.W CTRL (subwoofer adjustment) 1 Press M.C. to start playback. EQ SETTING (equalizer recall) Only frequencies lower than those in the selected range are outputted from the subwoofer. 1 Press M.C. to display the setting mode. 2 Press M.C. to cycle between the following: Cut-off frequency—Output level—Slope level Rates that can be adjusted will flash. 3 Turn M.C. to select the desired setting. Cut-off frequency: 50HZ—63HZ—80HZ— 100HZ—125HZ—160HZ—200HZ Output level: –24 to +6 Slope level: –12— –24 BASS BOOST (bass boost) 1 Press M.C. to display the setting mode. 2 Turn M.C. to select a desired level. 0 to +6 is displayed as the level is increased or decreased. HPF SETTING (high pass filter adjustment) Use this function when wanting to listen only to high-frequency sounds. Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers. 1 Press M.C. to display the setting mode. 2 Press M.C. to cycle between the following: Cut-off frequency—Slope level 3 Turn M.C. to select the desired setting. Cut-off frequency: OFF—50HZ—63HZ—80HZ —100HZ—125HZ—160HZ—200HZ Slope level: –12— –24 SUB.W (subwoofer on/off setting) This unit is equipped with a subwoofer output which can be turned on or off. 1 Press M.C. to select the desired setting. NOR (normal phase)—REV (reverse phase)— OFF (subwoofer off) PLAY (play)

English Selecting a repeat play range to select a repeat play range from 1 Press 6/ one or all. ! This function may not be available depending on the type of Bluetooth audio player connected. ! The repeat play range varies depending on the Bluetooth audio player in use. Using this unit

Black plate (12,1) Section Using this unit

SLA (source level adjustment) CLOCK SET (setting the clock) This function prevents the volume from changing too dramatically when the source switches. ! Settings are based on the FM volume level, which remains unchanged. ! The MW/LW volume level can also be adjusted with this function. ! Each of the below combinations are set to the same setting automatically. ! USB, iPod and APP (iPhone) ! BT AUDIO and APP (smartphone) 1 Press M.C. to display the setting mode. 2 Turn M.C. to adjust the source volume. Adjustment range: +4 to –4 1 Press M.C. to display the setting mode. 2 Press M.C. to select the segment of the clock display you wish to set. Hour—Minute 3 Turn M.C. to adjust the clock. System menu Important PW SAVE (power saving) is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When PW SAVE (power saving) is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle’s ignition doesn’t have an ACC (accessory) position.

2 Turn M.C. to change the menu option and press to select SYSTEM. 3 Turn M.C. to select the system menu function. Once selected, the following system menu functions can be adjusted. LANGUAGE (multi-language) 1 Press M.C. to select the desired setting. ENG (English)—РУС (Russian)—TUR (Turkish)

Using this unit 12H/24H (time notation) 1 Press M.C. to select the desired setting. 12H (12-hour clock)—24H (24-hour clock) INFO DISPLAY (sub information) The type of text information displayed in the sub information section can be toggled. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting.

SPEANA—LEVEL METER—SOURCE—CLOCK

—OFF ! The signal bar indicator displays for SPEANA or LEVEL METER when the source is set to RADIO. AUTO PI (auto PI seek) The unit can automatically search for a different station with the same programming, even during preset recall. 1 Press M.C. to turn Auto PI seek on or off. AUX (auxiliary input) Activate this setting when using an auxiliary device connected to this unit. 1 Press M.C. to turn AUX on or off. You can use this setting to adjust the display brightness. The range of settings available for BRIGHTNESS will vary depending on whether DIMMER is on or off. For details, refer to DIMMER (dimmer) on page 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting. DIMMER on: 1 to 4 DIMMER off: 1 to 5 BT AUDIO (Bluetooth audio activation) You need to activate the BT AUDIO source in order to use a Bluetooth audio player. 1 Press M.C. to turn the BT AUDIO source on or off. PW SAVE (power saving) Switching this function on enables you to reduce the consumption of battery power. ! Turning on the source is the only operation allowed when this function is on. 1 Press M.C. to turn the power save on or off. BT MEM CLEAR (clearing the Bluetooth device data stored on this unit) Bluetooth device data stored on this unit can be cleared. To protect your personal information, clear the device memory before you pass the unit on to someone else. The following information will be deleted. Device list/PIN code/call history/phone book/preset phone numbers 1 Press M.C. to show the confirmation display. YES is displayed. Clearing memory is now on standby. If you do not want to clear the Bluetooth device data stored on this unit, turn M.C. to display CANCEL and press it again to select. 2 Press M.C. to clear the memory. CLEARED is displayed and the Bluetooth device data is cleared. ! While this function is in use, do not turn off the engine. BT VERSION (Bluetooth version display) You can display the system versions of this unit and of Bluetooth module. 1 Press M.C. to display the information. APP CONN. SET (APP connect mode setting) Select an appropriate option for your connected device. 1 Press M.C. to select the desired setting. WIRED (for iPhone)—BLUETOOTH (for smartphone) ! This setting is not available when the source is set to APP. DIMMER (dimmer) Selecting the illumination color 1 Press M.C. to turn the dimmer on or off. ! You can also change the dimmer setting by pressing and holding /DIMMER. BRIGHTNESS (brightness adjustment)

2 Turn M.C. to display ILLUMI and press to select.

<QRD3242-A>12 Black plate (13,1) Section Using this unit KEY COLOUR (key section color setting) You can select desired colors for the keys of this unit. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the illumination color. ! Preset colors (ranging from WHITE to BLUE) ! SCAN (cycle through a variety of colors automatically) ! CUSTOM (customized illumination color) DISP COLOUR (display section color setting) You can select the desired colors for the display of this unit. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the illumination color. ! Preset colors (ranging from WHITE to BLUE) ! SCAN (cycle through a variety of colors automatically) ! CUSTOM (customized illumination color) BOTH COLOUR (key and display color setting) You can select the desired colors for the keys and display of this unit. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the illumination color. ! Preset colors (ranging from WHITE to BLUE) ! SCAN (cycle through a variety of colors automatically) PHONE COLOUR (phone color setting) Selecting the key colors displayed when a call is received 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the illumination color. ! FLASHING – The color selected from KEY COLOUR flashes. ! FLASH MODE1 to FLASH MODE6 – The system automatically cycles through all available key colors for this unit. Select the desired mode. ! OFF – No change in key color made when incoming calls are received. ILLUMI FX (illumination effect mode) When this mode is enabled, an illumination effect with lights that slowly fade in and out in a set pattern will appear on the display and keys to signify changes. 1 Press M.C. to turn ILLUMI FX on or off. ! The illumination effect will flash momentarily when the ignition is turned ON/OFF, regardless of whether the ILLUMI FX setting is on or off. Notes ! When CUSTOM is selected, the customized color saved is selected. ! CUSTOM can be set separately from the DIMMER on/off setting. Customizing the illumination color You can create custom illumination colors for both KEY COLOUR and DISP COLOUR.

2 Turn M.C. to display ILLUMI and press to select. 3 Turn M.C. to display KEY COLOUR or DISP COLOUR. Press to select. 4 Press M.C. and hold until the customizing illumination color setting appears in the display. 5 Press M.C. to select the primary color. R (red)—G (green)—B (blue)

3 Turn M.C. to select the MIXTRAX function. Once selected, the following MIXTRAX functions can be adjusted. The function is enabled when MIXTRAX is on. English 3 Turn M.C. to select the illumination function. Once selected, the following audio functions can be adjusted. Using this unit SHORT PLAYBCK (short playback mode) 6 Turn M.C. to adjust the brightness level. Adjustment range: 0 to 60 # You cannot select a level below 20 for all three of R (red), G (green), and B (blue) at the same time. # You can also perform the same operation on other colors. Note You cannot create a custom illumination color while SCAN is selected. About MIXTRAX MIXTRAX technology is used to insert a variety of sound effects in between songs, allowing you to experience your music as a nonstop mix complete with visual effects. Notes ! Depending on the file/song, sound effects may not be available. ! Turn MIXTRAX off if the visual effects it produces have adverse effects on driving. Refer to Operations using the MIXTRAX button on page 5. MIXTRAX menu

2 Turn M.C. to change the menu option and press to select MIXTRAX. You can select the length of the playback time. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting.

1.0 MIN (1.0 minute)—1.5 MIN (1.5 minutes)—

2.0 MIN (2.0 minutes)—2.5 MIN (2.5 minutes)

—3.0 MIN (3.0 minutes)—OFF (off) FLASH AREA (flash area) You can select areas for flashing colors. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting. KEY/DISPLAY (key and display)—KEY (key)— OFF (off) ! When OFF is selected, the color set under ILLUMI is used as the display color. FLASH PATTERN (flash pattern) The flashing color and MIXTRAX special effects display change with changes in the sound and bass levels. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting. ! SOUND LEVEL 1 to SOUND LEVEL 6 – The flash pattern changes according to the sound level. Select a desired mode. ! LOW PASS 1 to LOW PASS 6 – The flash pattern changes according to the bass level. Select a desired mode. ! RANDOM 1 – The flash pattern changes randomly according to the sound level mode and low pass mode. ! RANDOM 2 – The flash pattern changes randomly according to the sound level mode. ! RANDOM 3 – The flash pattern changes randomly according to the low pass mode.

Black plate (14,1) Section Using this unit

DISPLAY FX (display effect) The MIXTRAX special effects display can be turned on or off. 1 Press M.C. to select the desired setting. ON (MIXTRAX special effects display)—OFF (normal display) CUT IN FX (manual cut-in effect) You can turn on or off the MIXTRAX sound effects while manually changing tracks. 1 Press M.C. to select the desired setting. ON (on)—OFF (off) Using this unit The rear speaker leads output and the RCA output of this unit can be used to connect a full-range speaker or subwoofer. Select a suitable option for your connection. 1 Press M.C. to display the setting mode. 2 Turn M.C. to select the desired setting. ! FUL – Select when there is a full-range speaker connected to the rear speaker leads output. ! SW – Select when there is a subwoofer connected directly to the rear speaker leads output without any auxiliary amp. S/W UPDATE (updating the software) Initial menu 1 Press and hold SRC/OFF until the unit turns off. 2 Press and hold SRC/OFF until the main menu appears in the display. 3 Turn M.C. to change the menu option and press to select INITIAL. 4 Turn M.C. to select the initial menu function. Once selected, the following initial menu functions can be adjusted. FM STEP (FM tuning step) 1 Press M.C. to select the FM tuning step. 100 (100 kHz)—50 (50 kHz) REAR-SP (rear output setting) This function is used to update this unit with the latest Bluetooth software. For about Bluetooth software and updating, refer to our website. ! Never turn the unit off while the Bluetooth software is being updated. 1 Press M.C. to start updating. Follow the on-screen instructions to finish updating the Bluetooth software. 2 Press SRC/OFF to select AUX as the source. Note AUX cannot be selected unless the auxiliary setting is turned on. For more details, refer to AUX (auxiliary input) on page 12. Switching the display Selecting the desired text information 1 Press DISP to cycle between the following: ! Source name ! Source name and clock If an unwanted display appears Turn off the unwanted display using the procedures listed below.

2 Turn M.C. to change the menu option and press to select SYSTEM. System menu 1 Press and hold SRC/OFF until the unit turns off. 2 Press and hold SRC/OFF until the main menu appears in the display. 3 Turn M.C. to display DEMO OFF and press to select.

Turn M.C. to switch to YES.

Press M.C. to select. 3 Turn M.C. to change the menu option and press to select SYSTEM. 4 Turn M.C. to select the system menu function. For details, refer to System menu on page 12. Using an AUX source 1 Use the AUX cable to connect an auxiliary device to this unit.

<QRD3242-A>14 Black plate (15,1) Section Installation Installation Connections

ACC position No ACC position ! Use of this unit in conditions other than the following could result in fire or malfunction. — Vehicles with a 12-volt battery and negative grounding. — Speakers with 50 W (output value) and 4 W to 8 W (impedance value). ! To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below. — Disconnect the negative terminal of the battery before installation. — Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring. — Place all cables away from moving parts, such as the shift lever and seat rails. — Place all cables away from hot places, such as near the heater outlet. — Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment. — Cover any disconnected cable connectors with insulating tape. — Do not shorten any cables. — Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited. — Use a fuse of the rating prescribed. — Never wire the negative speaker cable directly to ground. — Never band together negative cables of multiple speakers. ! When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal. ! Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction. ! The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

This unit Use a USB cable when connecting a USB storage device. Connecting a USB storage device directly may be dangerous because it may stick out. Power cord

English Important ! When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

Microphone (4 m) USB port Microphone input Power cord input Front output Rear output AUX input jack (3.5 mm stereo jack) Wired remote input Hard-wired remote control adapter can be connected (sold separately). Fuse (10 A) Subwoofer output Antenna input USB cable (1.5 m) AUX cable (1.5 m)

1 To Power cord input 2 Depending on the kind of vehicle, the function of 3 and 5 may be different. In this case, be sure to connect 4 to 5 and 6 to 3 Yellow Back-up (or accessory) 4 Yellow Connect to the constant 12 V supply terminal. 5 Red Accessory (or back-up) 6 Red Connect to terminal controlled by ignition switch (12 V DC). 7 Connect leads of the same color to each other. 8 Black (chassis ground)

Black plate (16,1) Section Installation

9 Blue/white The pin position of the ISO connector will differ depending on the type of vehicle. Connect 9 and b when Pin 5 is an antenna control type. In another type of vehicle, never connect 9 and b. a Blue/white Connect to system control terminal of the power amp (max. 300 mA 12 V DC). b Blue/white Connect to auto-antenna relay control terminal (max. 300 mA 12 V DC). c Speaker leads White: Front left + White/black: Front left * Gray: Front right + Gray/black: Front right * Green: Rear left + or subwoofer + Green/black: Rear left * or subwoofer * Violet: Rear right + or subwoofer + Violet/black: Rear right * or subwoofer * d ISO connector In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. Notes ! Change the initial menu of this unit. Refer to REAR-SP (rear output setting) on page 14. The subwoofer output of this unit is monaural. ! When using a subwoofer of 70 W (2 W), be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/ black leads. Installation Power amp (sold separately) Perform these connections when using the optional amplifier.

! When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

1 System remote control Connect to Blue/white cable. 2 Power amp (sold separately) 3 Connect with RCA cables (sold separately) 4 To Rear output 5 Rear speaker 6 To Front output 7 Front speaker 8 To Subwoofer output 9 Subwoofer Installation Important ! Check all connections and systems before final installation. ! Do not use unauthorized parts as this may cause malfunctions. ! Consult your dealer if installation requires drilling of holes or other modifications to the vehicle. ! Do not install this unit where: — it may interfere with operation of the vehicle. — it may cause injury to a passenger as a result of a sudden stop.

2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

! The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet. ! Optimum performance is obtained when the unit is installed at an angle of less than 60°. 1 Dashboard 2 Mounting sleeve # Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. DIN Rear-mount Leave ample 5 cm space 5 cm 5cm

1 Line up the holes on the mounting bracket with the holes on the sides of the unit to attach the bracket. DIN front/rear mount This unit can be properly installed using either front-mount or rear-mount installation. Use commercially available parts when installing. DIN Front-mount 1 Insert the mounting sleeve into the dashboard. For installation in shallow spaces, use the supplied mounting sleeve. If there is enough space, use the mounting sleeve that came with the vehicle. 2 Screw in one screw on each side to hold the unit in place.

1 Tapping screw (5 mm × 8 mm) 2 Mounting bracket 3 Dashboard or console

<QRD3242-A>16 Black plate (17,1) Section Installation Installation Using the included bracket 2 Insert the supplied extraction keys into both sides of the unit until they click into place. When installing the microphone on the sun visor

English You can also use the included bracket to mount the unit. Check to make sure that the included bracket matches your particular model of vehicle and then attach it to the unit as shown below.

Fit the microphone lead into the groove. Pull the unit out of the dashboard.

1 Microphone 2 Microphone clip 3 Microphone base

Removing and re-attaching the front panel You can remove the front panel to protect your unit from theft. For details, refer to Removing the front panel and Re-attaching the front panel on page 4.

1 Screw 2 Bracket Removing the unit

Remove the trim ring. Installing the microphone 2 Install the microphone on the steering column. 2 Install the microphone clip on the sun visor. With the sun visor up, install the microphone clip. (Lowering the sun visor reduces the voice recognition rate.)

CAUTION It is extremely dangerous to allow the microphone lead to become wound around the steering column or shift lever. Be sure to install the unit in such a way that it will not obstruct driving. Notes ! Install the microphone in a position and orientation that will enable it to pick up the voice of the person operating the system. ! Use separately sold clamps to secure the lead where necessary inside the vehicle. 1 Trim ring 2 Notched tab ! Releasing the front panel allows easier access to the trim ring. ! When reattaching the trim ring, point the side with the notched tab down. 1 Microphone lead 2 Groove

1 Double-sided tape 2 Install the microphone on the rear side of the steering column. Adjusting the microphone angle 1 Microphone clip When installing the microphone on the steering column 1 Detach the microphone base from the microphone clip. To detach the microphone base from the microphone clip, slide the microphone base.

Black plate (18,1) Appendix Additional information Troubleshooting Symptoms are written in bold and causes in regular, non-indented text. Regular, indented text is used to indicate actions to be taken. The display automatically returns to the ordinary display. You did not perform any operation within about 30 seconds. Perform operation again. The repeat play range changes unexpectedly. Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. Select the repeat play range again. A subfolder is not played back. Subfolders cannot be played when FLD (folder repeat) is selected. Select another repeat play range. NO XXXX appears when a display is changed (NO TITLE, for example). There is no embedded text information. Switch the display or play another track/file. The unit is malfunctioning. There is interference. You are using a device, such as a cellular phone, that may cause audible interference. Move electrical devices that may be causing the interference away from the unit. The sound from the Bluetooth audio source is not played back. There is a call in progress on a Bluetooth connected cellular phone. The sound will be played back when the call is terminated.

Additional information A Bluetooth connected cellular phone is currently being operated. Do not use the cellular phone at this time. A call was made with a Bluetooth connected cellular phone and then immediately terminated. As a result, communication between this unit and the cellular phone was not terminated properly. Reconnect the Bluetooth connection between this unit and the cellular phone. ERROR CHECK USB The device in use does not support voice recognition. Switch to a device that does support voice recognition. The USB connector or USB cable has shortcircuited. Check that the USB connector or USB cable is not caught in something or damaged. CHECK USB USB storage device/iPod FORMAT READ The Bluetooth device cannot be paired with this unit. The information for this unit registered to the Bluetooth device, or that for the Bluetooth device registered to this unit, was deleted somehow. Delete the information for this unit registered to the Bluetooth device and that for the Bluetooth device registered to this unit, if not deleted already. Then, try pairing the Bluetooth device to this unit again. Error messages When you contact your dealer or your nearest Pioneer Service Center, be sure to note the error message. Error messages are written in bold and causes in regular, non-indented text. Regular, indented text is used to indicate actions to be taken. Sometimes there is a delay between the start of playback and when you start to hear any sound. Wait until the message disappears and you hear sound. CHECK USB NO AUDIO There are no songs. Transfer the audio files to the USB storage device and connect. The connected USB storage device has security enabled. Follow the USB storage device instructions to disable the security. SKIPPED The connected USB storage device contains DRM protected files. The protected files are skipped. PROTECT Common AMP ERROR This unit fails to operate or the speaker connection is incorrect; the protective circuit is activated. Check the speaker connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or an authorized Pioneer Service Station for assistance. The connected USB storage device consumes more than maximum allowable current. Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect only compliant USB storage devices. The iPod operates correctly but does not charge. Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back ON, or disconnect the iPod and reconnect. ERROR-19 Communication failed. Perform one of the following operations. –Turn the ignition switch OFF and back ON. –Disconnect the USB storage device. –Change to a different source. Then, return to the USB source. All the files on the connected USB storage device are embedded with DRM. Replace the USB storage device. iPod failure. Disconnect the cable from the iPod. Once the iPod’s main menu is displayed, reconnect the iPod and reset it.

N/A USB

ERROR-23 The connected USB device is not supported by this unit. ! Connect a USB Mass Storage Class compliant device. ! Disconnect your device and replace it with a compatible USB storage device. USB storage device was not formatted with FAT12, FAT16 or FAT32. USB storage device should be formatted with FAT12, FAT16 or FAT32.

<QRD3242-A>18 Black plate (19,1) Appendix Additional information Additional information The iPod firmware version is old. Update the iPod version. Bluetooth connection failed. Follow the instructions that appear on the screen. iPod failure. Disconnect the cable from the iPod. Once the iPod’s main menu is displayed, reconnect the iPod and reset it. CHECK APP STOP Connection to the application failed. Follow the instructions that appear on the screen. There are no songs in the current list. Select a list that contains songs.

START UP APP

NOT FOUND The application has not started running yet. Follow the instructions that appear on the screen. No related songs. Transfer songs to the iPod. Handling guidelines Bluetooth device USB storage device ERROR-10 The power failed for the Bluetooth module of this unit. Turn the ignition switch OFF and then to ACC or ON. If the error message is still displayed after performing the above action, please contact your dealer or an authorized Pioneer Service Station. Application NO BT DEVICE GO TO BT MENU TO REGISTER No Bluetooth device found. Follow the instructions that appear on the screen. CONN. FAILED PRESS BAND KEY TO RETRAY Bluetooth connection failed. Follow the instructions that appear on the screen. iPod Do not leave the iPod in places with high temperatures. Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal. About iPod settings ! When an iPod is connected, this unit changes the EQ (equalizer) setting of the iPod to off in order to optimize the acoustics. When you disconnect the iPod, the EQ returns to the original setting. ! You cannot set Repeat to off on the iPod when using this unit. Repeat is automatically changed to All when the iPod is connected to this unit. Incompatible text saved on the iPod will not be displayed by the unit. Sampling frequency: 8 kHz to 48 kHz (32 kHz,

44.1 kHz, 48 kHz for emphasis)

English ERROR-16 Compatible ID3 tag version: 1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.) M3u playlist: Not compatible MP3i (MP3 interactive), mp3 PRO: Not compatible WAV File extension: .wav Quantization bits: 8 and 16 (LPCM), 4 (MS ADPCM) Sampling frequency: 16 kHz to 48 kHz (LPCM),

22.05 kHz and 44.1 kHz (MS ADPCM)

! You cannot use this function with USB MTP. Connections via USB hub are not supported. Do not connect anything other than a USB storage device. Firmly secure the USB storage device when driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal. Depending on the USB storage device, the following problems may occur. ! Operations may vary. ! The storage device may not be recognized. ! Files may not be played back properly. ! The device may cause audible interference when you are listening to the radio. Compressed audio compatibility (USB) WMA File extension: .wma Bit rate: 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR) Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz Windows Mediaä Audio Professional, Lossless, Voice/DRM Stream/Stream with video: Not compatible MP3 Supplemental information Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name. Russian text to be displayed on this unit should be encoded in one of the following character sets: ! Unicode (UTF-8, UTF-16) ! A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting This unit may not work properly depending on the application used to encode WMA files. There may be a slight delay at the start of playback of audio files embedded with image data or audio files stored on a USB storage device that has numerous folder hierarchies. File extension: .mp3 Bit rate: 8 kbps to 320 kbps (CBR), VBR

Black plate (20,1) Appendix Additional information USB storage device Playable folder hierarchy: up to eight tiers (A practical hierarchy is less than two tiers.) Playable folders: up to 500 Playable files: up to 15 000 Playback of copyright-protected files: Not compatible iPod nano (3rd generation) iPod nano (2nd generation) iPod nano (1st generation) iPhone 5 iPhone 4S iPhone 4 iPhone 3GS iPhone 3G iPhone Depending on the generation or version of the iPod, some functions may not be available. There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies. Operations may vary depending on the software version of iPod. CAUTION iPod compatibility This unit supports only the following iPod models. Made for ! iPod touch (5th generation) ! iPod touch (4th generation) ! iPod touch (3rd generation) ! iPod touch (2nd generation) ! iPod touch (1st generation) ! iPod classic ! iPod with video ! iPod nano (7th generation) ! iPod nano (6th generation) ! iPod nano (5th generation) ! iPod nano (4th generation) Example of a hierarchy Users of iPod with the Lightning Connector should use the Lightning to USB Cable (supplied with iPod). Users of iPod with the Dock Connector should use CD-IU51. For details, consult your dealer. About the file/format compatibility, refer to the iPod manuals. Audiobook, Podcast: Compatible CAUTION Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used. Sequence of audio files The user cannot assign folder numbers and specify playback sequences with this unit. D: C D: C D: C D: C D: C

Partitioned USB storage device: Only the first partition can be played. ! Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no responsibility for any loss of data on media players, smart phones, or other devices while using this product. ! Do not leave a USB storage device in any place that is subject to high temperatures.

Additional information Level 1 Level 2 Level 3 Level 4 : Folder : Compressed audio file 01 to 05: Folder number 1 to 6: Playback sequence USB storage device Playback sequence is the same as recorded sequence in the USB storage device. To specify the playback sequence, the following method is recommended. 1 Create a file name that includes numbers that specify the playback sequence (e.g., 001xxx.mp3 and 099yyy.mp3). 2 Put those files into a folder. 3 Save the folder containing files on the USB storage device. However, depending on the system environment, you may not be able to specify the playback sequence. For USB portable audio players, the sequence is different and depends on the player. Russian character chart D: C D: C D: C D: C D: C

D: Display C: Character Bluetooth profiles In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with the following profiles. ! GAP (Generic Access Profile) ! OPP (Object Push Profile) ! HFP (Hands Free Profile) 1.5 ! PBAP (Phone Book Access Profile) ! A2DP (Advanced Audio Distribution Profile) ! AVRCP (Audio/Video Remote Control Profile) ! SPP (Serial Port Profile) 1.1 Copyright and trademark Bluetooth The Bluetoothâ word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners. MP3 Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue-generating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/

<QRD3242-A>20 Black plate (21,1) Appendix Additional information WMA Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. iPod & iPhone iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. Androidä Android is a trademark of Google Inc. MIXTRAX MIXTRAX is a trademark of the PIONEER CORPORATION. Specifications General Power source ................... 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system ............ Negative type Maximum current consumption ................................... 10.0 A Dimensions (W × H × D): DIN Chassis ............................ 178 mm × 50 mm × 97 mm Nose ................................ 188 mm × 58 mm × 15 mm Chassis ............................ 178 mm × 50 mm × 97 mm Nose ................................ 170 mm × 46 mm × 15 mm Weight ............................. 0.5 kg WMA decoding format ..... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio) (Windows Media Player) WAV signal format ........... Linear PCM & MS ADPCM (Non-compressed) English streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com. Additional information FM tuner Frequency range .............. 87.5 MHz to 108.0 MHz Usable sensitivity ............. 9 dBf (0.8 µV/75 W, mono, S/N: 30 dB) Signal-to-noise ratio ......... 72 dB (IEC-A network) MW tuner Frequency range .............. 531 kHz to 1 602 kHz Usable sensitivity ............. 25 µV (S/N: 20 dB) Signal-to-noise ratio ......... 62 dB (IEC-A network) Audio Maximum power output ... 50 W × 4 70 W × 1/2 W (for subwoofer) Continuous power output ................................... 22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 W load, both channels driven) Load impedance .............. 4 W (4 W to 8 W allowable) Preout maximum output level ................................... 2.0 V Loudness contour ............ +10 dB (100 Hz), +6.5 dB (10 kHz) (volume: –30 dB) Equalizer (5-Band Graphic Equalizer): Frequency ........................ 80 Hz/250 Hz/800 Hz/2.5 kHz/ 8 kHz Equalization range ........... ±12 dB (2 dB step) Subwoofer (mono): Frequency ........................ 50 Hz/63 Hz/80 Hz/100 Hz/ 125 Hz/160 Hz/200 Hz Slope ............................... –12 dB/oct, –24 dB/oct Gain ................................ +6 dB to –24 dB Phase .............................. Normal/Reverse LW tuner Frequency range .............. 153 kHz to 281 kHz Usable sensitivity ............. 28 µV (S/N: 20 dB) Signal-to-noise ratio ......... 62 dB (IEC-A network) Bluetooth Version ............................ Bluetooth 3.0 certified Output power ................... +4 dBm Maximum (Power class 2) Note Specifications and the design are subject to modifications without notice. USB USB standard specification ................................... USB 2.0 full speed Maximum current supply ................................... 1 A USB Class ....................... MSC (Mass Storage Class) File system ....................... FAT12, FAT16, FAT32 MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3

Black plate (22,1) Section Black plate (23,1) Section Black plate (24,1) Section Black plate (25,1) Section Black plate (26,1) Section Black plate (27,1) Section Black plate (28,1) Section Black plate (29,1) Section Black plate (30,1) Section Black plate (31,1) Section PHONE BOOK (annuaire) Black plate (32,1) Section Black plate (33,1) Section Black plate (34,1) Section Black plate (35,1) Section Black plate (36,1) Section Black plate (37,1) Section Installation Installation Connexions

Sans position ACC Black plate (38,1) Section Installation

Black plate (39,1) Section Installation Installation

1 Fil du microphone 2 Rainure Black plate (40,1) Section Installation

Black plate (41,1) Annexe Informations complémentaires Black plate (42,1) Annexe Informations complémentaires Black plate (43,1) Annexe Informations complémentaires Black plate (44,1) Annexe Informations complémentaires MIXTRAX Caractéristiques techniques Black plate (45,1) Français

Black plate (46,1) Sezione Black plate (47,1) Sezione Uso dell’unità Uso dell’unità Unità principale

Black plate (48,1) Sezione Uso dell’unità

Black plate (49,1) Sezione Uso dell’unità Black plate (50,1) Sezione Uso dell’unità

Black plate (51,1) Sezione Uso dell’unità Black plate (52,1) Sezione Uso dell’unità

Black plate (53,1) Sezione Uso dell’unità Black plate (54,1) Sezione Uso dell’unità

Black plate (55,1) Sezione Uso dell’unità Black plate (56,1) Sezione Uso dell’unità

Black plate (57,1) Sezione Uso dell’unità Black plate (58,1) Sezione Uso dell’unità

Black plate (59,1) Sezione Uso dell’unità Black plate (60,1) Sezione Uso dell’unità

Collegamenti Black plate (61,1) Sezione Installazione Installazione Black plate (62,1) Sezione Installazione

Installazione Black plate (63,1) Sezione Installazione Installazione

Black plate (64,1) Appendice Informazioni supplementari Black plate (65,1) Appendice Informazioni supplementari Informazioni supplementari CHECK USB NOT FOUND Black plate (66,1) Appendice Informazioni supplementari Black plate (67,1) Appendice Informazioni supplementari Black plate (68,1) Appendice Informazioni supplementari Black plate (69,1) Italiano

Black plate (70,1) Sección Black plate (71,1) Sección Black plate (72,1) Sección Black plate (73,1) Sección Black plate (74,1) Sección Black plate (75,1) Sección Black plate (76,1) Sección Black plate (77,1) Sección Black plate (78,1) Sección Black plate (79,1) Sección Black plate (80,1) Sección Black plate (81,1) Sección Black plate (82,1) Sección Black plate (83,1) Sección Black plate (84,1) Sección Instalación

Instalación Conexiones

Black plate (85,1) Sección Instalación Black plate (86,1) Sección Instalación
