USER MANUAL Party BIGBEN

Specifications techniques

Waterloo Office Park/Batiment H

Dréve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

BIGBEN

PARTY

EN

PARTYBTPRO

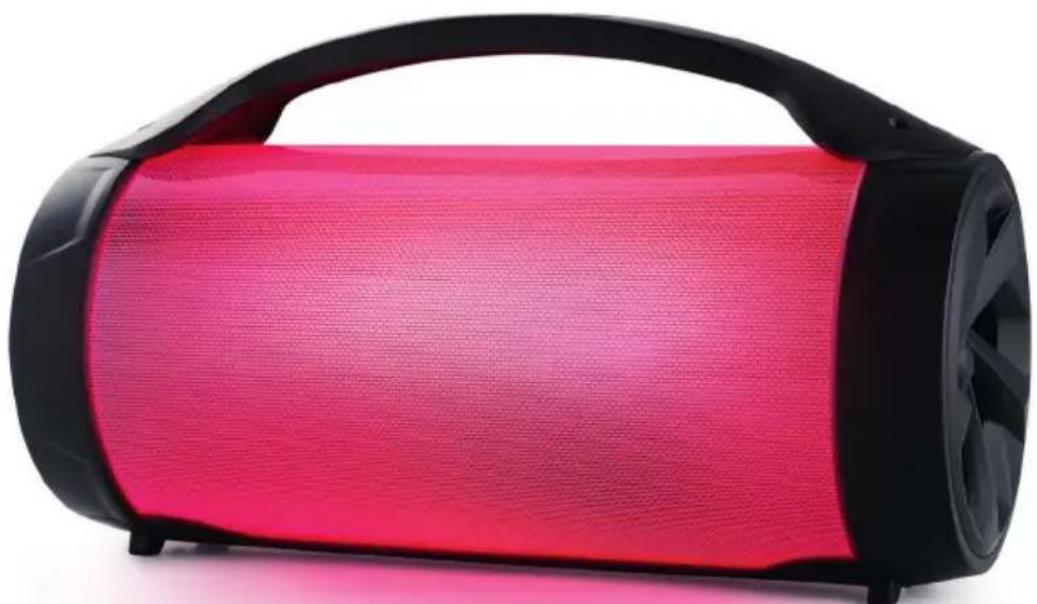

BLUETOOTH LUMINOUS SPEAKER

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE

OPERATING THIS UNIT AND RETAIN FOR

FUTURE REFERENCE

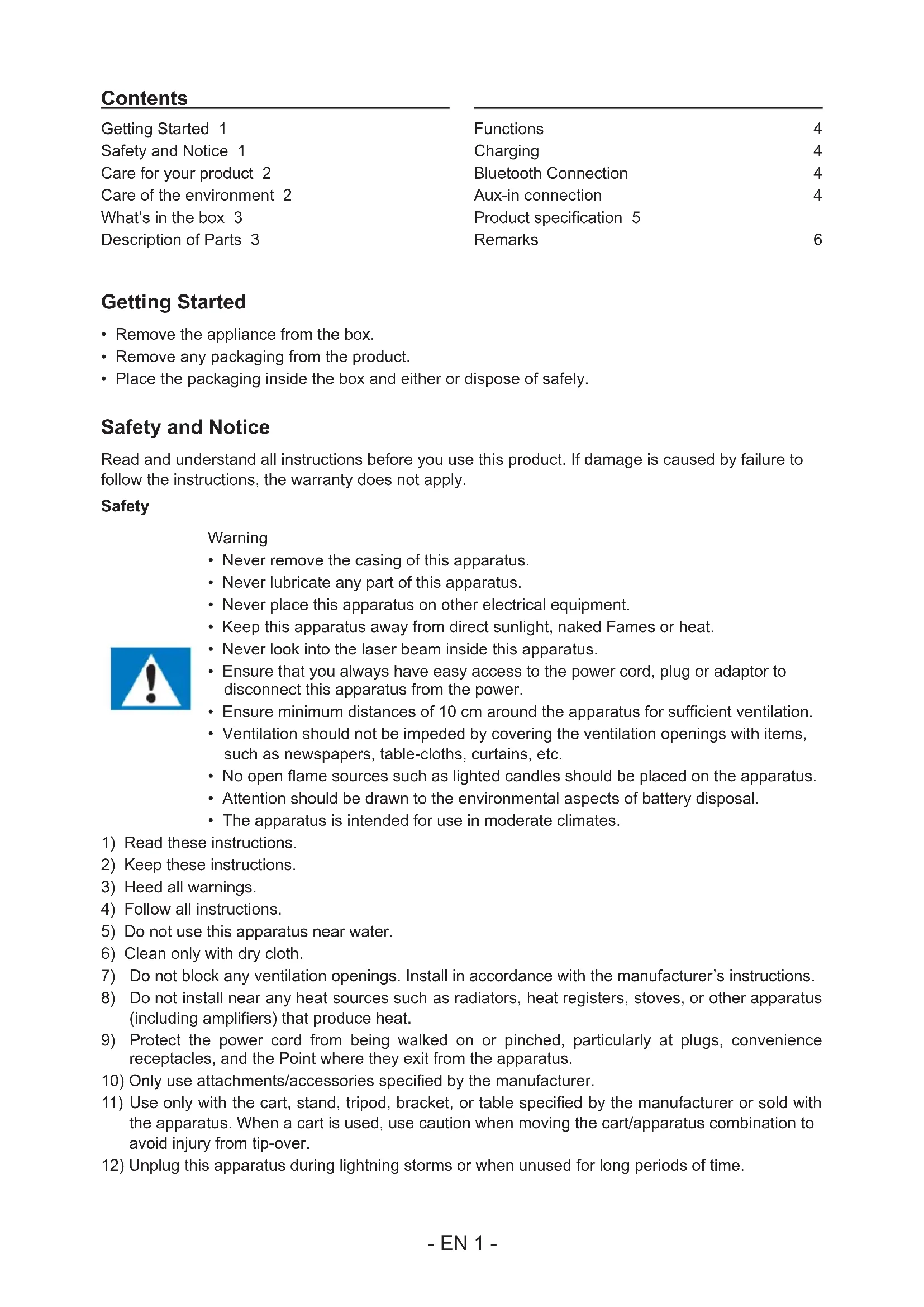

Contents

Getting Started 1

Safety and Notice 1

Care for your product 2

Care of the environment 2

What's in the box 3

Description of Parts 3

Functions 4

Charging 4

Bluetooth Connection 4

Aux-in connection 4

Product specification 5

Remarks 6

Getting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.
• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.
• Ensure minimum distances of 10 cm around the apparatus for sufficient ventilation.
• Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No open flame sources such as lighted candles should be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal.
• The apparatus is intended for use in moderate climates.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
10) Only use attachments/accessories specified by the manufacturer.
11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Apparatus shall not be exposed to dripping or splashing.
15) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
16) Make sure there is enough free space around the product for ventilation.
17) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
18) The rating label is placed on the bottom side of apparatus.

Care for your product

1) Always unplug the appliance when not in use and before cleaning.
2) Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3) Do not use this unit in wet or damp conditions. -
4) Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

CAUTION: TO REDUCE THE RISK OF FIRE OR SHOCK,DO NOT REMOVE COVER OR BACK. NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL

The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.

NOTES:

Please do not attempt to open the back cover or power adapter, as opening or removing the covers may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled: There are no user servicing components inside.

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus, as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

In Case Of Malfunction

Consult the dealer.

What's in the box

Check and identify the contents of your package:

• 1 x Speaker
• 1 x USB Charging Cable
• 1 x 3.5mm Audio Cable
• 1 x Instruction Manual
• 1 x Microphone

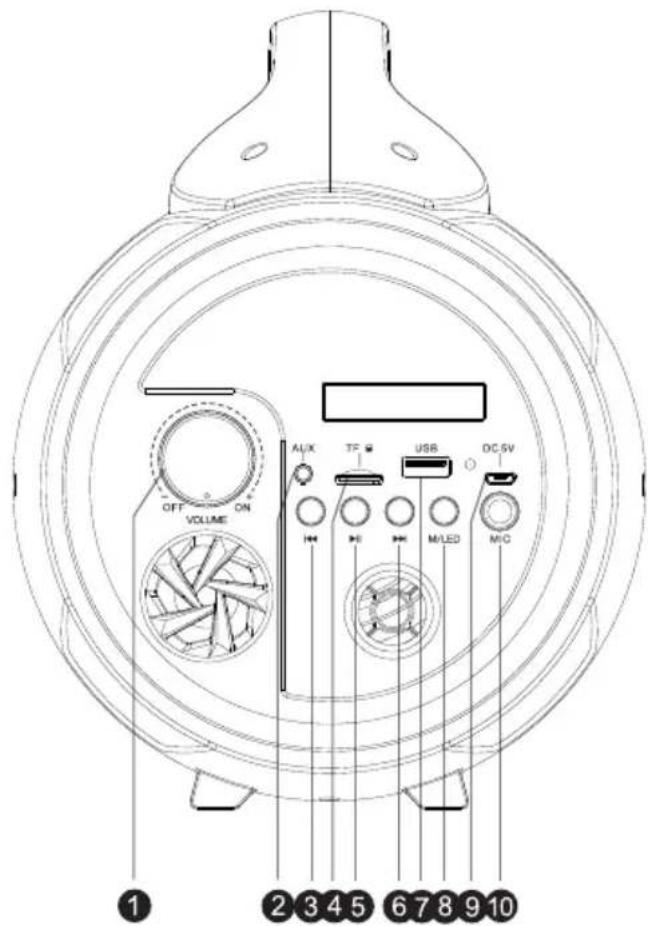

Description of Parts

1) Power ON/OFF Switch & Volume Button
2) Aux-in Slot
3) Previous Track
4) TF/Micro SD Card
5) Play/Pause(Short press for play and pause)
6) Next Track
7) USB Slot
8) Mode: Press this button to switch between Bluetooth/USB and TF Card modes. Long press to switch speaker LED lights on/off.
9) Charging Port
10) Microphone input jack

Type Specifications	Type Specifications
Speaker 5.25 "+" 2" (15W + 5W) Charging Time 6	7 hours
Peak Speaker 75W Playing Time 100% Volume:	around	1.5 hours 50% Volume: around 3 hours
RMS Power 10W Bluetooth Version 4.2
Power Consumptions 0.18W (lights off)/0.8W (lights on)	Bluetooth Frequency 2.4	40-2.80 GHz
Power Input USB 5V, 1A Speaker Frequency 80Hz	hz-20kHz
Speaker + Tweeter Impedance	4Ω	Input	DC 5V
S/N Ratio	≥55dB	Driver	5.25" + 2" 4 Ohms speaker
Battery Type	1200mAh -Lithium Battery	Battery Capacity	1200mAh x 2
Output (V,A)	3.7V. 2.4A. 8.88Wh	Transmission Distance	10m
Dimension	380 x 180 x 223mm	Battery Weight	38.5g x 2

Functions:

USB (USB is only a signal input port for playing music, with no output function)

TF CARD

AUX-IN

BLUETOOTH

RECHARGEABLE BATTERY

VOLUME + / -

PLAY/PAUSE

PREVIOUS/NEXT TRACK

Charging:

Plug the charging cable into the speaker and connect to another USB power source such as a PC/ MAC, etc.

Bluetooth Connection:

Slide power key to the ON position.

Search for "PARTYBTPRO" on your cell phone and select it once found. The indicator will issue an indicating tone after the speaker has successfully connected to the cell phone.

Aux-in connection:

Connect to audio from a cell phone /iPad/Computer/Notebook/DVD/etc.

Plug one end of the audio cable into the speaker and the other end into a cell phone or other audio device.

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Attention should be drawn to environmental aspects of battery disposal.
• The product is designed to use in moderate climates operating temperature.

Product specification

Power output: 20W (RMS 10W)
- Input: DC 5V
- Driver: 5.25^ + 2^ 4 Ohms speaker
- Battery capacity: 1200mAh x 2
Transmission Distance: 10M
Product Dimension: 380 × 180 × 223mm
- The maximum connection distance is around 10 metres. Please place your Bluetooth speaker as close as possible to this device to avoid the connection getting disturbed.
- Support max capacity 32Gb for the USB/TF card play

Remarks:

• Don't discard the electrical and electronic appliances in the regular waste disposal.
  a) Take them to a collection point.
  b) Some components in these appliances may be hazardous to health and the environment.
• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.
• If there is an incoming call while PARTYBTPRO is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)
• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.
  The NFC™ Mark is a trademark of NFC Forum, Inc. in the United States and in other countries.
• You can find the information on the plate located at the back of the unit.

DECLARATION OF CONFORMITY

The undersigned, Bigben Interactive declares that the radio equipment of the PARTYBTPRO type complies with the 2014/53/EU directive.

The complete text is available at https://www/bigben-interactive.co.uk/support/
