USER MANUAL Emma STADLER FORM

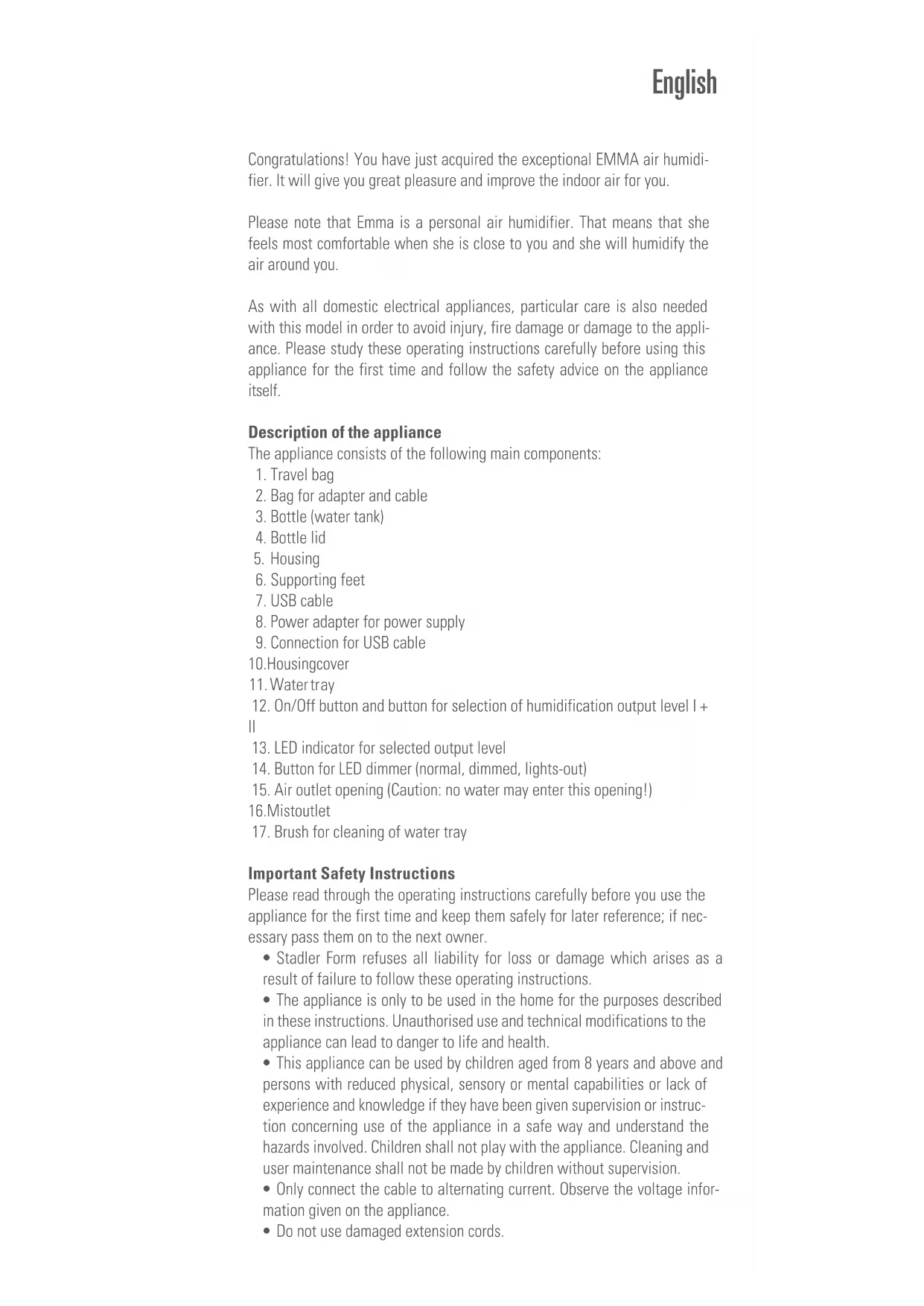

A B CStadler Form Aktiengesellschaft, Chamerstrasse 174, 6300 Zug, Switzerland Phone +41 41 720 48 48, Fax +41 41 720 48 44, www.stadlerform.com/contact Share your feedback about Emma on: Teilen Sie Ihr Feedback von Emma auf: Partagez votre commentaire sur Emma : www.stadlerform.com/Reviews Download instruction manual: Bedienungsanleitung hier herunterladen: Téléchargez le mode d’emploi : www.stadlerform.com/Emma/manual For frequently asked questions go to: Für häufig gestellte Fragen besuchen Sie: Trouvez la foire aux questions sur : www.stadlerform.com/Emma/support Watch the video of Emma: Schauen Sie sich das Video zu Emma an: Regardez la vidéo du Emma : www.stadlerform.com/Emma/videoEnglish Congratulations! You have just acquired the exceptional EMMA air humidi- fier. It will give you great pleasure and improve the indoor air for you. Please note that Emma is a personal air humidifier. That means that she feels most comfortable when she is close to you and she will humidify the air around you. As with all domestic electrical appliances, particular care is also needed with this model in order to avoid injury, fire damage or damage to the appli- ance. Please study these operating instructions carefully before using this appliance for the first time and follow the safety advice on the appliance itself. Description of the appliance The appliance consists of the following main components:

2. Bag for adapter and cable

8. Power adapter for power supply

9. Connection for USB cable

12. On/Off button and button for selection of humidification output level I +

15. Air outlet opening (Caution: no water may enter this opening!)

17. Brush for cleaning of water tray

Important Safety Instructions Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if nec- essary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.

• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Only connect the cable to alternating current. Observe the voltage infor- mation given on the appliance.

• Do not use damaged extension cords.• Do not run the power cord over sharp edges and make sure that it does not get trapped.

• Do not pull the plug from the socket with wet hands or by holding on to the power cord.

• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3 m). Place the appliance such that a person in the bath tub cannot touch the appliance.

• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.

• See to it that the appliance is properly positioned to ensure a high stabil- ity during its operation and make sure that no one can trip over the power cord.

• The appliance is not splash-proof.

• For indoor use only.

• Do not store the appliance outdoors.

• Store the appliance in a dry place inaccessible to children (pack the ap- pliance).

• If the power cord is damaged, it must be replaced by the manufacturer or a repair shop authorized by the manufacturer or by similarly qualified persons in order to avoid a hazard.

• Repairs to electrical appliances must only be carried out by a qualified electrical technician.

• Only use the adapter provided by the manufacturer.

• Prior to any maintenance, cleaning and after each use, switch off the ap- pliance and unplug the cable from the socket.

• Do not use fragrances, aroma or essential oils. These can damage the plastic material and cause the appliance to malfunction. Appliances that are damaged by such additives are not covered by the warranty.

• Make sure that the appliance is placed on a surface that is not sensitive to moisture (avoid parquet flooring or delicate carpets).

• Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

• Be aware that high humidity levels may encourage the growth of biologi- cal organisms in the environment.

• Unplug the appliance during filling and cleaning.

• Never leave water in the water container when the appliance is not in use.

• Clean the water container every 3 days

• Empty and clean the humidifier before storage. Clean the humidifier be- fore next use.

• Warning: Micro-organisms that may be present in the water or in the en- vironment where the appliance is used or stored, can grow in the water container and be blown in the air causing very serious health risks. Before setup A. Take the travel bag (1) and the bag containing the adapter and cable (2) out of the packaging. Open the travel bag (1) and take out the bottle (3).B. Now turn the lid (4) to open the bottle and take the housing (5) out of the bottle. C. Fold out both of the supporting feet (6) to improve the stability of the appliance when the bottle is full. D. Important! Water in the water tray (11) can get into the air outlet open- ing (15) and cause the appliance to leak in the following situations: if the appliance is carried around when the water tray (11) / water bottle (3) is full / if the bottle (3) is removed and put back several times (letting water run into the tray too often will cause it to overflow / if the water tray (11) is tilted sideways when removing the bottle at an angle and water gets into the air outlet opening in the process. It is therefore always impor- tant to make sure that the water tray is carried in an upright position and the bottle is removed from the tray by lifting it straight up rather than at an angle. Setting up / operation

1. Place Emma in the desired location, on a flat surface. Connect the USB

cable (7) to the power adapter (8) and to the housing (9) and insert the adapter into a suitable mains socket. Alternatively, you can also con- nect the USB cable to another power source such as an external battery pack/powerbank with at least 2A.

2. Fill the bottle (3) with clean, cold tap water and seal it by putting the lid

(4) on the bottle and turning it as far as it will go.

3. On the housing cover (10), there is a recess in which the bottle (3) is

placed. Place the bottle (3) in this recess with the lid (4) facing down- wards. Water will now flow into the water tray (11). Important: every time you take off and put back the bottle (3), some water will run into the tray (11). If you do this too often, the water tray (11) may overflow and damage the appliance. We therefore recommend that you only take off the bottle when it needs to be refilled with water.

4. Switch on the appliance by pressing the On/Off button (12). After it has

been switched on, the LEDs (13) on the left next to the On/Off button (12) will light up. If not, check to make sure that there is sufficient water in the tray (11) and that the adapter is connected to the power supply. The appliance has two humidification output levels which are selected using the On/Off button (12). Press once for level II/press twice for level I/ press three times to switch off. The number of LEDs (13) indicates which level you have selected.

5. If you find the LEDs too bright (in a bedroom, for example), you can re-

duce the light intensity by pressing the dimmer button (14). There are three different modes to choose from:

• Normal mode (default mode)

• Dimmed mode (press once)

• Lights-out mode (press twice) Press the dimmer button (14) again to return to normal mode.

6. Emma is the ideal travel companion and also provides pleasant air hu-

midity in dry hotel rooms. Allow the individual parts of the appliance to dry completely before placing the housing (5) in the bottle (3) and sealing the bottle. If you don’t have time to do this, simply do it at home or at your next destination as residual moisture in the sealed bottle can lead to an unpleasant smell.7. Allow all the parts of the appliance to dry completely first before you store Emma. Then open the bottle (3) and store the housing (5) in the bottle. Important: The housing must be placed in the bottle with the mist outlet at the front (16). Otherwise it will be difficult to remove the housing from the bottle again (see point B on page 3). Cleaning Before maintenance and after every use, switch the device off and pull the power adapter (8) out of the socket. Before you clean Emma, the power adapter must be unplugged. Careful: Never immerse the device in water (danger of short circuit).

• To clean the outside, rub with a damp cloth and then dry thoroughly.

• Cleaning the bottle (3): Clean the bottle once a month using warm wa- ter, a drop of washing-up liquid and a brush or sponge. Then rinse out the bottle thoroughly. If there are lime deposits in the bottle or on the lid of the bottle (4), we recommend that you use a household descaling agent or vinegar.

• Cleaning the water tray (11): Clean the water tray once a month. Re- move the cover (10) from the housing (5). Empty the water tray (11) via the front of the tray – where the mist outlet (16) is located. This will prevent water from entering the air outlet opening (15). Now clean the tray using warm water and the cleaning brush (17) provided. If there are lime depos- its in the water tray, we recommend that you use Stadler Form Cleaner & Descaler (www.stadlerform.com/accessories). Alternatively, you can use a household descaling agent or vinegar. Then rinse the tray thoroughly.

• No water may enter the air outlet opening (15). This will damage the ap- pliance and will void any claim to the warranty. Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.

• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).

• Do not push any object into the appliance.

• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.
