USER MANUAL 59006 Goobay

1.8-2.5 m 4M -100° 10M

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a tripod-mounted device with labeled parts 1 through 7

Fig.7: Festinstallation

1 Safety instructions.... 14

1.1 In general 14
1.2 Warning levels.... 14

2 Description and Function 15

2.1 Product....15
2.2 Product parts....15
2.3 Scope of Delivery....15
2.4 General specifications....15
2.5 Specific specifications 16

3 Intended Use 17
4 Preparation 17
5 Mounting 17

5.1 Floodlight for floor mounting (Art. 59004)....17
5.2 Floodlights for wall mounting....17
5.3 Floodlights with stand 18
5.4 Floodlights with tripod....19

6 Installation 19

6.1 Models with protective contact plug 19
6.2 Models for fixed installation....20

7 Make settings 21
8 Maintenance, Care, Storage and Transport 21
9 Liability notice....21
10 Disposal Instructions....21
11 EU Declaration of Conformity 22

1 Safety instructions

1.1 In general

The user manual is part of the product and contains important information for correct use.

Read the user manual completely and carefully before use. The user manual must be available for uncertainties and passing the product.

Keep this user manual.

Installation, assembly, maintenance and repair work must be carried out only by trained electrical specialists.

Risk of electric shock

Cut off power supply before any work on the product, switch off y fuses and secure against reconnection.

Assure and check the absence of voltage before any work on the product.

Do not modify product and accessories.

Hot surfaces

Do not touch in or immediately after use.

Avoid proximity to flammable surfaces.

Heat storage

Do not cover the product.

Do not use in sealed environments.

Avoid stresses such as heat and cold, moisture and direct sun-

light, vibration and mechanical pressure.

Motion detectors are not suitable as a component of alarm systems within the meaning of the Association of Property Insurers (VdS). They can trigger false alarms if the installation place has been chosen unfavorably.

Only use EN 60998-2-1 and EN 60998-2-2 tested terminals.

Follow local installation and building regulations.

In case of questions, defects, mechanical damage, trouble and other problems, non-recoverable by the documentation, contact your dealer or producer.

Use product, product parts and accessories only in perfect condition.

Choose mounting hardware according to the substrate conditions and the product weight.

Regularly check the tightness of product/screws.

Do not over-tighten the screws.

Threads can be damaged.

1.2 Warning levels

WARNING CAUTION

NOTICE

Warnings against hazards that may result in serious injuries or death in case of nonobservance.

Warnings against hazards that may result in injuries in case of non-observance.

Warnings against hazards that may result in material damage in case of non-observance.

2 Description and Function

2.1 Product

This product is a LED floodlight, some models are additionally equipped with integrated infrared motion detector. Objects are recognized by the sensor in the detection area. In case of movement changes, the connected LED floodlight is triggered.

Not dimmable.

2.2 Product parts

1 2 3 4 5 6

Fig.8: Product parts

1 reflector 2 LEDs 3 glass pane 4 Mounting bracket 5 IR sensor 6 Stand / Tripod

2.3 Scope of Delivery

LED floodlight with or without motion detector, operating instructions

2.4 General specifications

input voltage 220-240	V~ 50 Hz
operating conditions -25	~ +40 °C, ≤93 % RH
power factor >0.8
switching cycles >15000
LED life (hrs) 30000
CRI	>65
Color temperature (K) 6500
protection class 1 (only models with safety plug)

Tab.5: General specifications
2.5 Specific specifications

Article	59001 / 59085	59002 / 59086	59003 / 59087	59004	59005	59006
Power (W)	10	20	30	20	20	30
Dimensions (mm)	110 x 108 x 62.2	145.4 x 120.2 x 64.7	195 x 172 x 76.7	332 x 145 x 57	325 x 230 x 205	390 x 260 x 250
Weight (g)	330	520	870	820	1190	1770
Luminous flux ( ± 10 lm)	830	1650	2500	1650	1650	2500
protection level	IP65
Connection	Terminal			Safety plug
Colour

Article	58998 / 59082	58999 / 59083	59000 / 59084	59007	59008	59009
Power (W)	10	20	30	20	30	40
Dimensions (mm)	158 x 110 x 84	184 x 145 x 84	222 x 195 x 92	670-1260 x 630 x 540	940-1850 x 950 x 830	740-1560 x 781 x 680
Weight (g)	380	580	980	1870	2540	3500
Luminous flux ( ± 10 lm)	830	1650	2500	1650	2500	3300
protection level	IP44			IP65
Detection angle (°)	100			-
Range (m)	10
Switch-off delay	10 ± 5 s ~ 10 ± 2 min.
Connection	Terminal			Safety plug
Installation height (m)	1.8-2.5			-
Colour

Tab.6: Specific specifications

3 Intended Use

Any use other than those described in the chapter „Description and Function“ and „Safety Instructions“ is not permitted.

IP44 This product is protected against splashing water and contact by foreign bodies ≥ 1 mm.

IP65 This product is dust-proof against touch and protected against water jets.

4 Preparation

• Compare the specifications of all used devices to ensure c ompatabilit y.
• Check the scope of delivery for completeness and integrity.

5 Mounting

CAUTION

Risk of falling / Risk of crushing

• Place and use tools safely.
• Do not keep limbs between shearing parts.
- Attend to safe cable laying.

5.1 Floodlight for floor mounting (Art. 59004)

1. Put the single parts together.
2. Insert the garden lamp straight and carefully into the ground.
   Ensure safe cable routing.

5.2 Floodlights for wall mounting

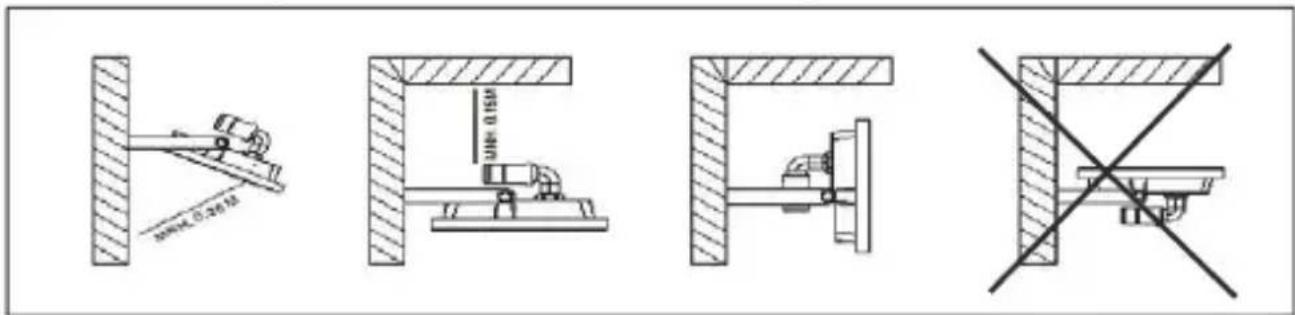

20mm x 0.25 mm 10mm x 0.150 mm No crossing

Fig.9:Mounting location

1. Select the mounting location according to the following criteria:

• The surface must be stable.
• There must be no flammable objects in the vicinity.
• The product must be absolutely straight.

Only models with motion sensor:

• Ventilation openings must not be close.
• Plants, street lighting, reflecting surfaces or objects that move at random may not be within the detection range.

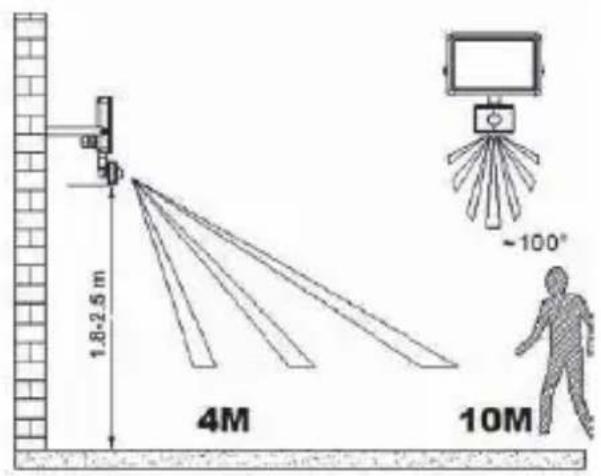

1.8-2.5 m 4M 10M ~100°

1. Select suitable mounting material according to the selected surface and the product weight.

Mounting material is not included.

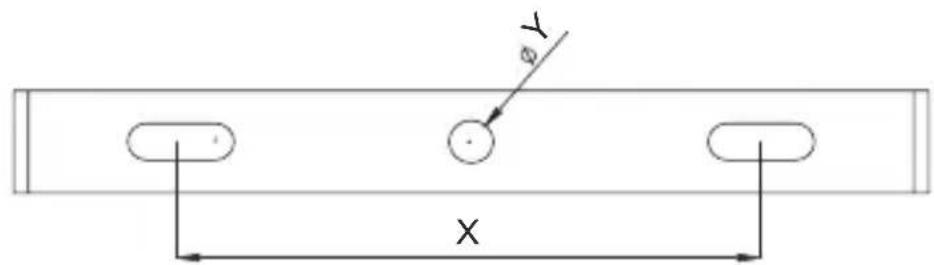

1. Mark the mounting hole spacing X and grommet Y by using the mounting bracket and a suitable pen.

X φ

Fig.11: Floodlights for wall mounting - Mounting

Article Number X Y
59085, 59001, 59082, 58998	55 mm	∅5.5 mm
58999, 59083		∅6.5 mm59002, 59086 8
59003, 59087, 59000, 59084 90 mm

1. Drill the mounting holes with a suitable tool.
2. Attach the LED floodlight motion sensor.

5.3 Floodlights with stand

The floaters are largely pre-assembled.

• Mount the parts as shown.
• Only place the floodlight on even, non-slipping and non-flammable surfaces.

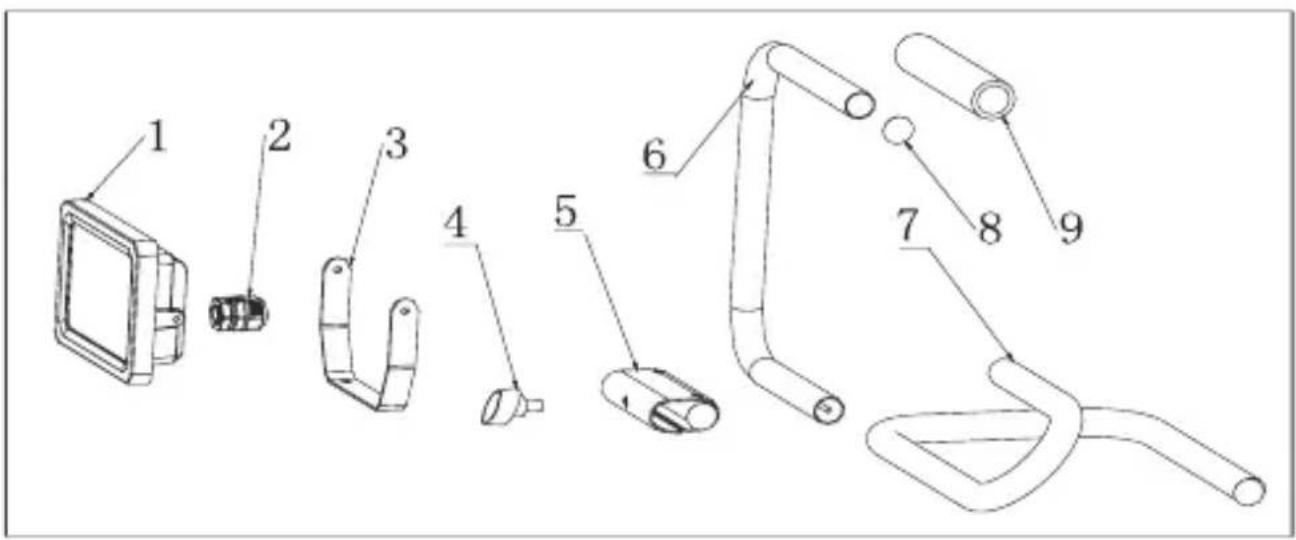

Technical diagram of a mechanical device with numbered parts for identification

Fig.12: Floodlights with stand - Mounting

5.4 Floodlights with tripod

1. Mount the tripods as shown.
2. Attach the bracket (3) to the stand using the screw (4).
3. Attach the floodlight (1) to the bracket (3) using screws (2).
4. Only place the floodlight on even, non-slipping and non-flammable surfaces.

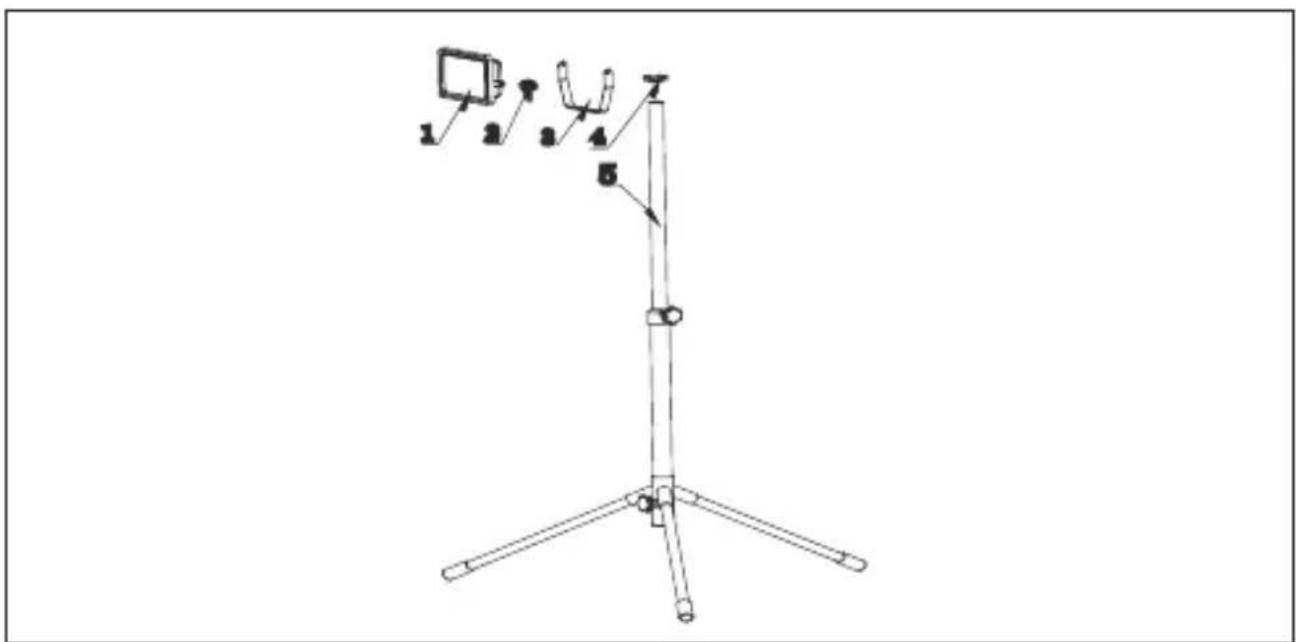

Technical diagram of a tripod-mounted device with labeled parts 1 through 7, showing mechanical components and wiring.

Fig. 13: Floodlight with tripod - Mounting

6 Installation

6.1 Models with protective contact plug

Models with the protective contact plug installed do not have to be installed.

• Connect these to a free and easily accessible socket.
  Protection class IP44 is only available when using IPX4 sockets.

6.2 Models for fixed installation

Risk of electric shock

- Let open cable ends ONLY assemble by experienced electrician.

- Cut off power supply before any work on the product, switch off safety fuse and secure against reconnection.

• Assure and check the absence of voltage before any work on the product.

Models without a mated protective contact plug must be permanently installed on the power supply.

The power cables used must have a minimum cross-section of 1.0 mm^2 . Strands must be provided with wire end ferrules. The following connections are made at the luster terminal of the product:


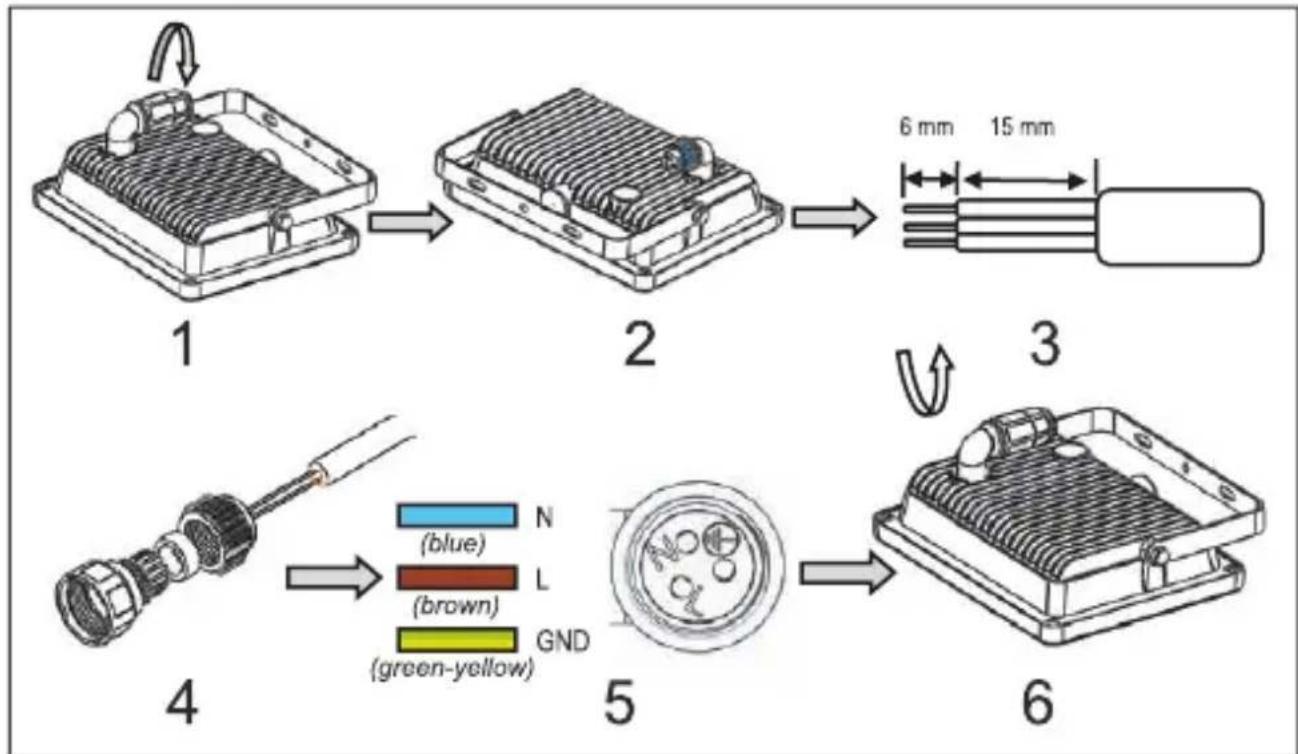

Fig. 14: Fixed installation

1. Turn off the fuse.
2. Open the connection sleeve by turning it counter-clockwise until the connection block is released as shown in Fig. 7 - 2.
3. Insulate the cables as shown in Fig. 7 - 3.
4. Slide the parts of the connection sleeve shown in Figs. 7 - 4 over the connection cable.
5. Screw the power cables as shown in Fig. 7 - 5 using a screwdriver.
6. Close the connector by turning it clockwise, as shown in Figure 7 - 6.

7 Make settings

Only floodlights with motion sensor:

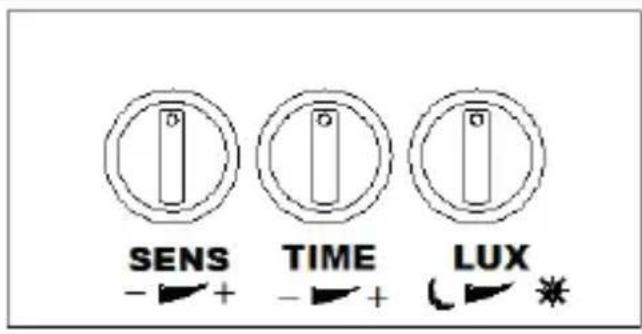

SENS TIME LUX

Tab.8: Adjustments (Floodights with motion sensors)

SENS: SENS adjusts the range of the PIR sensor. This is a minimum of 4 m, maximum of 10 m.

TIME: TIME sets the switch-off delay between min. 10 ± 5 s and 10 ± 2 minutes.

LUX: LUX adjusts the sensitivity of the photo cell and detects the ambient brightness between day and night and night only.

8 Maintenance, Care, Storage and Transport

The product is maintenance-free.

NOTICE

Material Damage

• Only use a dry and soft cloth for cleaning.
• Do not use detergents or chemicals.
• Store cool and dry.
• Store the product out the reach of children and in a dry and dust-protected ambience when not in use.
- Keep and use the original packaging for transport.

9 Liability notice

We reserve the right to printing errors and changes to product, packaging or product documentation. • See our terms of warranty. These are available in their current form under the given contact details.

10 Disposal Instructions

According to the European WEEE directive, electrical and electric equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other.

- Otherwise contaminative and hazardous substances can pollute our environment.

As a consumer, you are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user's manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection.

WEEE No: 82898622

11 EU Declaration of Conformity

CE With the CE sign Goobay ^® , a registered trademark of the Wentronic GmbH ensures, that the product is conformed to the basic standards and directives.
