Product type	LED projector with infrared motion detector
Brand	Goobay
Model	58998
Power	10 W
Luminous flux	830 lm (±10%)
Color temperature	6500 K (Daylight)
Color Rendering Index (CRI)	>65
LED lifespan	30,000 hours
Detection angle	100°
Detector range	4 to 10 m (adjustable)
Time delay	10 s ± 5 s to 10 min ± 2 min (adjustable)
Brightness threshold (LUX)	Adjustable (day/night)
Input voltage	220-240 V~, 50 Hz
Power factor	>0.8
Protection rating	IP44 (splash-proof)
Protection class	I (with earth terminal)
Dimensions (L x W x H)	158 x 110 x 84 mm
Weight	380 g
Material	Plastic, tempered glass
Color	Black
Recommended mounting height	1.8 to 2.5 m
Switching cycles	>15,000
Package contents	Projector, mounting bracket, user manual
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety instructions	Installation by a qualified electrician. Disconnect power before service. Do not cover the projector.
Operating conditions	-25 °C to +40 °C, ≤93% RH

Frequently Asked Questions - 58998 Goobay

How to install the Goobay 58998 projector?

Wall mounting requires drilling holes to the specified dimensions (X=55 mm, Y=5.5 mm) and fixing the bracket. For models with a detector, respect a height of 1.8 to 2.5 m. Electrical installation must be carried out by a qualified electrician after disconnecting the power.

What settings are available on the motion detector?

Three potentiometers are accessible: SENS (range from 4 to 10 m), TIME (time delay from 10 s to 10 min) and LUX (brightness threshold to activate day or night detection).

Can this projector be used indoors?

Yes, the IP44 rating protects against splashes, so it is suitable for outdoor use (garden, terrace) but also in humid rooms like a garage or well-ventilated basement. Avoid completely closed environments.

What to do if the detector does not activate?

First check that the LUX threshold is set to the night position (moon symbol). Make sure no obstacle or heat source (air conditioning, animals) interferes with detection. The SENS range can be increased. If the malfunction persists, contact a professional.

How to clean and maintain the projector?

Clean the housing and glass only with a soft, dry cloth. Never use chemicals, solvents or high-pressure cleaners. Regularly check the tightness of seals and screws.

Is the projector compatible with a dimmer?

No, this LED projector is not dimmable. Using a dimmer would damage the electronics.

What is the lifespan of the LEDs and how to replace a defective LED?

The LEDs have a lifespan of 30,000 hours. They are not individually replaceable; in case of failure, the complete projector must be replaced.

Can I use this projector with an extension cord or cable?

Yes, for models with a safety plug, use an IPX4 outdoor socket. For fixed connection models, the power cable must have a minimum cross-section of 1.0 mm² and be installed by an electrician.

How to dispose of the projector at the end of its life?

In accordance with the WEEE directive, do not dispose of the device with household waste. Take it to a public collection point or your retailer. The WEEE number is 82898622.

What to do in case of defect or mechanical damage?

If the housing, glass or cable is damaged, immediately unplug the device and stop using it. Contact your retailer or manufacturer. Do not attempt to repair it yourself.

USER MANUAL 58998 Goobay

Fig.2: Montageort

    subgraph Component 1
        G["Internal component: Sensor with internal structure"]
    end

    subgraph Component 2
        H["Internal component: Sensor with internal structure"]
    end

    subgraph Component 3
        I["Internal component: Sensor with internal structure"]
    end

    subgraph Component 4
        J["Internal component: Sensor with internal structure"]
    end

    subgraph Component 5
        K["Internal component: Sensor with internal structure"]
    end

    subgraph Component 6
        L["Internal component: Sensor with internal structure"]
    end

Fig.7: Festinstallation

1 Safety instructions.... 14

1.1 In general 14
1.2 Warning levels.... 14

2 Description and Function 15

2.1 Product.... 15
2.2 Product parts....15
2.3 Scope of Delivery....15
2.4 General specifications....15
2.5 Specific specifications 16

3 Intended Use 17
4 Preparation 17
5 Mounting 17

5.1 Floodlight for floor mounting (Art. 59004)....17
5.2 Floodlights for wall mounting....17
5.3 Floodlights with stand 18
5.4 Floodlights with tripod....19

6 Installation 19

6.1 Models with protective contact plug 19
6.2 Models for fixed installation....20

7 Make settings 21
8 Maintenance, Care, Storage and Transport 21
9 Liability notice....21
10 Disposal Instructions....21
11 EU Declaration of Conformity 22

1 Safety instructions

1.1 In general

The user manual is part of the product and contains important information for correct use.

Read the user manual completely and carefully before use. The user manual must be available for uncertainties and passing the product.

Keep this user manual.

Installation, assembly, maintenance and repair work must be carried out only by trained electrical specialists.

Risk of electric shock

Cut off power supply before any work on the product, switch off y fuses and secure against reconnection.

Assure and check the absence of voltage before any work on the product.

Do not modify product and accessories.

Hot surfaces

Do not touch in or immediately after use.

Avoid proximity to flammable surfaces.

Heat storage

Do not cover the product.

Do not use in sealed environments.

Avoid stresses such as heat and cold, moisture and direct sun-

light, vibration and mechanical pressure.

Motion detectors are not suitable as a component of alarm systems within the meaning of the Association of Property Insurers (VdS). They can trigger false alarms if the installation place has been chosen unfavorably.

Only use EN 60998-2-1 and EN 60998-2-2 tested terminals.

Follow local installation and building regulations.

In case of questions, defects, mechanical damage, trouble and other problems, non-recoverable by the documentation, contact your dealer or producer.

Use product, product parts and accessories only in perfect condition.

Choose mounting hardware according to the substrate conditions and the product weight.

Regularly check the tightness of product/screws.

Do not over-tighten the screws.

Threads can be damaged.

1.2 Warning levels

NOTICE

Warnings against hazards that may result in serious injuries or death in case of nonobservance.

Warnings against hazards that may result in injuries in case of non-observance.

Warnings against hazards that may result in material damage in case of non-observance.

2 Description and Function

2.1 Product

This product is a LED floodlight, some models are additionally equipped with integrated infrared motion detector. Objects are recognized by the sensor in the detection area. In case of movement changes, the connected LED floodlight is triggered.

Not dimmable.

2.2 Product parts

Fig.8: Product parts

1 reflector 2 LEDs 3 glass pane 4 Mounting bracket 5 IR sensor 6 Stand / Tripod

2.3 Scope of Delivery

LED floodlight with or without motion detector, operating instructions

2.4 General specifications

input voltage 220-240	V~ 50 Hz
operating conditions -25	~ +40 °C, ≤93 % RH
power factor >0.8
switching cycles >15000
LED life (hrs) 30000
CRI	>65
Color temperature (K) 6500
protection class 1 (only models with safety plug)

Tab.5: General specifications
2.5 Specific specifications

Article	59001 / 59085	59002 / 59086	59003 / 59087	59004	59005	59006
Power (W)	10	20	30	20	20	30
Dimensions (mm)	110 x 108 x 62.2	145.4 x 120.2 x 64.7	195 x 172 x 76.7	332 x 145 x 57	325 x 230 x 205	390 x 260 x 250
Weight (g)	330	520	870	820	1190	1770
Luminous flux ( ± 10 lm)	830	1650	2500	1650	1650	2500
protection level	IP65
Connection	Terminal			Safety plug
Colour

Article	58998 / 59082	58999 / 59083	59000 / 59084	59007	59008	59009
Power (W)	10	20	30	20	30	40
Dimensions (mm)	158 x 110 x 84	184 x 145 x 84	222 x 195 x 92	670-1260 x 630 x 540	940-1850 x 950 x 830	740-1560 x 781 x 680
Weight (g)	380	580	980	1870	2540	3500
Luminous flux ( ± 10 lm)	830	1650	2500	1650	2500	3300
protection level	IP44			IP65
Detection angle (°)	100			-
Range (m)	10
Switch-off delay	10 ± 5 s ~ 10 ± 2 min.
Connection	Terminal			Safety plug
Installation height (m)	1.8-2.5			-
Colour

Tab.6: Specific specifications

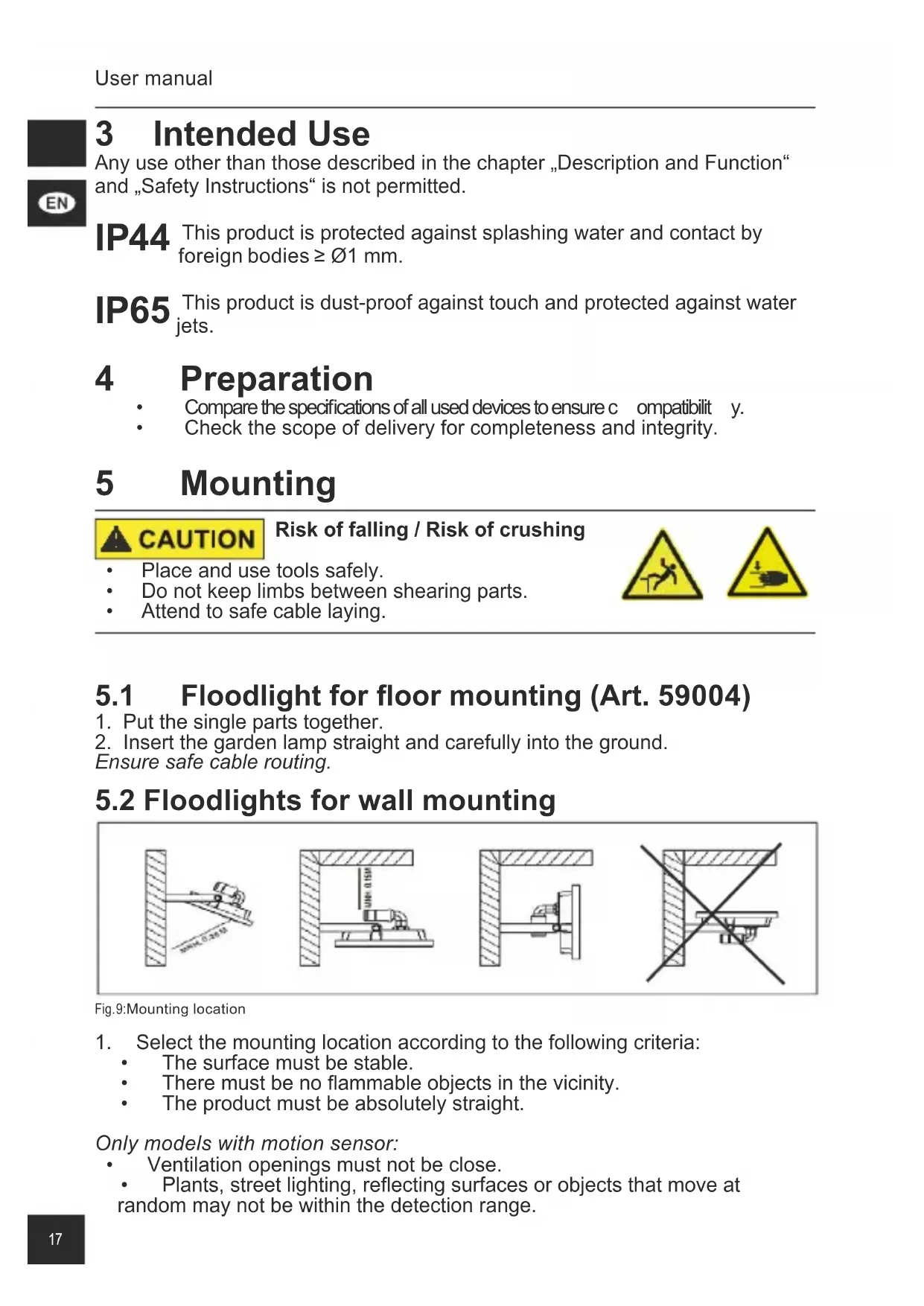

3 Intended Use

Any use other than those described in the chapter „Description and Function“ and „Safety Instructions“ is not permitted.

IP44 This product is protected against splashing water and contact by foreign bodies ≥ 1 mm.

IP65 This product is dust-proof against touch and protected against water jets.

4 Preparation

• Compare the specifications of all used devices to ensure c ompatabilit y.
• Check the scope of delivery for completeness and integrity.

5 Mounting

CAUTION

Risk of falling / Risk of crushing

• Place and use tools safely.
• Do not keep limbs between shearing parts.
- Attend to safe cable laying.

5.1 Floodlight for floor mounting (Art. 59004)

1. Put the single parts together.
2. Insert the garden lamp straight and carefully into the ground.
   Ensure safe cable routing.

5.2 Floodlights for wall mounting

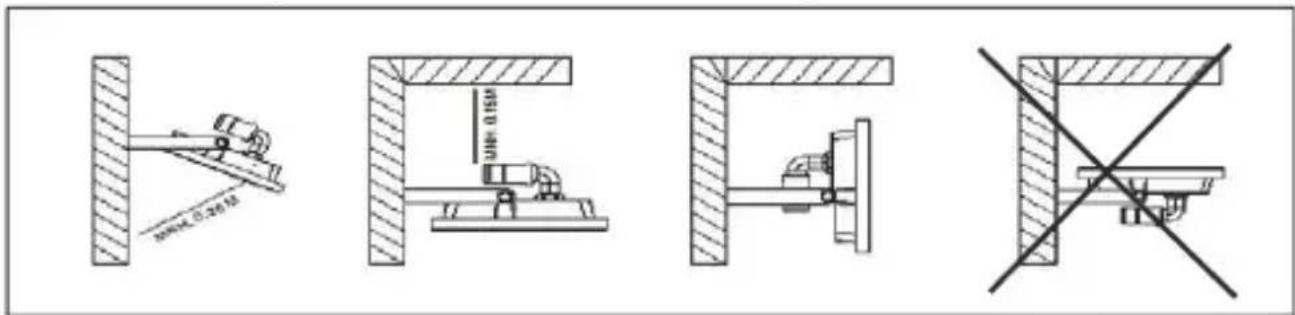

Fig.9:Mounting location

1. Select the mounting location according to the following criteria:

• The surface must be stable.
• There must be no flammable objects in the vicinity.
• The product must be absolutely straight.

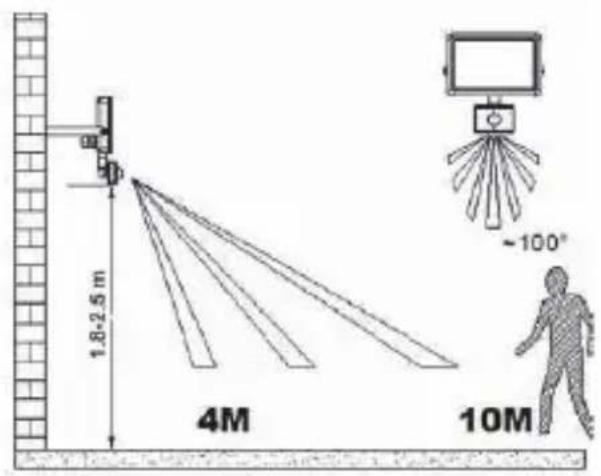

Only models with motion sensor:

• Ventilation openings must not be close.
• Plants, street lighting, reflecting surfaces or objects that move at random may not be within the detection range.

1. Select suitable mounting material according to the selected surface and the product weight.

Mounting material is not included.

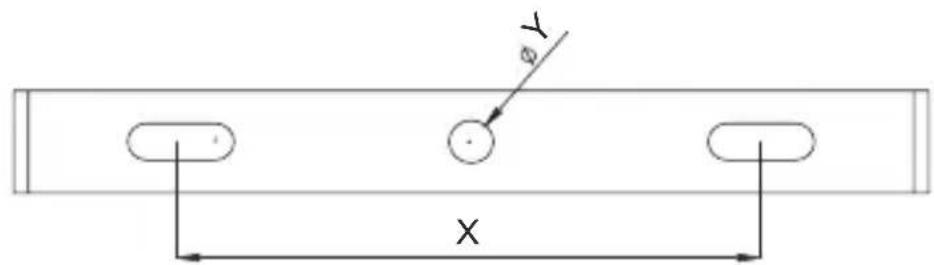

1. Mark the mounting hole spacing X and grommet Y by using the mounting bracket and a suitable pen.

Fig.11: Floodlights for wall mounting - Mounting

Article Number X Y
59085, 59001, 59082, 58998	55 mm	∅5.5 mm
58999, 59083		∅6.5 mm59002, 59086 8
59003, 59087, 59000, 59084 90 mm

1. Drill the mounting holes with a suitable tool.
2. Attach the LED floodlight motion sensor.

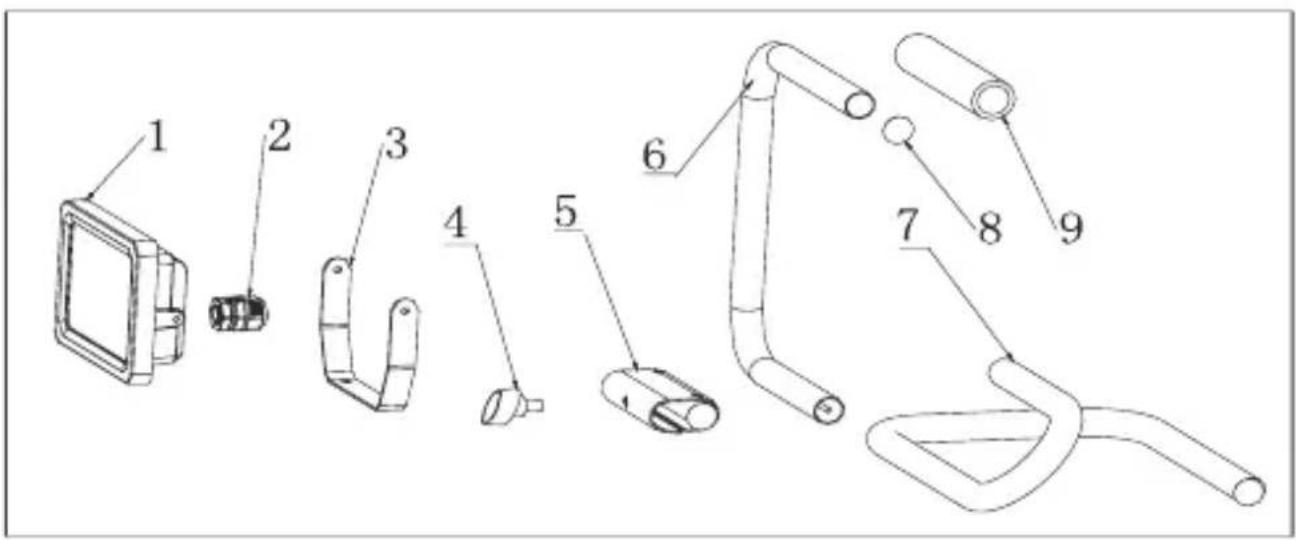

5.3 Floodlights with stand

The floaters are largely pre-assembled.

• Mount the parts as shown.
• Only place the floodlight on even, non-slipping and non-flammable surfaces.

Fig.12: Floodlights with stand - Mounting

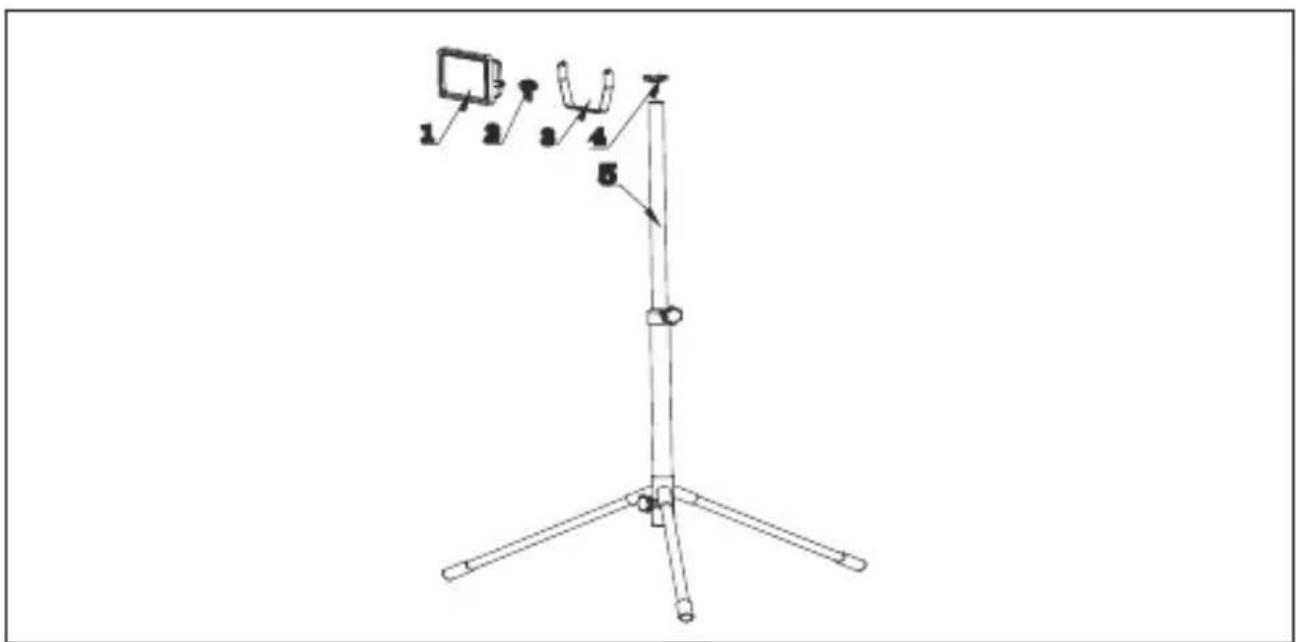

5.4 Floodlights with tripod

1. Mount the tripods as shown.
2. Attach the bracket (3) to the stand using the screw (4).
3. Attach the floodlight (1) to the bracket (3) using screws (2).
4. Only place the floodlight on even, non-slipping and non-flammable surfaces.

Fig. 13: Floodlight with tripod - Mounting

6 Installation

6.1 Models with protective contact plug

Models with the protective contact plug installed do not have to be installed.

• Connect these to a free and easily accessible socket.
  Protection class IP44 is only available when using IPX4 sockets.

6.2 Models for fixed installation

Risk of electric shock

- Let open cable ends ONLY assemble by experienced electrician.

- Cut off power supply before any work on the product, switch off safety fuse and secure against reconnection.

• Assure and check the absence of voltage before any work on the product.

Models without a mated protective contact plug must be permanently installed on the power supply.

The power cables used must have a minimum cross-section of 1.0 mm^2 . Strands must be provided with wire end ferrules. The following connections are made at the luster terminal of the product:


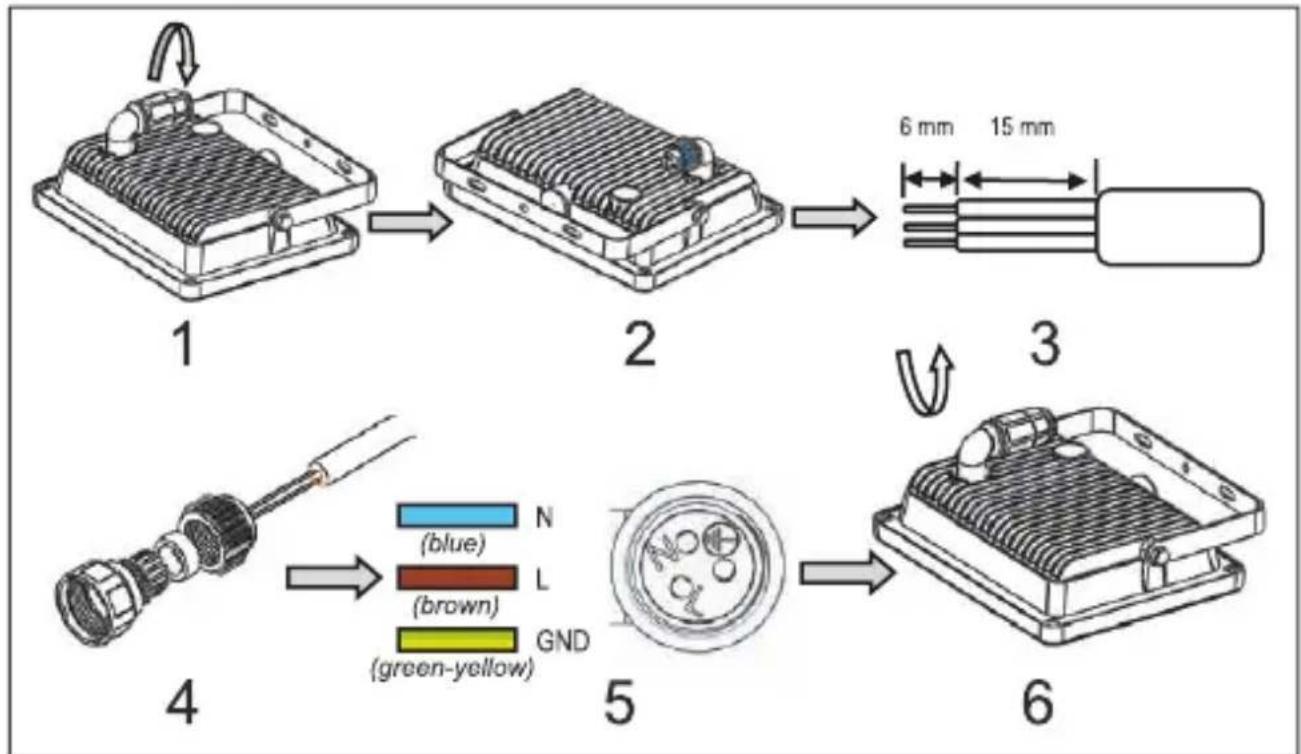

Fig. 14: Fixed installation

1. Turn off the fuse.
2. Open the connection sleeve by turning it counter-clockwise until the connection block is released as shown in Fig. 7 - 2.
3. Insulate the cables as shown in Fig. 7 - 3.
4. Slide the parts of the connection sleeve shown in Figs. 7 - 4 over the connection cable.
5. Screw the power cables as shown in Fig. 7 - 5 using a screwdriver.
6. Close the connector by turning it clockwise, as shown in Figure 7 - 6.

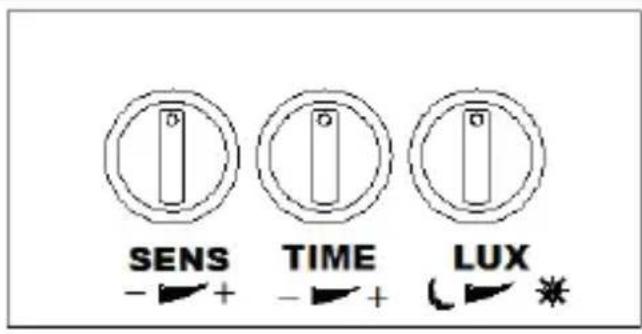

7 Make settings

Only floodlights with motion sensor:

Tab.8: Adjustments (Floodights with motion sensors)

SENS: SENS adjusts the range of the PIR sensor. This is a minimum of 4 m, maximum of 10 m.

TIME: TIME sets the switch-off delay between min. 10 ± 5 s and 10 ± 2 minutes.

LUX: LUX adjusts the sensitivity of the photo cell and detects the ambient brightness between day and night and night only.

8 Maintenance, Care, Storage and Transport

The product is maintenance-free.

NOTICE

Material Damage

• Only use a dry and soft cloth for cleaning.
• Do not use detergents or chemicals.
• Store cool and dry.
• Store the product out the reach of children and in a dry and dust-protected ambience when not in use.
- Keep and use the original packaging for transport.

9 Liability notice

We reserve the right to printing errors and changes to product, packaging or product documentation. • See our terms of warranty. These are available in their current form under the given contact details.

10 Disposal Instructions

According to the European WEEE directive, electrical and electric equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other.

- Otherwise contaminative and hazardous substances can pollute our environment.

As a consumer, you are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user's manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection.

WEEE No: 82898622

11 EU Declaration of Conformity

CE With the CE sign Goobay ^® , a registered trademark of the Wentronic GmbH ensures, that the product is conformed to the basic standards and directives.

BETRIEBSANLEITUNG ....3 USER MANUAL....13 MODE D'EMPLOI....23 ISTRUZIONI PER L'USO....33

Fig.21: Installation fixe

CE With the CE sign Goobay ^® , a registered trademark of the Wentronic GmbH ensures, that the product is conformed to the basic standards and directives.

Betriebsanleitung

User manual

Mode d'emploi

59003 30W LED FLOODLIGHT

59087 30W LED FLOODLIGHT WHITE

59004 20W LED FLOODLIGHT WITH SINGLE SPIKE

59005 20W Portable LED worklight with stand S type

59006 30W Portable LED worklight with stand S type

58998 10W LED FLOODLIGHT WITH SENSOR

59082 10W LED FLOODLIGHT WITH SENSOR WHITE

58999 20W LED FLOODLIGHT WITH SENSOR

59083 20W LED FLOODLIGHT WITH SENSOR WHITE

59000 30W LED FLOODLIGHT WITH SENSOR

59084 30W LED FLOODLIGHT WITH SENSOR WHITE

59007 20W Portable LED worklight with Tripod

59008 30W Portable LED worklight with Tripod

59009 2x20W Portable LED worklight with Tripod

(0.14 € / minute from German landline)

© by Wentronic Deutschland

V1.5

REV2019-09-16

Hotline: [phone]

LED Flood Light with or without motion detector
