RC 18 - Grill plate STEBA - Free user manual and instructions
Find the device manual for free RC 18 STEBA in PDF.
| Product Type | Electric grill plate with raclette function |
| Brand | Steba |
| Model | RC 18 |
| Cooking Materials | Natural stone plate, reversible non-stick plate, non-stick coated pans |
| Plate Type | Reversible plate: smooth side for crêpes/eggs, ridged side for grilling |
| Number of Pans | 4 non-stick coated pans |
| Maximum Temperature | Approx. 250 °C |
| Temperature Control | Continuous variable control with indicator light |
| Recommended Preheat | 30 minutes at maximum setting |
| Functions | Grilling, raclette, gratin |
| Safety | Hot surface, do not immerse, unplug after use, keep out of reach of children |
| Care - Non-stick Plate | Clean with hot water and dish soap; do not use sharp metal objects |
| Care - Stone Plate | Clean with hot water without additives; use a brush if necessary |
| Care - Pans | Soak in hot water with dish soap |
| Included Accessories | Reversible plate, stone plate, 4 pans, pan holder, 2 scrapers |
| Repairability | Repairs exclusively by authorized after-sales service; original spare parts |
| Warranty | Natural stone excluded from warranty (normal cracks during heating) |
| Usage | Private and non-commercial; suitable for kitchens, offices, hotels, bed and breakfasts |
| Power Supply | See rating plate |
| Model Number | RC 18 |
Frequently Asked Questions - RC 18 STEBA
User questions about RC 18 STEBA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grill plate in PDF format for free! Find your manual RC 18 - STEBA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RC 18 by STEBA.
USER MANUAL RC 18 STEBA
Multi-Raclette
RC 18
Instructions for use 12
Mode d'emploi 20

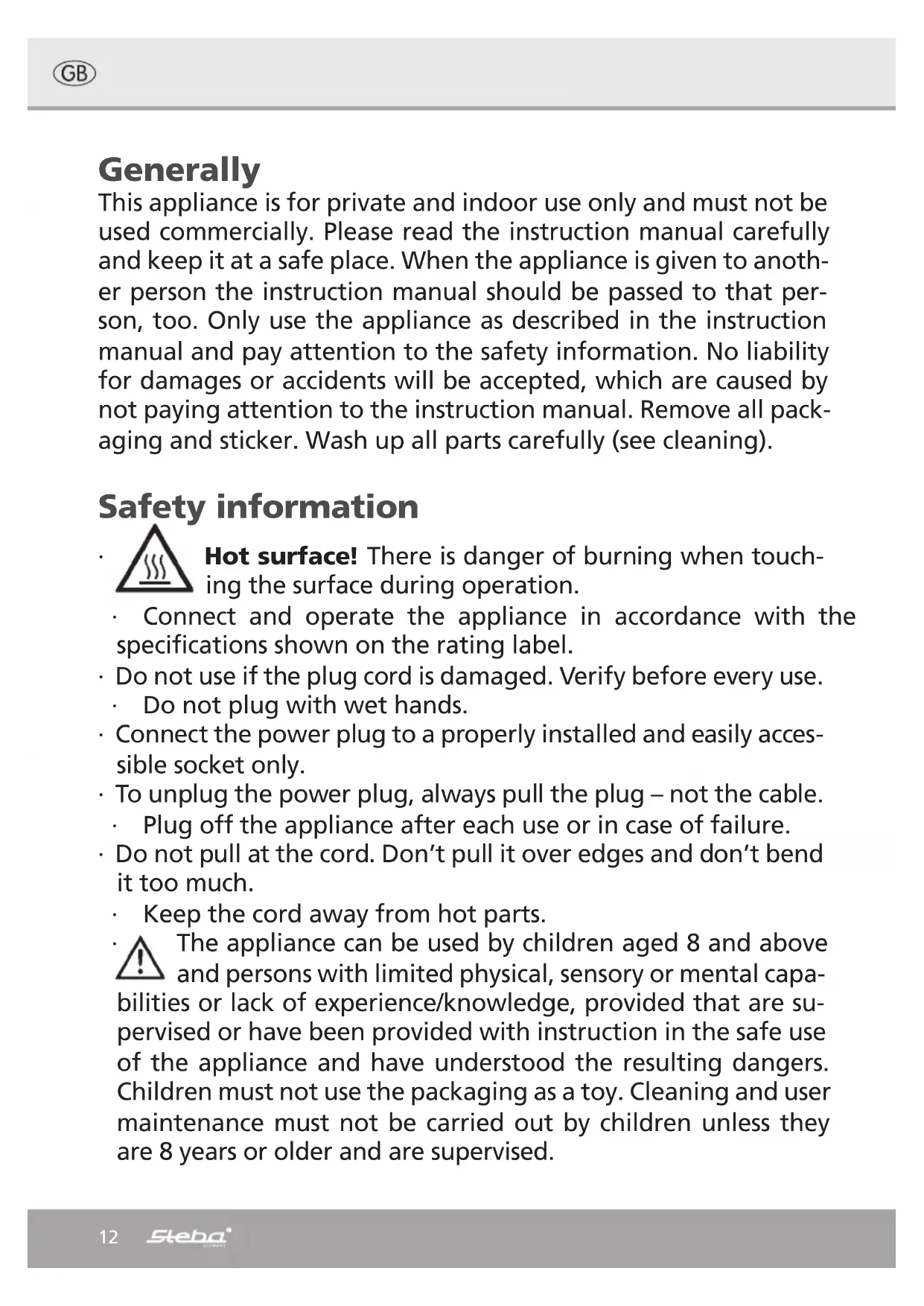

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).
Safety information
Hot surface! There is danger of burning when touching the surface during operation.
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
- Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
- Children under the age of 8 must be kept away from the appliance and the connecting cable.
- Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
-
The appliance must not be operated using a timer or a separate remote system!
-
Never leave the appliance unattended when in use.
- Do not leave the appliance outdoors or in a damp area.
- Never immerse the unit in water.
- Ranger to life! If the device has fallen into water,
first unplug the device and then remove the device from the water. Stop using the device and have it checked by a customer service representative.
- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.
• The device gets hot, only transport if it cooled down.
- Only use the device as described in this manual.
- You must not put any materials such as paper, cardboard, plastic etc. into the appliance.
- This appliance is intended to be used in household and similar applications such as:
o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.
- Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.
Attention! Device gets hot. Danger of burns!
Touchable surfaces will be hot during operation! Place the device on a flat and insensitive surface with and distance of at least 70cm to burnable materials.
- If an extension cable is used, it has to have a cross-section of 1.5mm^2
- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
- Make sure that children do not tease the cable or that a trip hazard occurs.
- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
- Hygiene: Please always clean the device to avoid bacteria and mold formation.
- Unplug the device after usage.
Cleaning
Attention! Pull the plug before cleaning and allow the device to cool down.
- Never immerse the unit into water.
- Clean the appliance as soon as possible alter use, but allow the grill surface to cool down sufficiently first. Cleaning is easiest while the appliance is still fairly warm.
- Do not use aggressive or abrasive cleaning agents.
Basic appliance:
- Use a damp cloth for cleaning. Make sure that no water finds its way inside the appliance. Observe the safety instructions as well.
Gourmet pans:
- Soak the gourmet pans in water with a little washing-up liquid for a while to soften if necessary.
Non-stick grill plate:
- The Non-stick grill plate can likewise be washed up in water and washing-up liquid.
Gourmet stone plate:
- Soak the grill stone in hot water (with no additives!) for some time, and then clean it with clear, warm water and if necessary, a cleaning sponge. Do not use any washing-up liquid or abrasive as these could affect the properties of the stone.
- The grill stone expands when heated. This can cause small, visible cracks to appear on the surface, but these do not affect its function. For this reason, the stone is excluded from guarantee cover.
Workplace
Important:
Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.


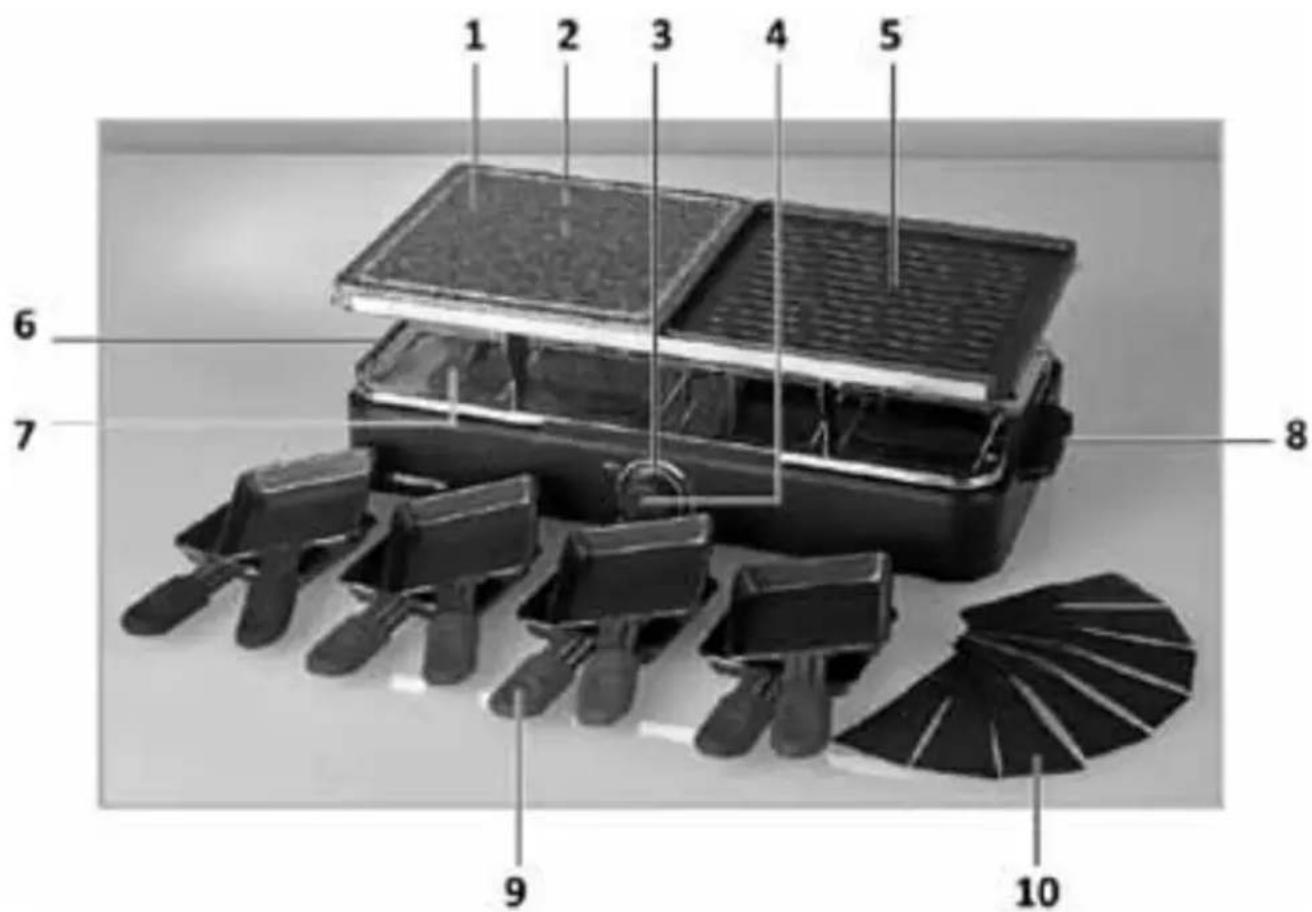

1 2 3 4 5 6 7 8 9 101) Stone plate
2) Heating element (below the grill plates)
3) Temperature control light
4) Temperature selector
5) Non-stick coated grill plate, turnable
6) Handle
7) Place for the pan
8) Handle
9) Non-stick coated pans
10) Spatulas
Put into operation
- Place the grill plate and the stone plate on the device.
- Plug-in the device, the blue LED lights up.
Preheat the device
- Turn the temperature selector to "max". the grilling surface has to be preheated before placing any food on top of it. The preheating time is approx. 30 minutes.
- Once the temperature is reached, the LED turns out and goes on again if the device heats. The thermostat clocks.
- Turn the temperature selector to the desired heating power:
o A high setting for medium / medium-raw meat
o A lower setting if the meat should be well-done
o A medium setting is perfect for cook au-gratin
Purpose / Practical Tips
With this raclette device you have an ideal combination: you can prepare raclette in the pans and grill on the grill plates. With this manual, we would like to give you some general tips for a cosy raclette grill evening. You will find many more recipes in modern cookbooks and magazines. While using the pans, make sure that you do not overload them, otherwise they will not fit properly into the device. Do not cut on the grill plates.
The following food can be put on the plates:
• Stone plate: meat, fish, vegetables, crustacea
- Ribbed plate: meat, sausages, spits, vegetables
- Flat plate: crêpes, fried egg, etc.
Important note
Cold-pressed oils, such as olive oil should not be used as dripping as these oils have a poor quality at high temperatures.
Due to the high grill temperatures (up to 250^ C), residues of oil, juices, herbs, etc. build up on the hot grill surface and the non-stick effect decreases. It is hard or impossible to remove these residues from the grilling plate.
Therefore, only use heat-resistant oils!
1. Grilling on the grilling plate
When planning the evening, reckon on about 200 to 250 grams of material per person. On the grill plate you can prepare meat (e.g. rump steak or mince), fish, and a wide variety of tasty dishes. A large number of side-dishes, sauces, and dips are suitable to accompany them.
- How well-done the dishes have to be, depends on the type of meat or fish, the
- length of time it takes, its initial temperature, and its thickness. If you prefer your steaks not too rare, do not cut them too thick.
- The time you give meat or fish is a matter of your personal taste. Turn the meat or fish over from time to time.
- Finally, you can salt the meat or fish, or add a sauce to it. Do not salt before grilling as this draws the juice out.
No-stick grilling plate:
- This grill surface is coated for easy cleaning. On this area you can barbecue meat and vegetables. Do not use sharp metallic objects such as forks or knives to turn food over, as the coating may be damaged.
Stone plate:
- No oil or grease is needed on the stone, so the natural flavour of meat, fish, and other ingredients is preserved (with the exception of the oil you apply before first using the stone).
• Always use the stone plate with the smooth surface upwards. - It is possible that the meat or fish could stick (burn in slightly) the first time the appliance is used. Do not turn the meat or fish over until it is very easy to loosen from the surface.
- The grill stone is particularly suitable for the natural grilling of all kinds of juicy meat, fruit, and vegetables.
2. Raclette dishes with the gourmet pans
You can fill the pans with all kinds of ingredients cut up small, whatever takes your fancy, cover it with cheese, and heat it under the grill until the cheese melts. Anything is suitable that you can think of for overbaking with cheese, e.g. meat cut into tiny pieces, poultry, fish, fruits de mar, sausage, fruit, and vegetables. There are specially selected raclette cheeses on the market, but you can try other kinds provided their tat content is over 45%.
Place the pans only into the corresponding recess! Never push the pans further, otherwise the handles may melt.
3. Overbaking „au gratin“ with cheese
You can use this raclette grill to cover the dishes you have made on the grill with a delicious gratin cheese crust. Simply scatter grated cheese, possibly mixed with caraway seeds, over the dish, or lay it on top in slices, and place the gourmet pan under the grill.
The gourmet pan will be heated from on top by radiant heat, just like under a grill. First the cheese will melt, then it goes dark in colour. Take the pan out as soon as the cheese is a crisp golden brown.
4. Old-original raclette cheese method
In this instance, the cheese is at the focal point of the raclette party. Plan about 200 to 250 grams of cheese and potatoes per person, and side-dishes as well. Place a slice of cheese about 5 mm (3/8th of an inch) thick in the pan, cut to fit, and push it in under the grill. Once the cheese has melted into a creamy mass, take the pan out and extract the cheese with the aid of a small wooden spatula and pour it onto boiled or foil potatoes, French bread, or toast.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.
PS
PP
PE
Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.
Service and Repair:
If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
