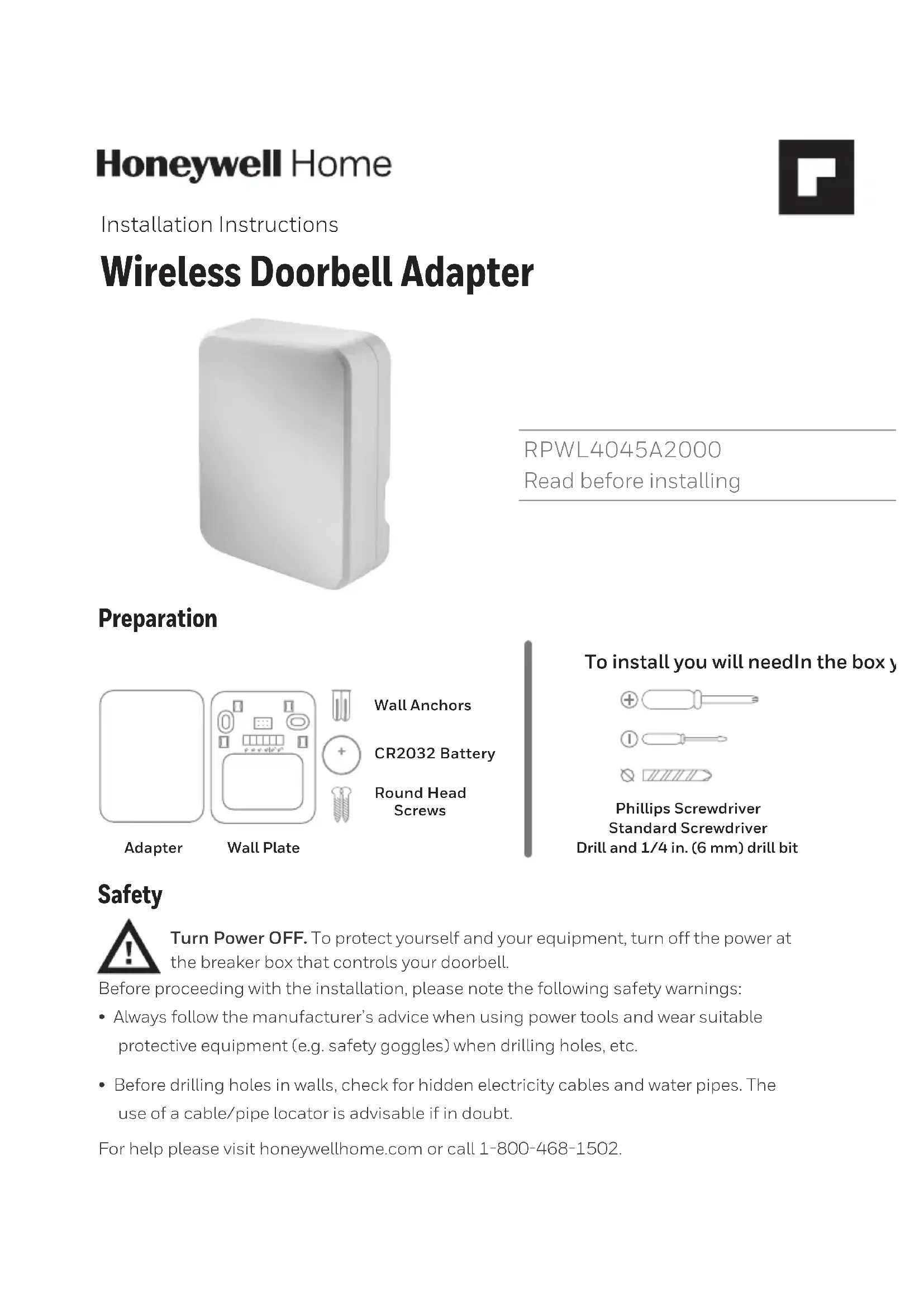

Installation Instructions Wireless Doorbell Adapter RPWL4045A2000 Read before installing Preparation AdapterWall AnchorsRound Head ScrewsPhillips ScrewdriverStandard ScrewdriverDrill and 1/4 in. (6 mm) drill bit To install you will needIn the box you will find CR2032 BatteryWall Plate Safety Turn Power OFF. To protect yourself and your equipment, turn off the power at the breaker box that controls your doorbell. Before proceeding with the installation, please note the following safety warnings:

• Always follow the manufacturer’s advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.

• Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt. For help please visit honeywellhome.com or call 1-800-468-1502.Wiring

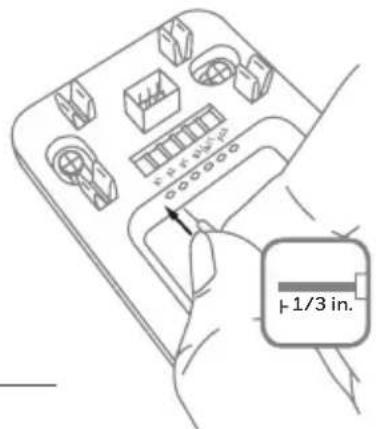

1. Make sure at least 1/3-inch of each wire is exposed for easy

insertion into the wire terminals.

2. Insert the wires into the appropriate terminals. Refer to the

wiring diagrams below.

3. Connect the wires to the adapter terminals.

You can connect one or two doorbell pushes and transformers. A1/A2 Connect to one push button B1/B2 Connect to a second push button (if used) AC1 Connect to one line voltage transformer (if used) AC2 Not used

4. When the wiring is complete, turn the power back on.

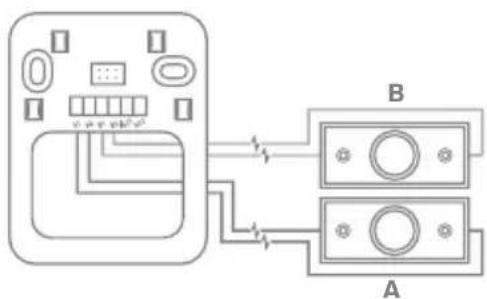

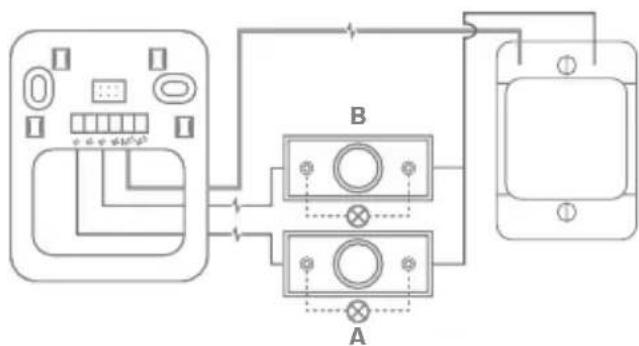

Wiring 1 (A only) or 2 (A and B) Pushes Wiring 1 (A o/nly) or 2 (A and B) Pushes with 1 Transformer Install Adapter

1. Pull the adapter apart from the wall plate.

2. Open the battery cover in the wireless adapter and install the

3. Remove the existing doorbell chime from the wall.

4. Screw the wall plate to the wall using the included screws and

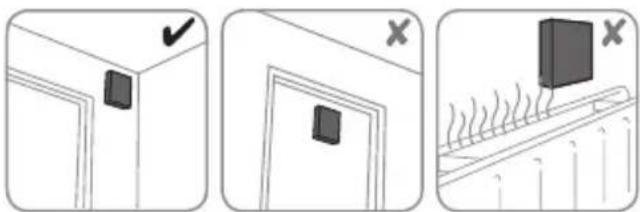

anchors (if not using the existing anchors). Drill 1/4 inch holes for the anchors. Choose a Location Choose a location that is not near a heat source or on somthing that moves (like a door).Pairing the Adapter and the Doorbell

1. Press and hold the Setting button on the doorbell for three seconds.

2. Press the button on the back of the adapter.

3. Within 12 seconds of pressing the button on the adapter, press the

Music button to select the ring for the doorbell.

4. Within 12 seconds of pressing the button on the adapter, press the Sunlight button to

select a halo light color (if available ) for that doorbell.

5. When the wiring is complete, snap the wireless adapter onto the wall plate.

Maintenance Your adapter requires no maintenance except to periodically change the battery. If using the correct battery, its life should be approximately:

• Up to 2 years; replace with CR2032 lithium battery Low Battery Notification When the adapter battery is low an LED on the front of the adapter gives 3 short ashes until batteries are replaced. Specications Doorbell Adapter Operating Temperature 32°F to 122°F (0ºC to 50ºC) RF Frequency US/Canada 916.8 MHz Range (open eld) Up to 350 ft. (106 m) Sound Level (typical) - RF Power <1mW Battery Type CR2032 (3V) Battery Life (5 activations/day) Up to 2 yearsResideo Inc., 1985 Douglas Drive North Golden Valley, MN 55422 www.resideo.com © 2022 Resideo Technologies, Inc. All rights reserved. The Honeywell Home trademark is used under license from Honeywell International, Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates. 33-00195EFS—07 M.S. Rev. 04-22 | Printed in United States 33-00195EFS-07 FCC Regulations

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IC Regulations CAN ICES-3(B)/ NMB-3(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s

accept any interference, including interference that may cause undesired operation of the device.

users can obtain Canadian information on RF exposure and compliance.

Warranty 1-year limited warranty Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for

determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo’s option). If the product is defective,

to you. This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Resideo that the defect was caused by damage which occurred while the product was in the possession of a consumer. Resideo’s sole responsibility shall be to repair or replace the product within the terms stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
